Hot Selling China Brand Mini 3ton Front Wheel Loader LW300KN New Loaders for Construction
- Category: >>>
- Supplier: Cruking Engineering Equipment (Xiamen) Co. Ltd.Cruking Ltd.
Share on (1601298810247):
Product Overview
Description
e-mail:cleo@cruking.com
Whatsapp/Wechat/Mobile:86 13860315407
Products Description
Hot Selling China Brand Mini 3ton Front Wheel Loader LW300KN
New Loaders for Construction
LW300KN is the latest generation of loaders introduced. The product adopts the international mainstream modelling, the best matching of the power train, and the working device is fully optimized. It is a high-quality, high-efficiency, cost-effective small-sized loader widely used in housing construction, road maintenance, agriculture, forestry, water conservancy, sand and gravel yards and other fields. Small construction work.1.Streamlined appearance, large field of vision glass, circular weight, beautiful appearance, the international mainstream.
2. features heavy-duty transmission and structural components that are extremely reliable.
3.People-oriented design ensures safety, reduces fatigue and creates an excellent operating environment for you.
4.Designed with a long wheelbase (2250mm) to accommodate all types of heavy load conditions.
5.The unloading height can reach up to 3.0 meters to meet the needs of various occasions.
6.Travel speed up to 20km/h, efficient operation, quick transition.
7.Can be equipped with hydraulic pilot, warm air, sound, etc., comfortable operation, driving safety.
Product Paramenters
Description | Unit | Parameter value | ||
Rated operating load | kg | 3000 | ||
Bucket capacity | m³ | 1.5~2.5 | ||
Machine weight | kg | 10900±200 | ||
Dump clearance at maximum lift | mm | 2770~3260 | ||
Reach at maximum lift | mm | 1010~1210 | ||
Wheel base | mm | 2900 | ||
Tread | mm | 1850 | ||
Height of hinge at maximum lift height | mm | 3830 | ||
Working height(fully lifted) | mm | 4870 | ||
Max.breakout force | kN | 130 | ||
Max.horse power | kN | 95 | ||
Hydraulic cycle time-raise | s | 5.4 | ||
Total hydraulic cycle time | s | 9.3 | ||
Min. turning radius over tyres | mm | 5170 | ||
Articulation angle | ° | 38±1 | ||
Gradeability | ° | 28 | ||
Tyre size | 17.5-25-12PR | |||
Overall machine dimension L×W×H | mm | 7245×2482×3320 | ||
Model | WP6G125E201 | |||
Emission standards | Emission 2 | |||
Rated Power/Speed | kW/rpm | 92/2000 | ||
Fuel Tank | L | 170 | ||
Hydraulic Tank | L | 175 | ||

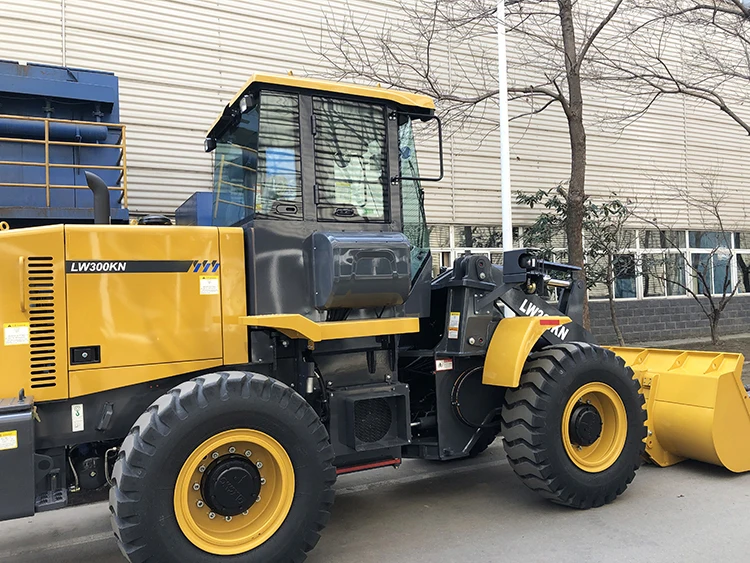

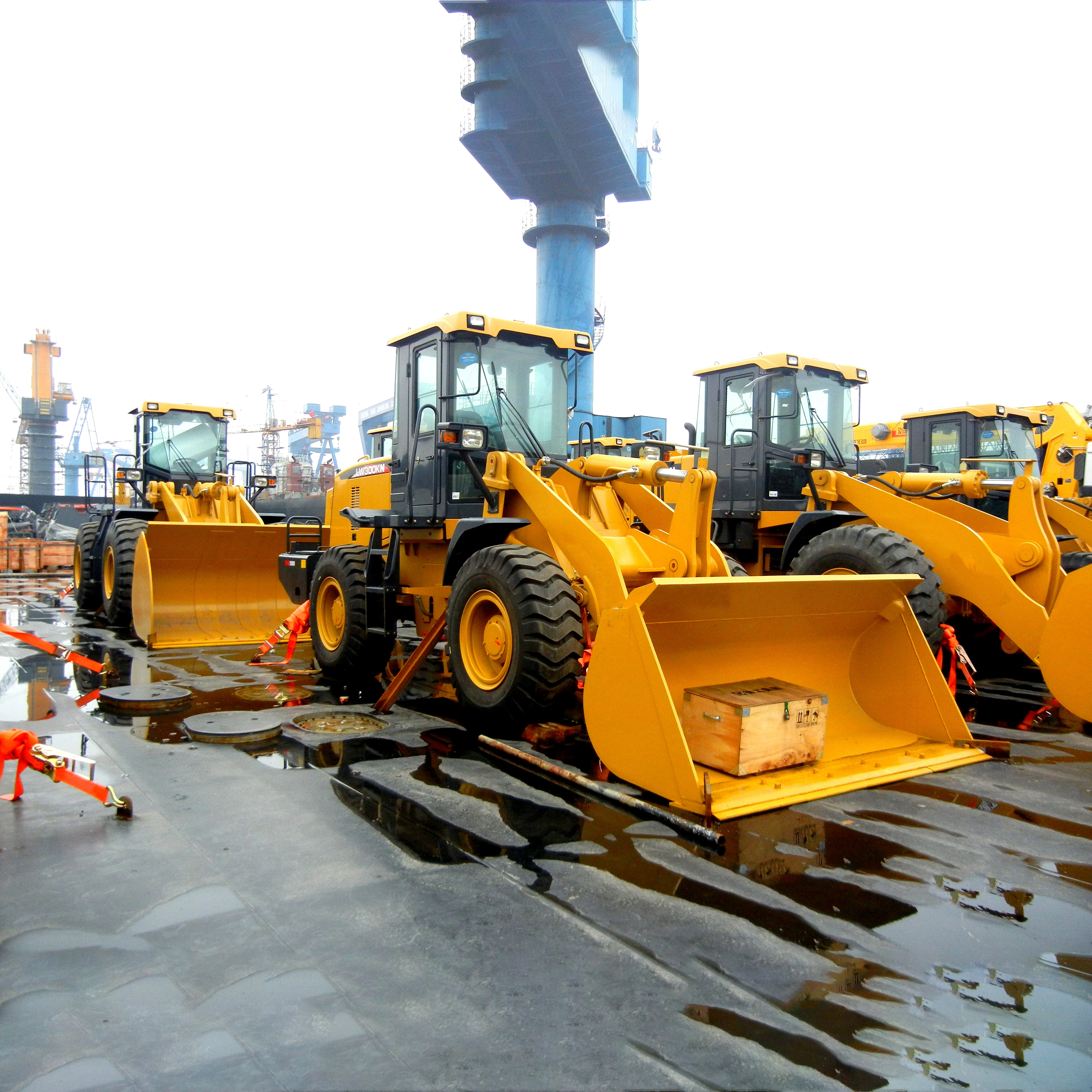

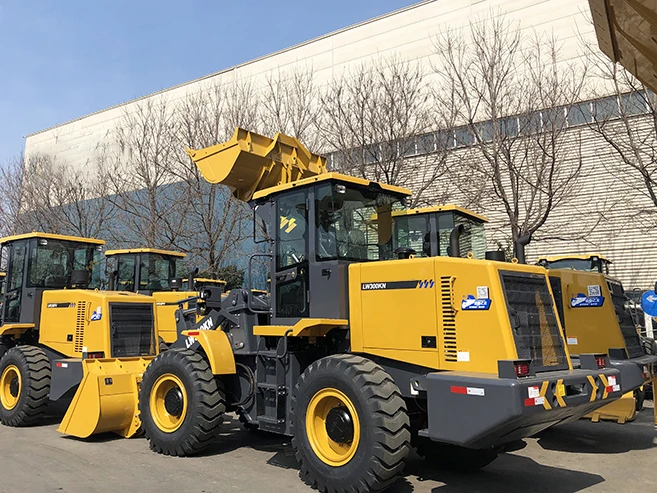

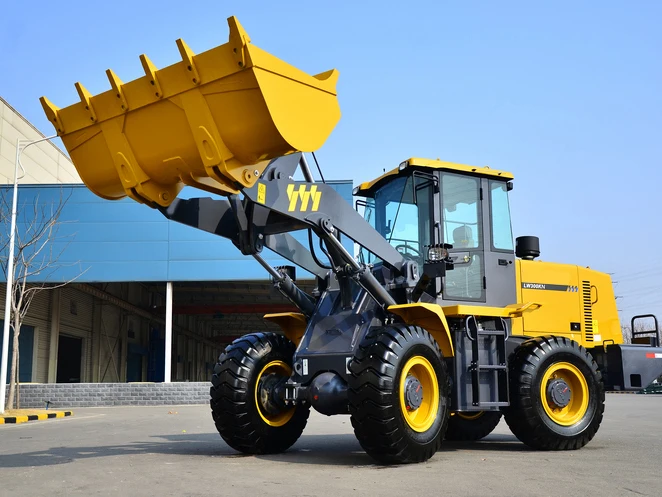

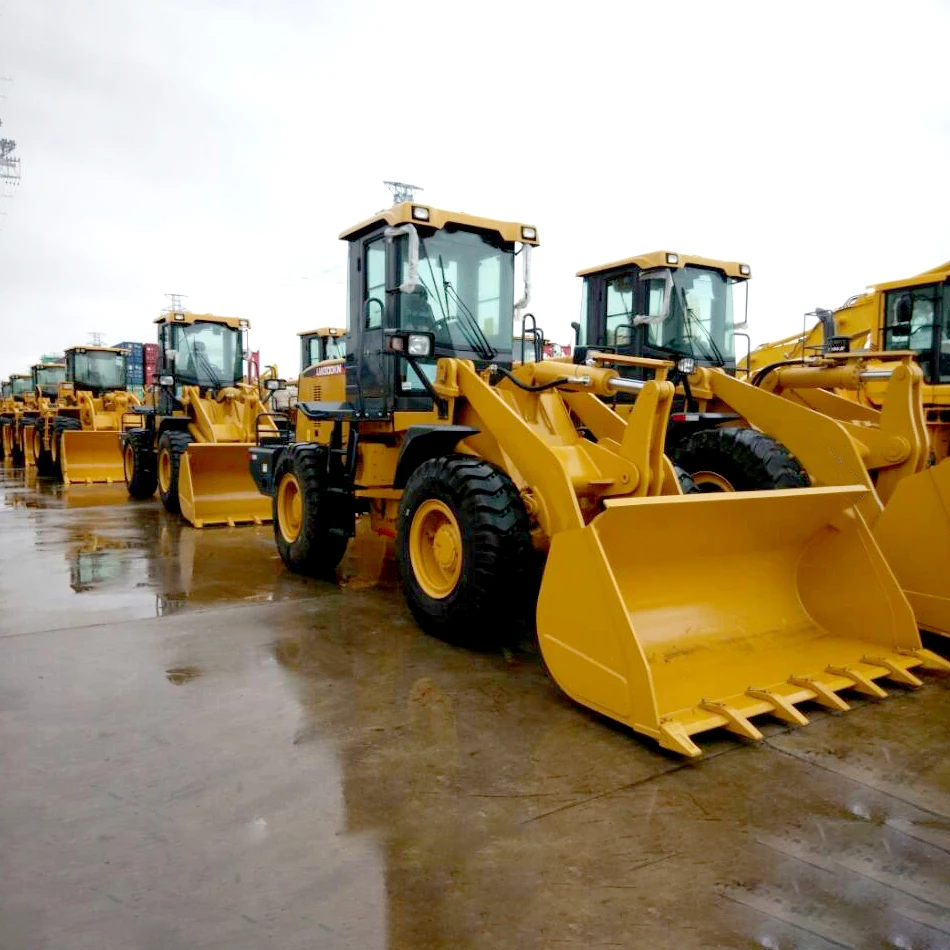

Details Images
