small candy wrapping machine / candy batch roller and rope sizer machine

Share on (1601298864087):


Price:$28,999.00-33,999.00

Quantity:


Product Overview

Description





 high-yield vitamin bear gummy candy production machine gummy production line






Product Description

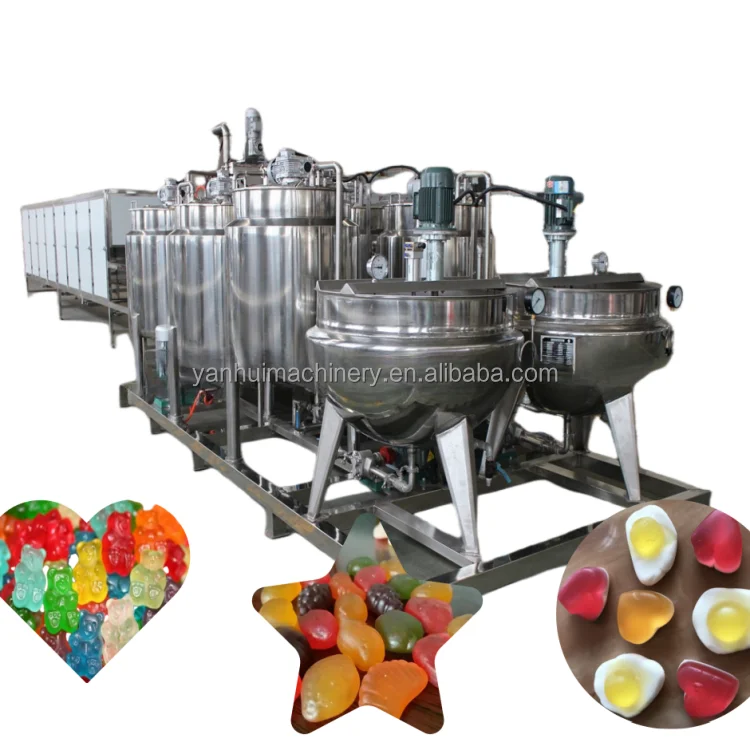

Zhengzhou Yanhui supplies fully automatic candy machinery, four-row soft candy and hard candy pouring production line, 600 xylitol assembly line video, which integrates mechanical, electrical and pneumatic control, with reasonable and compact structure and high degree of automation. It has high production efficiency and can produce gelatin, pectin and carrageenan soft candies. Single color, two-flavor and two-color spraying, two-flavor and two-color double-layer, three-flavor and three-color spraying, as well as crystal candy, sandwich candy, strip candy and think candy, etc. Supply fully automatic candy machinery, four-row soft candy and hard candy pouring production line, 600 xylitol assembly line video. The candies produced are crystal clear, clear spraying stripes, accurate and stable sandwich quantity and position, good taste, etc., and are very popular with domestic and foreign customers. The entire production line is manufactured according to food machinery standards and meets food hygiene requirements, making it easy for food companies to pass food certification.





Details of machine





 5





Configuration table








































































Model



YH-150



YH-300



YH-450



YH-600



Standard output (kg/hr)



150



300



450



600



Sugar amount



2-6g



2-6g



2-6g



2-6g



Pouring speed



45-55n/min



45-55n/min



45-55n/min



45-55n/min



Steam requirement



0.2m³/min,
0.4-0.6Mpa



0.2m³/min,
0.4-0.6Mpa



0.2m³/min,
0.4-0.6Mpa



0.2m³/min
,0.4-0.6Mpa



Working environment requirements



Temperature 20-25℃



Temperature 20-25℃



Temperature 20-25℃



Temperature 20-25℃



Total power



18kw/380V



27kw/380V



34kw/380V



38kw/380V



Total length



15m



17m



17m



20m



Total weight



3500kg



4000kg



4500kg



5000kg












Feature


 Product features:
1. Adopting famous brand PLC, the performance is more stable, and the programming automatically controls the vacuum sugar boiling temperature, time, insulation temperature and pouring speed;
2. The 10.7-inch large touch screen displays the process flow chart, the working status of each part, the setting and display of parameters such as temperature and pouring speed, etc., making it easier for users to operate and master;
3. The production capacity of the series products can be from 150 kg to 600 kg per hour;
4. The frequency conversion speed regulation controls the accurate flow of sugar liquid, and the quality of sugar paste is stable;
5. The dynamic mixer completes the quantitative filling and mixing of flavors, pigments, and acid liquid online;
6. The conveyor chain, cooling system, and double demoulding mechanism ensure demoulding;
7. Candies of various shapes can be produced according to different molds;
8. The optional chocolate quantitative filling system can produce chocolate sandwich candies;
9. By replacing some boiling and devices and molds, the production line can produce hard candies, spherical, flat three-dimensional lollipops.








Details








-2





Packaging & Shipping








Our Services


Service before sale


24 hours online to answer questions that you want to know(Whatsapp, wechat, QQ, Skype, Trade Manager, etc), or  you can send email to my email, I will give you a satisfying answer.


Service on sale


1.To provide customers with the new and high quality animal feed pellet machine.
2.Provide pictures that the customer desired about the animal feed pellet machine during production, in the warehouse and before transport.
3.Payment is determined by both parties.
4.Customers to choose the mode of transport.


After-sales services


We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
