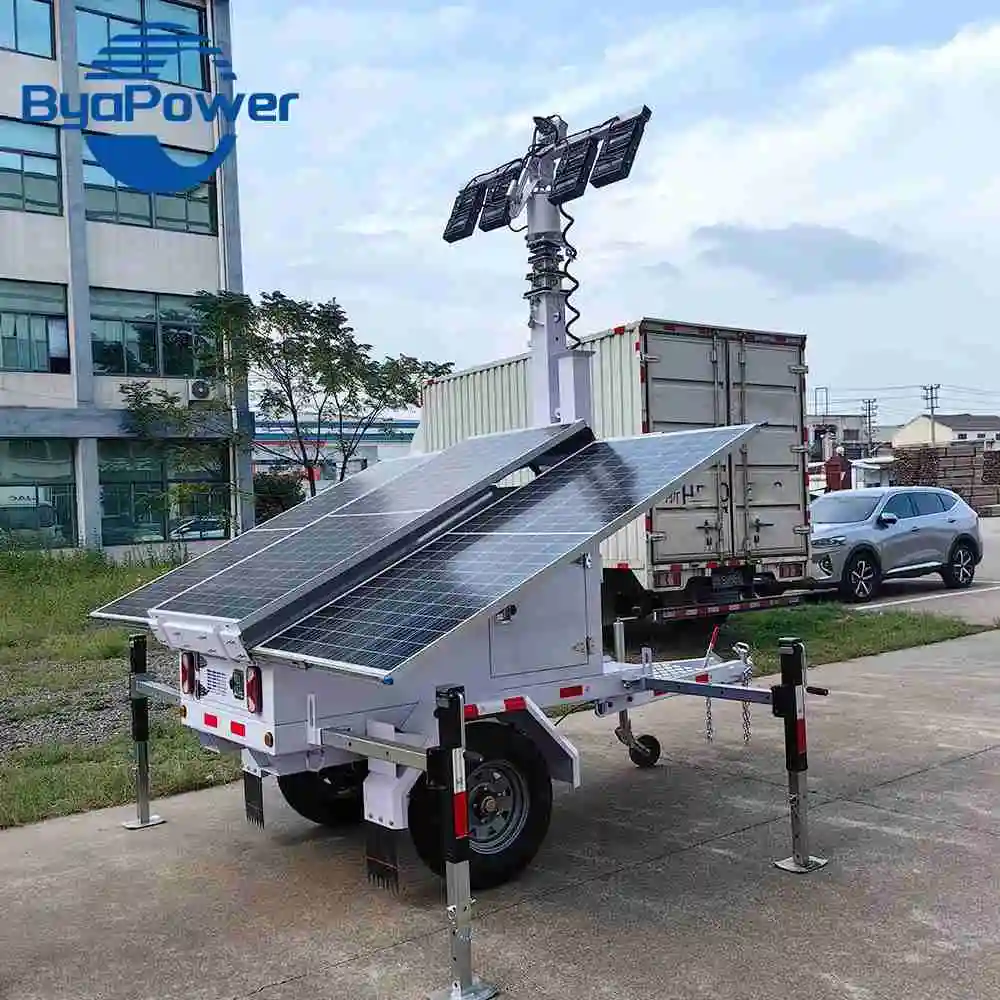

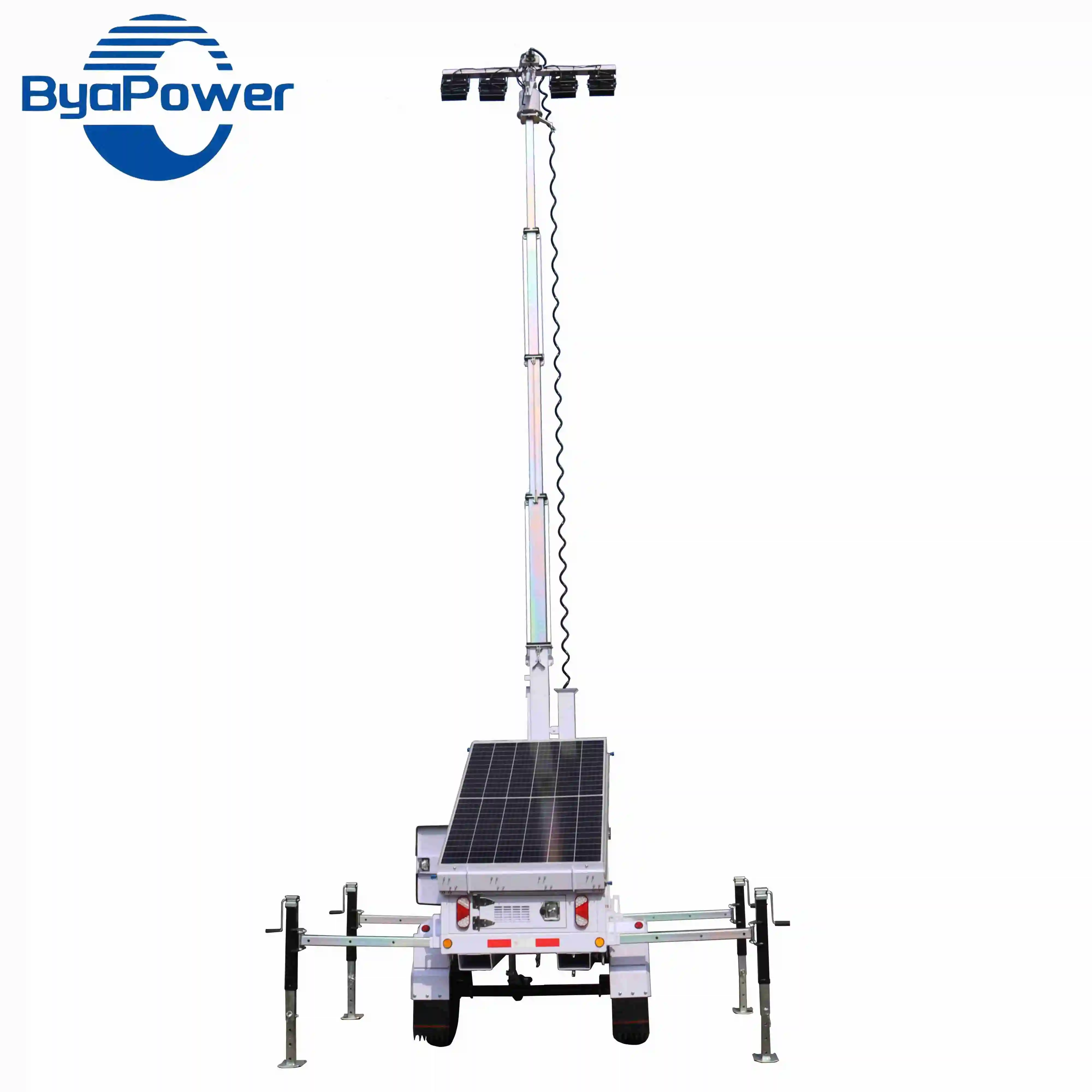

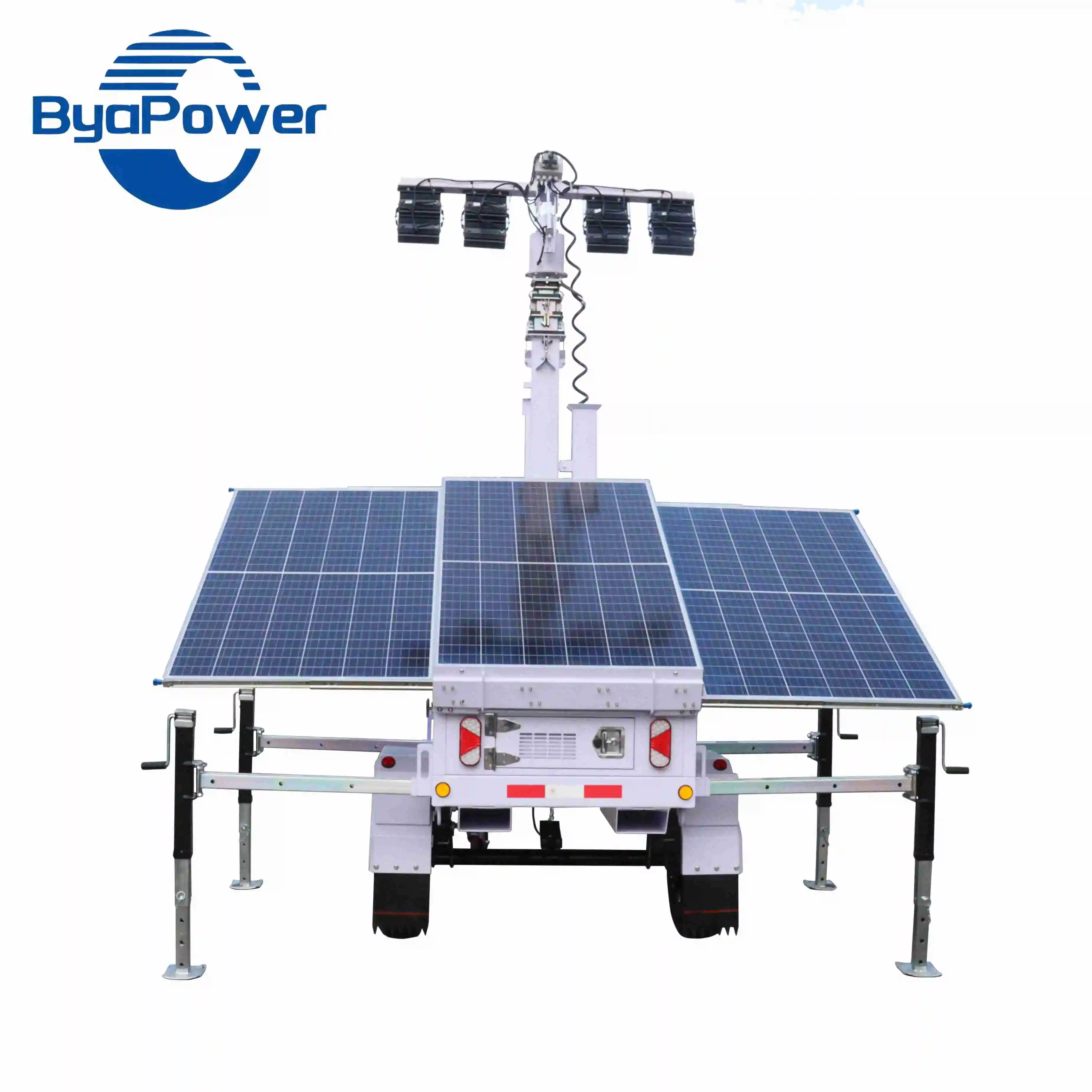

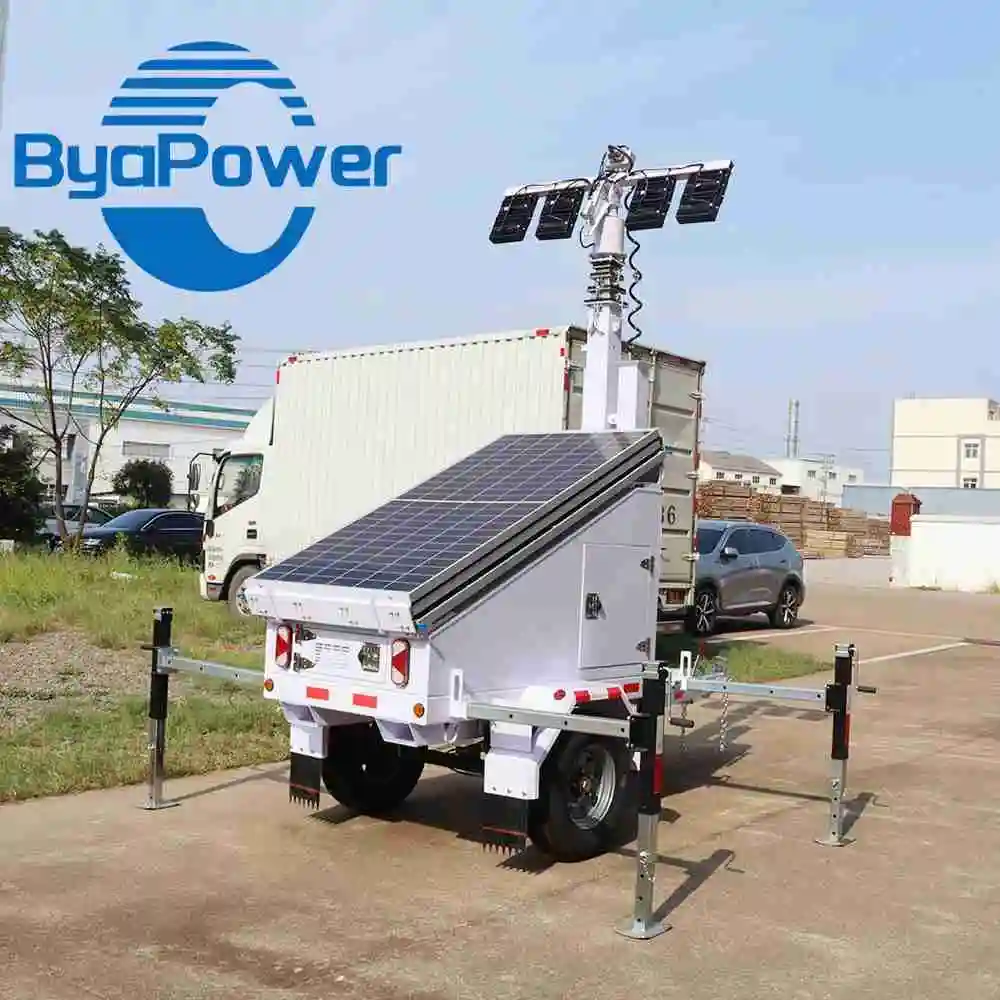

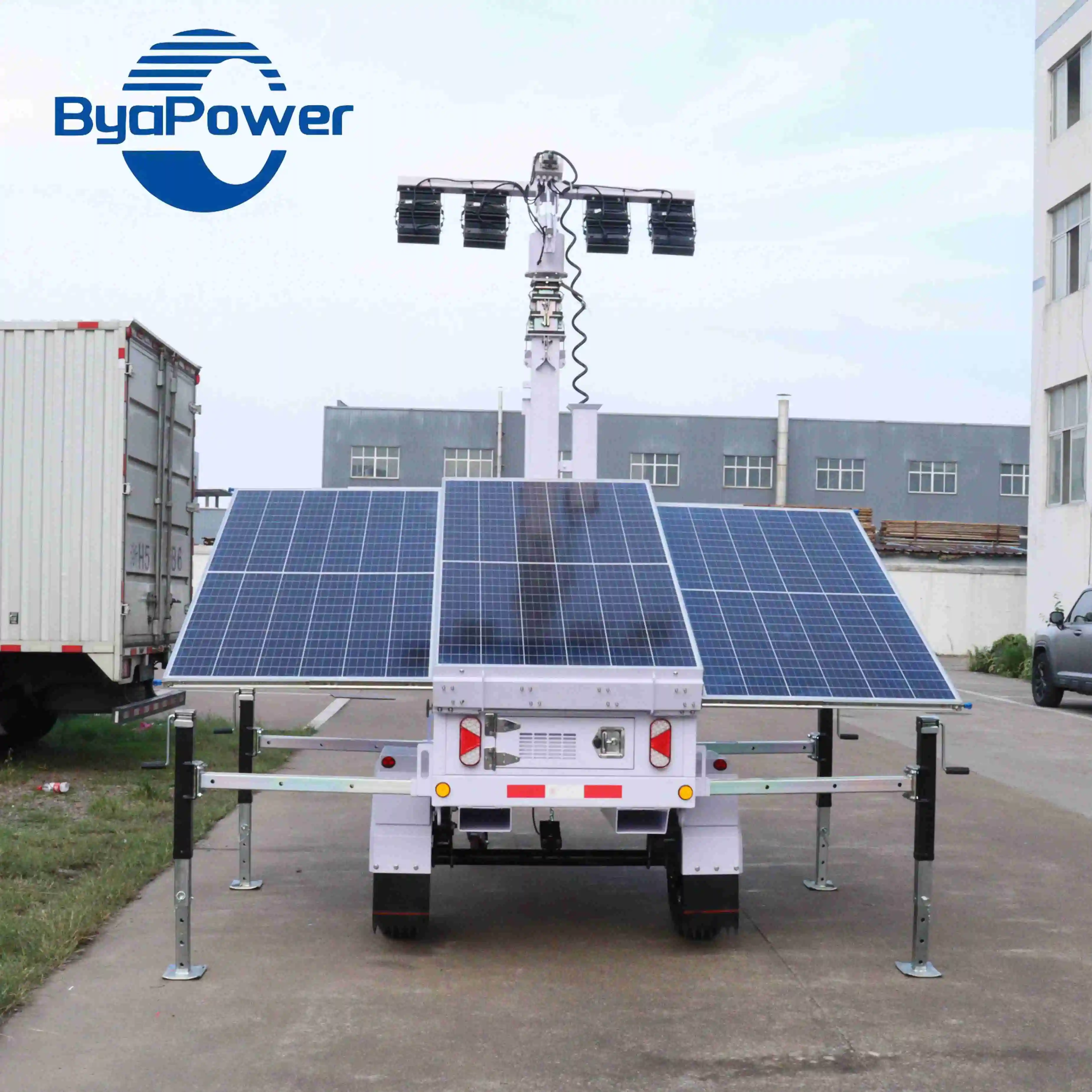

Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting
Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting
Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting
Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting
Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting
Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting
Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting

Custom High Quality Solar Powered Trailer With Mobile Led Light Tower For Outdoor Use And Emergency Lighting

Share on (1601298960012):


Price:$5,800.00-5,900.00

Quantity:


Product Overview

Description



Product Overview

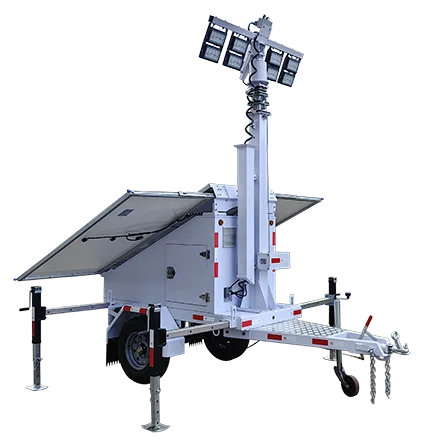

Mobile lighting lighthouse trailer
Lighting lighthouse trailer is mainly composed of lighting system, lifting system, power supply system, trailer body, control system, etc. It is a mobile lighting trailer system for large-scale projects and activities. Easy to install, easy to operate integrated design, fuselage is flexible, with drag tires, easy to deploy and move; Integrated telescopic support, easy to fix; The rod body can be lifted, equipped with 4 200-watt LED lights; Built-in 4 sets of batteries, long-term battery life, mains and solar power supply, support customized functions, adjustable lighting brightness, control lighting Angle and other functions.


FEATURES AT A GLANCE


★ The lighting, lifting, battery box and storage host adopt modular structure design;
★ Manual/electric/hydraulic lifting rod, lifting height of 7-12 meters (can be customized according to requirements);
★ Support a variety of renewable energy, solar and mains power and wind energy;
★ 4*100W/6*100W/4*200W/6*200W LED projection super light source, total power 400-2400 watts;
★ Lights support any unilateral up and down control rotation 180 degrees, around support 350 degrees rotation;
★ The use of solar special colloidal battery, lithium battery design, can achieve all-weather uninterrupted work;
★ The solar panel adopts pull type rapid expansion and Angle electric push rod adjustment, so that the trailer can move.


Right elevation
Left elevation
Front elevation




PRODUCT SPECIFICATIONS


Model
BY3P
BY3P-200W
BY3P-200W
BY3P-600W
BY3P-1200W
BY3P-1800w
Solar Panel
1×435W
1×435W
2×435W
3×435W
4×460W
6×460W
Panel Lifting
0°～90°
Manual
Lifting
10°～45°
Manual
Lifting
10°～45°
Manual
Lifting
30°～38°
Electric Lifting
30°～38°
Electric Lifting
0°～25
Hydraulic Lifting
GEL/LFP Battery
2×200Ah
DC12V
2×200Ah
DC12V
4×200Ah
DC12V
6×200Ah
DC12V
8×200Ah
DC12V
12×200Ah DC12V,Auto-Fan
Battery Capacity
4800Wh
80%DoC
4800Wh
80%DoC
9600Wh
80% DoC
14400Wh
80% DoC
19200Wh
80% DoC
28800Wh时
80% DoC
System Voltage
DC12V
DC12V
DC24V
DC24V
DC48V
DC48V
Battery Charger
2.5kW AC 110V/230V
2.5kW AC 110V/230V
2.5kW AC 110V/230V
2.5kW AC 110V/230V
2.5kW AC 110V/230V
2.5kW AC 110V/230V
LED Lamp
2×100W
30000Lms,Auto
2×100W
30000Lms,Auto
4×100W
60000Lms,Auto
4×150W
90000Lms,Auto
4×200W
120000Lms,Auto
4×300W
180000Lms,Auto
illumination area
1013㎡
1013㎡
1481㎡
2310㎡
2734㎡
3184㎡
Rotation
No
Optional
Optional
350°Electric
350°Electric
350°Electric
Tilt
No
90°Electric
90°Electric
90°Electric
90°Electric
90°Electric
Controller
40A MPPT
40A MPPT
40A MPPT
60A MPPT
40A MPPT
60A MPPT
Mast & Height
5 Sections 7M
5 Sections 7M
5 Sections 7M
5 Sections 9M
5 Sections 9M
9 Sections 9M
Mast Lifting
Manual Winch
Manual Winch
Manual Winch
Electric Winch
Electric Winch
Hydraulic
Trailer Standard
US / AU / EU
US / AU / EU
US / AU / EU
US / AU / EU
US / AU / EU
US / AU / EU
Hitch
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
Brake
Electric
Electric
Electric
Mechanical
Mechanical
Electric
Axle
Single
Single
Single
Single
Single
Double
Tire
14 inch
14 inch
14 inch
15 inch
15 inch
15 inch
Outriggers
4
4
4
4
4
4
Forklift Holes
2
2
2
2
2
2
Charging Time
9.3 hours
9.3 hours
9.3 hours
9.3 hours
9.3 hours
9.3 hours
Running Time
19.2 hours
19.2 hours
19.2 hours
19.2 hours
19.2 hours
19.2 hours
Wokring Temp
-35℃~60℃
-35℃~60℃
-35℃~60℃
-35℃~60℃
-35℃~60℃
-35℃~60℃
Dimension(cm)
265*175*275
265*175*275
325*145*275
355*165*280
365*225*280
415*225*280
Weight
900kg
900kg
1000kg
1400kg
1600kg
2000kg
QTY in 20' / 40'
8 units / 16 units
8 units / 16 units
7 units / 14 units
3 units / 7 units
2 units / 5 units
2 units / 4 units


PRODUCT CONFIGURATION


lifting poker
Control module
Trailer traction


SALES AND SERVICE NETWORK




Successful Project


Yunnan (Province)
Australia
Factory display


FAQ


Q: What certificate do you have for the led solar power light plant?
A: CE certificate for the whole machine. The major parts like LED lamp, batteries and solar panels have CE and
UL certificate.
Q: How many countries have the led solar power light plant been exported to?
A: Australia (BHP company), Canada, USA, Mexico, UK, Denmark, New Zealand, India, Brazil, Chile, South
Korea, Indonesia, the Philippines, UAE, Saudi Arabia, Ghana, South Africa, Cameroom, Sudan, Egypt, Israel, etc.
Q: How to become our agent?
A: As long as you have the marketing resources and the capacity to do after-sale service, contact us for further
details by sending us an inquiry.
