Cheap 3 Ton 3.5 Ton All Terrain Diesel Forklift Euro 5 EPA Engine Handling Lifting Wheel Small Forklift
- Category: >>>
- Supplier: Shandong Landward Heavy Industry Machinery Co. LtdShandong Ltd
Share on (1601299003826):
Product Overview
Description
Product Overview

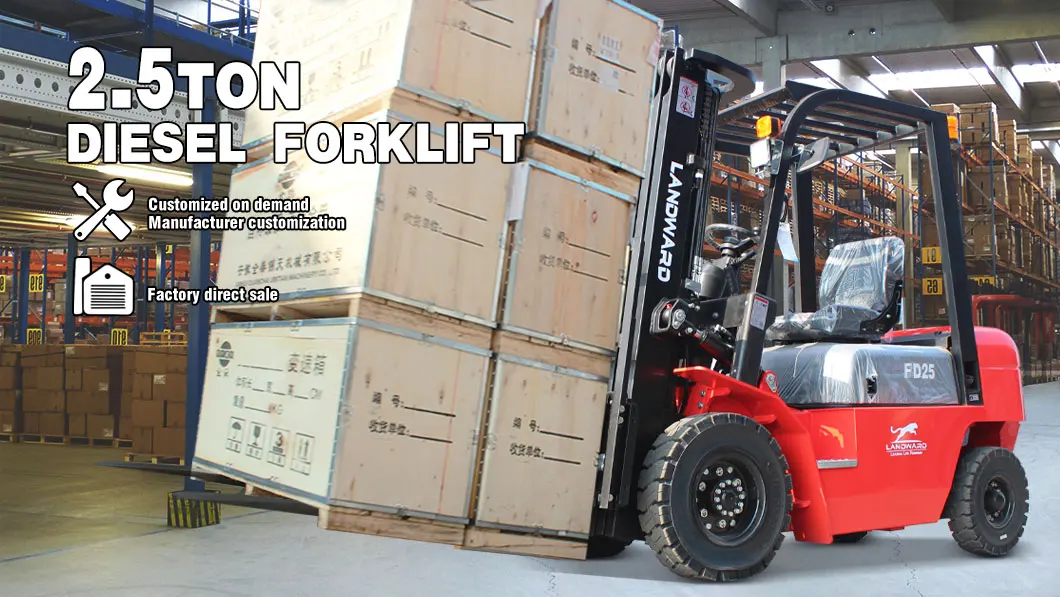

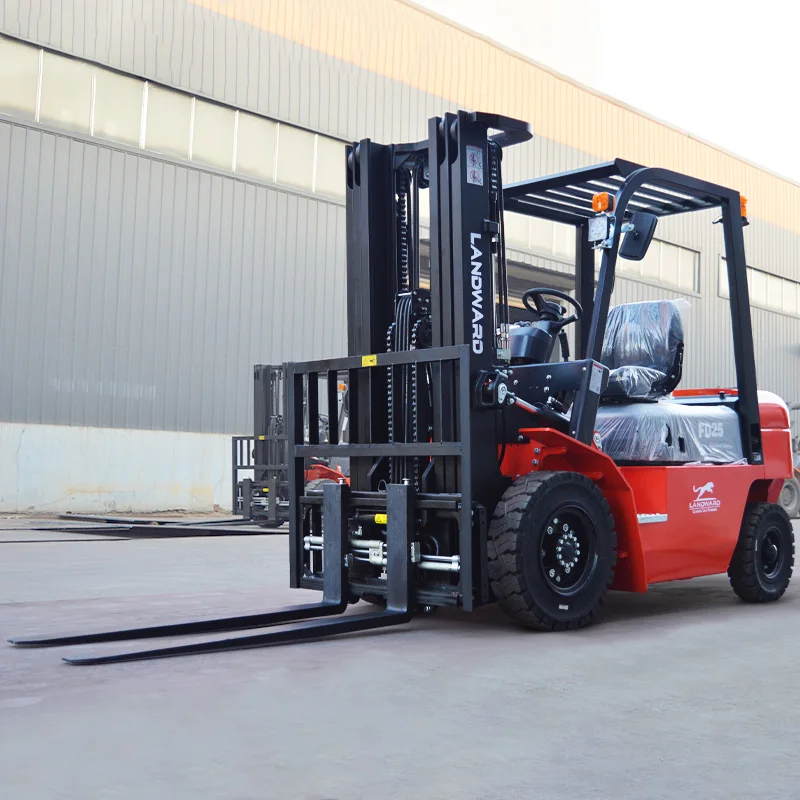

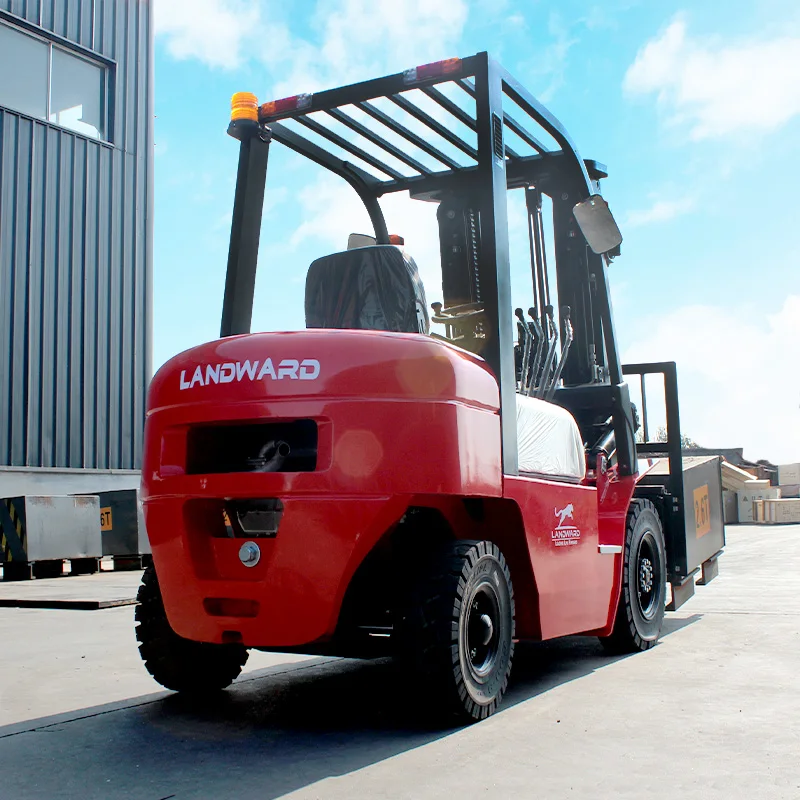

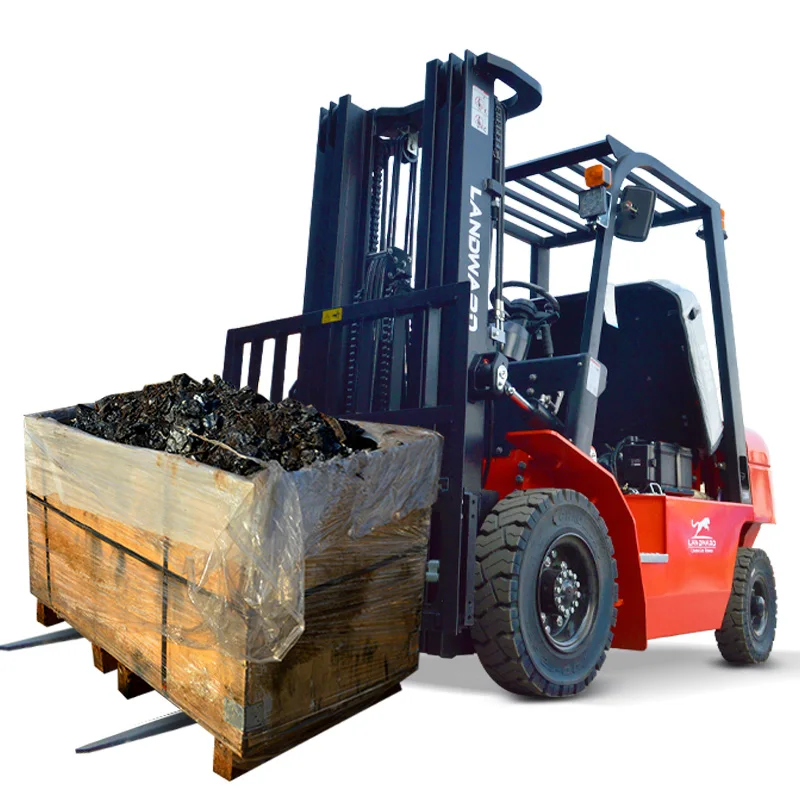

LANDWARD Diesel Forklift
Diesel forklifts are used in ports, stations, airports, freight yards, factory workshops, warehouses, circulation centers and distribution centers, etc. They can enter the cabins, carriages and containers to load and unload pallet cargo and carry out handling operations. They are essential equipment for pallet transportation and container transportation. The performance of forklifts mainly includes loading performance, traction performance, braking performance, stability, maneuverability, passing performance, and ease and comfort of operation.
FEATURES AT A GLANCE
HL15 | HL20 | HL25 | HL30 | HL35 | HL40 | HL50 | |||||||
Fuel model | Diesel | ||||||||||||
Load capacity(kg) | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | ||||||
Load center(mm) | 500 | ||||||||||||
Lift height(mm) | 3000 | ||||||||||||
Full free lift height(mm) | 100 | 100 | 100 | 100 | 100 | 0 | 0 | ||||||
Fork dimension(mm) | 920×100×35 | 1070×122×40 | 1070×122×40 | 1070×125×45 | 1070×125×50 | 1070×150×45 | 1070×150×50 | ||||||
Mast tilting angle(Deg.) | 6/12 | ||||||||||||
Min.turning radius(mm) | 1955 | 2220 | 2240 | 2400 | 2550 | 2800 | 3050 | ||||||
Groud clearance(mm) | 110 | 120 | 120 | 135 | 135 | 135 | 140 | ||||||
Overhead guard height(mm) | 2040 | 2140 | 2140 | 2165 | 2165 | 2230 | 2290 | ||||||
Front overhang(mm) | 425 | 448 | 485 | 495 | 495 | 500 | 570 | ||||||
Max travel speed(km/h) | 13.5 | 19 | 19 | 19 | 19 | 18.5 | 25 | ||||||
Max lift speed(mm/s) | 590 | 550 | 550 | 480 | 480 | 420 | 430 | ||||||
Max.traction power(KN) | 12.3 | 12.3 | 12.3 | 13.5 | 13.5 | 20 | 23 | ||||||
Max. gradeability(%) | 20 | 20 | 20 | 20 | 20 | 20 | 18 | ||||||
Total length with fork(mm) | 3175 | 3523 | 3610 | 3820 | 4065 | 4105 | 4520 | ||||||
Total length without fork(mm) | 2255 | 2453 | 2540 | 2750 | 2995 | 3035 | 3300 | ||||||
Total width(mm) | 1070 | 1160 | 1160 | 1225 | 1225 | 1400 | 1480 | ||||||
Mast extended height(mm) | 4030 | 4220 | 4220 | 4265 | 4265 | 4270 | 4300 | ||||||
Mast lowered height(mm) | 1995 | 2060 | 2060 | 2060 | 2060 | 2190 | 2190 | ||||||
Tyres Front | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-12PR | 250-15- 12PR | 300-15-20PR | ||||||
Type Rear | 5.00-8-8PR | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | 700-12-12PR | ||||||
Wheelbase(mm) | 1410 | 1600 | 1600 | 1700 | 1700 | 1900 | 2200 | ||||||
Tread(mm) | 890/920 | 970/970 | 970/970 | 1000/970 | 1000/970 | 1160/1065 | 1180/1190 | ||||||
Service weight(kg) | 2660 | 3200 | 3800 | 4350 | 4560 | 5300 | 6900 | ||||||
Battery(V/Ah) | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 | 12/100 | （12/80）x2 | ||||||
Engine model | Xinchai 4D27G31 | Xinchai 4D27G31 | Xinchai 4D27G31 | Xinchai 4D27G31 | Xinchai 4D27G31 | Xinchai 4D30G31 | Xinchai 4D35 | ||||||
Engine power(kw/r.p.m) | 32 | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 | 60 | ||||||
Transmission | Mechanical/Hydraulic | ||||||||||||
Work press(Mpa) | 18.5 | ||||||||||||

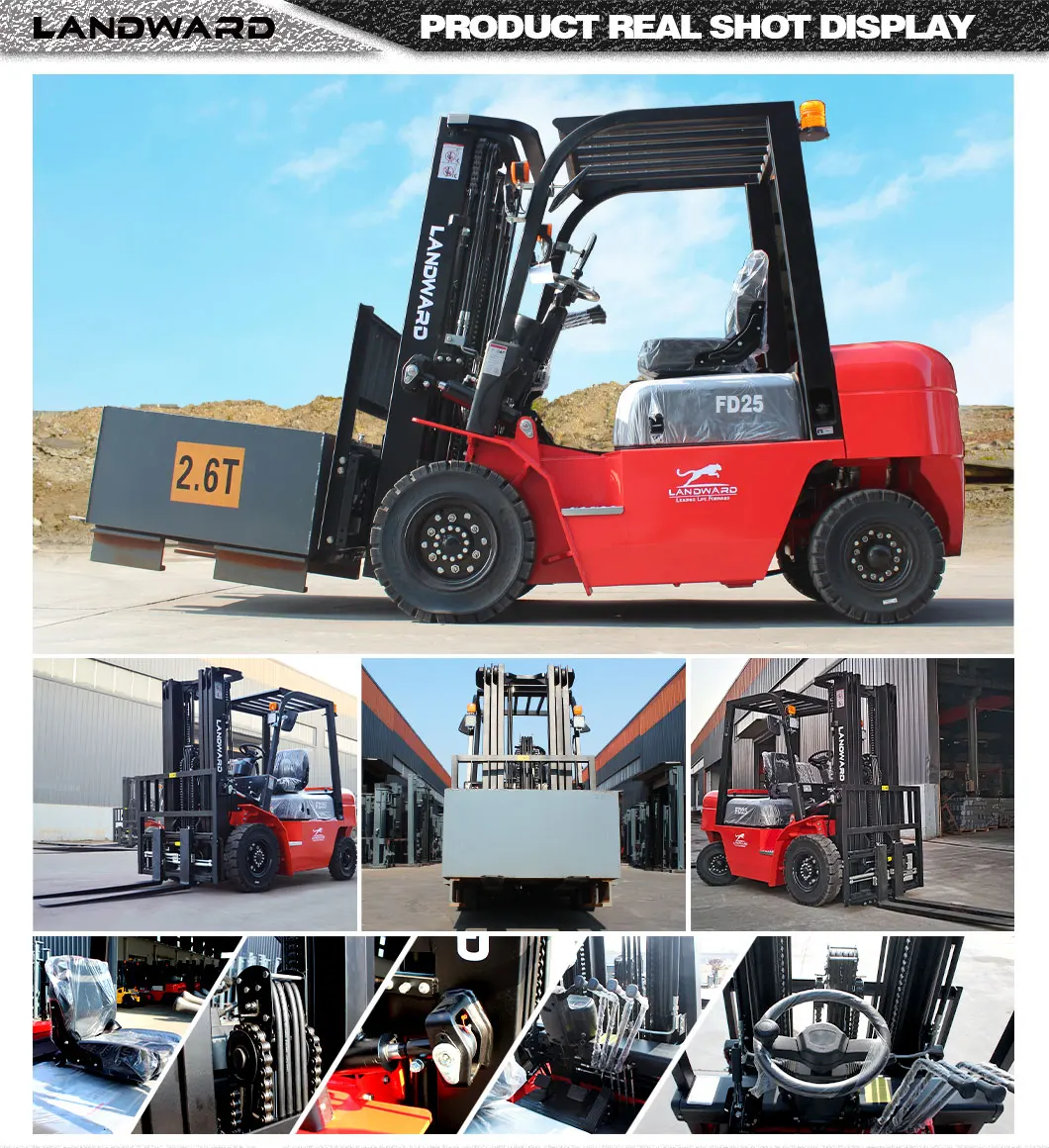

PRODUCT SPECIFICATIONS

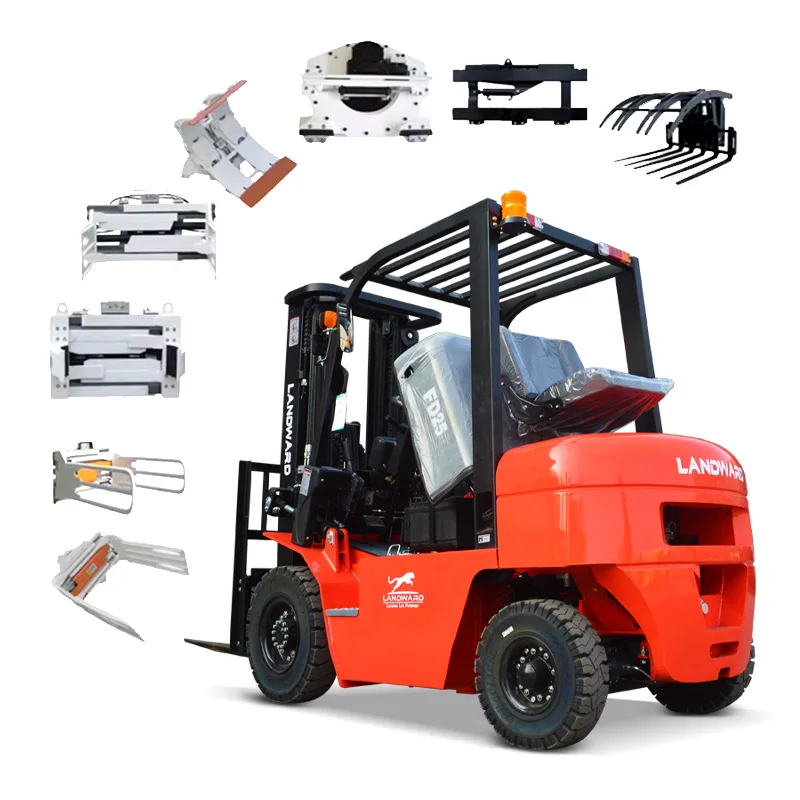

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project

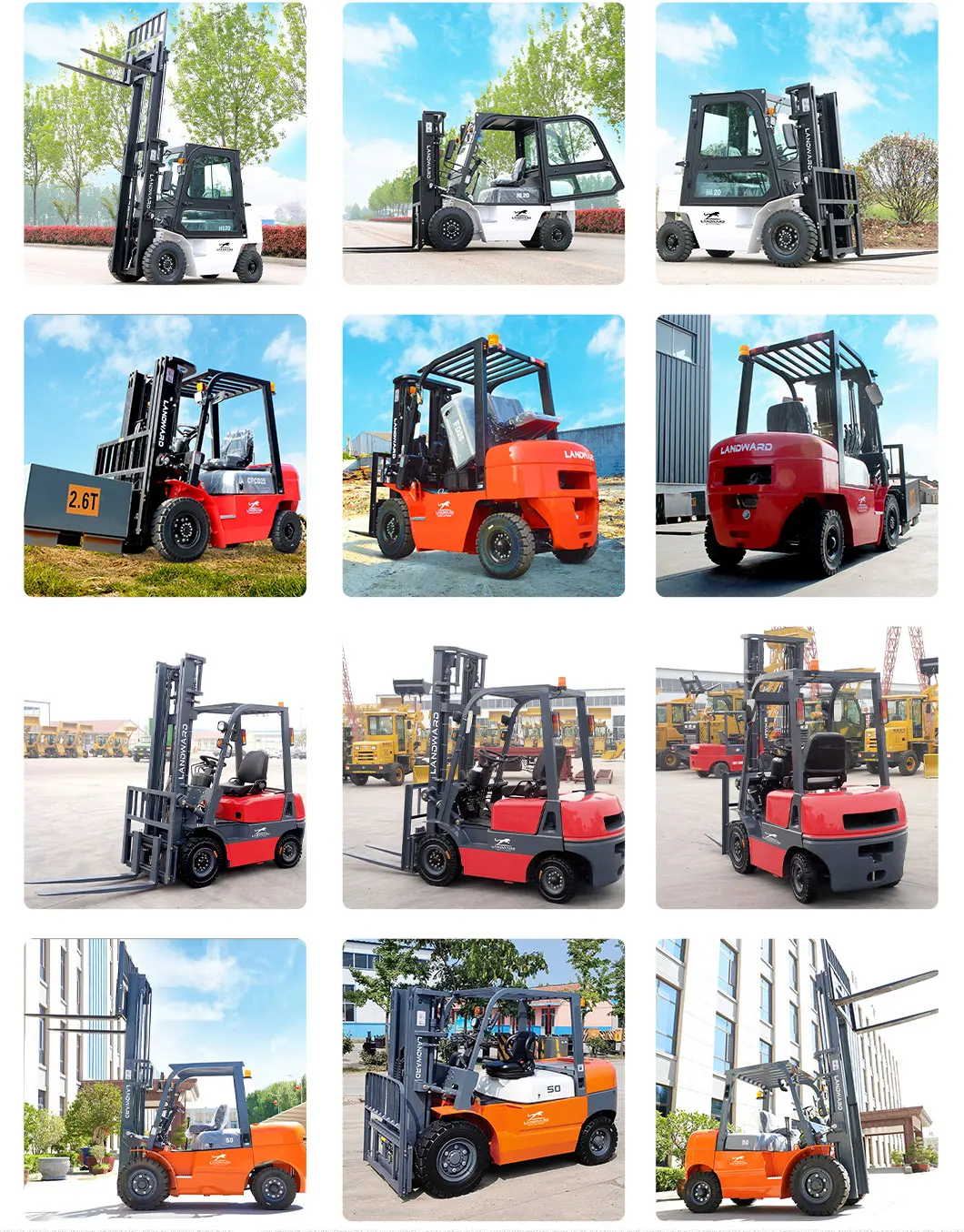

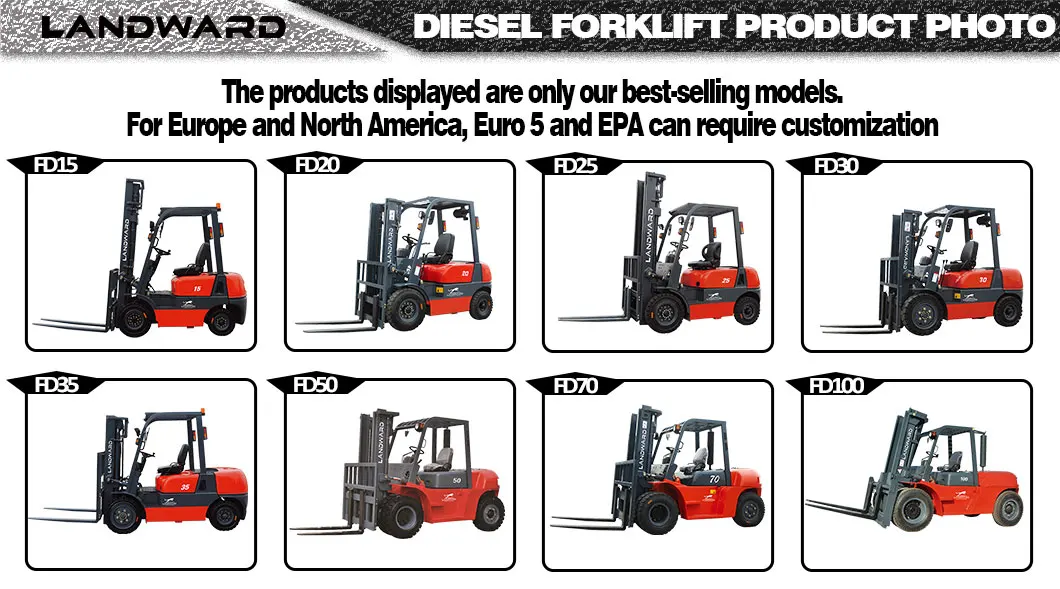

SIMILAR PRODUCTS
FAQ
Q: Why choose us?
A: We are specialized in various machines such as excavator loaders forklifts; we will patiently explain all your questions about our machines; we have more than a thousand excavators in stock in our own factory.
Q: How to guarantee the condition and service life of the machine?
A: All machines are available on site for your inspection, and third-party certificates can be provided for all machines. We also provide you with guaranteed pre-sales and after-sales services, please consult customer service.
Q: Are you sure your product is suitable for my excavator?
A: Yes, we are professional in this area, you can tell us which tonnage and which brand you like, and we will recommend the right model for you.
Q: Can you provide customer's design?

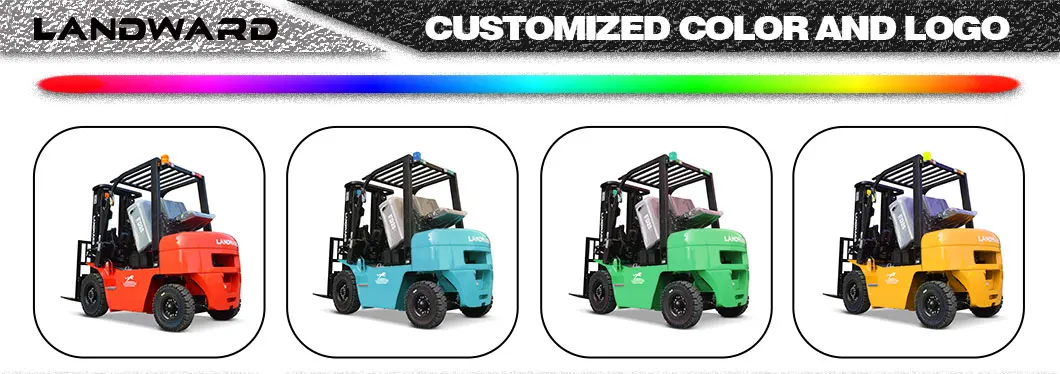

A: Of course, we can provide OEM and ODM services.
Q: What is the MOQ and payment terms?
A: The MOQ is 1 set. Payment by T/T, other terms can be negotiated.
Q: How about the delivery time?
A: About 7 working days after payment, depends on your shipping schedule.
Q: How about the packaging?
Q: How about the packaging?
A: We have bulk carrier/RoRo/flat rack/container .
Q: Which countries can you export to?
A: USA, UK, Indonesia, Vietnam, Saudi Arabia, Thailand, Italy, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico, South Africa, etc.Almost all over the world.
