Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00

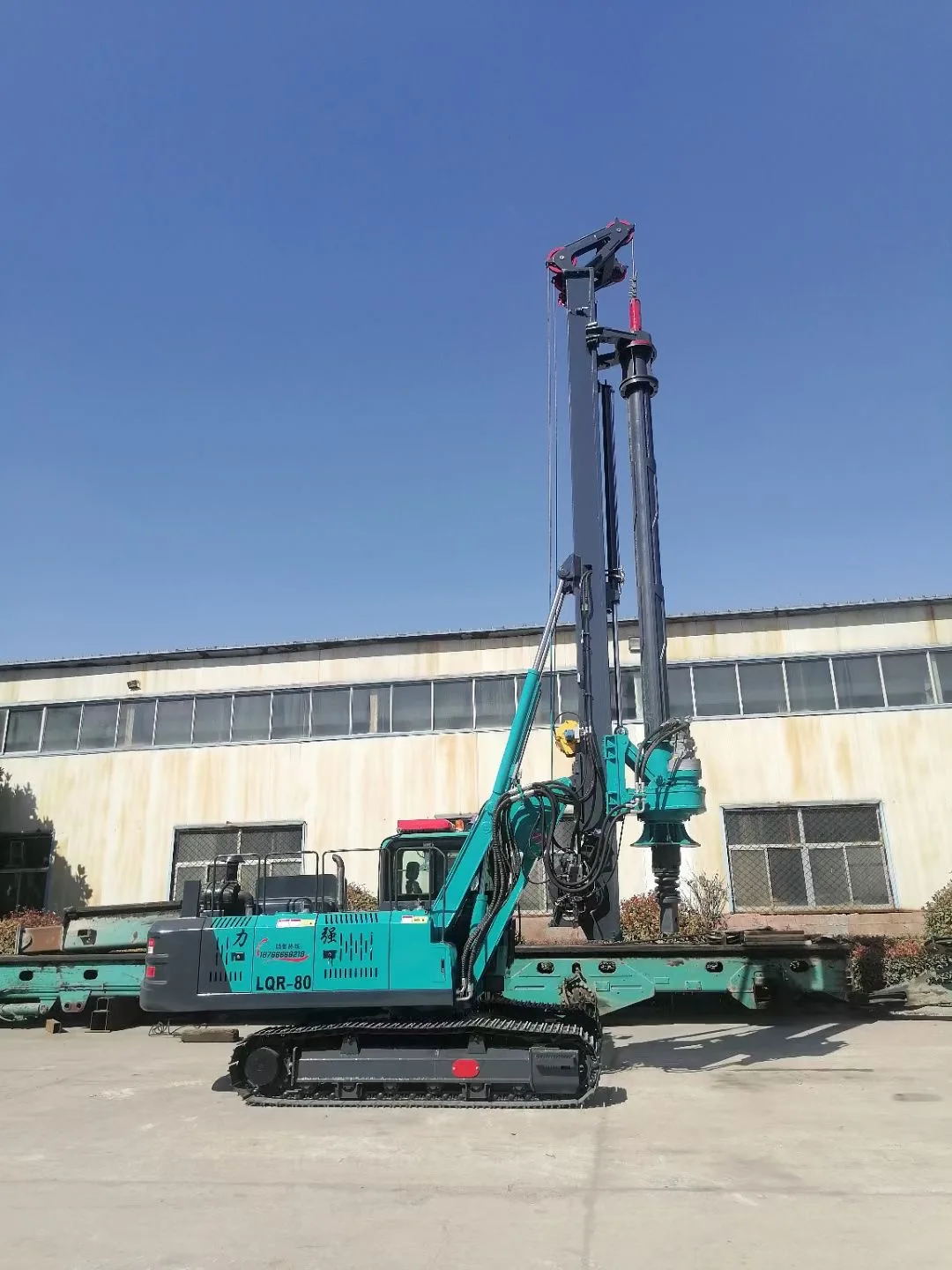

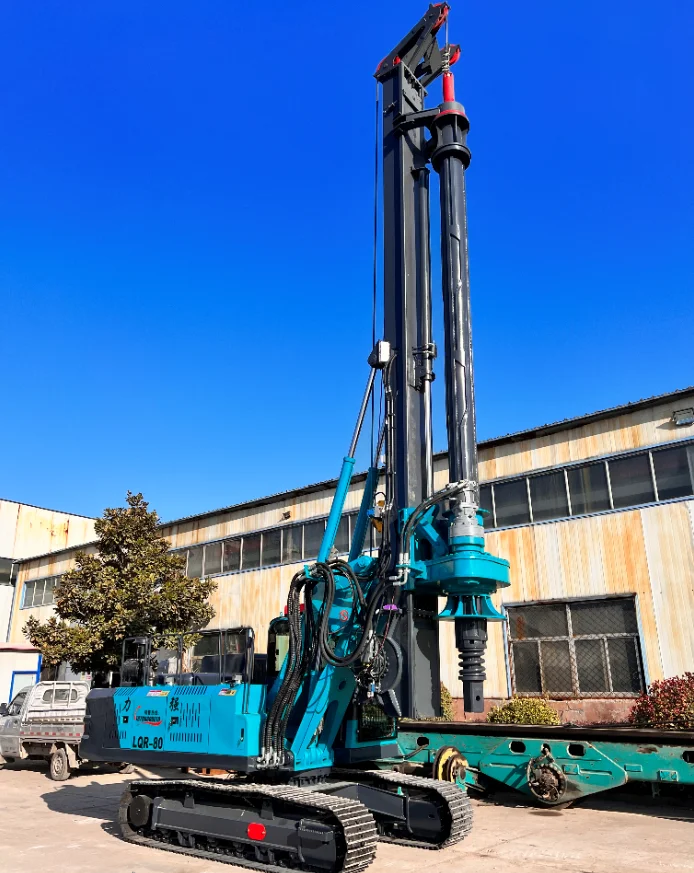

SDLQ LQR 80 Pile Driver For Sale Small Hydraulic Drop Hammer Concrete Price Hydraulic Durable And Strong High Quality For Ce
- Category: >>>
- Supplier: Shandong Liqiang Machinery Co. Ltd.Shandong Ltd.
Share on (1601299018640):
Product Overview
Description
VR
order number | unit | LQR-80 | ||||
1 | Maximum drilling diameter | mm | 500-1200 | |||
2 | Maximum drilling depth | m | 15 | |||
3 | Safe drilling operation range (from the rotary center) | mm | 3500 | |||
4 | Drilling rig size under working condition (length * width * height) | mm | 6300*2600*10700 | |||
5 | Drilling rig size in transportation state (length * width * height) | mm | 9000*2600*3350 | |||
6 | Operating weight (including drilling tool under standard configuration) | t | 20 | |||
Motor | Brand | 。 | Cummins | |||
7 | Engine model | / | QSB7 | |||
Engine rated power/speed | kW | 150 | ||||
Emission stage | / | 3Stages | ||||
8 | Hydraulic system | Maximum working pressure of main pump | MPa | 30 | ||
9 | Power head | Rated output torque | kN·m | 100 | ||
Operating speed | r/min | 8-45 | ||||
10 | Feed cylinder | Maximum pressurization | kN | 120 | ||
Maximum lifting force | kN | 120 | ||||
Pressurization stroke | mm | 2000 | ||||
11 | Main winch | Main winch lifting force | kN | 120 | ||
Maximum single rope speed of main winch | m/min | 50 | ||||
Diameter of main winch wire rope | mm | 24 | ||||
12 | Auxiliary winch | Auxiliary winch lifting force | kN | 30 | ||
Maximum single rope speed of auxiliary winch | m/min | 55 | ||||
Diameter of auxiliary winch wire rope | mm | 12 | ||||
13 | Drill mast | Left/right inclination of mast | ° | ±4 | ||
Mast rake | ° | ±4 | ||||
14 | Turntable rotation | Turntable rotation angle | ° | 360 | ||
15 | Speed | Maximum traveling speed of the whole machine | km/h | 5 | ||
Maximum gradient of the whole machine | % | 30 | ||||
16 | chassis | track width | mm | 600 | ||
Total track width | mm | 2600 | ||||
Wheel distance | mm | 4200 | ||||
17 | Drill pipe specification | 360Machine lock | ||||
Products Description
More products
Drill bit specifications available
1: Select drill bit specifications according to work requirements and soil quality
2: After determining the specifications, customize the drill bit according to the drilling diameter you need
3: The drill bit is a wearing part. Please buy as many as possible
4: The drill bit does not provide warranty
1: Select drill bit specifications according to work requirements and soil quality
2: After determining the specifications, customize the drill bit according to the drilling diameter you need
3: The drill bit is a wearing part. Please buy as many as possible
4: The drill bit does not provide warranty
Contact Us
How to customize (design, material, packaging, logo)?
The lowest price ?
How to ensurequality ?
calculate the shipment cost ?
...

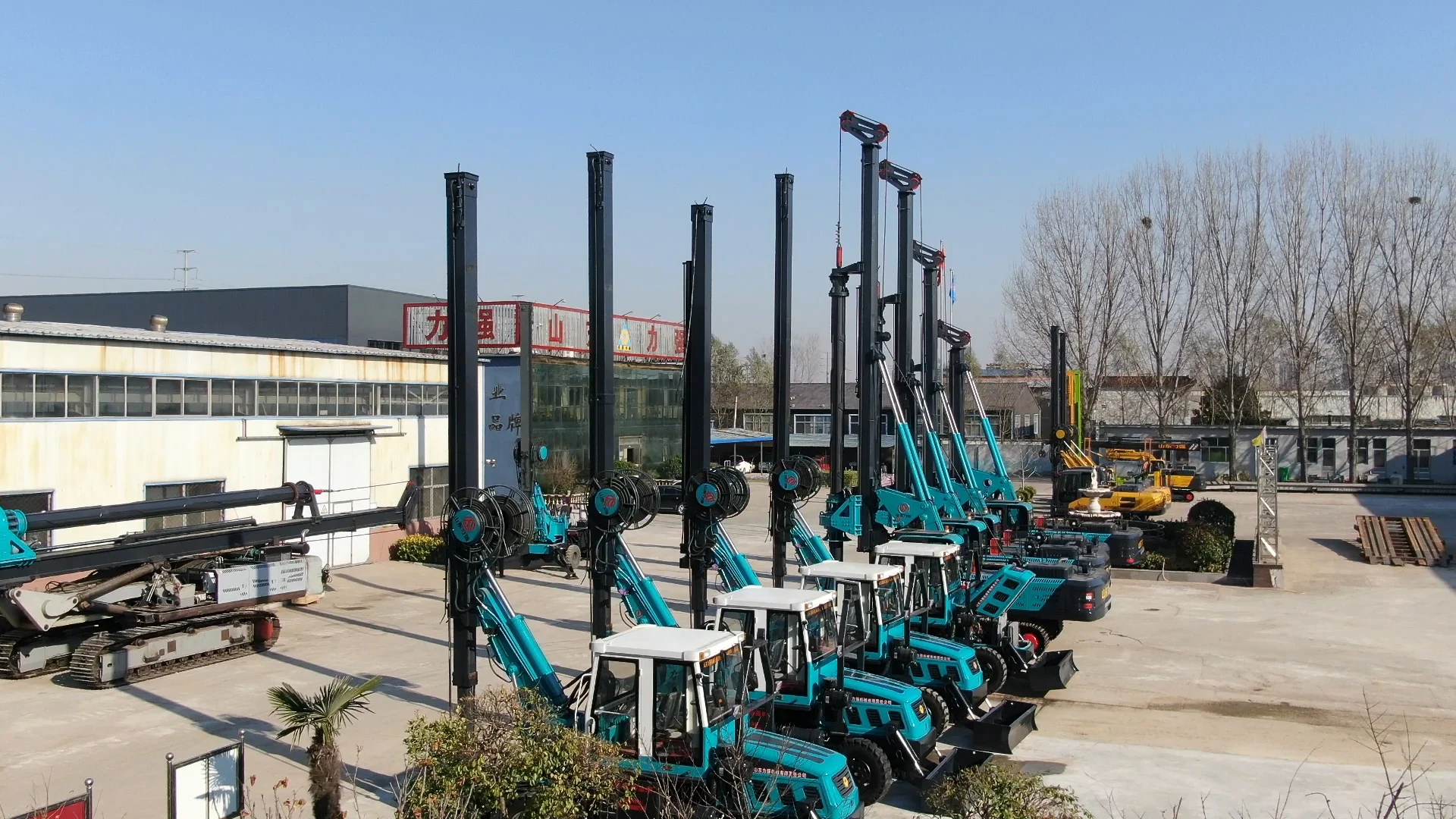

Company Profile
Established in April 2010, the company covers an area of over 50000 square meters and has fixed assets of over 60 million yuan. The company has five production and processing workshops: organic processing workshop, CNC cutting workshop, welding workshop, assembly workshop, and spraying workshop. It is a comprehensive private enterprise in the Zaozhuang area that specializes in the production of engineering machinery such as crawler lock rod rotary drilling machines, crawler square rod rotary drilling machines, wheeled square rod rotary drilling machines, solar photovoltaic pile drivers, wheeled long spiral pile drivers, crawler long spiral pile drivers, crawler CFG pile drivers, high-speed guardrail pile drivers, and crawler grabbing machines.
A modern engineering machinery production and processing enterprise with advanced production equipment and complete after-sales service in the southern region of Shandong.
Our customers
Packaging and shipping
FAQ
1.All spare parts can be changed for free with in 12 months.
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
