Megarevo Lar C&I Inverter Series 500KW 630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer
Megarevo Lar C&I Inverter Series 500KW-630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer
Megarevo Lar C&I Inverter Series 500KW-630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer
Megarevo Lar C&I Inverter Series 500KW-630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer
Megarevo Lar C&I Inverter Series 500KW-630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer
Megarevo Lar C&I Inverter Series 500KW-630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer
Megarevo Lar C&I Inverter Series 500KW-630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer

Megarevo Lar C&I Inverter Series 500KW 630KW Power Conversion System with Lithium Solar Inverter Battery Isolation Transformer

Share on (1601299096765):


Price:$15,800.00-16,500.00

Quantity:


Product Overview

Description



Product Description

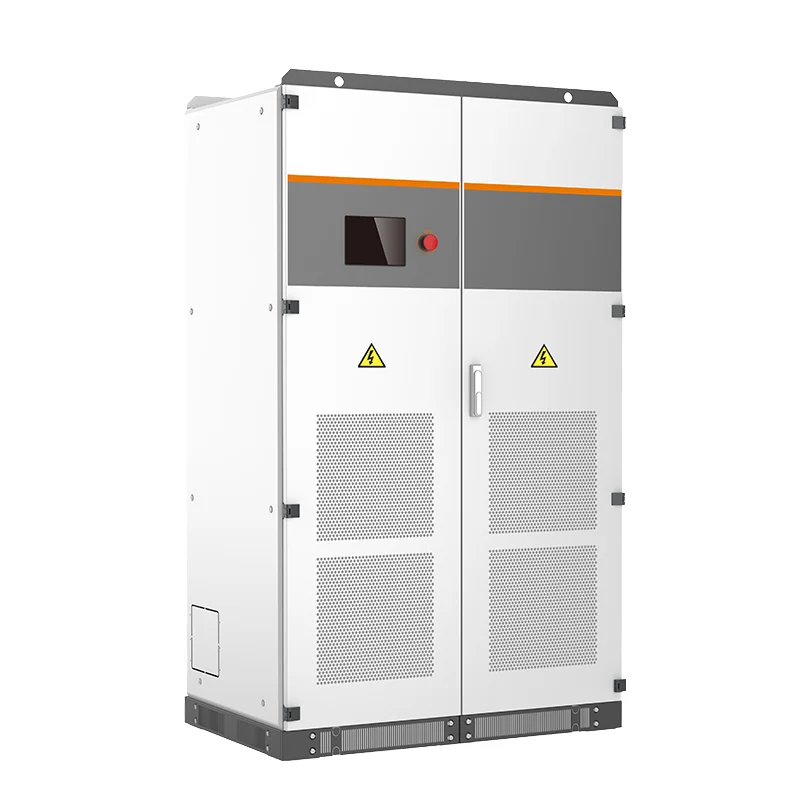

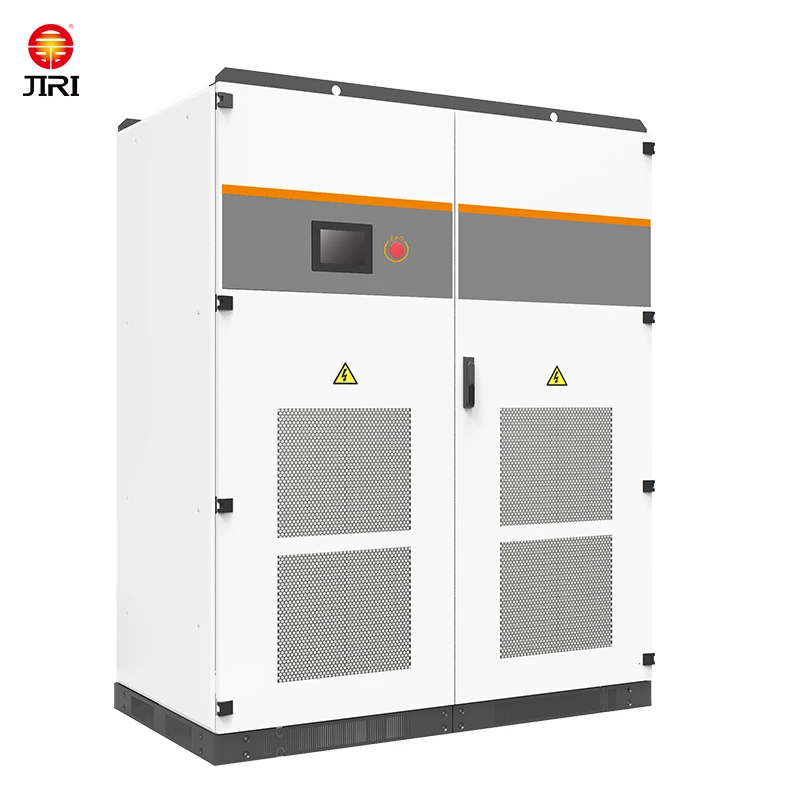

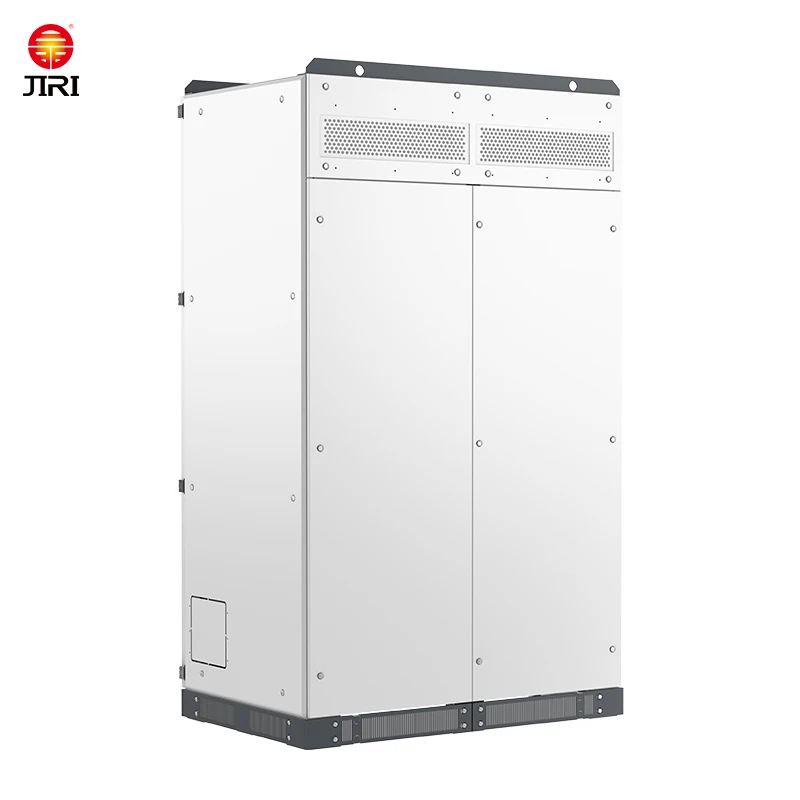

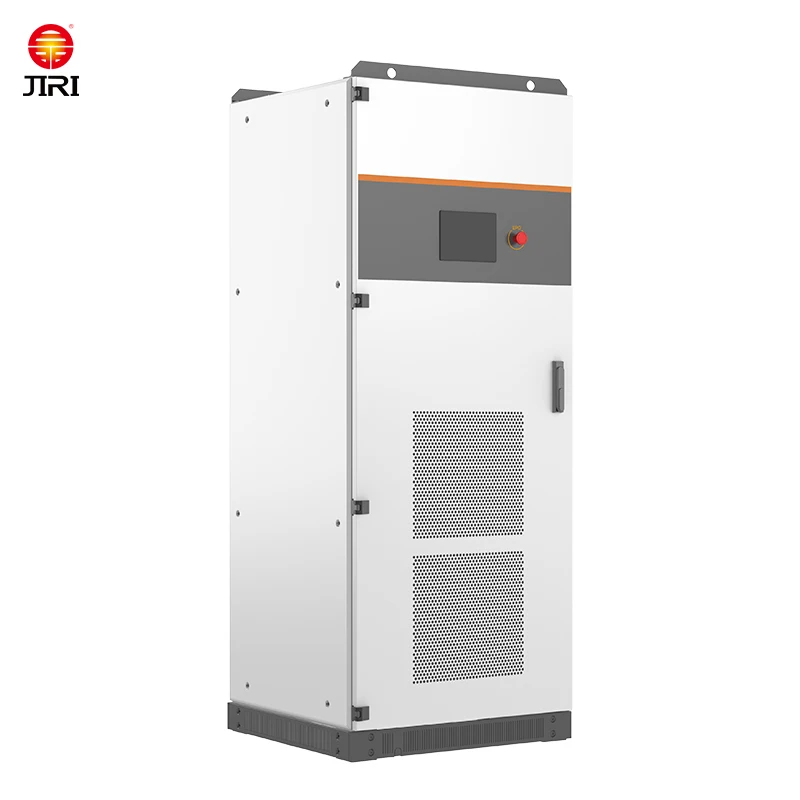

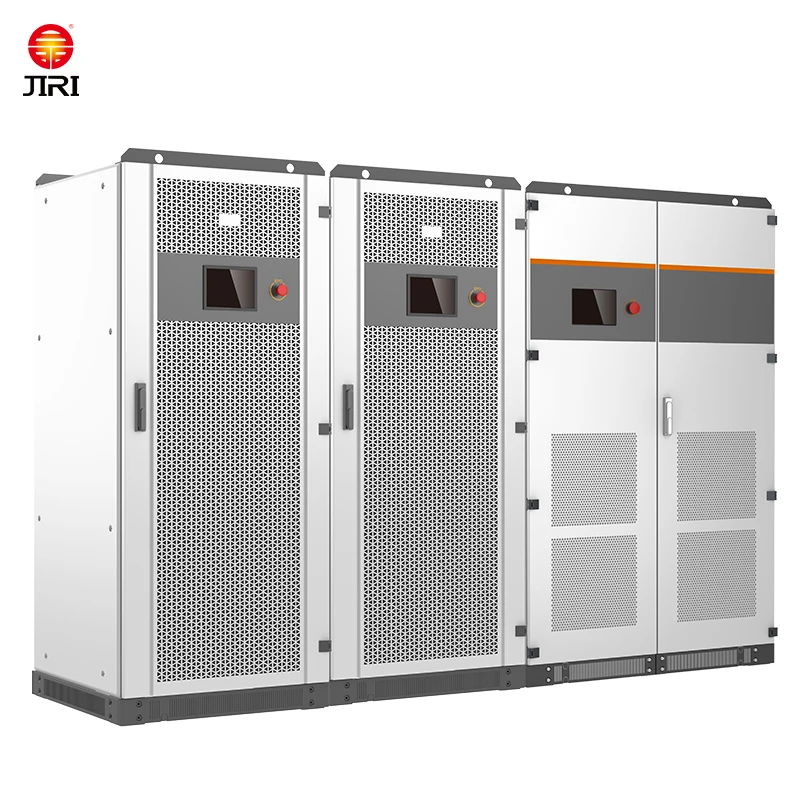

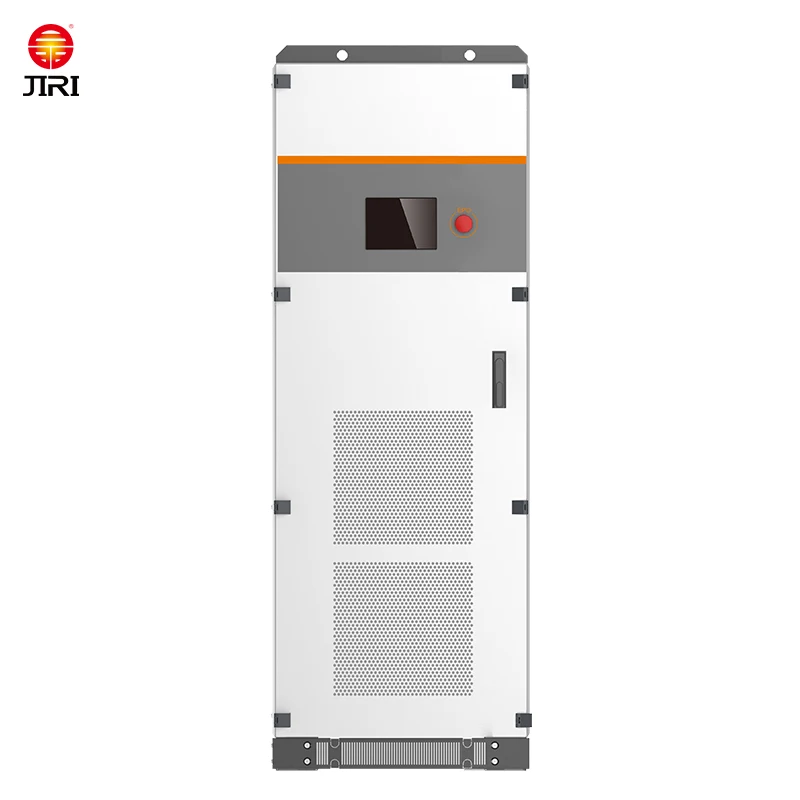

MEGA Series Power Conversion System(500kW-630kW)
Applicable to industrial and commercial system peak cutting and valley filling, peak regulation and frequency regulation,
auxiliary new energy grid connection and other energy storage application scenarios.



 Power Conversion System(500kW-630kW)
✅ Support maintenance bypass switch to enhance system availability..
✅Transformerless design, high operating efficiency.
✅Support constant voltage control and
constant power control.
✅Support Low & high voltage ride through function.


Specification


DC (battery)
Model
MEGA0500
MEGA0630
Voltage range (V)
600~900
Max. current (A)
929
1,170
AC(on-grid)
Max output power (kW)
550
693
Rate output power (kW)
500
630
Rated voltage (V)
400
Voltage range (V)
320~460
Rated current (A)
722
909
Max. output current (A)
800
1,000
Rated frequency (Hz)
50/60
Frequency range (Hz)
45~55/55~65
THDi
<3%
Power factor
1lagging-1leading（Settable）
AC connection
3W+PE
General data
Max.efficiency
98.7%
Ingress protection
IP21
Noise emission (dB)
<70
Operating temperature (℃)
-30～55
Cooling
Forced air
Relative humidity
0 ~95% non-condensing
Operating altitude
5,000m(>3,000 Derating )
Dimension W*D*H (mm)
1,000*700*2,050
Net weight (kg)
950
Transformer
/
Self-consumption (W)
<208W
Display and communication
Display
LCD touch-screen
BMS communication
RS485, CAN
EMS communication
RS485, TCP/IP

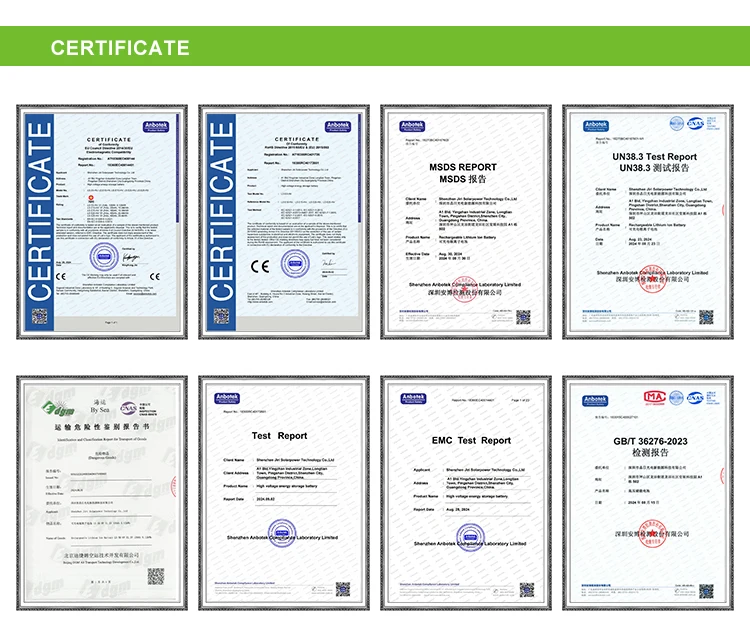

Certificates
IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC
