Three different kinds of irregular round perforated plasterboard ceiling tiles
- Category: >>>
- Supplier: Jiangyin Dego Building Materials Co. Ltd.Jiangyin Ltd.
Share on (1601299133253):
Product Overview
Description
DEGOTONE
Seamless Acoustic Systems
Perforated Plasterboard Ceiling Acoustic gypsum ceilings
Description.
ORLAN perforated acoustic gypsum boards are designed to inspire architects with their exciting scope for seamless patterned ceiling design. A jointless ceiling system gives the aesthetic satisfaction of homogenous surfaces to
enhance the effect of both regular and scattered patterns. In addition, acoustic performance can be controlled by choice of surface designs, resulting in interiors with truly impressive ambience.
Gypsum boards, perforated with regular or random patterns, with soundabsorbent tissue backing. Provide monolithic appearance ready for decoration on sit
enhance the effect of both regular and scattered patterns. In addition, acoustic performance can be controlled by choice of surface designs, resulting in interiors with truly impressive ambience.
Gypsum boards, perforated with regular or random patterns, with soundabsorbent tissue backing. Provide monolithic appearance ready for decoration on sit
The sound choice
-With their stylish perforated patterns and special acoustic tissue bonded to the back face, DEGOTONE boards bring a feeling of
space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsum
boards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.
space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsum
boards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.

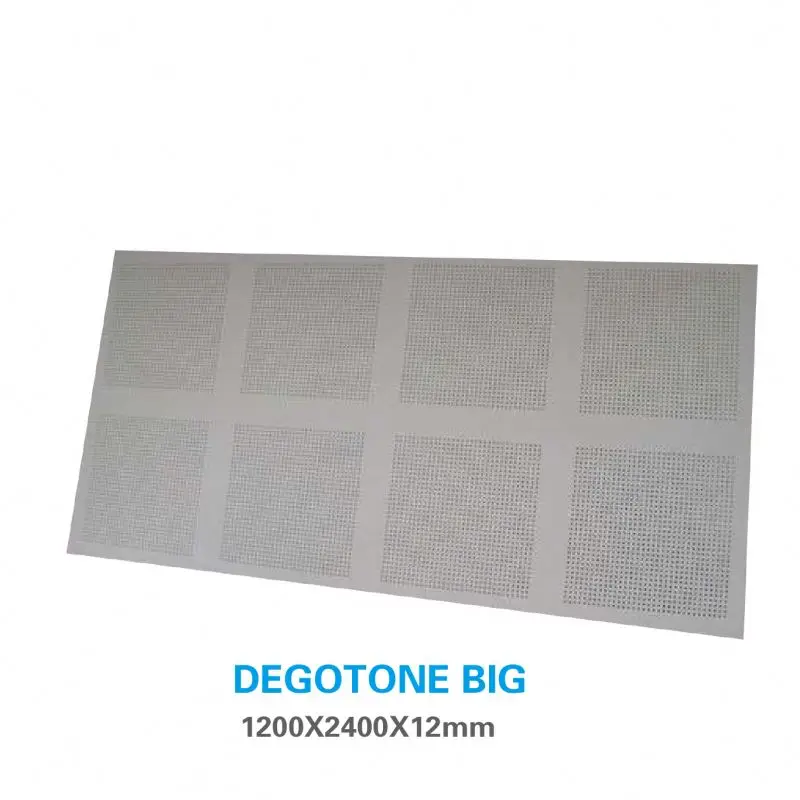

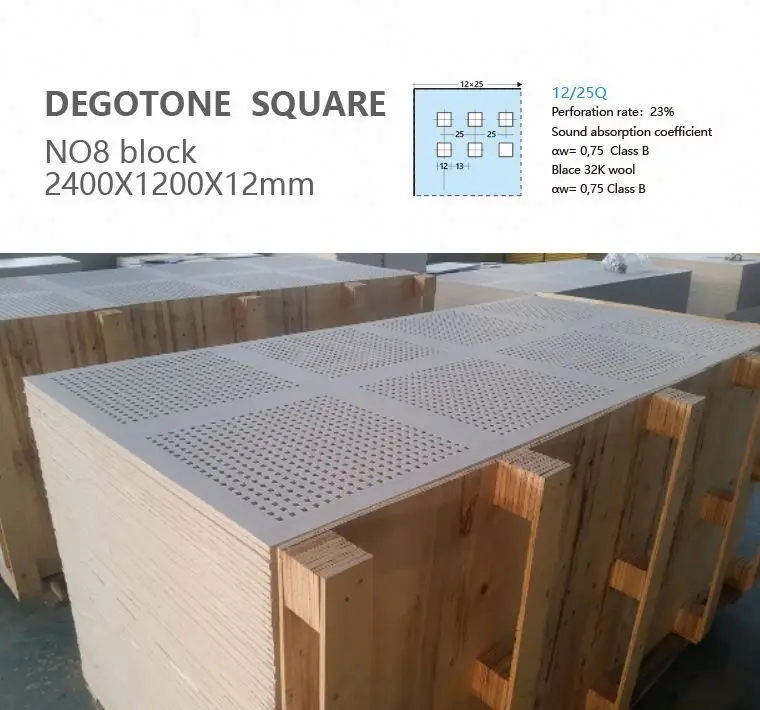

Square 12/25Q
All ceilings in the Perforated Plasterboard ceiling have been designed for use on ceilings where an increased level of sound attenuation and a high level of aesthetic appeal is required. The design features 8 large rectangular groupings per sheet, each with 12X12mm square perforations at 25mm centres to provide an open area of 16%
Benefts
Acoustic.
Acoustic performance
- αwup to 0.70 (LM)
- NRC up to 0.73
- Class C, D and E absorbers
Class 0 / Euroclass B
RH70
Ideal solution to Part E regulations
Impact resistant option ideal for sports halls
Monolithic appearance
Applications
Offces
Retail
Hotels
Leisure
Residential
Cinemas

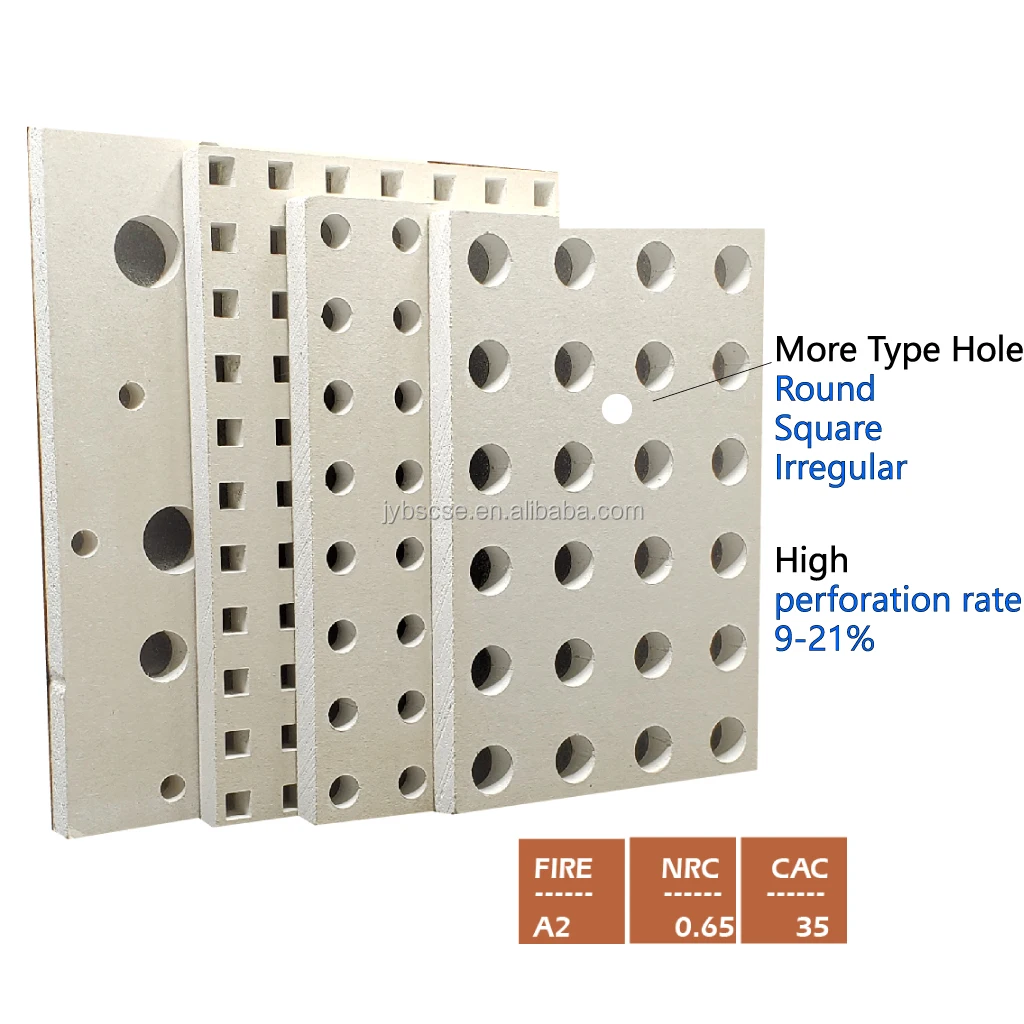

Perforation | area % |
Roundφ6mm φ8mm φ12mm 15m | 10.2 % |
Square, 12x12mm | 16.0 % |
Micro, 3 x 3 mm | 10.2% |
Tangent, 14 x 4 mm oval holes | 21.3% |
Regula perforated. | 16% |
Material: | High-strength plasterboard Gypsumboard | ||||||
Surface: | Ivory white （No paint） | ||||||
Color | White | ||||||
Hole | Round 6 mm，squarel Q1 12 x 12 mm.Tangent, 12 25/25R 8/18R | ||||||
Sizs： | 1200*2400mm，1188*1198mm | ||||||
Thickness | 12.5mm | ||||||
Weight | 7.7kg/m2 | ||||||
Edge | Square ,Tegular | ||||||
Perforation rate | 9-21.3% | ||||||

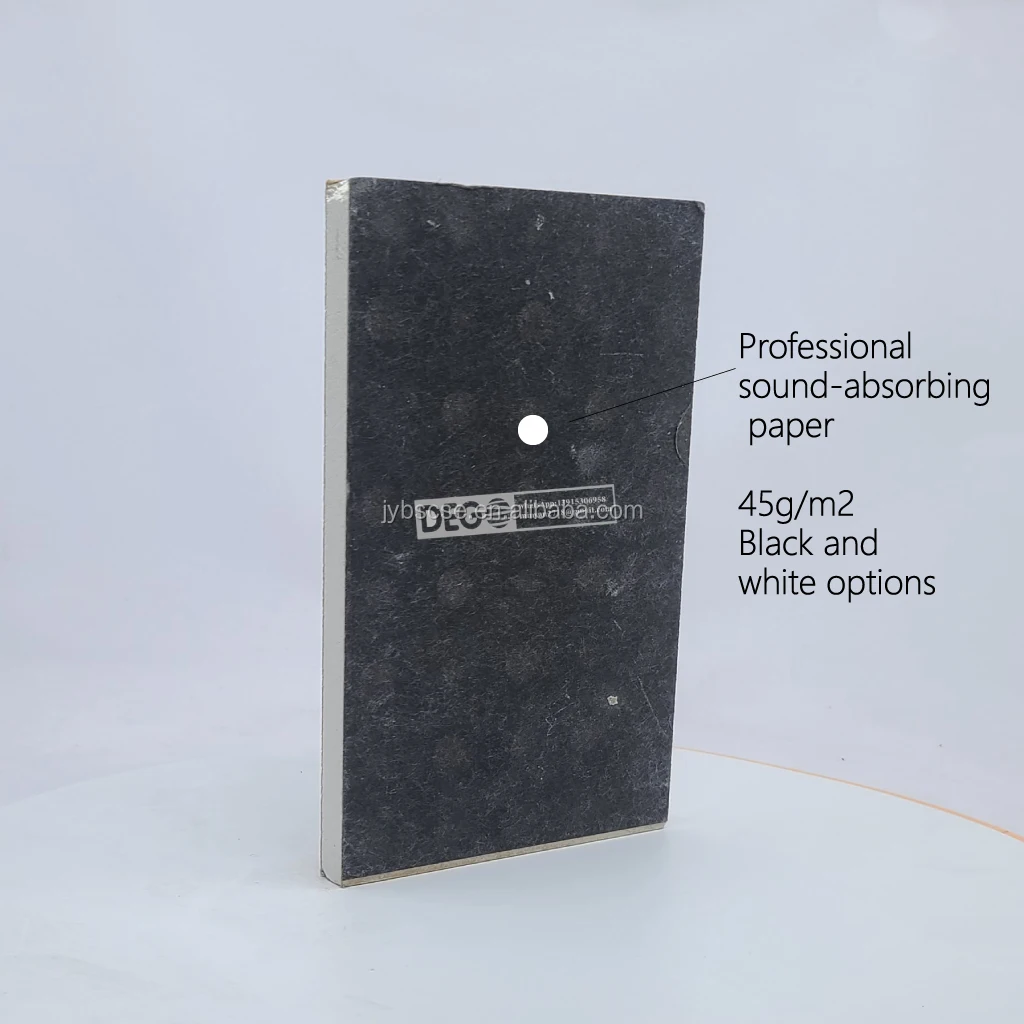

Back | 45g/m2 Sound absorption fabric | ||||||
Fireproof class | A2 -s1d0 ,China | ||||||
Acoustic performance | αwup to 0.65 - NRC up to 0.65 - Dncwup to 39dB | ||||||
Moisture resistance | RH70 | ||||||
Suspension system | Ceiling grid (Ceiling T bar) | ||||||

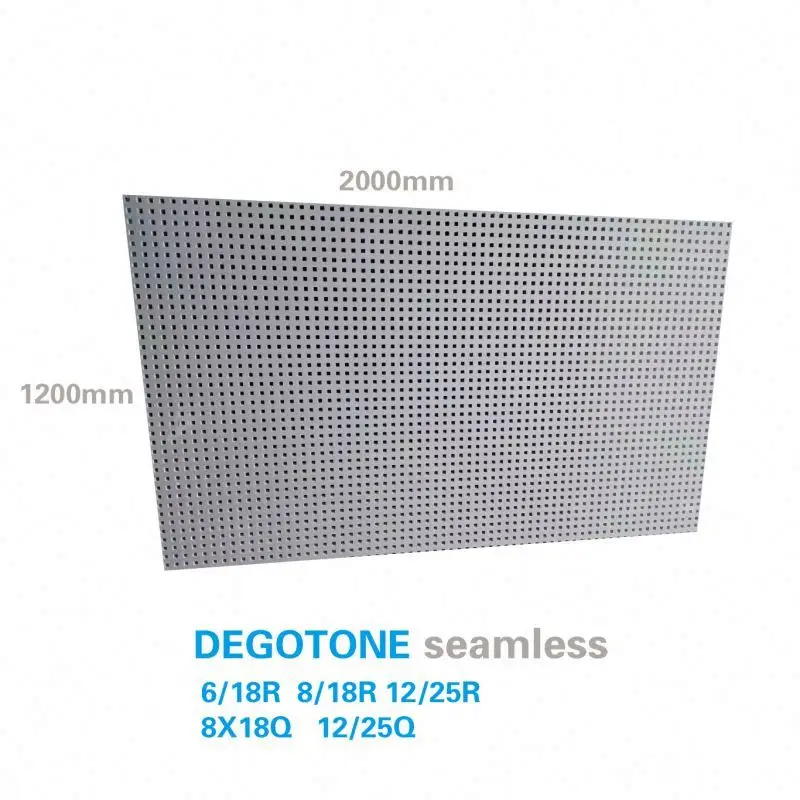

Seamless mode
Product Overview
Manufactured by worldwide plasterboard specialist, DEGO-Acoustic, Degotone is purpose built to provide exceptional acoustic control with ultimate design freedom. High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing which also prevents dust from the ceiling entering the room and masks the ceiling framework.
Degotone provides a pattern of perforations at 25mm centres, providing a 23% open area.

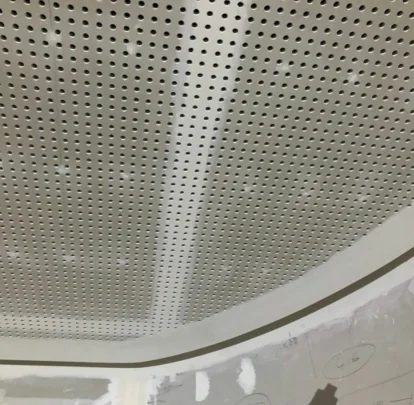

Degotone is also manufactured with Air technology which has an enduring impact on indoor air quality. The edges of Degotone boards are square cut and pre-primed for a unique installation method using ready-mixed Degotone Filler, cre ating a continuous, seamless finish. The availability of seamless access panels, ensures easy access to the ceiling cavity while maintaining pattern continuity.
Manufactured by worldwide plasterboard specialist, DEGO-Acoustic, Degotone is purpose built to provide exceptional acoustic control with ultimate design freedom. High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing which also prevents dust from the ceiling entering the room and masks the ceiling framework.
Degotone provides a pattern of perforations at 25mm centres, providing a 23% open area.
Degotone is also manufactured with Air technology which has an enduring impact on indoor air quality. The edges of Degotone boards are square cut and pre-primed for a unique installation method using ready-mixed Degotone Filler, cre ating a continuous, seamless finish. The availability of seamless access panels, ensures easy access to the ceiling cavity while maintaining pattern continuity.
Product type
perforation pattern shall be (Round, 6 8 12 15mm diameter) (squarel Q1 12 x 12 mm) (Irregular Round 8/15/20 mm diameter) with acoustic tissue backing, (aW 0.65) (Tangent aW 0.75), prepainted concealed grid system

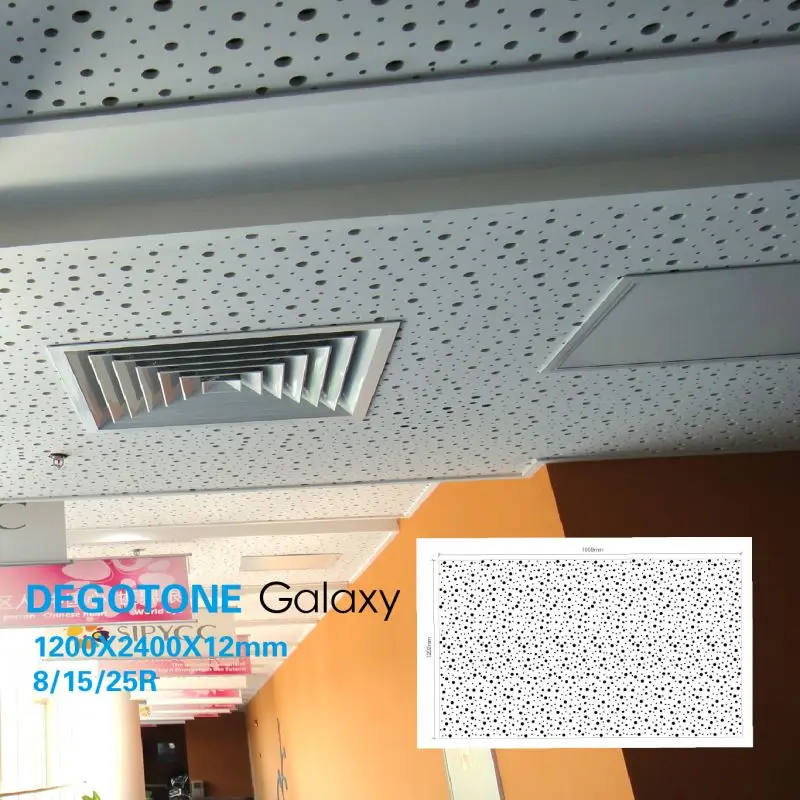

DEGOTONE Galaxy 8/15/20R
Galaxy features an irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area.
DEGOTONE Galaxy 12/20/35R
Degotone Galaxy’s seamless intricate pattern and acoustic performance is universally appealing to provide sound control and an
arresting aesthetic in public areas in commercial buildings.
arresting aesthetic in public areas in commercial buildings.
DEGOTONE Cross 12/20/50R
Rigitone Astral features a regularly staggered pattern consisting of 12mm and 20mm round perforations spaced at 25mm centres,
providing a 14.2% open area.
providing a 14.2% open area.
Square Q41
Holes: 8/18Q
Perforation rate: 13%
Holes: 10/20Q
Perforation rate:13.4%
Holes:12/25Q
Perforation rate: 16%
Perforation rate: 13%
Holes: 10/20Q
Perforation rate:13.4%
Holes:12/25Q
Perforation rate: 16%

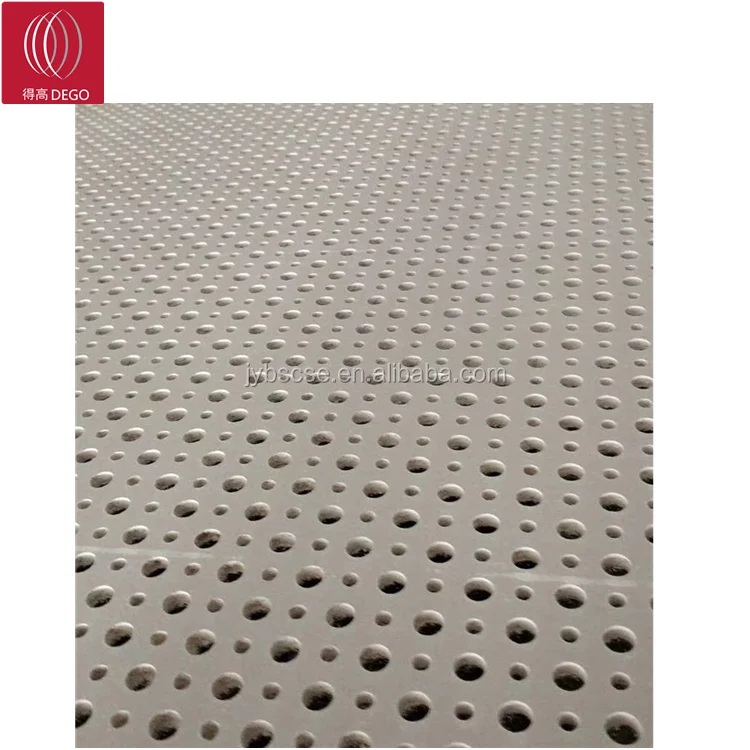

Irregular round hole
Holes: 8/15/20R
Perforation rate:9.9%
Holes: 12/20/35R
Perforation rate:9.9%
Holes:12/25Q
Perforation rate: 16%
Perforation rate:9.9%
Holes: 12/20/35R
Perforation rate:9.9%
Holes:12/25Q
Perforation rate: 16%

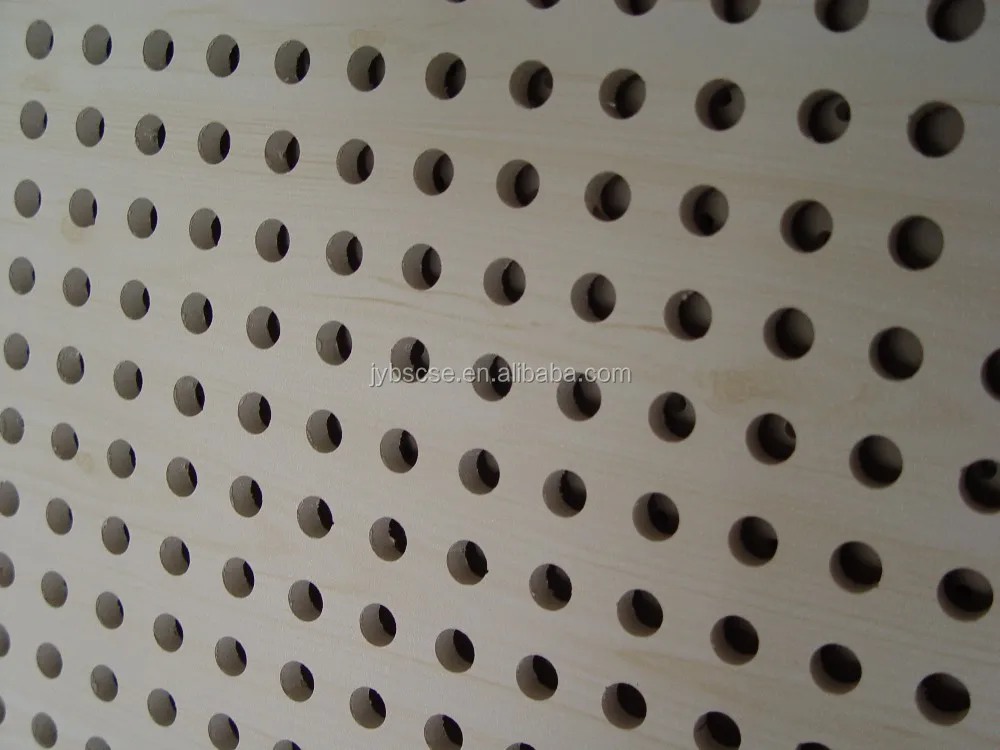

Round hole
Holes:6/18R
Perforation rate:9.9%
Holes: 12/25R
Perforation rate:9.9%
Holes:15/30R
Perforation rate: 16%
Perforation rate:9.9%
Holes: 12/25R
Perforation rate:9.9%
Holes:15/30R
Perforation rate: 16%

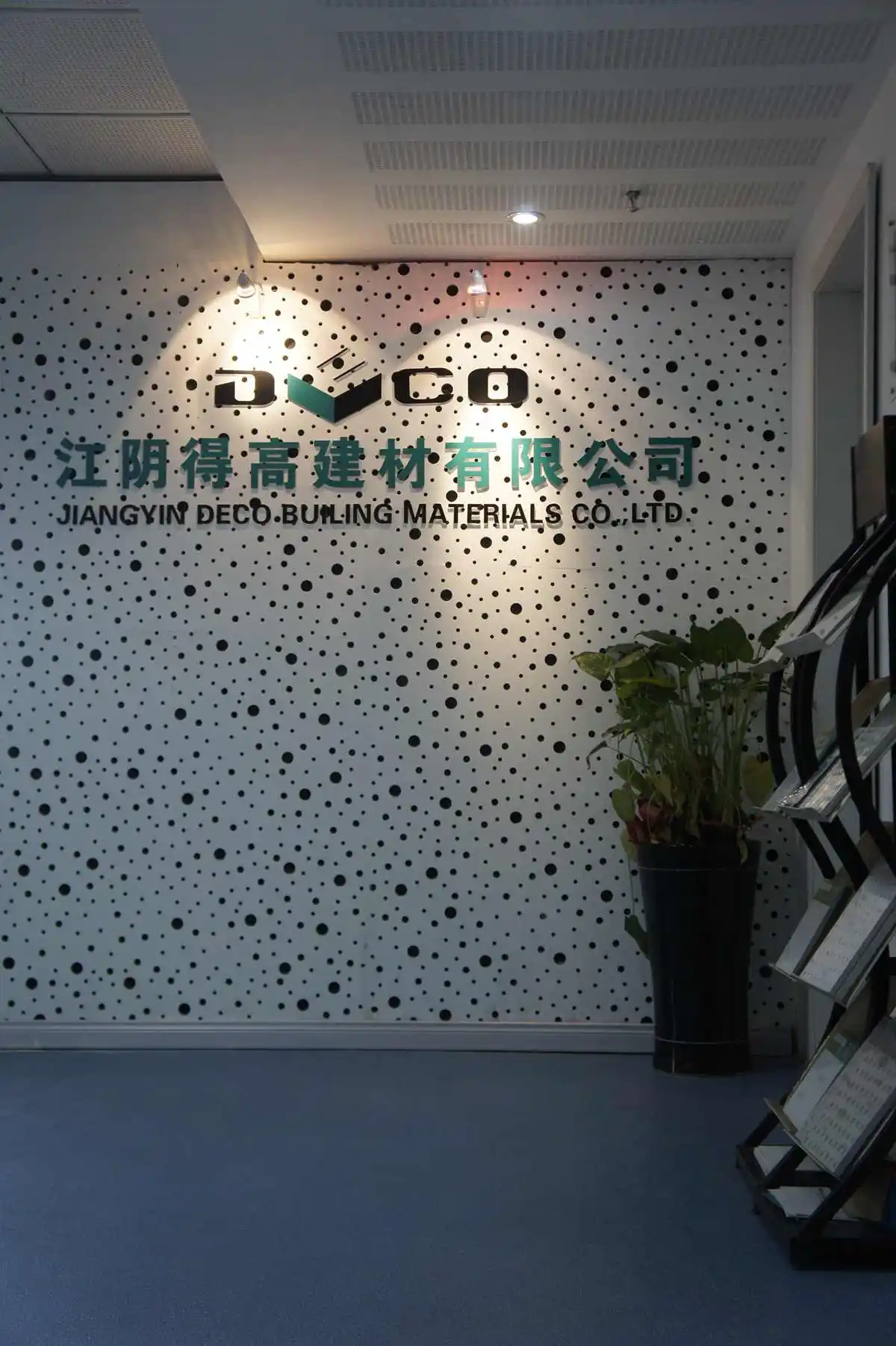

Founded in 2003, Deco is a leader in the field of decorative acoustic systems ，Its products are used for sound absorption and noise reduction，It is used in medical, office, school, industrial construction and other fields.
DEGO is dedicated to the manufacturing of sound-absorbing panel system solutions. We are pursuing technological
innovations，Obtained multiple patents and continuously launching superior, safe and environmentally friendly acoustic products,providing ashortcut to creating a beautiful and comfortable space for ceiling and wall solutions.
The DEGO series products include fiberglass /stonewool/gypsum/Mineral wool ceilings, Perforated plasterboard/acousitc wall panels system. The entire series of products have excellent acoustic performance. It is well known that these properties include acoustic control, impact resistance, fire rating, moisture resistance and reflectivity, which are sufficient to ensure our best performance, cost-effectiveness and long-lasting.
For 18 years, we have many engineering cases and excellent partners around the world. We will continue to lead and
launchinnovative products.
DEGO is dedicated to the manufacturing of sound-absorbing panel system solutions. We are pursuing technological
innovations，Obtained multiple patents and continuously launching superior, safe and environmentally friendly acoustic products,providing ashortcut to creating a beautiful and comfortable space for ceiling and wall solutions.
The DEGO series products include fiberglass /stonewool/gypsum/Mineral wool ceilings, Perforated plasterboard/acousitc wall panels system. The entire series of products have excellent acoustic performance. It is well known that these properties include acoustic control, impact resistance, fire rating, moisture resistance and reflectivity, which are sufficient to ensure our best performance, cost-effectiveness and long-lasting.
For 18 years, we have many engineering cases and excellent partners around the world. We will continue to lead and
launchinnovative products.
FAQ
Q: How is DEGOACOUSTIC brand?
A:Deco is a leader in the field of acoustic panels ，Has multiple patents and strong market share in china.: - 20+ years:
manufacturer experience. - 12000 square meters two factory
manufacturer experience. - 12000 square meters two factory
Q: What Quality Assurance do you have?
etc. 100% quality checK,100% and SGS on-site quality inspection service
etc. 100% quality checK,100% and SGS on-site quality inspection service
Q: Is it possible to customization for special size?Can you produce according to the samples？
Yes, support to produce the special size if bulk order and we can produce by your samples
Q. What is your terms of packing?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A: Generally, it will take 14 to21days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
before you pay the balance.
Q. How about your delivery time?
A: Generally, it will take 14 to21days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q:Can you offer sample and OEM
A ：Yes , sample free
