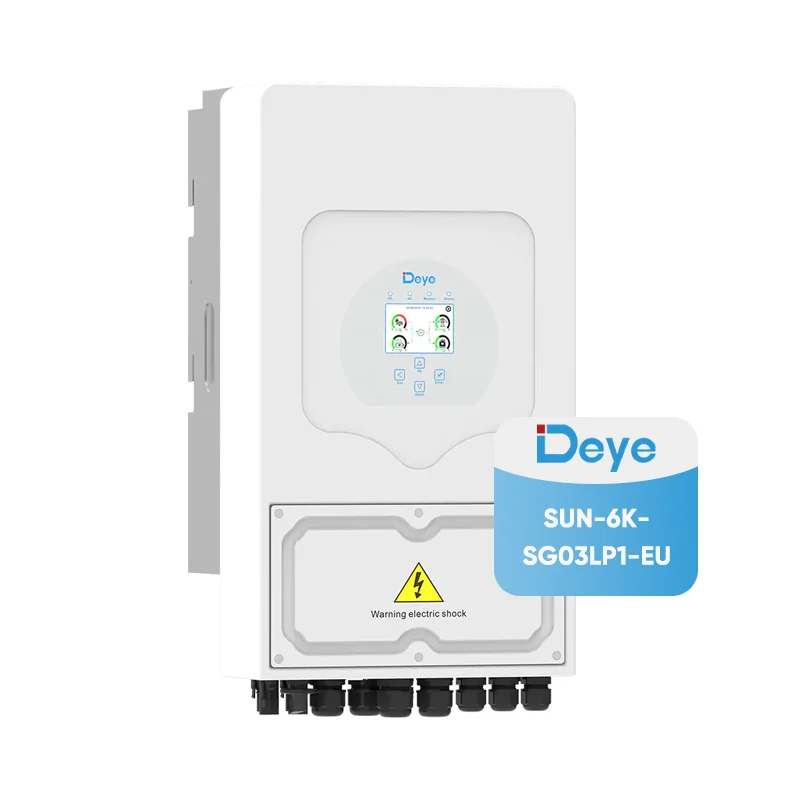

Ukraine Market Deye 6kw 6000w 6KWP Solar Hybrid Inverter Single Phase 220V Solar Energy Storage Inverters

Share on (1601299168599):


Price:$900.00-1,200.00

Quantity:


Product Overview

Description



Products Description

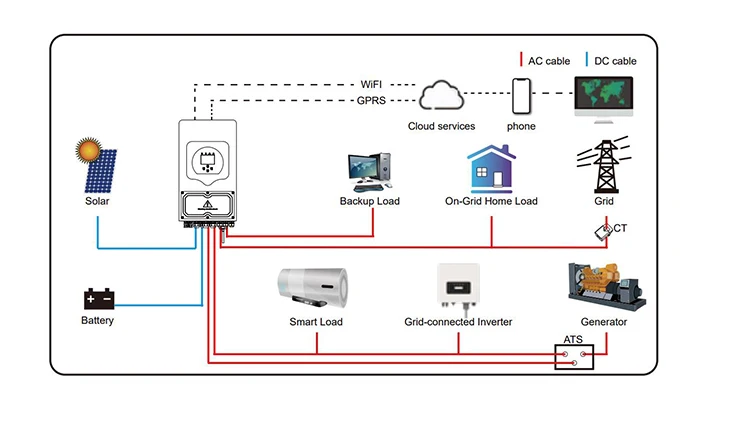

How does it work?
The above illustration shows basic application on of this inverter.
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner

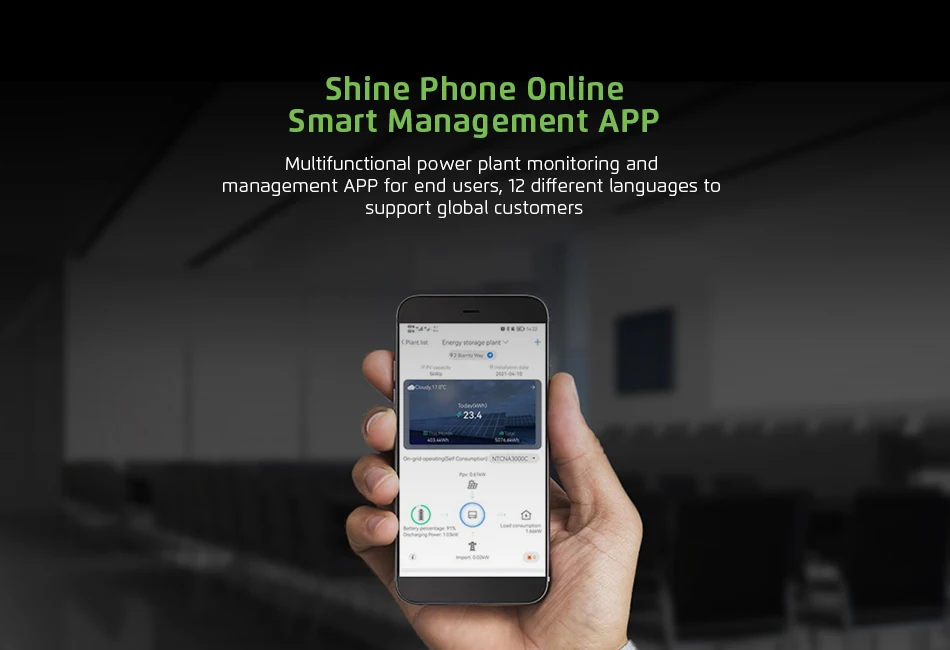

Intelligent Monitoring


* Open station supports one-click installation and registration
* Problem support one-click dispatch and navigation
* Safe operation, traceable logs, etc
* Support full lifecycle data storage to ensure data security and reliability

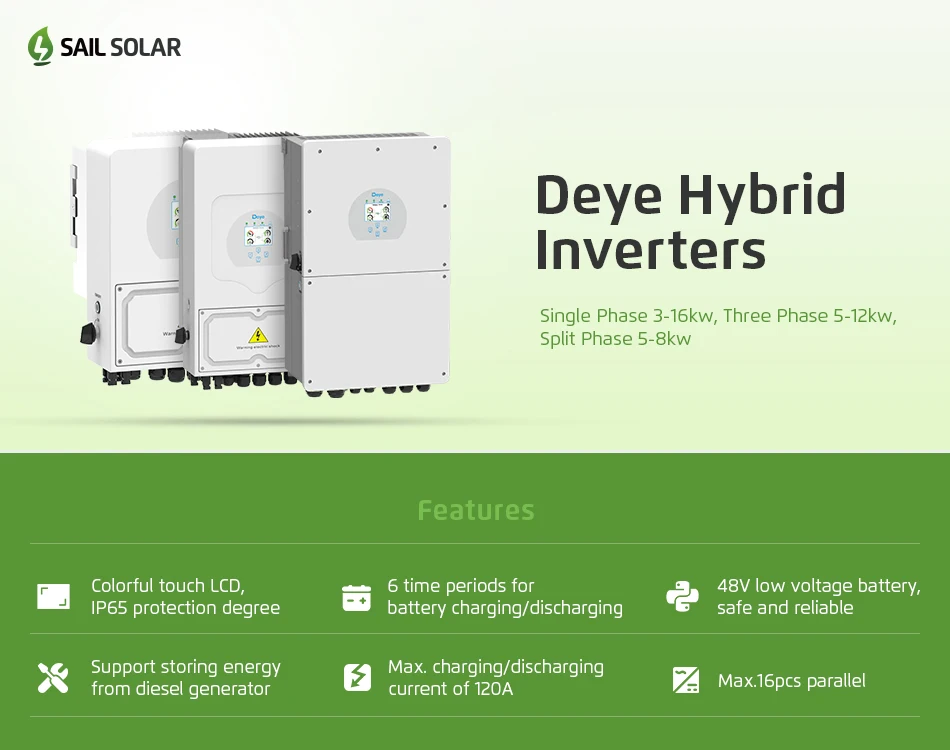

Product Series


SUN-3/3.6/5/6K-SG04LP1 | 3-6KW
Output Power: 3-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion

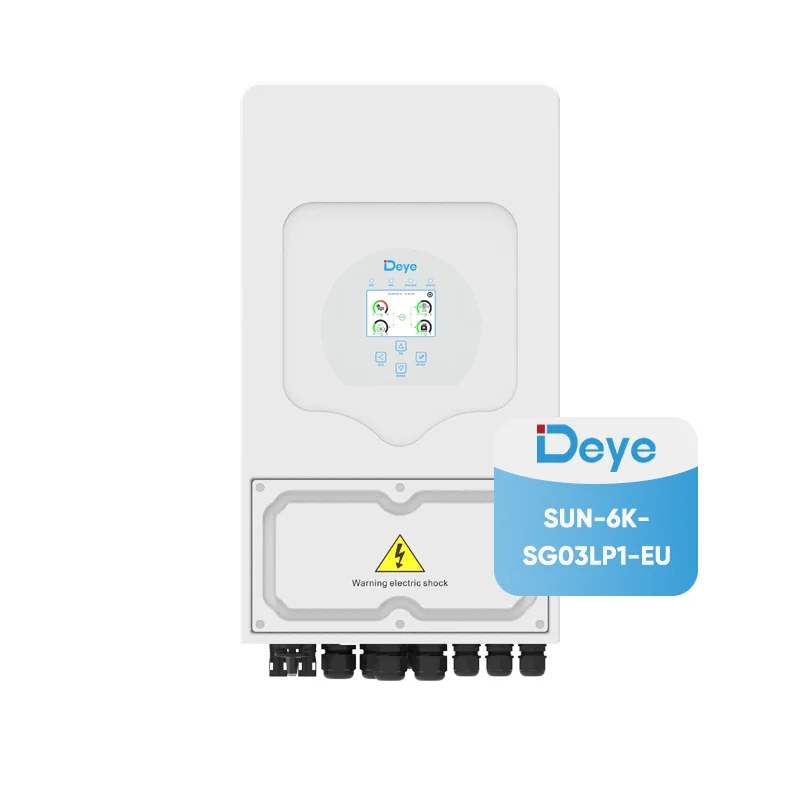

SUN-3.6/5/6K-SG03LP1-EU | 3.6-6KW
Output Power: 3.6-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-3.6/5/6/7.6/8K-SG05LP1-EU | 3.6-8KW
Output Power: 3.6-8KW Single Phase
Output Voltage: 220/230/240V Battery Voltage: 40-60V Battery Type: Lead-acid or Lithium-ion


SUN-5/6K-SG01LP1-US
SUN-7.6/8K-SG01LP1-US/EU | 5-8KW
Output Power: 5-8KW Split Phase
Output Voltage: 120V/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-5/6/8/10/12K-SG04LP3 | 5-12KW
Output Power: 5-12KW Three Phase
Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-12/14/16K-SG01LP1 | 12-16KW
Output Power: 12-16KW Single Phase Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion


Technical Datasheet
The following is part of the parameters of this series of products, if you have any questions, please contact our sales representatives for details.


Model
SUN-3K-SG04LP1-24-EU
SUN-3K-SG04LP1-EU
SUN-3.6K-SG04LP1-EU
SUN-5K-SG04LP1-EU
SUN-6K
-SG04LP1-EU
Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
20~30
40~60
40~60
40~60
40~60
Max. Charging Current (A)
140
70
90
120
135
Max. Discharging Current (A)
140
70
90
120
135
Number of battery input
Yes
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
3900
3900
4680
6500
7800
Rated PV Input Voltage (V)
370 (125~500)
Start-up Voltage (V)
125
MPPT Voltage Range (V)
150-425
Full Load DC Voltage Range (V)
300-425
PV Input Current (A)
13
13
13+13
13+13
13+13
No.of MPP Trackers
1
1
2
2
2
No.of Strings per MPP Tracker
1
AC Output Data
Rated AC Output and UPS Power (W)
3000
3000
3600
5000
6000
Max. AC Output Power (W)
3300
3300
3690
5500
6600
AC Output Rated Current (A)
13.6/13
13.6/13
16.4/15.7
22.7/21.7
27.3/26.1
Max. AC Current (A)
15/14.3
15/14.3
18/17.2
25/23.9
30/28.7
Max. Continuous AC Passthrough (A)
35
35
35
35
40
Peak Power (off grid)
2 time of rated power, 10 S
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type
Single Phase
Total Harmonic Distortion (THD)
<3% (of nominal power)
DC current injection
<0.5% In

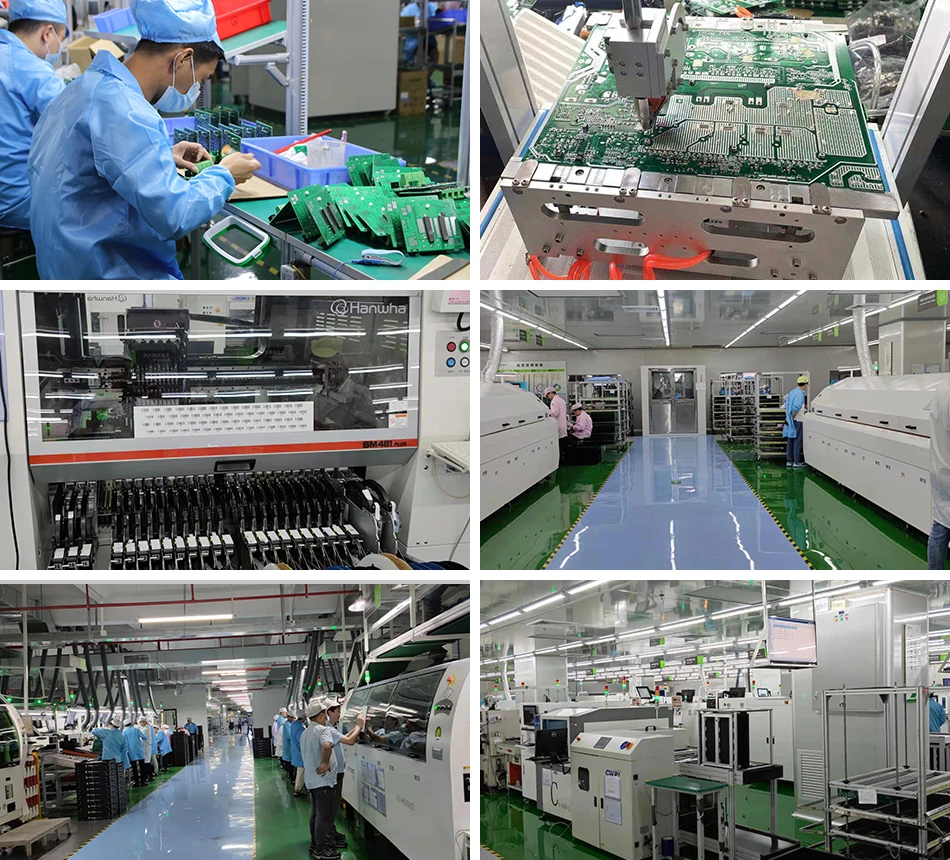

Our Factory


Deye
Deye is a global leader of smart energy solutions, provides residential, commercial and utility-scale PV inverters, The company is dedicated to becoming the world’s largest supplier of smart energy solutions. Deye has an advanced manufacturing plant in Ningbo, China. The facility covers an area of 200,000 square meters and has an annual output of 20GW. Growatt is one of the world’s top 10 inverter brands. Having its strong competitive advantages in distributed solar, the company is the world’s. No.1 residential inverter supplier and it also ranks among the world‘s top 5 suppliers.

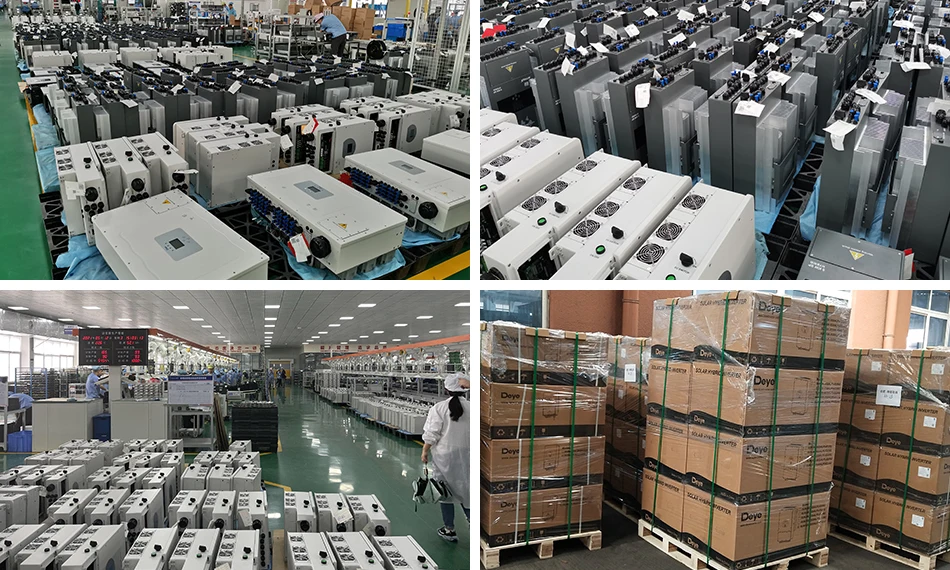

Package and Delivery



Packing Details : In carton on pallet or wooden box
Delivery Details : 5-15 working days

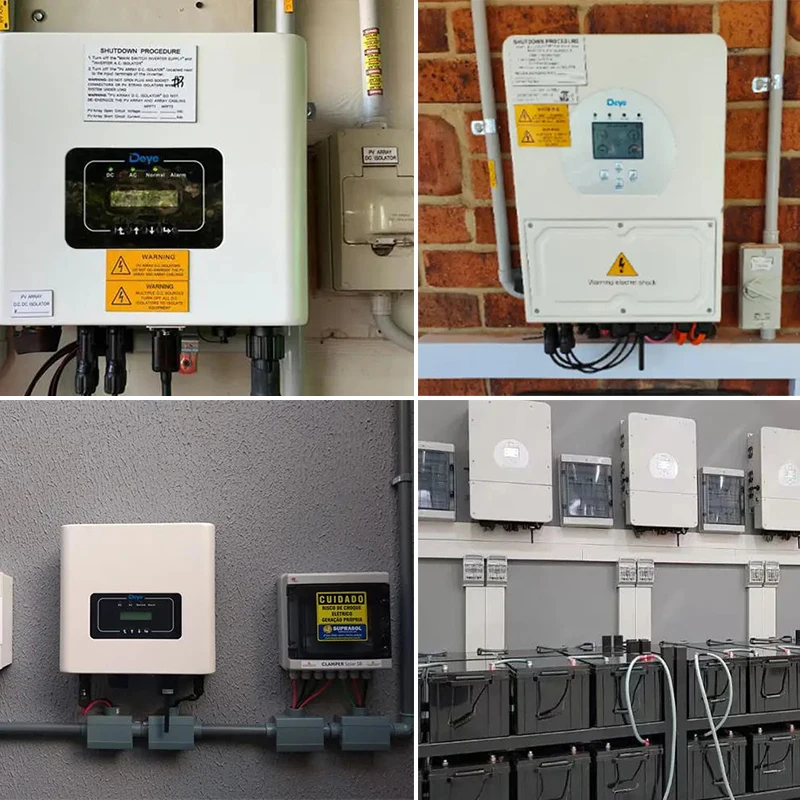

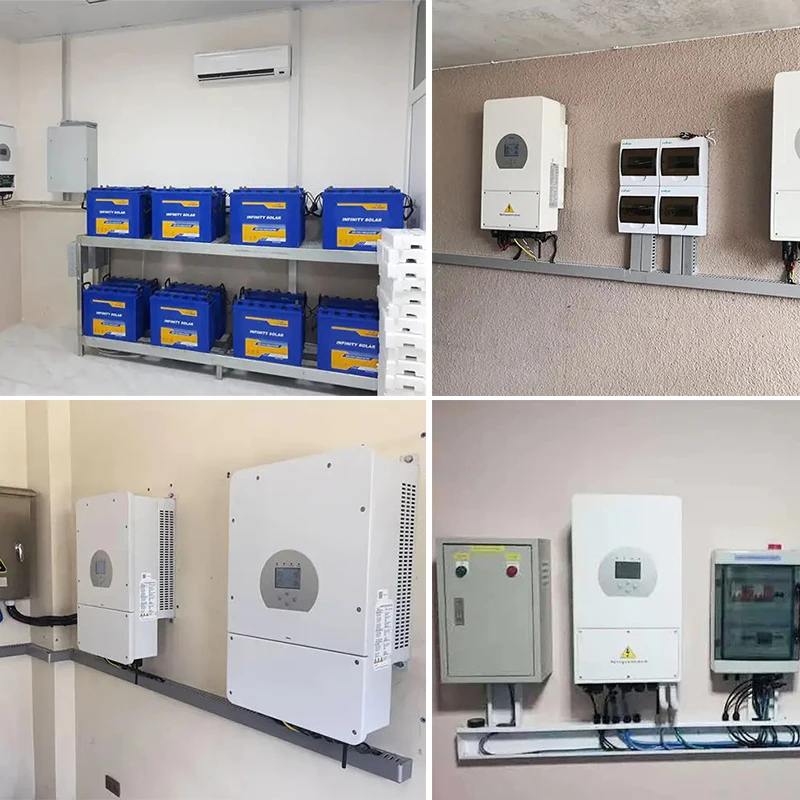

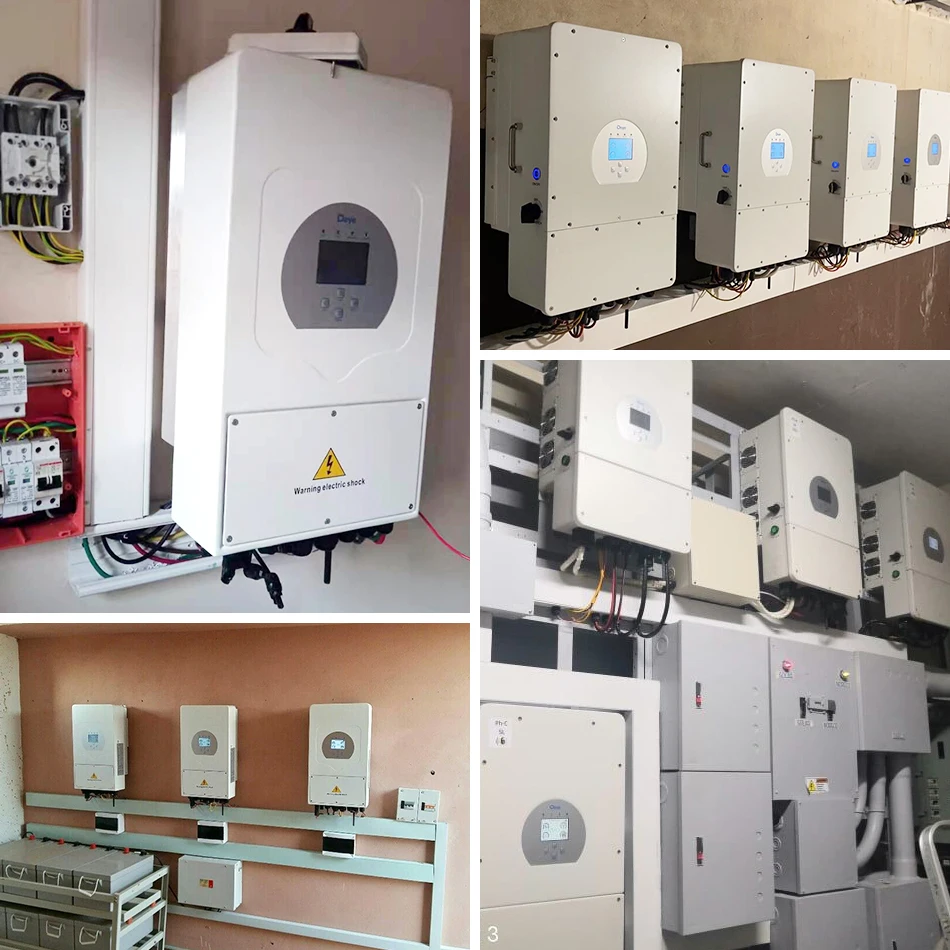

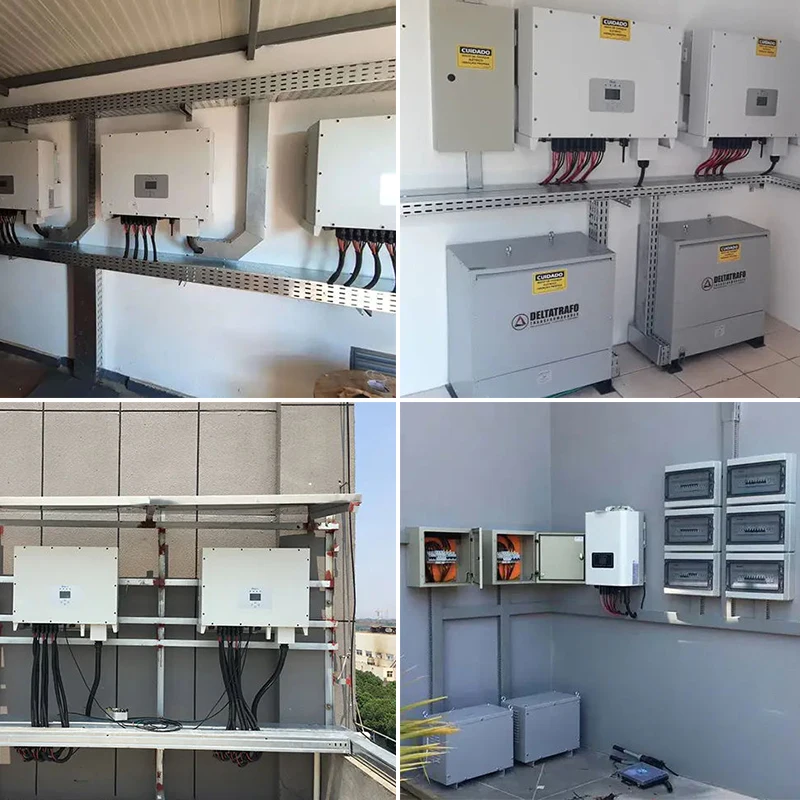

Projects



Deye Residential Hybrid Solar System All Over the World.


Payment


                                                                                                                                           Payment Term
                                                                                           T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(CNF)
30% T/T in advance, paid the balance against copy of B/L
CIF
                L/C
L/C amount above 50,000 usd, we can accept L/C at sight
     Western Union
Amount Lower than 5000usd


Go Solar



We can supply complete On Grid, Off Grid and Hybrid solar system, Include solar panel, inverter, battery and accessories etc.
