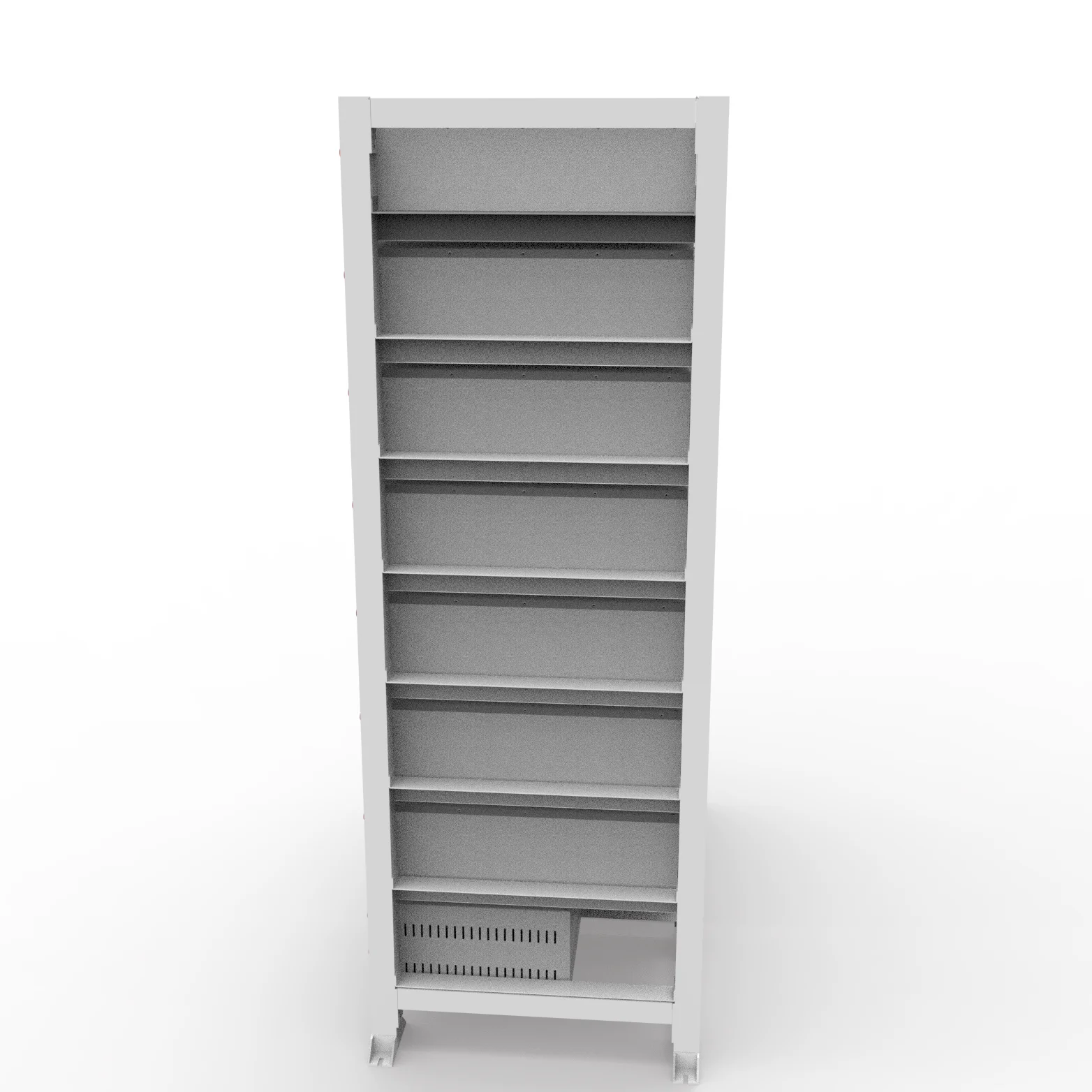

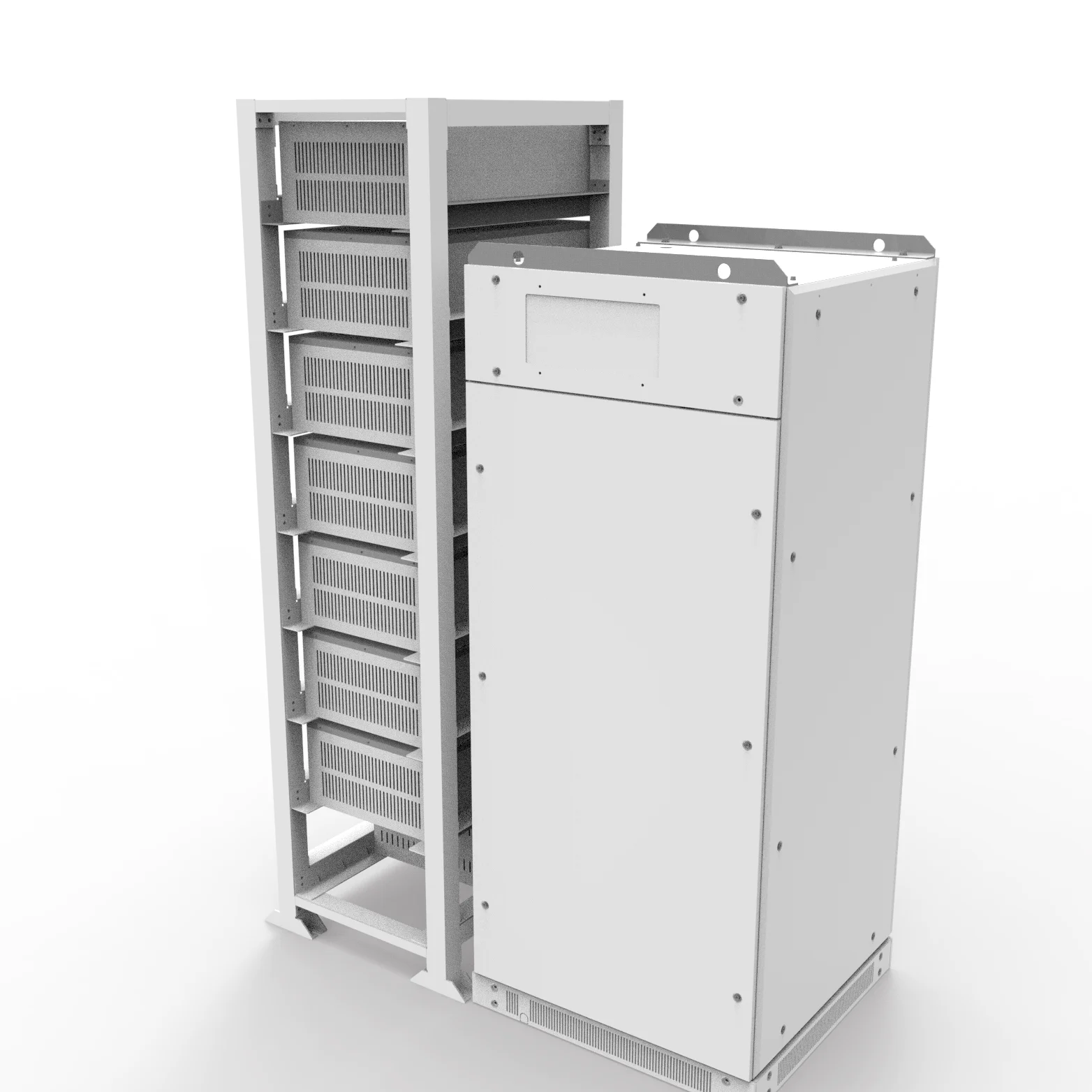

Factory customized fast delivery energy storage system container 100Kwh liquid cooled 10FT container for the African market
- Category: >>>
- Supplier: Hainan Dingwei Energy Technology Co. Ltd.Hainan Ltd.
Share on (1601299402011):
Product Overview
Description

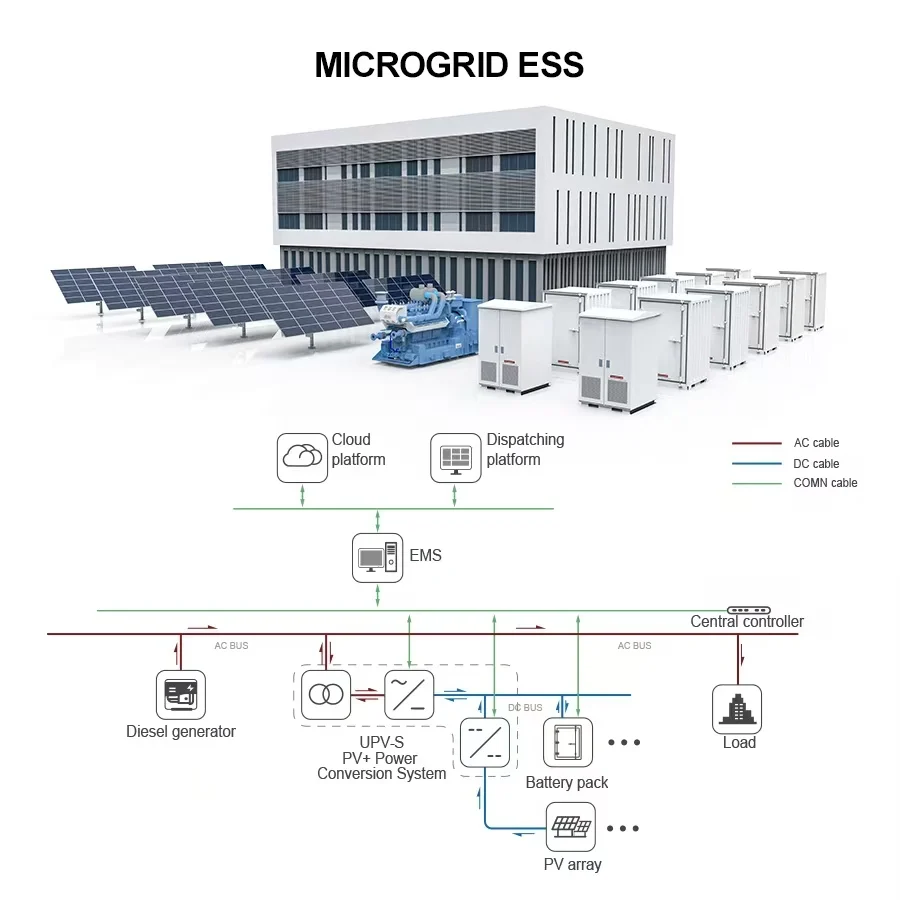

Hybrid solar system
be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.

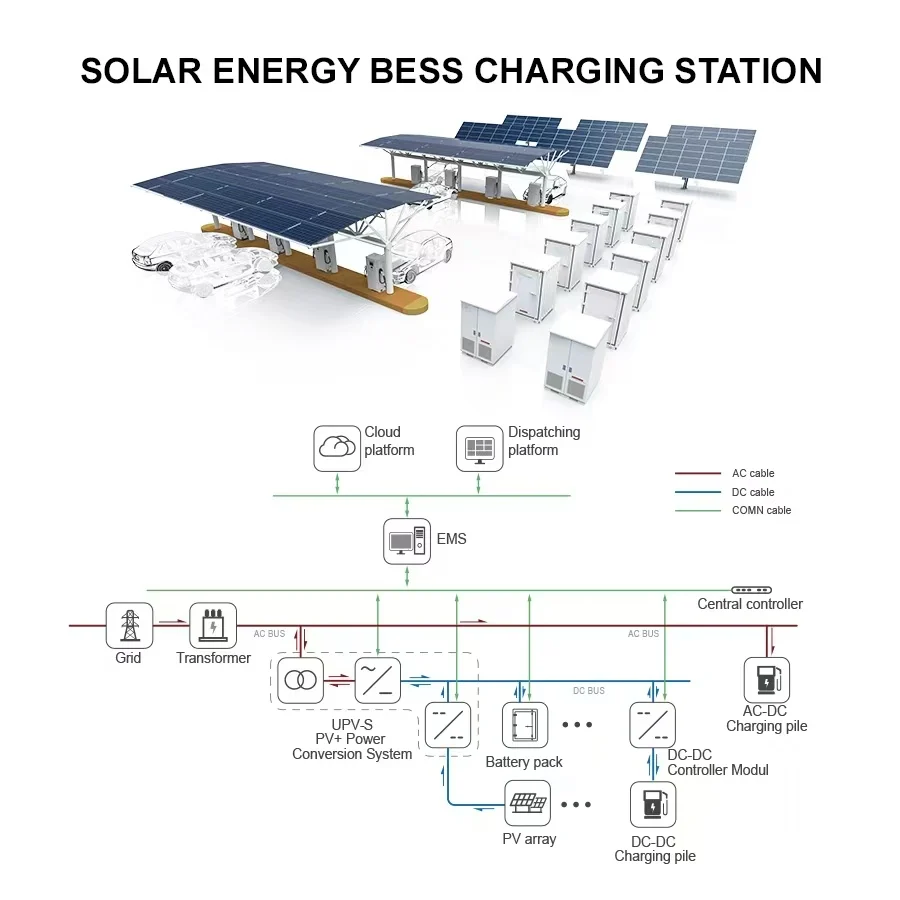

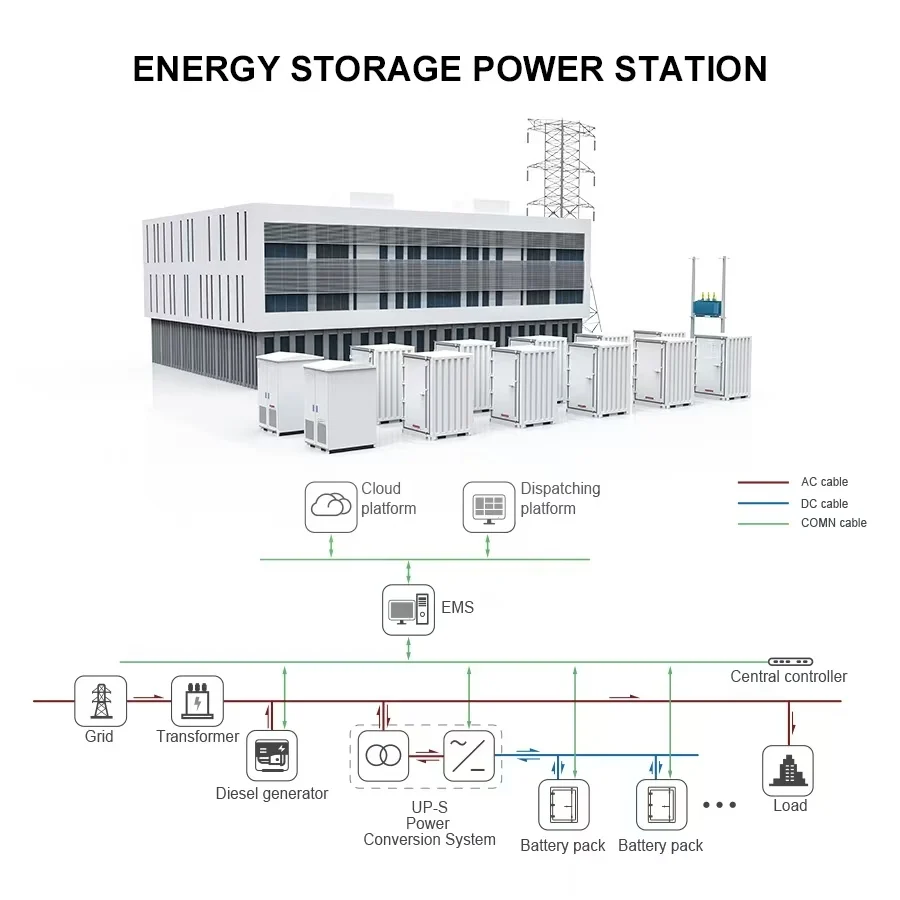

How does a solar energy storage system work
a) Store solar energy throughout the day and use it at night to increase the self consumption of the solar energy system.
b) Store energy when it's cheap and run your home with batteries when prices rise.
3. IP65 fanless design
4. Intelligent battery management makes your battery healthier and extends its lifespan.
5. Real time monitoring of your solar system through mobile phones and laptops.
6. Unique online intelligent service system
a) Store solar energy throughout the day and use it at night to increase the self consumption of the solar energy system.
b) Store energy when it's cheap and run your home with batteries when prices rise.
3. IP65 fanless design
4. Intelligent battery management makes your battery healthier and extends its lifespan.
5. Real time monitoring of your solar system through mobile phones and laptops.
6. Unique online intelligent service system
MODEL | 50KW/100KWh | 100KW 1215KWh | ||
Battery parameters | ||||
Rated energy storage capacity of the battery | 100kwh | 215kwh | ||
System rated voltage | 665.6V | 768V | ||
Battery Type | Lithium iron phosphate battery(LFP) | |||
Battery capacity | 150Ah | 280Ah | ||
Battery series-parallelconnection | 1P*16S*13S | 1P*20S*12S | ||
AC PARAMETERS | ||||
Rated AC power | 50KW | 100KW | ||
Rated AC current | 72A | 144A | ||
Rated AC voltage | 400V,3P+N+PE.50HZ | |||
Total curent harmonicdistortion (THD) | <3%(RATED POWER) | |||
Power factor adjustable range | -1 LEAD~+1 LAG | |||
GENERAL | ||||
Protection grade | IP54 | |||
Fire Protection System | SOL/PERFLUOROHEXANE/HEPTAFLUOROPROPANE | |||
Isolation method | NOT ISOLATED(OPTIONAL TRANSFORMER) | |||
Operation temperature | -25-60 ℃(DERATING ABOVE 45 ℃) | |||
Altitude | 3000M(>3000M DERATING) | |||
Communication Interface | RS485/CAN2.0/ETHERNETIDRY CONTACT | |||
Size (W* D*H) | 1200*1000*2150mm | 1800*1200*2300mm | ||
Weight (including battery) | 1750kg | 2400kg | ||

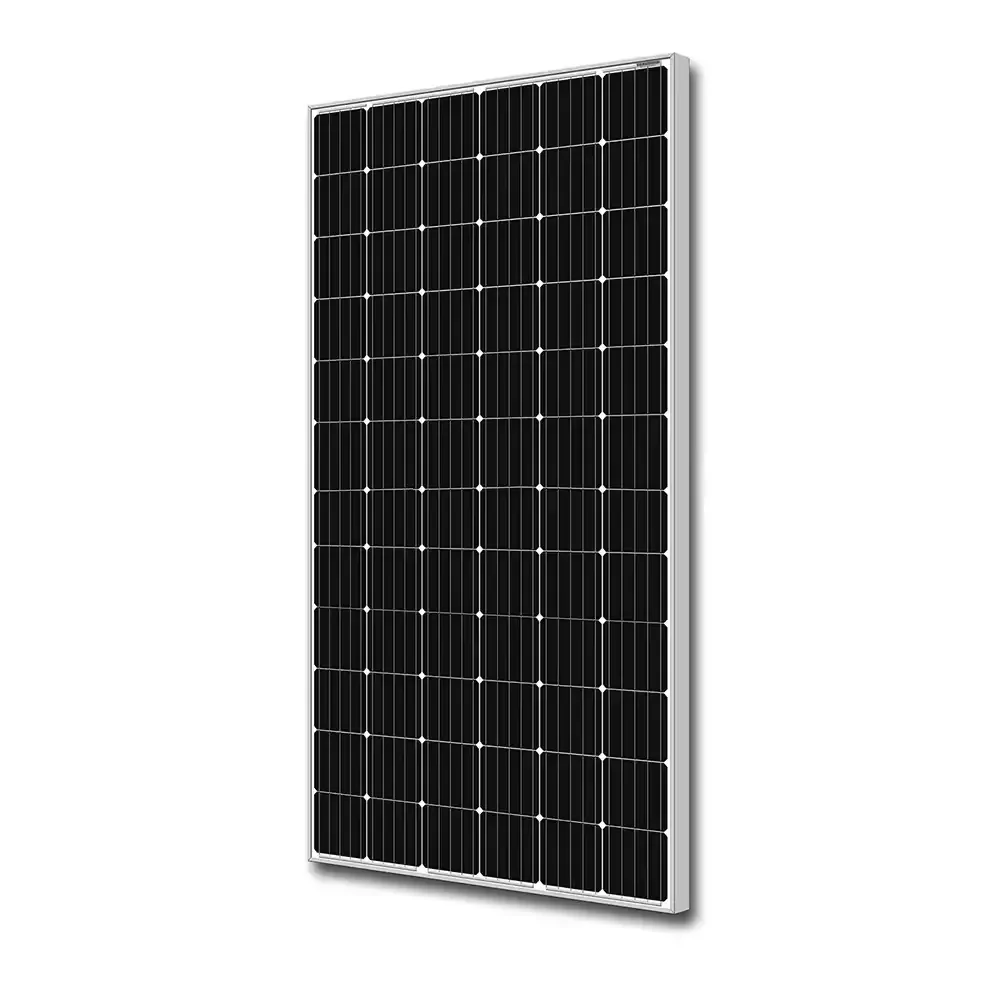

Solar Panel, ETC.
PID free PV module
0-5W positive power tolerance
100% full EL inspection
25 years warranty

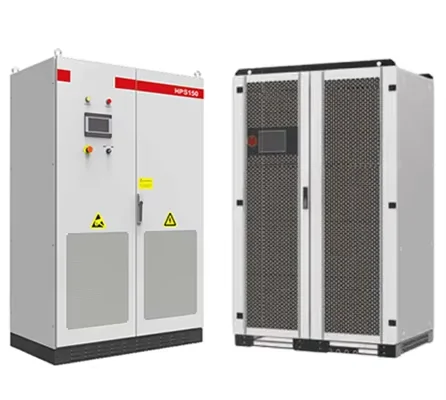

Hybrid Storage Inverter
Modular design and wide power range in single cabinet.Built-in transformer.
EU, America, Australia standard.
Grid-support functions.
Supported Battery Types:
>Lithium-ion battery
>Lead acid battery
Storage Battery
Independent battery brackets
Lithium Battery Or lead-acid Battery or Lead Acid Battery optional
Lithium Battery: 3000 life cycles; internal BMS
Deep cycle and Free Maintenance

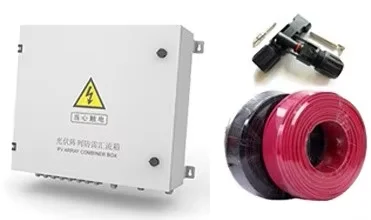

Accessories
PV combiner box
PV Cable&PV Connector
4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2
Colors: Black For STD, Red Optional.
Lifetime: 25 Years

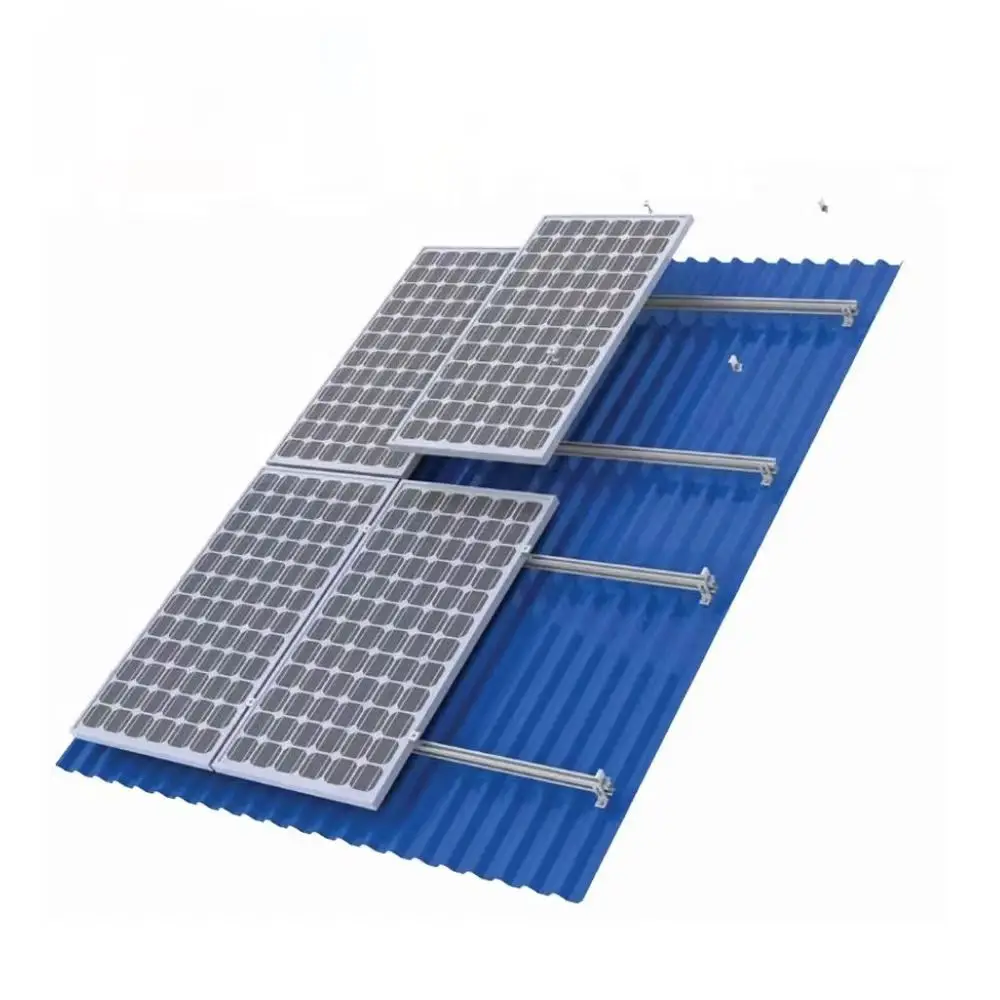

PV Mounting Structure(Mounting Brakets)
Pitched roof mounting structure
Flat roof mounting structure
Ground mounting structure
Ballast type mounting structure
Car parking lot mounting
structure
Compatible for all types solar modules
Company Profile
Dingwei Energy Technology Co., Ltd. is an energy storage expert who has been deeply involved in the energy storage industry for 20 years. Its main business includes four core businesses: industrial energy storage, consumer energy storage, power batteries, and household energy storage. It provides independent design, research and development, manufacturing, marketing, and technical support one-stop services for energy storage products. Dingwei has a production base and a complete energy storage product line at its headquarters in Shenzhen, and has established professional technical and marketing teams at home and abroad. Dingwei strictly controls product quality, has a complete product production process, strict product testing, and a multi country system certification system to ensure product quality.
FAQ
Q1: Are you factory?
A1: Keheng New Energy Technology (shenzhen) Co., Ltd. is a professional manufacturer of Lithium Ion batteries, battery
packs,LiFePO4 storage battery. With eight advanced manufacturing lines, over 500 engineers and technicians and assembly line
workers.
Q2: Which payment ways are available?
A2: For sample order or small order,you can make payment through our Paypal account or place order online directly through alibaba
trade assurance For decent order,40% T/T deposit payment in advance,balance payment before shipment.
Q3: What about after -sale service?
A3: We will offer you 1 year guarantee. If there are any problems , please inform us,we will offer you positive solutions.
Q4: What can I get the price?
A4: We will quote within 24 hours after reveiving your inquiry. If you are urgent to get the price,please call us.
Q5: Can I get a lower price if I order large quantities?
A: Yes.
Q6: Can I place order directly?
A: Yes, you can palce order directly on alibaba. Pls click "send" now.
Q7: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always a final inspection before
A1: Keheng New Energy Technology (shenzhen) Co., Ltd. is a professional manufacturer of Lithium Ion batteries, battery
packs,LiFePO4 storage battery. With eight advanced manufacturing lines, over 500 engineers and technicians and assembly line
workers.
Q2: Which payment ways are available?
A2: For sample order or small order,you can make payment through our Paypal account or place order online directly through alibaba
trade assurance For decent order,40% T/T deposit payment in advance,balance payment before shipment.
Q3: What about after -sale service?
A3: We will offer you 1 year guarantee. If there are any problems , please inform us,we will offer you positive solutions.
Q4: What can I get the price?
A4: We will quote within 24 hours after reveiving your inquiry. If you are urgent to get the price,please call us.
Q5: Can I get a lower price if I order large quantities?
A: Yes.
Q6: Can I place order directly?
A: Yes, you can palce order directly on alibaba. Pls click "send" now.
Q7: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always a final inspection before
