Product Overview

Description

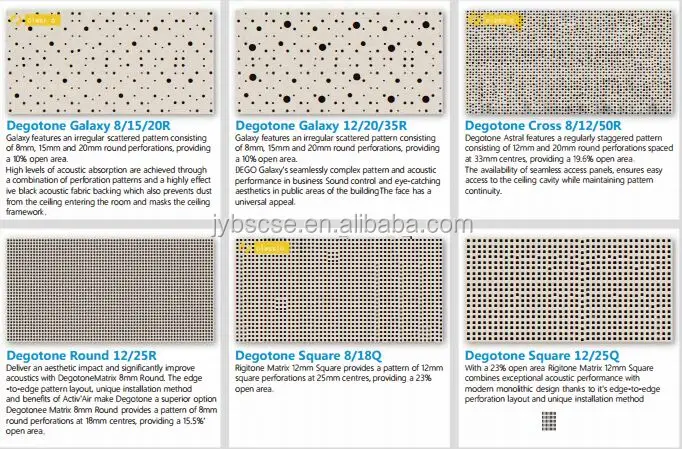

DEGOTONE Galaxy 8/15/20R
Galaxy features an irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area.
DEGOTONE Galaxy 12/20/35R
Degotone Galaxy’s seamless intricate pattern and acoustic performance is universally appealing to provide sound control and an
arresting aesthetic in public areas in commercial buildings.
DEGOTONE Cross 12/20/50R
Rigitone Astral features a regularly staggered pattern consisting of 12mm and 20mm round perforations spaced at 25mm centres,
providing a 14.2% open area.

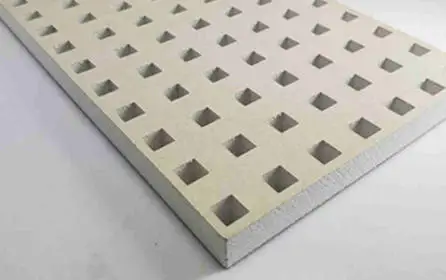

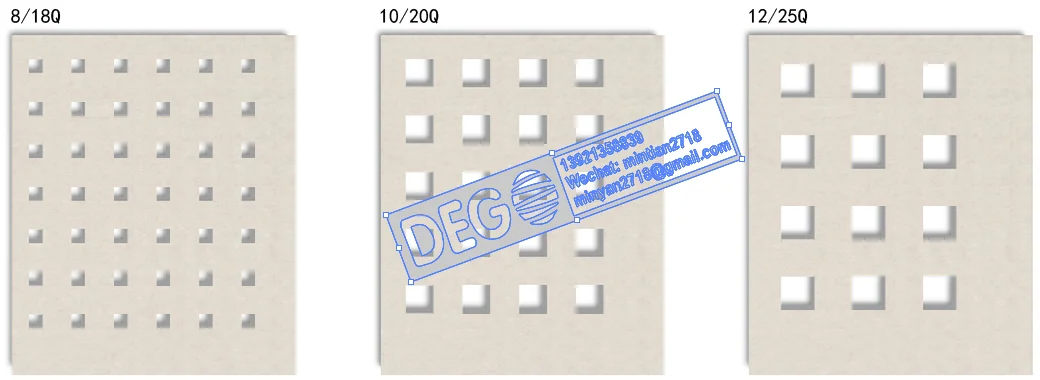

Square Q41
Holes: 8/18Q
Perforation rate: 13%
Holes: 10/20Q
Perforation rate:13.4%
Holes:12/25Q
Perforation rate: 16%

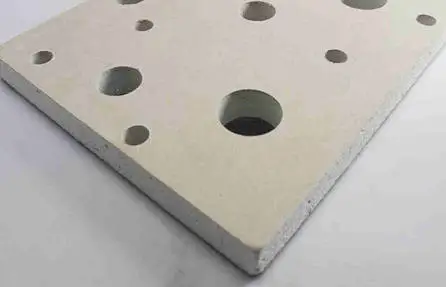

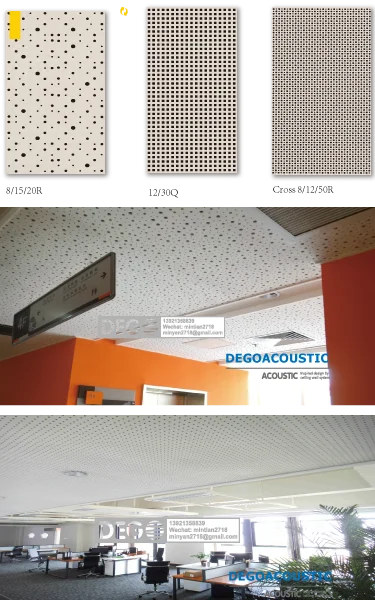

Irregular round hole
Holes: 8/15/20R
Perforation rate:9.9%
Holes: 12/20/35R
Perforation rate:9.9%
Holes:12/25Q
Perforation rate: 16%

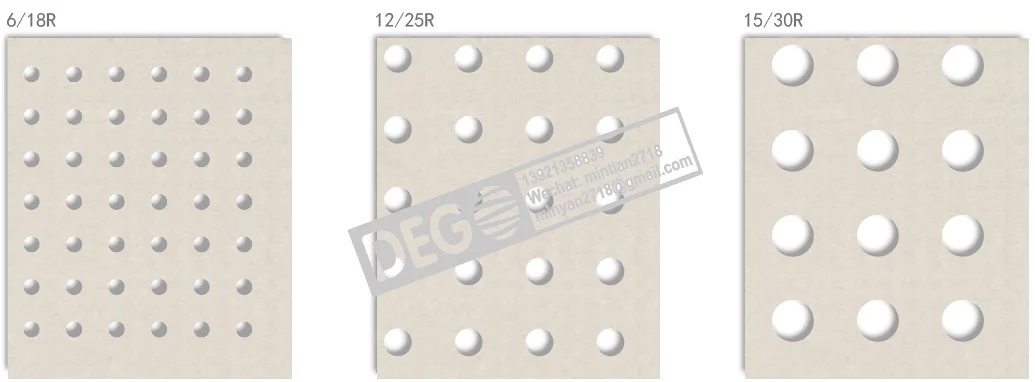

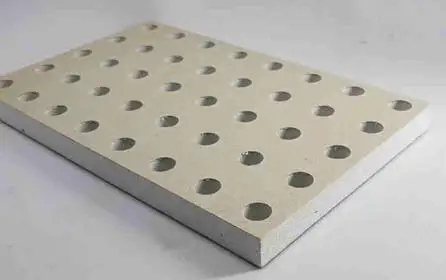

Round hole
Holes:6/18R
Perforation rate:9.9%
Holes: 12/25R
Perforation rate:9.9%
Holes:15/30R
Perforation rate: 16%


Round hole
Size :board1200×2400×12.5mm
TIle：600 ×600 ×12.5mm
Thick:9.5/12.5mm
Hole:6/15R 8/18R 12/25R 15/30R
Edge:Bevel
Fireproof A2, NRC0.65 RH70


Round hole.
Size :board1200×2400×12.5mm TIle：600 ×600 ×12.5mm Thick:9.5/12.5mm Hole:6/15R 8/18R 12/25R 15/30REdge:Bevel Fireproof A2, NRC0.65 RH70

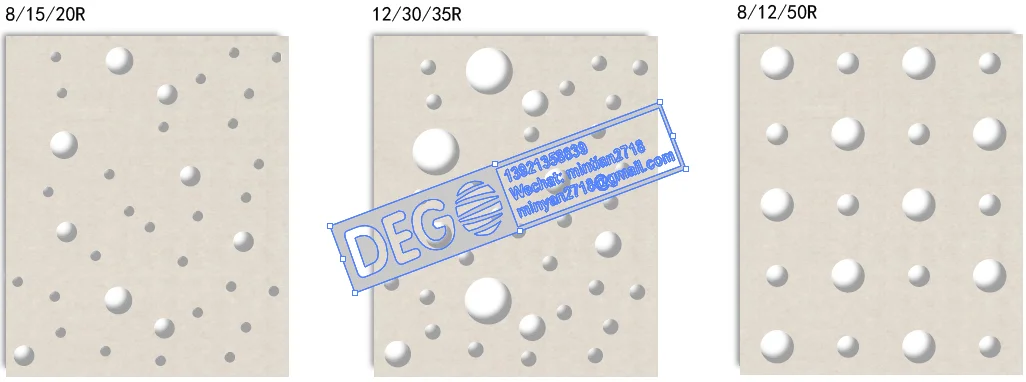

Degotone Galaxy
Size :board1200×2400×12.5mm T Thick:12.5mm
Hole:8/15/20R,12 /30/35R, 12/25/50R Edge:Bevel Fireproof A2, NRC0.65 RH70


DEGOTONE
Perforated Plasterboard Ceiling Tile
Acoustic gypsum ceilings
Seamless designs with acousticperformance





Benefits.
Gypsum boards, perforated with
regular or random patterns, with sound
absorbent tissue backing. Provide
monolithic appearance ready for
decoration on site.
Acoustic performance
- aw up to 0.73 (LM)
- NRC up to 0.8
- Class C, D and E absorbers
Class 0 / China B
RH70
Ideal solution to regulationsd



Description.
Degotone SEAMLESS is the new name for incorporates technology.
Manufactured with high quality, ultrasharp perforations in a variety
of continuous perforated patterns for a seamless finish.
wall and ceiling lining with built-in air purification.
Benefits.
-Continuous perforations for a seamless monolithic look.
- Good sound absorption for control of reverberation.
- Fire resistant gypsum composition.
- Wide range of perforation patterns.
- Ideal for large volume areas
-Durable acoustic finish, easy to re-paint and maintain long term
Application.
Degotone SEAMLESS is ideal for large volume areas where a
seamless fluid look is required, perfect for strong sculptural
architecture.
Composition.
Panels manufactured from reinforced plasterboard containing
dehydrated zeolite and gypsum with grey sound absorption
felt fixed on the back. Perforations press punched for clean
edge finish.
The unique installation method allows the product’s perforated
pattern to continue uninterrupted, achieved using a specialised
compound, accessory kit and primer prior, readying the surface
for sanding and painting.Degotone seamless acoustic solutions
Description
•Material: high-density gypsum board
•Surface: Ivory white
• Back: Acoustic paper
•Edge: Square





 Ceiling And WAll Acousticly
With their stylish perforated patterns and special acoustic tissue bonded to the back face, DEGOTONE boards bring a feeling of space to offices, shops, restaurants and other buildings where acoustic ambience is important. Geometric design perforated gypsum boards with an integral sound absorbent tissue backing. Provide jointless finish ready for decoration on site.







Material:
High-strength plasterboard  Gypsumboard
Surface:
Ivory white （No paint）
Color
White
Hole
 Round 6 mm，squarel Q1 12 x 12 mm.Tangent, T1 14 x 4mm oval, Micro M 3 x 3 mm
Sizs：
1200*2400mm，1188*1198mm
Thickness
12.5mm
Weight
7.7kg/m2
Edge
Square ,Tegular
Perforation rate
9-21.3%
Back
45g/m2 Sound absorption fabric
Fireproof class
A2 -s1d0 ,China
Acoustic performance
αwup to 0.65
- NRC up to 0.65
- Dncwup to 39dB
Moisture resistance
RH70
Suspension system
Ceiling grid (Ceiling T bar)



Product Overview
Manufactured by worldwide plasterboard specialist, DEGO-Acoustic, Degotone is purpose built to provide exceptional acoustic control with ultimate design freedom. High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing which also prevents dust from the ceiling entering the room and masks the ceiling framework.
Degotone is also manufactured with Air technology which has an enduring impact on indoor air quality. The edges of Degotone boards are square cut and pre-primed for a unique installation method using ready-mixed Degotone Filler, cre ating a continuous, seamless finish. The availability of seamless access panels, ensures easy access to the ceiling cavity while maintaining pattern continuity.


Product type
perforation pattern shall be (Round, 6 8 12 15mm diameter) (squarel Q1 12 x 12 mm) (Irregular Round 8/15/20 mm diameter) with acoustic tissue backing, (aW 0.65) (Tangent aW 0.75), prepainted white, fire group 1s, size (600 x 600) (1200 x 300) (other) suspension shall be (T24) (T15) two way exposed grid system


Perforation
area %
Roundφ6mm φ8mm φ12mm  15m
10.2 %
Square, 12x12mm
16.0 %
Micro, 3 x 3 mm
10.2%
Tangent, 14 x 4 mm oval holes
21.3%
Regula  perforated.
16%

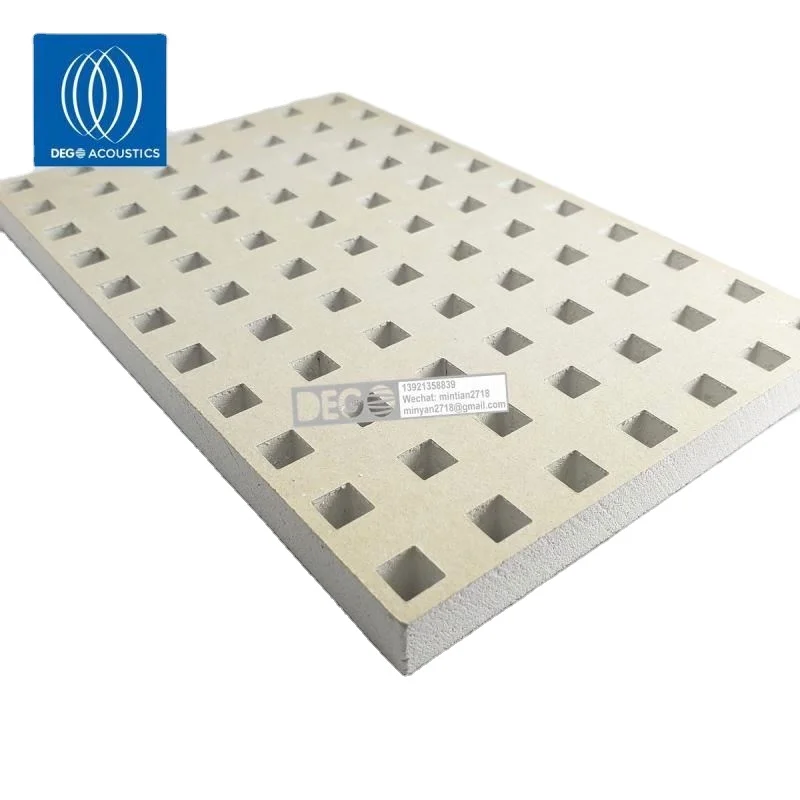

Square Q41
Holes: 8/18Q
Perforation rate: 13%
Holes: 10/20Q
Perforation rate:13.4%
Holes:12/25Q
Perforation rate: 16%


Irregular round hole
Holes: 8/15/20R
Perforation rate:9.9%
Holes: 12/20/35R
Perforation rate:9.9%
Holes:12/25Q
Perforation rate: 16%


Round hole
Holes:6/18R
Perforation rate:9.9%
Holes: 12/25R
Perforation rate:9.9%
Holes:15/30R
Perforation rate: 16%






Company Profile






Founded in 2003, Deco is a leader in the field of decorative acoustic systems ，Its products are used for sound absorption and noise reduction，It is used in medical, office, school, industrial construction and other fields.
DEGO's continuous investment in the field of acoustic ceilings and wall systems partitions,Can provide innovative solutions and markets for the changing global market.
DEGO is dedicated to the manufacturing of sound-absorbing panel system solutions. We are pursuing technological innovations，Obtained multiple patents and continuously launching superior, safe and environmentally friendly acoustic products, providing ashortcut to creating a beautiful and comfortable space for ceiling and wall solutions.
The DEGO series products include glass fiber ceilings, rock wool ceilings, acoutical gypsum perforatedplaster, acousitc wall panels system. The entire series of products have excellent acoustic performance. It is well known that these properties include acoustic control, impact resistance, fire rating, moisture resistance and reflectivity, which are sufficient to ensure our best performance, cost-effectiveness and long-lasting.
For 18 years, we have many engineering cases and excellent partners around the world. We will continue to lead and launchinnovative products. Grow our product portfolio.Welcome to our website
