Product Overview
Description

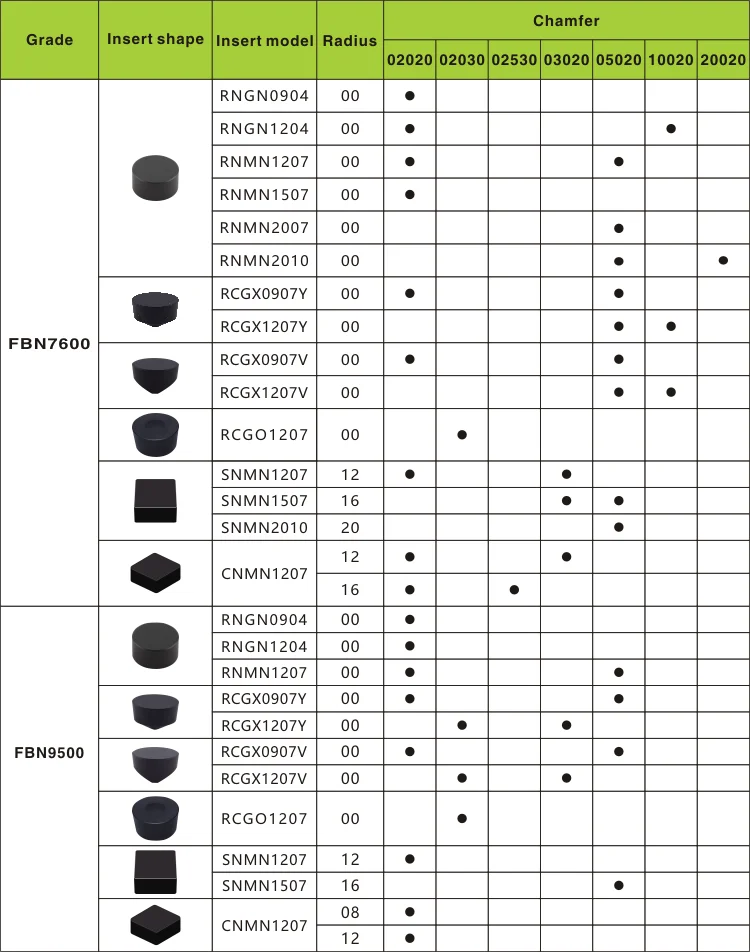

CBN Solid Insert
Grade | Machining model | Applicable industry | Workpiece material |
FBN7600 | Rough/ Semi-finishing | Roll, slurry pump Brake disc Brake drum Rolling mortar wall Parts of compressor | High nickel-chromium High hardness alloy cast iron High speed steel Gray cast iron High manganese steel |
FBN9500 | Rough/ Semi-finishing | Gear Bearing Mining machinery Coal mine machinery | Hardened steel Surface overlaying material |
FBN9500 C06 | Semi-finishing/ Finishing | Gear Bearing Mining machinery Coal mine machinery | Hardened steel Cemented steel Surface overlaying material |

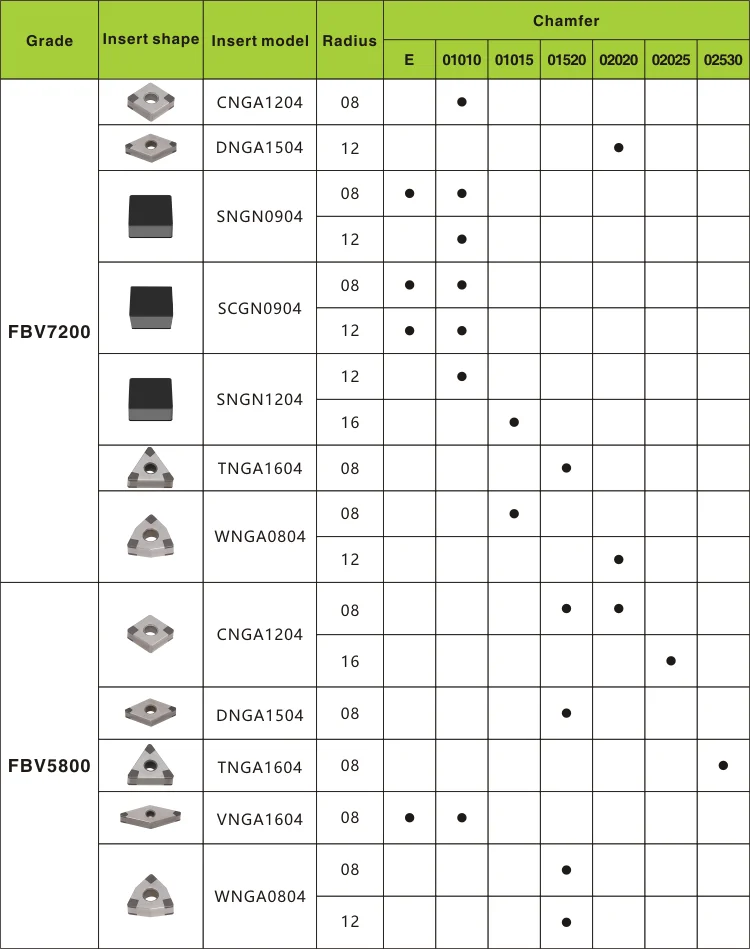

CBN Brazed Insert
Grade | Machining model | Applicable industry | Workpiece material |
FBV7200 | Finishing | Brake disc Brake drum Parts of compressor | Gray cast iron |
FBV5800 | Finishing | Gear Bearing Parts of compressor | Hardened steel Gray cast iron |
FBV7200 C07 | Finishing | Brake disc Brake drum Parts of compressor | Gray cast iron |
FBV5800 C06 | Finishing | Gear Bearing Parts of compressor | Hardened steel Gray cast iron |

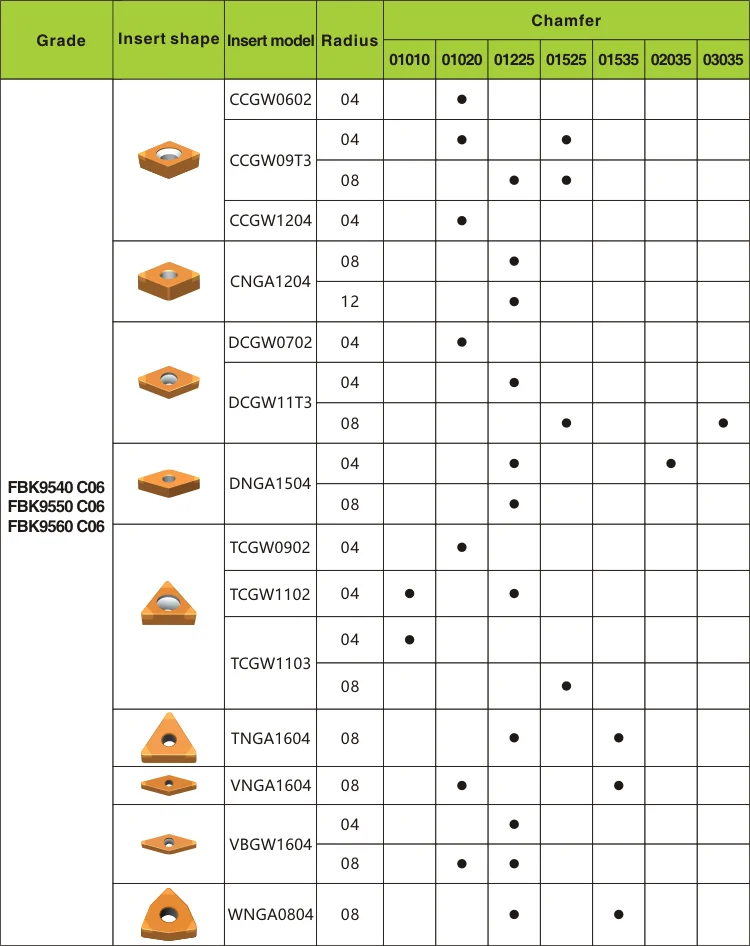

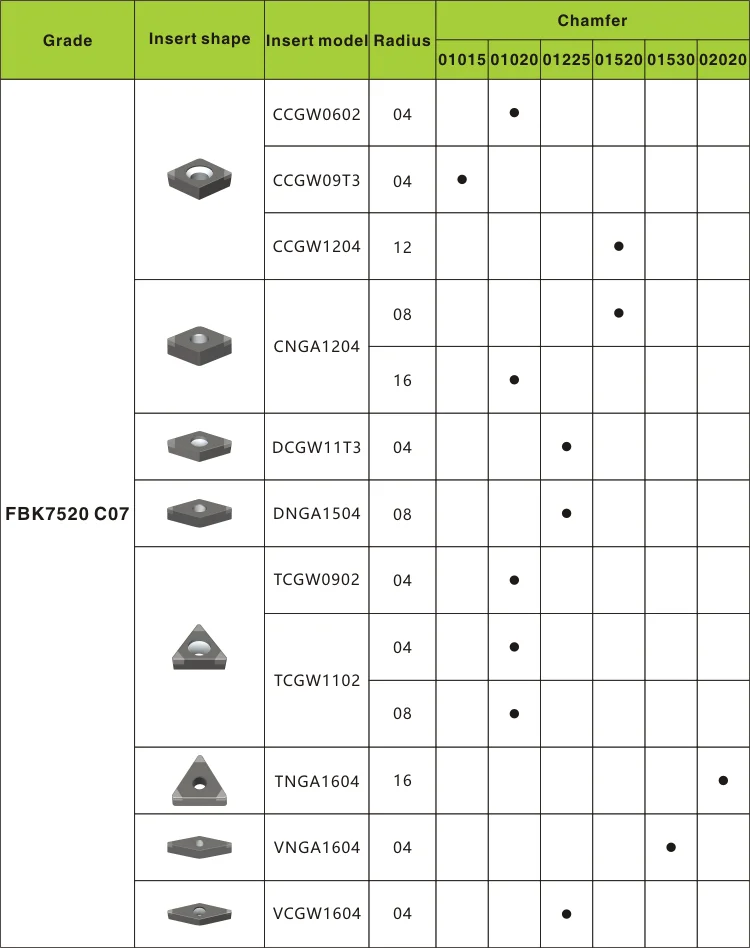

CBN Tipped Brazed Coating Insert
Grade | Machining model | Applicable industry | Workpiece material | Cutting speed Vc(m/min) |
FBK7520 C07 | Finishing | Brake disc Gear | Gray cast iron Powder metallurgy | 600-1200 90-200 |
FBK9540 C06 | Finishing | Gear Bearing | Hardened steel | 180-300 |
FBK9550 C06 | Finishing | Gear Bearing | Bearing steel | 100-175 |
FBK9560 C06 | Finishing | Gear Bearing | Cemented steel | 100-200 |
Multiple Choice

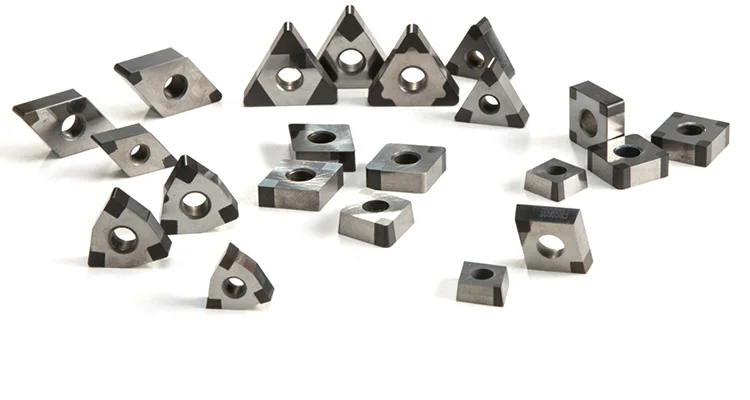

CBN FBS Brazed Cutting Inserts:
SNGA, SCGW, CNGA, CCGW, WNGA, TNGA, TCGW, DCGW, VNGA
Application
Application

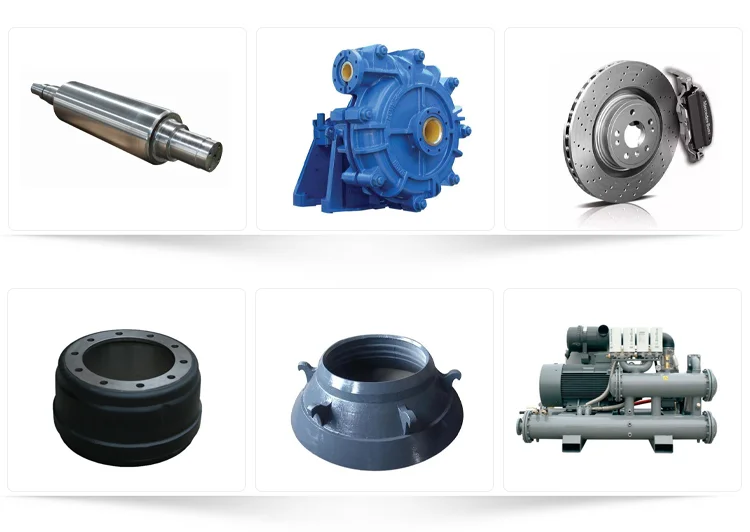

Funik CBN inserts are used for turning and milling of centrifugal rolls, slurry pumps, brake discs, brake drums, rolling mortar walls, compressor parts, gears, bearings, mining machinery, coal mining machinery industries.
Package & Shipping
Package & Shipping
