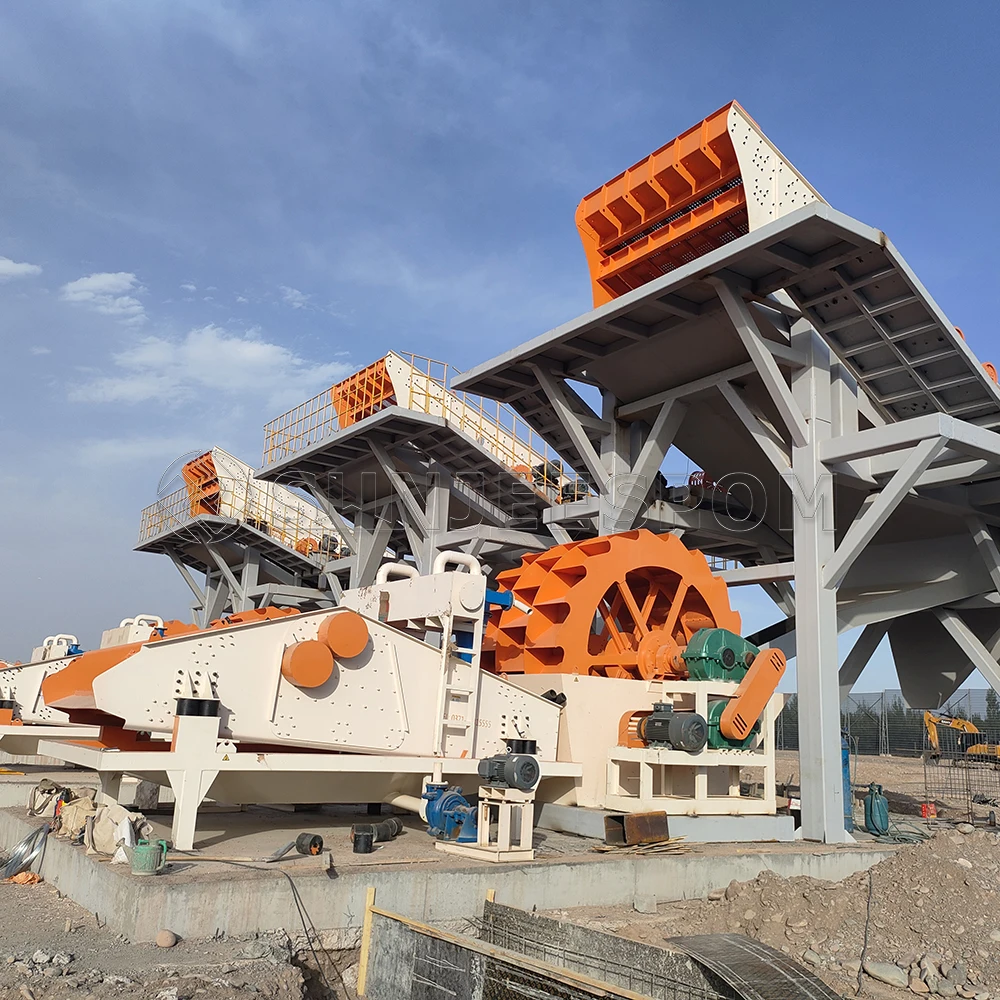

XS2900 bucket wheel sand washer supplier best price sand and gravels washing machine for sale
- Category: >>>
- Supplier: Henan Sunjeespom Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601299802932):
Product Overview
Description
Low cost industrial gravel sand washer 50-80t/h automatic wheel bucket sand washing machine
Product Description
Sand washing machine is an important equipment for artificial sand and natural sand washing operation. It can wash away the trace stone powder and impurities in sand and gravel to improve the quality of sand.

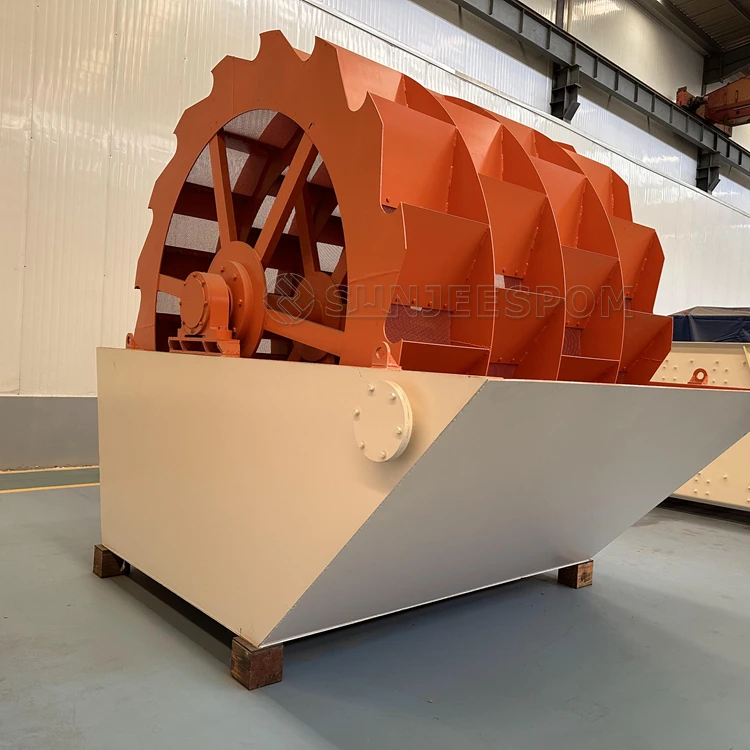

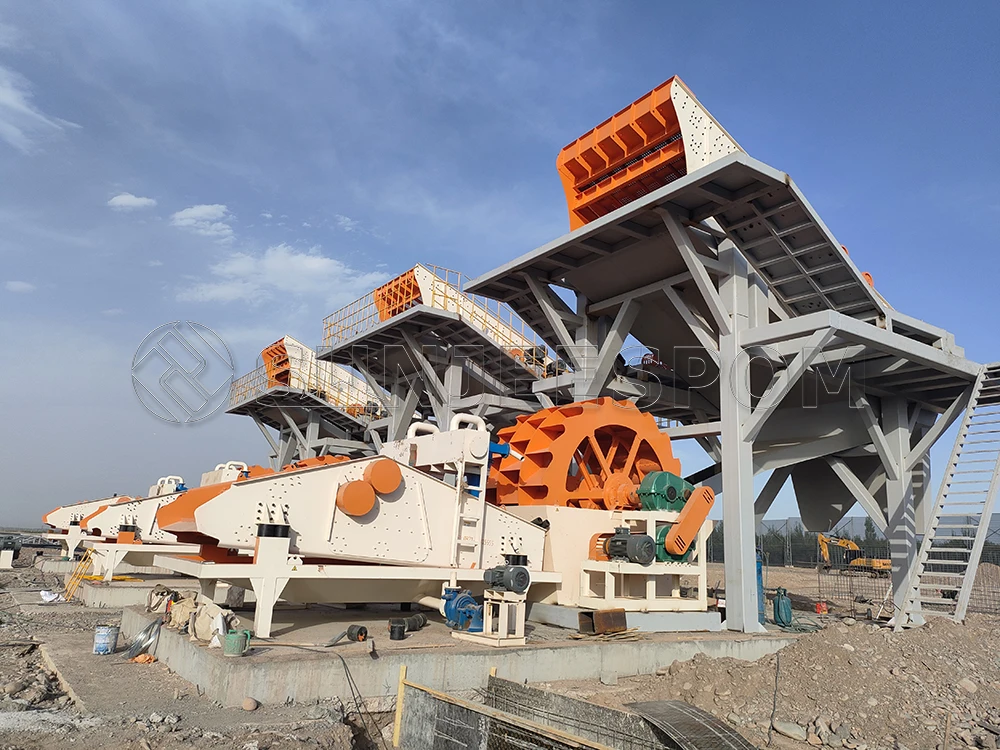

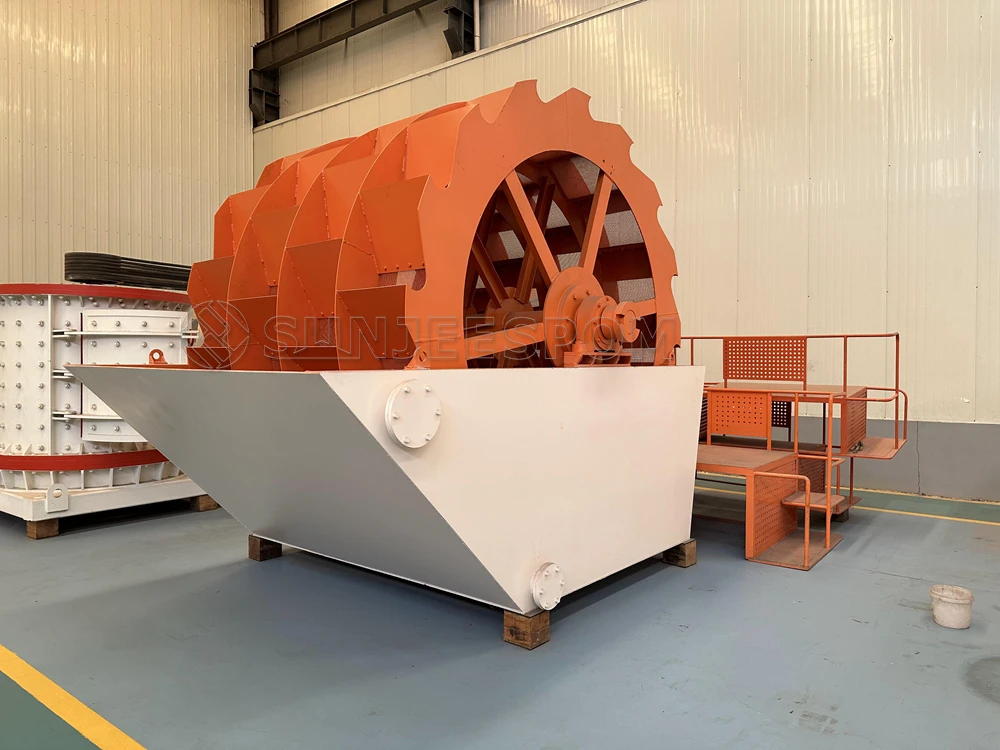

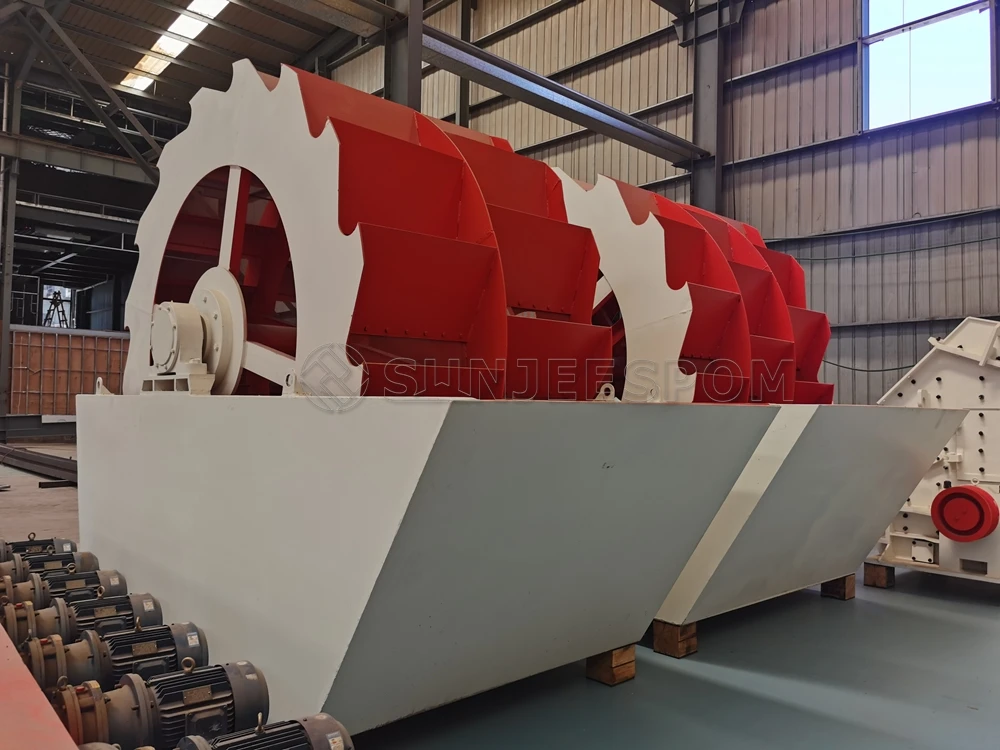

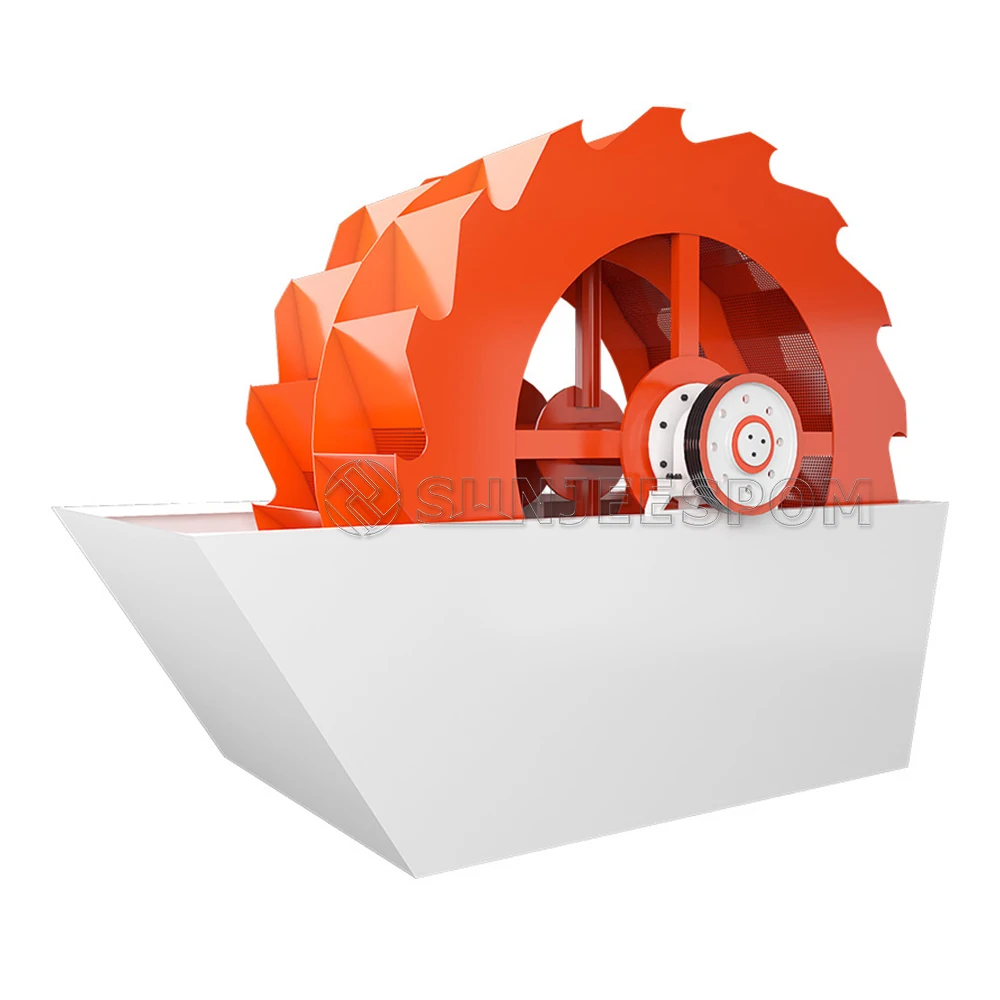

Wheel Washer is used to wash and separate soil and other impurities in sand for the purpose of increasing sand quality. Due to simple design, it has an ease in assembly process, the bucket wheel provides advantages to the users with low power consumption and water saving. It could be made single wheel and double wheel type.
Why choose wheel sand washing machine?
1. The sand washing machine is indispensable equipment for sand, gravel, aggregate washing plant and widely used in the aggregate, mines, building materials, construction, concrete and other industries.
2. Sand washer can remove the impurities covering the surface of the sand and stone to improve the sand and gravel product quality.
3. It has almost no wearing parts except the screen mesh, long service life.
Convenient maintenance, large processing capacity, low power consumption, high cleanliness.
1. The sand washing machine is indispensable equipment for sand, gravel, aggregate washing plant and widely used in the aggregate, mines, building materials, construction, concrete and other industries.
2. Sand washer can remove the impurities covering the surface of the sand and stone to improve the sand and gravel product quality.
3. It has almost no wearing parts except the screen mesh, long service life.
Convenient maintenance, large processing capacity, low power consumption, high cleanliness.

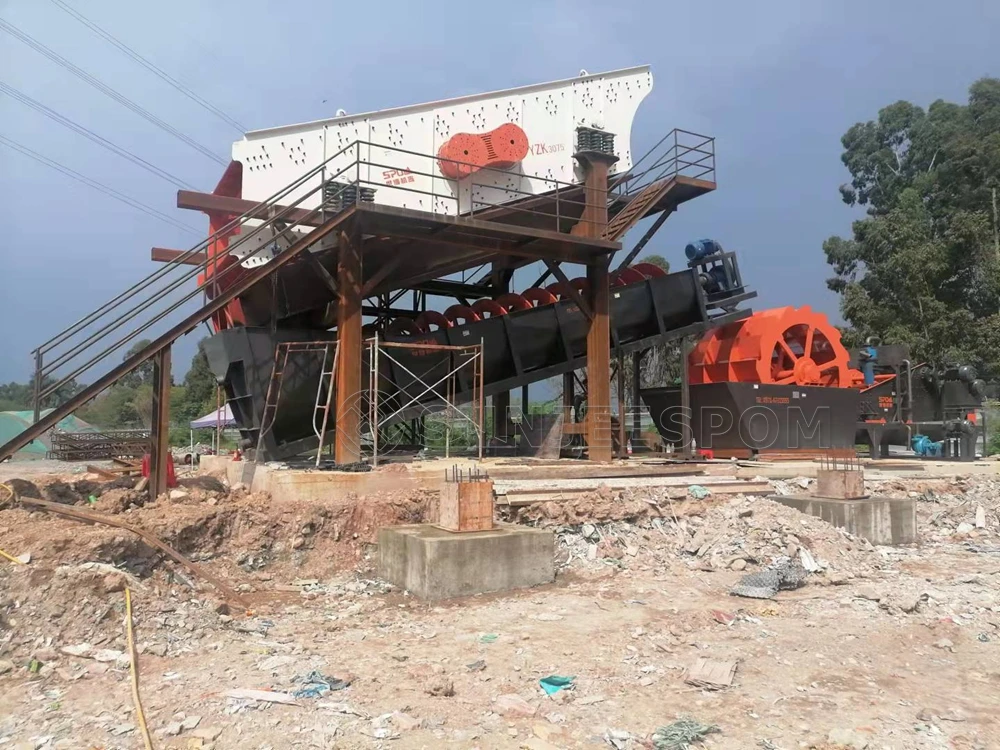

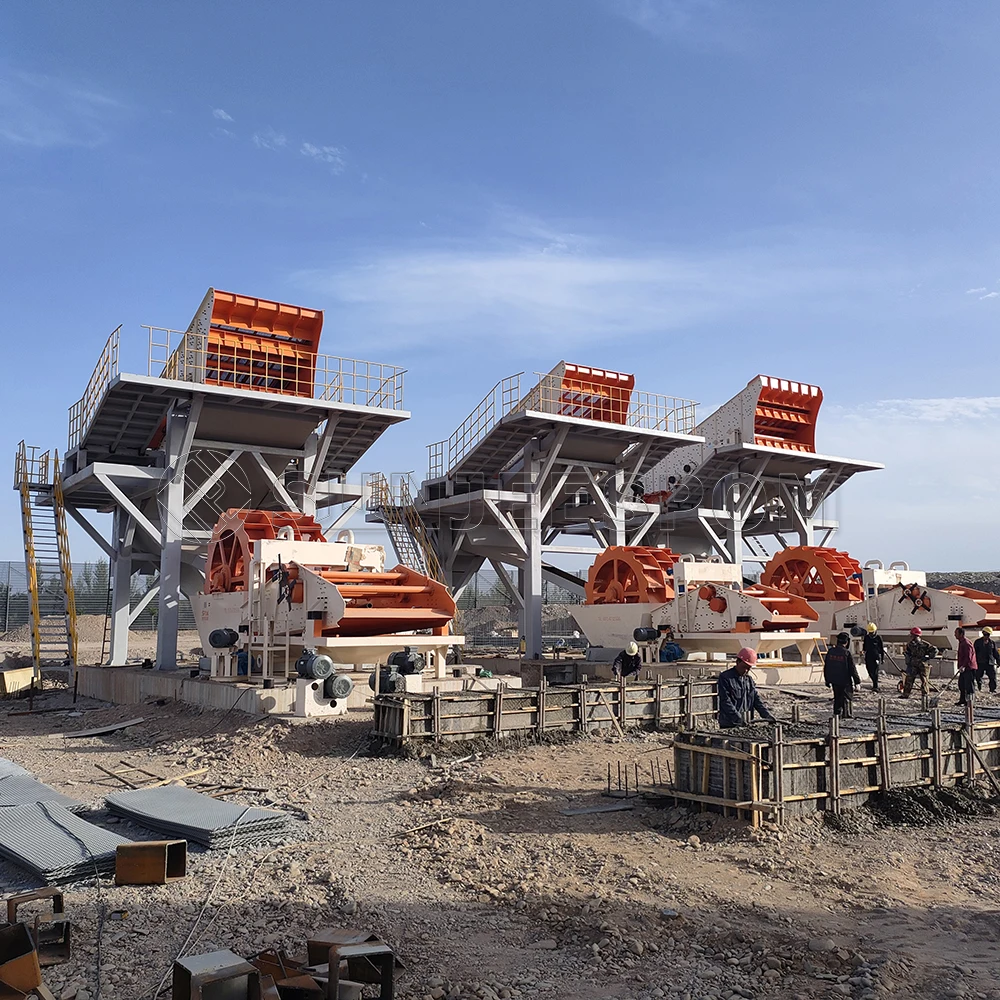

Sand washing machine is widely used in sand and gravel quarries, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries for washing, grading and dewatering of materials. Sunjeespom adopts advanced technology and combines the actual needs of sand and gravel industry to develop sand washing machine.

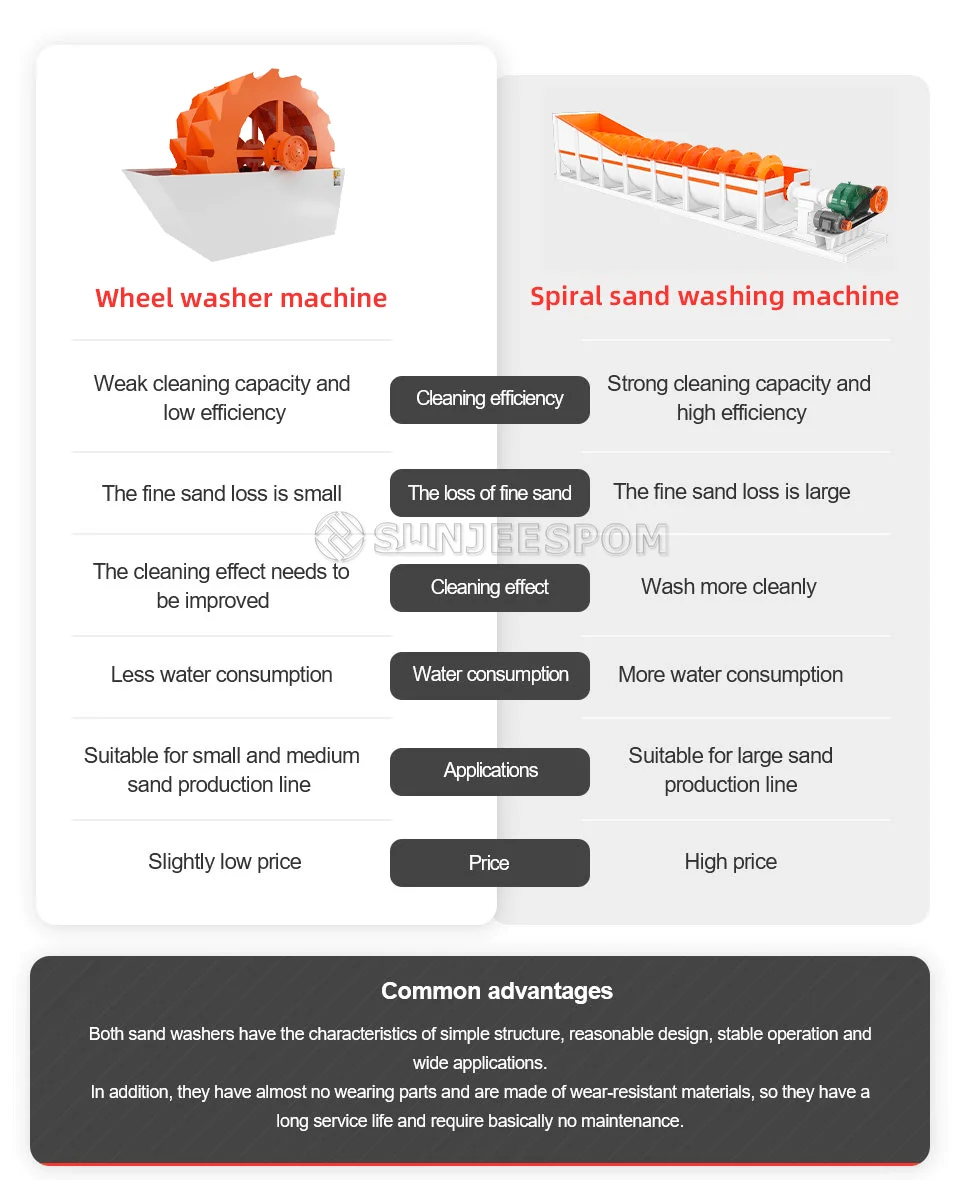

Compare wheel bucket sand washer and spiral sand washer
Different sand washing machines have different characteristics and application scope. In the following, I will compare these two types of sand washers from the aspects of cleaning efficiency, fine sand loss, cleaning effect, water consumption, application range and price. We want to help you choose the right machine.
Different sand washing machines have different characteristics and application scope. In the following, I will compare these two types of sand washers from the aspects of cleaning efficiency, fine sand loss, cleaning effect, water consumption, application range and price. We want to help you choose the right machine.
How to choose a suitable sand washing equipment?
Which one is more suitable for you, spiral sand washer or bucket wheel sand washer? You can judge from the following aspects.
Which one is more suitable for you, spiral sand washer or bucket wheel sand washer? You can judge from the following aspects.
1. Scale of sand production line
The production line with high sand and gravel output requires high processing capacity of sand washing machine, so it should be matched with high efficiency sand washing equipment. The cleaning process of spiral sand washer is simple and more efficient compared with the bucket type sand washing machine.
2. The loss of fine sand
The spiral sand washer machine has a serious loss of fine sand in the cleaning process, so if the sand you need to clean has a high content of fine sand, you should choose a bucket type sand washing machine. Or you can also consider to choose "spiral sand washing machine + fine sand recycling machine".
3. The cleaning effect
Because the spiral sand washer uses more water and the sand and gravel material is washed longer and turned over more times, the spiral sand washer cleans more cleanly compared to the wheel bucket sand washer. Of course, if you think the cleaning effect is not good, the washed sand can also be returned to the sand washing machine to clean again.
In summary, if you still have questions about the type or model of sand washer, then the best thing to do is to contact us! We will provide you with all the product information you need.
Specification
Wheel Bucket Sand Washing Machine
Model | Impeller(mm) | Feeding Size(mm) | Capacity(t/h) | Power(kw) | Overall Dimension(mm) |
XSD2610 | Ф2600 | ≤10 | 30-60 | 7.5 | 3320x2125 ×2670 |
XSD2900 | Ф2900 | ≤10 | 50-90 | 15 | 3810x2686x3085 |
XSD3016 | Ф3000 | ≤10 | 80-120 | 18.5 | 3845x3000x3080 |
XSD3220 | Ф3000 | ≤10 | 120-200 | 22 | 4150x3780x3400 |
XSD3620 | Ф3600 | ≤10 | 150-280 | 30 | 4600x3780x3900 |
Spiral Sand Washing Machine
Model | Screw Diameter(mm) | Sink Length(mm) | Feeding Size(mm) | Capacity(t/h) | Power(kw) | Water Consumption(t/h) |
XL515 | 515 | 7615 | ≤10 | 5-15 | 5.5 | 6-60 |
XL765 | 765 | 7620 | ≤10 | 20-60 | 11 | 9-63 |
XL920 | 920 | 7585 | ≤10 | 40-110 | 11 | 10-80 |
2XL920 | 920 | 7585 | ≤10 | 80-220 | 2X11 | 20-160 |
XL1120 | 1120 | 9750 | ≤10 | 50-130 | 18.5 | 20-150 |
2XL1120 | 1120 | 9750 | ≤10 | 100-260 | 2X18.5 | 40-300 |
Contact Us

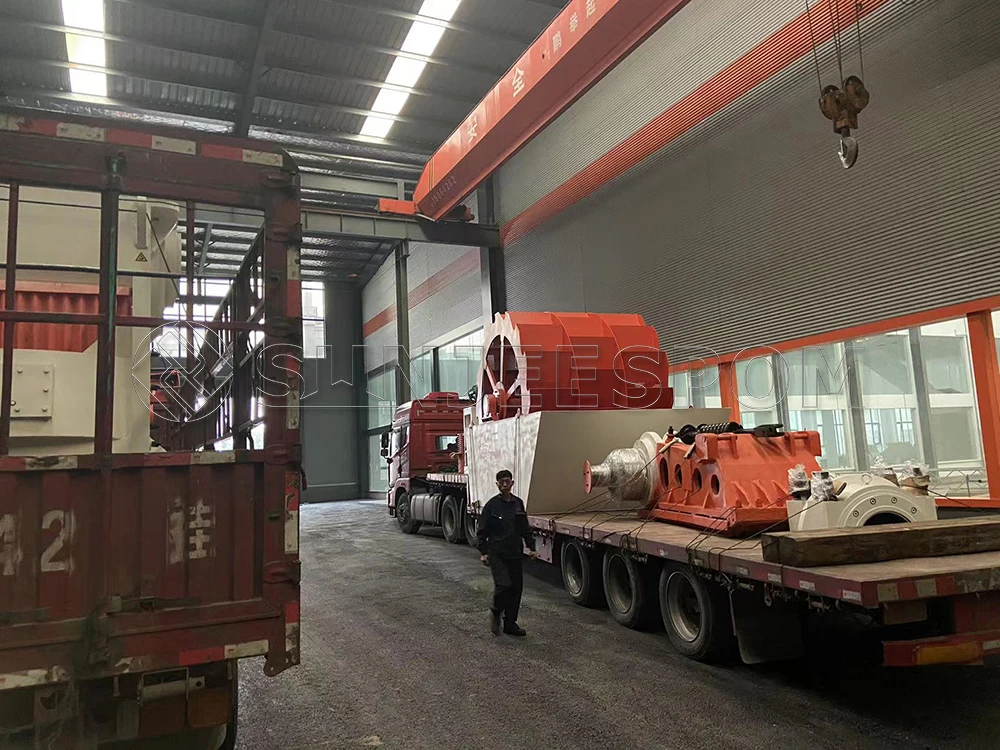

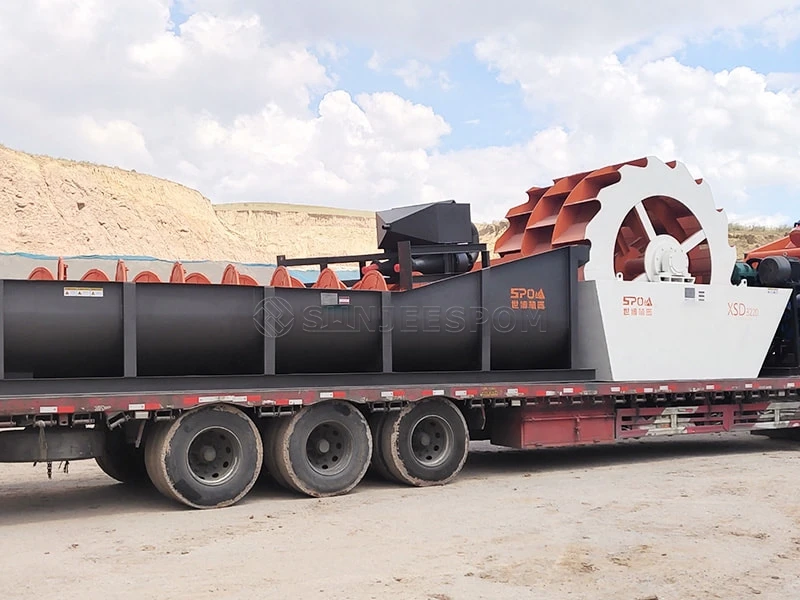

Packing & Delivery

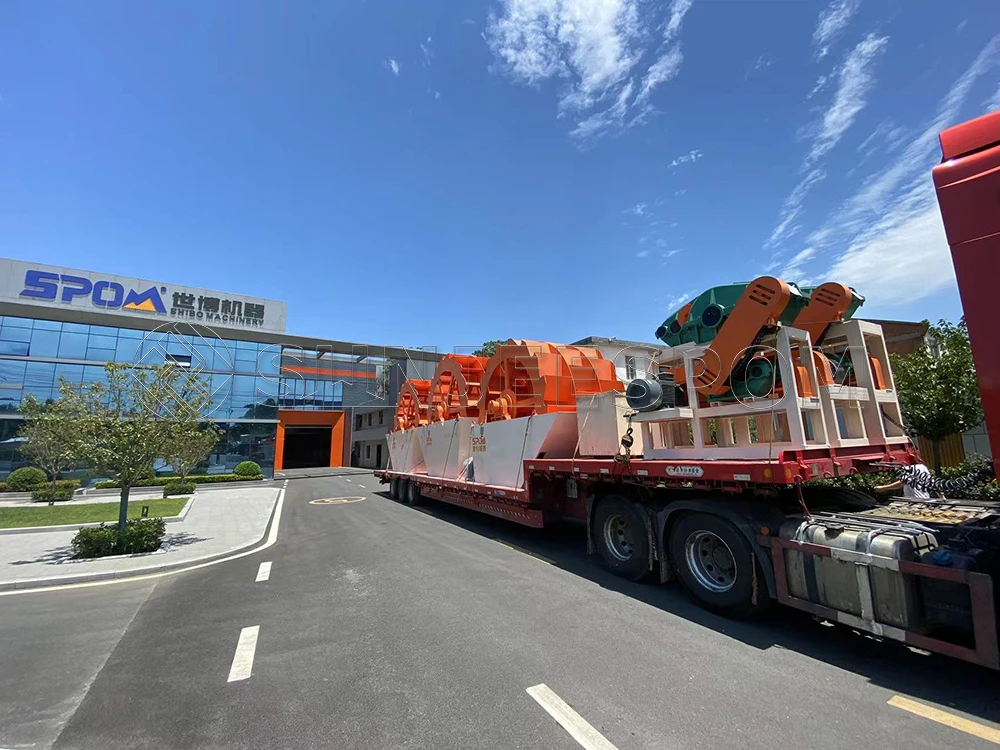

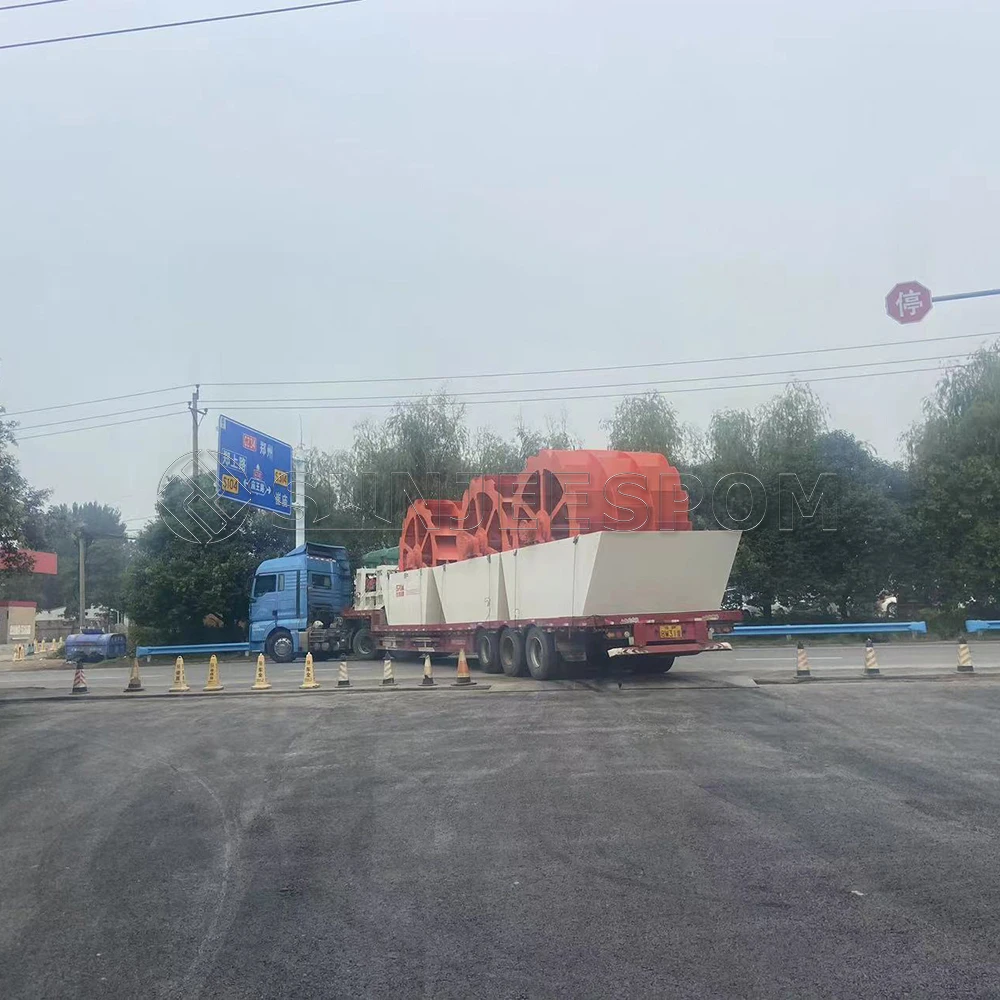

Packaging: standard container, nude packs or in bulk. The electrical motor or spare parts will be packed by wooden case or steel frame. Sunjeespom offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Generally, the equipment will be loaded to the containers in the factory. Our workers will make sure all equipment are steady and fixed before close the door of the container.

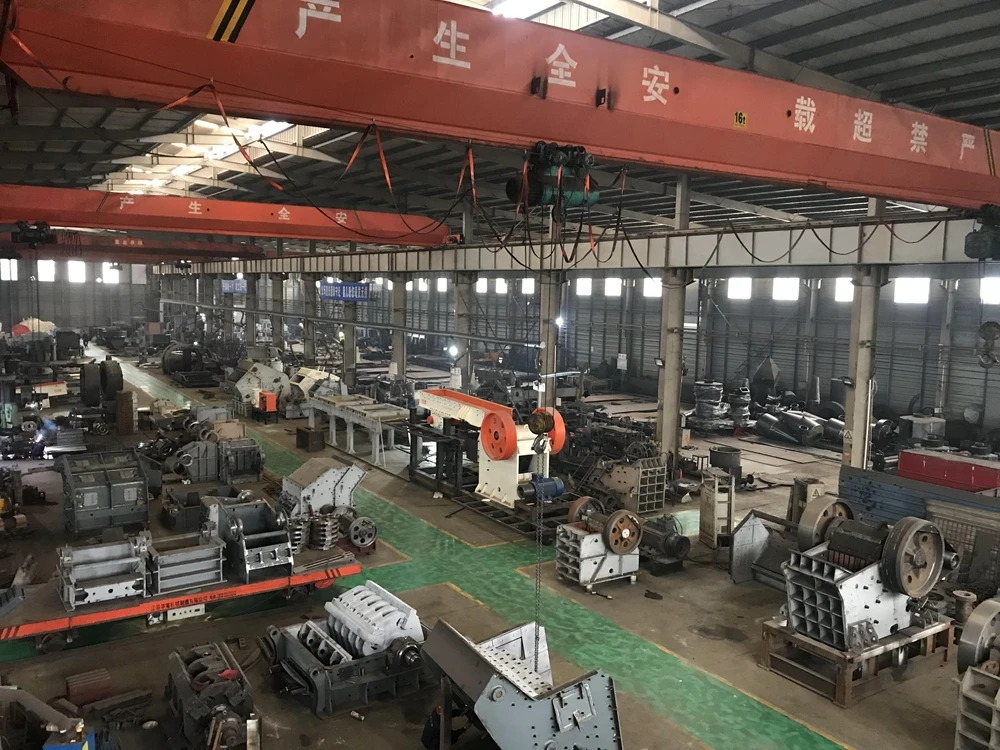

Company Profile

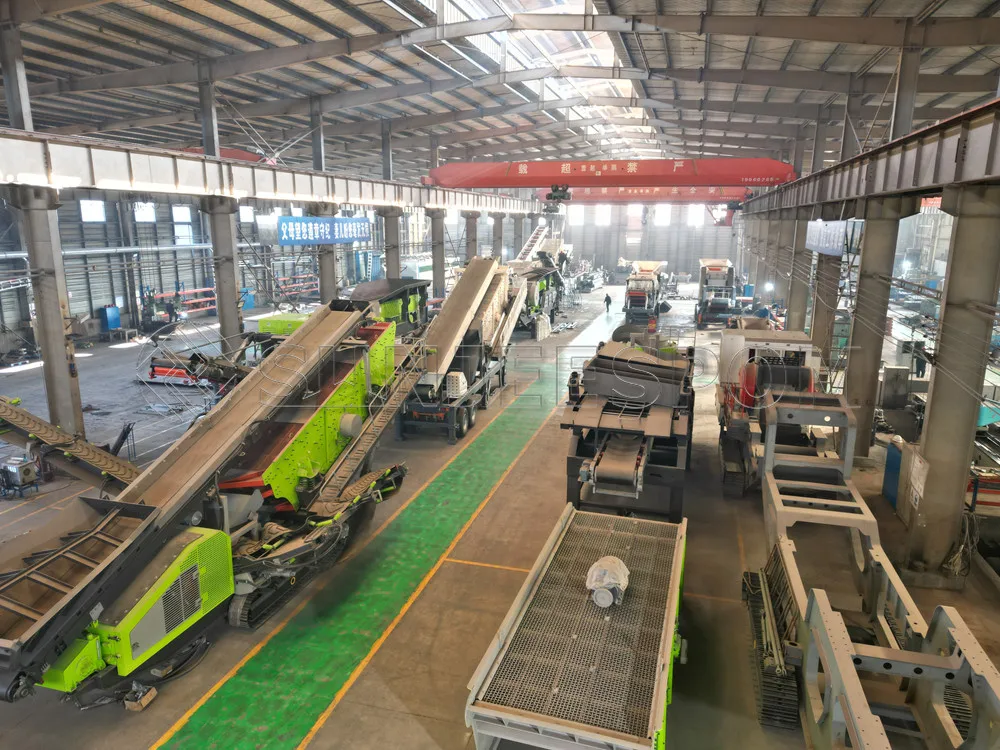

Sunjeespom Machinery is a factory supplier of mining machinery, mainly focusing on jaw crusher, cone crusher, impact crusher, hammer crusher, roller crusher, sand making machine, sand washing and screening machine, complete crushing plants, mobile crushing plants and powder grinding mills. We can offer you a free design and completed solution according to your project.
Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.

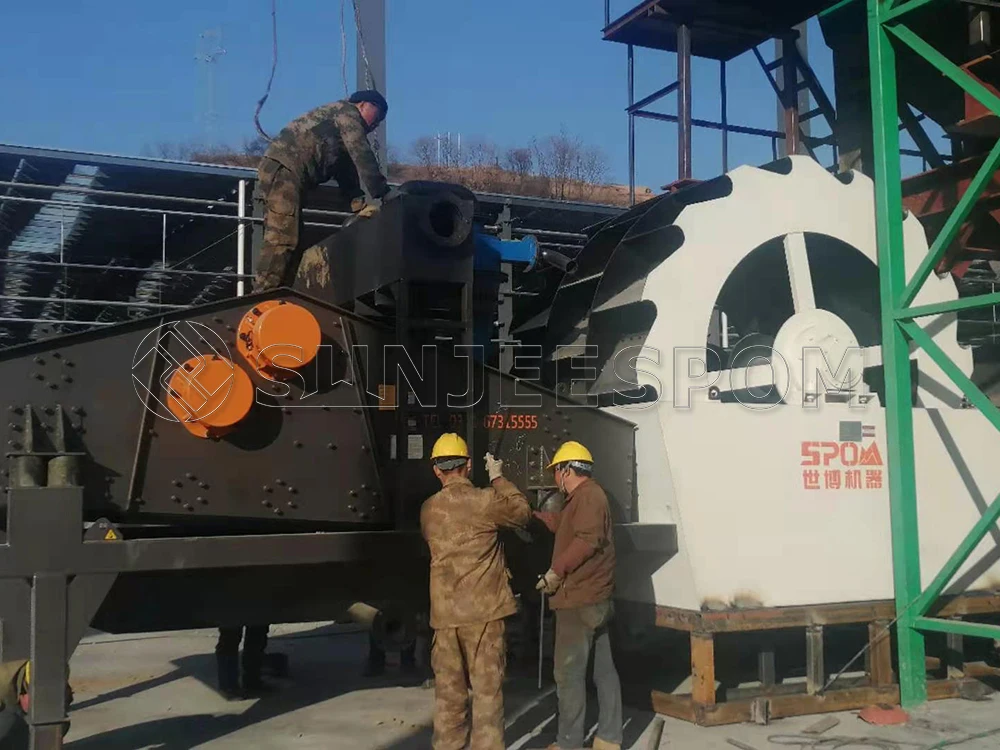

Perfect after-sales service
Sunjeespom Machinery provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
FAQ
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment. Letter of credit, Alibaba online payment, credit card are all available.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment. Letter of credit, Alibaba online payment, credit card are all available.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
