Wholesale Single Cylinder Hydraulic Cone Crusher Used for Crushing Copper Ore Rock Stone and Mining Hydural Crusher for Sale
- Category: >>>
- Supplier: Henan Vest Machinery Co. Ltd.Henan Ltd.
Share on (1601299805854):
Product Overview
Description
Product Introduction:

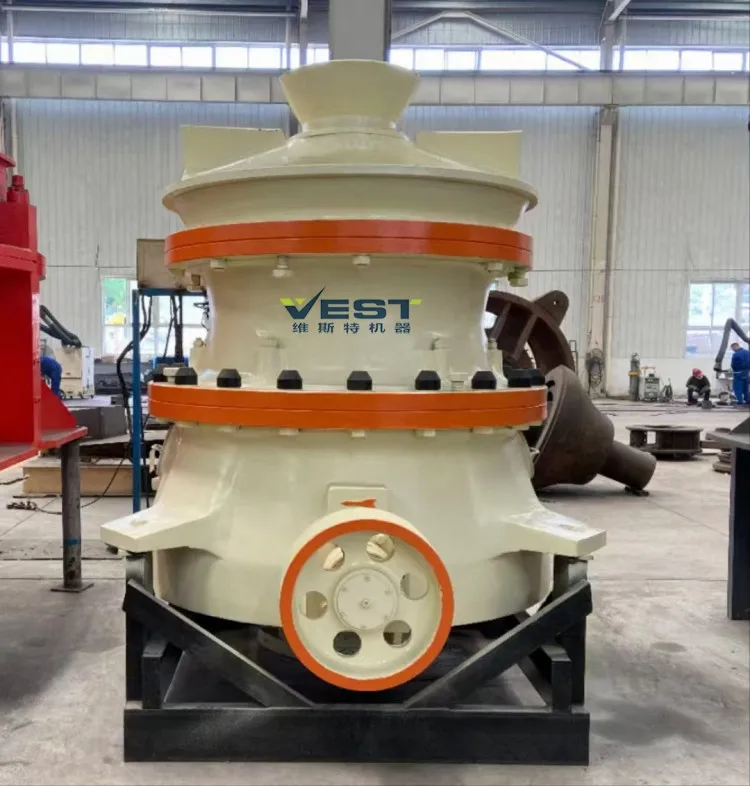

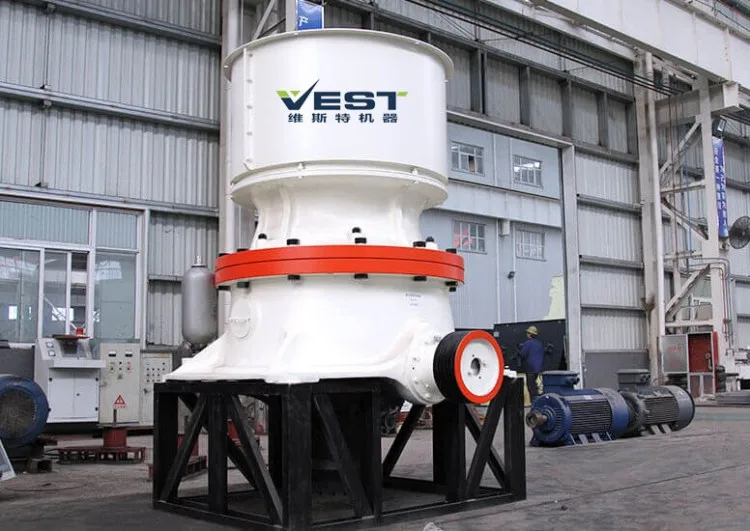

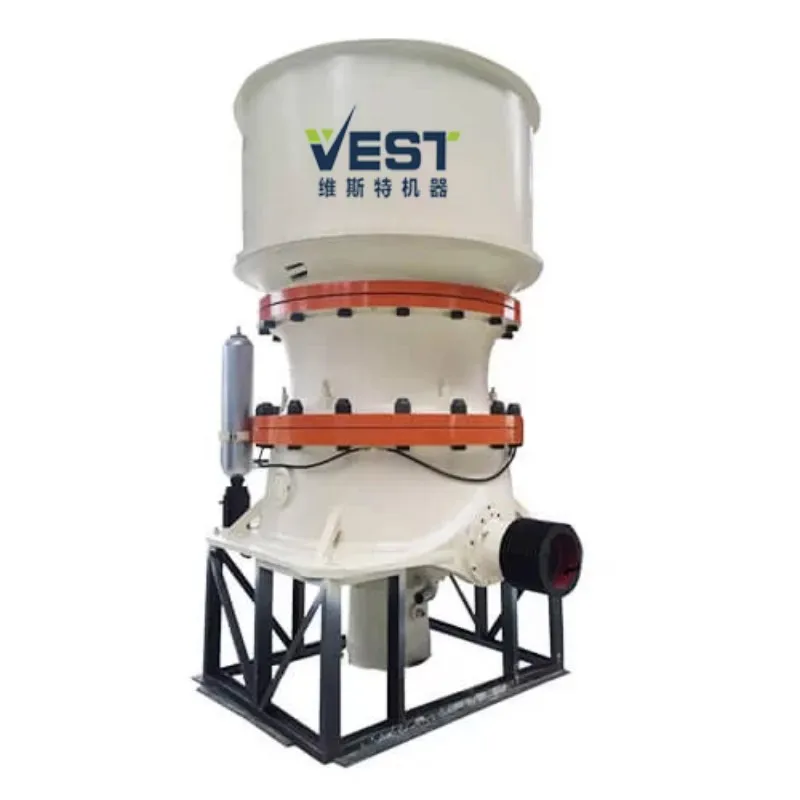

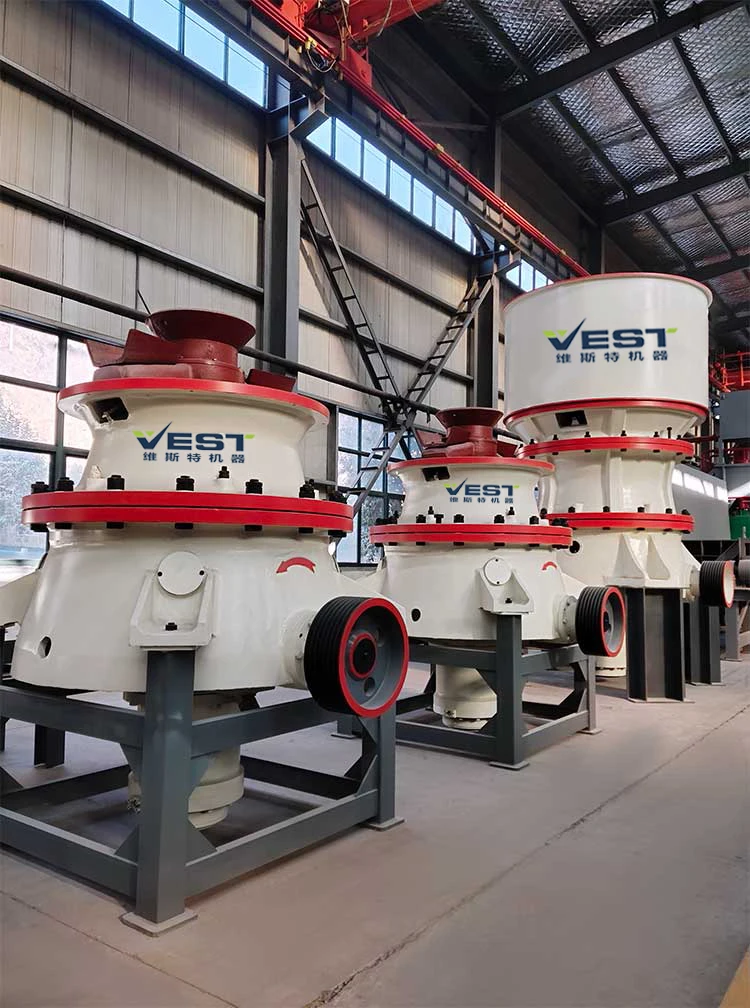

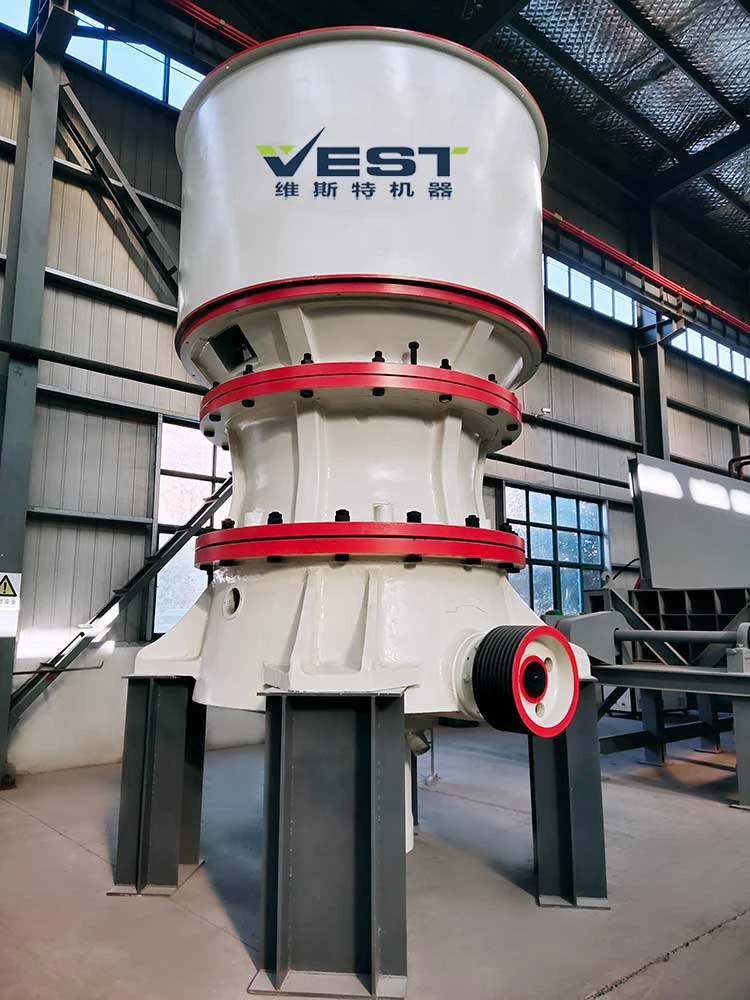

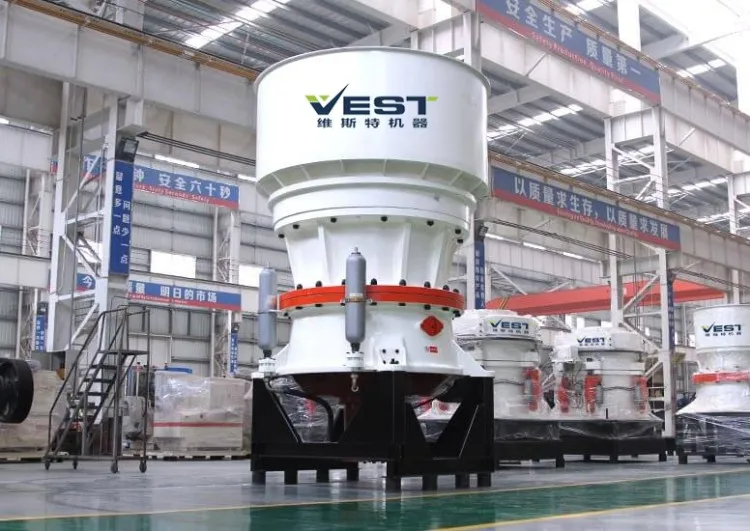

MCS/MCH single cylinder hydraulic cone crusher has S and H two series, S series moving cone liner Angle is large, mainly used for large feed particle size of the second stage crushing or pebble primary crushing; The Angle of H series moving cone liner is smaller than that of S series, and the downward crushing force in the crusher is larger, which is mainly used for secondary or tertiary crushing.
• Processing Capacity: 45-2130tph
• Max input size: 0-370mm
• Min Output size: 16-70mm
• Max input size: 0-370mm
• Min Output size: 16-70mm
Application Field:

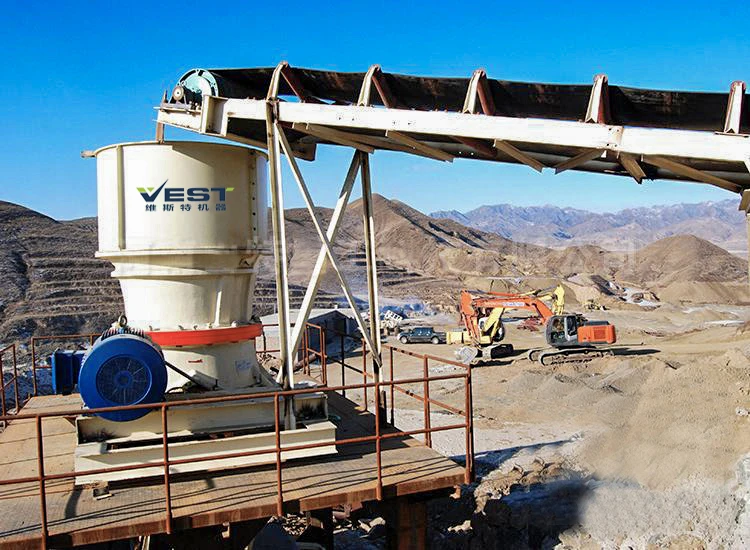

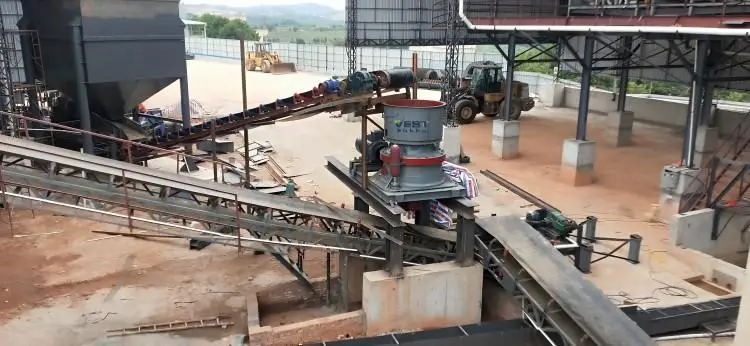

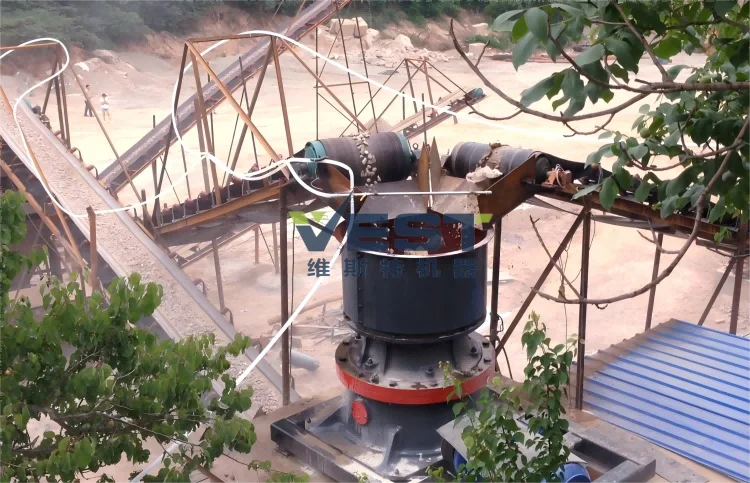

MCS/MCH single-cylinder cone crusher is suitable for medium and fine crushing operations of various ores, including iron ore, non-ferrous metal ores, granite, limestone, quartzite, sandstone, etc. Its superior crushing performance and wide adaptability make it widely used in mining, metallurgy, building materials, and other industries.
Technical Features:
1.High-performance transmission design: The large and small gears adopt spiral bevel gears to realize high energy efficiency and high torque transmission, and the gear clearance is adjusted externally, which is more convenient for maintenance.
2.CLP constant crushing chamber: The shape of crushing cavity is almost unchanged in the process of lining wear, which keeps the feed size unchanged, the output and grain shape constant, the prolongs the service life of lining by 20%.
3.Easy for maintenance, more effective for cost savings: Almost all checks and maintenance can be done by only taking down the upper rack. Besides, MCS/MCH Single-cylinder Hydraulic Cone Crusher is compact in its structure, occupying a small floor area, which further cuts expenditures on the foundation building.
4.Multiple cavity types meet various production needs: MCS/MCH Hydraulic Cone Crusher has several kinds of standard crushing cavities that can fully meet the secondary, tertiary, and even quaternary crushing needs after primary coarse crushing.
2.CLP constant crushing chamber: The shape of crushing cavity is almost unchanged in the process of lining wear, which keeps the feed size unchanged, the output and grain shape constant, the prolongs the service life of lining by 20%.
3.Easy for maintenance, more effective for cost savings: Almost all checks and maintenance can be done by only taking down the upper rack. Besides, MCS/MCH Single-cylinder Hydraulic Cone Crusher is compact in its structure, occupying a small floor area, which further cuts expenditures on the foundation building.
4.Multiple cavity types meet various production needs: MCS/MCH Hydraulic Cone Crusher has several kinds of standard crushing cavities that can fully meet the secondary, tertiary, and even quaternary crushing needs after primary coarse crushing.
Working Principle:

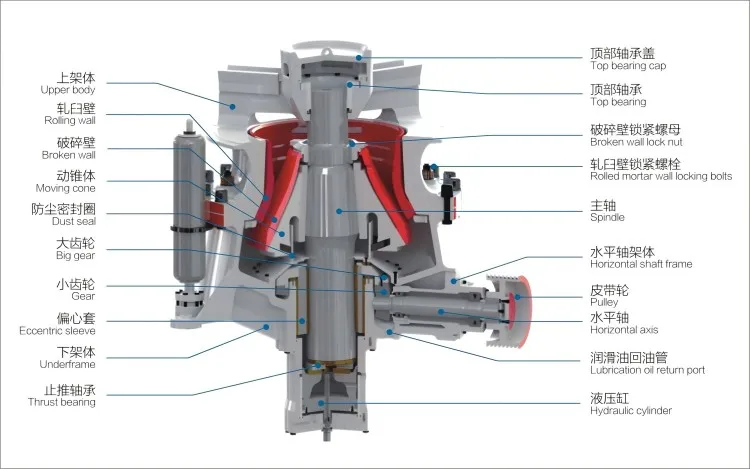

When the single-cylinder hydraulic cone crusher is working, motor drive the eccentric sleeve by v-belts, transmission shaft and transmission gear. Dynamic conerotary pendulum moved with the action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation. Material is squeezed in the crushing cavity, impact and breakage, broken material discharge from the bottom.
MCS - Medium Crushing
Model | Capacity at CSS (Close side setting)（t/h） | ||||||||||||||||
16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | 54mm | |||||||||
MCS420 | / | 80-90 | 85-100 | 90-130 | 105-195 | 120-170 | / | / | / | ||||||||
65-75 | 70-80 | 75-110 | 80-145 | 95-130 | / | / | / | / | |||||||||
MCS430 | / | / | 115-135 | 125-145 | 145-265 | 165-355 | 185-395 | 205-295 | 215-245 | ||||||||
/ | 100-115 | 110-155 | 115-165 | 135-290 | 150-330 | 170-305 | / | / | |||||||||
MCS440 | / | 235-270 | 250-290 | 315-540 | 350-600 | 365-525 | / | / | / | ||||||||
205-235 | 225-325 | 240-345 | 300-515 | 335-385 | / | / | / | / | |||||||||
MCS660 | / | / | 295-340 | 370-635 | 410-825 | 430-985 | 490-1125 | 525-1210 | 560-1130 | ||||||||
/ | 265-305 | 285-405 | 355-710 | 392-905 | 410-945 | 470-945 | 505-725 | ||||||||||
Model | Cavity Type | Max Feed Edge(mm) | Motor Power (kw) | Capacity (t/h) |
(mm) | ||||
MCS420 | Extra Coarse (EC) | 240 | 90 | 70-170 |
Coarse (C) | 200 | |||
MCS430 | Extra Coarse (EC) | 360 | 160 | 90-330 |
Coarse (C) | 300 | |||
MCS440 | Extra Coarse (EC) | 450 | 250 | 190-610 |
Coarse (C) | 400 | |||
MCS660 | Extra Coarse (EC) | 560 | 315 | 310-1020 |
Coarse (C) | 500 |
MCH - Fine Crushing
Model | Capacity at CSS (Close side setting)（t/h） | ||||||||||||||||
6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 32mm | 38mm | 51mm | |||||||||
MCH420 | / | / | 45-55 | 50-100 | 55-105 | 60-115 | 75-145 | / | / | ||||||||
/ | / | 45-60 | 45-105 | 50-110 | 55-120 | 70-80 | / | / | |||||||||
/ | 35-50 | 40-85 | 40-90 | 45-90 | 50-70 | / | / | / | |||||||||
35-40 | 40-75 | 40-80 | 45-80 | 45-60 | / | / | / | / | |||||||||
30-60 | 30-60 | 36-85 | 35-55 | 40-55 | / | / | / | / | |||||||||
30-40（80% finess is less than 4.5-5.5mm） | |||||||||||||||||
MCH430 | / | / | 70-125 | 75-170 | 80-185 | 105-240 | 115-240 | / | |||||||||
/ | / | 70-85 | 65-150 | 70-165 | 75-175 | 100-225 | 110-170 | / | |||||||||
/ | / | 55-65 | 60-160 | 65-175 | 70-185 | 95-165 | / | / | |||||||||
/ | 60-75 | 65-100 | 70-150 | 75-165 | 80-175 | 105-120 | / | / | |||||||||
/ | 60-70 | 65-120 | 70-130 | 75-145 | 80-145 | / | / | / | |||||||||
50-90 | 50-95 | 55-100 | 60-110 | 65-120 | 70-120 | / | / | / | |||||||||
70-90（80% finess is less than 5-5.6mm） | |||||||||||||||||
MCH440 | / | / | / | / | 115-230 | 120-315 | 160-410 | 175-455 | / | ||||||||
/ | / | / | 100-115 | 110-250 | 115-335 | 150-435 | 165-385 | / | |||||||||
/ | / | / | 95-140 | 105-300 | 115-325 | 145-380 | 160-280 | / | |||||||||
/ | / | / | 115-215 | 125-320 | 135-345 | 175-325 | 195-225 | / | |||||||||
/ | / | 115-130 | 125-260 | 135-280 | 145-300 | 185-285 | / | / | |||||||||
80-95 | 90-155 | 95-200 | 105-220 | 110-235 | 120-255 | 155-240 | / | / | |||||||||
100-125（80% finess is less than 6-7.5mm） | |||||||||||||||||
MCH660 | / | / | / | / | 175-205 | 190-390 | 235-630 | 270-695 | 330-585 | ||||||||
/ | / | / | / | 170-220 | 185-425 | 240-670 | 265-740 | 315-405 | |||||||||
/ | / | / | / | 160-290 | 175-490 | 225-635 | 250-575 | / | |||||||||
/ | / | / | 180-220 | 195-340 | 210-505 | 275-575 | 300-465 | / | |||||||||
/ | / | / | 190-220 | 205-425 | 220-455 | 285-520 | 320-415 | / | |||||||||
/ | / | 165-260 | 195-350 | 210-375 | 225-405 | 290-460 | 325-370 | / | |||||||||
/ | / | 150-180 | 210-335 | 225-365 | 245-345 | / | / | / | |||||||||
Model | Cavity Type | Max Feed Edge(mm) | Motor Power (kw) | Weight (t) |
(mm) | ||||
MCH420 | Extra Coarse (EC) | 130 | 90 | 30-150 |
Coarse (C) | 90 | |||
Medium (M) | 64 | |||
Medium Fine (MF) | 48 | |||
Fine (F) | 38 | |||
Extra Fine (EF) | 18 | |||
MCH430 | Extra Coarse (EC) | 190 | 160 | 50-250 |
Coarse (C) | 145 | |||
Midium Coarse (MC) | 115 | |||
Medium (M) | 90 | |||
Medium Fine (MF) | 65 | |||
Fine (F) | 50 | |||
Extra Fine (EF) | 26 | |||
MCH440 | Extra Coarse (EC) | 210 | 250 | 70-450 |
Coarse (C) | 170 | |||
Midium Coarse (MC) | 140 | |||
Medium (M) | 105 | |||
Medium Fine (MF) | 80 | |||
Fine (F) | 65 | |||
Extra Fine (EF) | 35 | |||
MCH660 | Extra Coarse (EC) | 300 | 315 | 150-700 |
Coarse (C) | 210 | |||
Midium Coarse (MC) | 170 | |||
Medium (M) | 130 | |||
Medium Fine (MF) | 100 | |||
Fine (F) | 75 | |||
Extra Fine (EF) | 55 |
1. Are you a manufacturer or trading company?
We are a factory, founded in 1987 and restructured in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
We are a factory, founded in 1987 and restructured in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
