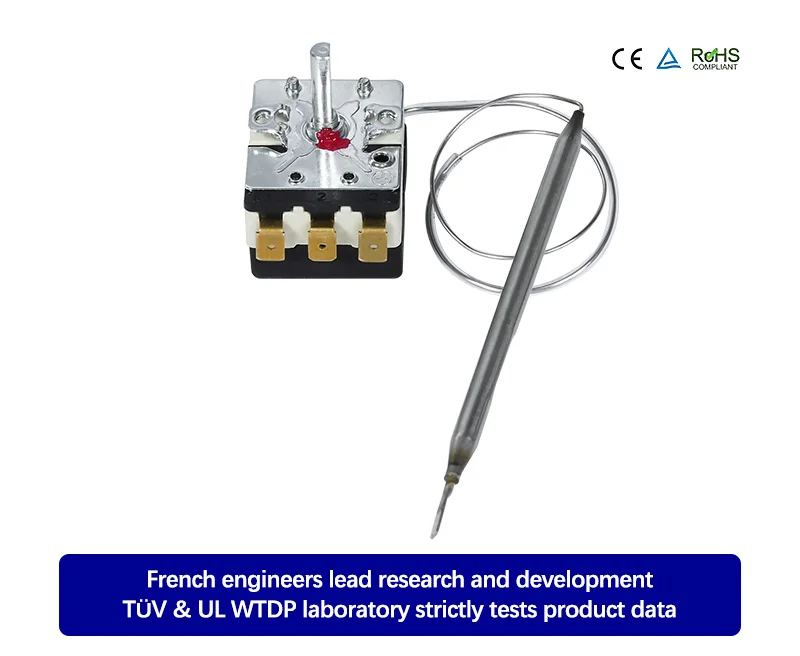

thermostat temperature controller 50 200°C (120 390°F) 8G electric oven temperature thermostat
- Category: >>>
- Supplier: Jpci Controls (foshan Gaoming) Co. Ltd.Jpci Ltd.
Share on (1601299810545):
Product Overview
Description
vantage | Single pole control,compatible with 3 way connectors | ||||||
vantage | 16A 250V,20A 250V,10A 400V | ||||||
vantage | Minimum temperature -35°C, maximum temperature 500°C | ||||||

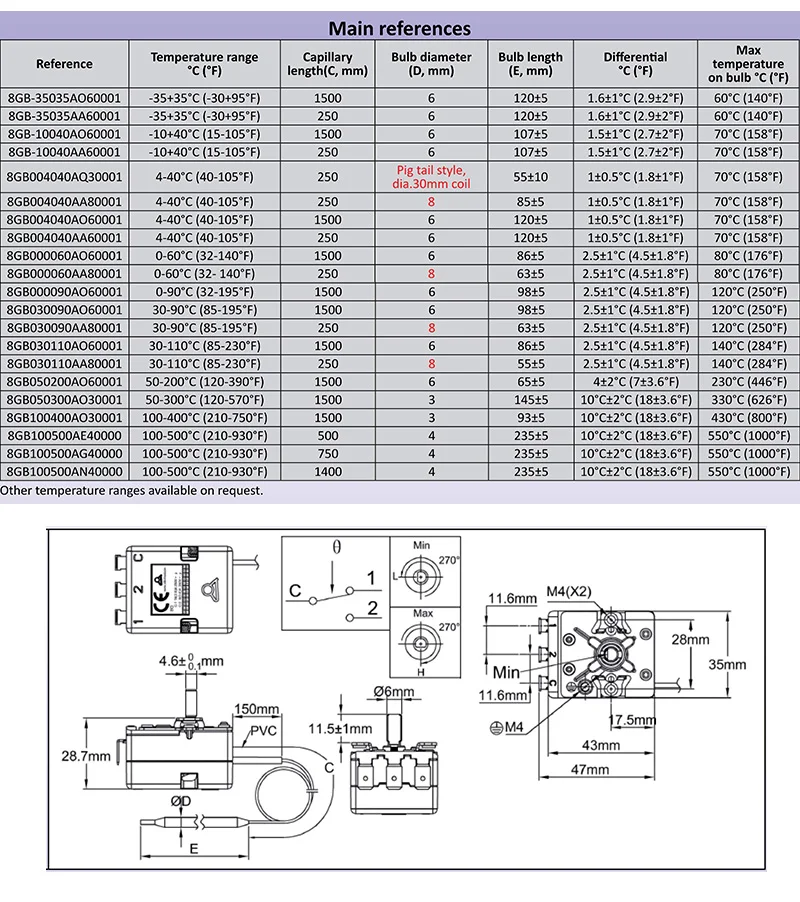

Temperature range of this model | 50-200°C (120-390°F) | ||||||
take care | Default does not come with temperature control knob, need knob can contact us to buy additional | ||||||
Housing dimensions: 43 × 35 × 29mm (without terminals)
Bulb and capillary: Stainless steel, with 150mm long PVC sleeve on the capillary. Capillary minimum bending radius is 5mm. No capillary sleeve for temperature ranges above 400°C (750°F).
Temperature sensing element: Oil filled bulb and capillary.
Caution: Temperature ranges above 400°C (750°F) are filled with sodium-potassium eutectic. In case of breakage of the bulb or capillary, this liquid may self-ignite at room temperature in the presence of water or moisture.
Terminals: 6.35 × 0.8 quick connect terminals, 90° bended. Straight terminals or terminals with M4 screws also available on request. (MOQ apply). Terminal positions and alignment allow the use of a connector with flat or bended terminals.
Adjustment: Dia. 6mm shaft with 4.6mm flat, length 11.5mm. Other lengths, screw driver adjustment or fixed setting available on request.
Mounting: Front bracket with 2 × M4 threads, 28mm distance.
Grounding: M4 thread on mounting bracket.
Contact: SPDT
Electrical rating, resistive loads:
Bulb and capillary: Stainless steel, with 150mm long PVC sleeve on the capillary. Capillary minimum bending radius is 5mm. No capillary sleeve for temperature ranges above 400°C (750°F).
Temperature sensing element: Oil filled bulb and capillary.
Caution: Temperature ranges above 400°C (750°F) are filled with sodium-potassium eutectic. In case of breakage of the bulb or capillary, this liquid may self-ignite at room temperature in the presence of water or moisture.
Terminals: 6.35 × 0.8 quick connect terminals, 90° bended. Straight terminals or terminals with M4 screws also available on request. (MOQ apply). Terminal positions and alignment allow the use of a connector with flat or bended terminals.
Adjustment: Dia. 6mm shaft with 4.6mm flat, length 11.5mm. Other lengths, screw driver adjustment or fixed setting available on request.
Mounting: Front bracket with 2 × M4 threads, 28mm distance.
Grounding: M4 thread on mounting bracket.
Contact: SPDT
Electrical rating, resistive loads:
- Open on temperature rise contact (C-1)
16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
- Close on temperature rise contact (C-2): 6A 250V 50 ~60Hz: >100000 cycles
Electrical rating, inductive loads:
Electrical rating, inductive loads:
- Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles
- Close on temperature rise contact (C-2): 0.6A 250V 50 ~60Hz: >100000 cycles

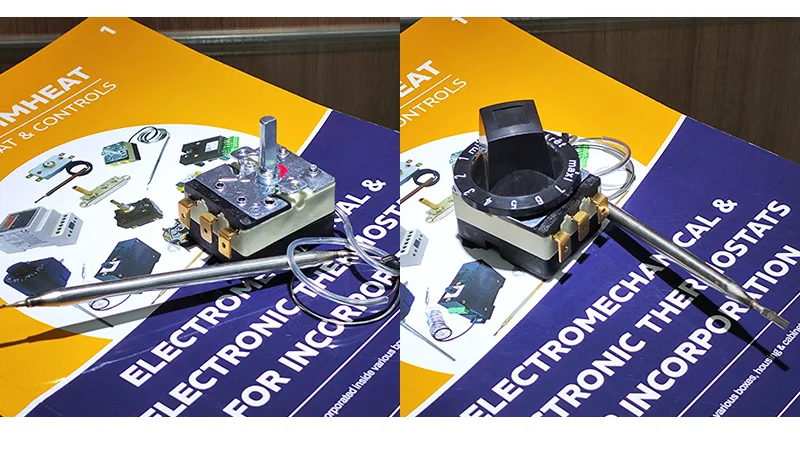

Product Display

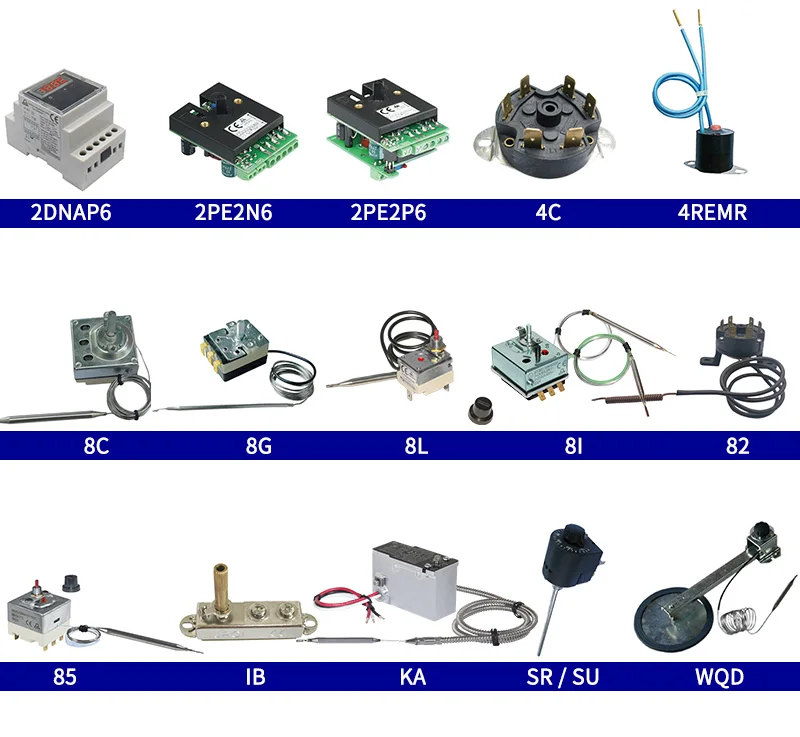

Recommend Products
Why Choose Us
1、We are French family-owned company with a 50-year history of brand development. Our company's rules and regulations and production processes are the same as those of the French company.
2、 All our products are made in strict accordance with international standards and have passed Bureau Veritas ISO9001:2015, ISO14001:2015 and ISO45001:2018 management system certifications. Depending on the market, our products have CE by TÜV, CCC, UL, UKCA, ROHS, REACH and other certifications and can be exported to all over the world.
3、 All our products are 100% quality inspected, and inventory products will be inspected again before shipment to ensure product quality.

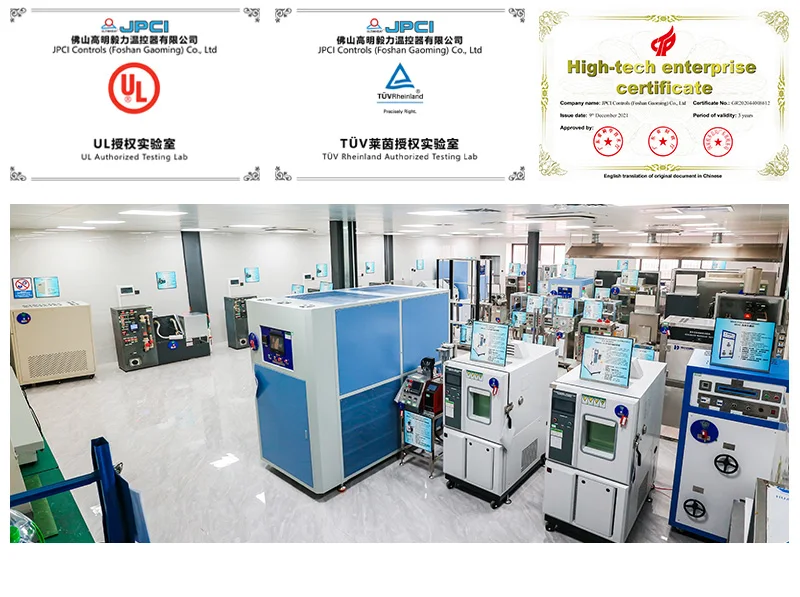

4、 We have a 750 ㎡ self-built laboratory certified by TÜV and UL ISO17025, and won the honor of Guangdong High-tech Enterprise, Foshan Specialized and Special New Enterprise, Foshan High Performance Electric Heater And Control System Engineering Technology Research Center.
Certifications

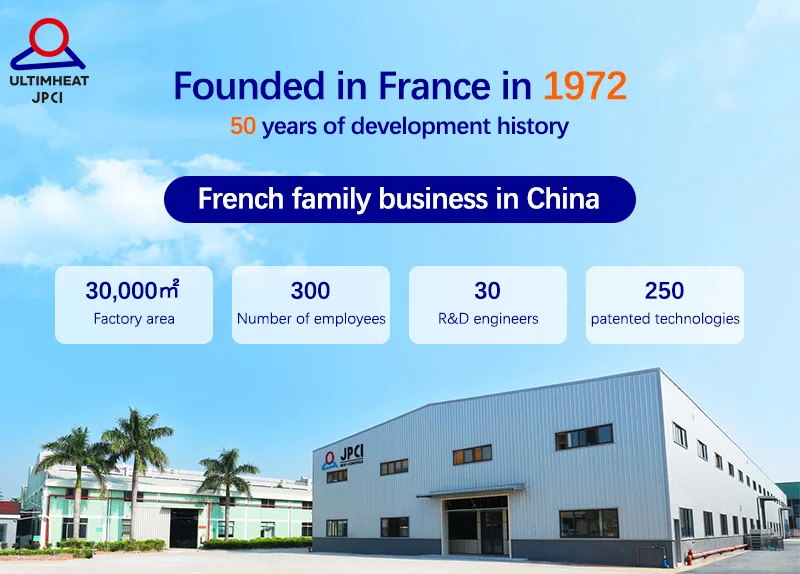

Company Profile
JPCI Controls originated from the French family-owned company founded in 1972, our company was founded in 2000, headquartered in Gaoming District, Foshan City, Guangdong Province, China, which is specialized in the design and production of mechanical thermostats, safety devices and electric heating systems for domestic and industrial use. JPCI owns an internationally renowned brand, ULTIMHEAT, and has a subsidiary in Lyon, France.After more than 50 years of development, JPCI has become a research and development enterprise which is deeply exploring the international market.

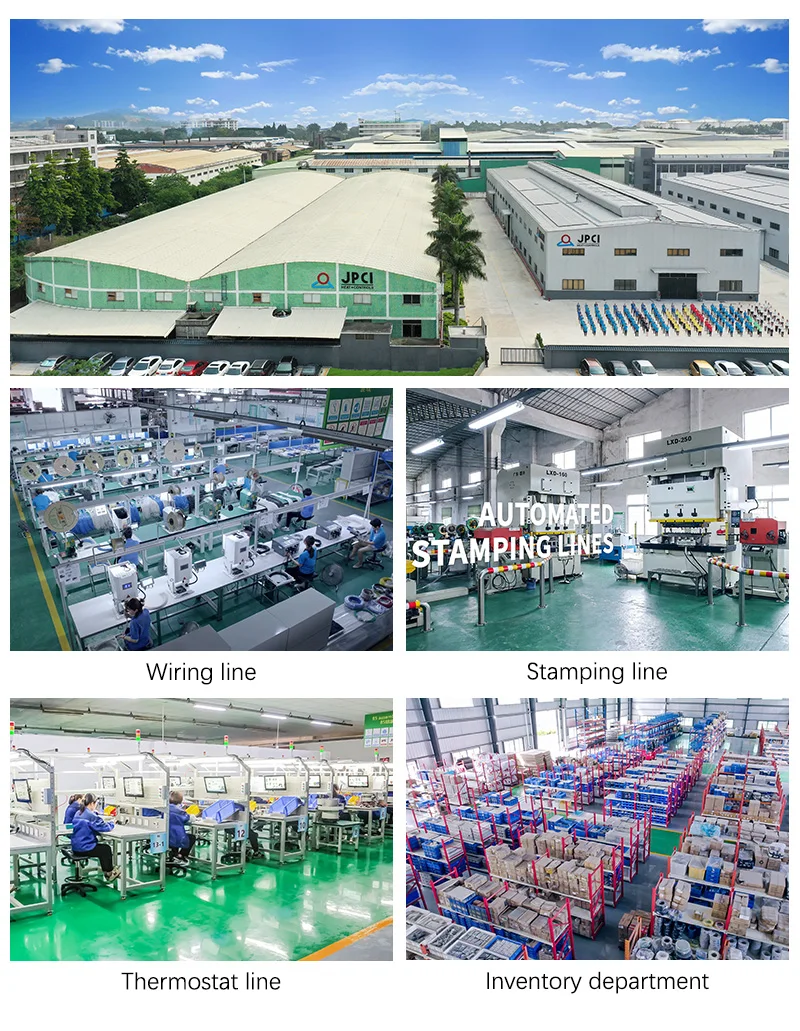

JPCI Controls covers an area of 30,000 square meters, has more than 300 employees, including 30 professional R & D and laboratory employees, and produces more than 6 million products per year, with more than 10,000 product models. Our production has achieved full vertical integration to ensure quality control at each stage, our company has more than 1000 sets of testing equipment such as ultraviolet aging testing machine, motor loading machine, hydraulic hi-pot bursting testing machine to strictly monitor product quality.
