YT 1000L PTM With feedback Linear Stroke Electric Pneumatic Valve Positioner
- Category: >>>
- Supplier: Ningbo Fenghua Gogo Automatic Trading Company LimitedNingbo Limited
Share on (1601299847735):
Product Overview
Description

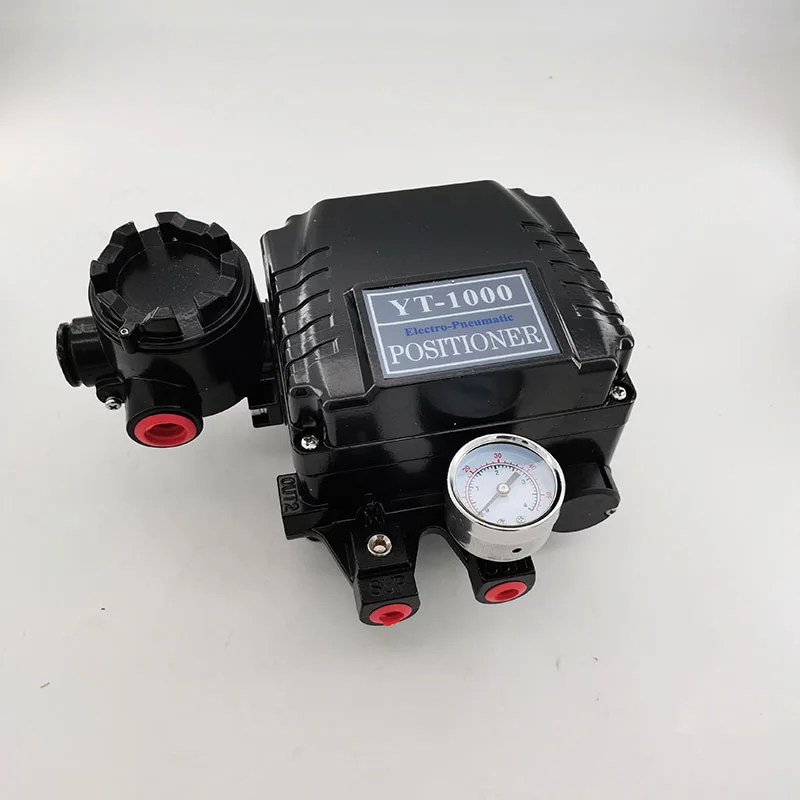

YT-1000L-PTM With feedback Linear Stroke Electric- Pneumatic Valve Positioner

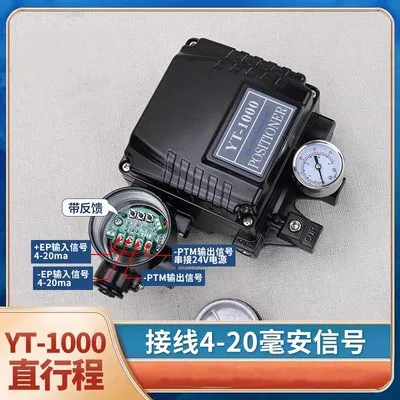

The electric-pneumatic valve Positioner YT-1000 is a device that receives 4-20mA DC current signal from the controller or control system, and sends air to the pneumatic actuator to control the valve position.
There is no resonance in the range of 5-200Hz.
Forward and reverse, single-acting and double-acting can be easily switched.
For small actuators, the orifice of the positioner can be reduced to prevent vibration.
Split-range control within 1/2 range can be achieved by replacing the internal spring.
There is no resonance in the range of 5-200Hz.
Forward and reverse, single-acting and double-acting can be easily switched.
For small actuators, the orifice of the positioner can be reduced to prevent vibration.
Split-range control within 1/2 range can be achieved by replacing the internal spring.
Specifications
Input signal : 4.20mA DC
Input pressure : 0.14-0.7 Mpa
Impedance : 250±15 OHm
Stroke range : YT-1000L: 10-150mm
Air source interface : PT1/4
Pressure gauge interface: PT1/8
Power interface : G1/2
Explosion-proof grade: Exd mb IICT6
Protection level : IP66
Working temperature : -20°C-70°C (-4-158°F)
Explosion-proof temperature : -20°C-60°C (-4-140°F)
Linearity: Single : ±1% F.S / Double: ±2% F.S
Sensitivity: Single : ±0.2% F.S / Double: ±0.5% F.S
Air consumption : 25 LPM (sup=0.14 mpa)
Flow rate: 80 LPM (sup=0.14 mpa)
Material: die-cast aluminum
Packaging & Shipping
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
