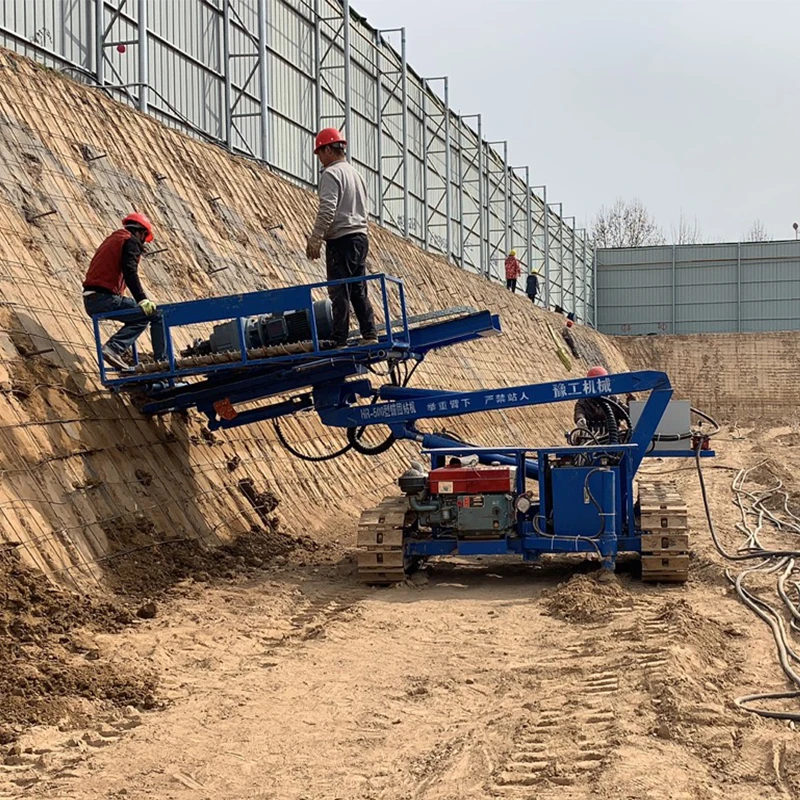

Heavy Anchor Drilling Equipment Multi Functional Anchor Drilling Machine Slope Drill Equipment
- Category: >>>
- Supplier: Henan Yugong Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601299974766):
Product Overview
Description
Anchoring Jet Grouting Drilling Rig Anchor Nail Drilling Machine
Product Description
The anchor drilling rig is used for hydropower station/railway/highway slope reinforcement, and all kinds of geological disaster prevention and control of landslides and dangerous rock anchoring engineering, especially suitable for high slope rock anchoring engineering, used for anchoring holes;
The anchoring drill is also suitable for the construction of deep foundation pit support, anti-floating anchor rod and foundation grouting reinforcement engineering holes, blasting engineering blasting holes, high-pressure rotary jet pile, tunnel pipe and roof support holes, etc.
The anchoring drill is also suitable for the construction of deep foundation pit support, anti-floating anchor rod and foundation grouting reinforcement engineering holes, blasting engineering blasting holes, high-pressure rotary jet pile, tunnel pipe and roof support holes, etc.
Specification
Model | YGMG-40 | YGMG-50 | YGMG-70 | YGMG-70A |
Drilling Depth(m) | 10-60 | 25-70 | 35-80 | 35-80 |
Drilling Diameter(mm) | 90-180 | 90-165 | 110-230 | 110-230 |
Drilling Pipe Diameter | φ76*1500 | φ76*1500 φ89*1500 | φ76*1500 φ89*1500 | φ76*1500 φ89*1500 |
Borehole Inclination Angle | 0-90° | 0-90° | 0-90° | 0-90° |
Power Head Output Torsion Speed(rmp) | -- | 0-70 | 0-50 | -- |
Rated Output Torque of Power Head(N·m) | 2400 | 2500 | 3900 | 3900 |
Max Travel of Power Head(mm) | -- | 1800 | -- | 1800 |
Propeller Compension Stroke(mm) | -- | 500 | 500 | 500 |
Max Pulling Force of Power Head(KN) | 25 | -- | 30 | 30 |
Power of Rotary Motor(kw) | 7.5 | -- | -- | -- |
Oil Pump Motor Power(kw) | 4 | 22 | 22 | 22 |
Weight(kg) | 500 | 1300 | 1400 | 1600 |
Rated Pressure of Hydraulic System(Mpa) | -- | 17-18 | -- | -- |
Motor(V) | 380 | -- | -- | -- |
Dimensions(m) | 2.8*0.8*1.4 | 3*0.78*1.36 | 3.1*1*1.5 | 3.1*1*1.5 |

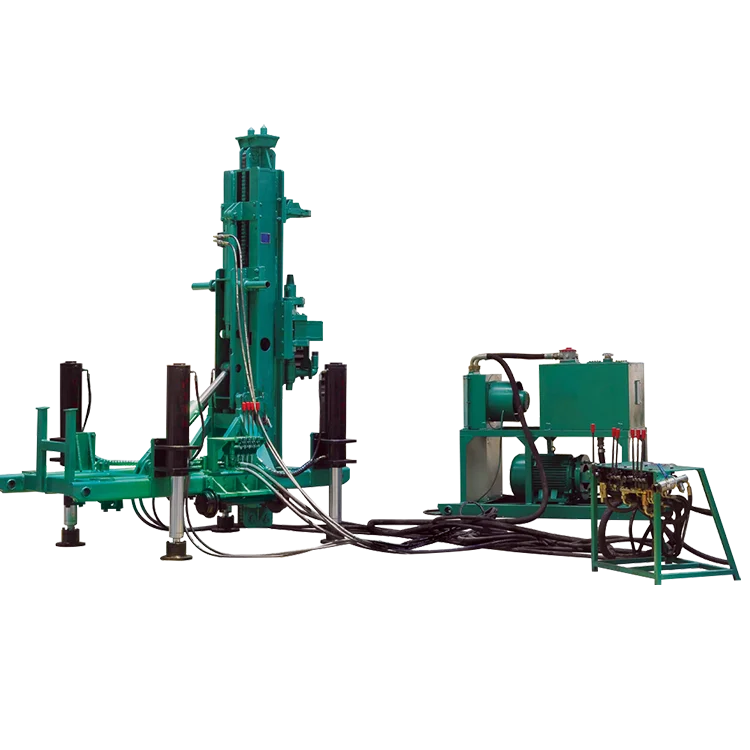

Small Separated Anchor Drill Rig
Crawler Mounted Jet Anchor Drill Rig
High Pressure Rotary Jet Grout Drill Rig

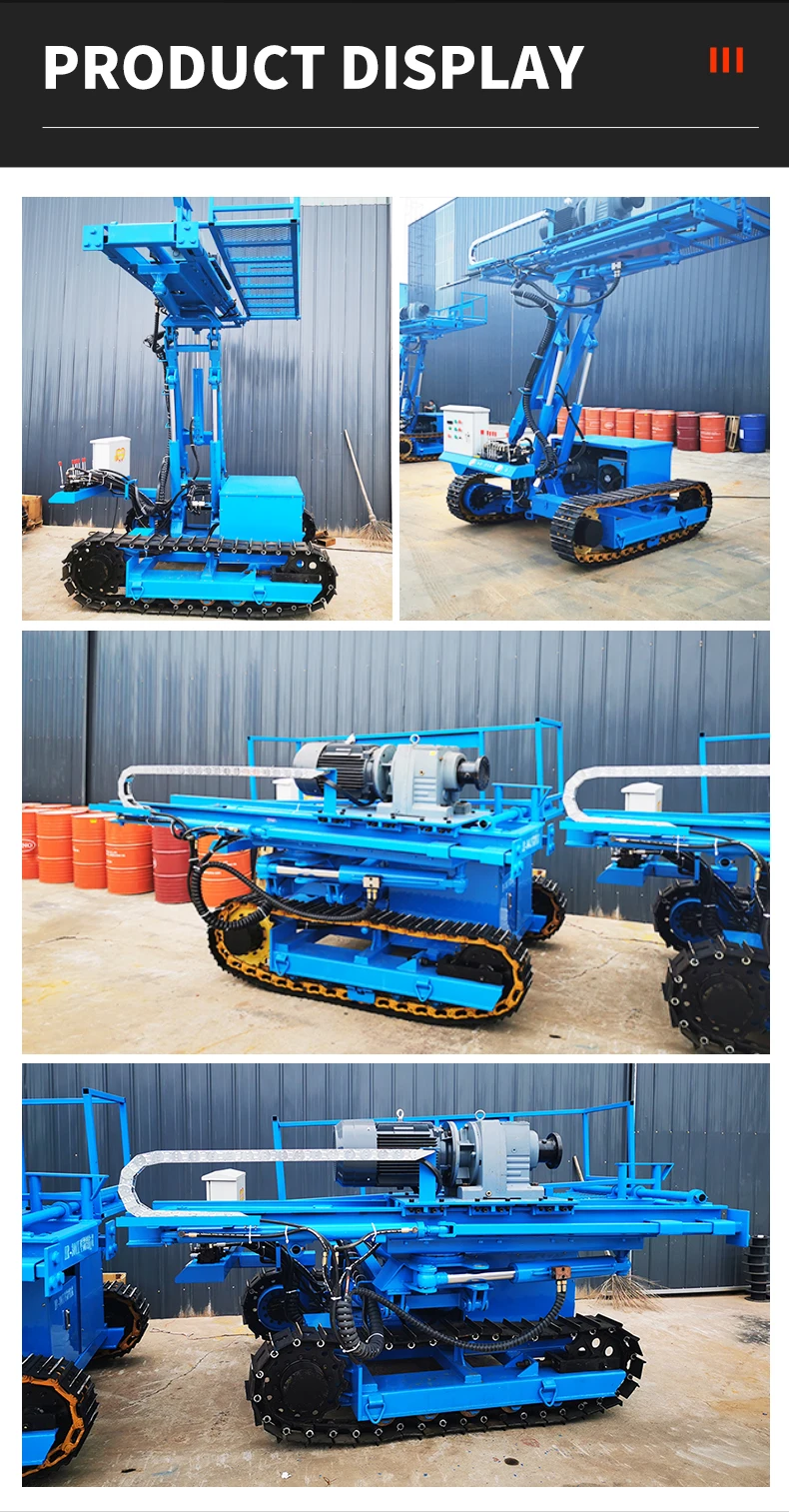

Details Images
Packing & Delivery
Company Profile
FAQ
