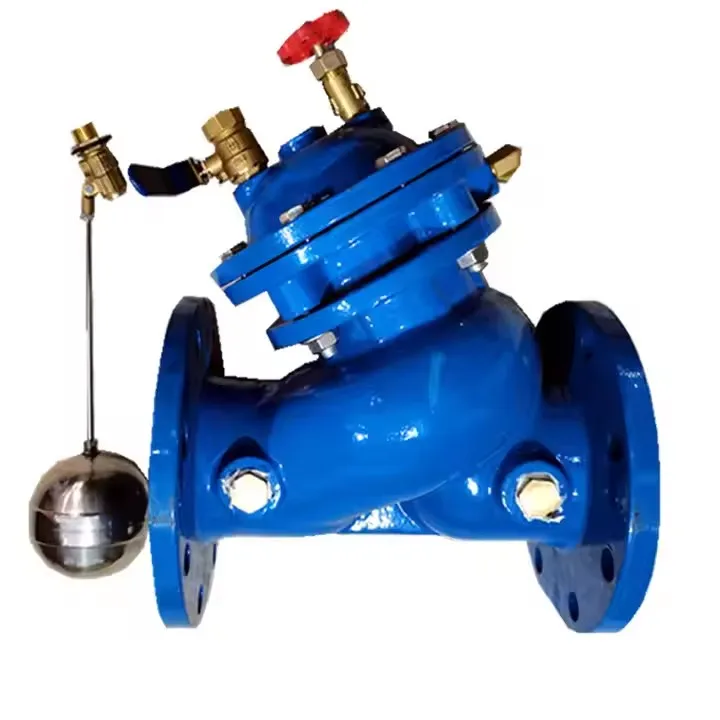

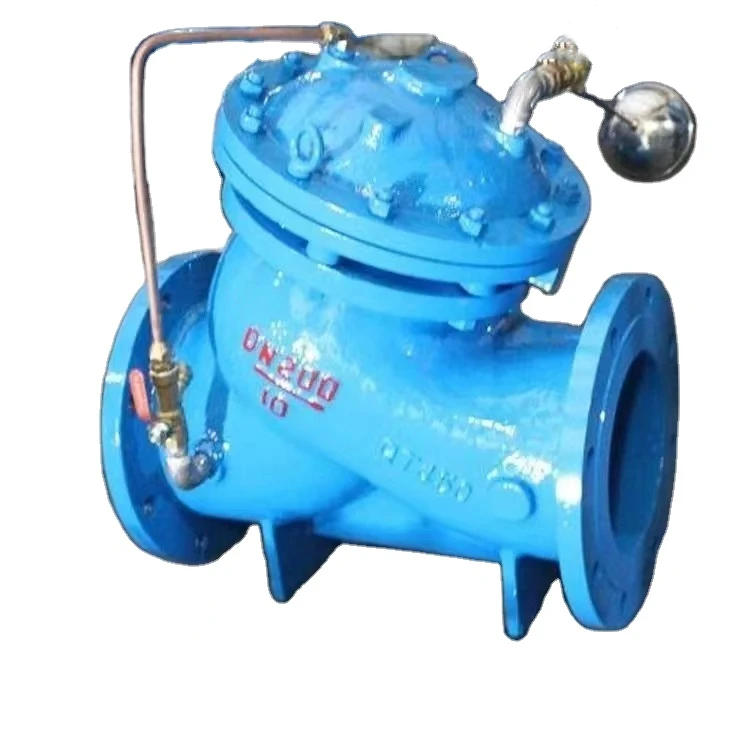

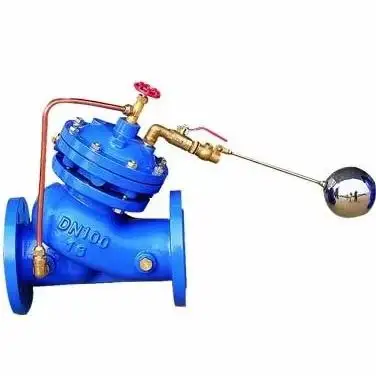

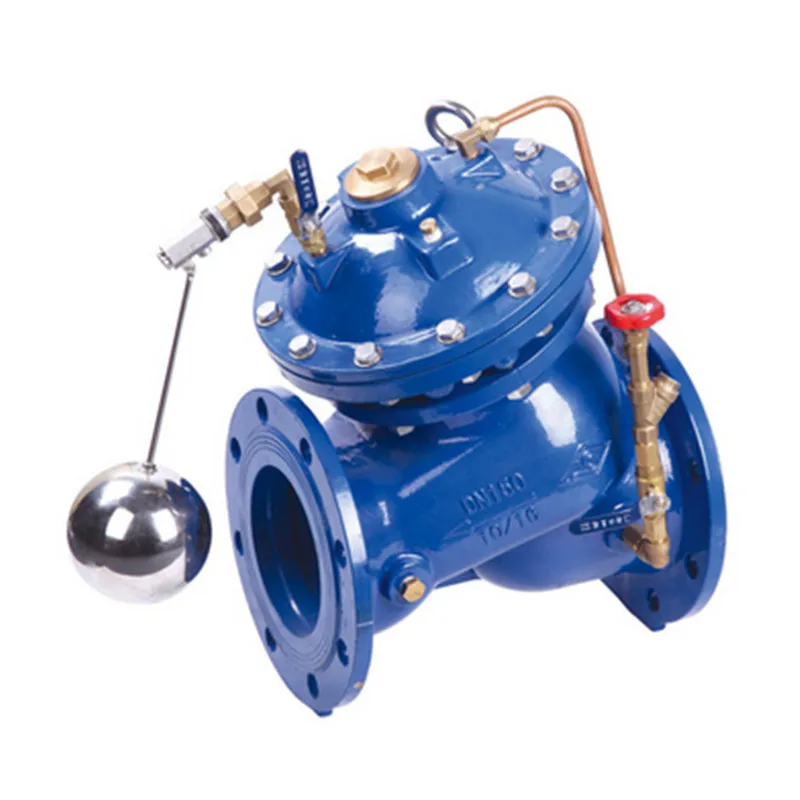

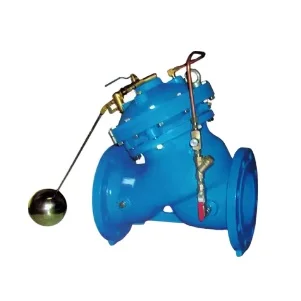

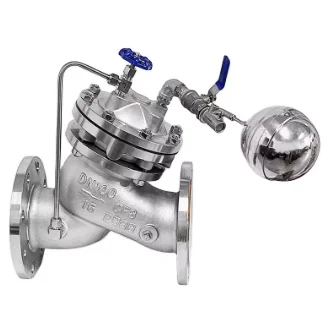

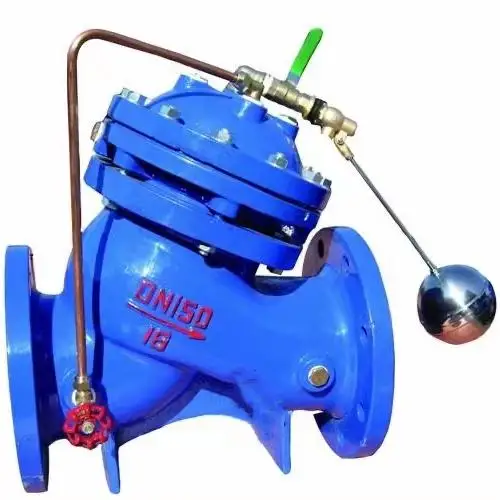

30years factory manufacture water control valve ductile iron hydraulic diaphragm remote control float valve
- Category: >>>
- Supplier: Shanghai Biaoyi Valve Co. Ltd.Shanghai Ltd.
Share on (1601300164185):
Product Overview
Description
Company Profile
Canton Fair
Due to different materials, pressures and sizes, the prices of valves cannot be displayed one by one. Please contact customer service to give a correct quotation.
Why Choose Us
Accept customization
1. Material customization
2. Size customization
3. Color customization
4. Pressure customization
5. Logo customization
3. Color customization
4. Pressure customization
5. Logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! Thank you!
Our company participates in large-scale urban construction projects in China.
1. Project of China Railway
2. Project of GREENTOWN CHINA HOLDINGS LTD
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
4. Project of Shenzhen Fangda Plaza
Product Description
When the water level drops, the main valve is controlled by the floating ball pilot valve to open the water inlet and inject water into the pool to realize automatic water replenishment; Accurate liquid level control, free from water pressure interference;
The diaphragm remote control float valve can be installed at any position along with the height of the pool and the service space. It has the advantages of convenient maintenance, convenient inspection, reliable sealing and long service life Diaphragm valve has reliable performance, high strength and stable action. It is used for pipelines with diameter less than DN450.
Relevant implementation standards
test pressure: 15bar, 11bar
working temprature: 10℃~120℃
suitable media: water, oil, gas
Face to Face: CJ/219
Inspection: GB/T13927
Flange: JB/T79、GB9112～9131、HG20592、SH3406、ANSI B16.5
item | value |
Application | General |
Port Size | DN20~DN600 |
Warranty | 3 years |
Place of Origin | China |
Shanghai | |
Model Number | F745X-10Q |
Power | Hydraulic |
Temperature of Media | High Temperature, Medium Temperature, Normal Temperature |
Brand Name | |
Structure | Check |
Media | Water |
Customized support | OEM, ODM, OBM, Software reengineering |
Product name | F745X-10Q |
test pressure | 15bar, 11bar |
working temprature | 10℃~120℃ |
suitable media | water, oil, gas |
Design | CJ/219 |
Face to Face | CJ/219 |
Inspection | GB/T13927 |
Flange | JB/T79、GB9112～9131、HG20592、SH3406、ANSI B16.5 |
Main parts and materials
Part name | Applicable material |
Bonnet | Cast iron, ductile iron, Cast steel, SS304 |
Sleeve | Stainless steel |
Piston | Ductile iron |
Seal ring | NBR |
Stem | 2Cr13 |
Spring | Stainless steel |
Disc | Ductile iron |
gasket | NBR |
Seat | Stainless steel |
Sealing clamp | Ductile iron |
Body | Cast iron, ductile iron, Cast steel, SS304 |
Main structure and connection dimensions
DN | L | H |
50 | 205 | 320 |
65 | 216 | 367 |
80 | 250 | 400 |
100 | 320 | 452 |
125 | 365 | 522 |
150 | 415 | 592 |
200 | 500 | 698 |
250 | 605 | 810 |
300 | 698 | 810 |
350 | 787 | 1200 |
400 | 914 | 1230 |
450 | 978 | 1230 |
500 | 978 | 1270 |
600 | 1150 | 1600 |
