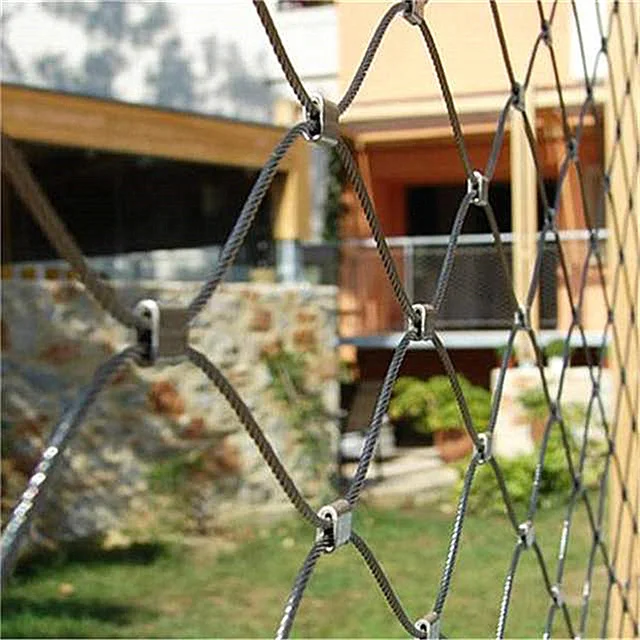

Excellent flexible strong strength Hole 75*75mm stainless steel rope mesh netting hand woven SS304 wire rope mesh
- Category: >>>
- Supplier: Anping County Chant Wire Mesh Manufacturing Co. Ltd.Anping Ltd.
Share on (1601300234071):
Product Overview
Description

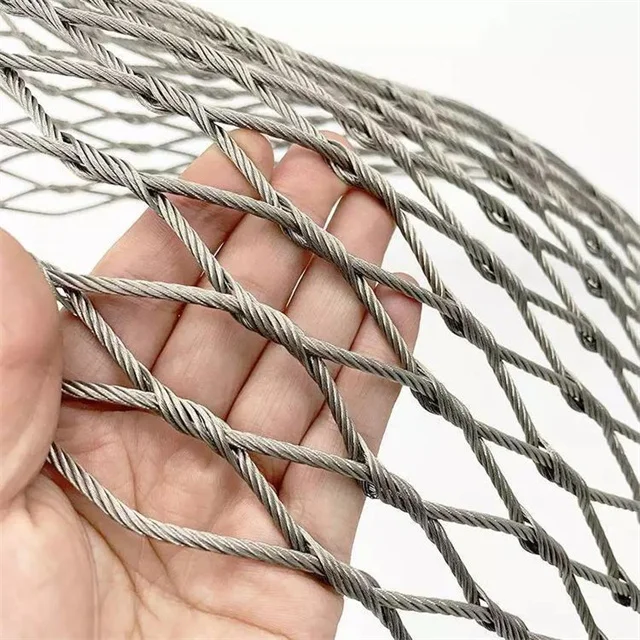

Excellent flexible strong strength Hole 75*75mm stainless steel rope mesh netting hand-woven SS304 wire rope mesh
Product Description

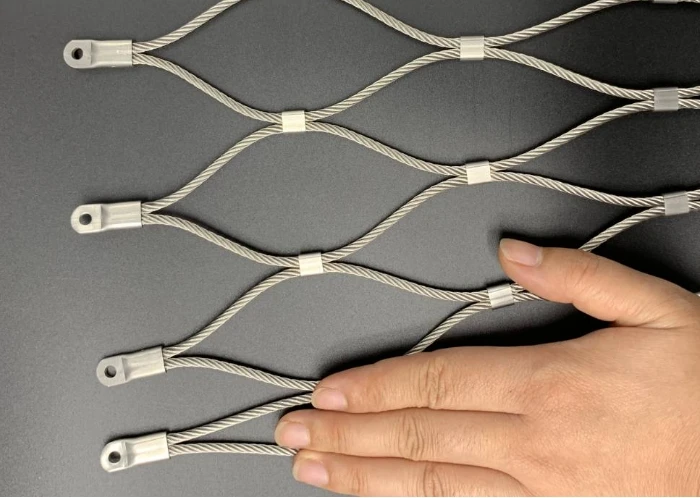

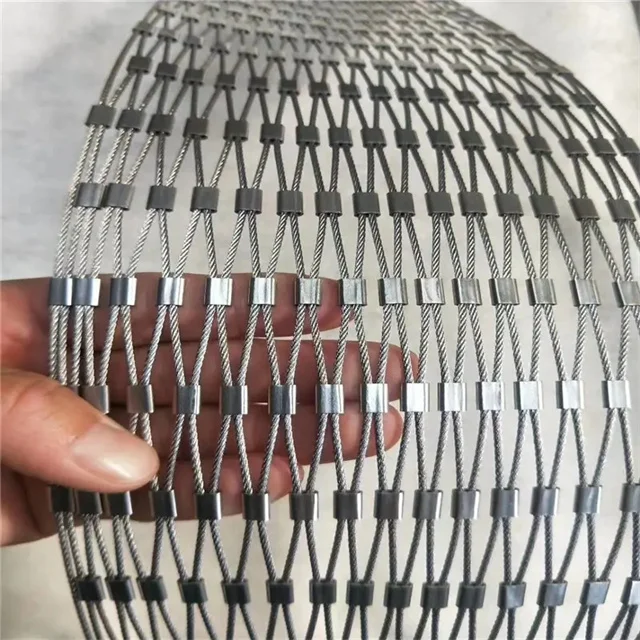

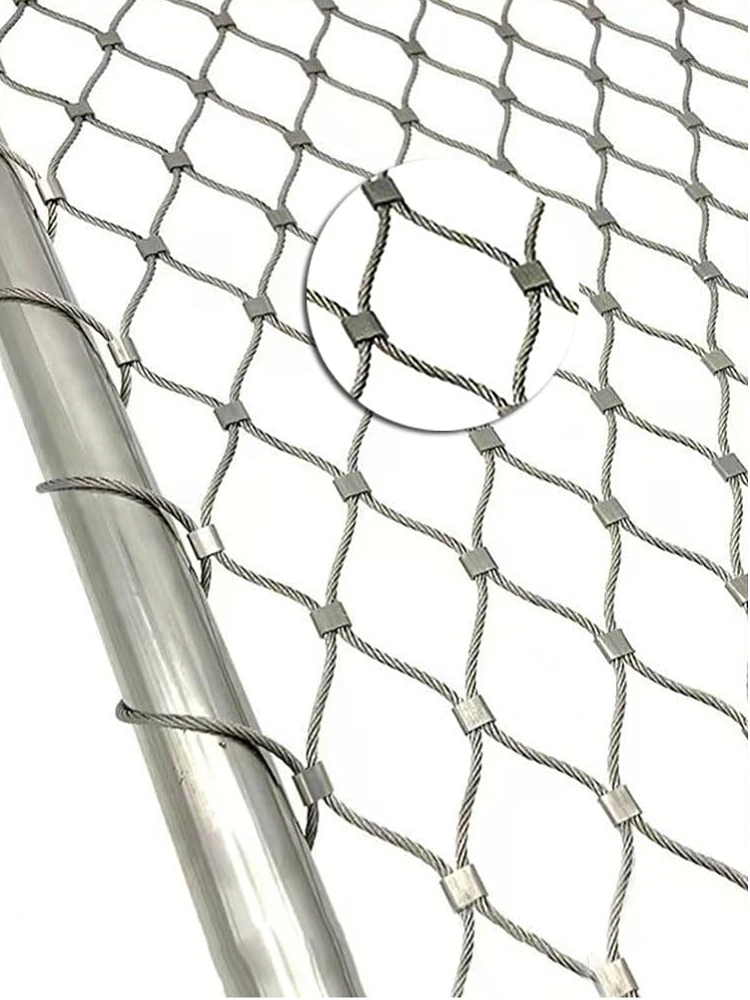

Flexible stainless steel rope nets are made of various materials such as AISI 304, AISI304L, AISI 316 / AISI 316L, including

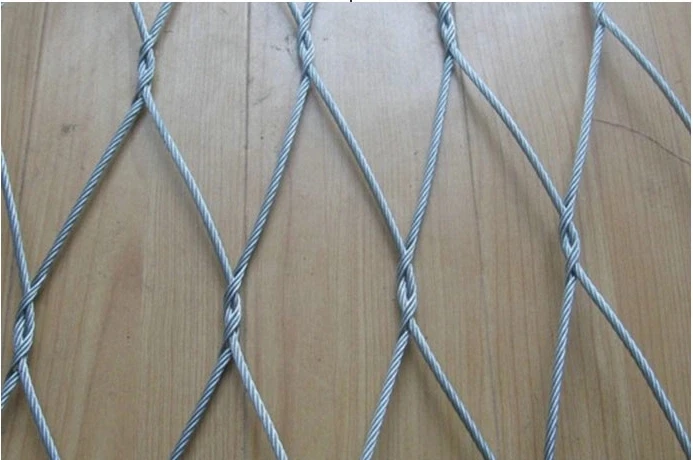

knotted nets and ferrule nets. The nets can be used in vertical or horizontal directions. Common mesh sizes range from 20mm x 20mm to 300mm x 300mm, and stainless steel rope mesh diameters range from 1.0mm to 4.0mm. We can customize the braid openings, wire diameters and sizes infinitely to meet your exact specifications. Contact us and let architects and designers recommend specifications corresponding to various loads and uses to meet your needs.
knotted nets and ferrule nets. The nets can be used in vertical or horizontal directions. Common mesh sizes range from 20mm x 20mm to 300mm x 300mm, and stainless steel rope mesh diameters range from 1.0mm to 4.0mm. We can customize the braid openings, wire diameters and sizes infinitely to meet your exact specifications. Contact us and let architects and designers recommend specifications corresponding to various loads and uses to meet your needs.
Specification
Material | SS304 , SS316 | ||||||
Rope Dia | 1.2mm , 1.5mm , 1.6mm , 2.0mm ,2.5mm ,3.0mm , 4.0 mm | ||||||
Hole Size | 30mm,35mm, 35mm,38mm,40mm,50mm,60mm,75mm,100mm | ||||||
Feature | Hand knitting,Light weight,high-strength,rustless,eco-friendly, safety, long service life, | ||||||
Structure | 7*7 rope 7*19 rope 1*7 rope 1*19 rope | ||||||

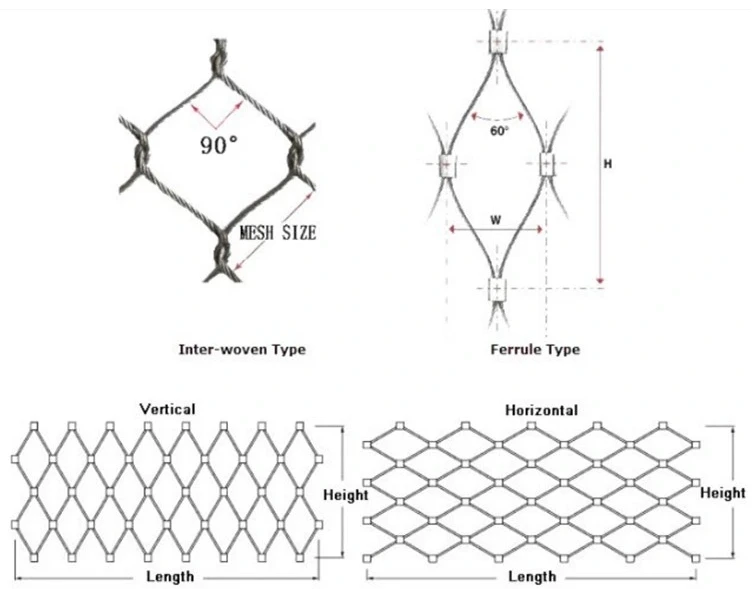

Mesh geometry
The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh
geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's
cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.
MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °
geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's
cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.
MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °
Rope Structure | Rope Diameter (mm) | Mesh Diamond Size (mm, MW x MH) | Normal Break Strength (lbs.) |
Rope φ3.0mm, and 4.0mm, etc. | 3.0mm | 120 x 208 | 1600 |
3.0mm | 102 x 177 | 1600 | |
3.0mm | 90 x 156 | 1600 | |
3.0mm | 76 x 132 | 1600 | |
3.0mm | 51 x 88 | 1600 | |
Rope φ1.0mm, 1.2mm, 1.5mm, 2.0mm and 2.5mm | 2.5mm | 102 x 177 | 920 |
2.mm | 90 x 156 | 920 | |
2.5mm | 76 x 132 | 920 | |
2.5mm | 60 x 104 | 920 | |
2.5mm | 51 x 88 | 920 | |
2.0mm | 76 x 132 | 676 | |
2.0mm | 60 x 104 | 676 | |
2.0mm | 51 x 88 | 676 | |
2.0mm | 38 x 66 | 676 | |
1.5mm | 76 x 132 | 480 | |
1.5mm | 51 x 88 | 480 | |
1.5mm | 38 x 66 | 480 | |
1.5mm | 30 x 52 | 480 | |
1.5mm | 25 x 44 | 480 | |
1.2mm | 38 x 66 | 270 | |
1.2mm | 30 x 52 | 270 | |
1.2mm | 25 x 44 | 270 | |
1.2mm | 20 x 35 | 270 |

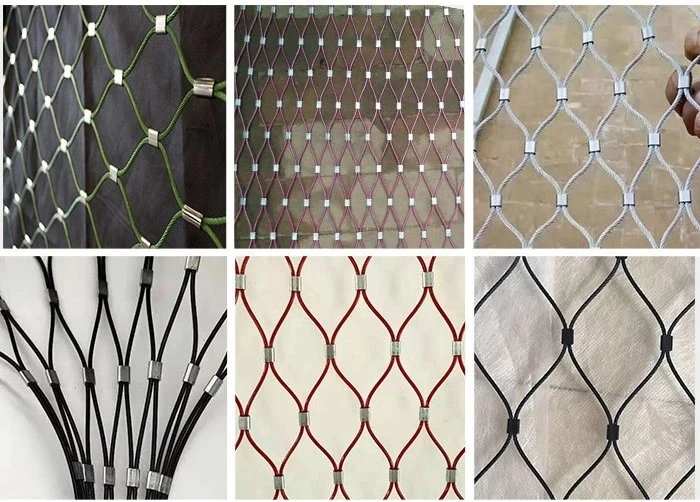

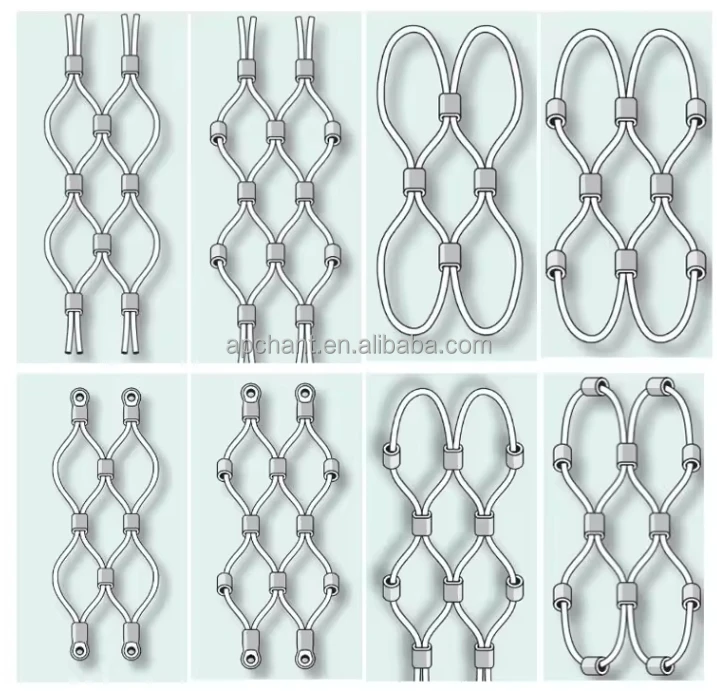

Different Edges

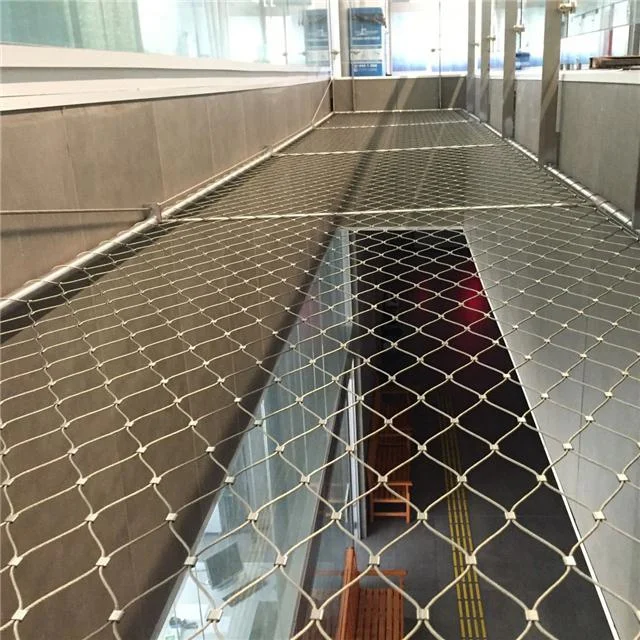

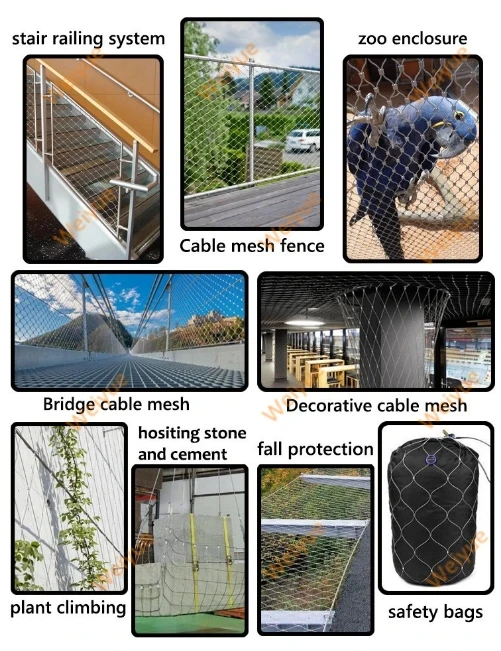

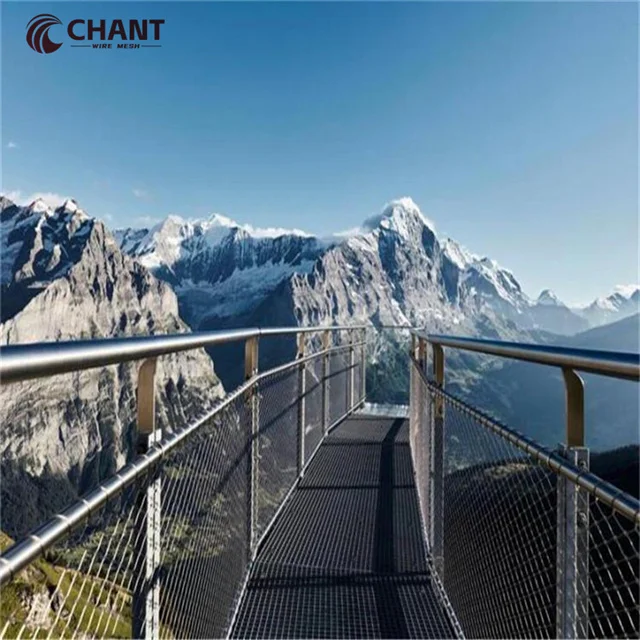

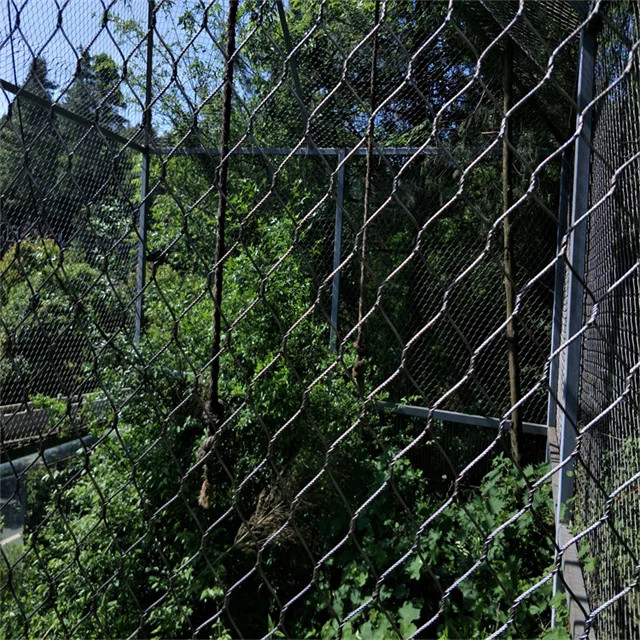

Applications

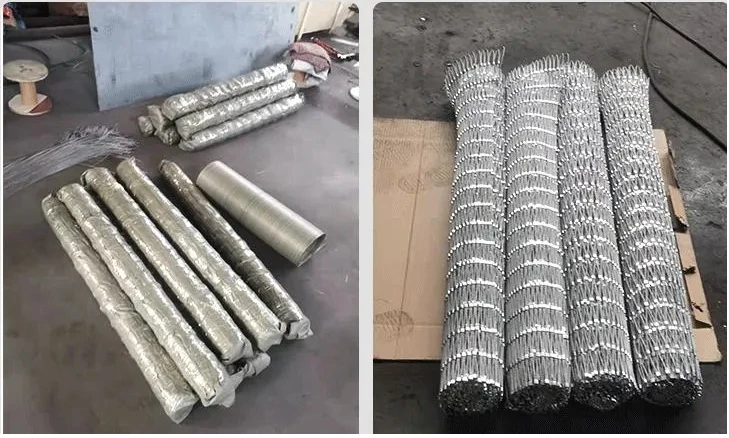

Packing & Delivery

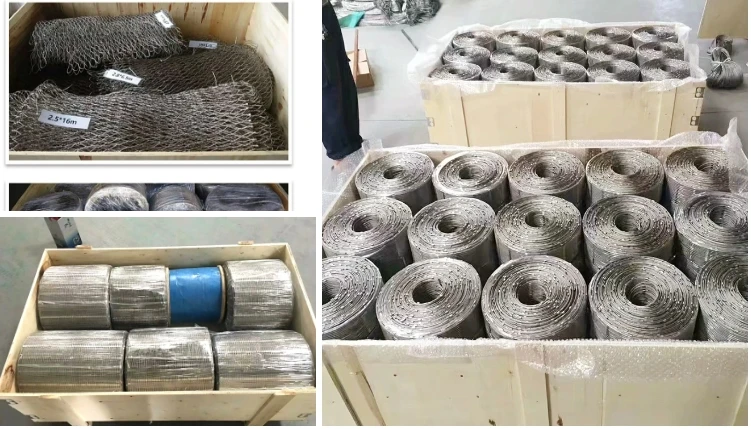

Packaging Details
Plastic paper inside wooden box outside
Delivery Time
Within 10-15 days after we receive the deposit
Plastic paper inside wooden box outside
Delivery Time
Within 10-15 days after we receive the deposit

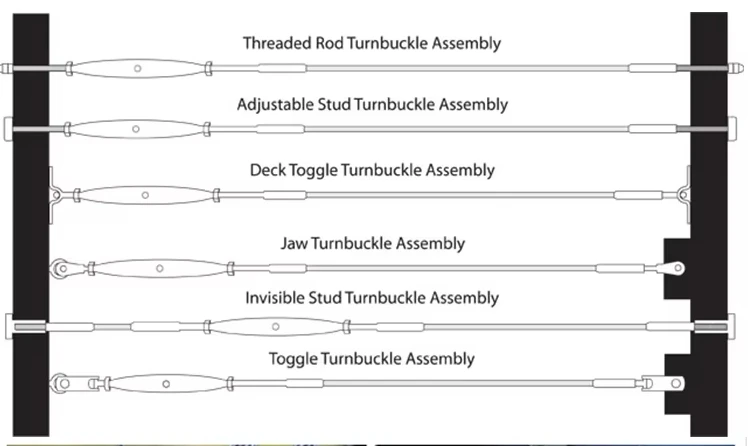

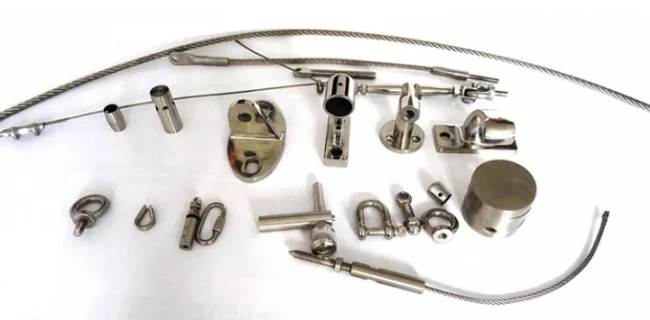

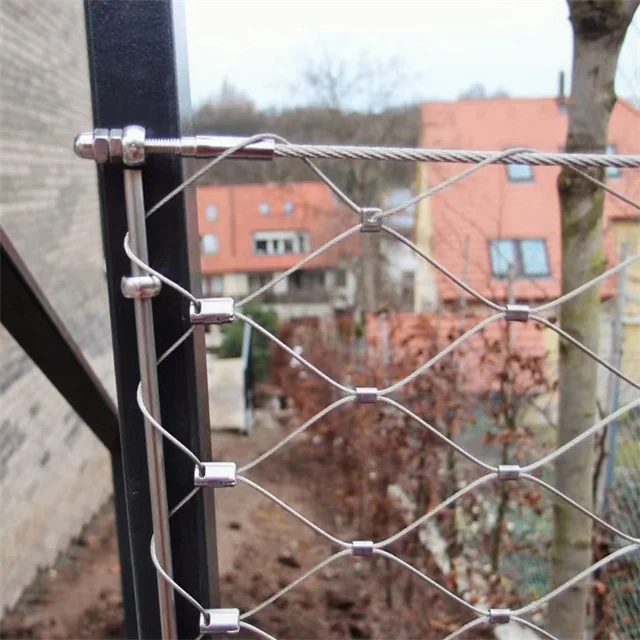

Installation Instructions
Company Profile
Anping County Chant Wire mesh Manufacturing Co., Ltd. is located in the world's largest wire mesh production base, with China's "home of wire mesh" reputation in Anping County, Hebei Province, the geographical position is superior. Chant is an integrated company integrating R&D, design, manufacturing and sales.
The company has advanced weaving machinery and equipment, strong technical force, automatic molding production line. The implementation of standardized production, from the procurement of raw materials, production management, product testing and other key aspects of strict control, to ensure the quality of products, won the trust of customers.
The company has advanced weaving machinery and equipment, strong technical force, automatic molding production line. The implementation of standardized production, from the procurement of raw materials, production management, product testing and other key aspects of strict control, to ensure the quality of products, won the trust of customers.
FAQ
1.Q:Where is your factory and which port do you export?
A: Our factories most located in Anping County, Hebei Province. The nearest Port is Xingang Port(Tianjin)
2.Q:What’s your MOQ?
A:Commonly our MOQ is around 10sets, But different for some goods, pls contact us for details.
3.Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or Irrevocable L/C at sight
4.Q:If the quality not meet my request, what can I do?
A: Pls send us your pictures for the problem goods with quantity, we can replace the goods for you for free.
5.Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample
cost will be refunded after you place the order.
6.Q. Do you test all your goods before delivery?
A: Yes, we would the goods test before delivery.
7. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
A: Our factories most located in Anping County, Hebei Province. The nearest Port is Xingang Port(Tianjin)
2.Q:What’s your MOQ?
A:Commonly our MOQ is around 10sets, But different for some goods, pls contact us for details.
3.Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or Irrevocable L/C at sight
4.Q:If the quality not meet my request, what can I do?
A: Pls send us your pictures for the problem goods with quantity, we can replace the goods for you for free.
5.Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample
cost will be refunded after you place the order.
6.Q. Do you test all your goods before delivery?
A: Yes, we would the goods test before delivery.
7. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
