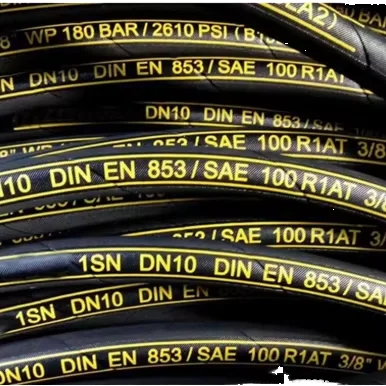

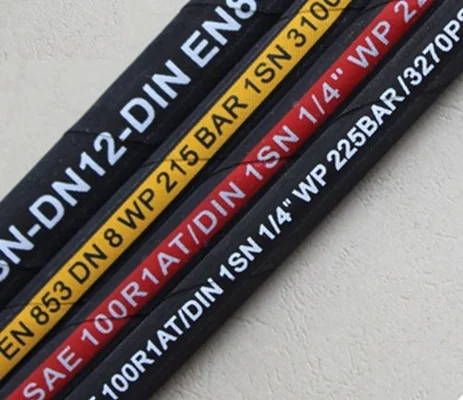

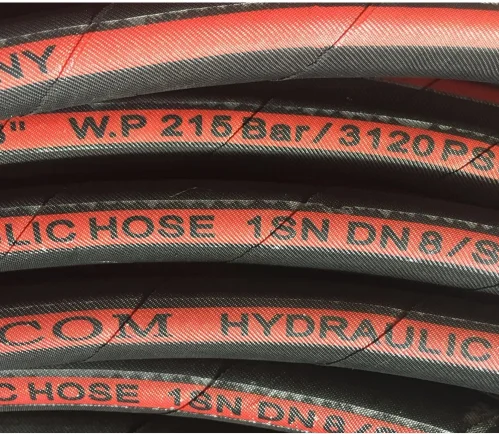

High Quality Pressure SAE 100 R1AT DIN EN 853 1SN R2AT 2SN 4SH 4SP Industrial Hydraulic Steel Wire Braided Flexible Rubber Hoses
- Category: >>>
- Supplier: Qingdao Guoye Brake Hose Manufacturing Co. Ltd.Qingdao Ltd.
Share on (1601300252103):
Product Overview
Description
Product Description

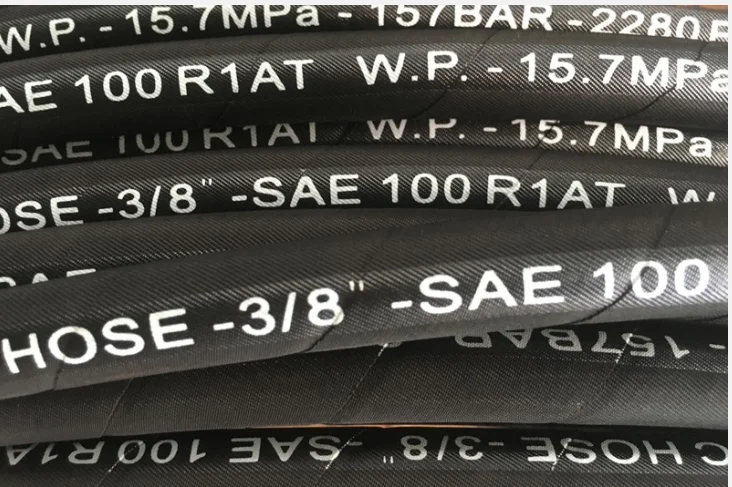

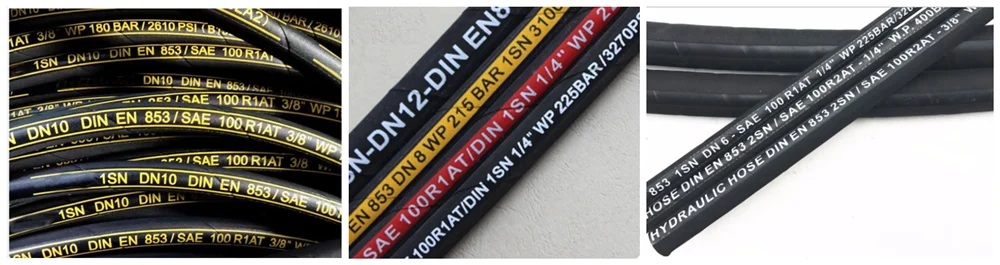

High Pressure Hydraulic Hose SAE 100R1/EN853 1SN
1.Tube: oil resistant synthetic rubber
2.Reinforcement: one high tensile steel wire braid
3.Cover: abrasion and weather resistant synthetic rubber
4.Temperrature range: -40°C to +100°C
5.Applications: To deliver medium-high pressure petroleum and water-based hydraulic fluids such as mineral oil, glycol,
lubricating oil, emulsion, hydrocarbon etc.

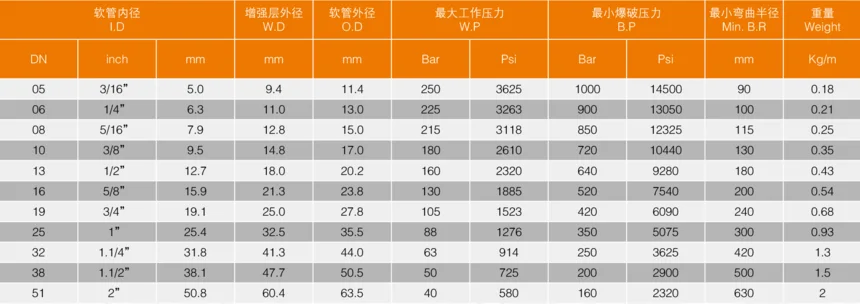

| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Mini. B.R. | Weight | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 |
High Pressure Hydraulic Hose SAE 100R2/EN853 2SN
1.Tube: oil resistant synthetic rubber
2.Reinforcement: two high tensile steel wire braid
3.Cover: abrasion and weather resistant synthetic rubber
4.Temperrature range: -40°C to +100°C
5.Applications: To deliver medium-high pressure petroleum and water-based hydraulic fluids such as mineral oil, glycol,
lubricating oil, emulsion, hydrocarbon etc.

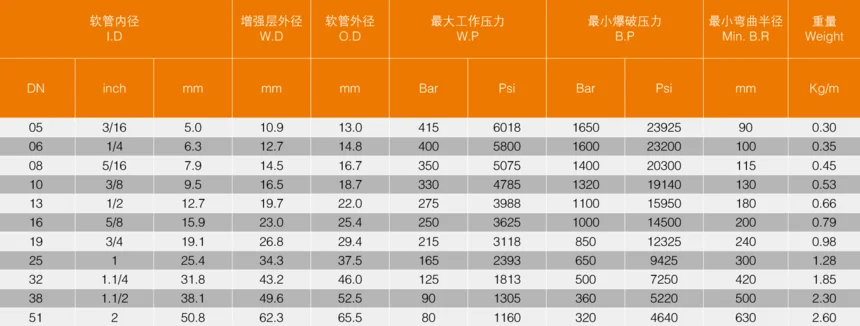

| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Mini. B.R | Weight | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 16 | 23720 | 89 | 0.32 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 |

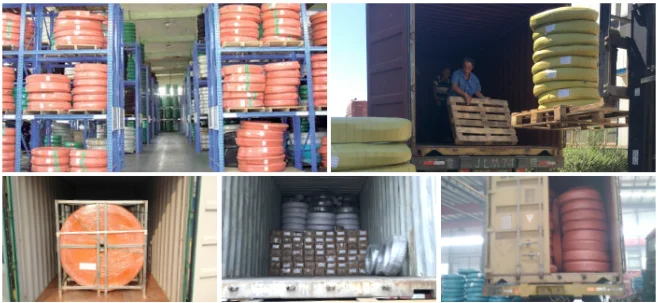

Packaging & Shipping

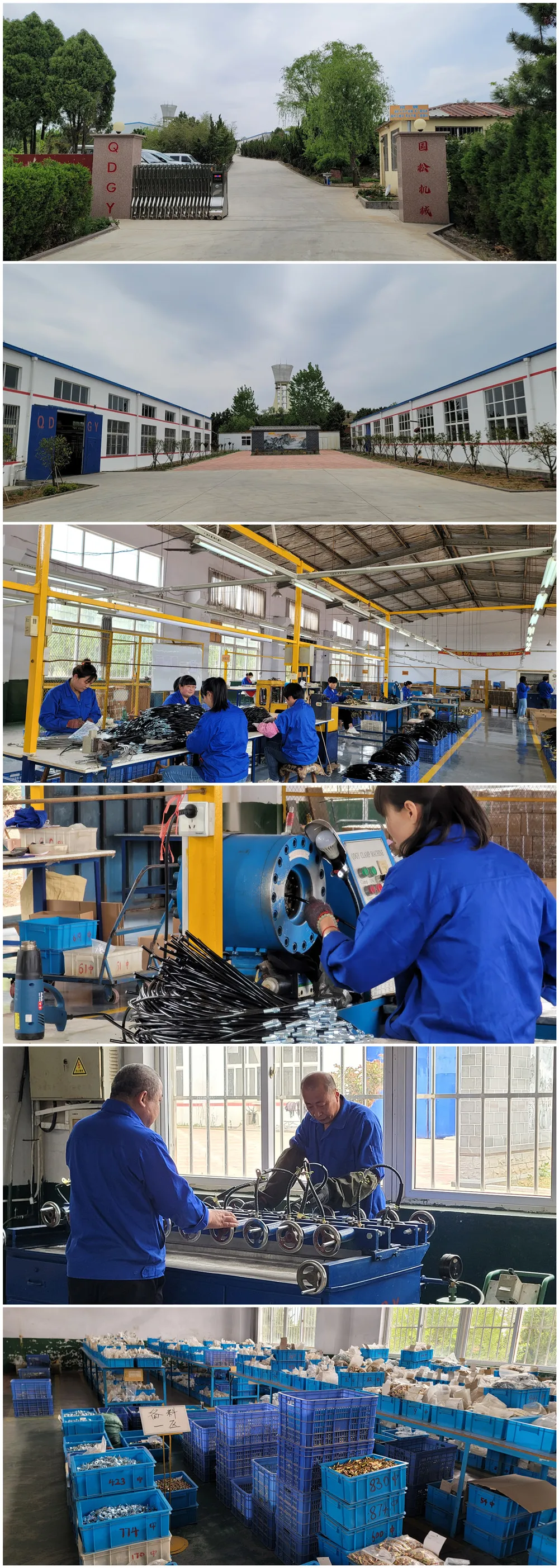

Company Information
QINGDAO GUOYE BRAKE HOSE MANUFACTURING CO.,TD

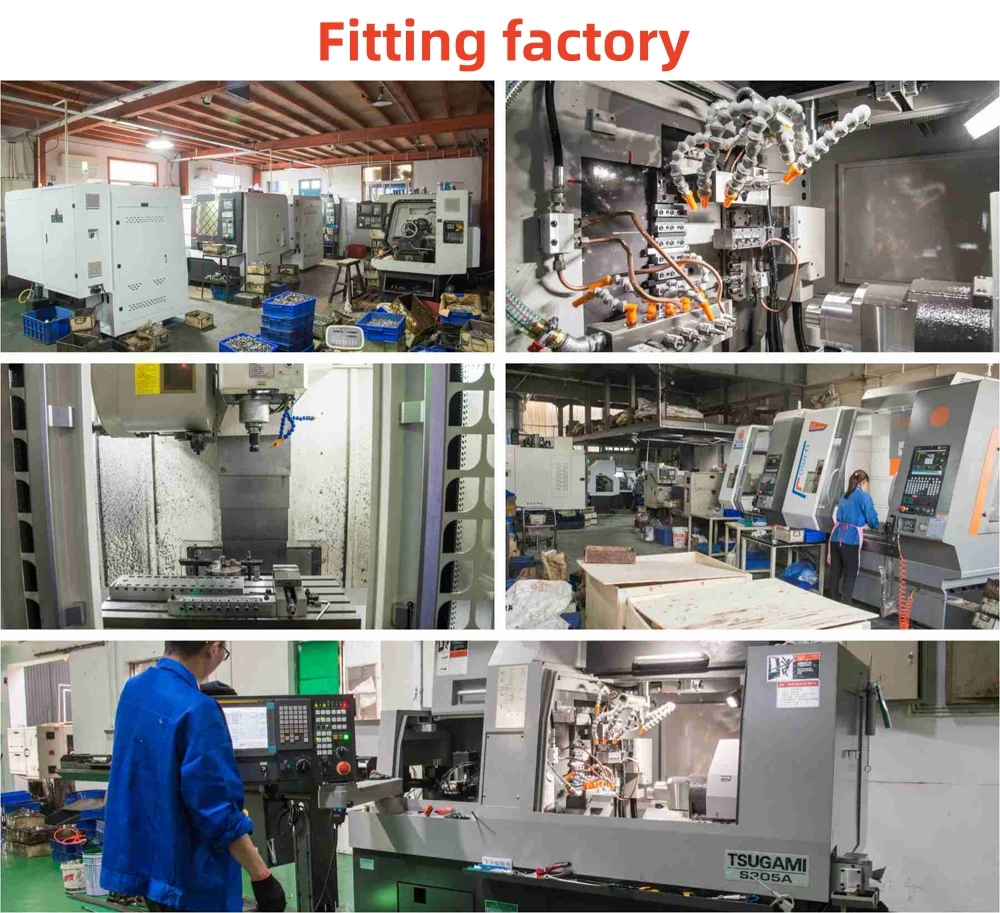

QINGDAO GUOYE BRAKE HOSE MANUFACTURING CO.,TD. was founded in 20088. Our company has been expanded to the leading brake hosemanufacturer in China. We have more than 300 staff members. Our building covers 6,000 square meters. We have Marketing Department,a Hose Factory and a Fitting Factory.
Our main products are QDGY brand rubber brake hoses (3.2mmx10.5mm) which are producedaccording to American standards SAEJ1401 and also passed the quality test of China National Auto Testing. We get DOTertification. Our company has ISO9001:2000 and TS16949:2009 quality management system certifications. To provide our customers
with the best products at the most reasonable price, we are ready to do innovation. We have imported modern production lines fromJapan and adopted American and Italian techniques and skills. Our senior scientific and technological experts, advanced R&D Laband testing equipment make our products perfect.
Our QDGY brake hoses, hose assembly and fittings are manufactured with a varietyof superior materials to meet various requirements of Automobile and Motorcycle Industries, especially in aftermarket. They areused in ISUZU, SUZUKI, YAMAHA, KAWA-SAKI, HONDA, MITSUBISHI, NISSAN, TOYOTA, ALTO, FLAT, FORD, CHRYSLER, CHEROKEE, AUDI, PEUGEOT,BMW, VW, IVECO, CHEVROLET, CITROEN and VOLVO cars. 90% of our products are exported to Europe, the USA and Southeast Asia. We haveon a high reputation among clients.
Our mission is continuously improving the quality of our products and sales service to make QDGY brand become one of the most famous brands in the world. You're welcome to visit our homepage to learn about our company and our products. For any further information, our staff members will reply you immediately. You are welcome to contact us now and getmore benefits.
Exhibition
Exhibition
QDGY Exhibition Show:
QDGY participated in major exhibitions such as the Shanghai Automechanica Exhibition and the Guangzhou Canton Fair. Their products and services won the love and trust of customers.
QDGY Custom Come From USA America,Panama,Mexico,Venezuela,Peru,Brazil,Ecuador,Australia,New Zealand,UK,Poland,Irland,Italy,Japan,Korea,Vietnam,Thailand.... More than 60 countries and Districts .
FAQ
FAQ
Below are FAQ,Anything you don't find ,please Contact Rita HE .
1. who are we?
We are based in Shandong, China, start from 2008,sell to North America(15.00%),South Asia(13.00%),Northern Europe(12.00%),Eastern
Europe(12.00%),Oceania(10.00%),Central America(10.00%),Domestic Market(9.00%),Western Europe(6.00%),Africa(5.00%),Eastern
Asia(2.00%),South America(2.00%),Mid East(2.00%),Southern Europe(1.00%),Southeast Asia(1.00%). There are total about 101-200
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
brake hose,brake line,brake hose fitting,Stainless steel braided Teflon hose,brake tube
4. why should you buy from us not from other suppliers?
QDGY have more than 20 years production and sale experience for OEM QDGY products are exported more than 60 countries QDGY get
ISO9001,IATF16949,DOT certificate Products quality and quickly delivery is first QDGY has 20 years design experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2008,sell to North America(15.00%),South Asia(13.00%),Northern Europe(12.00%),Eastern
Europe(12.00%),Oceania(10.00%),Central America(10.00%),Domestic Market(9.00%),Western Europe(6.00%),Africa(5.00%),Eastern
Asia(2.00%),South America(2.00%),Mid East(2.00%),Southern Europe(1.00%),Southeast Asia(1.00%). There are total about 101-200
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
brake hose,brake line,brake hose fitting,Stainless steel braided Teflon hose,brake tube
4. why should you buy from us not from other suppliers?
QDGY have more than 20 years production and sale experience for OEM QDGY products are exported more than 60 countries QDGY get
ISO9001,IATF16949,DOT certificate Products quality and quickly delivery is first QDGY has 20 years design experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
