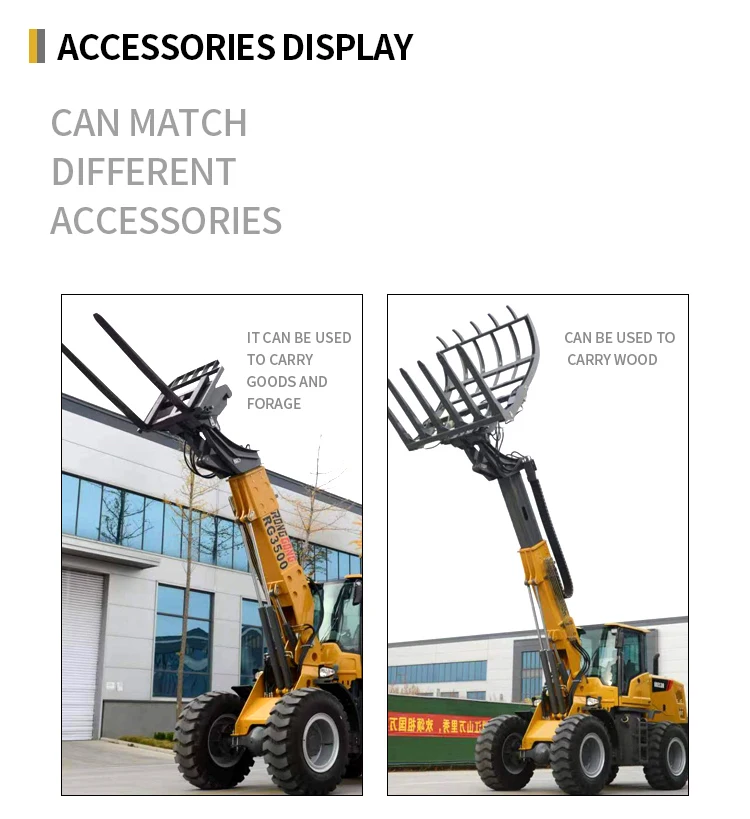

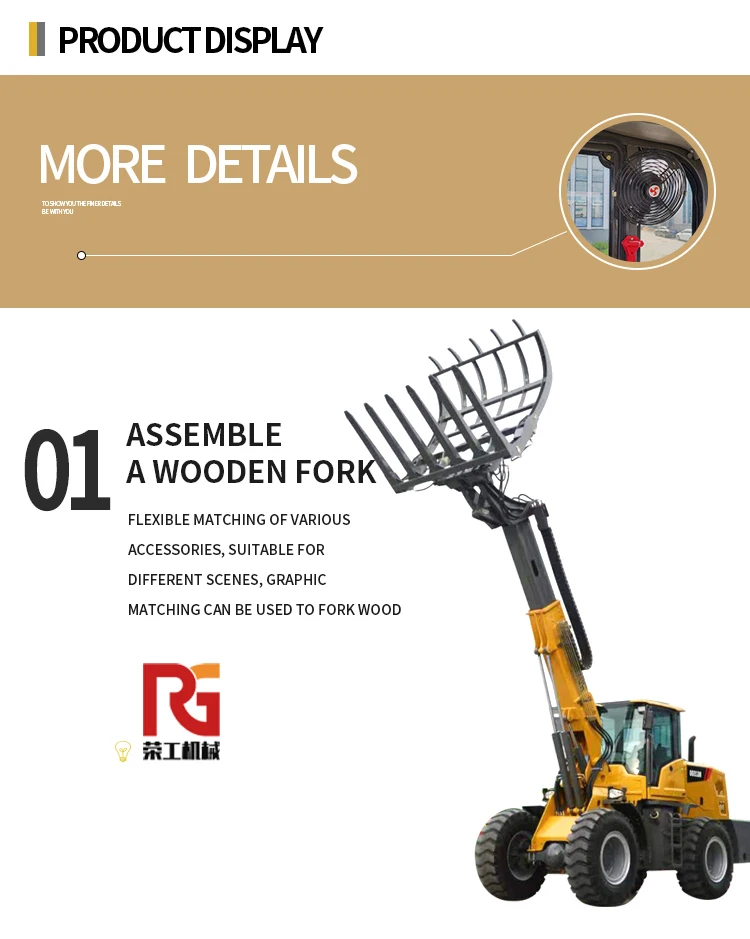

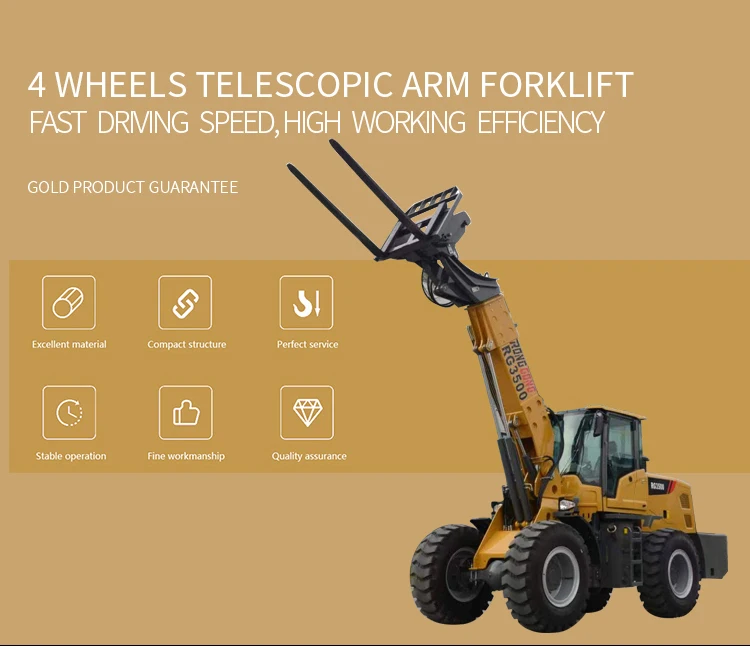

  • Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments

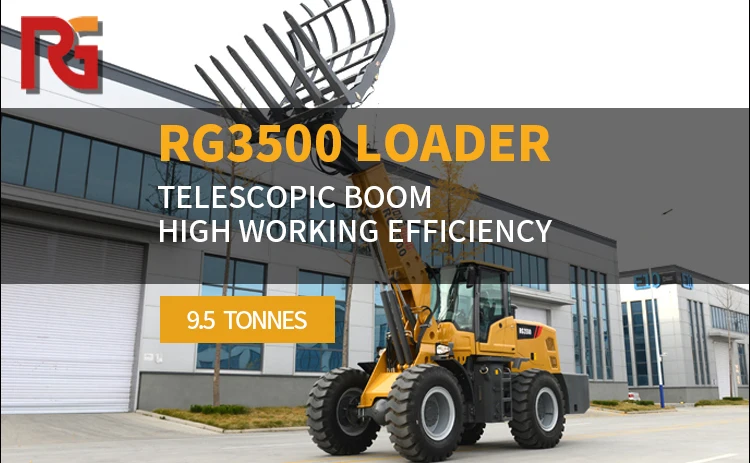

Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments
Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments
Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments
Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments
Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments
Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments
Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments

Telescopic loader with extendable arm design, equipped with quick change device, capable of replacing various attachments

Share on (1601300426333):


Price:$9,980.00-12,800.00

Quantity:


Product Overview

Description

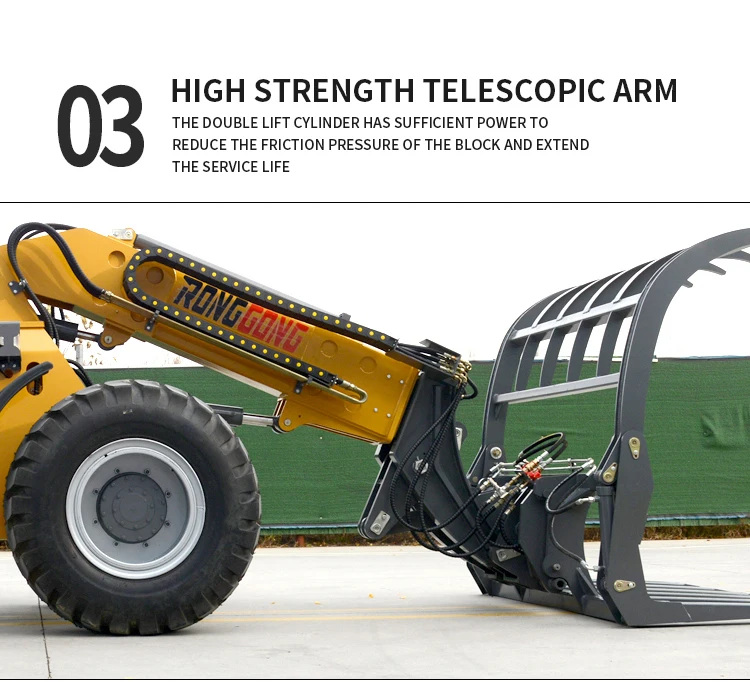

Performance parameters of 3500 telescopic boom
Overall machine parameters (theoretical values)
Project
Parameter
Project
Parameter
minimum turning radius（MM）
5850

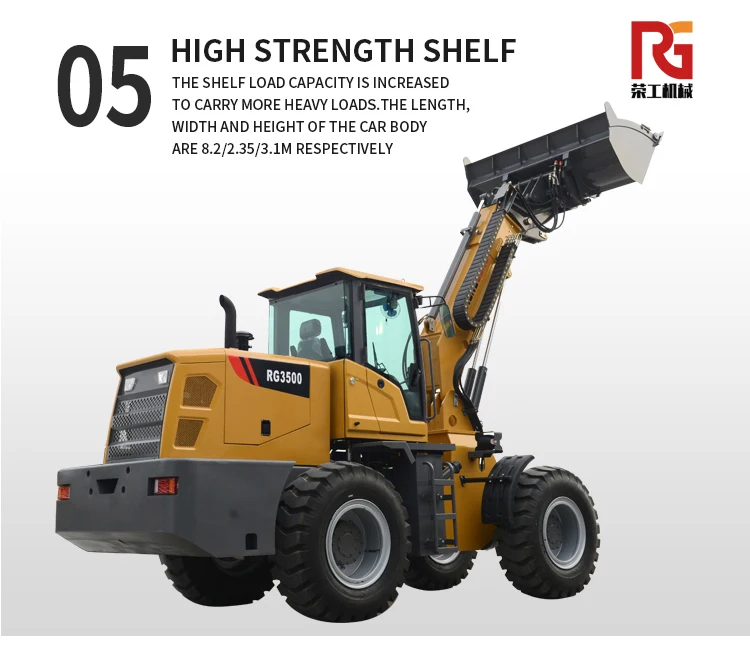

Body length（MM）
8200
Theoretical climbing angle（°）
35
Body width（MM）
2350
Maximum driving speed（KM）
38
Body height（MM）
3100
Minimum driving speed（KM）
8
Min ground clearance（MM）
420
Unloading height of telescopic arm（MM）
3700
Wheel tread（MM）
1685
Boom unloading height（MM）
4800
Overall weight（KG）
9500
Maximum loading mass of telescopic boom（KG）
3000

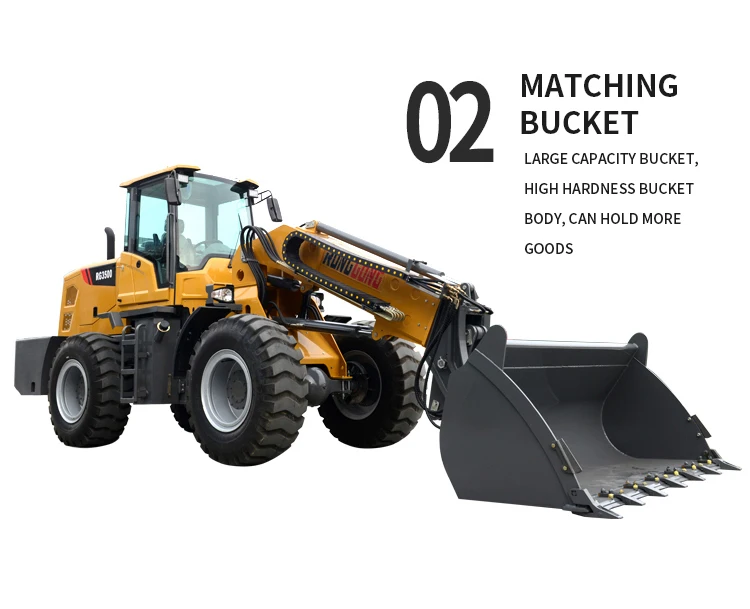

Inside the bucket is long, deep and high（MM）
2240/700/1100
Maximum loading mass of boom（KG）
1800
A surname（m³）
1.7
wheelbase (of a vehicle)（MM）
2850
Maximum rising power（KN）
33
Discharge distance（MM）
1600
Maximum traction（KN）
38
Discharge angle（°）
33.5
Combined tractive force（KN）
30
Engine parameters
Transmission system parameters
Project
Parameter
Project
Parameter
Factory
Doitz
Type
320Double high and low speed
Rated power（KW）
92KW
Variable speed gear
Before 4 and after 4
Rated speed（r/min）
2400
Braking form
Air brake
Cylinder number
6
Axle
25bridge

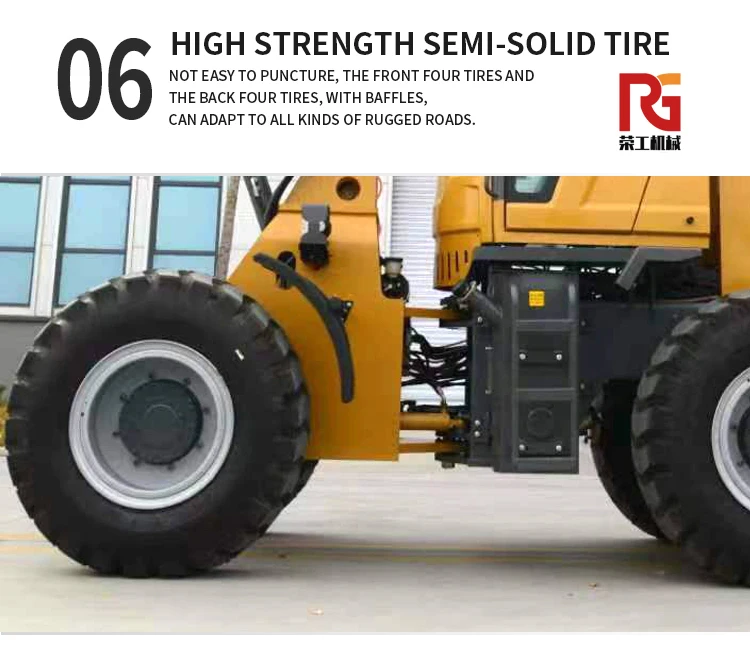

Tyre type
17.5/25
Front wheel pressure（Mpa）
0.33
Rear wheel pressure（Mpa）
0.3
Steering system
Refueling capacity
Project
Parameter
Project
Parameter
Type

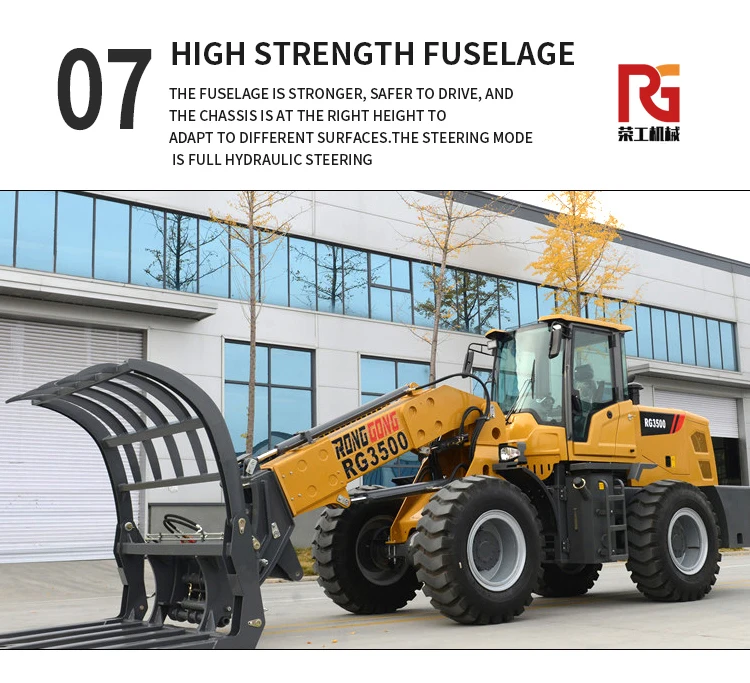

Full hydraulic steering
Fuel theoretical solvent（L）
80
Steering angle（°）
33.5
Theoretical volume of hydraulic oil（L）
80
System working pressure(MPa)
16
Bridge single（L）
16
Engine oil（L）
6.5
Gearbox gear oil（L）
24
Braking system（L）
3


































1. How about the sample policy?
We can accept sample order for testing quality. But sample and express charge should be on customer’s account.

2. How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order,so that we will give you a detailed schedule.

3. How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

4.Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

5.Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
