Sn5 Pb95 Iron Nikolite High Low Soldering Metal Bars Ton Lead Solder Bar 50/50 Low Melting For PCBA
- Category: >>>
- Supplier: Shenzhen Kewei Tin Industry Co. Ltd.Shenzhen Ltd.
Share on (1601300439621):
Product Overview
Description
Products Description
This is Solder Bar with Sn55/Pb45 composition. Widely used in many Manual/Auto Wave soldering machine, Dip Soldering, and PCB HAL Hot air leveling Machine Soldering.
Normally it is using No Clean Rosin flux core, after using, the products no need to be clean up.
Also we have Water Soluble Solder bar. And our flux core from 1.0%~2.5% can be customized.
Normally it is using No Clean Rosin flux core, after using, the products no need to be clean up.
Also we have Water Soluble Solder bar. And our flux core from 1.0%~2.5% can be customized.
Item | Parameters |
Name | Sn55/Pb45 Solder Bar |
Composition | 55% Tin, 45% Lead |
Materials | Tin/Lead Alloy |
Melting Point | 183℃~206℃ |
Working Temp. | 255℃~270℃ |

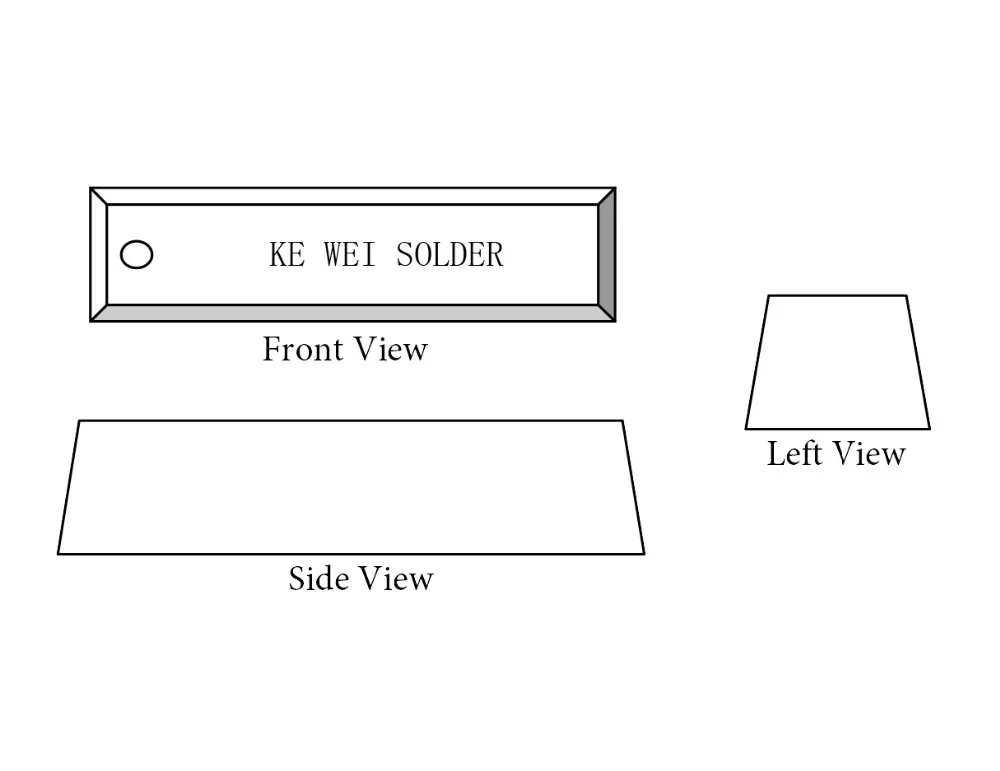

Shape | Trapezoidal |
Dimension | L34±0.5 W2.25±0.25 H2.0±0.2 (cm) |
Type | Melting Points | Working Temp. | Applications | ||
Sn63/ Pb37 | 183℃ | 245℃-255℃ | SMT/PCB/LED, Precise and other high-end production. | ||
Sn60/ Pb40 | 183℃~190℃ | 250℃-260℃ | |||
Sn55/ Pb45 | 183℃~203℃ | 255℃-270℃ | Standard Electrical, Mechanical, Toys field, Lighting, Lampholder and Socket products. | ||
Sn50/ Pb50 | 183℃~216℃ | 260℃-275℃ | |||
Sn45/ Pb55 | 183℃~227℃ | 270℃-300℃ | |||
Sn40/ Pb60 | 183℃~238℃ | 280℃-310℃ | Low requirement Battery, Cannery, Fuse, Radiators, Automobile parts and any other soldering with normal requirements. | ||
Sn35/ Pb65 | 183℃~247℃ | 290℃-330℃ | |||
Sn30/ Pb70 | 183℃~255℃ | 295℃-335℃ | |||
Sn25/ Pb75 | 183℃~266℃ | 300℃-350℃ | |||
Others | Other composition and requirements available. Accept OEM | ||||
Main Features
1) Fresh and high purity raw materials directly from mine field.
2) Based on scientific formula, our solder bar was widely used in many industry.
3) While using for wave soldering, we have lowest residue and stable melting point.
4) Our solder materials support engineer service in customer's factory to provide professional using support.
5) We have over 16 years experience of making solder materials, lower cost and better products services.
2) Based on scientific formula, our solder bar was widely used in many industry.
3) While using for wave soldering, we have lowest residue and stable melting point.
4) Our solder materials support engineer service in customer's factory to provide professional using support.
5) We have over 16 years experience of making solder materials, lower cost and better products services.
Certifications

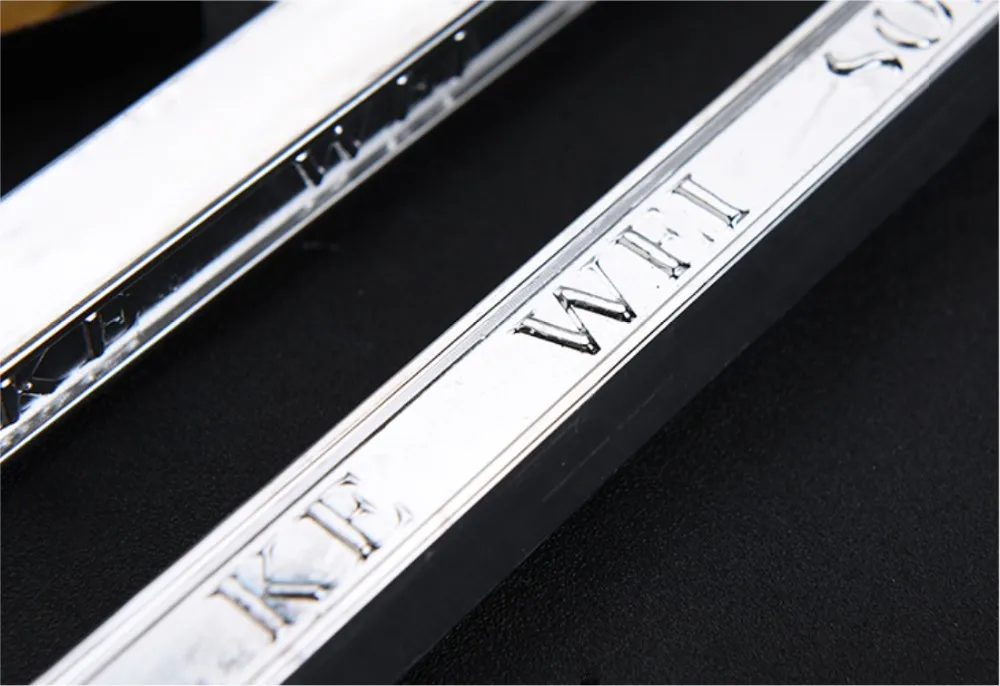

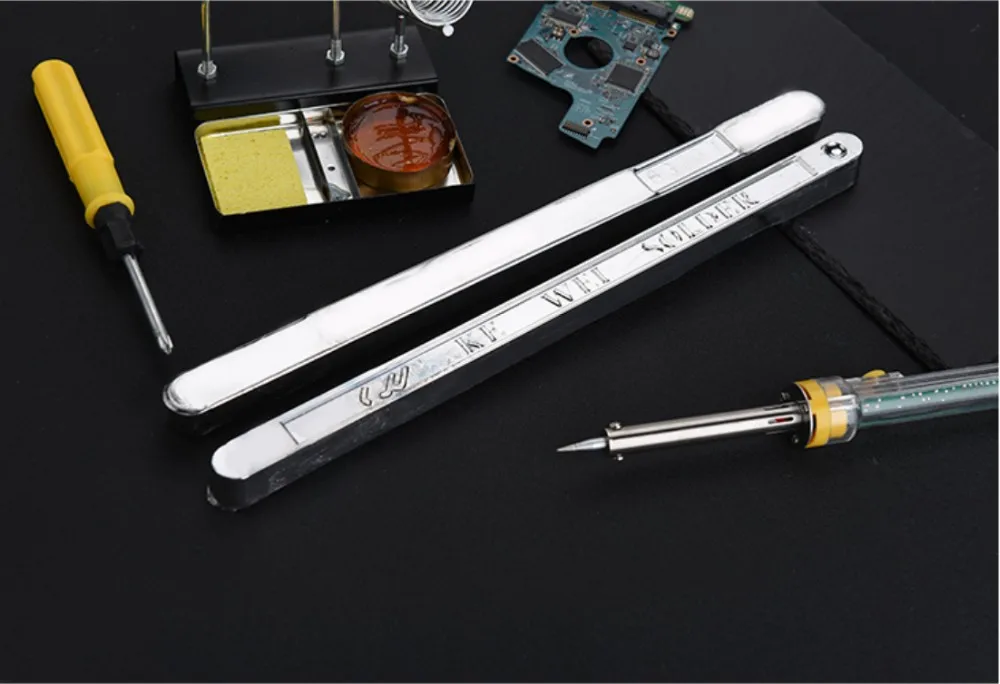

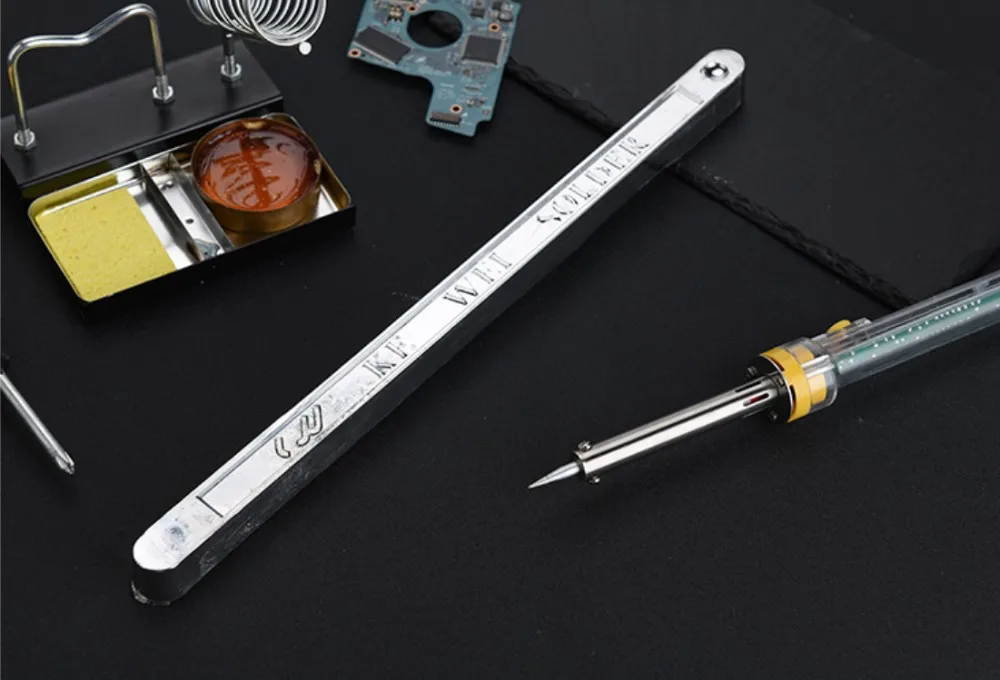

Details Images
Advantage 1
Name: Sn55/Pb45 Solder Bar
Brand: KEWEI
Original: ChinaPET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Brand: KEWEI
Original: ChinaPET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our Solder bar with fresh raw materials can make sure its stable quality and have a bright soldering point in the surface of
products.
products.
Advantage 2
Name: Sn55/Pb45 Solder Bar
Brand: KEWEI
Original: China
Brand: KEWEI
Original: China
Proper and precise rosin flux core can make sure the solder bar with better activity. And excellent soldering ability will help to
save working time and improve production efficiency.
save working time and improve production efficiency.
Advantage 3
Name: Sn55/Pb45 Solder Bar
Brand: KEWEI
Original: China
By using high purity Tin Ingot. After soldering, our solder bar have less solder residue and keep excellent electrical conductivity. (Less than 1/3 on the market)
And we add some antioxidant element, the make sure the solder point with good oxidation resistance.
Brand: KEWEI
Original: China
By using high purity Tin Ingot. After soldering, our solder bar have less solder residue and keep excellent electrical conductivity. (Less than 1/3 on the market)
And we add some antioxidant element, the make sure the solder point with good oxidation resistance.
Advantage 4
Name: Sn55/Pb45 Solder Bar
Brand: KEWEI
Original: China
Our solder bar product in our clean factory, with good quality control can make sure all the rod with less impurity. Better
wettability and expansion capability can lower solder projection and solder bridge.
Directly factory better price and quality support.
Brand: KEWEI
Original: China
Our solder bar product in our clean factory, with good quality control can make sure all the rod with less impurity. Better
wettability and expansion capability can lower solder projection and solder bridge.
Directly factory better price and quality support.
Company Profile
Shenzhen Kewei Tin Industry Co., Ltd was built up since 2006. For over 13 Years' development, with advanced technical strength and complete product range, we are a mature solder product manufacturing enterprise and getting into the second biggest manufacturer in China. We have many automation equipment and high accuracy metal spectrum testing equipment, perfect management system and a number of senior technology R&D engineers. We provide high-quality solder products and related professional technical service for the modern high-tech electronics manufacturers and companies.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Product using suggestion for different products.
* Engineers available to service overseas.
* Problem shooting will reply responded within 2 hours.
* Engineers available to service overseas.
* Problem shooting will reply responded within 2 hours.
Packaging | ||
Size | 40 (L) * 20 (W) * 10 (H) | |
Weight | 25 Kg | |
Packaging Details | Weight for each solder bar is about 600~800g. Standard carton can put about 25 pcs solder bar. By sea will be use pallet, and Max.1 Ton for each pallet. Package also support OEM. | |
FAQ
Q1: Are you Manufacturer or Trader?
A: We are manufacturer for over 13 years experiences.
Q2. Can I have a sample order for Solder Bar?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Sample needs only 1 day, mass production time needs 1-2 days for order quantity more than 500Kg.
Q4. Do you have any MOQ limit for sample order?
A: There is no MOQ.
Q5. How do you ship the goods and how long does it take to arrive?
A: For Sample order usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also
optional for formal order.
Q6. Is it OK to print my logo on the Solder Bar/ Package?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: We are manufacturer for over 13 years experiences.
Q2. Can I have a sample order for Solder Bar?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Sample needs only 1 day, mass production time needs 1-2 days for order quantity more than 500Kg.
Q4. Do you have any MOQ limit for sample order?
A: There is no MOQ.
Q5. How do you ship the goods and how long does it take to arrive?
A: For Sample order usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also
optional for formal order.
Q6. Is it OK to print my logo on the Solder Bar/ Package?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
