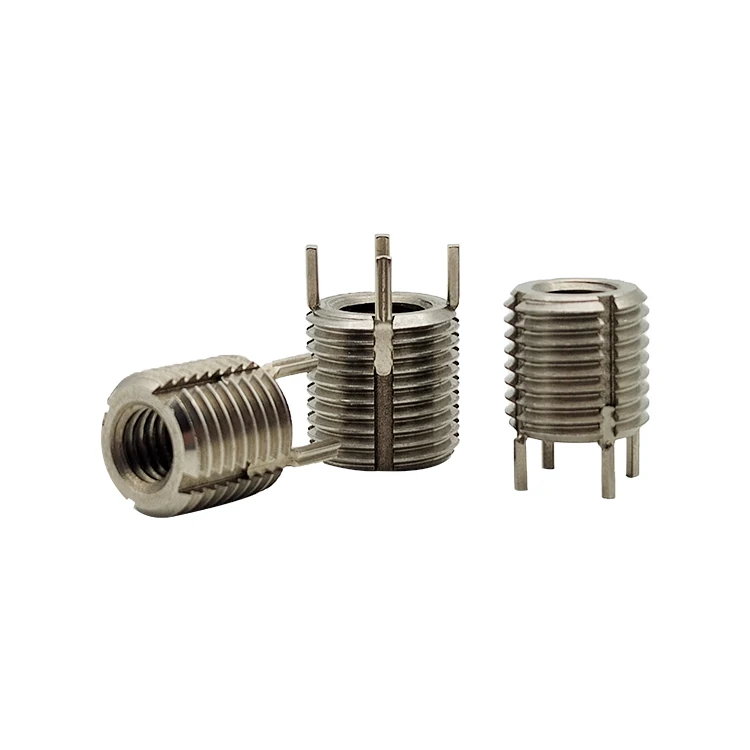

Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts
Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts
Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts
Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts
Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts
Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts
Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts

Professional Fastener Light Type M6 M8 Screw Threaded Key locking Inserts

Share on (1601300557680):


Price:$1.60-2.20

Quantity:


Product Overview

Description





Product Information

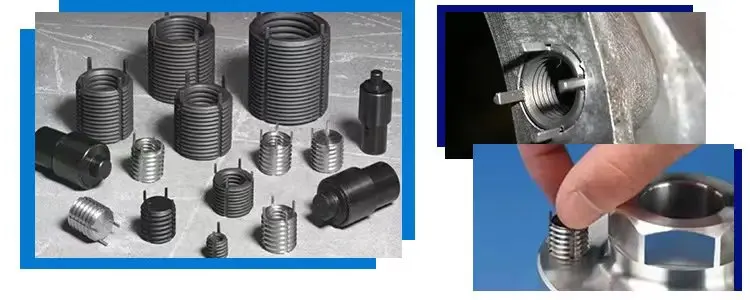

The most basic function of the Key Locking Threaded Inserts is to repair and strengthen the internal thread,which can quickly and effectively repair the damaged thread.When applied to low strength materials,it can greatly enhance the strength ofthe threaded hole.
It is especially suitable for the environment requiring high-strength internal thread,and can effectively resist vibration and pull.




Product name
Key locking thread insert
Brand Name
AVIC-Flight

Surface treatment
Stainless steel surface
Carbon steel surface
Black electrode oxidation treatment
According to customer requirements







Model Number
Miniture-Metric
M2~M4
Light weight-Metric
M5-M12
Heavy duty-Metric
M4-M24
Miniture-Inch
2-56~8-32
Light weight-Inch
10-24~1/2-20
Heavy duty-Inch
8-32~7/8-14
Super Heavy duty-Inch
6-32~1-12
Other
Customized  size
Type
None-locking /Self-locking
Standard
MS21209/Din8140
Range of application
Heavy Industry, Mining, Water Treatment, Healthcare, Retail In
Reliability test
Mechanical dimentions, hardness test. salt spray endurance test
Place of Origin
Henan, China
Certificate
ISO 9001,SGS,Rosh
OEM service
Yes

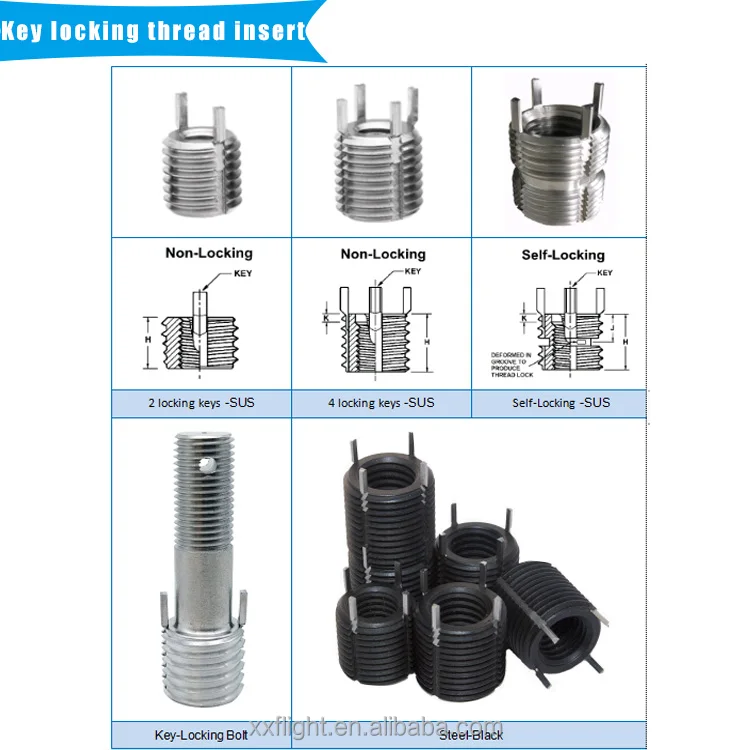

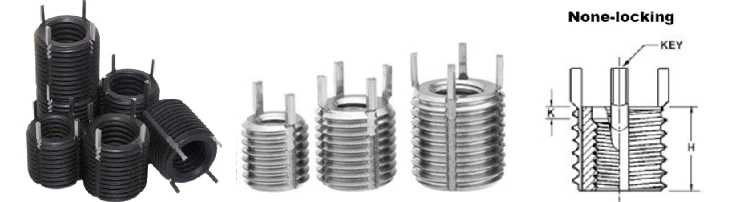

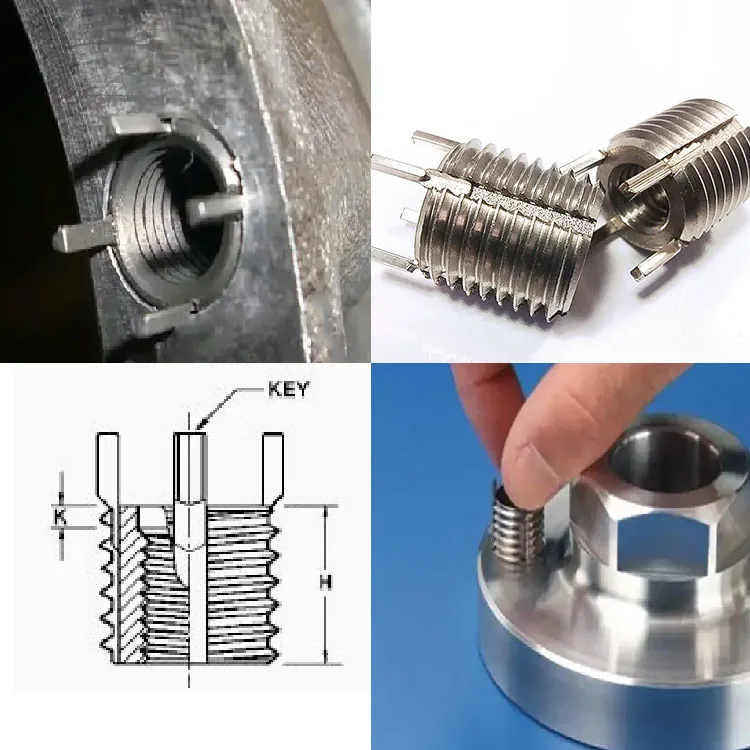

None locking type Key locking thread insert
The locking effect of the key lock thread insert is excellent, and its key pin can fix it on the installed object. It is especially suitable for high-intensity vibration environment and can effectively resist vibration.

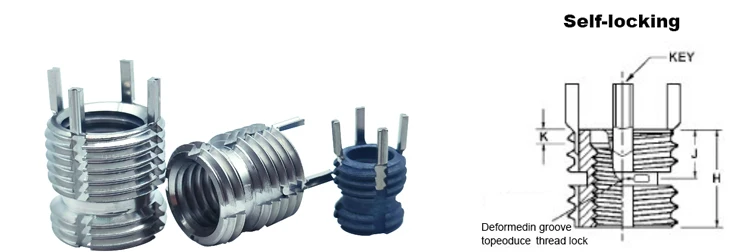

Self  locking type Key locking thread insert
On the basis of the none-locking type key loking insert, a locking slot is designed for the self-locking keylocking insert, which makes its performance more superior.

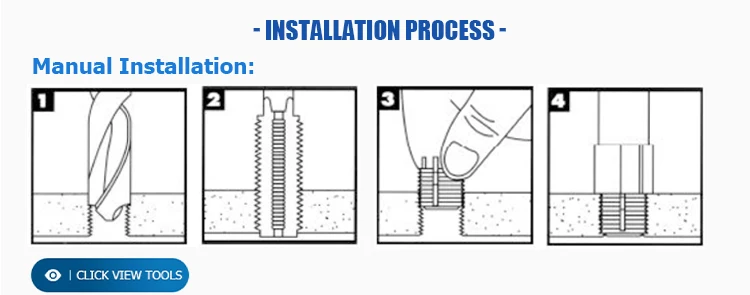

Installation steps
1. Drilling - when drilling the base part, the drilling depth must be greater than the depth of the Key Locking Thread Inserts.The selected drilling bit must match the Key Locking Thread Inserts,and the hole cannot be drilled askew.
2. Tapping - tap the thread hole. The tapping length must be longer than that of the Key Locking Thread Inserts. If it is a through hole, it must be fully tapped.The accuracy of thread hole thread can be detected by using threaded low hole plug gauge.
3. Screw in - install the Key Locking Thread lnserts into the tapped screw hole,and the Key Locking Thread Inserts must be slightly lower than the surface of the product accessories. 4.Pin press in - use a tool to press the pin key into the screw hole.

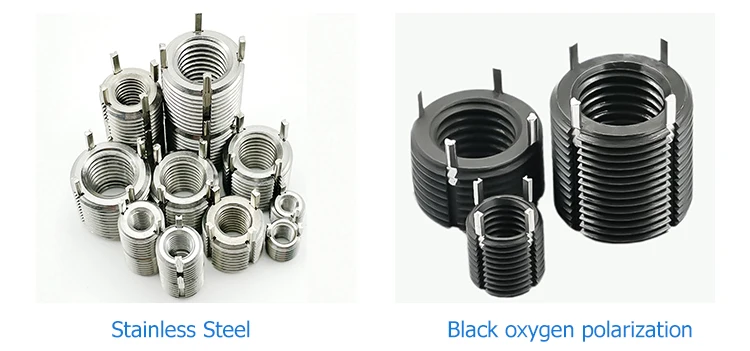

Surface Treatment

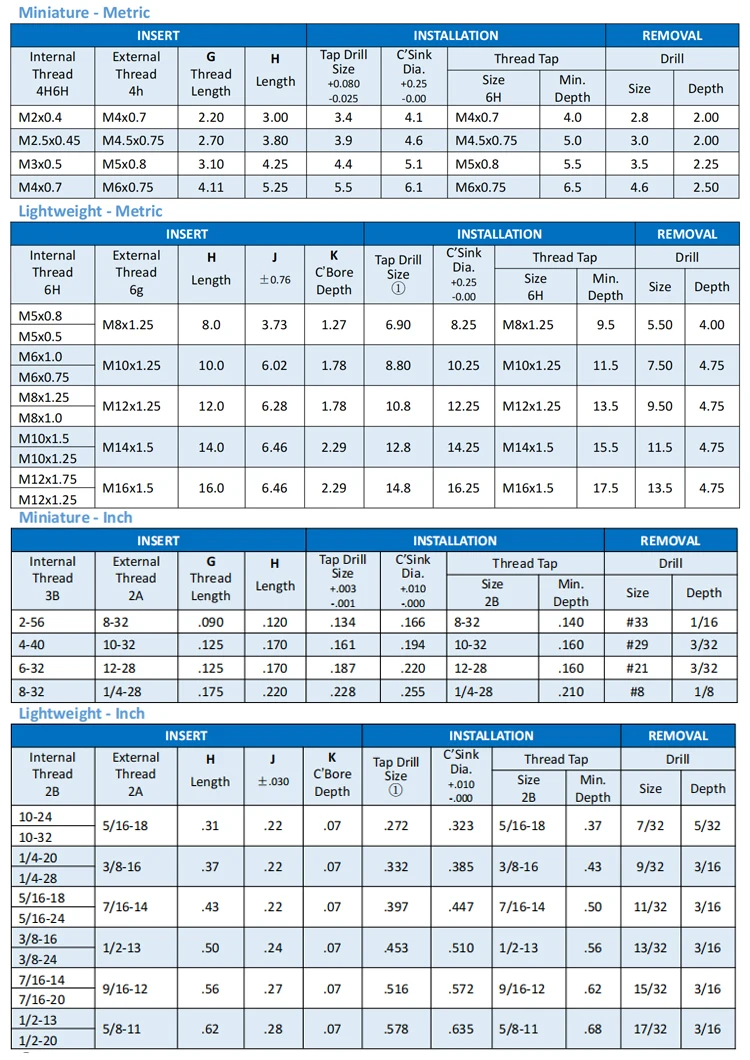

Partial product parameters




Related Proudcts






ABOUT US




Xinxiang Flight Fastener Co.,Ltd.is a professional manufacturer engaged in the design and manufacture of Thread Inserts,Self-Tapping thread inserts and other threaded fasteners.




The company has independent technology development strength,advanced design level, automatic production equipment and high-precision detection equipment.
Professional to provide customers with Thread Inserts,Self-Tapping thread inserts and other threaded fastener product design and use of the whole process of technical support The company has passed ISO9001:2015 quality system certification."AVIC-FLIGHT"brand was awarded the certificate of "famous brand in China"by China product quality evaluation center.The company has obtained more than 15 utility model patents and 12 software copyrights.


Our Certificate








Ous Logistics




FAQ


Q:Are you trading company or manufacturer
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is
according to quantity.
Q:Do you provide samples Is it free or extra
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment
A:Payment<4000USD,100%in advance.Payment>4000USD,30%T/T in advance ,balance before
shippment.
If you have another question,pls feel free to contact us as below:WhatsApp:+86-15537357157
Why Choose Us?
1.A factory with more than 20 years'experience in manufacturing of Thread Inserts.
2.Competitive pricing military quality.
3.Quick replies to quotations and requests for information.
4.Timely deliveries,rich experience in IMP and EXP.
5.Advanced R D center,more than one thousand types of threaded inserts and tools.
6.Strict quality control system,passed the SGS and ISO9001:2015.
7.Comprehensive after-sales support and troubleshooting.
8.Famous brands in China
9.High quality enterprises in the region.

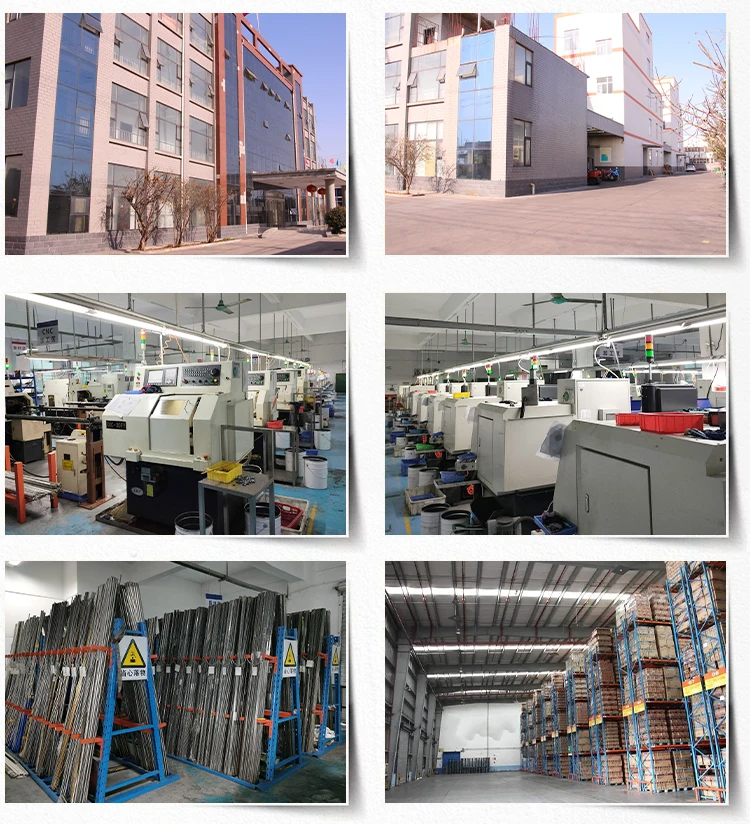

Welcome to Visit Our Factory-Once Business,Forever Friends!
