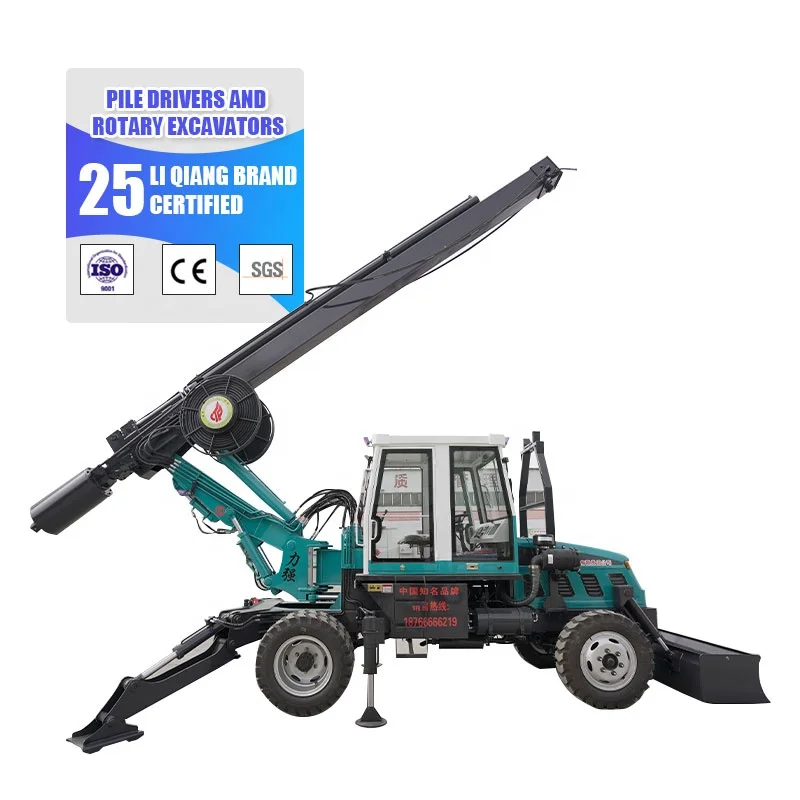

SDLQ LQ180 Rotary Drilling Rig Drilling Rig Small Pile Machine Caterpillar Type Long Screw Piling Rig Hydraulic Driver Screw
- Category: >>>
- Supplier: Shandong Liqiang Machinery Co. Ltd.Shandong Ltd.
Share on (1601300563584):
Product Overview
Description

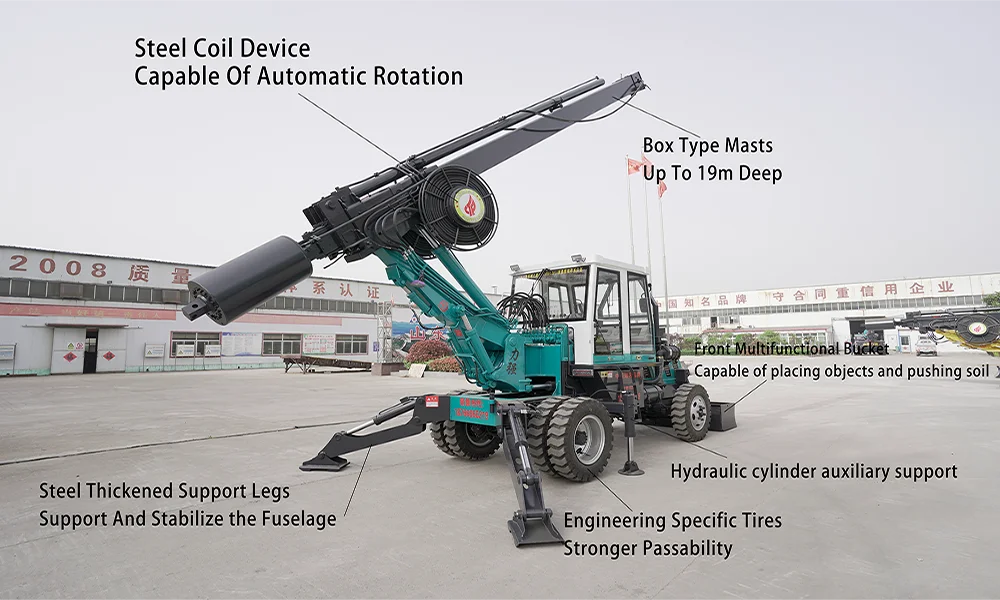

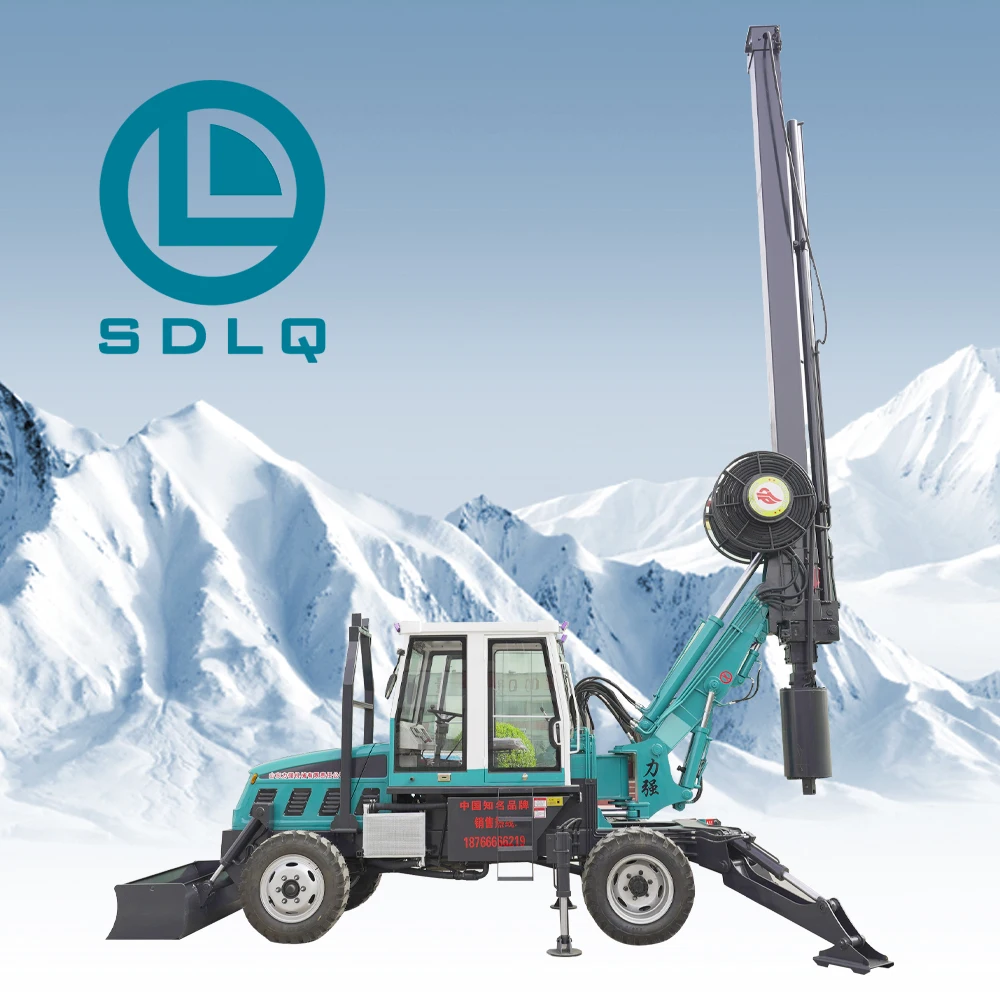

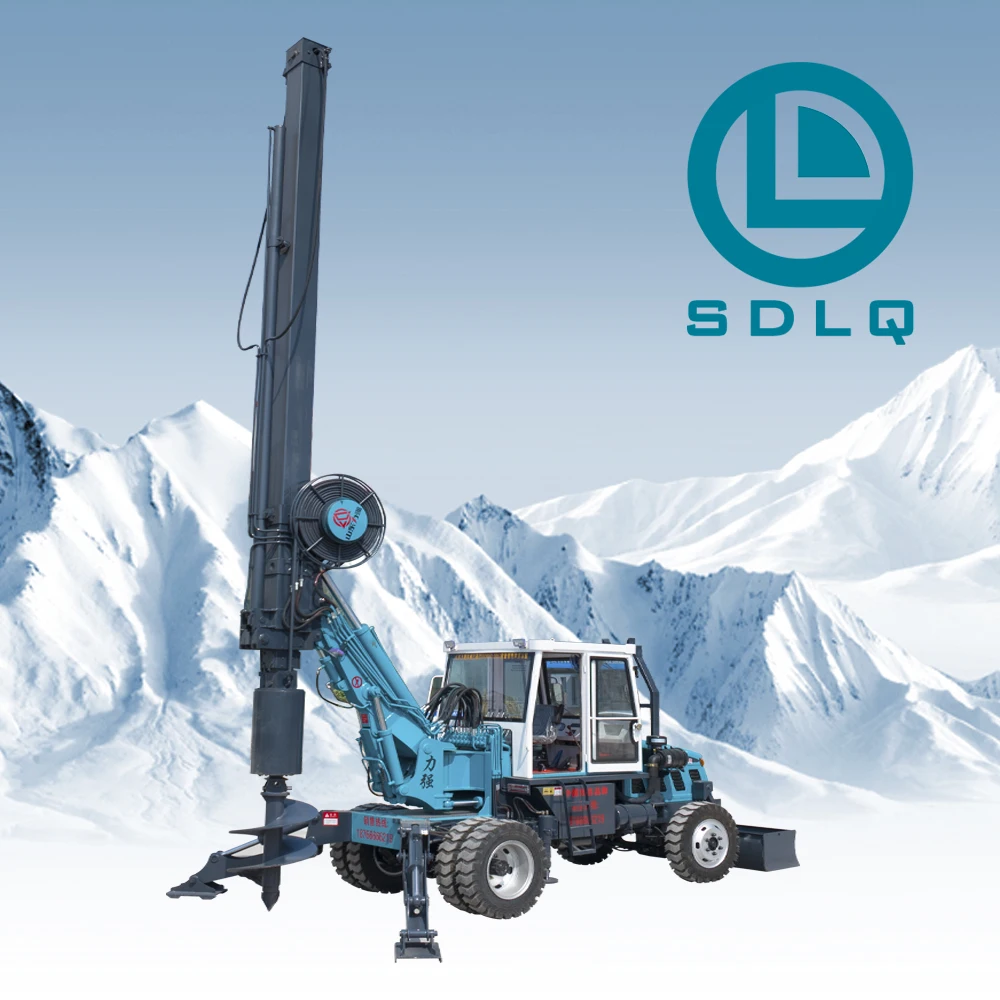

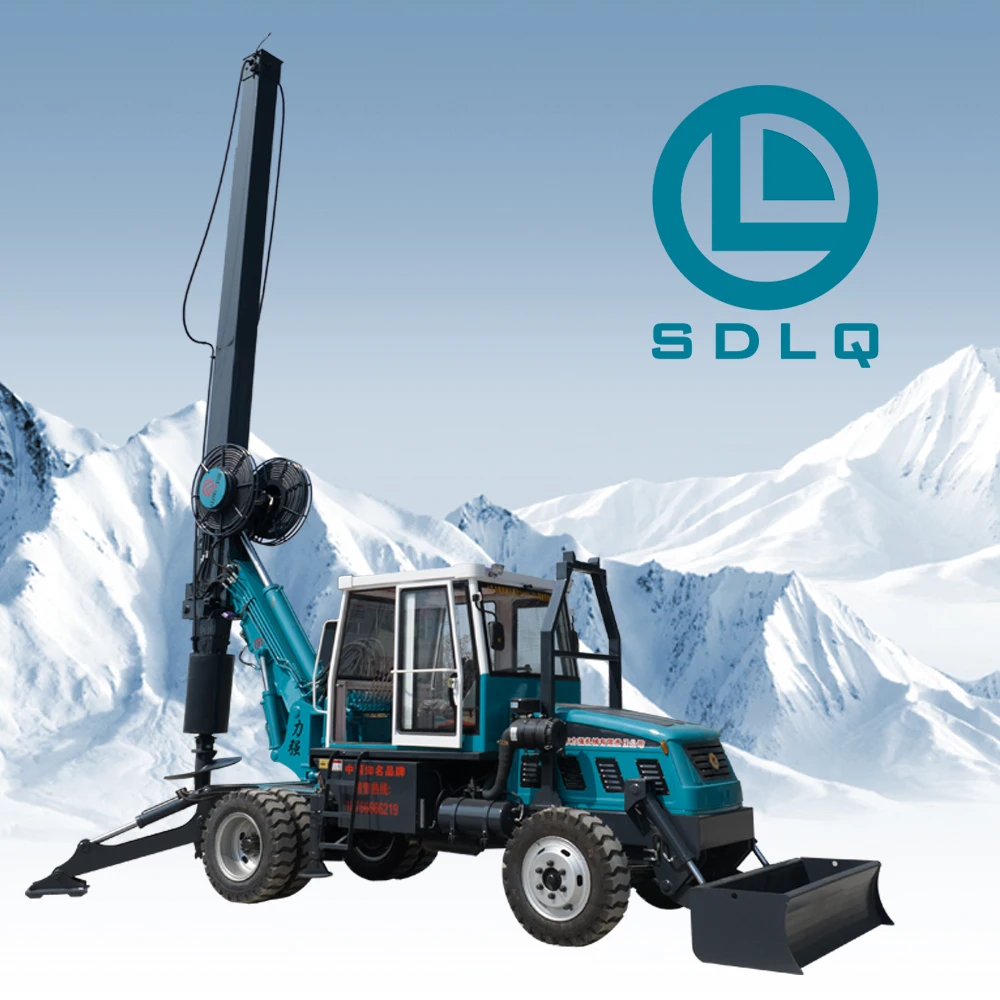

SDLQ LQ-180 | ||||||

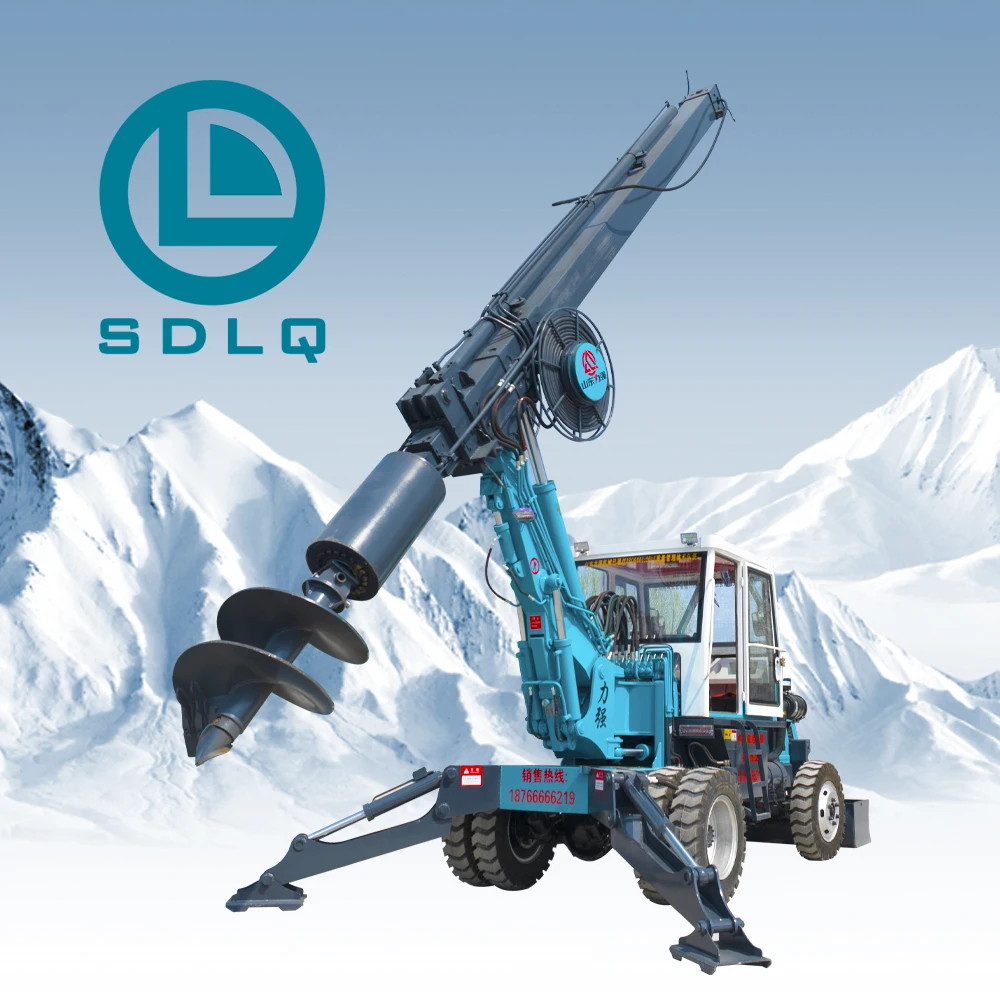

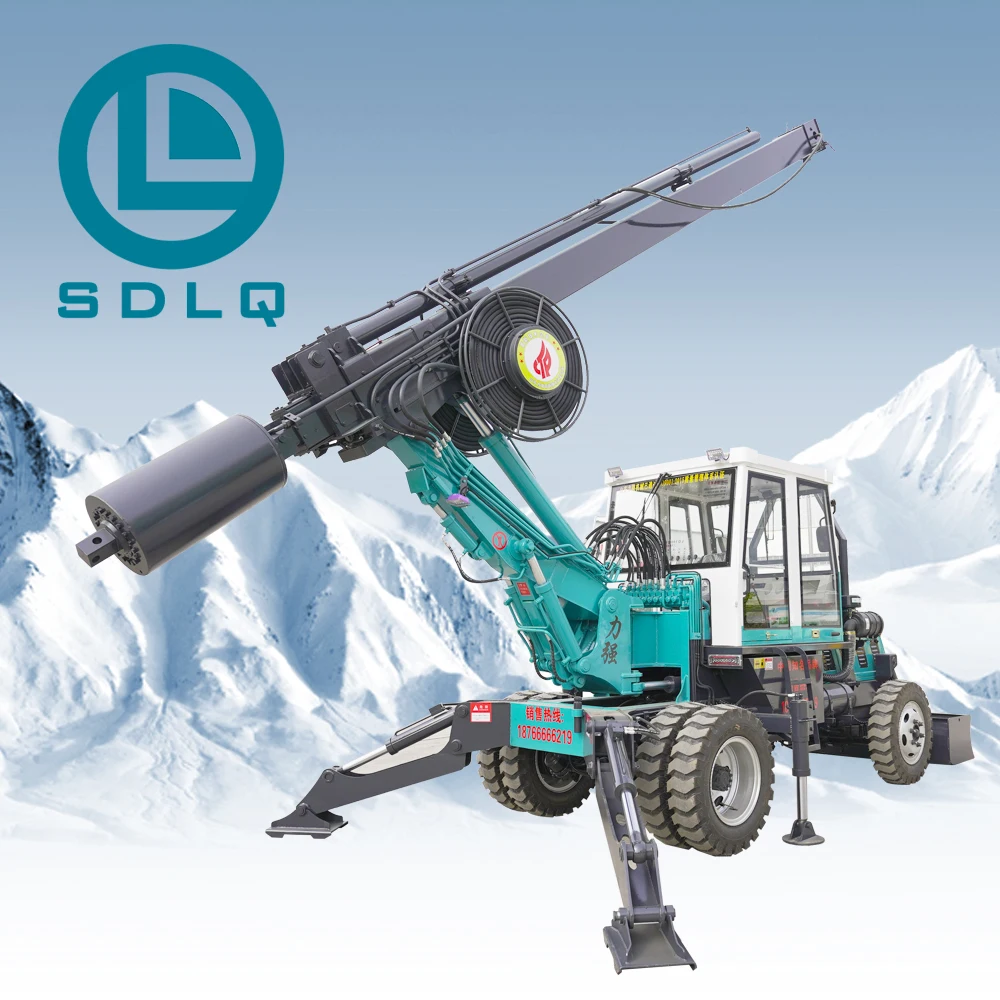

Model | LQ180 | Wheel 180 degree rotary pile driver | ||||
Motor | Brand | YUNNEI | ||||
Engine rated power/speed | kw | 88 | ||||
Maximum drilling depth | m | 20 | ||||
Maximum drilling diameter | mm | 600-1200 | ||||
Power head | Rated output torque | kn/m | 17 | |||
Operating speed | r/min | 20 | ||||
Square rod wire rope | Wire rope diameter | mm | 16 | |||
Auxiliary winch (optional) | Wire rope diameter | mm | 12 | |||
Lifting weight | t | 2 | ||||
feed cylinder | Maximum pressurization | kn | 120 | |||
Maximum lifting force | kn | 120 | ||||
chassis | Speed | km/h | 30 | |||
Maximum climbing slope | % | 30 | ||||
Variable box | / | 145 | ||||
width | mm | 2100 | ||||
tyre | / | 900-20 | ||||
direction | / | hydraulic pressure | ||||
Hydraulic system | working pressure | mpa | 22 | |||
Layman size | Working state dimension | mm | 6800*2100*11500 | |||
Transportation status dimension | mm | 10000*2100*3400 | ||||
Swing angle | ° | 180 | ||||
Operating Weight | t | 9 | ||||

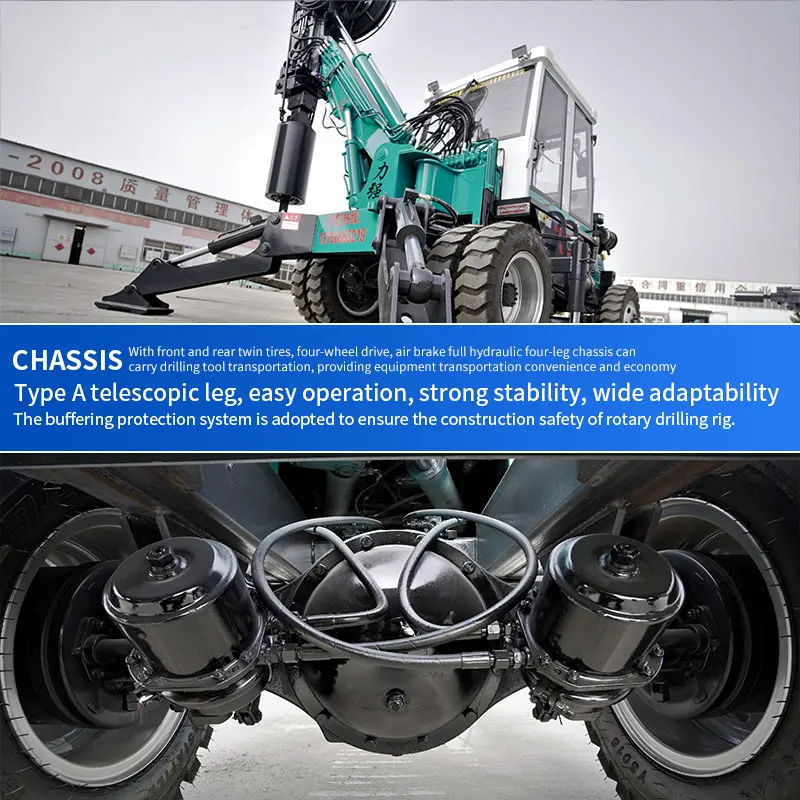

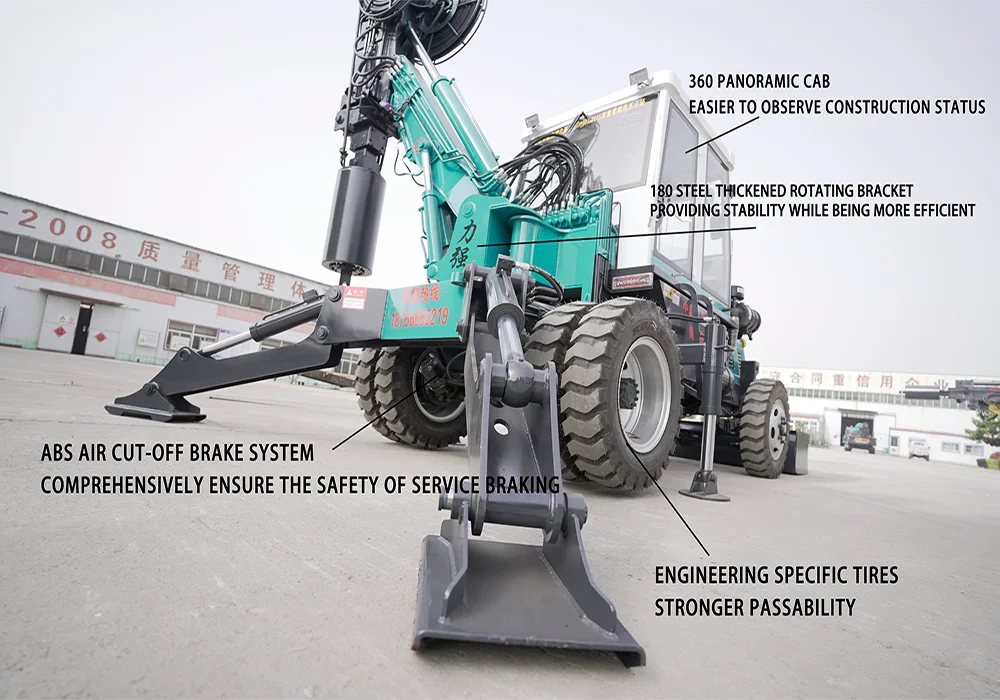

CHASSIS With front and rear twin tires, four-wheel drive, air brake full hydraulic four-leg chassis cancarry drilling tool transportation, providing equipment transportation convenience and economy.
Type A telescopic leg, easy operation, strong stability, wide adaptability.
Type A telescopic leg, easy operation, strong stability, wide adaptability.
The buffering protection system is adopted to ensure the construction safety of rotary drilling rig.

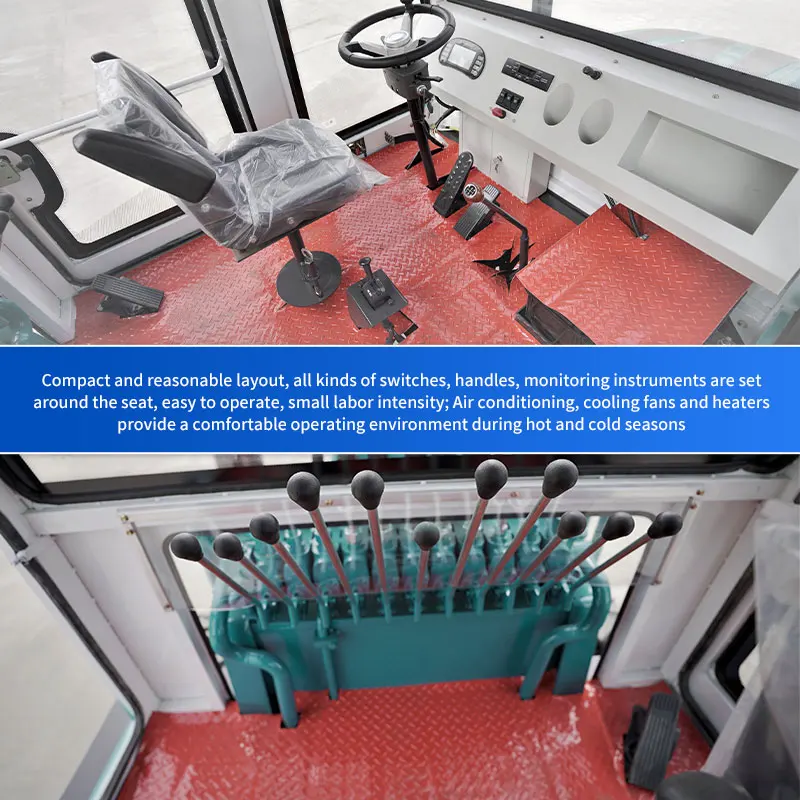

Compact and reasonable layout, all kinds of switches, handles, monitoring instruments are setaround the seat, easy to operate, small labor intensity; Air conditioning, cooling fans and heaters provide a comfortable operating environment during hot and cold seasons.
Products through the EU CE certification SGS,ISO, in strict accordance with the EU safety standards designDouble cylinder control is adopted for mast sag, which is easy to operate and has strong stabilityDouble cylinder drill pipe (optional double cylinder four rope) pressure, good stability, strong pressure,wire rope change without dismantling drill pipe, simple maintenance:The whole car cylinder is installed bidirectional balance valve, higher safety factor;Standard centralized lubrication system, more convenient maintenanceAdopted Wei-chai six-cylinder turbocharged engine and large flow main pump, strong power, more energy saving.

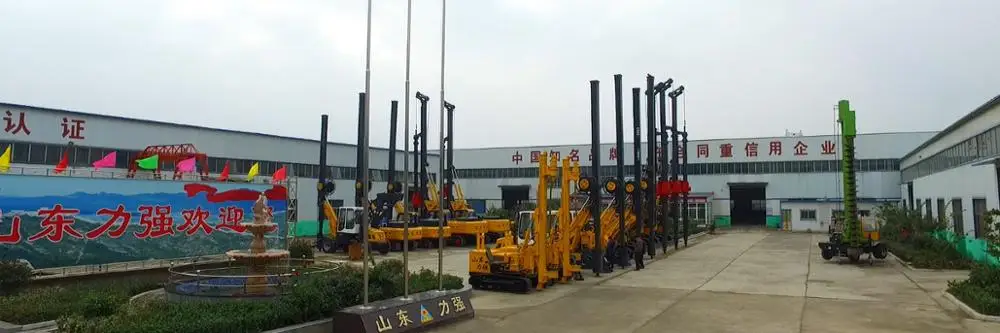

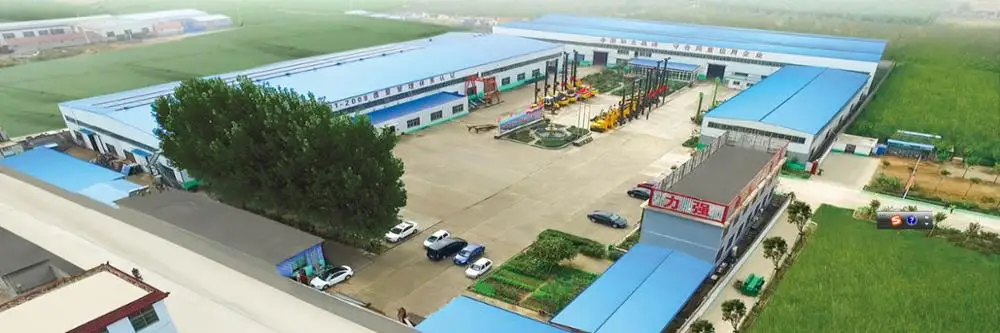

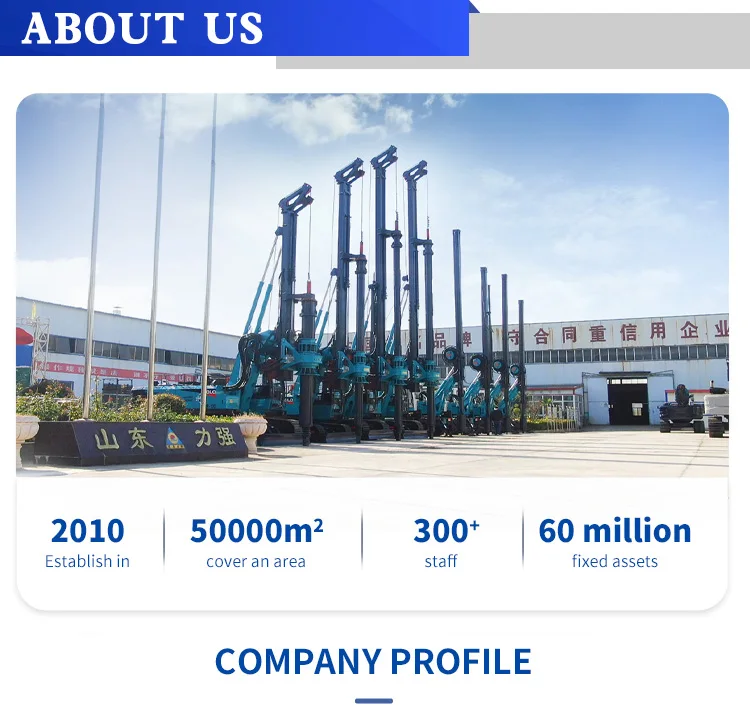

Established in April 2010, the company covers an area of over 50000 square meters and has fixed assets of over 60 million yuan. The company has five production and processing workshops: organic processing workshop, CNC cutting workshop, welding workshop, assembly workshop, and spraying workshop. It is a comprehensive private enterprise in the Zaozhuang area that specializes in the production of engineering machinery such as crawler lock rod rotary drilling machines, crawler square rod rotary drilling machines, wheeled square rod rotary drilling machines, solar photovoltaic pile drivers, wheeled long spiral pile drivers, crawler long spiral pile drivers, crawler CFG pile drivers, high-speed guardrail pile drivers, and crawler grabbing machines.
A modern engineering machinery production and processing enterprise with advanced production equipment and complete after-sales service in the southern region of Shandong.

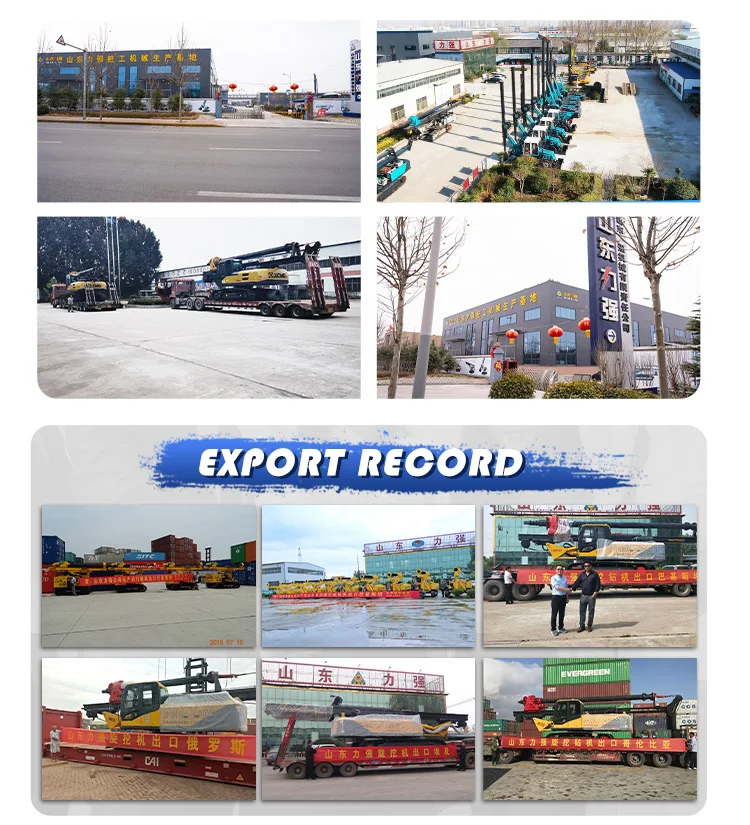

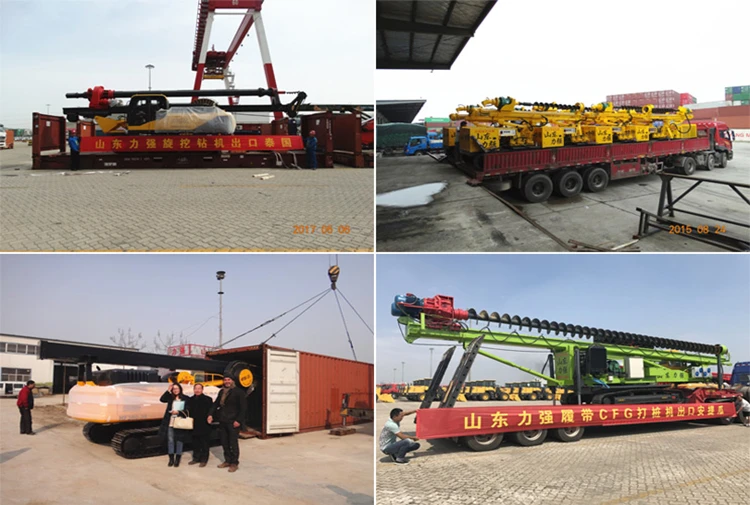

Product packaging
1.All spare parts can be changed for free with in 12 months.
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
