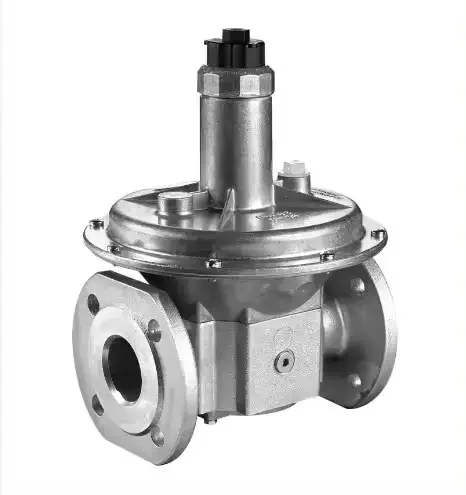

Factory wholesale New Gas Pressure Regulators FRS 5150 with good price
- Category: >>>
- Supplier: Foshan Jingran Electromechanical Equipment Co. Ltd.Foshan Ltd.
Share on (1601300634741):
Product Overview
Description
| Maximum working pressure | up to 500 mbar |
| Pressure regulator | Pressure regulator according to EN 88 Class A, Division 2, DIN 3380, RG 10 |
| Input pressure range | +5 mbar and P2+2.5 mbar to 500 mbar |
| Pressure class | PN 1 |
| Output pressure range | 2.5 mbar to 200 mbar, depending on adjustable spring rating |
| Ambient temperature | -15℃ to +70℃ |
| Test connections | G1/4 according to DIN ISO 228 on both sides of the outlet section |
| Pulse connection | internally at the outlet, optionally externally on both sides of the housing |
| Exhaust hose | The exhaust hose is only required in special cases. Already equipped with a safety diaphragm. Connection G1/4 ISO 228 to Rp1 from PP1-1/2, DN40: G1/2 ISO 228 |
| Housing | Aluminum, steel |
| Sealing | NBR |
| Mounting position | Regulator housing in vertical or horizontal position |
