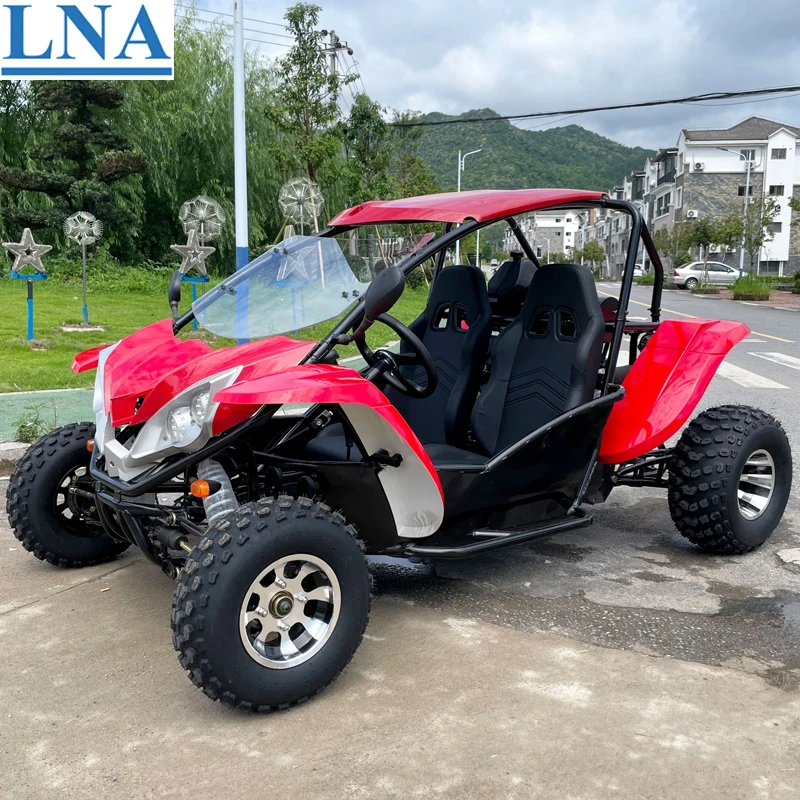

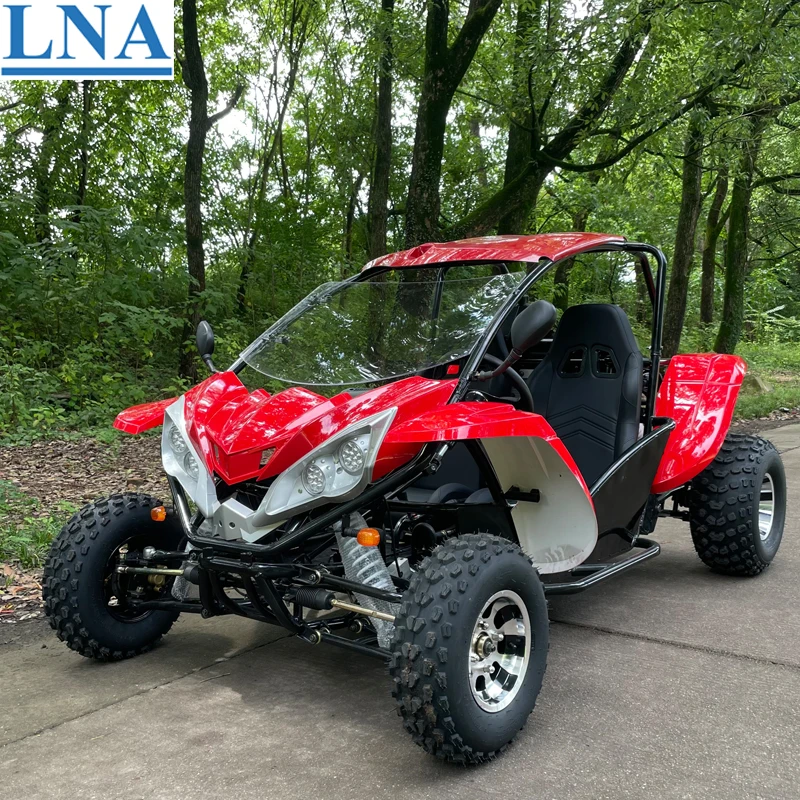

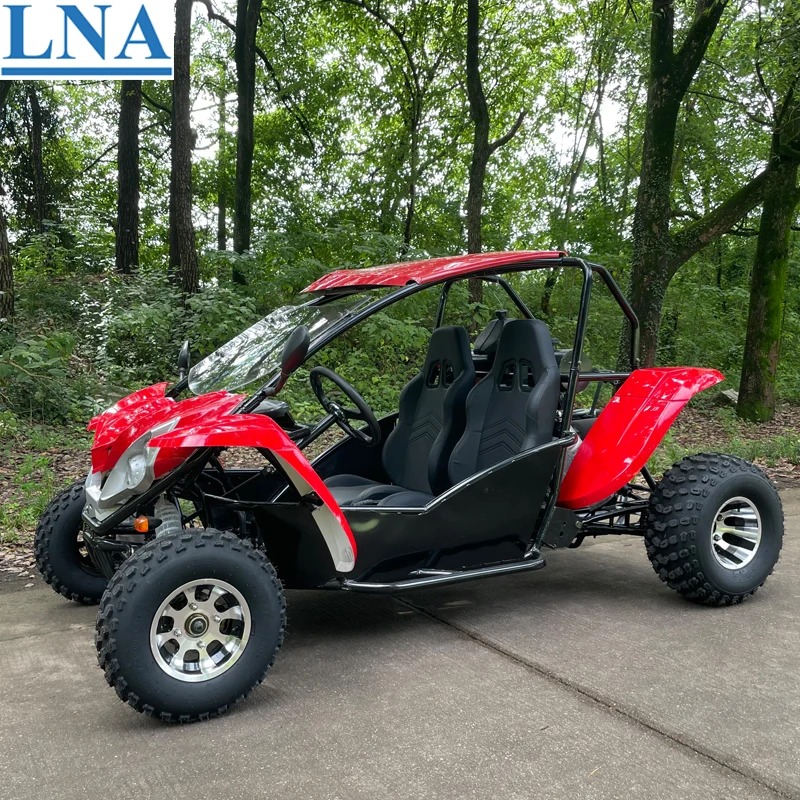

LNA Nicely Balanced 300cc Go Kart Suspension Kit
LNA Nicely Balanced 300cc Go Kart Suspension Kit
LNA Nicely Balanced 300cc Go Kart Suspension Kit
LNA Nicely Balanced 300cc Go Kart Suspension Kit
LNA Nicely Balanced 300cc Go Kart Suspension Kit
LNA Nicely Balanced 300cc Go Kart Suspension Kit
LNA Nicely Balanced 300cc Go Kart Suspension Kit

LNA Nicely Balanced 300cc Go Kart Suspension Kit

Share on (1601300697738):


Price:$2,100.00-2,300.00

Quantity:


Product Overview

Description





Product Description




Specification


Model Number
LNA-G300
Engine
300cc
Size
2630*1457*1426mm
Top speed
70-80km/h
Clutch
Automatic
Start
Electric
Wheelbase
1980mm
Cooling
Oil cooled
Weight
380kg
Max weight load
200-300kg
Front track
278
Rear track
177
Battery
12v,12AH
Fuel Tank
21L
Brake
Hydraulic Disc Brake
Wheels
22*11-10
Compression ratio
9:1
Minimum turning radius
3.5m
Color
Black,Green,Red etc
Packing size
2300*1460*865mm
Engine model
300cc Shaft drive
Clearance
285mm
Engine type
4 stroke










Detailed Pictures


Driver Seat
The roomy driver-seat provides spacious space for the riders, the knees and legs will be comfortable when drive.


Electric start and Lights
Full Lights and switches including steering lights and head lights etc.


The Sporty Seats
The sporty seater with 5-points seat belts,provides much more safety when drive


Automatic Gear lever
D / N / R Gears


Hand Brake
333


Pedals
Throttle and Brake

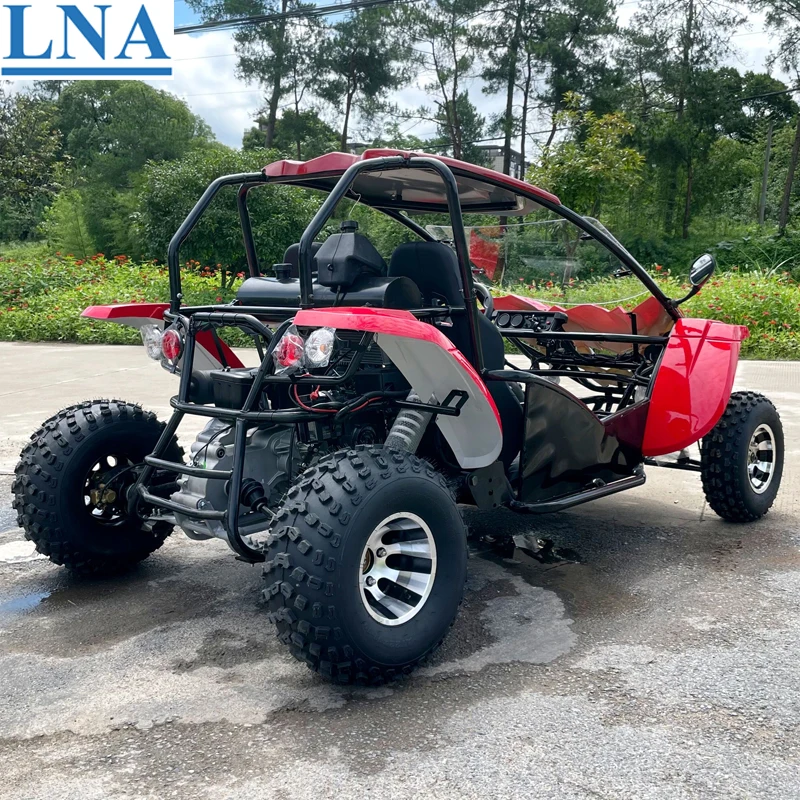

Buggy Rear
with Steering lights and Brake light


The Integrated Shaft Drive System
Integrated shaft drive system from inside of engine straight.
Compare to other kind of combined shaft driving system ( engine power comes to chain first, chain drives shaft , shaft drives wheels, powers finally delivered to wheels in 3 times),the integrated shaft drive has much more better power delivery capacity and less power loses on wheels.
Integrated shaft drive has 60% better power delivery efficient then old combined shaft driving system.


The Integrated Shaft Drive System



The Independent Suspensions



The Independent Suspensions



AT 22 x 11 Extra Wide Wheels with Hydraulic Disc Brake
The AT 22 x11 super wide wheels offers absolutely wonderful grip when drive in mud or off road,better performance guaranteed.


Hydraulic Disc Brake in Front



Certifications




Product packaging




Packing and Delivery
LNA always providing high efficiency delivery services to our customers.
