RUNTX 0.8ton 1 ton mini front end loader chaegeuse sur pneus for sale
- Category: >>>
- Supplier: Xiamen Runtx Machinery Co. Ltd.Xiamen Ltd.
Share on (1601300816431):
Product Overview
Description
Products Description

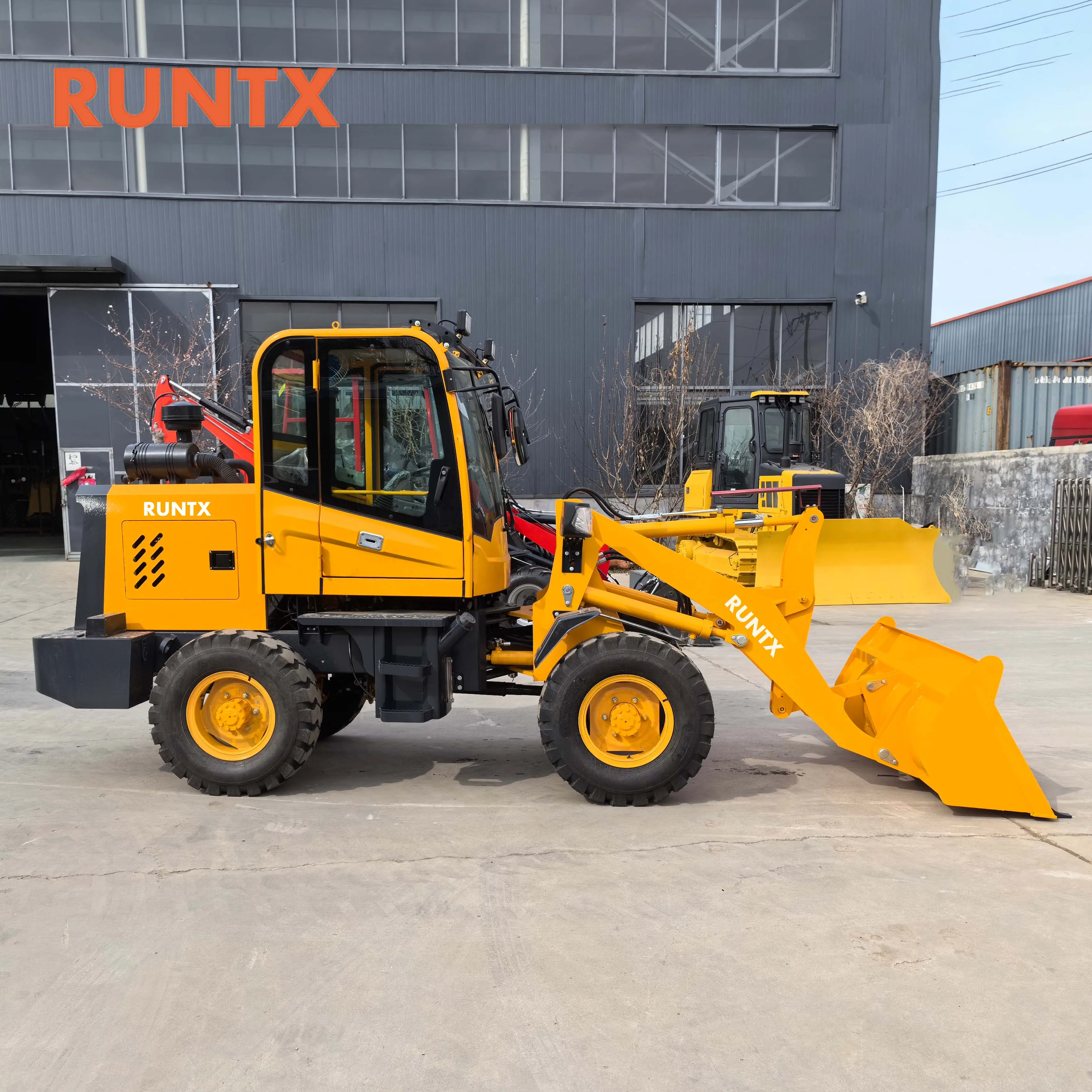

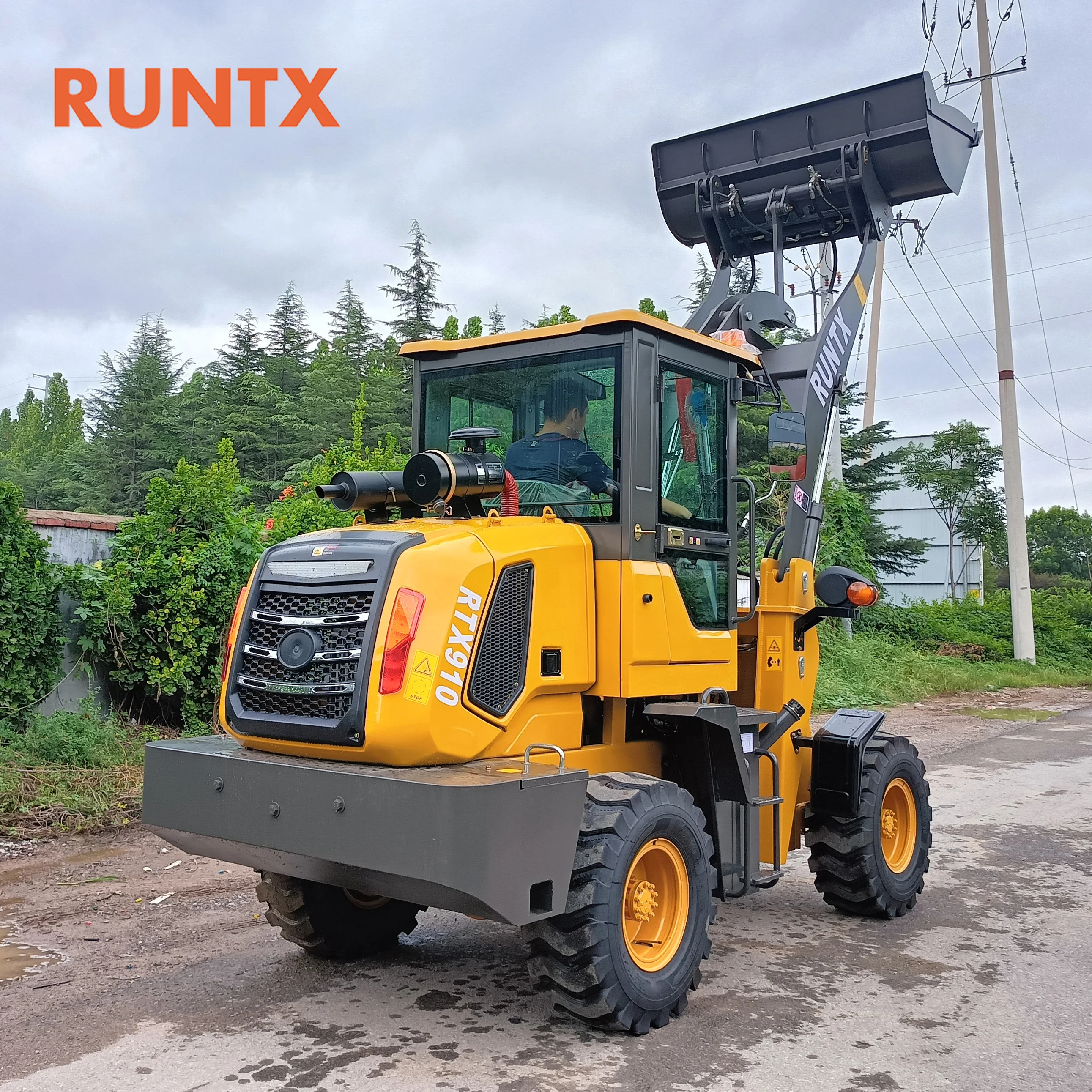

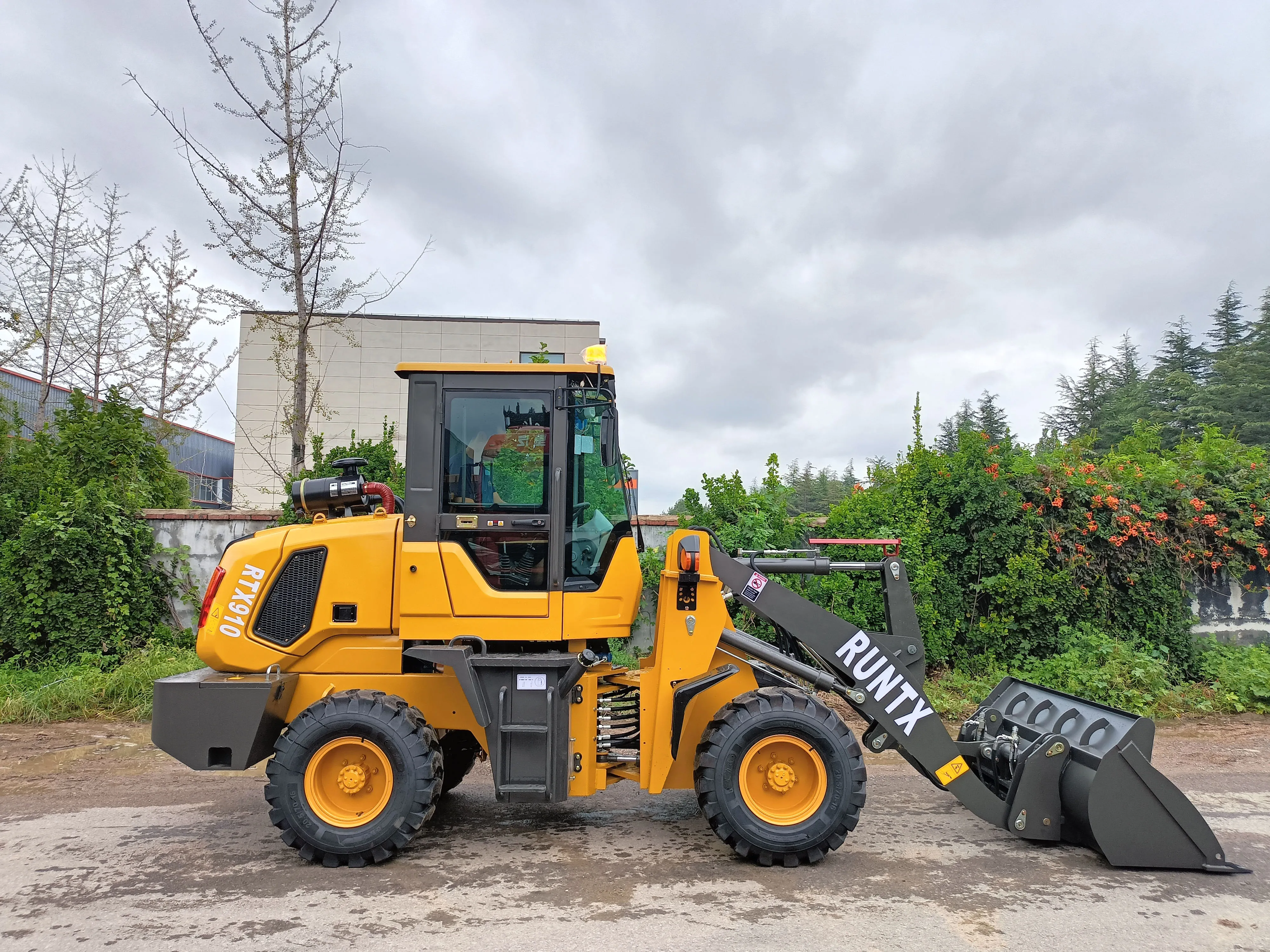

RUNTX RTX910 1ton wheel loader
Performance | 1 | rated loading | 1000kg |
2 | overall weight | 3450kg | |
3 | bucket capacity | 0.8m3 | |
4 | maximum traction force | 90KN | |
5 | maximum breakout force | 48KN | |
6 | maximum grade ability | 25℃ | |
7 | maximum dump height | 3200mm | |
8 | maximum dump reach | 900mm | |
9 | overall dimension (L×W×H) | 5600*1810*2600mm | |
Engine | 10 | model | Yunnei 37kw |
11 | type | lnline water cooling dry cylinder injection | |
13 | rated power | 36.8kw-2400r/min | |
14 | maximum torque | 147N.M | |
15 | Emission standards | China Stage2 | |
Transmission system | 16 | torque converter | Single-stage four-element twin-turbine torque converter |
17 | gearbox mode | Planetary power transmission | |
18 | gears | 2forward shift 2reverse shift | |
19 | maximum speed | 25km/h | |
Drive axles | 20 | main reducing spiral | bevel gear grade 1reduction |
21 | decelerating mode | Planetary reduction grade 1 | |
22 | wheel base (mm) | 2250mm | |
23 | wheel tread | 1600mm | |
Hydraulic system | 24 | system working pressure | 16MPa |
25 | boom lifting time | 8.9s | |
26 | total time | 10±0.2s | |
Brake system | 27 | service brake | Four-wheel brake with oil cap and disc |
28 | parking brake | Manual disc type | |
Tyre | 29 | type specification | 20.5-70-16 |
30 | front tyre pressure | 0.4Mpa | |
31 | rear tyre pressure | 0.35Mpa |

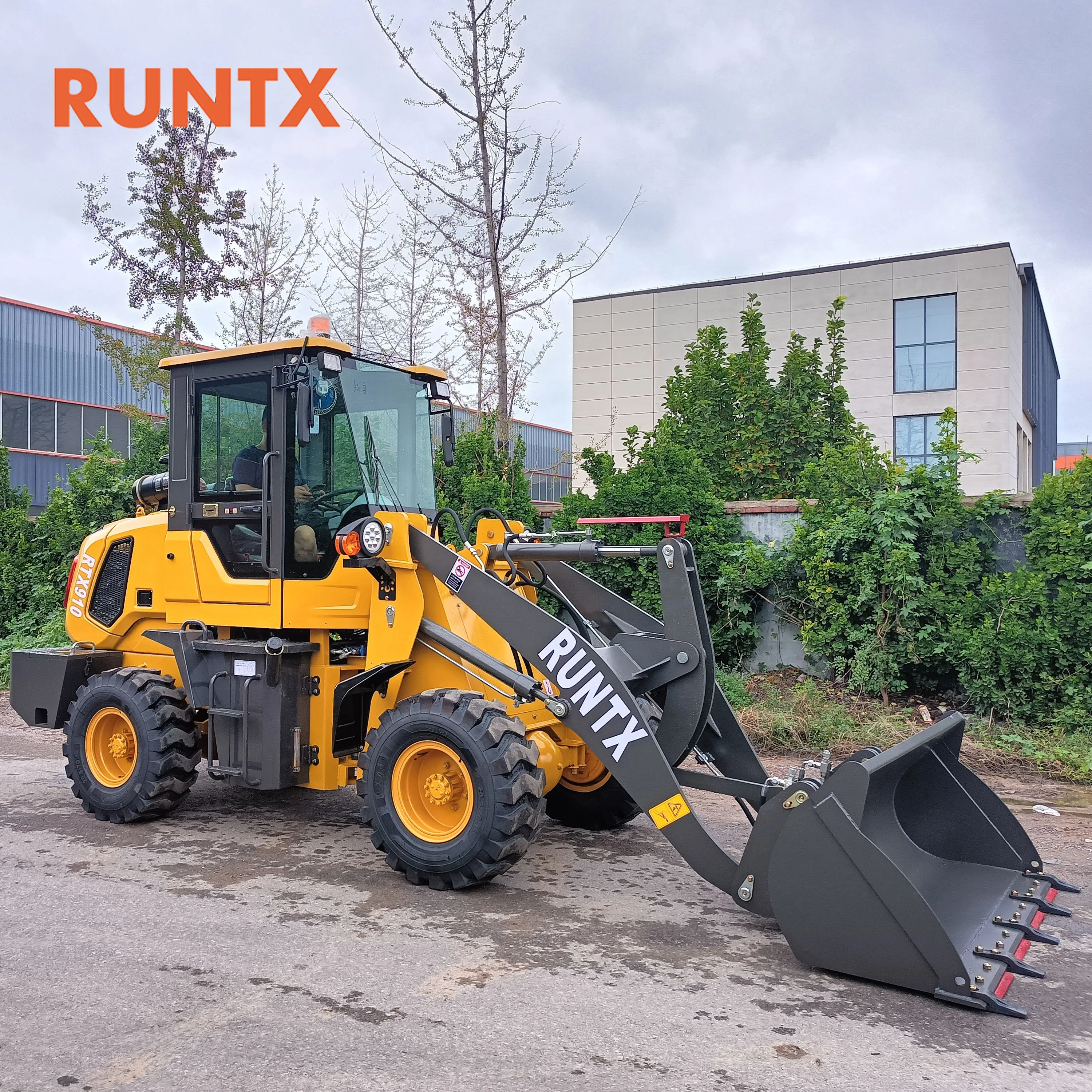

RUNTX RTX908 0.8ton wheel loader
Model | RTX908 | ||||
Performance | 1 | rated loading | 800kg | ||
2 | overall weight | 2400kg | |||
3 | bucket capacity | 0.4m3 | |||
4 | maximum traction force | 50KN | |||
5 | maximum breakout force | 60KN | |||
6 | maximum grade ability | 25℃ | |||
7 | maximum dump height | 2500mm | |||
8 | maximum dump reach | 800mm | |||
9 | overall dimension (L×W×H) | 4380*1300*2450mm | |||
Engine | 10 | model | WEIFANG 490 | ||
11 | type | lnline water cooling dry cylinder injection | |||
13 | rated power | 37kw-2400r/min | |||
14 | maximum torque | 147N.M | |||
15 | Emission standards | CHINA STAGE Ⅱ | |||
Transmission system | 16 | torque converter | Single-stage four-element twin-turbine torque converter | ||
17 | gearbox mode | Planetary power transmission | |||
18 | gears | 2 forward shift 1reverse shift | |||
19 | maximum speed | 25km/h | |||
Drive axles | 20 | main reducing spiral | bevel gear grade 1reduction | ||
21 | decelerating mode | Planetary reduction grade 1 | |||
22 | wheel base | 1985mm | |||
23 | wheel tread | 1100mm | |||
Hydraulic system | 24 | system working pressure | 16MPa | ||
25 | boom lifting time | 8.9s | |||
26 | total time | 10±0.2s | |||
Brake system | 27 | service brake | Four-wheel brake with oil drum on oil cap | ||
28 | parking brake | Hand Drum | |||
Tyre | 29 | type specification | 825—16 | ||
30 | front tyre pressure | 0.4Mpa | |||
31 | rear tyre pressure | 0.35Mpa | |||
Customization
Company Profile
Shipping Packing
FAQ
1. Why choose us?
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
