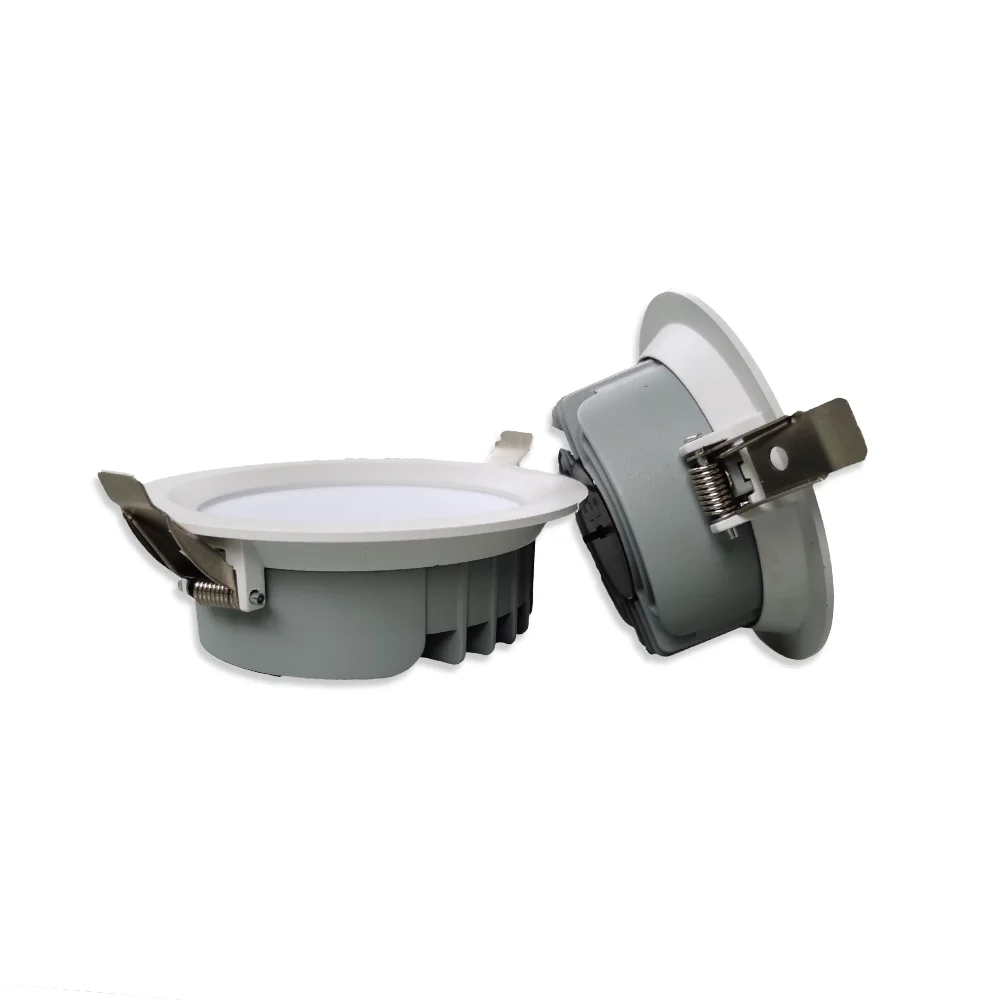

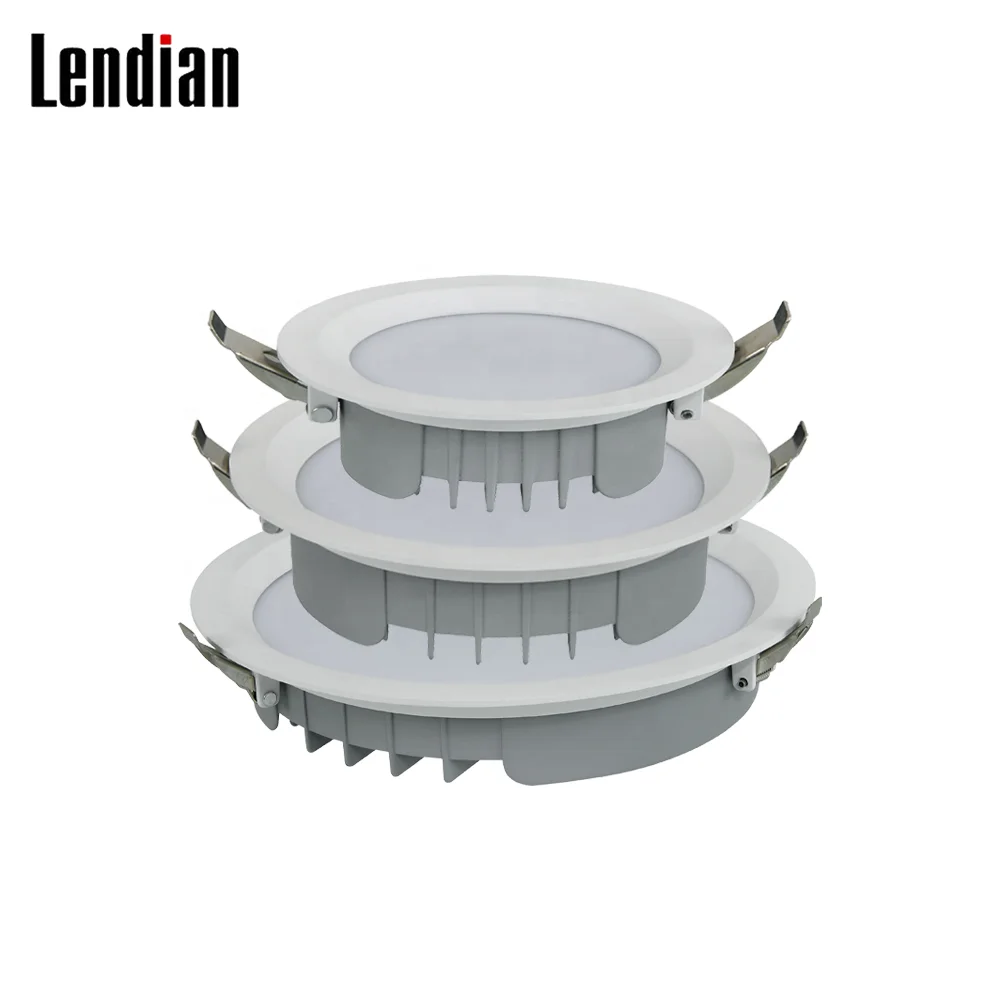

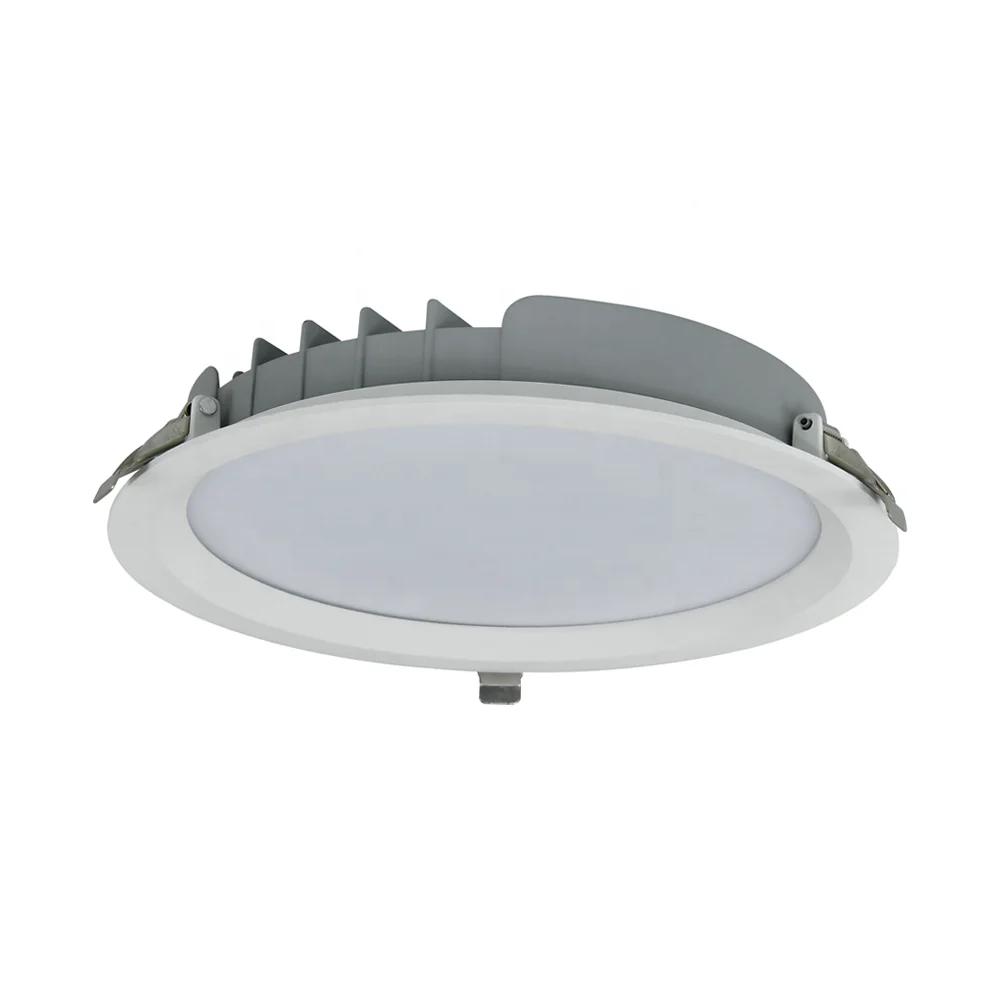

5W 40W 3CCT Down Light Die Casting Aluminum COB Ceiling Lighting Mount SMD LED Recessed Downlight Fixture
- Category: >>>
- Supplier: Zhongshan Lendian Opto-Electronic Technology Co. Ltd.Zhongshan Ltd.
Share on (1601300901069):
Product Overview
Description
Down Light Die-Casting Aluminum COB Lighting Mount SMD Fixture Ceiling Recessed Led Downlight
Product Description

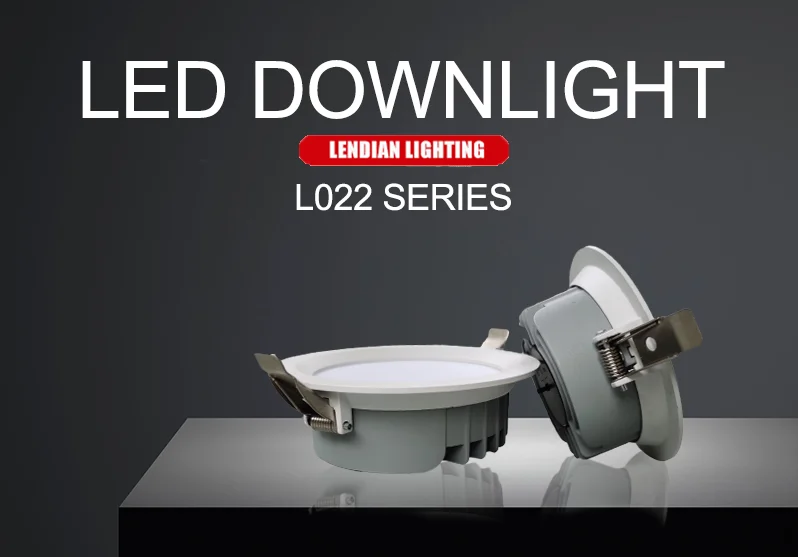

Item Model | L022 series |
Wattage: | 8 - 40W |
LED Light Source: | SMD/COB |
Lamp Luminous Flux(lm)： | 560 - 3600LM |
2700K/3000K/4000K/5000/6000K | |
single CCT/Dip Switch 3CCT | |
CRI (Ra>)： | 80/90 |
Input Voltage(V)： | AC220-240V 50/60HZ |
Driver： | Conforming to LVD and EMC |
Dimmable： | Yes |
Working Temperature(℃)： | -20~40℃ |
IP Rate： | IP20/IP44 |
Beam Angle： | 110 ° |
Installation： | Recessed |
Body Material: | Alumimum |
Shape: | Round |
Ring： Φ85 - 215mm | |
H：36 - 41mm | |
CUTOUT: | Φ70 - 200mm |
Lifespan: | 35,000 hours |
Warranty(Years): | 3/5 years |
Applications: | Hotel, club, supermarket, store, office, residential, commercial and etc. |

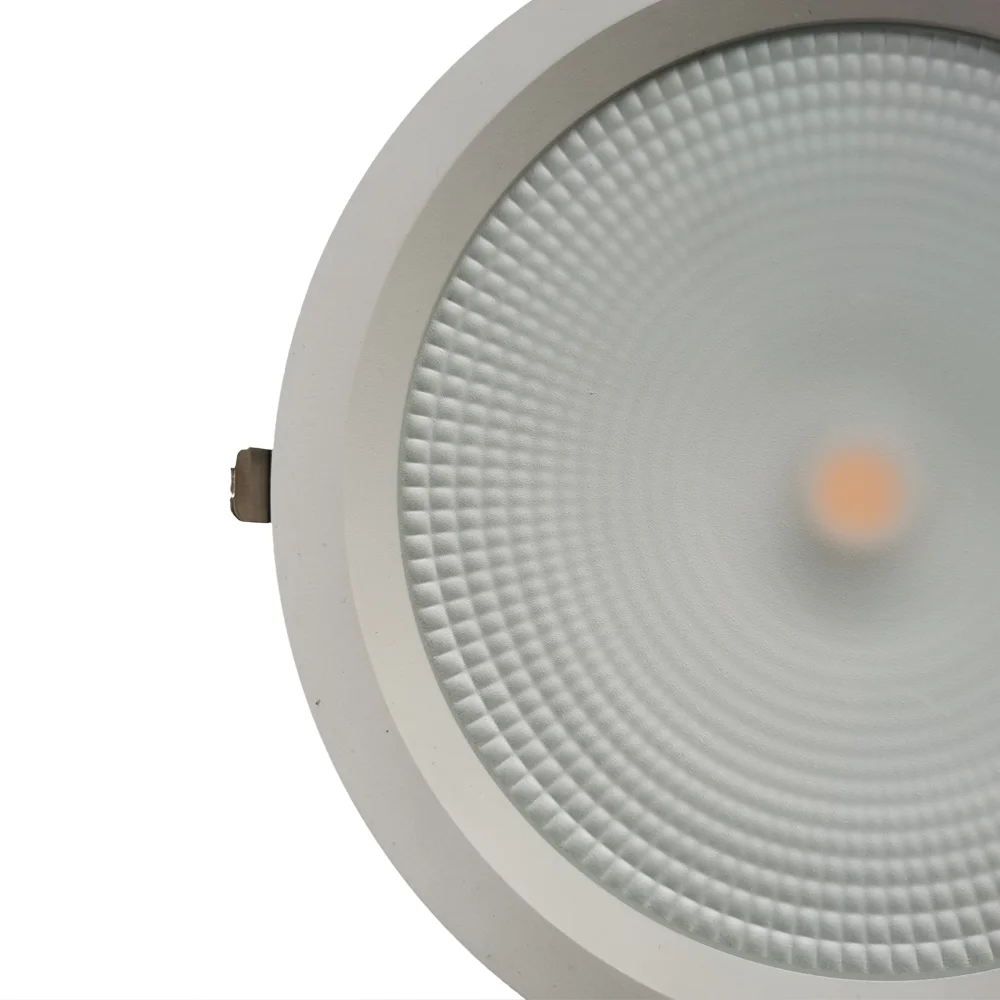

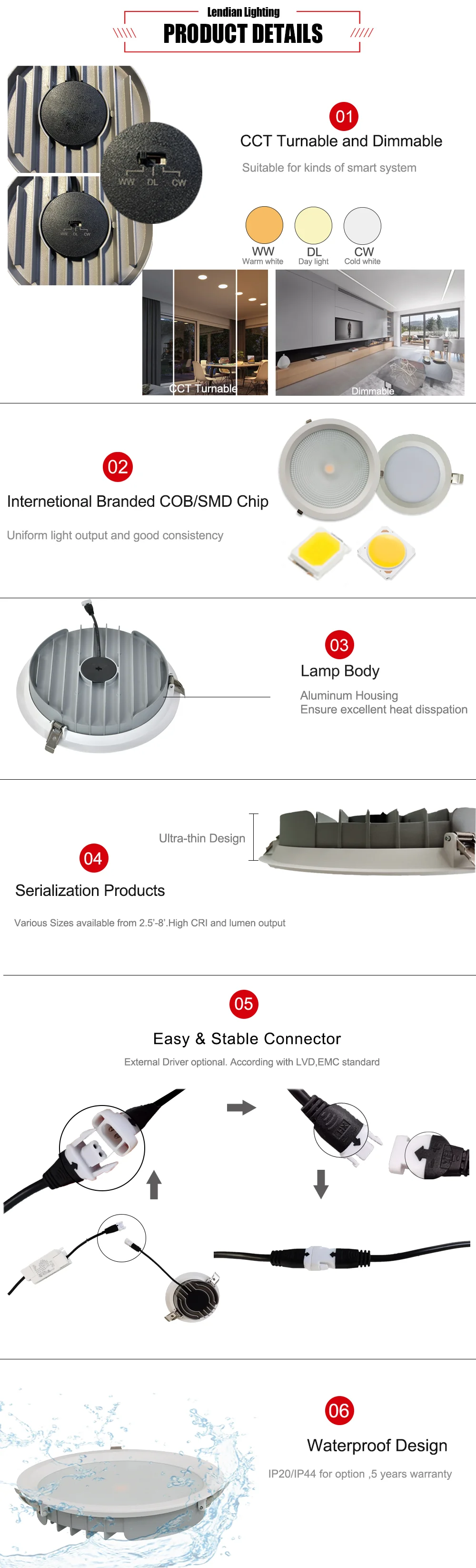

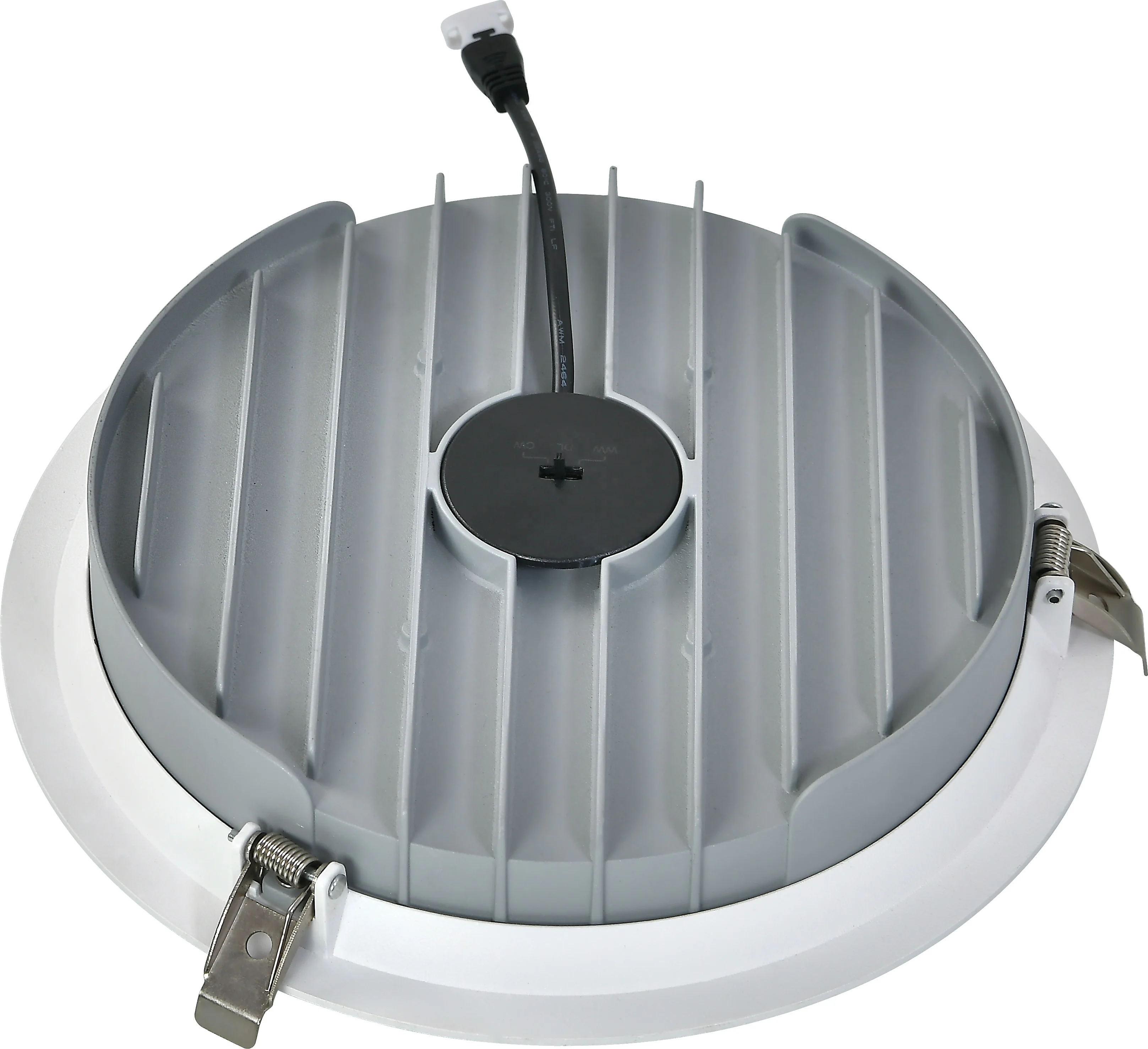

Products Details

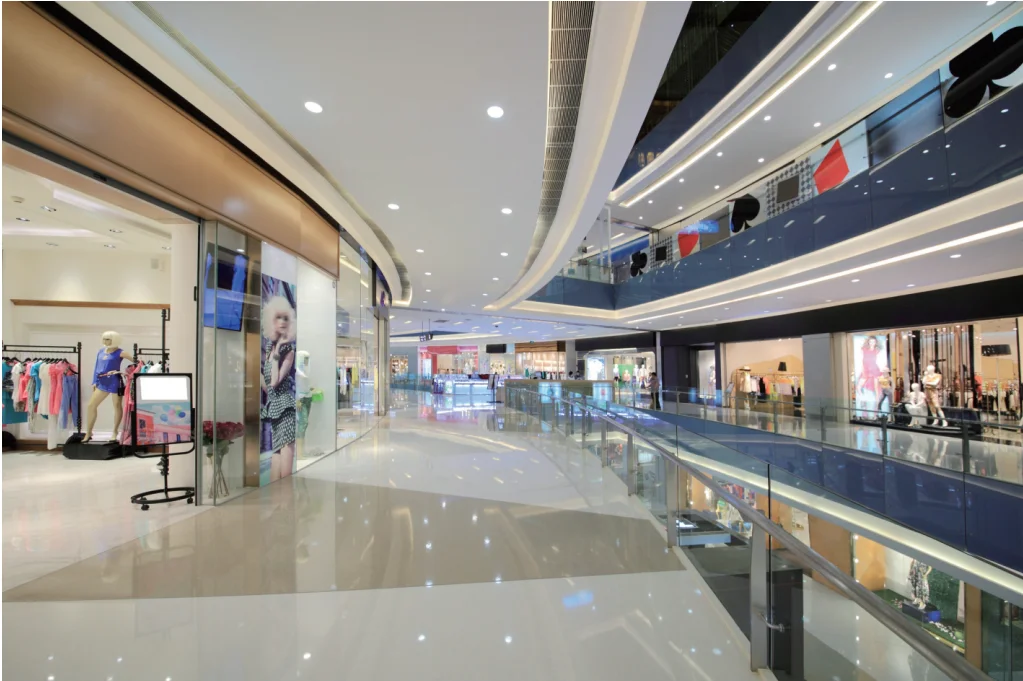

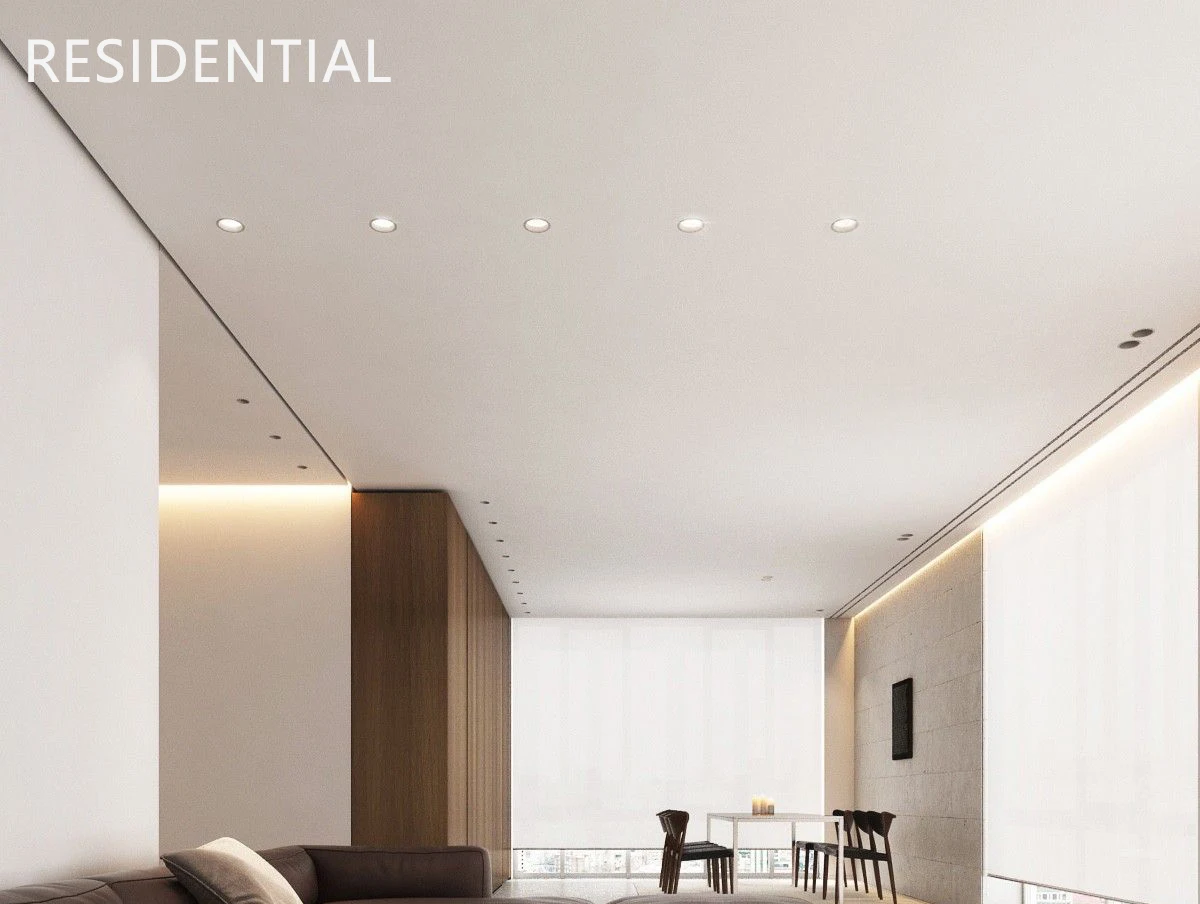

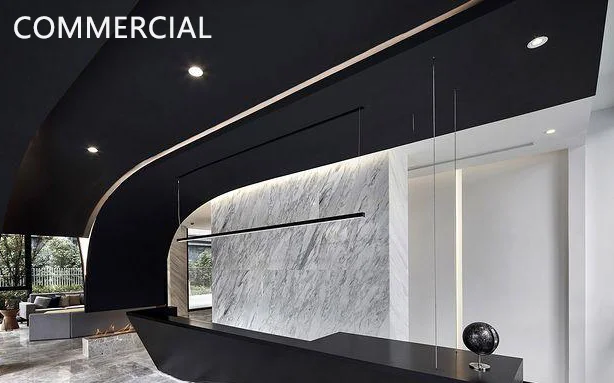

Application

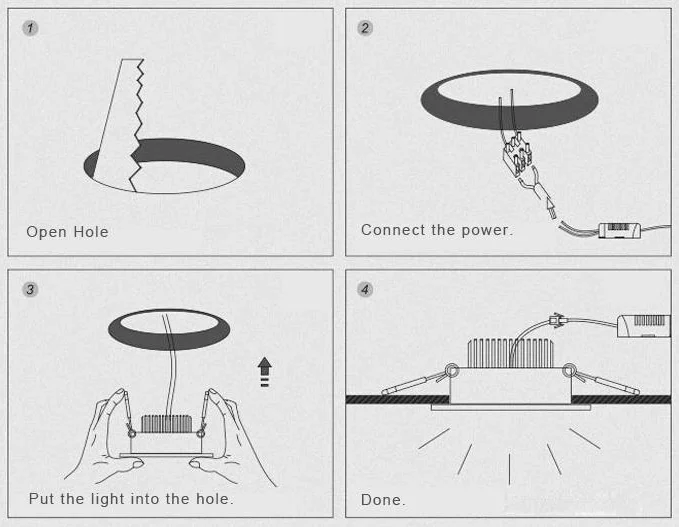

Installation Instructions
Module series

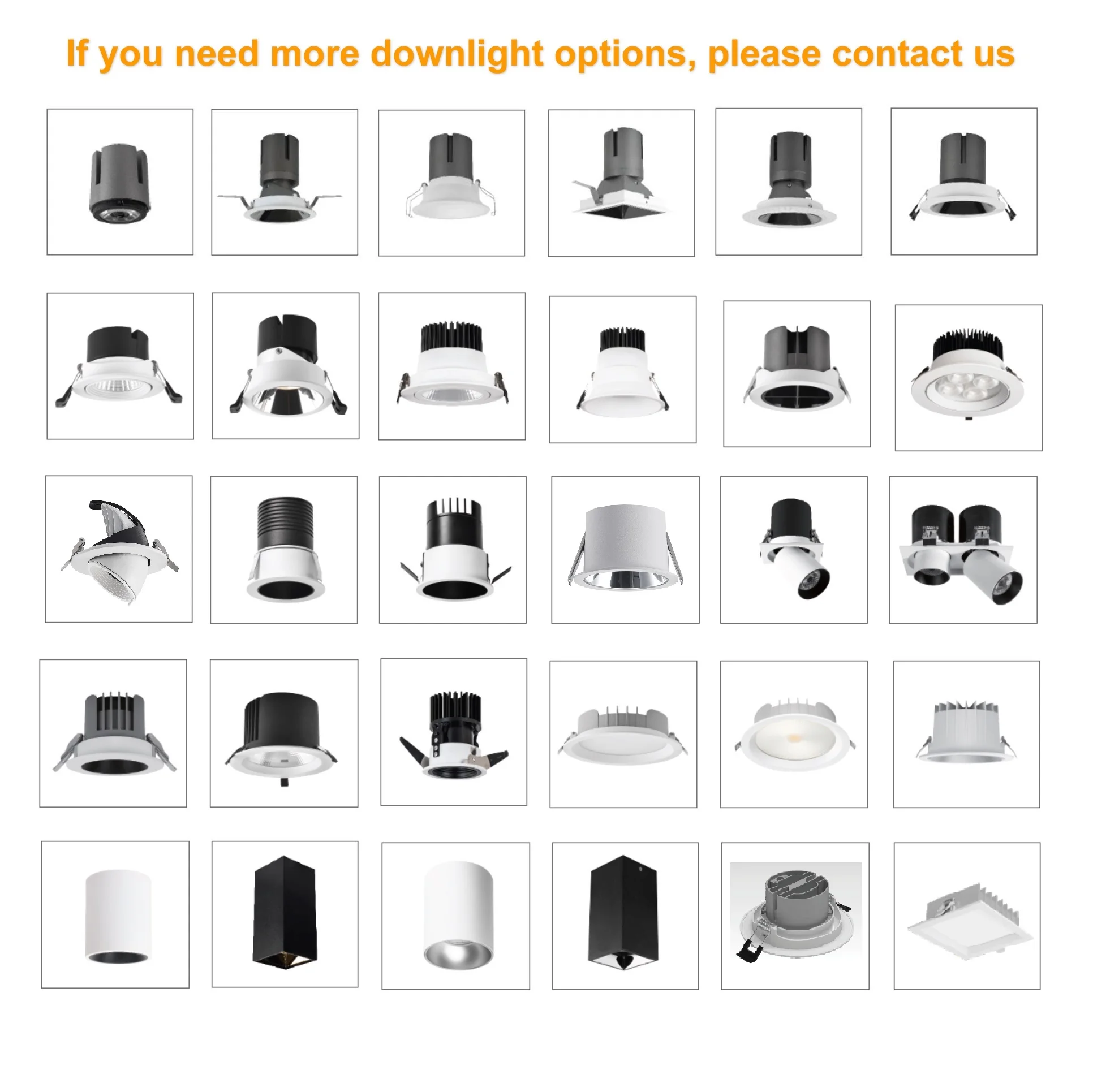

In order to meet your needs, we are able to provide a variety of sizes, power and other optional features, for any questions, please feel free to contact us.

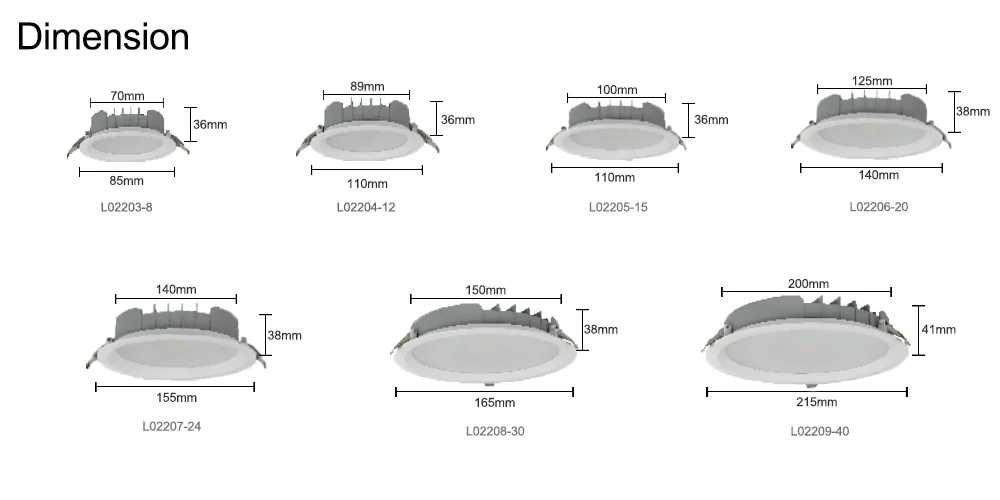

Model | Dimension(mm) | Cut out(mm) | Power | Luminous(lm) | Packing(mm） |
L02203-8 | 85x36 | 75 | 8W | 640 | 50pcs/CTN 600×280×300 |
L02204-12 | 100x36 | 89 | 12W | 960 | 50pcs/CTN 600×280×300 |
L02205-15 | 110x36 | 100 | 15W | 1200 | 50pcs/CTN 600×280×300 |
L02206-20 | 140x38 | 125 | 20W | 1800 | 40pcs/CTN 625×360×330 |
L02207-24 | 155x38 | 140 | 24W | 2160 | 20pcs/CTN 415×360×330 |
L02208-30 | 165x38 | 150 | 30W | 2700 | 20pcs/CTN 415×360×330 |
L02209-40 | 215x41 | 200 | 40W | 3600 | 20pcs/CTN 535×475×330 |
Hot selling product
Our Advantages
13+ years OEM & ODM Experience，100+ skilled
technicians, always deliver your products to you on time.
The lights display in our store are regular products. If you have other special needs, we have 5 professional lighting
engineering designers customized for you.
engineering designers customized for you.
Company Information
FAQ
1. Who are we?
Lendian Opto-electronic Technology Co., Ltd. was founded in 2010, based in Zhongshan City, Guangdong Province, China. Since then, we have been focused on researching, developing, manufacturing and selling innovative indoor led lighting products for 13+ years.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LED Down Light, LED Panel Light, LED Track Light, LED Linear Light, LED Ceiling Light, LED Spot Light, LED Grill Light, LED Pendant Light, LED Wall Light
4. Why should you buy from us not from other suppliers?
1. With more than 100 workers.
2. Our R&D team with more 20 years' experience on this business.
3. Authorized supplier of Havells India Limited and Leviton Manufacturing Co., Inc
4. CE, RoHS, TUV certifications approved.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, GBP, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese
6.What's our main market?
Mid East(26.00%), Domestic Market(20.00%), Southeast, Asia(15.00%), Northern Europe(10.00%), Eastern Europe(8.00%), Western Europe(7.00%), Southern Europe(6.00%), South, America(5.00%), South Asia(3.00%).
Lendian Opto-electronic Technology Co., Ltd. was founded in 2010, based in Zhongshan City, Guangdong Province, China. Since then, we have been focused on researching, developing, manufacturing and selling innovative indoor led lighting products for 13+ years.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LED Down Light, LED Panel Light, LED Track Light, LED Linear Light, LED Ceiling Light, LED Spot Light, LED Grill Light, LED Pendant Light, LED Wall Light
4. Why should you buy from us not from other suppliers?
1. With more than 100 workers.
2. Our R&D team with more 20 years' experience on this business.
3. Authorized supplier of Havells India Limited and Leviton Manufacturing Co., Inc
4. CE, RoHS, TUV certifications approved.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, GBP, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese
6.What's our main market?
Mid East(26.00%), Domestic Market(20.00%), Southeast, Asia(15.00%), Northern Europe(10.00%), Eastern Europe(8.00%), Western Europe(7.00%), Southern Europe(6.00%), South, America(5.00%), South Asia(3.00%).
