Products Description

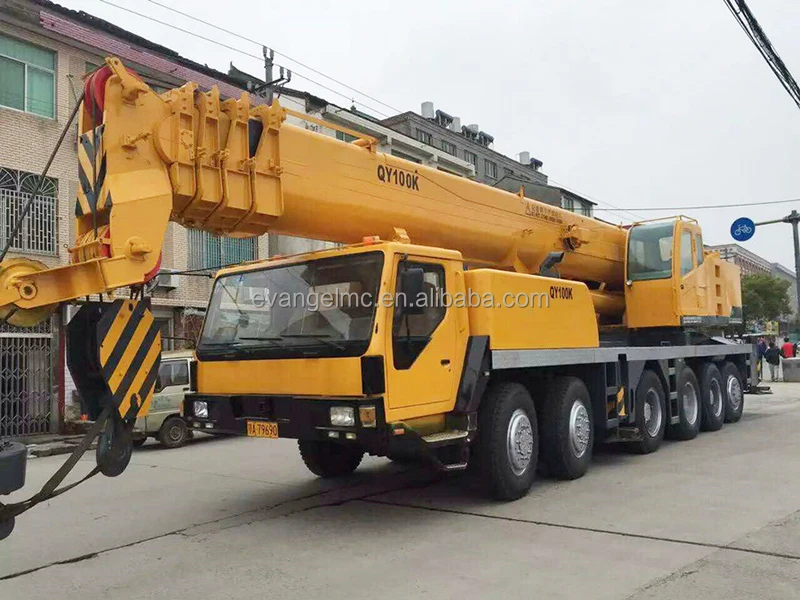

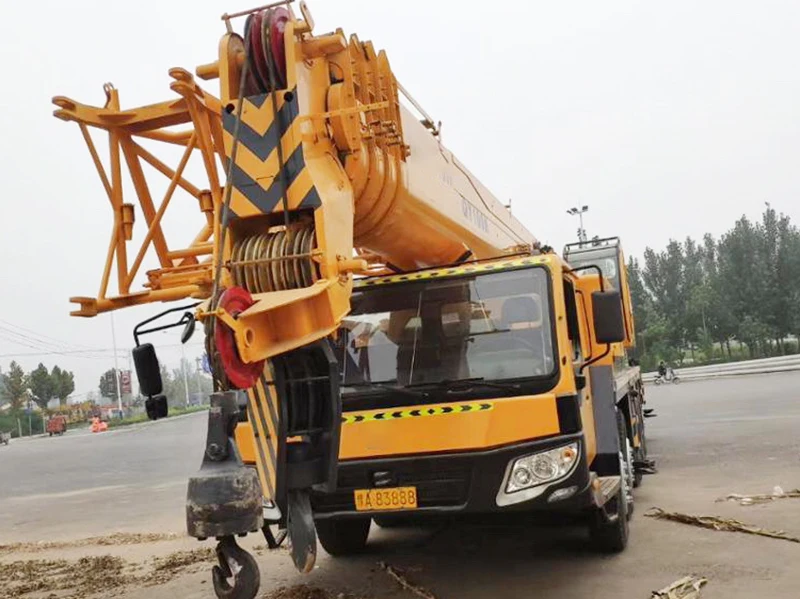

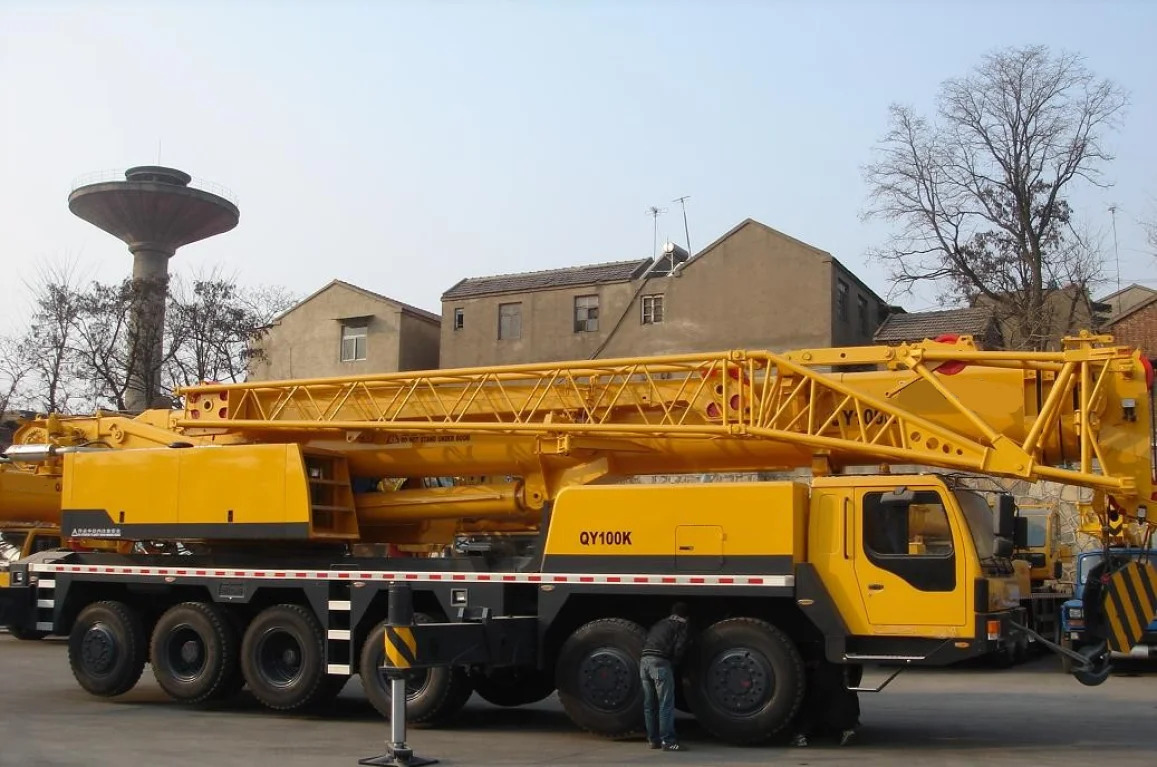

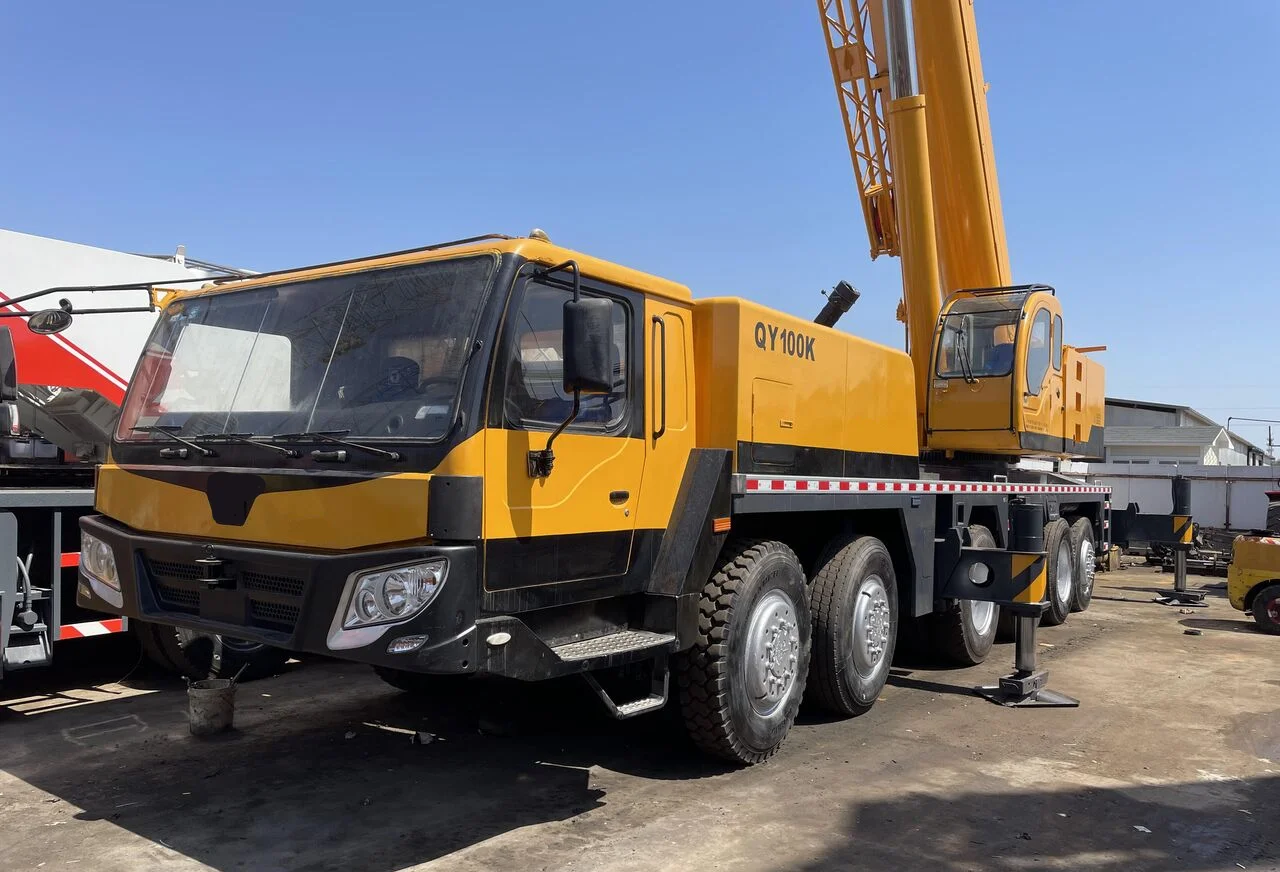

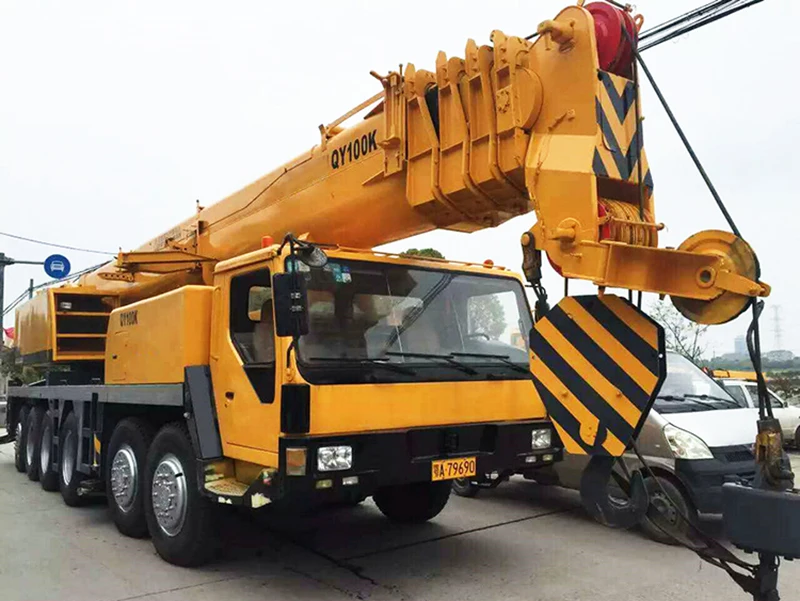

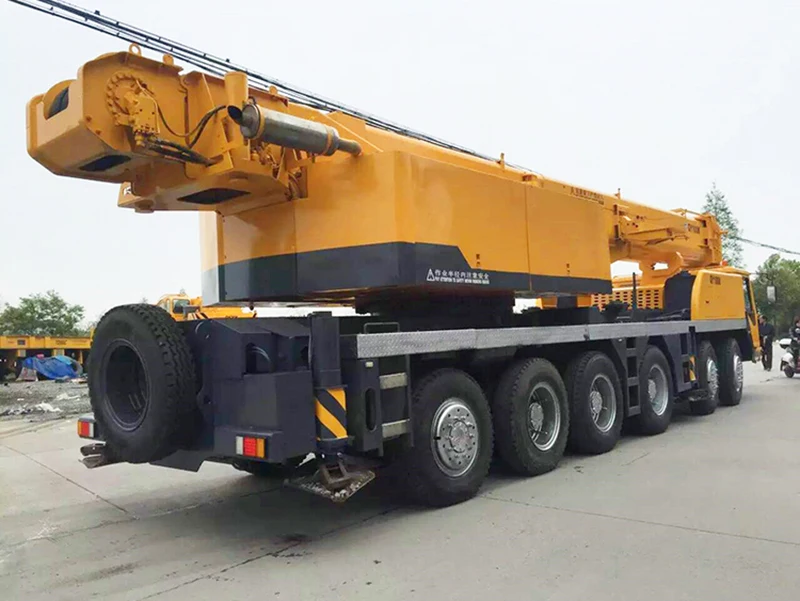

100 Ton QY100K Truck Mobile Crane
• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.

• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.

• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.

• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.

• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.

• The humanity design makes the cab and control cab more spacious, and easy to operate.

• Six unique manufacturing technologies ensure the high quality.

• The working condition expands twice. Newly add 5t counterweight.














Specification


Item
Unit
Dimensions
Overall length
15600×3000×3850
mm
Weighet
Operation mass in travel state
1420+2420+1800+1420+1505
kg
Axle load
54900
kg
1st axle
8000
kg
2nd axle
8000
kg
3rd axle
7900
kg
4th axle
12000
kg
5th axle
12000
kg
6th axle
7000
kg
Power
Superstructure engine
TAD720VE/TAD750VE/OM906LAE2/3/BF6M1013EC
Superstructure engine rated output
174/2300 181/2300 180/2200 174/2300
KW/(r/min)
Superstructure engine max torque
875/1400 1050/1500 900/1200-1600 875/1400
N.m/(r/min)
Carrier engine
ISME420.30 MO460LA.E3A/1 WP12.460N
Carrier engine rated output
306/1900 360/1800 338/1900
KW/(r/min)
Carrier engine max torque
2010/1200 2200/1300 2100/1000-1400
Travel
Approach angle
20
°
Departure angle
14
°
Braking distance(at 30km/h)
≤10
m
Max.grade ability
40
%
Min.turning diameter
24
m
Min.ground clearance
300
mm
Fuel consumption per 100km
70
L
Lifting Performance
Max.total rated lifting capactiy
100
t
Min.rated working radius
3
m
At counterweight
4200
mm
At auxilary winch
4590
mm
Base boom
3450(4m×88t)
kn.m
Full-extended boom
1925(2.4m×8.3t)
kn.m
Full-extended boom+Jib
708(25.8×2.8t)
kn.m
Longitudinal distance
7.56
m
Lateral distance
7.6
m
Base boom
13.5
m
Full-extended boom
50.9
m
Full-extended boom+Jib
70.4
m
Base boom
13.5
m
Full-extended boom
51
m
Full-extended boom+Jib
51+18.1+4
m
Working speed
Jib offset
0、15、32
°
3Boom raising
75
s
Full-extending
160
s
Max.swing speed
2
r/min
Outrigger beam extending/Retracting
25/15
s
Outrigger jack extending/Retracting
45/25
s
Main hoist mechanism with empty load
105
m/min
Auxiliary hoist mechanism with empty load
104
m/min
