Multiplex DiSEqC Switch DVB S/T Satellite Multiswitch 9in Cascade/Terminal Transfer Switch Satellite TV Receiver Ready Stock

DiSEqC Switch Satellite Multiplex Switch Multiswitch 9in

Specifications

1.8 satellite IF and 1 terrestrial TV inputs for 16 satellite receiver

2.8 satellite IF inputs selected by 13V,18V,22KHz and DisEqC

2.0 signal

3.Built-in amplifier

4.Low insertion loss, high isolation and return loss

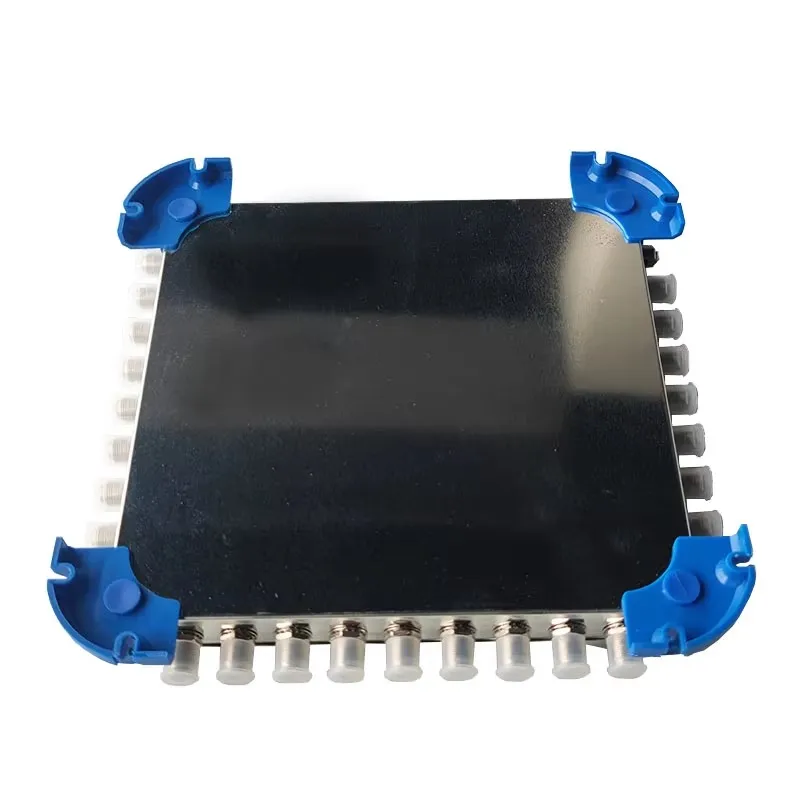

5.Sheet metal housing with plastic holder

6.Design good for indoor usage

Frequency Range:Terr.:47~862MHz

SAT:950~2150MHz

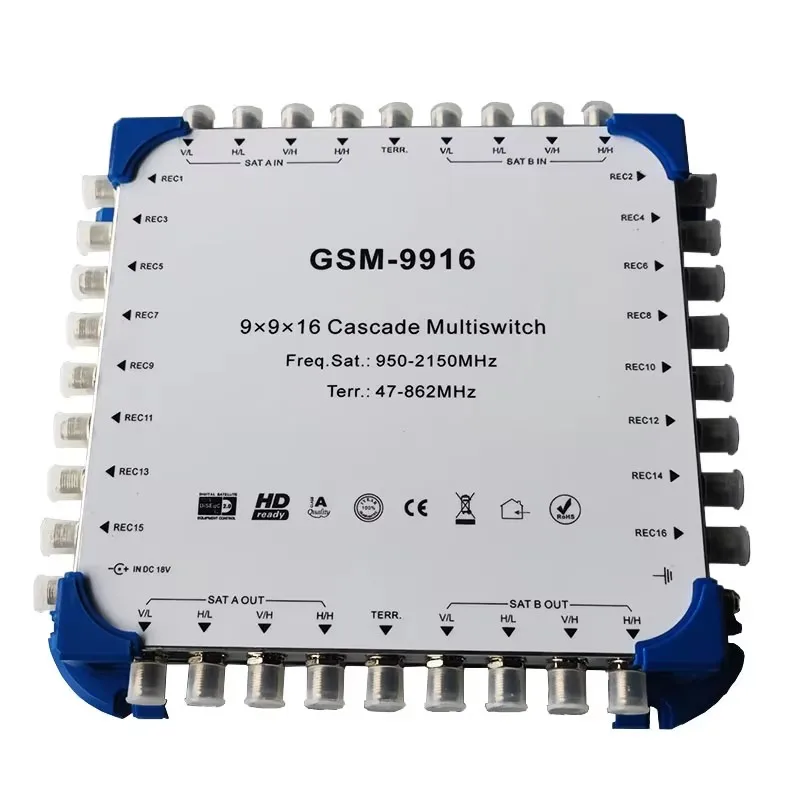

Inputs/outputs:8 SAT+1 Terr. / 8 SAT+1 Terr.

Outputs/subscribers:16

Terr. Output Level Max.:95dBμV@60dB IM3,EN50083-5

SAT Output Level Max.:100dBμV@35dB IM3,EN50083-3

Power supply:IN:90~264VAC

OUT:18V 1.6A

Current Consumption from receiver :< 50mA

Switching Voltage:V:10~14.5V H:15.5~20V

Ambient temperature :-20~+50℃

Dimensions (w,d,h):222×214×42mm
