High Precision Fully Automatic Simple Operation Custom Portraits Dolls Parent child model 360 Degree Camera 3D Portrait Scanner
- Category: >>>
- Supplier: Henan Irisi Intelligent Technology Co. Ltd.Henan Ltd.
Share on (1601301177983):
Product Overview
Description
Product Description
Specification
Model | DREAMBOT3D G9-1000 | ||

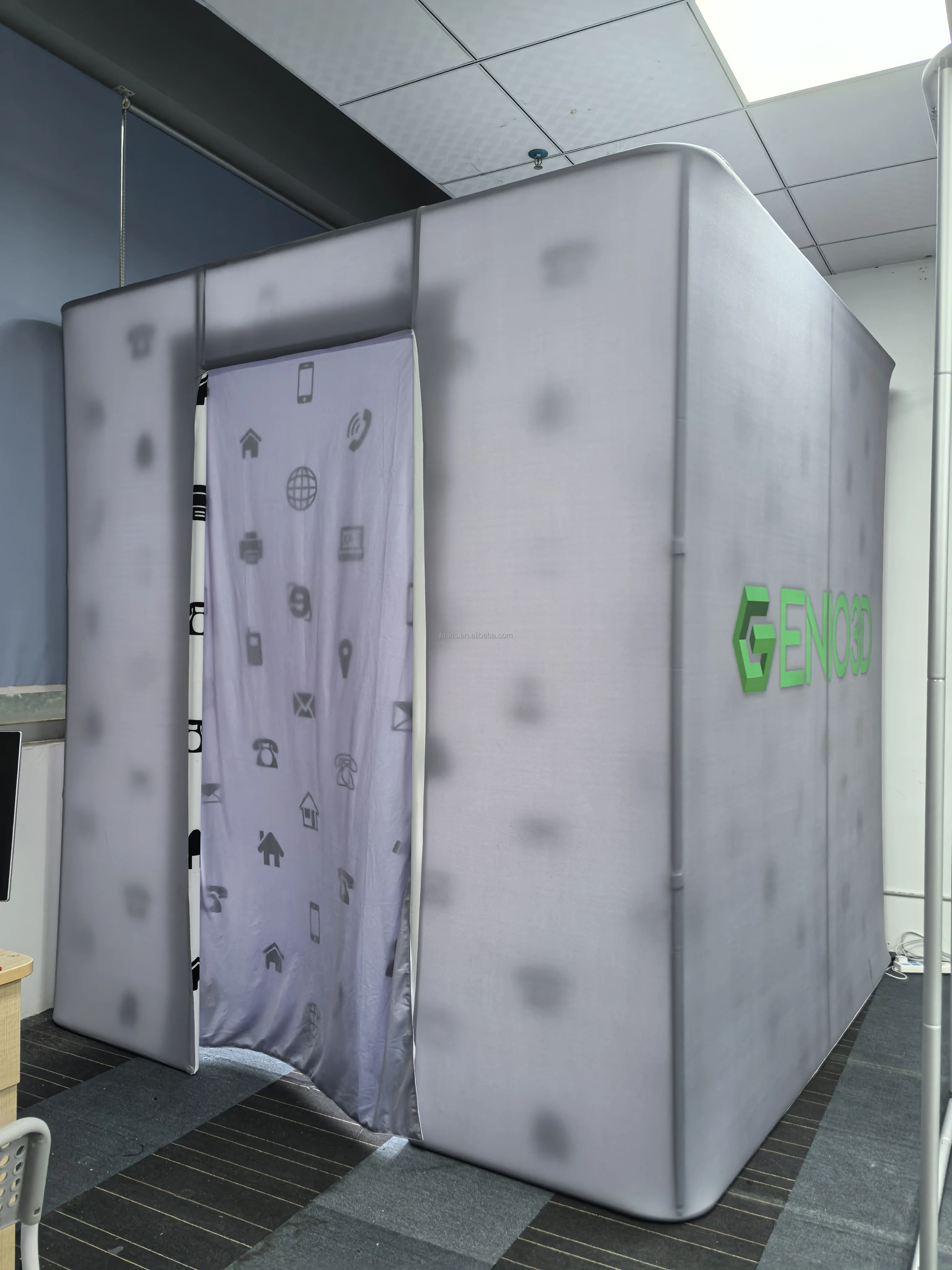

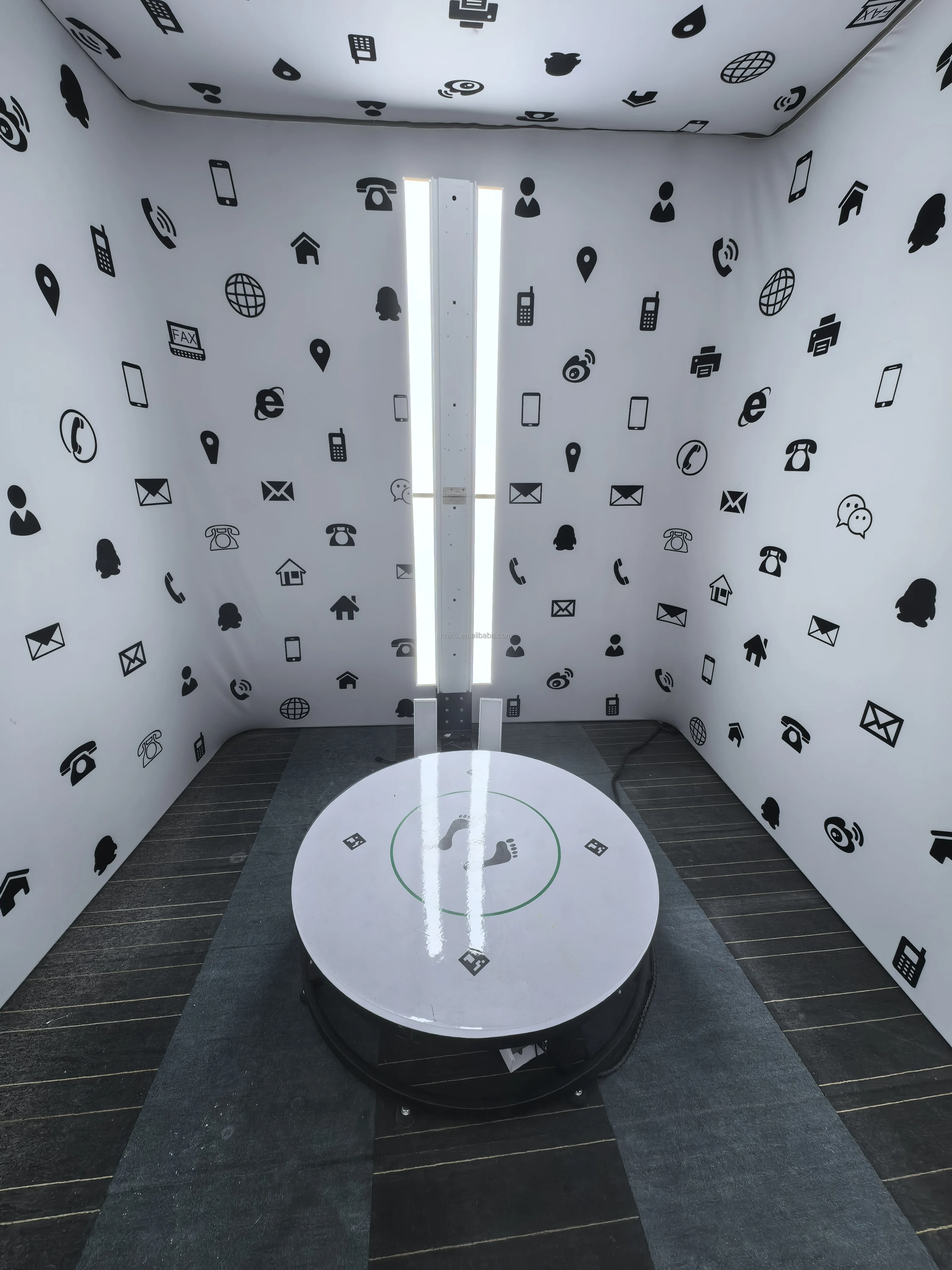

3D Scan Chamber | Equipment Structure | Central rotating platform equipped with an imaging collection mechanism (single rod) | |
Equipment Weight | 200kg | ||
Rated Load Capacity | 500kg | ||
Equipment Dimensions | 120cm*240cm*35cm | ||
Rated Power | 800W | ||
Input Voltage | 220V | ||
Camera System | Camera Type | High-definition high-speed industrial camera | |
Camera Chip | Full-color Sony CMOS, 1.2 μm x 1.2 μm, 12 MP | ||
Lens | large sensor industrial camera lens with deep depth of field | ||
Number of Cameras | 6 sets | ||
Control Mode | Dedicated software system for intelligent management | ||
Image Acquisition System | Acquisition Method | Continuous image acquisition mode during rotational motion | |
Acquisition Time | 7s | ||
Number of Images | 360 photos (4.32 billion pixel images) | ||
Transmission System | USB 3.0 or higher high-speed data transmission management system, with shielded Category 6 cable | ||
Lighting System | Light Source | High color rendering index LED light module with no flicker | |
Control System | PLC system with program control | ||
Power Supply | Input voltage 220V, output 24V | ||
Other Auxiliary Configurations (Computer and Monitor) | Recommended configuration includes a 24-inch monitor, i5 CPU, 16 GB RAM, and 1 TB hard drive | ||
Packing & Delivery
Company Profile
FAQ
1.What Is 3D Scanner?
3D Scanning is a non-contact, non-destructive technology that digitally captures the shape of physical objects using a line
LED light.
2. Why Is 3D Scanning Needed?
Reverse Engineering、3D Inspection、3D Visualization、Rapid Prototyping、FEA、Virtual Assembly、Automate Production、 match for 3d printer
3. What is the application of 3D scanner?
Automotive Industry, Aerospace Industry;Rail Transit; Machinery Manufacturing, Architectural Heritage;Home Decor ; 3D
Visualization; 3D Printing Education and Research and so on.
4.Is the scanner safe for the human eye?
Yes, the scanner is a Class II certified product
5. What is the shipping ?
If you buy 3d printer and scanner together , or buy big scale 3d scanner, better arrange it by shipping.
6. I want to try 3d printing for our industry, but don't know if it can work or not. Can you help?
Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and We
believes that over 12 years experience of 3d printing and close partnership with so many industries will help us to develop more
innovative solutions.
7.What is the warranty?
Our standard warranty is one year and free for software update. If you encounter any problems during the test in the future, we
guarantee to reply to you within 12 hours and provide a solution within 2 working days. We can provide operation videos and
English operation manuals. If you have any more question, please contact by email dreambot3d-bess@hotmail.com
Pre-sale Service
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question Pls contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
3D Scanning is a non-contact, non-destructive technology that digitally captures the shape of physical objects using a line
LED light.
2. Why Is 3D Scanning Needed?
Reverse Engineering、3D Inspection、3D Visualization、Rapid Prototyping、FEA、Virtual Assembly、Automate Production、 match for 3d printer
3. What is the application of 3D scanner?
Automotive Industry, Aerospace Industry;Rail Transit; Machinery Manufacturing, Architectural Heritage;Home Decor ; 3D
Visualization; 3D Printing Education and Research and so on.
4.Is the scanner safe for the human eye?
Yes, the scanner is a Class II certified product
5. What is the shipping ?
If you buy 3d printer and scanner together , or buy big scale 3d scanner, better arrange it by shipping.
6. I want to try 3d printing for our industry, but don't know if it can work or not. Can you help?
Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and We
believes that over 12 years experience of 3d printing and close partnership with so many industries will help us to develop more
innovative solutions.
7.What is the warranty?
Our standard warranty is one year and free for software update. If you encounter any problems during the test in the future, we
guarantee to reply to you within 12 hours and provide a solution within 2 working days. We can provide operation videos and
English operation manuals. If you have any more question, please contact by email dreambot3d-bess@hotmail.com
Pre-sale Service
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question Pls contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
