China Official QY25K Genuine Consumable Mobile Truck Crane Spare Parts Price for Sale
- Category: >>>
- Supplier: Cruking Engineering Equipment (Xiamen) Co. Ltd.Cruking Ltd.
Share on (1601301236945):
Product Overview
Description

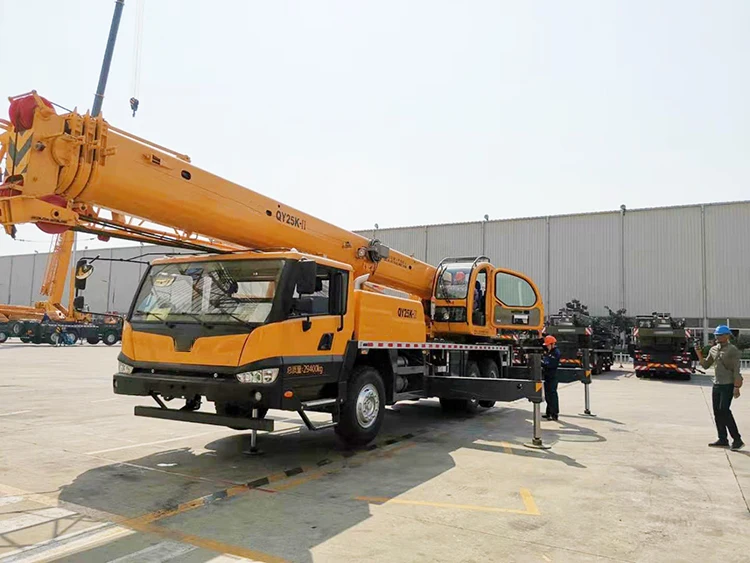

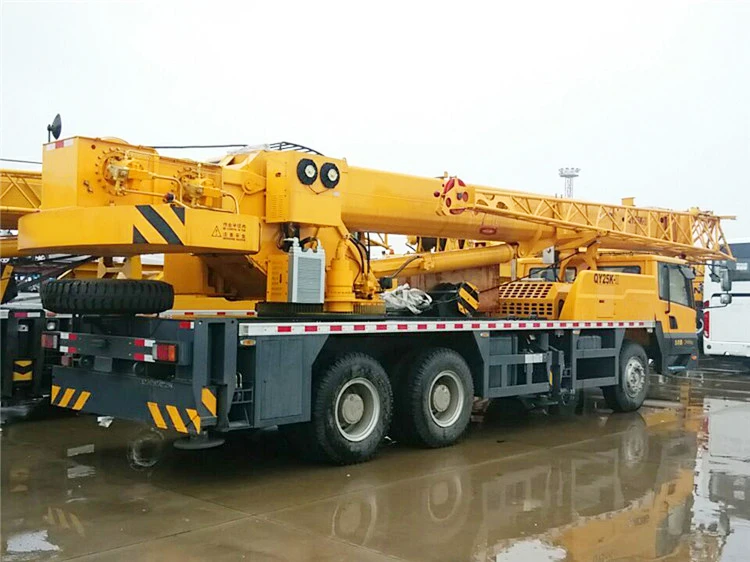

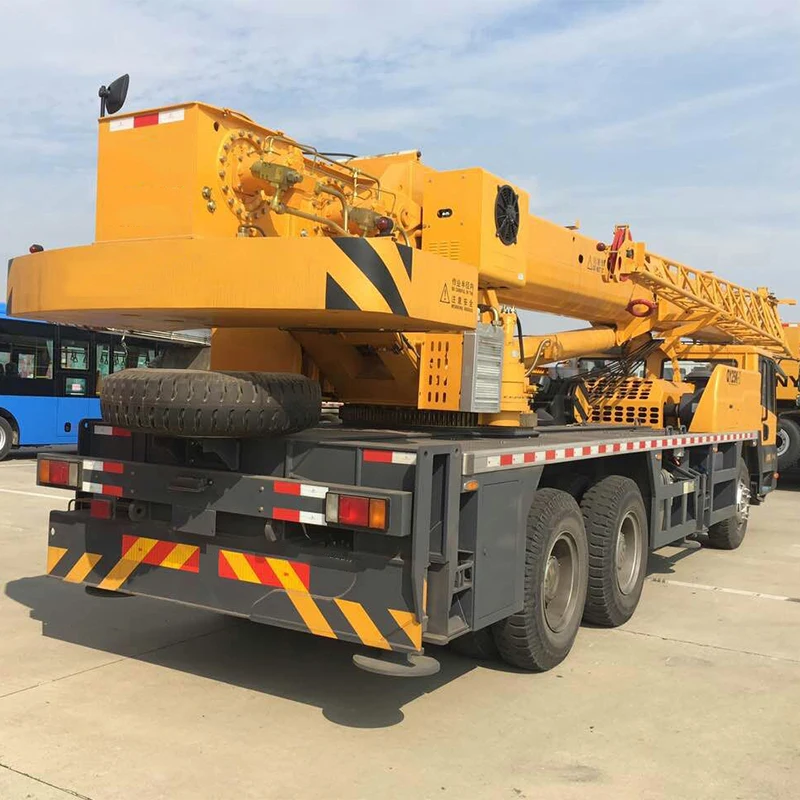

High Quality 25 Ton QY25K Truck Mobile Crane with Low Price For Sale
Contact Way
Product Overview
QY25K/ QY25K-II is technology crystallization which our company applies for many years manufacturing experience, bases on the mature technology. Using full cover to take the platform; using high lift balance weight, greatly improving the ease of use of the product; classic K series appearance; full hydraulic drive, easy to operate, flexible.
QY25K-II truck crane is the product with high reliability inheriting the classical and advanced technology. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
Advantages and highlights:
1. Bi-hexagonal cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti-bending and powerful lifting capacity.
2.The main boom length is 10.7m to 34m, completely surpassing its rivals with excellent lifting capacity. Lifting performance of fully-extended boom improves 10~20%, exceeding its rival 1~7%.
3. Plug-in boom head effectively increases the boom connect length and reduces boom deformation.4. Open fixed displacement pump and variable displacement motor system is adopted. High pressure variable displacement motor contributes to light load with high speed and heavy load with low speed.
5. It has superior travel and grade ability. The max. grade ability is 40%, max. travel speed is 80km/h.
6. Duplex mode of the engine working condition, uses less power when working on the superstructure as much as possible to reduce fuel consumption.
7. The boom telescoping system of its effectively prevent occurrence of telescoping cylinder bending and boom broking cause by mis-operation, improving operation safety.
Advantages and highlights:
1. Bi-hexagonal cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti-bending and powerful lifting capacity.
2.The main boom length is 10.7m to 34m, completely surpassing its rivals with excellent lifting capacity. Lifting performance of fully-extended boom improves 10~20%, exceeding its rival 1~7%.
3. Plug-in boom head effectively increases the boom connect length and reduces boom deformation.4. Open fixed displacement pump and variable displacement motor system is adopted. High pressure variable displacement motor contributes to light load with high speed and heavy load with low speed.
5. It has superior travel and grade ability. The max. grade ability is 40%, max. travel speed is 80km/h.
6. Duplex mode of the engine working condition, uses less power when working on the superstructure as much as possible to reduce fuel consumption.
7. The boom telescoping system of its effectively prevent occurrence of telescoping cylinder bending and boom broking cause by mis-operation, improving operation safety.
Contact me
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Product Paramenters
Item | Unit | ||
Dimensions | Total length | 12650 | mm |
Total width | 2500 | mm | |
Total height | 3380 | mm | |
Weight | Operating Weight | 29400 | Kg |
Front axle load | 6200 | Kg | |
Rear axle load | 23200 | Kg | |
Power | Engine model | SC8DK280Q3/WD615.329 | |
Engine power ratings | 206/2200 312/2200 | Kw(r/min) | |
Engine torque ratings | 1112/1400 1160/1400 | N.m(r/min) | |
Travel | Max.travel diameter | 75 | Km/h |
Min.turning diameter | 21.5 | m | |
Min.ground clearance | 275 | mm | |
Approach angle | 16 | . | |
Departure angle | 13 | . | |
Max.gradeability | 30 | % | |
Fuel consumption of 100km | 37 | L | |
Driving Parameters | Max.total lifting capacity | 25 | t |
Min. working radius | 3000 | mm | |
Turning radius at swing table tail | 3.065 | m | |
Max.lifting torque | 1010 | Kn.m | |
Basic boom lifting length | 10.7 | m | |
Longest boom lifting length with secondary arm | 42.15 | m | |
Longest boom lifting length | 34.19 | m | |
Outrigger longitudinal distance span | 5.14 | m | |
Outrigger lareral distance span | 6 | m | |
Working speed | Elevation duration for secondary boom | 75 | s |
Elevation duration for fully extended boom | 100 | s | |
Max.rotation speed | ≥2.5 | r/min | |
Max.speed for main winch | ≥120 | m/min | |
Max.speed for auxiliary winch | ≥120 | m/min |
