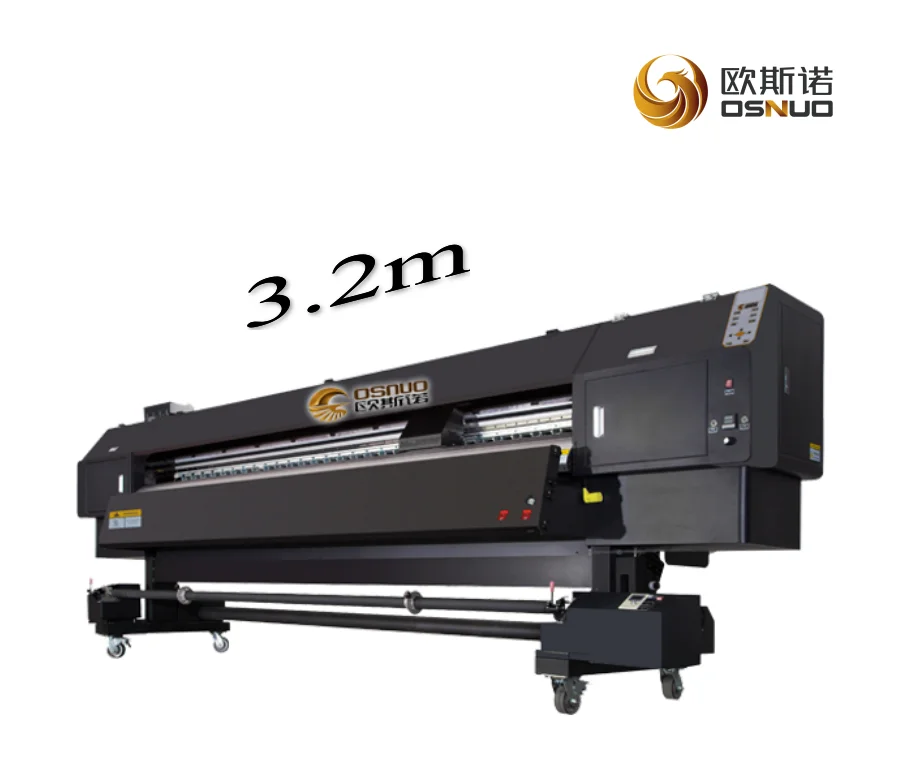

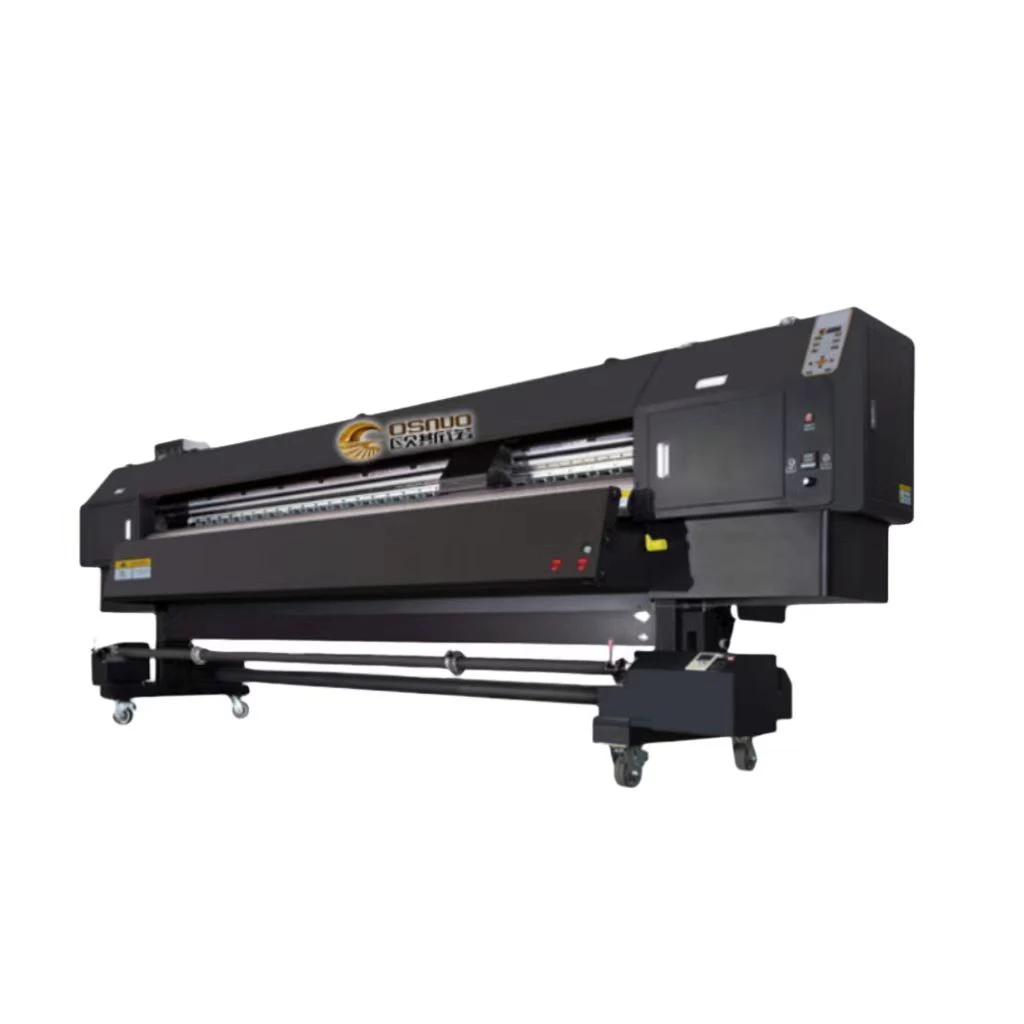

Factory OEM Service Large Format 10 feet Digital Inkjet Plotter i3200 head Advertising Printing Machine 3.2m Eco Solvent Printer
- Category: >>>
- Supplier: Shenzhen Yifang Tianyu Trade Co. Ltd.Shenzhen Ltd.
Share on (1601301546682):
Product Overview
Description
Specifications
Model | OSN-N3200A | ||||
Print head | i3200 | ||||
Number | 2 | 4 | |||
Print Mode | 2H*4C | 4H*4C | |||
Print width | 3100mm | ||||
Print speed | 3 PASS | 42㎡/h | 88㎡/h | ||
4 PASS | 28㎡/h | 58㎡/h | |||
6 PASS | 18㎡/h | 40㎡/h | |||
Print solution | 1440 DPI | ||||
Print materials | Vinyl,Wallpaper,Textile,,Advertising flag,Beach flag,curtain,sheets and ect. | ||||
Print height | ≤3mm | ||||
Ink type | Eco solvent ink | ||||
Curing system | Heating dryer+Cooling fan | ||||
Rip software | Photoprint/Onyx/Caldera/Colorget | ||||
Data connection | USB 3.0 | ||||
Input power | 220VAC(±10%) single phase ，50/61 HZ | ||||
Power | 9KW | ||||
Machine size/N.W. | 4.5m(L)*1.1m(W)*1.3m(H) | ||||
Product Details
Rail beam
There are striped wave patterns on the top of the beam body, which enhances the overall rigidity and durability of the beam body and reduces deformation caused by excessive use or transportation time.
Platform support frame
It is composed of 12 support points and two CNC machined support plates to ensure that the platform accuracy is controlled within ≤ 0.01mm
Rails
Now they are all 2.0cm rails, and most of their peers use 1.5cm wide rails.
Pinch Roller
Cooperating with licker-in rollers ensures stable paper feeding without arching, and also improves the accuracy of stepping.
Rubber roller
Model A has a diameter of 15mm，It cooperates with the long pressure roller to improve the paper feeding accuracy and make the material convey smoothly
Side panels
The one-piece aluminum material is CNC processed and formed, and the main beam, the guide beam and the licker-in are connected at the same time, which greatly reduces the use of connecting parts and greatly improves the stability of the body and the stability of the paper.
Platform heating
can be heated in three stages of front, middle and rear platforms, and the printing image is heated evenly, which enhances the ink absorption of the material
X-axis synchronizing wheel
One-piece CNC machining, with adjustable structure, convenient for later maintenance.
Anti-collision
Sensitive ultra-long anti-collision to protect the print head; touch emergency stop to prevent accidents during the printing process.
Lifting and lowering of the trolley
It can be adjusted physically by printing materials of different thicknesses.
Damper fixing device
The ink damper, print head, and print head bottom plate are uniformly fixed by the fixing frame, which effectively reduces the influence of the movement of the carriage during the printing process and ensures the smoothness of the ink
Ink tube
Each ink tube is individually labeled with the ink extension color, which is convenient for customers to install and maintain.

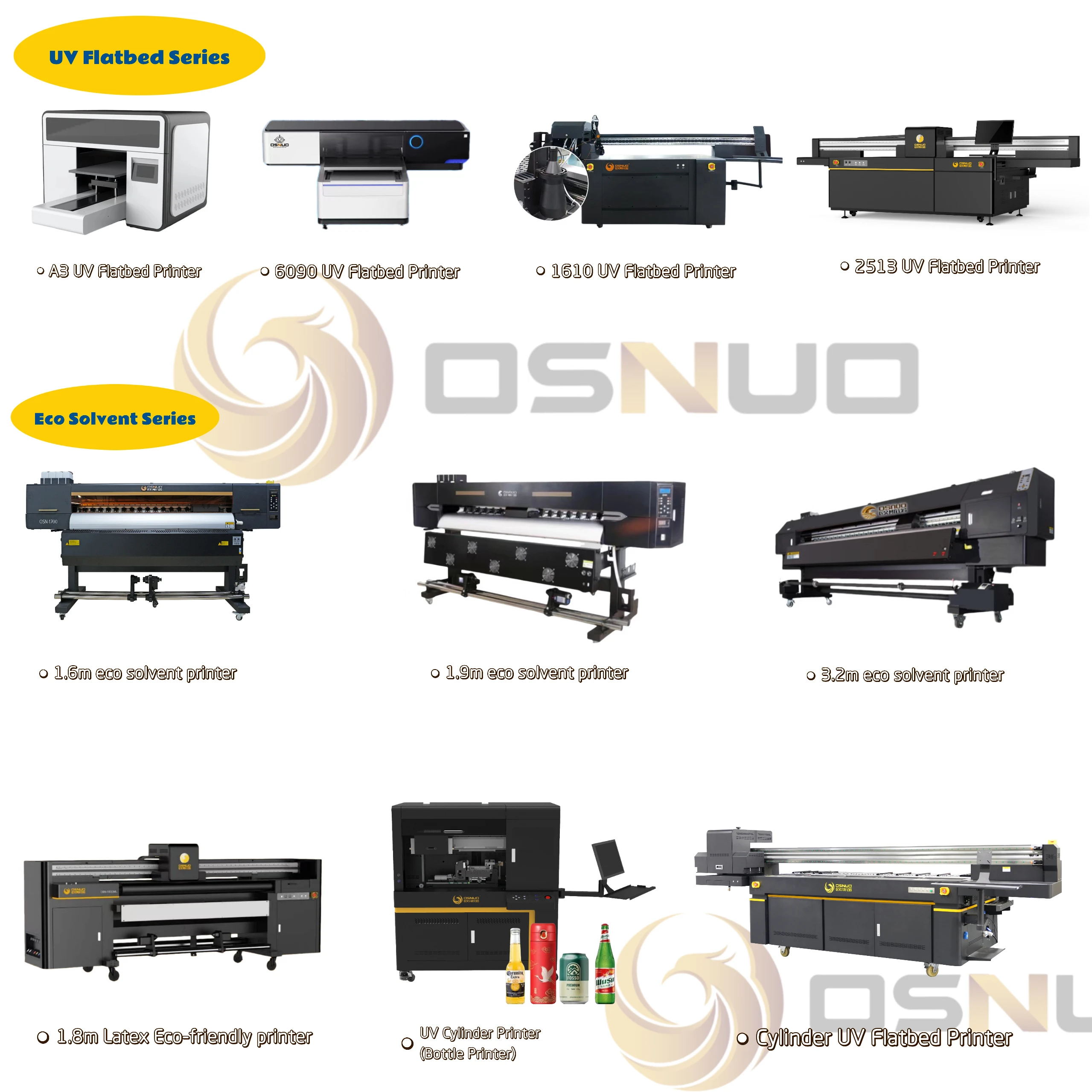

Recommend Products
Company Profile
Introduction:Guangdong Joint Era Digital Technology Co.,Ltd is a high- tech enterprises with independent intellectual property rights, professional R&D, production and sales of digital inkjet printing machines.
Factory has an independent clean production workshop, covers an area of 15000 square meters. Using the modeled management style so that staff develop good work habits, to ensure that each product quality and quantity to complete.
OSNUO, one of Joint Era's brands, was founded in 2017, focusing on crafts gifts industry and personalized customization, having machine including uv flatbed printer, cylinder printer, latex printer, DTF printer, etc. Products are exported to Europe, the Middle East, Africa, Southeast Asia, South America, more that 50 countries and regions, and establish a good reputation and brand image.
Factory has an independent clean production workshop, covers an area of 15000 square meters. Using the modeled management style so that staff develop good work habits, to ensure that each product quality and quantity to complete.
OSNUO, one of Joint Era's brands, was founded in 2017, focusing on crafts gifts industry and personalized customization, having machine including uv flatbed printer, cylinder printer, latex printer, DTF printer, etc. Products are exported to Europe, the Middle East, Africa, Southeast Asia, South America, more that 50 countries and regions, and establish a good reputation and brand image.
Certifications
Our Team
Professional Technician team, solve your problem in time and efficiently.

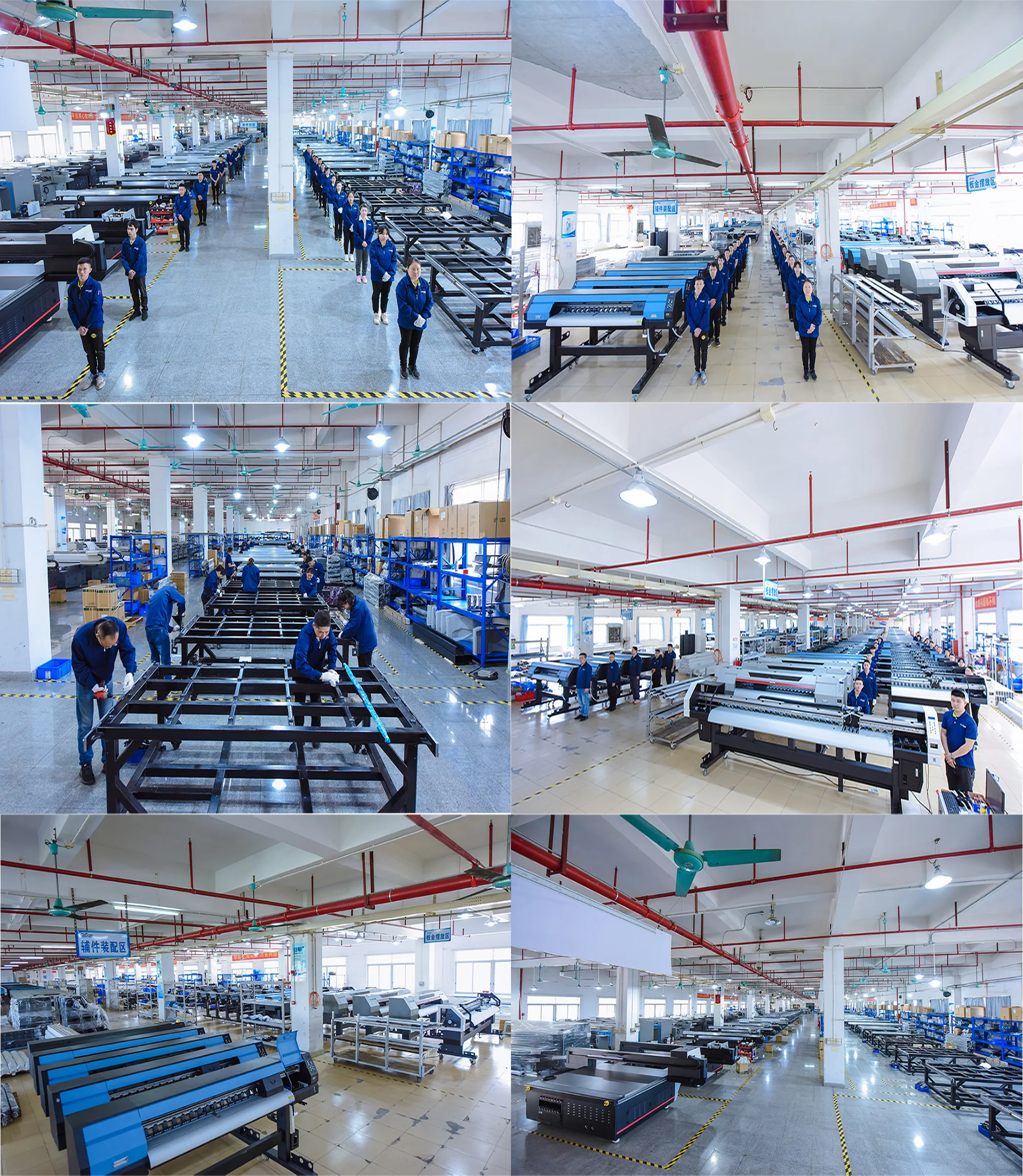

Workshop
Exhibitions

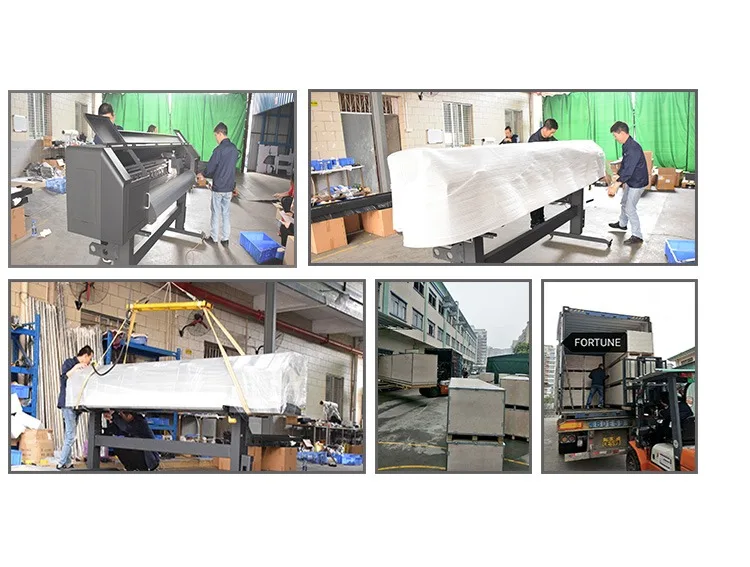

Product packaging
Machine package size : 4.7*1.0*1.5 m
Weight: 830 KG
Export standard wooden case
