Customized 4m*10m High Quality Ultrasonic Bath SS Wire Rope Zoo Mesh Tiger Fencing Flexible Light Weight
- Category: >>>
- Supplier: Anping County Chant Wire Mesh Manufacturing Co. Ltd.Anping Ltd.
Share on (1601301569935):
Product Overview
Description
Customized 4m*10m High Quality Ultrasonic Bath SS Wire Rope Zoo Mesh Tiger Fencing Flexible Light Weight
Product Description

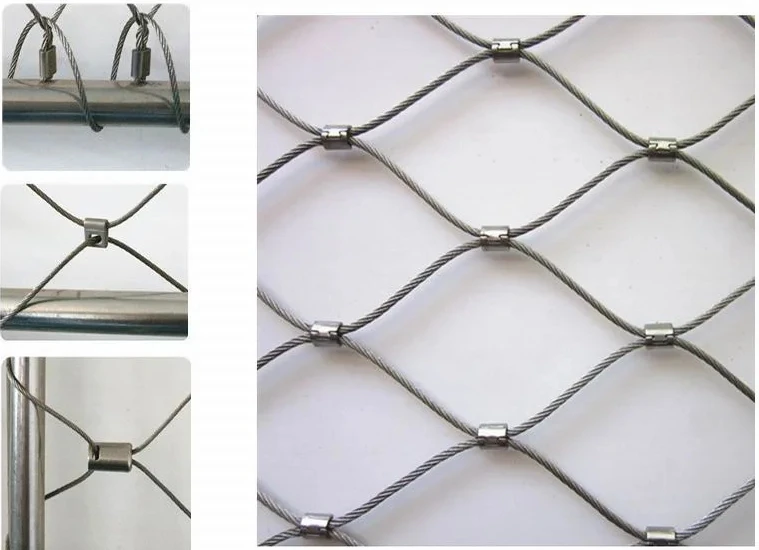

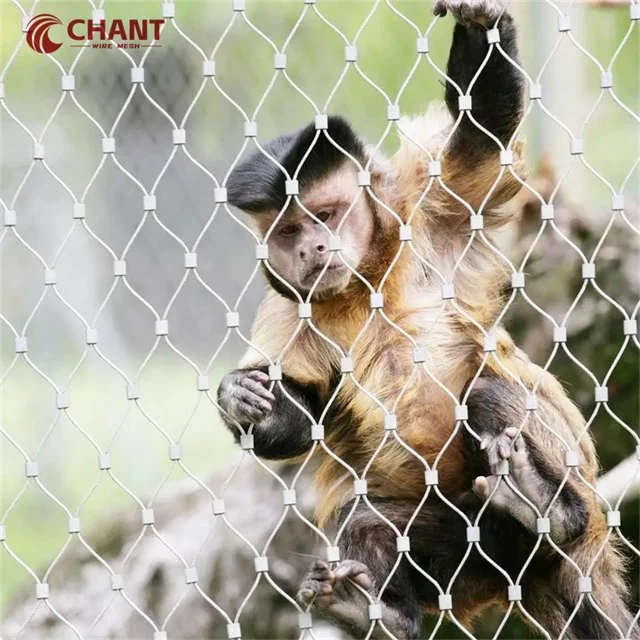

Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.Stainless steel wire rope wove mesh,in particular,is usually used in animal or bird cages,which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability,security,aesthetic property and durability etc.
Specification
Item | Stainless Steel Ferrule Rope Mesh |
Material | Rope, Stainless Steel 304 316 Ferrules, Nickel, stainless steel, Tinned Copper |
Specification | Mesh, 25mm x 43mm to 200mm x 346mm Cable Strand, 7 X 7 ( 1.5mm, 2mm.2.5mm ) ,7 x 19( 3mm,4mm) |
Customized | Available |
Sample | Available |
Mesh geometry
The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh
geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's
cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.
MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °
geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's
cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.
MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °

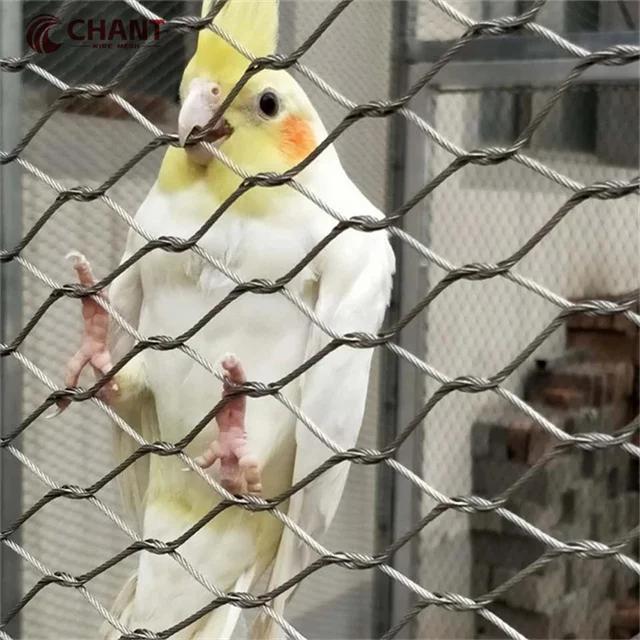

Parrots Enclosure Mesh | ||||||||
Material | Wire Cable Dia | Mesh Open Size | Norninal Break(lbs) | |||||
Stainless 304/316/316L | 5/64" | 2" X 2 " | 676 | |||||
Stainless 304/316/316L | 1/16" | 2" X 2" | 480 | |||||
Stainless 304/316/316L | 1/16" | 1.5" X 1.5 " | 480 | |||||
Stainless 304/316/316L | 1/16" | 1" X 1 " | 480 | |||||
Stainless 304/316/316L | 3/64" | 1" X 1" | 270 | |||||
Monkey Enclosure Mesh | ||||||||
Material | Wire Cable Dia | Mesh Open Size | Norninal Break(lbs) | |||||
Stainless 304/316/316L | 3/32" | 3" X 3 " | 920 | |||||
Stainless 304/316/316L | 3/32" | 2" X 2 " | 920 | |||||
Stainless 304/316/316L | 5/64" | 2" X 2 " | 676 | |||||
Stainless 304/316/316L | 1/16" | 1.5" X 1.5" | 480 | |||||
Tigers Enclosure Mesh | ||||||
Material | Wire Cable Dia | Mesh Open Size | Norninal Break(lbs) | |||
Stainless 304/316/316L | 1/8" | 4" X 4 " | 1600 | |||
Stainless 304/316/316L | 1/8" | 3" X 3 " | 1600 | |||
Stainless 304/316/316L | 3/32" | 3" X 3 " | 920 | |||
Stainless 304/316/316L | 3/32" | 2" X 2" | 920 | |||
Different Edges
Installation Instructions
Applications
Packing & Delivery
Packaging Details
Plastic paper inside wooden box outside
Delivery Time
Within 8-15 days after we receive the deposit
Plastic paper inside wooden box outside
Delivery Time
Within 8-15 days after we receive the deposit
Company Profile
Anping County Chant Wire mesh Manufacturing Co., Ltd. is located in the world's largest wire mesh production base, with China's "home of wire mesh" reputation in Anping County, Hebei Province, the geographical position is superior. Chant is an integrated company integrating R&D, design, manufacturing and sales.
The company has advanced weaving machinery and equipment, strong technical force, automatic molding production line. The implementation of standardized production, from the procurement of raw materials, production management, product testing and other key aspects of strict control, to ensure the quality of products, won the trust of customers.
The company has advanced weaving machinery and equipment, strong technical force, automatic molding production line. The implementation of standardized production, from the procurement of raw materials, production management, product testing and other key aspects of strict control, to ensure the quality of products, won the trust of customers.
FAQ
1.Q:Where is your factory and which port do you export?
A: Our factories most located in Anping County, Hebei Province. The nearest Port is Xingang Port(Tianjin)
2.Q:What’s your MOQ?
A:Commonly our MOQ is around 10sets, But different for some goods, pls contact us for details.
3.Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or Irrevocable L/C at sight
4.Q:If the quality not meet my request, what can I do?
A: Pls send us your pictures for the problem goods with quantity, we can replace the goods for you for free.
5.Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample
cost will be refunded after you place the order.
6.Q. Do you test all your goods before delivery?
A: Yes, we would the goods test before delivery.
7. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
A: Our factories most located in Anping County, Hebei Province. The nearest Port is Xingang Port(Tianjin)
2.Q:What’s your MOQ?
A:Commonly our MOQ is around 10sets, But different for some goods, pls contact us for details.
3.Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or Irrevocable L/C at sight
4.Q:If the quality not meet my request, what can I do?
A: Pls send us your pictures for the problem goods with quantity, we can replace the goods for you for free.
5.Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample
cost will be refunded after you place the order.
6.Q. Do you test all your goods before delivery?
A: Yes, we would the goods test before delivery.
7. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
