Intelligent PDLC Film Self Adhesive Switchable Smart Film for Retrofit Applications on Windows Doors
- Category: >>>
- Supplier: Dongguan Hongdianzi Technology Co. Ltd.Dongguan Ltd.
Share on (1601301583908):
Product Overview
Description
Product Paramenters
item | mode | spec | ||
Optical | Visible light transmittance | ON | >80% | |
OFF | >55% | |||
Parallel light ransmittance | ON | >68 | ||
OFF | <1% | |||
Haze | ON | <7% | ||
OFF | >95% | |||
Visual Angle | ON | 150° | ||
uV Blocking rate | ON/OFF | ≥98% | ||
Electrical | Operating Voltage | ON | 40V/48V/65V AC | |
Saturation Voltage | ON | <32V | ||
Response Time | OFF-ON | <200ms | ||
ON-OFF | <10ms | |||
Power dissipation | ON | <5w/M2 | ||
Working Condition | Working Temperatur | 0°C~55°℃ | ||
eStoring Temperatur | -40°c~9oc | |||
Life Span | ON | >10 years | ||
Switching Life | >200m time s | |||
Description
PDLC Smart Film is composed of two transparent films and Liquid crystal polymer mixture.The smart film is opaque without AC power.
The liquid crystal molecules are in order when turning on the AC power, and the film changes from OFF to ON.The smart dilm can be
switched rapidly between the condition of ON and OFF
The liquid crystal molecules are in order when turning on the AC power, and the film changes from OFF to ON.The smart dilm can be
switched rapidly between the condition of ON and OFF
Products Description
Company Profile
ENTERPRISE CERTIFICATE

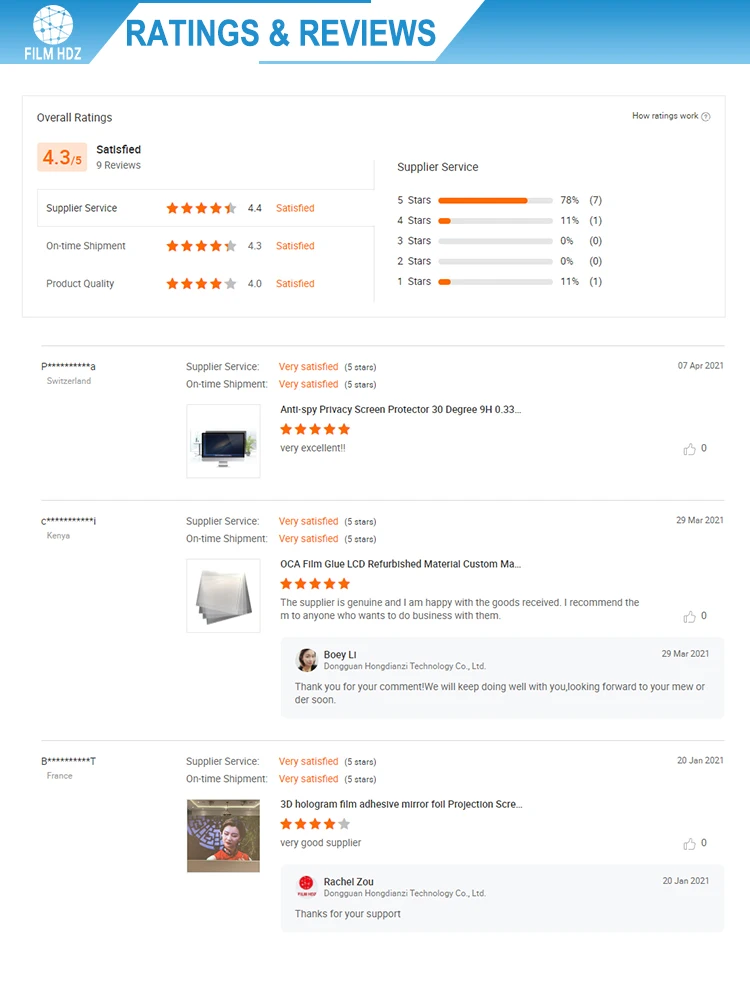

RATINGS & REVIEWS
