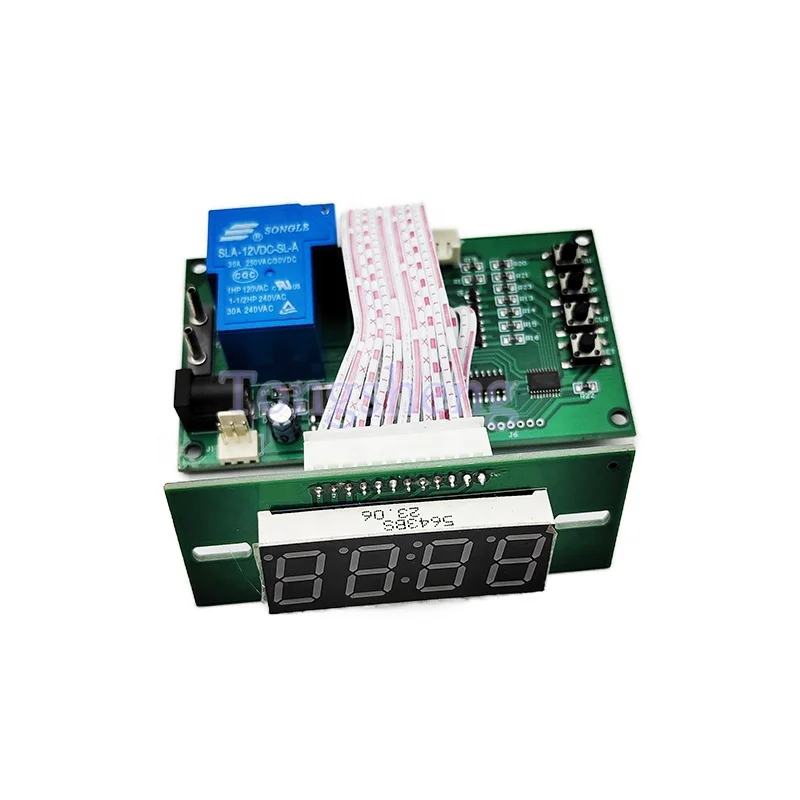

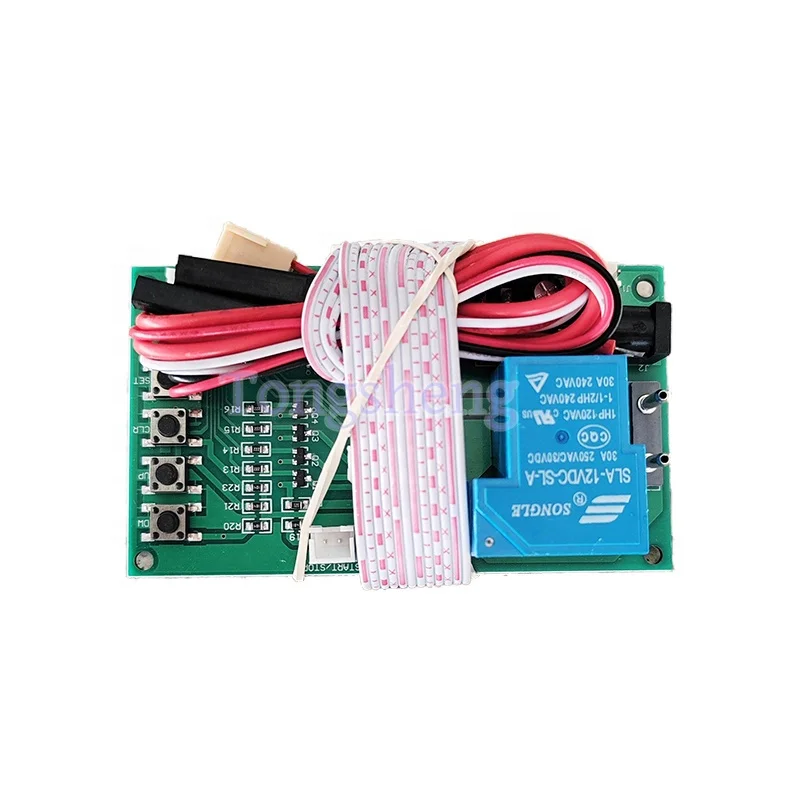

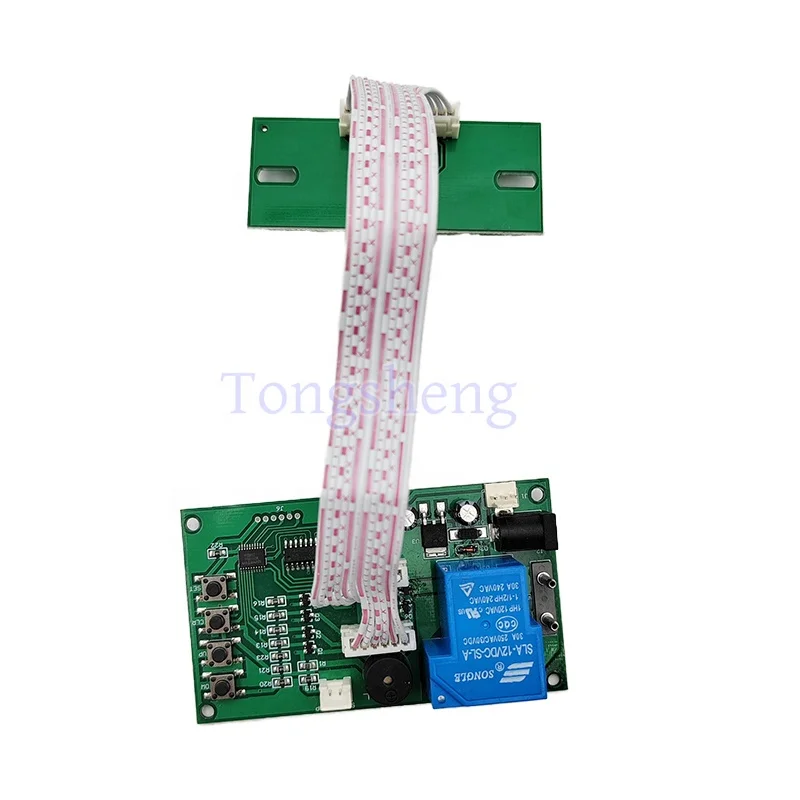

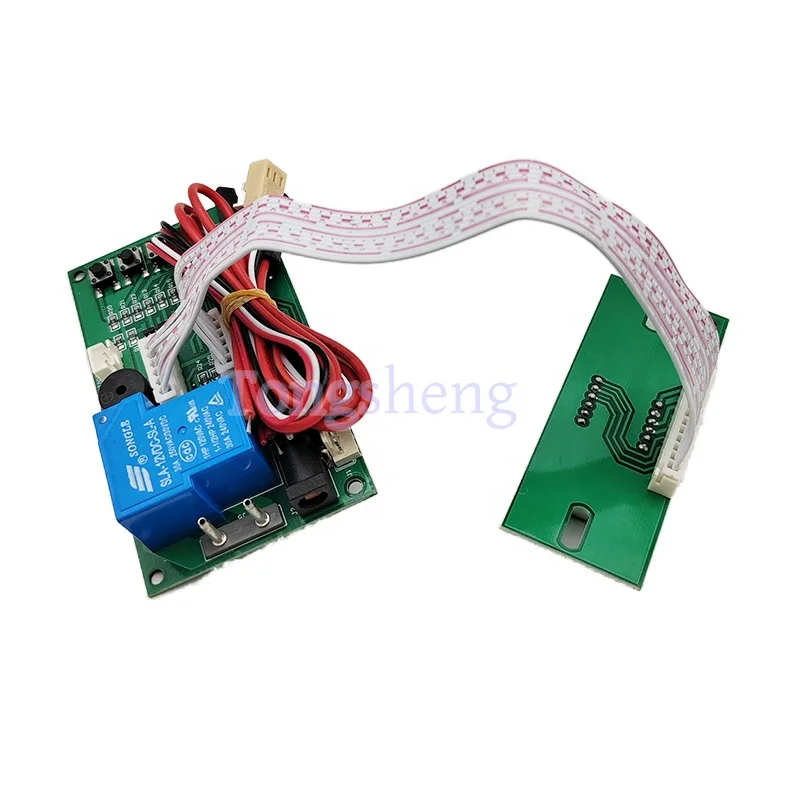

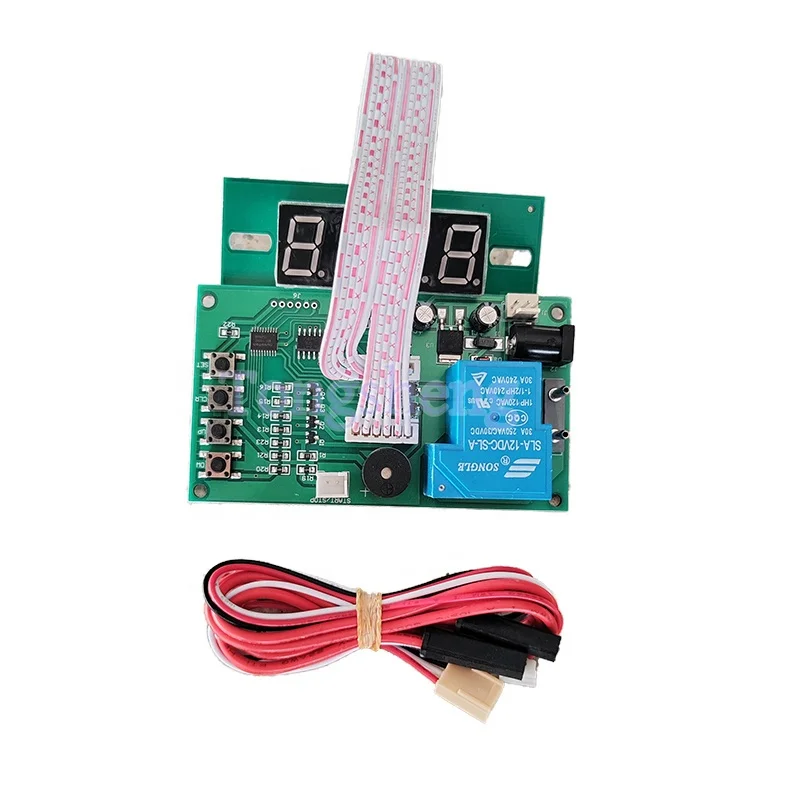

For coin acceptor selector JY 15B 40cm white lead Coin operated Time Control Timer Board JY 15A Arcade Game Machine Timer Board
For coin acceptor selector JY-15B 40cm white lead Coin operated Time Control Timer Board JY-15A Arcade Game Machine Timer Board
For coin acceptor selector JY-15B 40cm white lead Coin operated Time Control Timer Board JY-15A Arcade Game Machine Timer Board
For coin acceptor selector JY-15B 40cm white lead Coin operated Time Control Timer Board JY-15A Arcade Game Machine Timer Board
For coin acceptor selector JY-15B 40cm white lead Coin operated Time Control Timer Board JY-15A Arcade Game Machine Timer Board
For coin acceptor selector JY-15B 40cm white lead Coin operated Time Control Timer Board JY-15A Arcade Game Machine Timer Board
For coin acceptor selector JY-15B 40cm white lead Coin operated Time Control Timer Board JY-15A Arcade Game Machine Timer Board

For coin acceptor selector JY 15B 40cm white lead Coin operated Time Control Timer Board JY 15A Arcade Game Machine Timer Board

Share on (1601301591017):


Price:

Quantity:


Product Overview

Description



For coin acceptor selector JY-15B 40cm white lead Coin operated Time Control Timer Board JY-15A Arcade Game Machine Timer Board




Input Voltage
DC+12V
Standby
Display shows:00:00, rely: Normal Open (NO)
Max current load
15A/15B
Accumulated time
Yes, add time if receive signals again when time is running


Description

Input VoltageDC+12VStandbyDisplay shows:00:00, reply: Normal Open (NO)Accumulated timeYes, add time if receive signals again when
time is runningMax current load15AHow it worksMode 1Time runs down after receive signals-> Display shows remaining time and supply
power to device-> it cuts off power after time runs outMode 2
(Connect a button)Display shows remaining time after receive signals-> push button start-> time runs down and supply power to
device-> it cuts off power after time runs outPause
(connect a button)Push button pause: it cuts off power when pause, display shows remaining time. Re-supply power after push button
pause againOperating ModePlease reference to page 2

Please follow CODE ON DISPLAY and use button "S1" and "S2" to set up number
* INPUT SIGNAL QUANTITY AND TIME

1. Please press button "S4". “B” flashes. Please set up INPUT SIGNAL QUANTITY to active device (01-50).
2. Please press button "S4", “A” flashes. Please set up TIME (01-99).
3. Please press button "S4", “B” flashes. Please set up TIME (01-99).
4. Please press button “S4” 4 TIMES.
5. Please set up TIME for Warning Sound.
6. Please press button "S4" to finish.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PAGE-2
* GIVEN TIME: Add time by free if input signals reach SETTING RATE during time is running.
Example Setting: input signal to active device: 01, input signals for given time: 03 give time: 02:10
Add time “02:10” free if receive “3 signals” during time is running.

1. Please press button "S4" 4 TIMES. “B” flashes. Please set up RATE OF INPUT SIGNAL QUANTITY.
2. Please press button "S4", “A” flashes. Please set up GIVEN TIME.
3. Please press button "S4", “B” flashes. Please set up GIVEN TIME.
4. Please press button "S4" to finish.

* Mode Setting

Please follow table to set up operating function:
1. Please hold on button "S1" and "S2" simultaneously for 3 seconds to get into MODE SETTING.
2. Please use button "S1" and button "S2" to set up number for CODE
3. Please press button "S4" to switch to next code

Default: 01-03: Bold and base line. 04: not use the function.


Products Description
















Q1:Can you print my logo, letter & picture on the product?
A1:Yes. We offer customized services(ODM&OEM).
Q2.what can you buy from us?
A2:Doll machine/coin exchanger machine/MiNi Claw machine/Gashapon machine/Vending machine/Kids Game Machines/Arcade game machine
accerroies ect...
Q3:How long is the delivery time?
A3:Base on the quantity you need. Usually within 5-30 days.
Q4:What's your packing way?
A4:Bubble film+Stretch film+ Wooden case.Custom package is available.
Q5:What is the warranty from your factory?
A5:Our products are with 12 months warranty since the delivery day,and life time spare parts & technical support.
