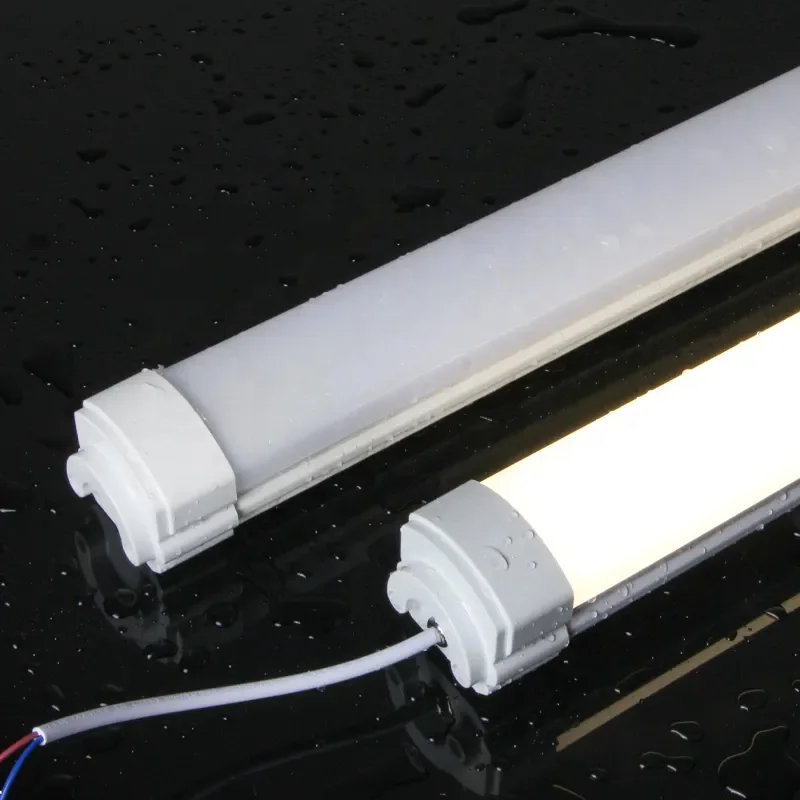

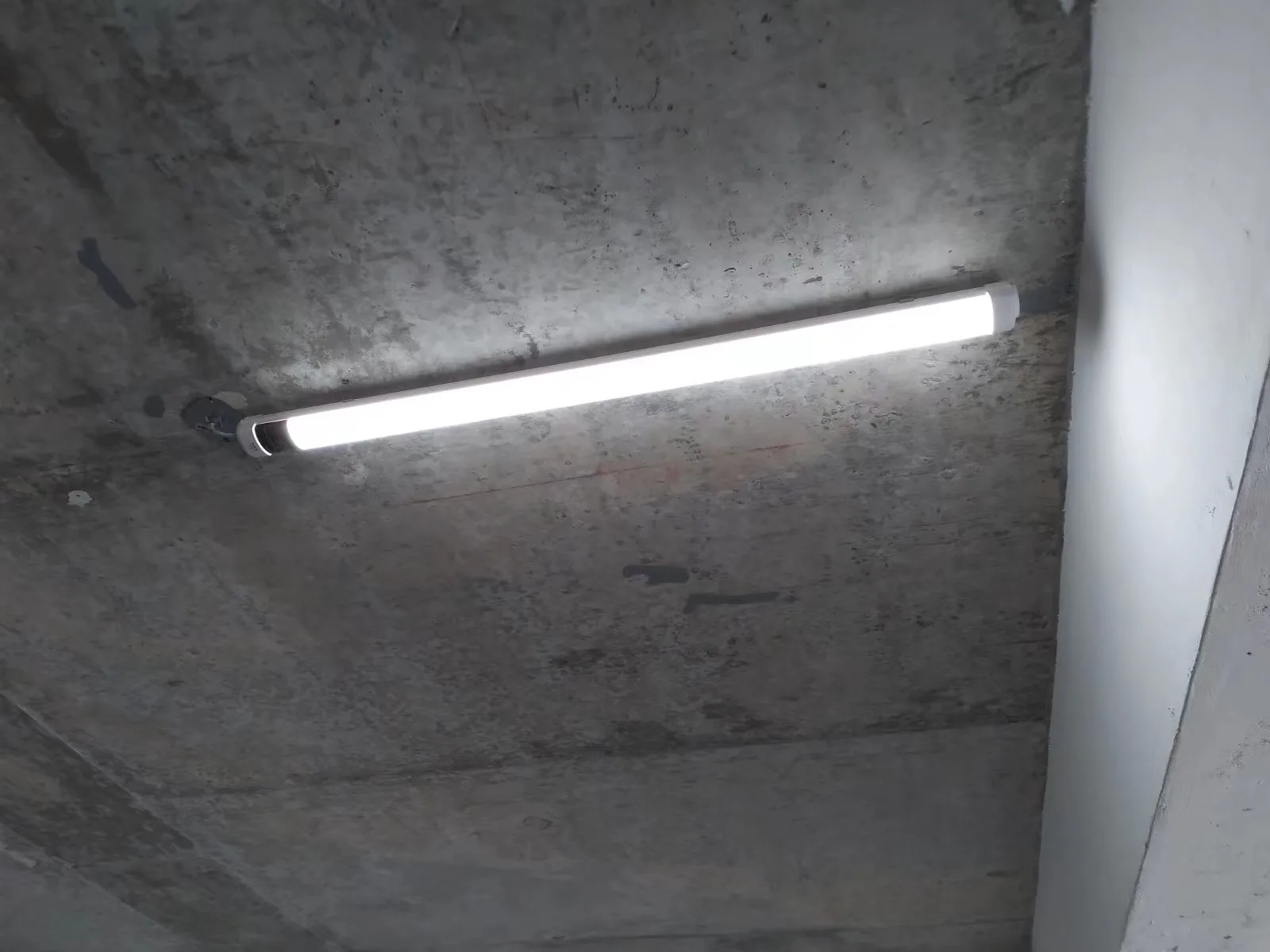

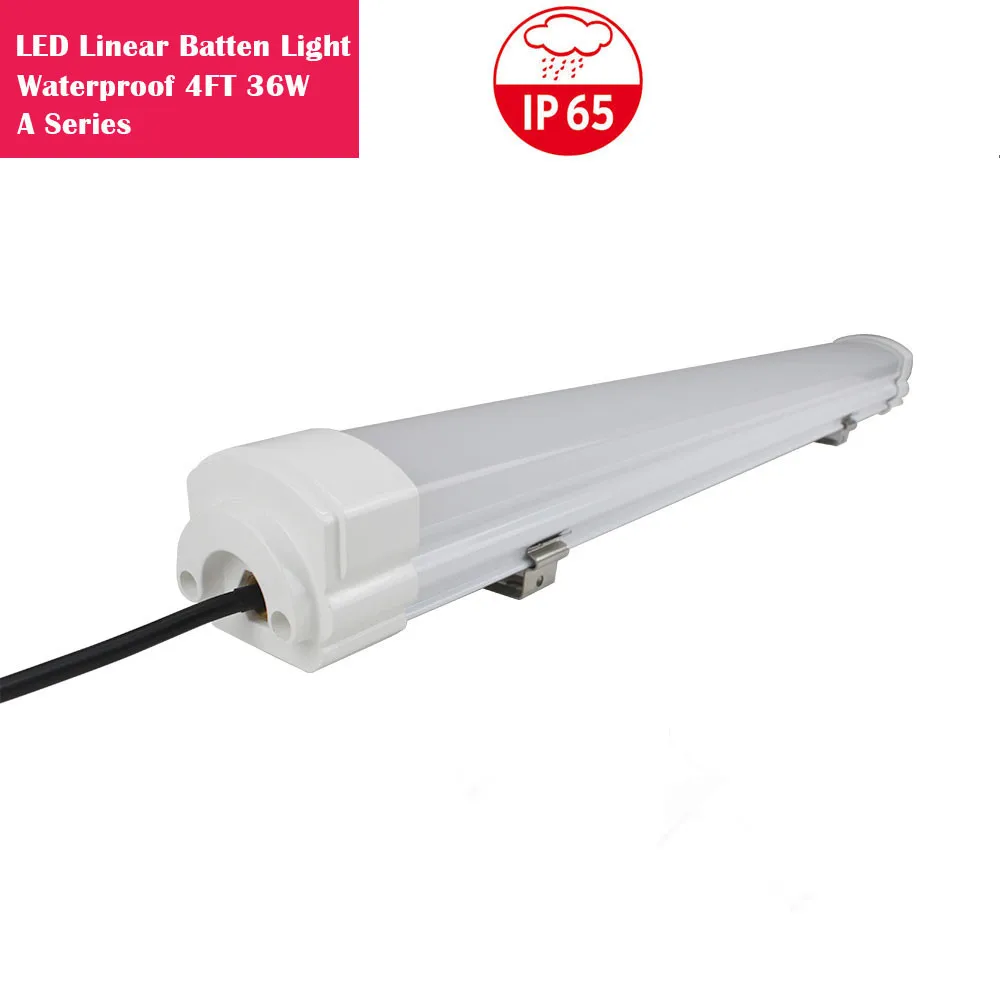

The Smart Motion Sensor 3-Steps LED Tri-Proof Linear Fitting is designed to provide energy-efficient and intelligent lighting solutions for parking lots and garages. This IP65-rated fixture is waterproof, dustproof, and resistant to impact, making it highly durable in demanding environments. Equipped with a built-in microwave motion sensor, it operates in three steps: ON, DIM, and OFF, ensuring optimal energy savings. The brightness decreases gradually when no motion is detected, and the light turns off completely after a preset time delay. With its sleek and robust design, this tri-proof light is ideal for enhancing safety and visibility in indoor parking facilities and garages.
Key Features:
Input Characteristics | |||
Model No. | AM-RD-60CK18 | AM-RD-120CK36 | AM-RD-150CK36 |

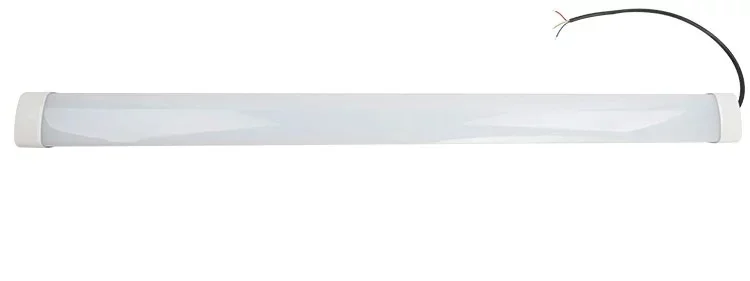

Type | LED Tri-proof Linear light fixture | ||
Mains voltage | 185-265V | 185-265V | 185-265V |

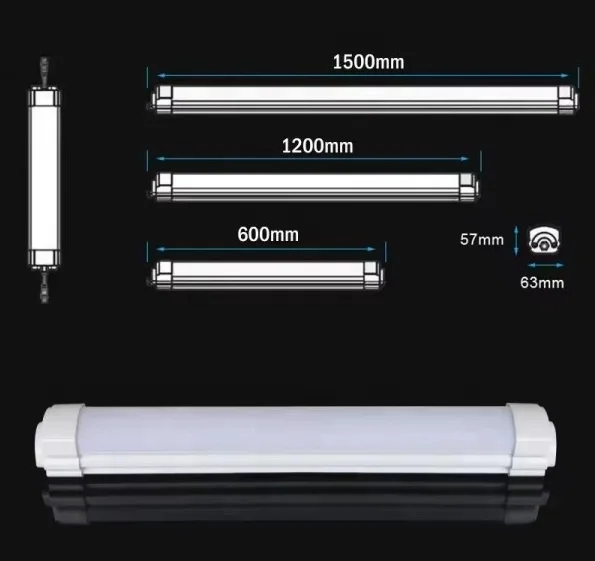

Size | 2ft/60cm | 4ft/120cm | 5ft/150cm |
Stand-by power | <0.5W | <0.5W | <1W |
Rated Power | 18W | 36W | 36W |
LED Qty | 96pcs*SMD2835 | 192pcs*SMD2835 | 192pcs*SMD2835 |
Output Lumen(Full) | >1800 LM | >3600 LM | >3600LM |
Color Temperature | 2700K/4000K/6000K | 2700K/4000K/6000K | 2700K/4000K/6000K |
Power Factor | >0.5 | >0.5 | >0.5 |
Lumen Efficiency | >100 lm/W | >100 lm/W | >100 lm/W |
CRI (Ra) | >80 | >80 | >80 |
Environment | |||
Operation Temperature(Ta) | -10~40°c | -10~40°c | |
IP Rating | IP65 | IP20 |
Installation instructions:
1. Operating Voltage: AC 100V~265V 50/60Hz.
2. The light is an innovative products integrated with HF motion detector, To avoid interference, pls make sure the installation distance between each products is at least 2 meters.
3. Operating mode: Full/Dim/Off. (100%-20%-off). no movement, light turn off. movement detected, light turns tofull power. if 20sec no motion, lightdeceased to 20%. after 1 minute, light turns off completely.
4. For stable performance, pls make sure to install the sensor lighting far away from continuous moving objects, such as fans,exhaust fan, and so on. as it will be retriggerd by moving objects.
Customer Questions & Answers
Sensor type : Full-Dim-Off (100%~20%-0%)
When detect movement lighting, Light turn on at 100% Brightness,
No movement, stand by status lighting decease to 20% (6-8 watt)
Still No movement detected, Light turns off completely.
Delay time: 20 seconds (Full-Dim), 60 seconds (Dim-Off)
Quality control:

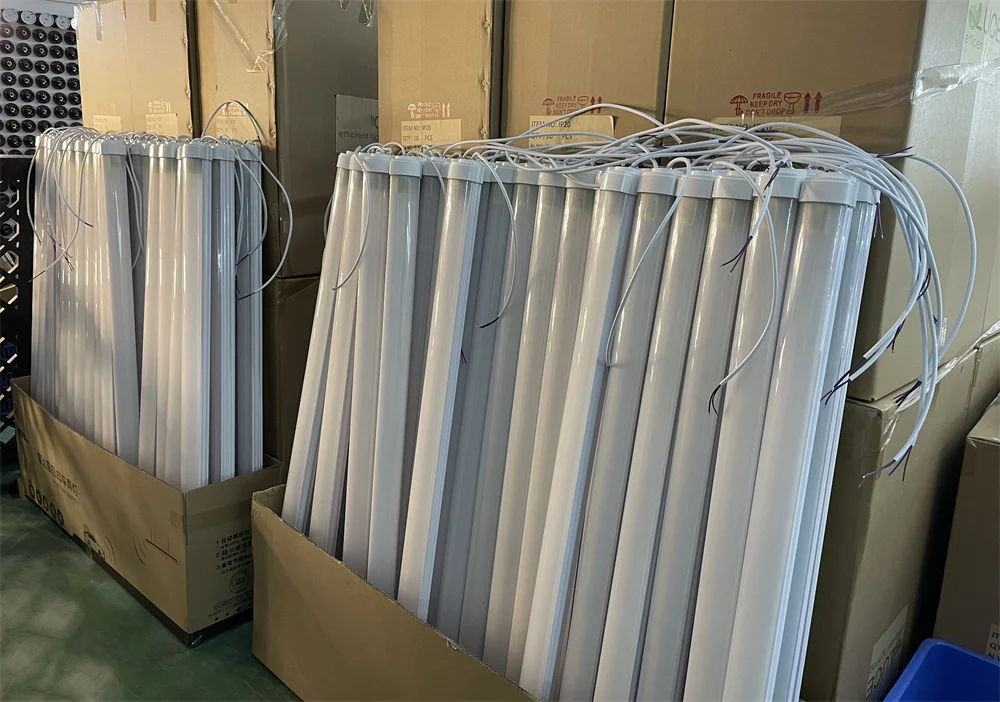

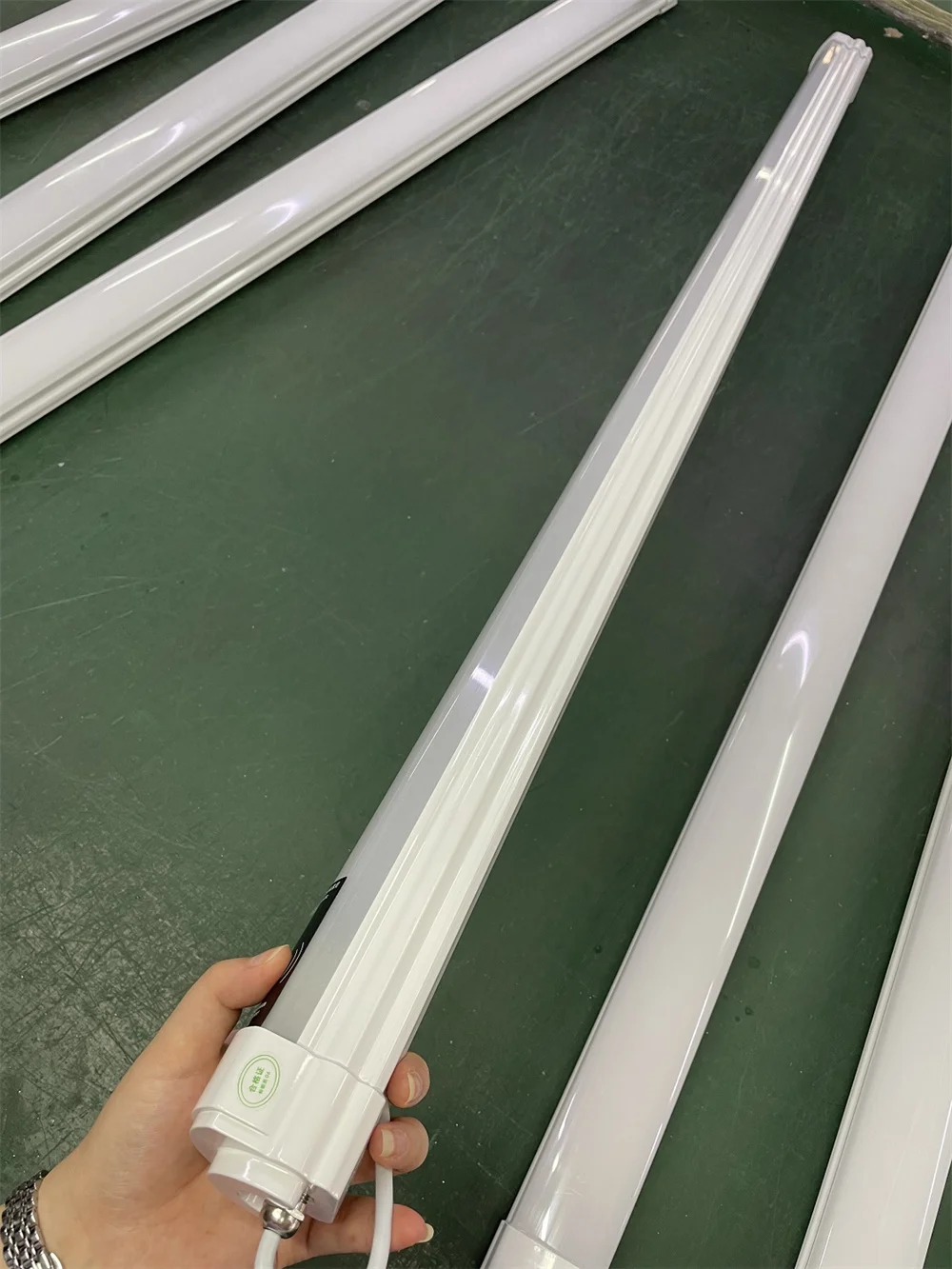

We have three sensor anti-interference test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
Warranty : 2 years

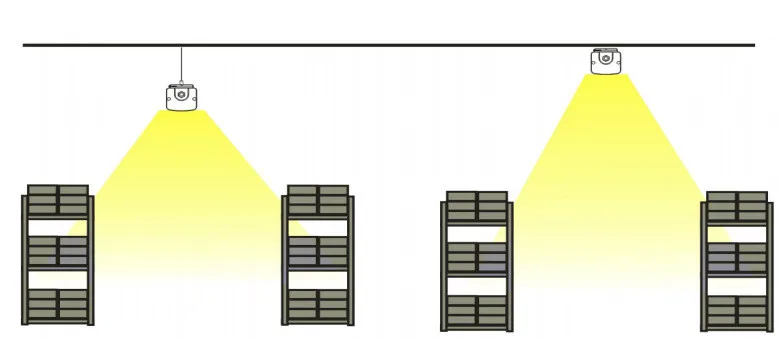

Application:
Ideal for domestic applications such as Corridor, cabinets, hallway, Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
