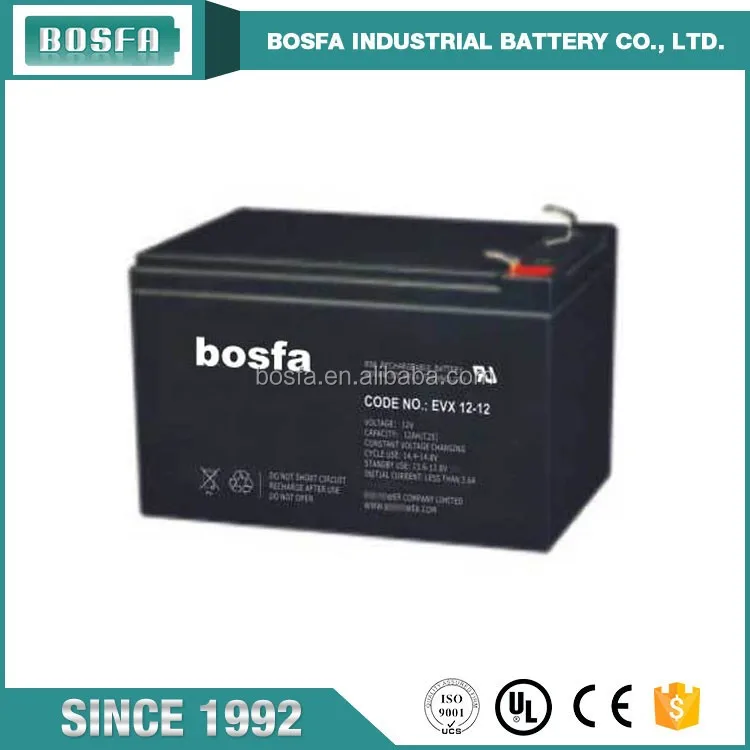

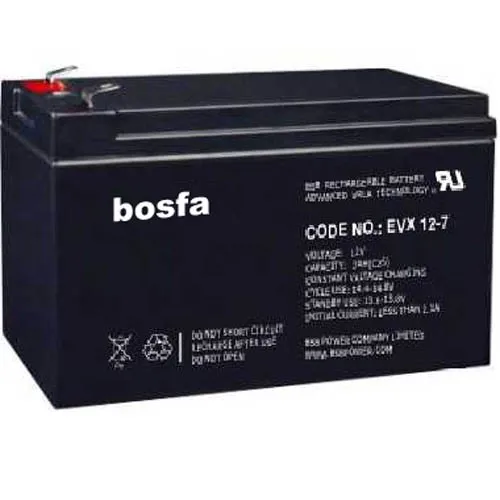

12 v 10 ah 15 ah 6-dzm-10 EVX electric Vehicle bicycle UPS storage lead acid battery




Product Description




EVX (Electric Vehicle) series batteries
Bosfa EVX Electric Vehicle battery are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle (deep cycles). The Bosfa EVX batteries uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications.


Application:
Electric Powered Toys
Control System
Electric Powered Vehicles
Vacuum Cleaners
Golf Cars and Buggies
Medical Equipments
Wheel Chairs
UPS
Power Tools
Pvs
General Features:
Sealed and maintenance free operation.
Non-Spillable construction design.
ABS containers and covers(UL94HB, UL94V-0) optional.
Safety valve installation for explosion proof.
High quality and high reliability.
Exceptional deep discharge recovery performance.
Low self discharge characteristic.
Flexibility design for multiple install positions.

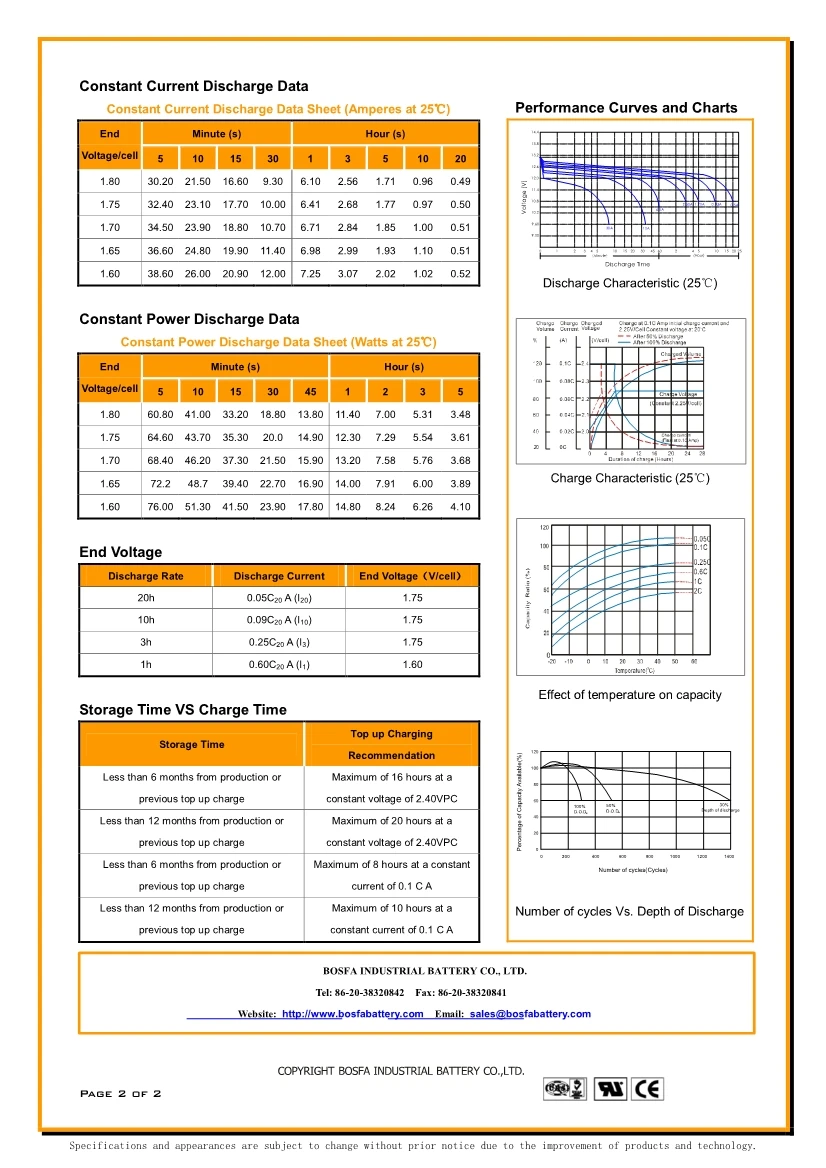

Specification


Model
EVX12-10
Nominal Capacity (20℃)
10Ah (20HR)-rate (to 1.75V)
Dimension
L151xW98xH101mm
Weight
3.1kg
Designed Floating Life
5 Years
Terminal Type
Fasten Tab F2
Internal Resistance
fully charged at 25℃:0.02Ohm
Self Discharge
3% of capacity declined per month at 25℃

Charge Voltage (25℃)
14.4-15V(-30mV/℃), Max. Current: 3A, for Cycle use
13.6-13.8V(-20mV/℃), for Float use

Capacity Affected by Temp. (20HR)
40℃——102%
25℃——100%
0℃——85%
-15℃——65%






Why Choose Us




Company Profie

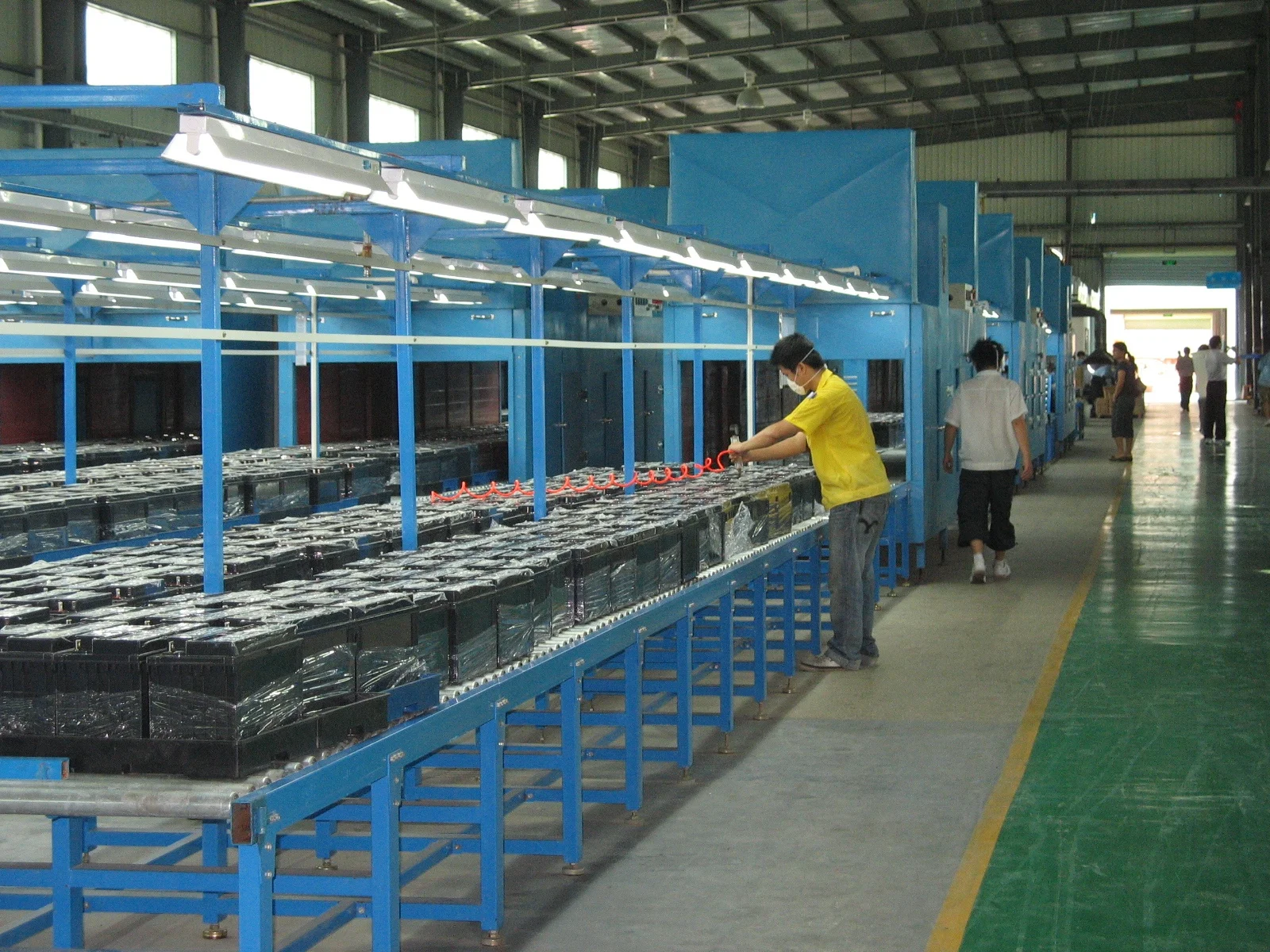

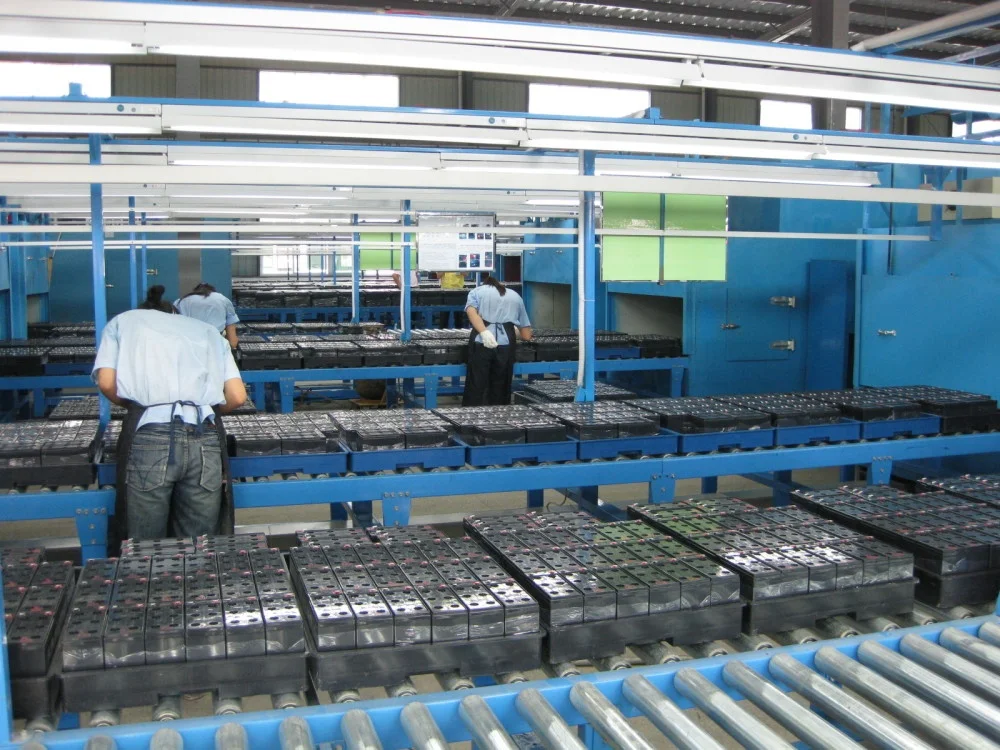

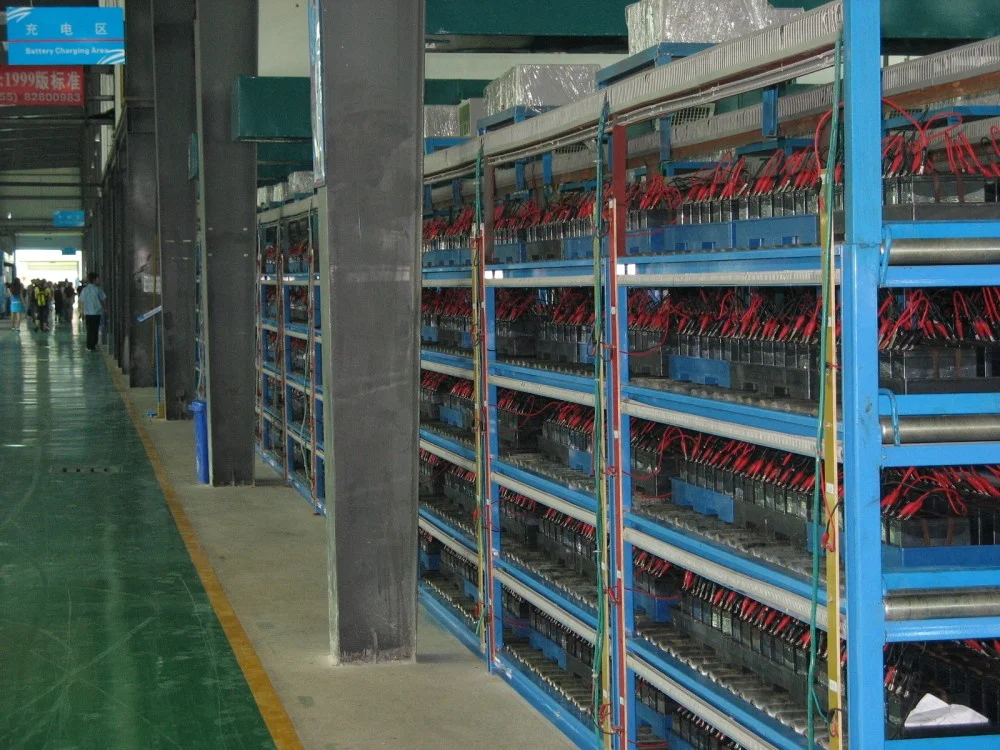

Production Process & Packing




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


Q1.What is your delivery time(lead time)?
A: Usually our lead time is 15-20days. It can be shorter if your request is stock products. It depends on the specific model and quantity of your order.

Q2: What is your payment term?
A: We prefer the payment term by T/T, 30% deposit and 70% balance before shipping. Other payment terms can be negotiated according to your order.

Q3: What will be the packing way?
A: The packing will be seaworthy packaging: paper carton + wooden pallet or wooden box.

Q4: Can i have the products with my own brand and logo?
A: Yes, we can offer OEM service.

Q5. How will you ship the goods if i buy from you?
A: For bulk orders, we will arrange the shipment by sea. If you need them urgent, we will try air freight.
