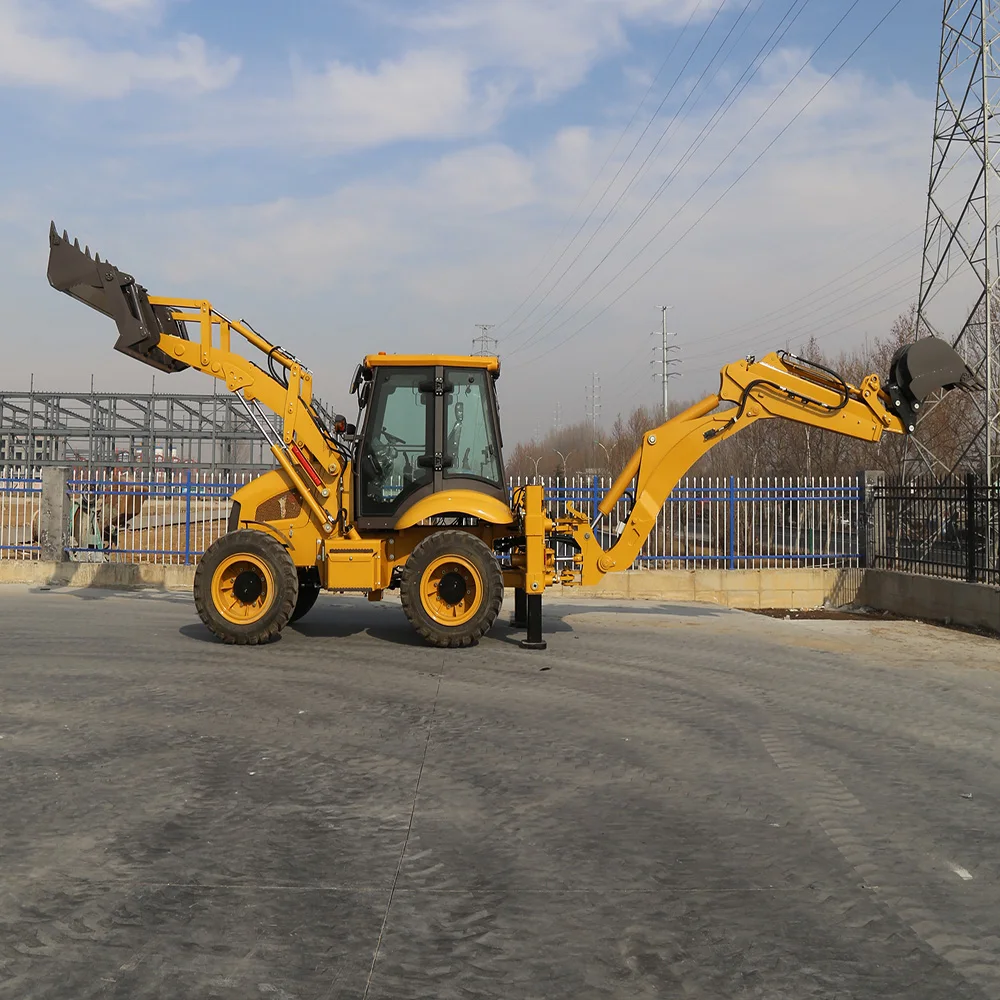

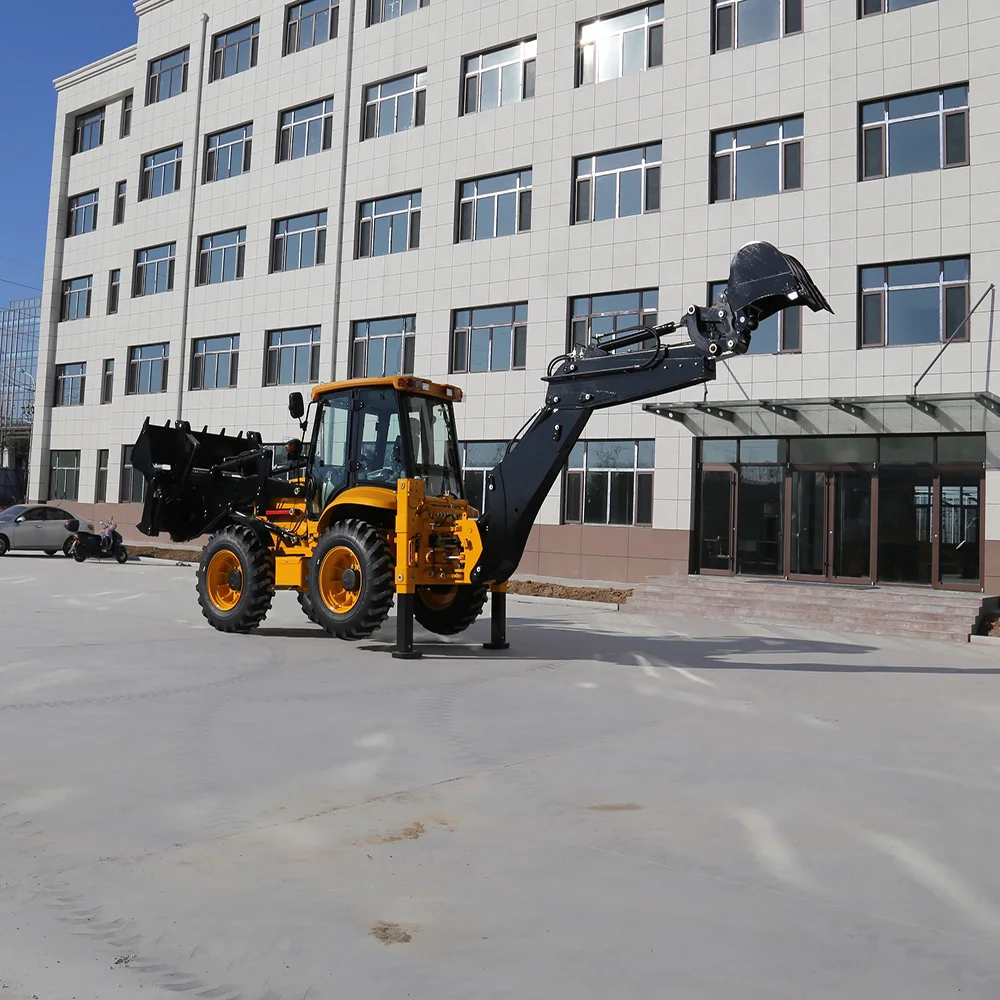

Chinese Small Wheel Mini Tractor Excavator Digger Backhoe Loader Front End Loader Brand New Compact Backhoe for sale
- Category: >>>
- Supplier: Weifang Jinxu Heavy Machinery Co. Ltd.Weifang Ltd.
Share on (1601302390205):
Product Overview
Description
model | 388T | 388H |
整车操作质量Operatingweight | 8600KG | 10800KG |
整机外形尺寸Overall dimension(L×W×H) | 6050×2484×3453mm | 6554×2543×3660mm |
轴距Wheel base | 2280mm | 2293±10mm |
轮距Wheel tread | 1785mm | 2050±10mm |
最小离地间隙Ground clearance | 300mm | 478mm |
装载斗容Loadbucket capacity | 1.0m³ | 1.2m |
装载举升能力Load lifting capacity | 2500KG | 2500KG |
铲斗卸载高度Bucketunloading height | 2807mm | 3153 |
铲斗卸载距离Bucket unloading distance | 801mm | 989±20 mm |
铲挖深度Digging depth | 30mm | 30mm |
反铲斗容Backhoebucket capacity | 0.3m³ | 0.3m³ |
挖斗挖掘力Backhoe digging force | 49.8KN | 49.8KN |
挖掘回转角Backhoe swing angle | 180° | 180° |
挖斗卸载高度Bucket unloading height | 4084/4720mm | 4285/4293mm |
最大挖掘深度Max.Digging depth | 4303/5246mm | 4102/5045mm |
最大牵引力Max.Traction force | 76KN | 86KN |
ENGINE Model | WeichaiWP4G95E221 | YuchaiYC4A105Z-T20/YC4A110Z-T23 |
额定功率Rated power | 70KW | 75KW/81KW |
排量Displacement | 4.5L | 4.8L |
最小转弯半径Min.Turning radius | 6581mm | 6950mm |
型号Model | 26.22-1920/28.43M-1654 | 26.32-1900\\26.43M-1900 |
变速箱Gearbox | 定轴式动力换挡Countershaft Powershif | 液力同步换档Hydraulic Synchronized Gearshift |
tyre | 14-17.5/19.5L-24 | 16.9-28 |
