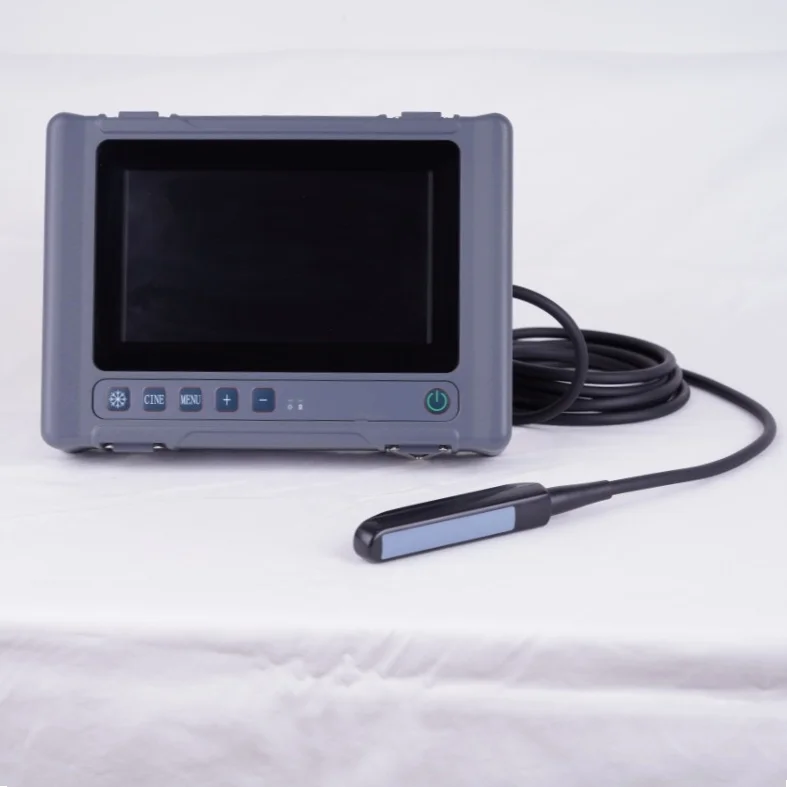

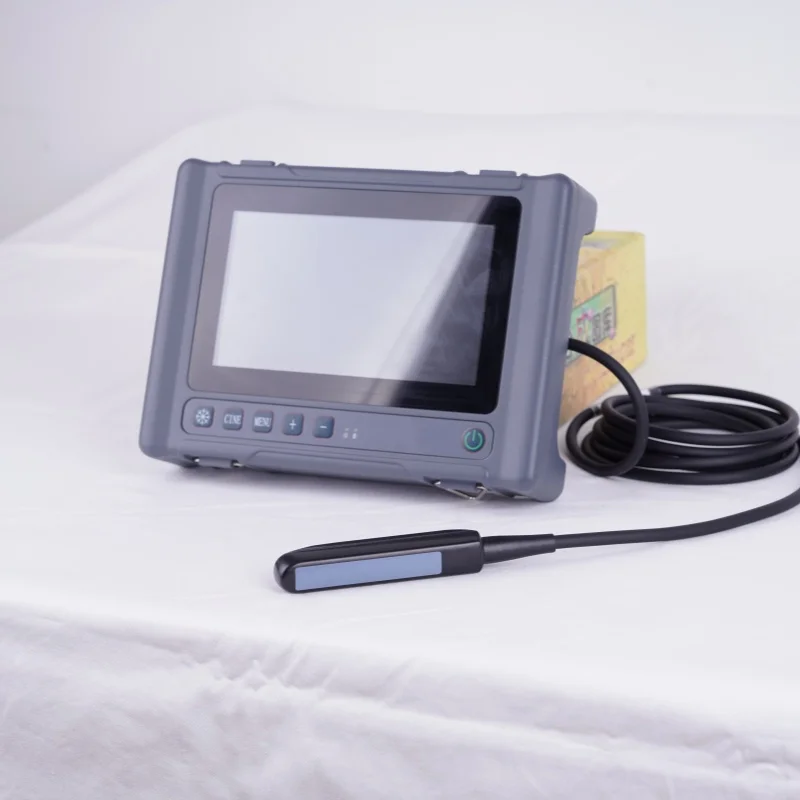

ultrasound scanner ecografo Portable Machine veterinary ultrasound for animals dog/cat/sheep/pig/cow/horse/bovine/equine

Product Overview

Description

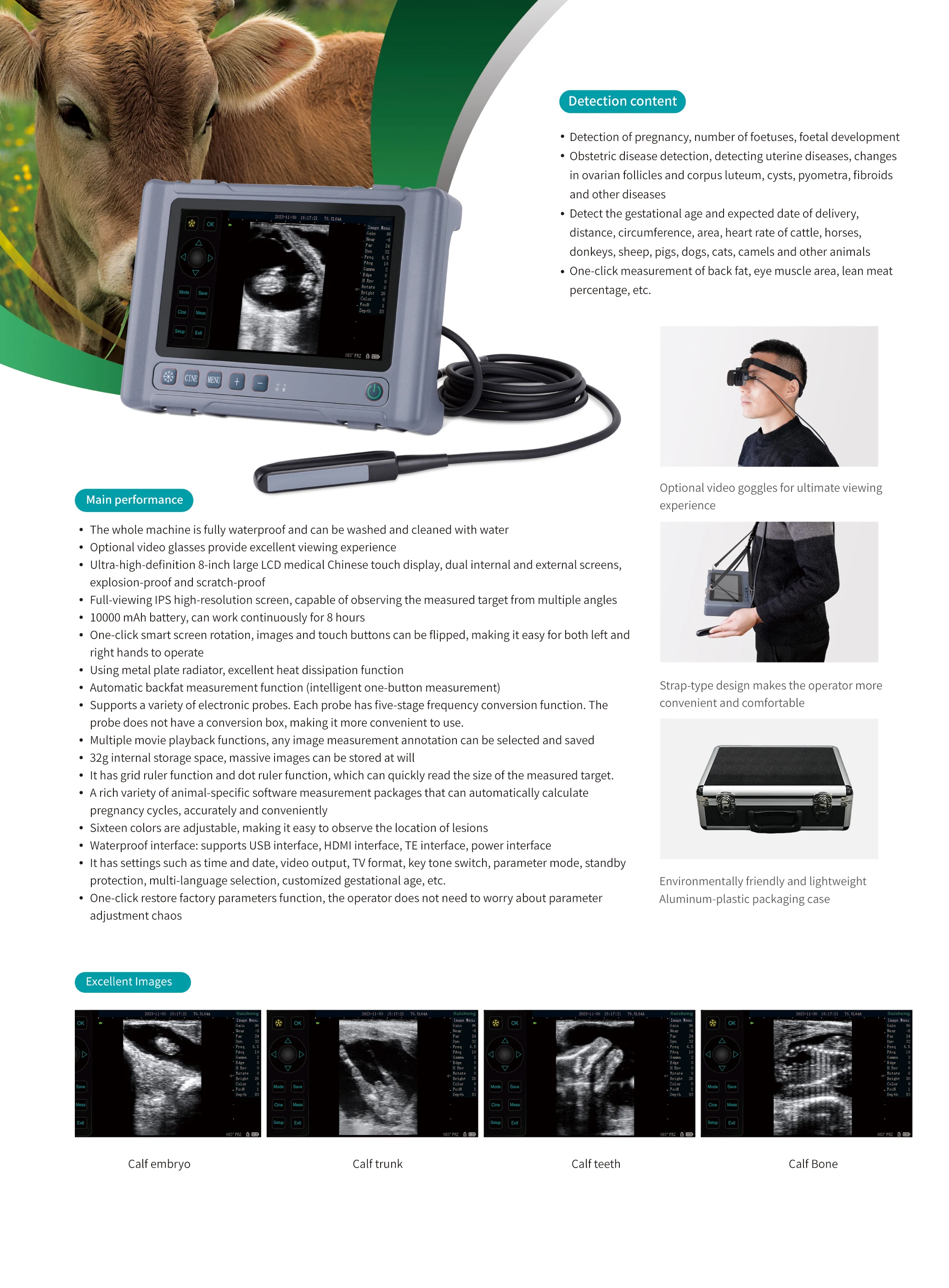

T1 full digital ultrasound diagnostic instrument functional parameters

1. Product parameters:

1, the whole machine is waterproof, dustproof, can be directly washed with water, easy to disinfect and clean;

2, full Chinese touch keys, easy to operate and easy to get started;

3, internal and external dual screen, explosion-proof and scratch-proof;

4, display: ultra-high definition 8-inch large LCD medical display 800 * 480 resolution, wide viewing angle, 120 ° can be observed normally, high brightness screen, outdoor can be viewed normally;

4, the entire screen contains touch buttons can be flipped, convenient for left and right hand operation;

5, support probe: support probe: 3.5MHz abdominal convex array probe, 6.5MHz micro-convex small animal probe, 6.5MHz line array large animal rectal probe, 4.0MHz convex array large animal rectal probe, 7.5MHz high-frequency line array probe, 3.5MHz backfat probe;

6, with automatic backfat function (intelligent one-key measurement), fast backfat function (mobile reading scale), manual measurement of backfat function;.

6, display mode: B, B + B, 4B, B + M, M.

7, Frequency conversion: any probe has five frequency conversion function.

8,Electronic focus: four-segment electronic focus;

9,Variable frequency: any probe has five-segment variable frequency function;

10, image mirroring: up and down, left and right rotating mirror, the interface can be black and white flip;

11, with image rotation function, the image can be up and down left and right flip;

12, position markers: ≥ 18 kinds; in addition to the annotation function, convenient text and body labeling;

13, routine measurements: distance, perimeter, area, volume, angle;

14, specialty measurements: 8 kinds of animal obstetrics measurements as well as heart measurements, lean body mass measurements;

15, with grid scale and point scale function, can quickly read the size of the detection target

16, character display: gain, frequency, dynamic, date, time;

17, with 256 frames of movie playback function, frame by frame playback and video playback, frame by frame playback can be selected from any image measurement notes saved and other functions;

18, storage: optional 32G memory card, external U disk storage, can natively browse the picture, can be built-in picture transfer to the U disk;

19, dynamic range: 0-135dB;

20, image processing: γ correction (0-7), frame-related (0-3), line-related (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo-color processing;

21,Blind Zone: ≤4

22, Maximum display depth: 3.5MHz: 270mm 6.5MHz: 189mm 7.5MHz: 165mm;

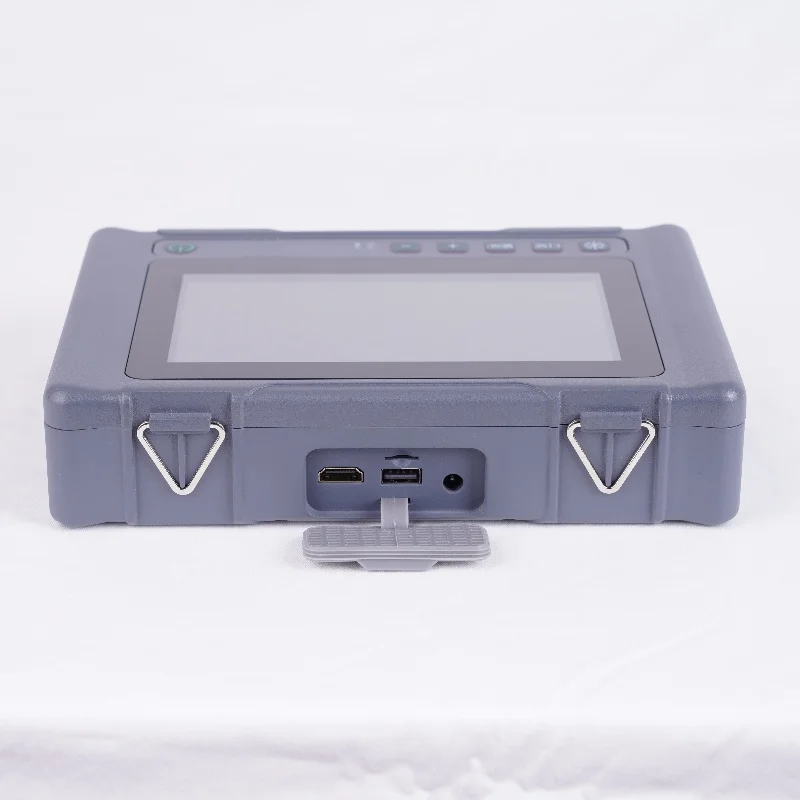

24, Interface: USB interface, HDMI HD interface, TF interface, power supply interface;

25, Geometric accuracy: horizontal ≤ 5%, vertical ≤ 5%

26, Resolution: lateral ≤ 2mm, axial ≤ 1mm

27, Display multiplier: 16 display modes;

28, gain range: 0 ~ 100dB;

29, near-field adjustment range: -31 ~ 0;

30, far field adjustment range: 0 ~ 31;

31, with time and date, video output, TV system, key tone switch, parameter mode, standby protection, multi-language selection, customized pregnancy week and other settings;

32, battery power indication, U disk indication, prompt message display;

33, built-in 10000 mAh battery, normal operation can be close to 10 hours;



Second, product features:

1. system setting function;

2. mode conversion function;

3. near field, far field, total gain, dynamic range adjustable function;

4. frequency conversion function;

5. frame correlation function

6. image post-processing function

7. image edge enhancement function;

8. color function;

9. brightness adjustment function;

10. depth adjustment function;

11. image freeze/unfreeze function;

12. image rotation function;

13. body marking function

14. distance, circumference, area, volume, heart rate, cycle measurement function;

15. backfat thickness, eye muscle thickness, lean muscle ratio measurement function;

16. automatic backfat measurement function

17. fast backfat measurement function;

18. rich obstetrics software package, including dozens of obstetrics tables for 8 animals, capable of automatically calculating gestational weeks and expected date of birth;

19. routine heart measurement function;

20. image U disk / TF card storage, browsing function;

21. single-point and multi-point combination focusing function;

22. energy-saving protection function

23. Text annotation function;

24 image movie playback function;

25. standard conversion function;

26 TV/VGA output function

27. grid setting function

28. one key to restore factory settings;

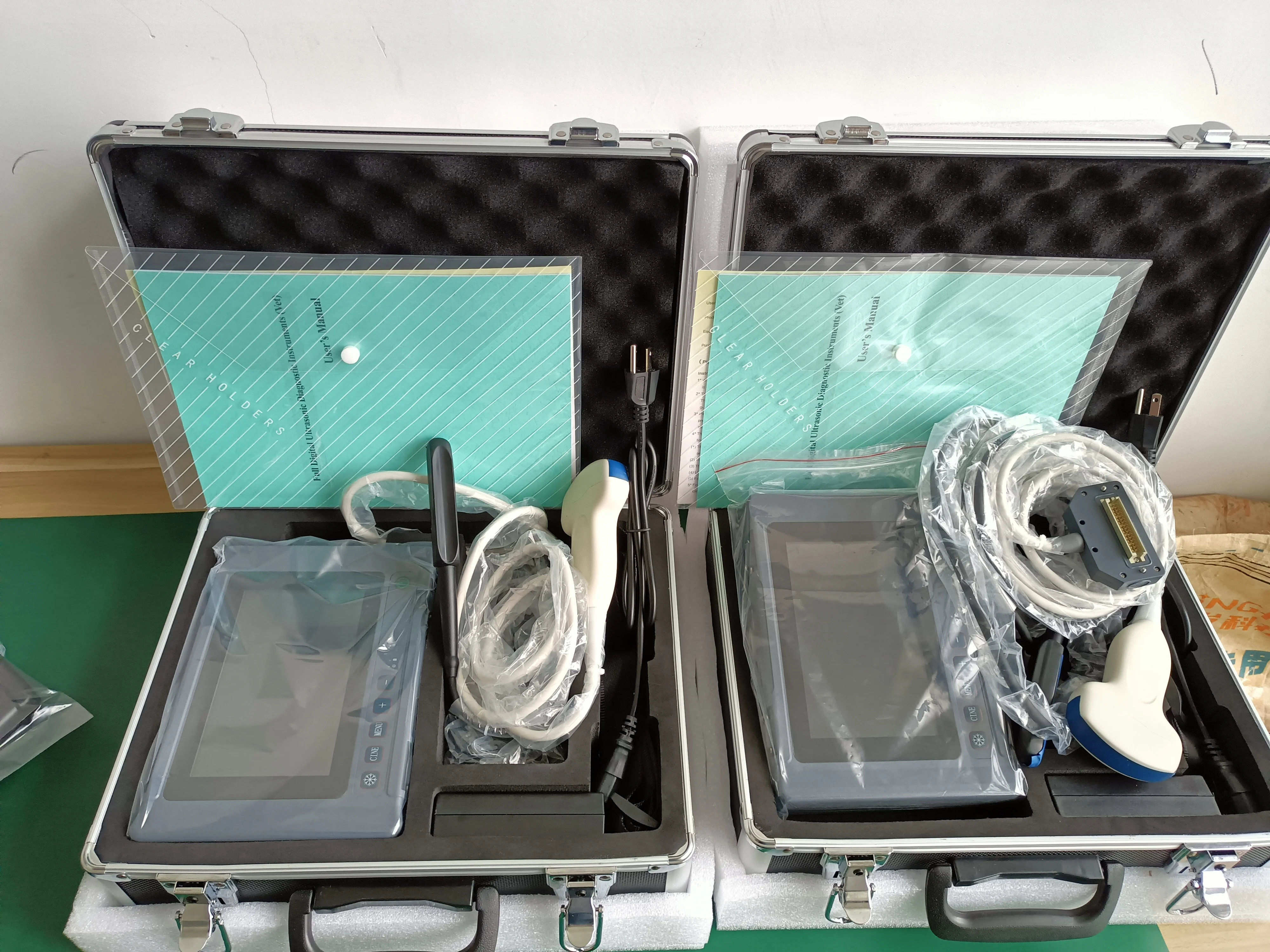

Standard Configurations.

One mainframe

One power adapter

One cross strap

One probe

Carrying case



 Optional Probes

 3.5MHz Large Convex Probe

 6.5MHZ Microconvex Small Animal Probe

 6.5MHz Large Animal Rectal Linear Probe

 4.0MHz Large Animal Rectal Convex Probe

 6.5MHz Rectal Line Array Probe for Sheep

 3.5MHz Linear Backfat Probe for Sheep

 3.5MHz Linear Backfat Probe for Sheep
