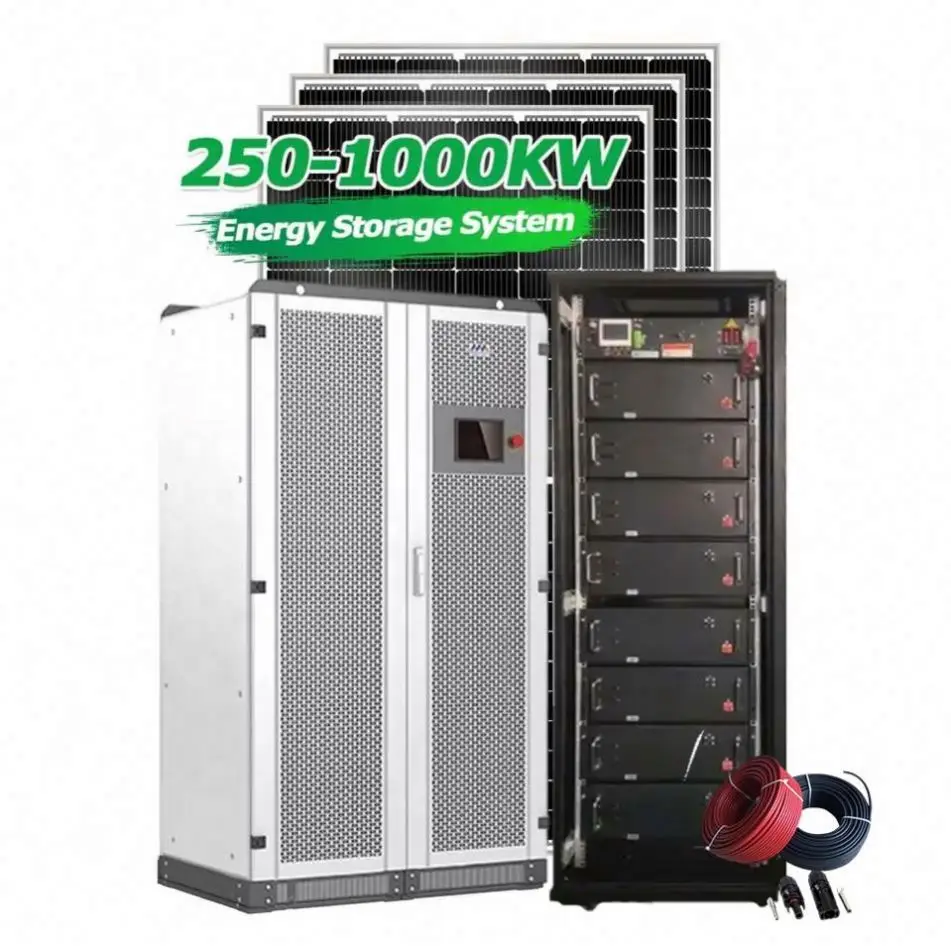

industrial & commercial energy storage battery energy power 76.8kw lithium battery 384v 200ah 76.8 kwh 76.8kwh OEM customize
- Category: >>>
- Supplier: Yichun Hertz Energy Storage Co. Ltd.Yichun Ltd.
Share on (1601304148732):
Product Overview
Description
Products Description

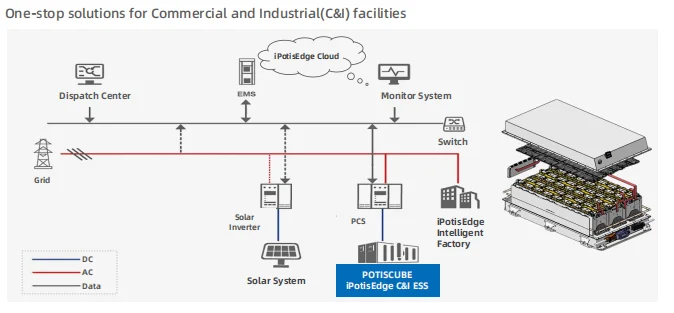

Commercial and Industrial Energy Storage
Schools, factories, gas stations and other commercial buildings with high energy demands can maximize energy use

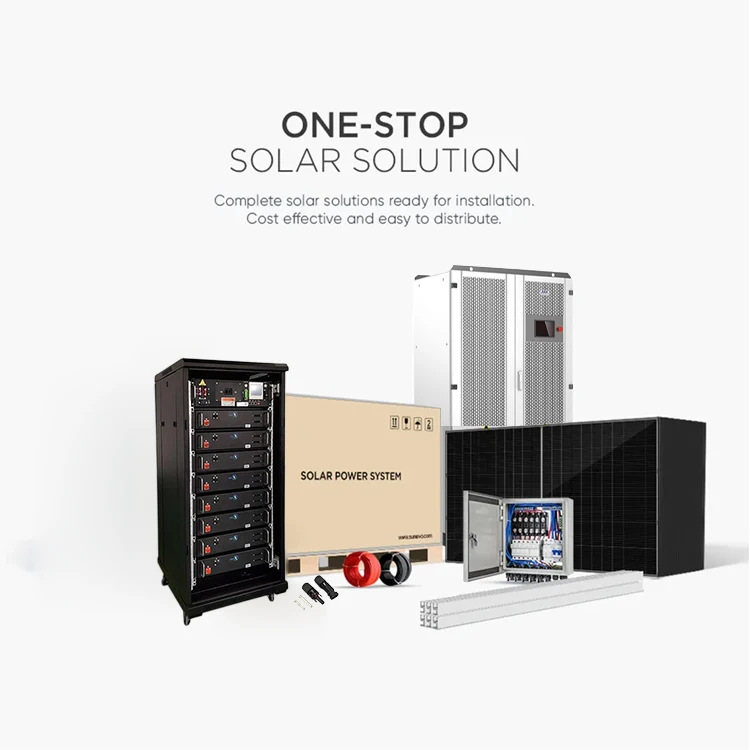

Energy independence and reduced grid power demand through solar PV and battery storage. iPotisEdge provides one-stop
Find solutions for commercial and industrial facilities to save on electricity bills, reduce the risk of rising energy prices, generate additional revenue from renewable energy and reduce their environmental impact.
Schools, factories, gas stations and other commercial buildings with high energy demands can maximize energy use
Energy independence and reduced grid power demand through solar PV and battery storage. iPotisEdge provides one-stop
Find solutions for commercial and industrial facilities to save on electricity bills, reduce the risk of rising energy prices, generate additional revenue from renewable energy and reduce their environmental impact.

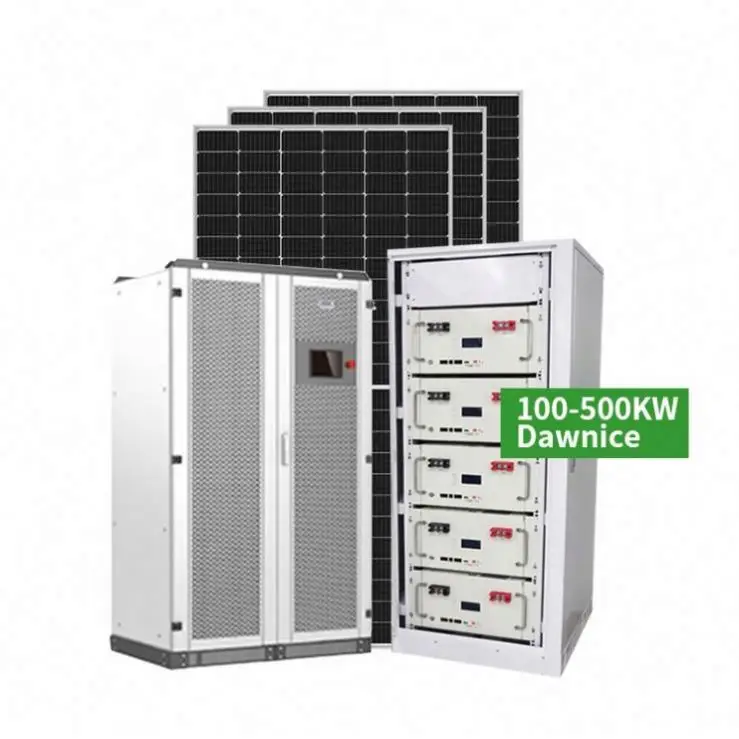

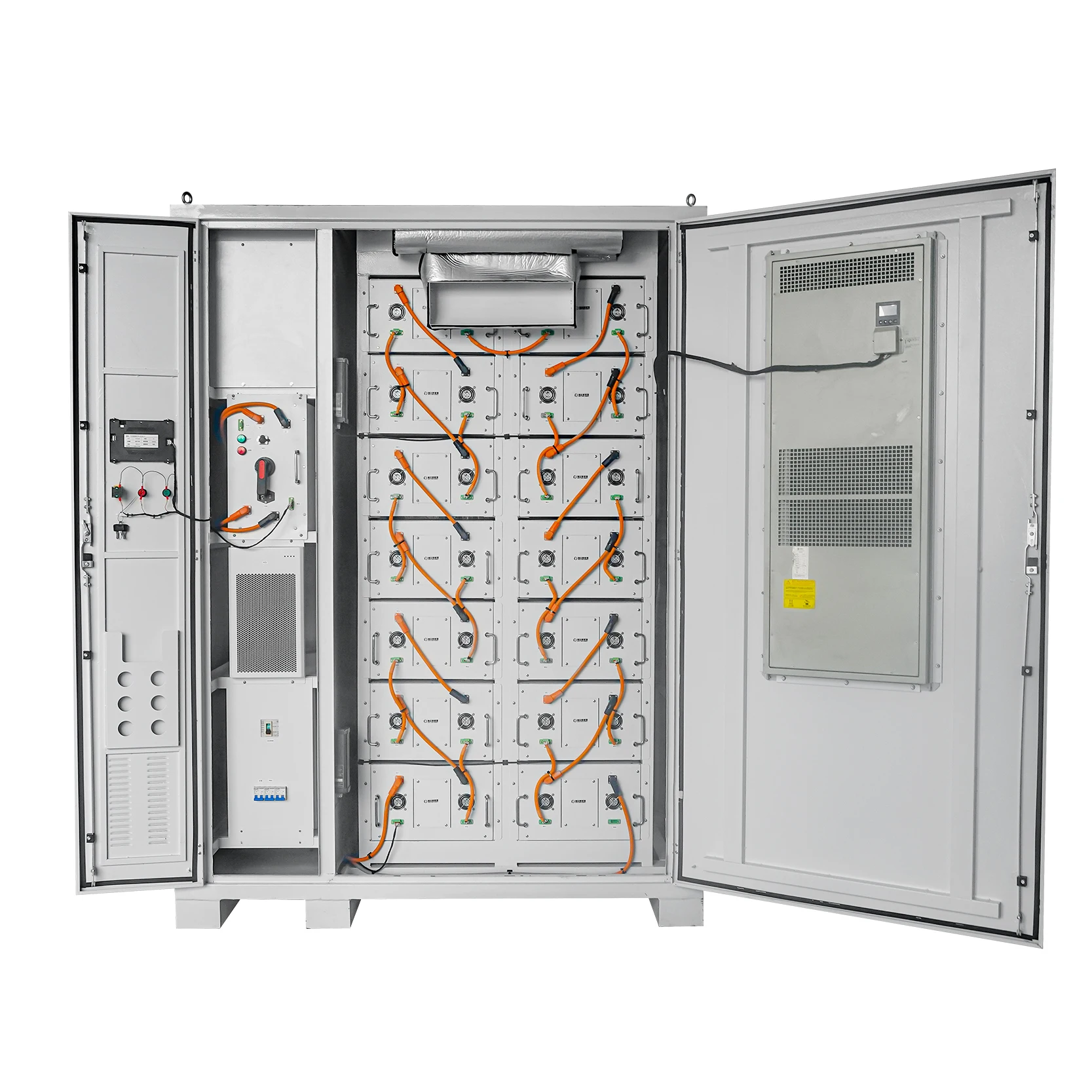

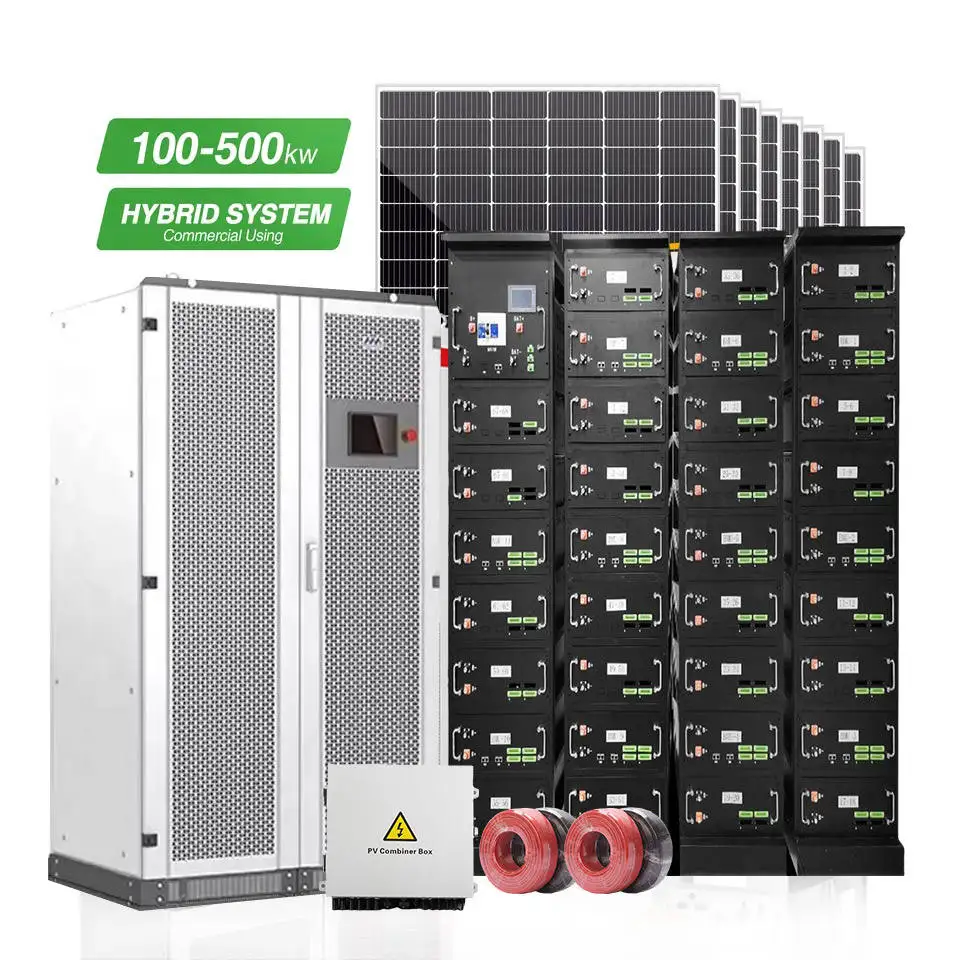

Dawnice 50-250kw Commercial Energy Storage System | ||||||
Model | DWESS-100-50 | DWESS-200-100 | DWESS-400-250 | |||
PV Parameters | ||||||
MPPT voltage range | DC250V ~DC850V | |||||
MPPT full power Volt range | DC450V ~DC850V | |||||
MPPT channel Qty | 1-3(Optional) | |||||
AC grid connected parameters | ||||||
Rated power (kW) | 50 | 100 | 250 | |||
Rated current (A) | 55 | 110 | 275 | |||
Rated voltage (V) | AC 380/400/480V | |||||
AC connection | 3W+N+PE | |||||
Rated frequency (Hz) | 50/60 | |||||
THDi | <3%(Rated power) | |||||
AC off-grid parameters | ||||||
Rated power (kW) | 50 | 100 | 250 | |||
Rated current (A) | 55 | 110 | 275 | |||
Rated voltage (V) | 3W+N+PE, 380 | |||||
THDu | <1%(Linear Load) | |||||
Rated frequency(Hz) | 50/60 | |||||
Overload capacity | 110%] long-term | |||||
Battery Parameter | ||||||
Cell type | LFP | |||||
Module power (kWh) | 14.336 | |||||
Module Qty | 7 | 14 | 28 | |||
System rated power (kWh) | 100.352 | 200.7 | 401.4 | |||
Running Time (h) | 2 (Optional by Changing module qty) | |||||

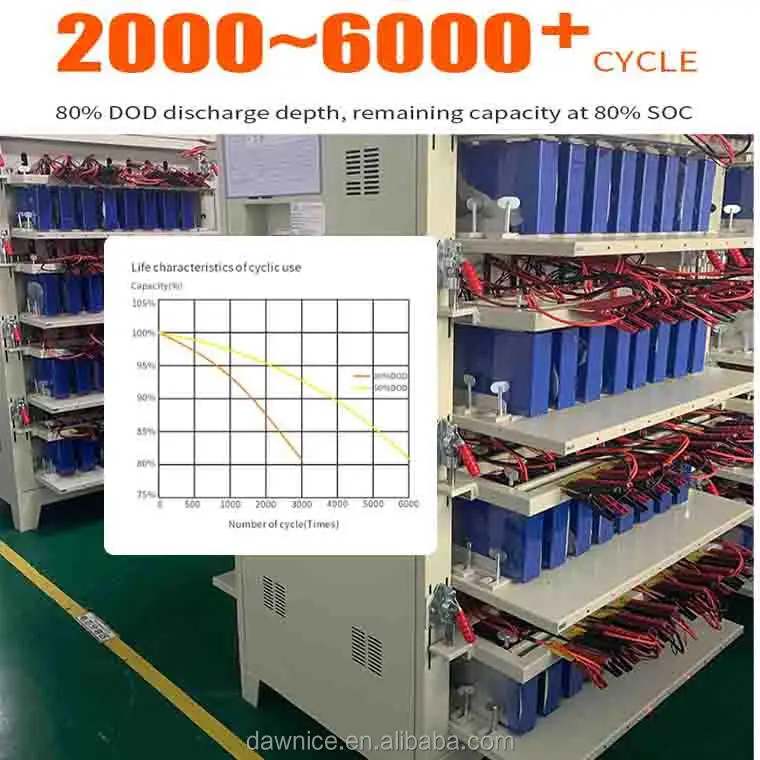

Life cycle | 25℃0.5C/0.5C 100%DOD EOL80% ≥ 6000次 | |||||
System Efficiency | ||||||
Maximum efficiency | 95% | |||||
Protection | ||||||
DC switch&AC switch | YES | |||||
Grid monitoring | YES | |||||
Insulation monitoring | YES | |||||
DCEN protection | YES | |||||
Earth-fault protection | YES | |||||
Surge protection | DC II/AC II | |||||
Basic Parameters | ||||||
Dimension W*D*H (mm) | 1800*1200*2250 | 2600*1200*2250 | 4000*1200*2250 | |||
Weight (kg) | 2067 | 3346 | 6728 | |||
Protection | IP54 | |||||
Working temperature | -20 ~55℃(>45℃derating) | |||||
Relative humidity(No condensation) | 0 ~95% | |||||
Cooling | Air cooling, intelligent fan regulation | |||||
On and off grid switching device | STS | |||||
Working altitude (m) | 4000(>2000 derating) | |||||
Data display | Touch screen | |||||
Communication Interface | RS485,CAN | |||||
Protocol | Modbus-RTU,CAN2.0B | |||||
Specification

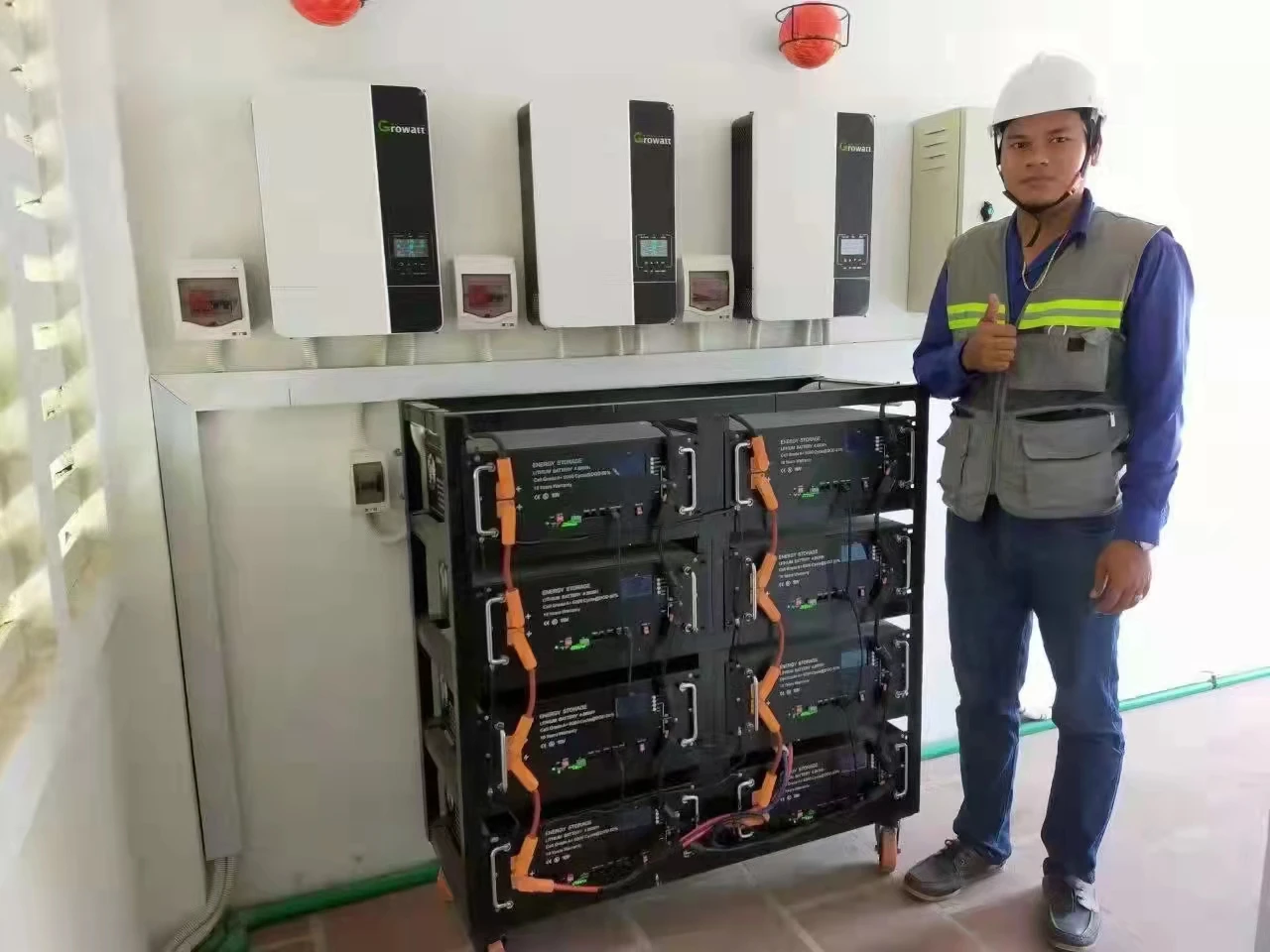

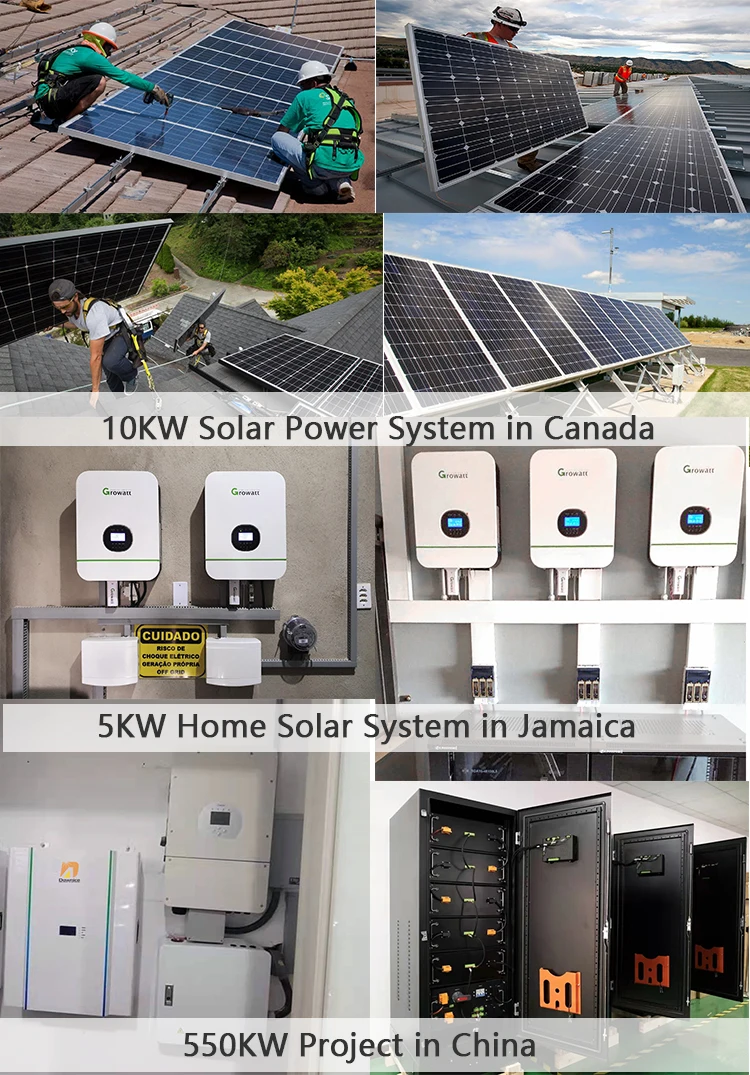

Projects

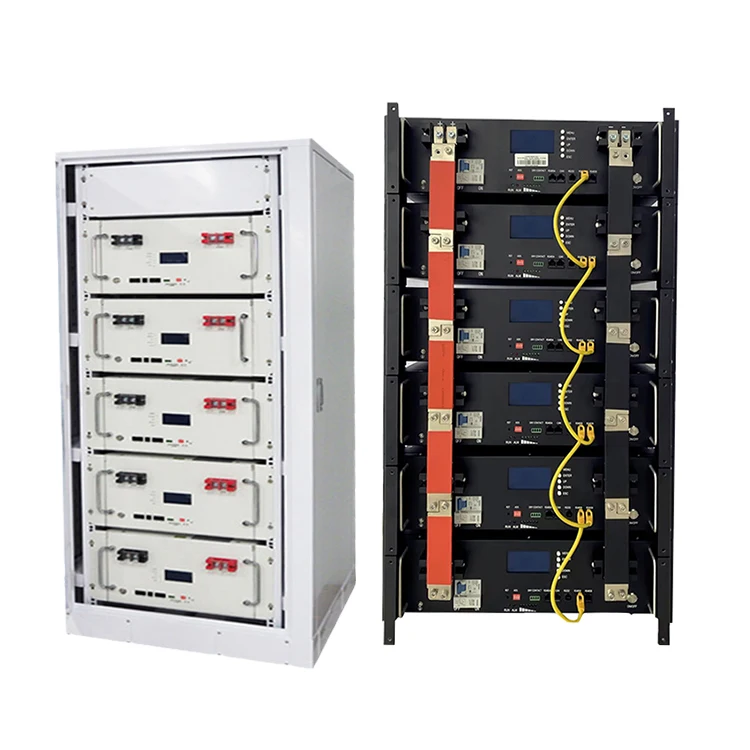

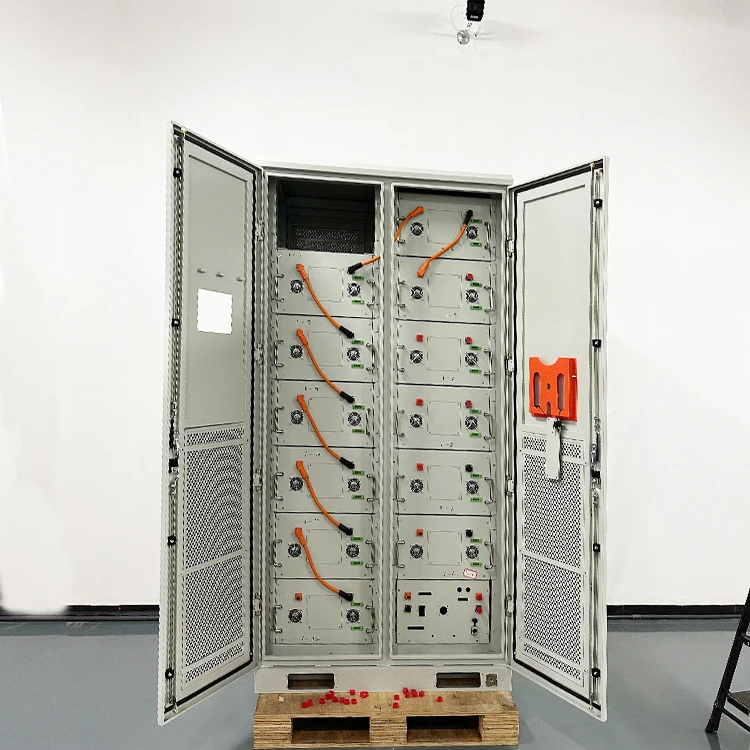

200kwh energy storage lithium battery pack
10kw residential system in Australia, saving much electricity bills

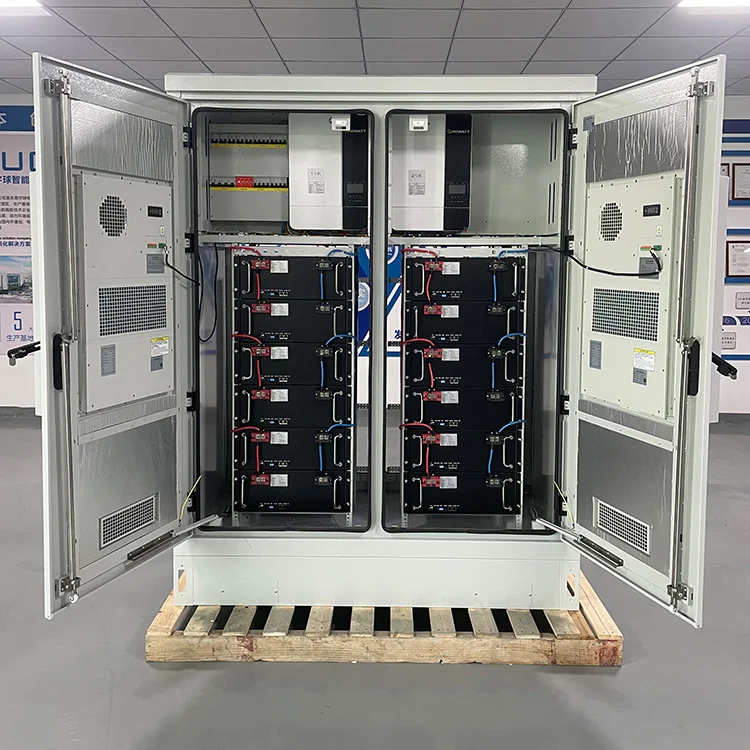

500KW commercial energy storage system for America

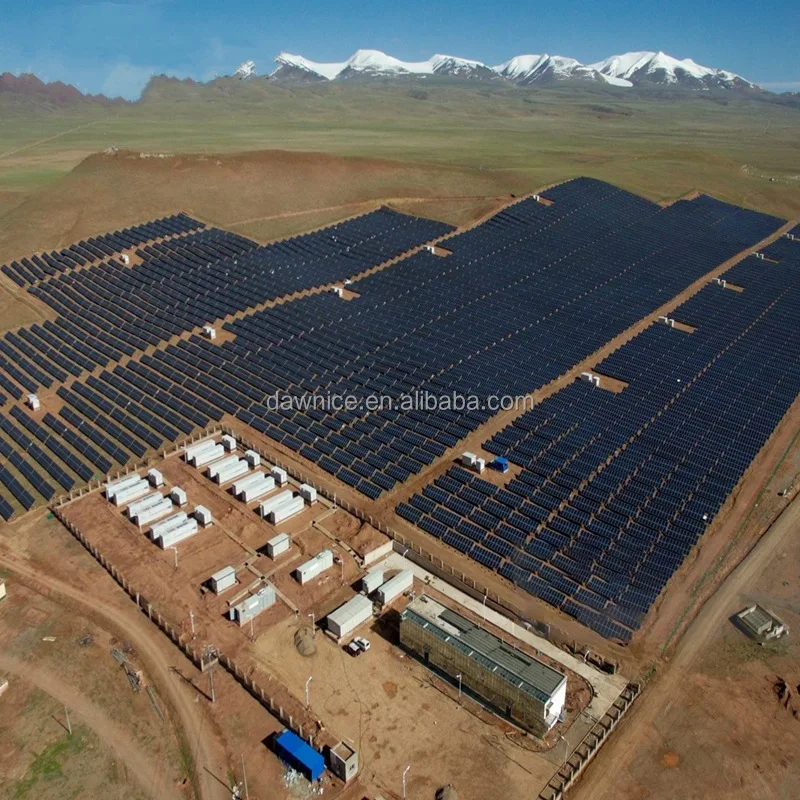

200kw solar panel installation solar system for farmland

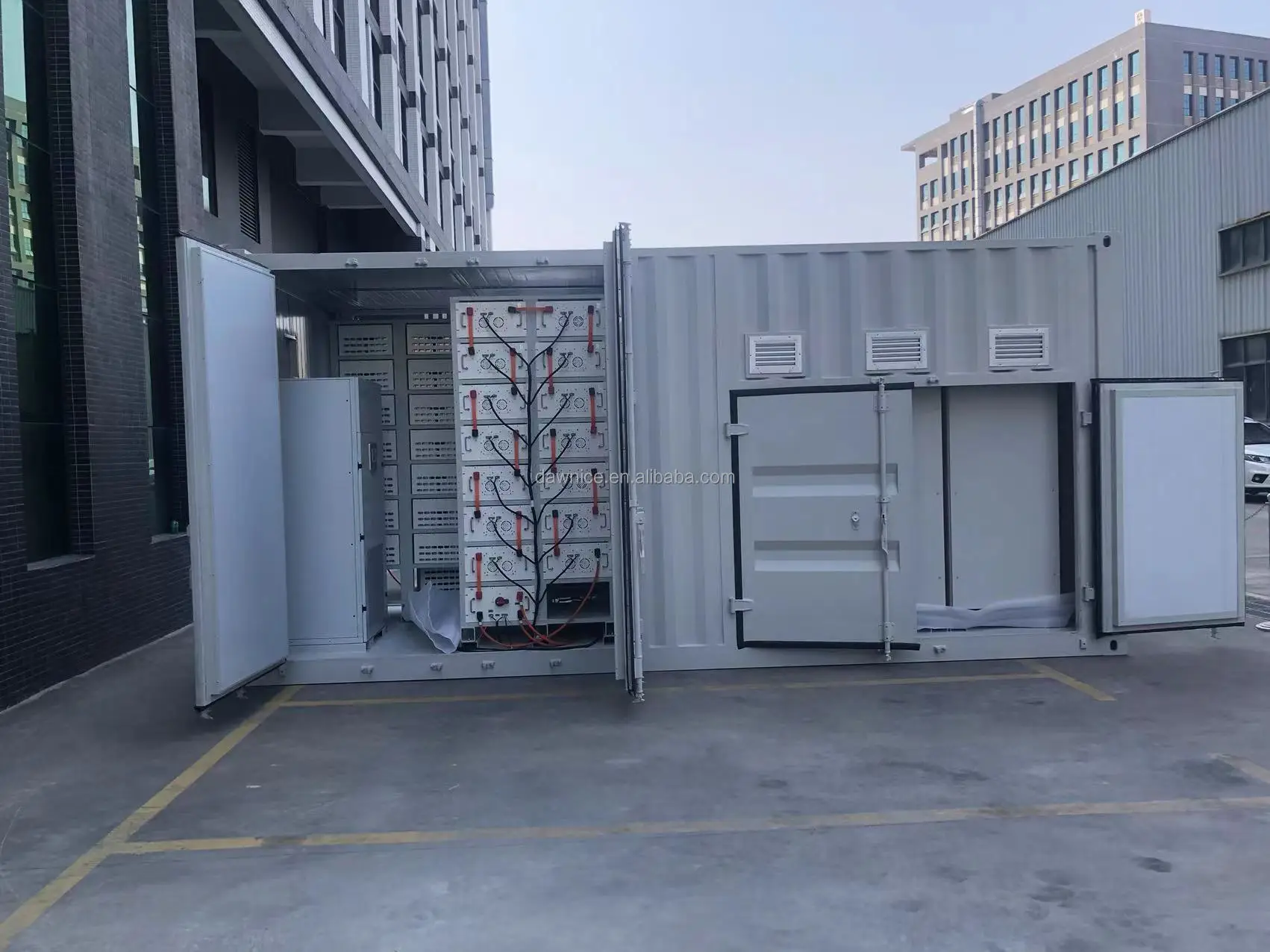

energy storage cabinet solar power container

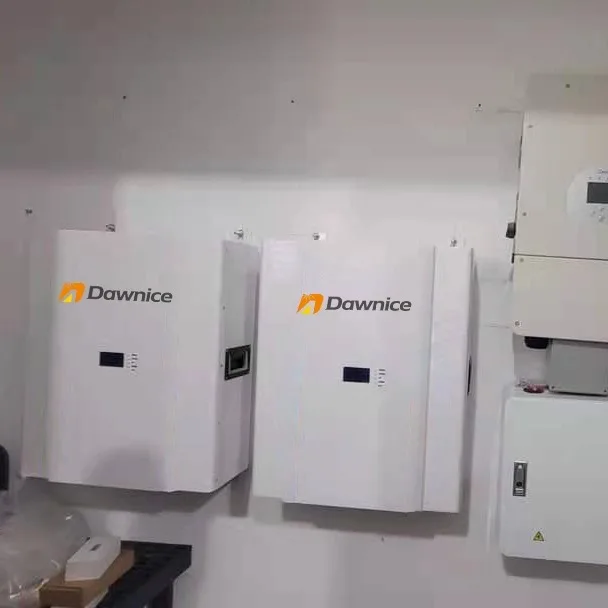

10KWH wall-mounted lifepo4 battery Installed in Germany
Company Profile
Dawnice Battery Factory was founded in 2002 in Jiangxi, China. It is a leading manufacturer of home energy storage batteries,commercial energy storage systems, and battery energy storage systems with integrated solar inverters.
The company operates 5 automated production lines and focuses on independent R&D with experienced engineers. They have obtained over 100 technical
patents, including core, invention, and innovation awards.
patents, including core, invention, and innovation awards.
Dawnice's core products are residential storage batteries and commercial solar storage solutions.
They have provided energy solutions to 70 countries, serving around 80,000 households. The lithium battery factory holds recognized certificates such as CE, UL, UN38.3, RoHS, IEC62619, ISO14001, and ISO9001.
