Low RPM Vertical Axis Maglev Wind Turbine 5KW 10KW 20KW 48V 120V 220V High Efficiency Wind Power Generator
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Specification
Model | RX-HV3K | RX-HV5K | RX-HV10K | RX-HV20K | |||||||||
Rated power | 3000w | 5000w | 10kw | 20kw | |||||||||
Max power | 3500w | 5500w | 12kw | 24kw | |||||||||
Rated Voltage | 48/96/110/220v | 48/96/110/220/380v | 96/110/220/380v,customized | 96/110/220/380v,customized | |||||||||
Blade length | 2m | 2.8m | 3.6m | 4.5m | |||||||||
Rotor diameter | 1.4m | 1.8m | 2.4m | 3.0m | |||||||||
Start up wind speed | 2m/s | ||||||||||||
Rated wind speed | 11m/s | ||||||||||||
Survival wind speed | 50m/s | ||||||||||||
Blade quantity | 3/5 pieces | ||||||||||||
Blade material | Aluminum alloy | ||||||||||||
Generator type | Three phase AC permanent magenet generator | ||||||||||||
Braking mode | Electromagnetism | ||||||||||||
The wind adjustment | Automatically adjust to windward | ||||||||||||
Noise level | <50dBA | ||||||||||||

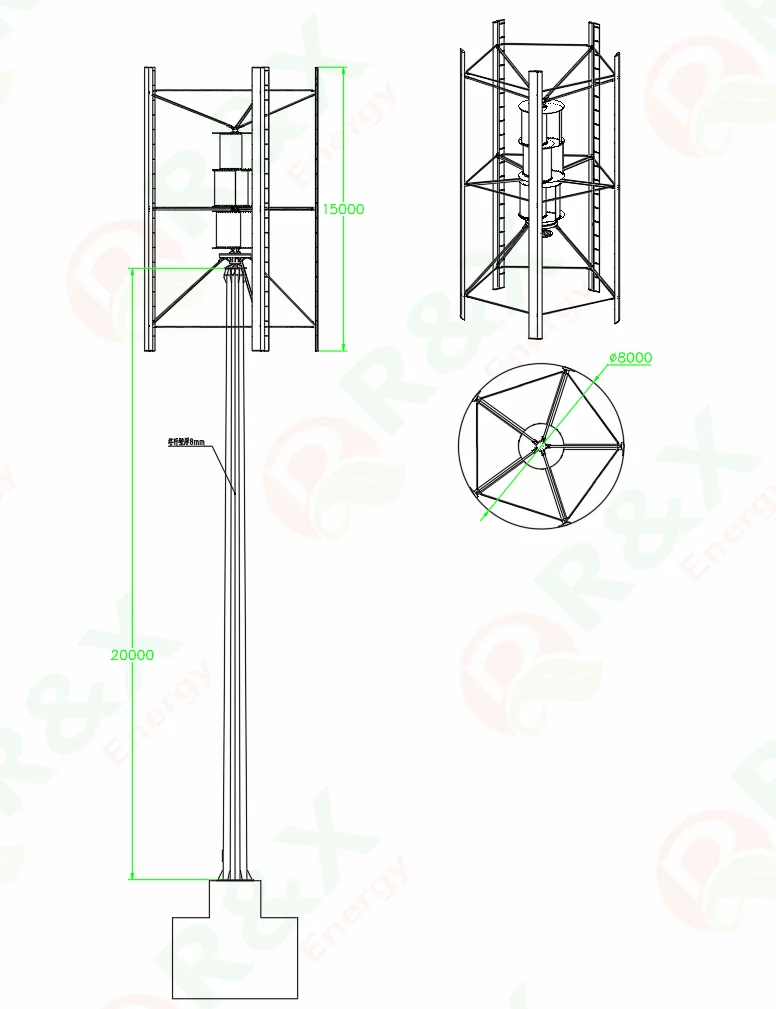

Drawing

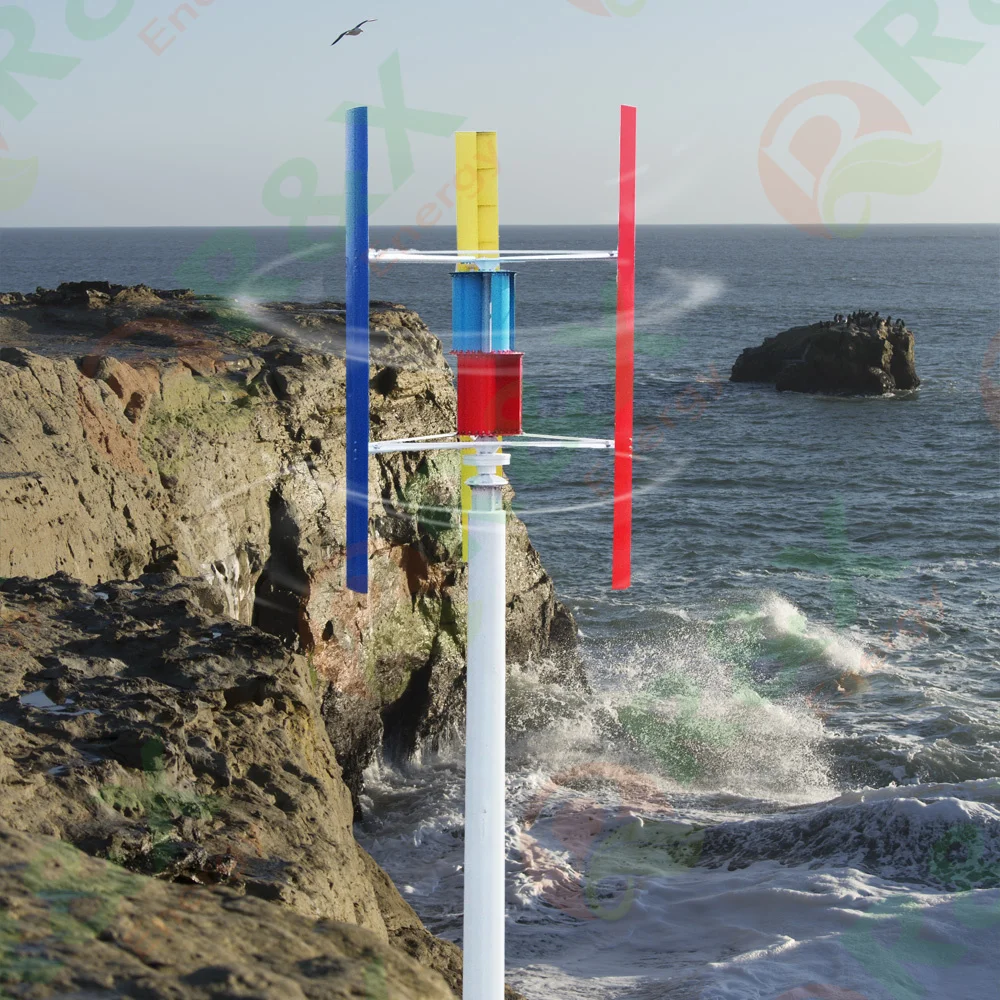

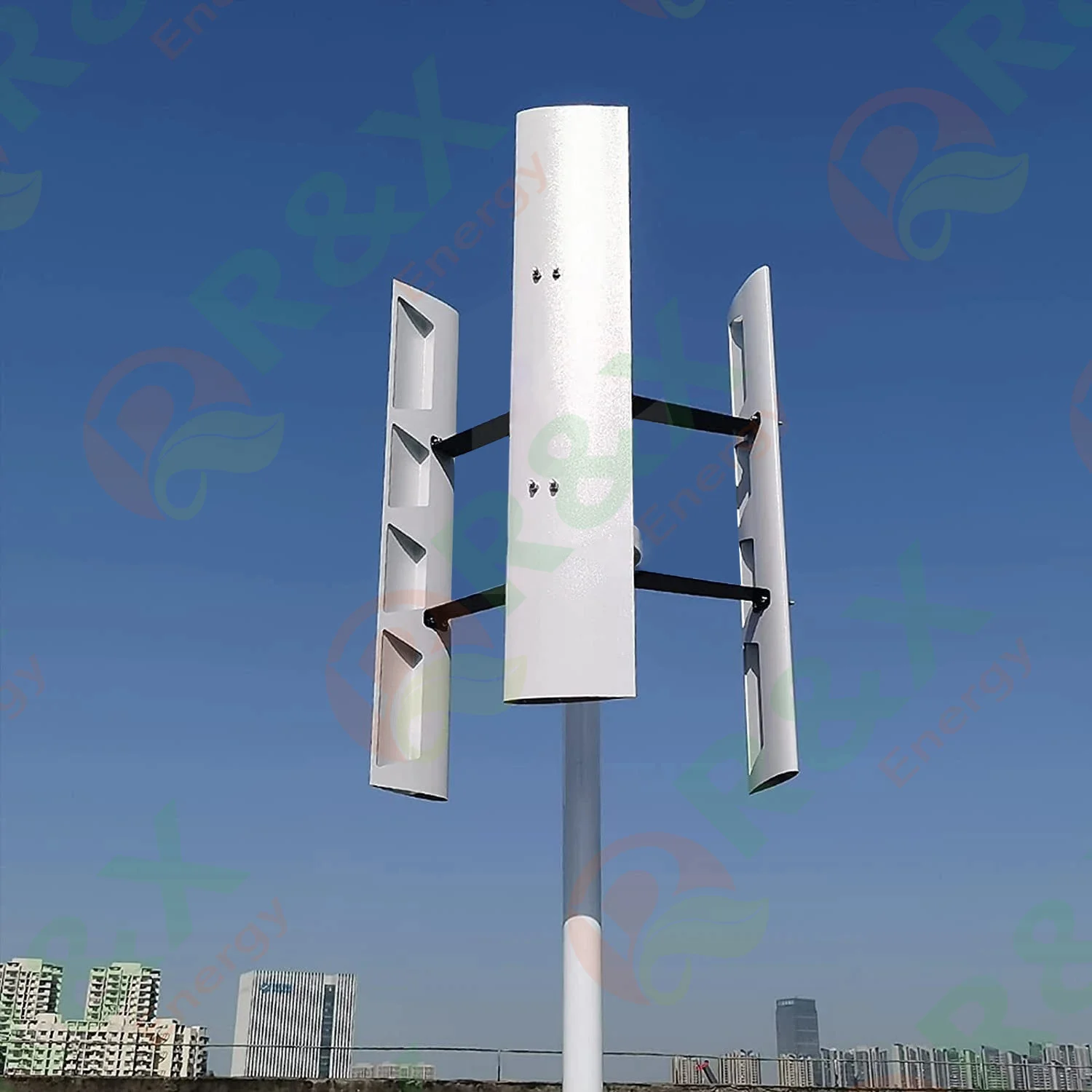

Project Photos Show
