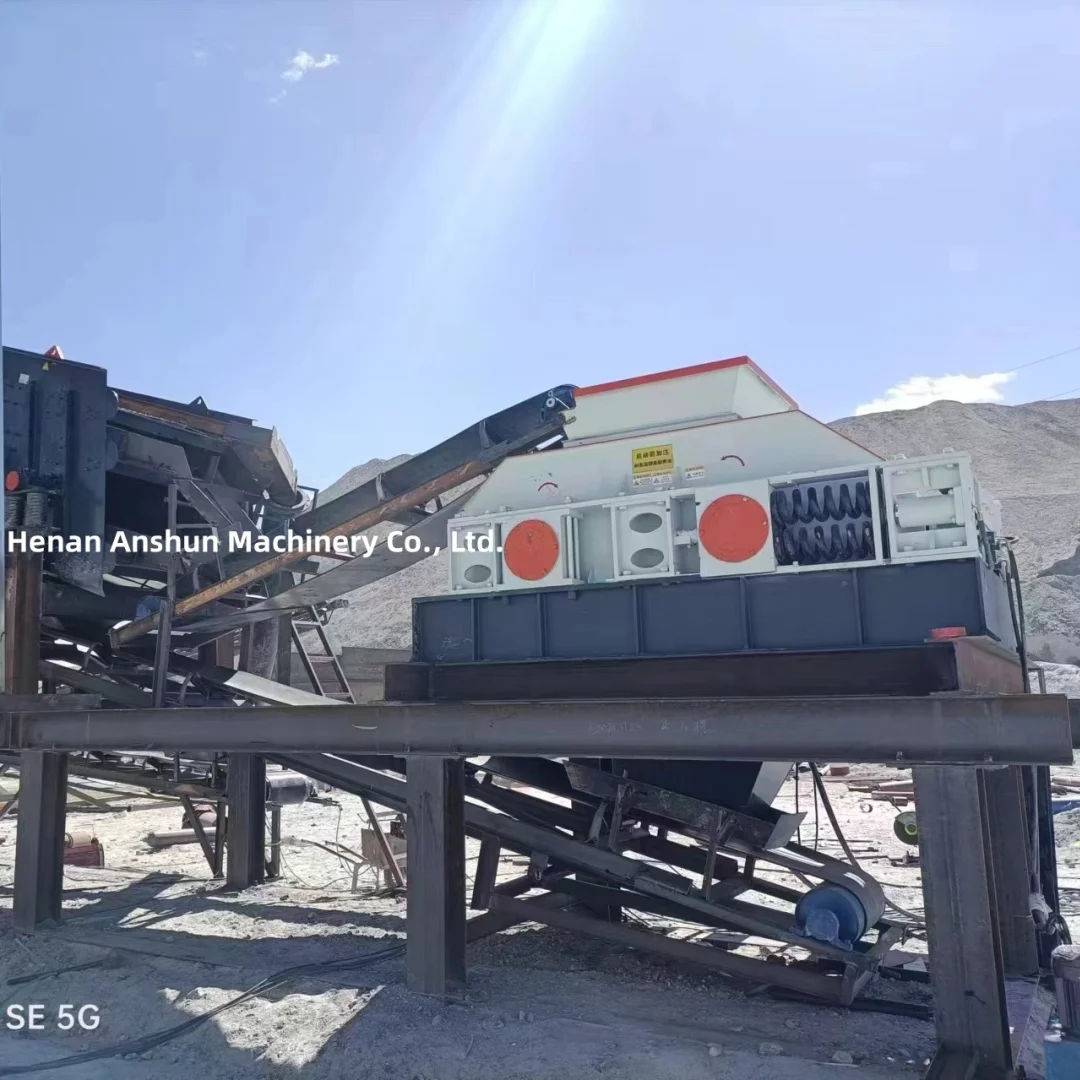

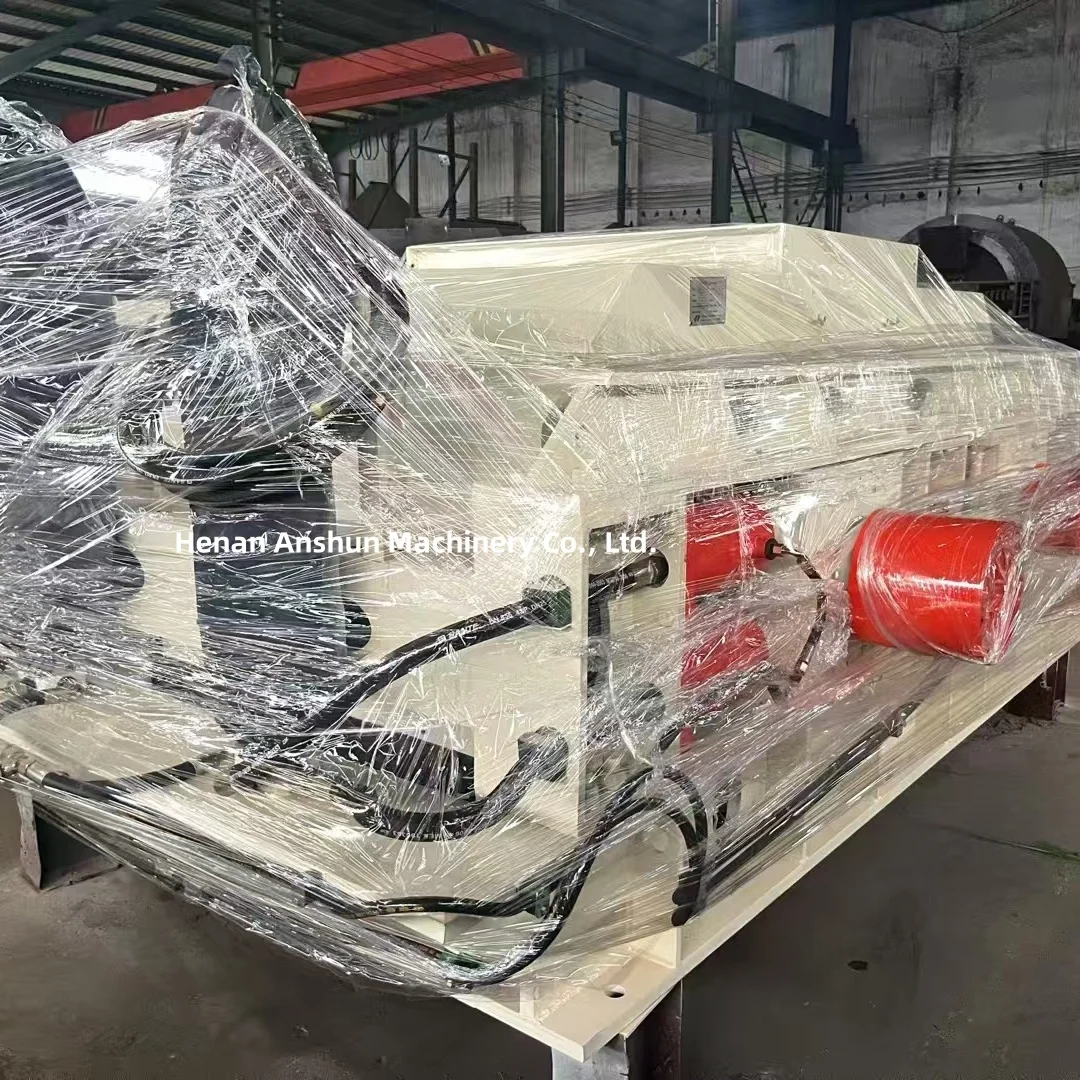

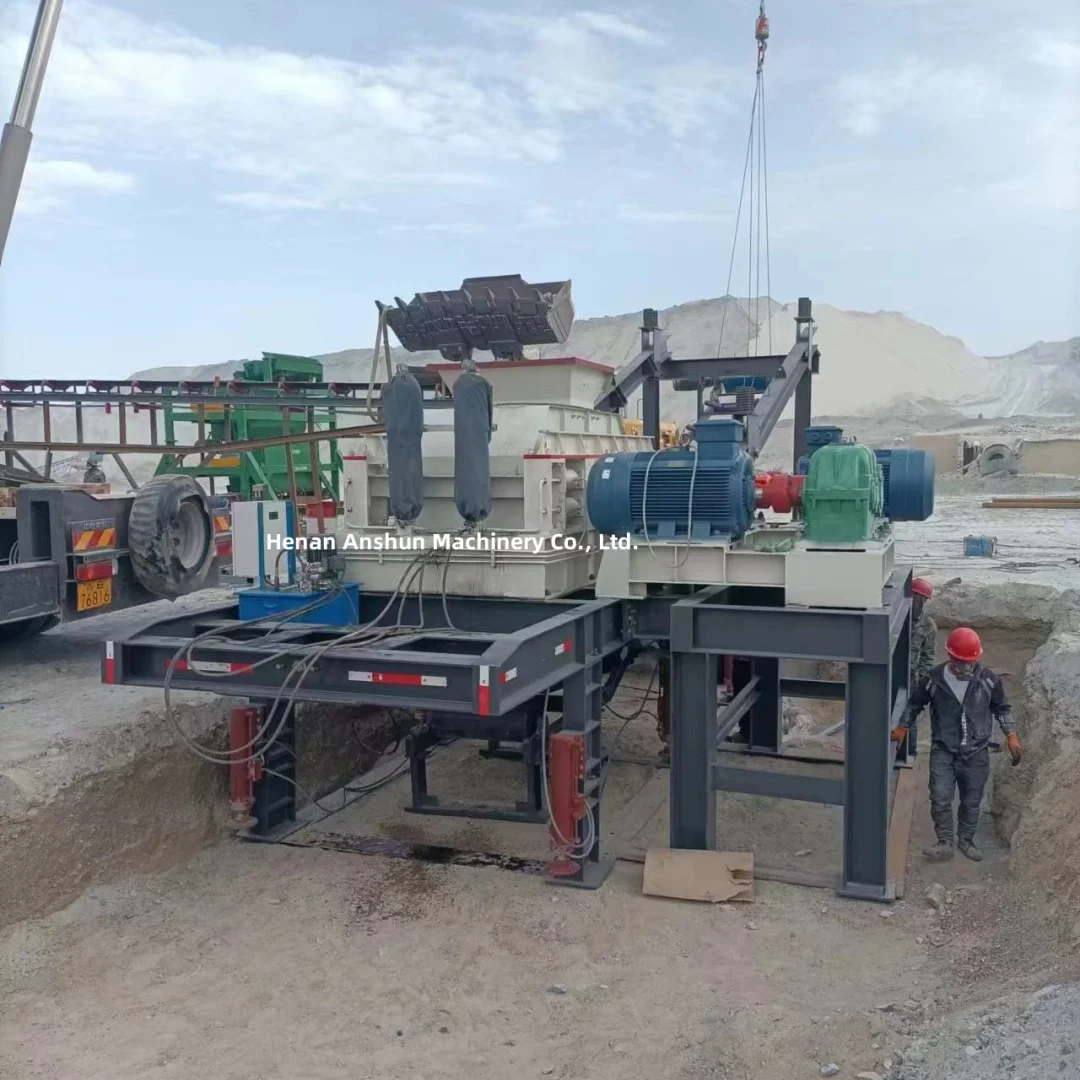

  • High Capacity 2PGY600x800 Double Roller Crusher 30 70 T/h, 5TPH, 60 125TPH for Rock, Stone, and Sand Making

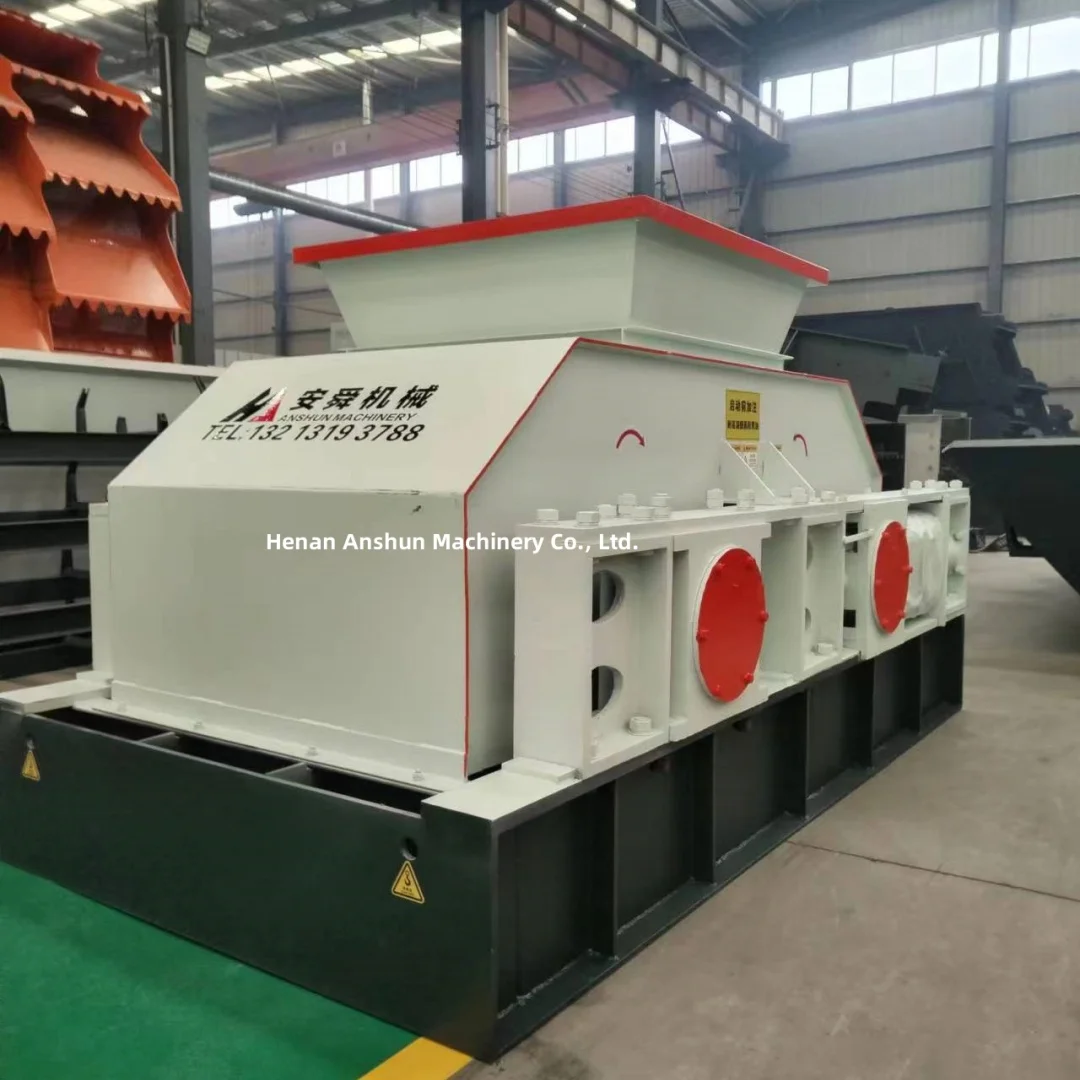

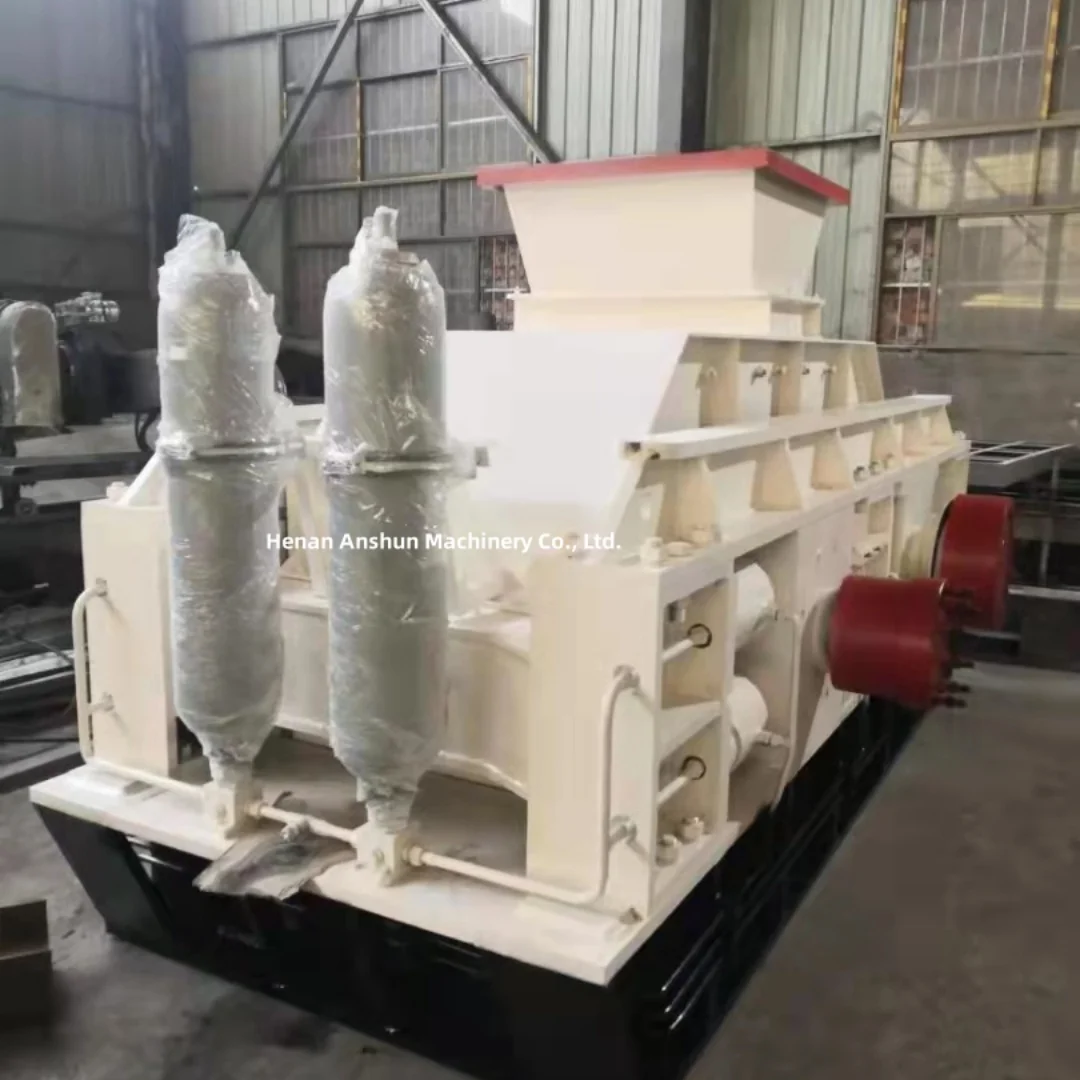

High Capacity 2PGY600x800 Double Roller Crusher 30 70 T/h, 5TPH, 60 125TPH for Rock, Stone, and Sand Making
High Capacity 2PGY600x800 Double Roller Crusher 30-70 T/h, 5TPH, 60-125TPH for Rock, Stone, and Sand Making
High Capacity 2PGY600x800 Double Roller Crusher 30-70 T/h, 5TPH, 60-125TPH for Rock, Stone, and Sand Making
High Capacity 2PGY600x800 Double Roller Crusher 30-70 T/h, 5TPH, 60-125TPH for Rock, Stone, and Sand Making
High Capacity 2PGY600x800 Double Roller Crusher 30-70 T/h, 5TPH, 60-125TPH for Rock, Stone, and Sand Making
High Capacity 2PGY600x800 Double Roller Crusher 30-70 T/h, 5TPH, 60-125TPH for Rock, Stone, and Sand Making
High Capacity 2PGY600x800 Double Roller Crusher 30-70 T/h, 5TPH, 60-125TPH for Rock, Stone, and Sand Making

High Capacity 2PGY600x800 Double Roller Crusher 30 70 T/h, 5TPH, 60 125TPH for Rock, Stone, and Sand Making

Share on (1601305003552):


Price:$2,500.00

Quantity:


Product Overview

Description







What is a double hydraulic roller crusher?
Double hydraulic roller crusher is a model extended from the spring roller machine. The advantage of the hydraulic structure is that it can accurately control the pressure between the rollers. Long-term continuous operation can still ensure the crushing pressure between the two rollers. Therefore, equipping a roller counter in the grinding system can fully utilize the production capacity of the grinding equipment. Generally, the output can be increased by 30% - 40%, and the total energy consumption can be reduced by 20% to 30%.




Advantages of single-cylinder hydraulic cone crusher
1. Small size and large crushing ratio: Double-roll crusher has the characteristics of small size and large crushing ratio, which can usually reach 5-8.

2. Low noise and simple structure: The equipment has low operating noise and simple structure, which is easy to maintain and operate.

3. Good crushing effect: The particle size of the crushed material is uniform, the over-crushing rate is low, and the quality of the crushed material is good.

4. Safe and reliable: The equipment has an overload protection function. When an overload occurs, it can automatically stop for protection to ensure the safety of the equipment.

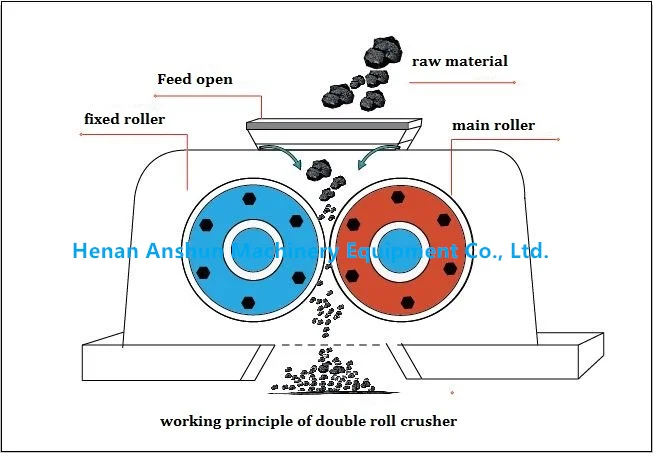

What Is The Working Principle of the Double Hydraulic Roller Crusher?

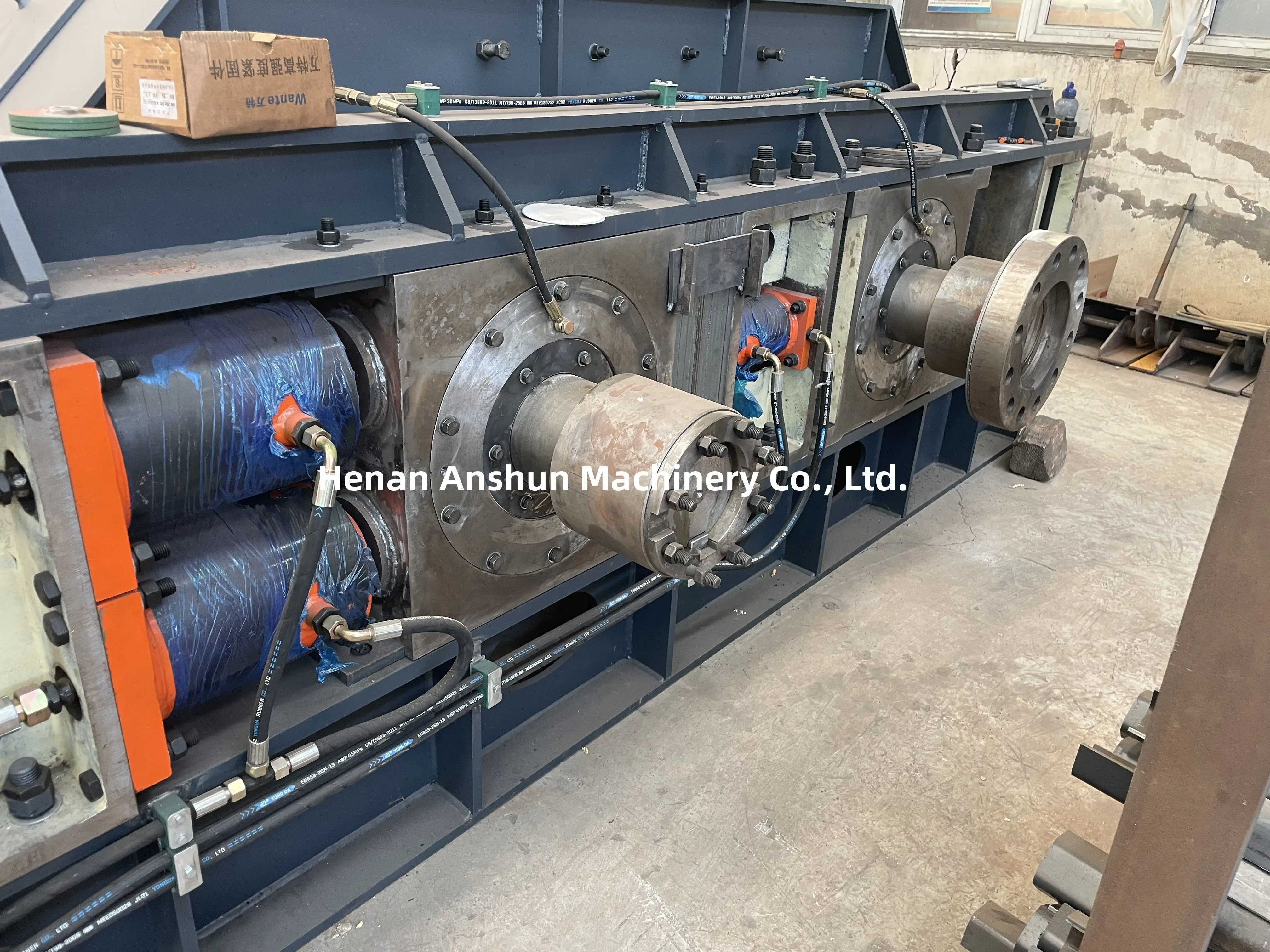

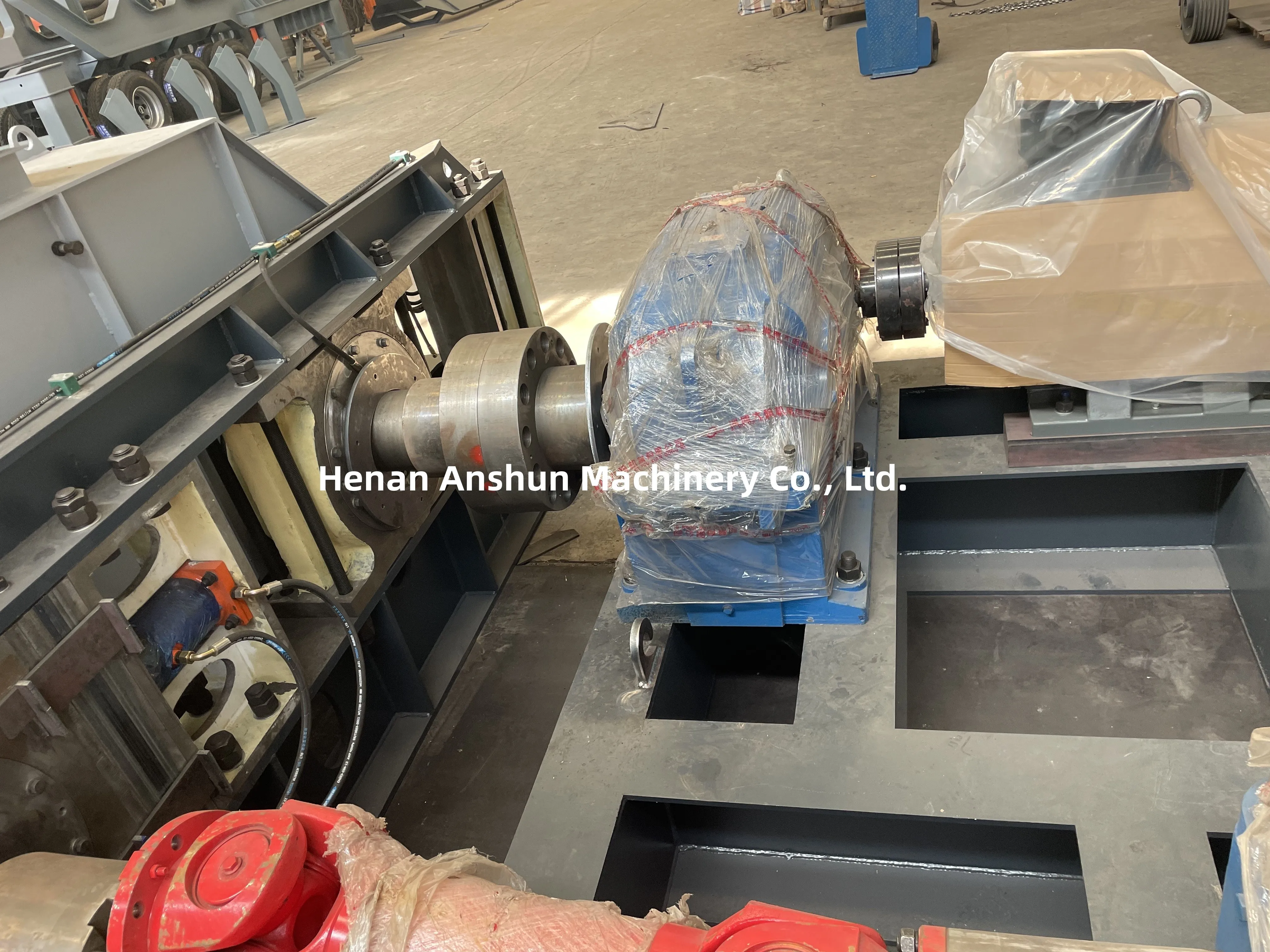

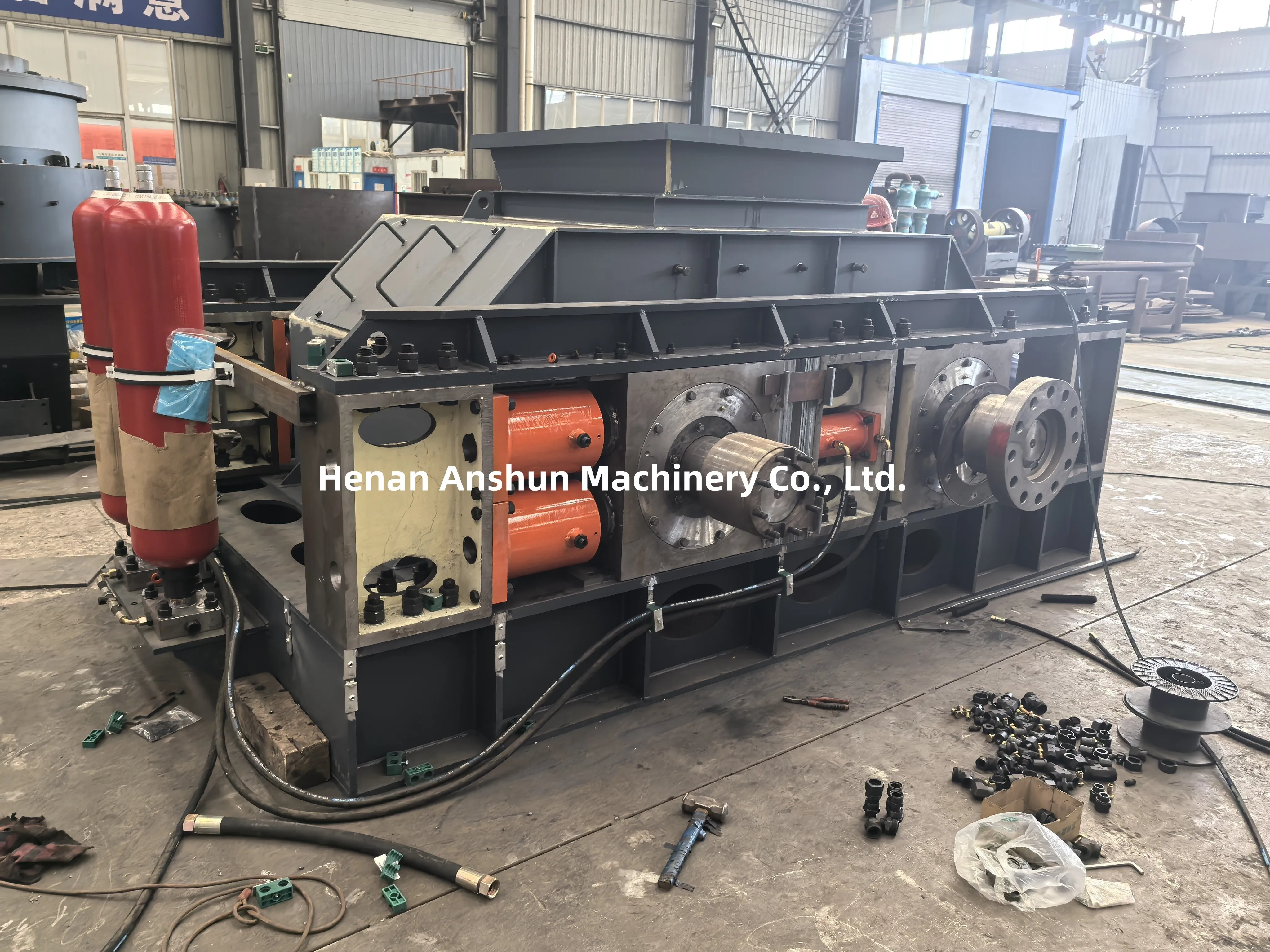

The hydraulic double-roller sand-making machine mainly uses a triangle belt or universal joint coupling to transmit and adjust the gap between the rollers. It uses a hydraulic cylinder to control the pressure of the rollers and uses the two rollers to squeeze the material for crushing. The material falls between the two rollers through the feeding port. The finished product naturally falls after being pressed and crushed by the rollers. When encountering extremely hard or unbreakable materials, the rollers can automatically retreat by the action of the hydraulic cylinder so that the gap between the two rollers is reduced. The gap becomes more extensive, and the hard or unbreakable materials naturally fall down to ensure the machine is not damaged. There is a particular gap between the two oppositely rotating rollers. By changing the gap, the discharge granularity of the product can be controlled.


Double Hydraulic Roller Crusher Technical Parameters


Model
Roll Diameter(mm)
Roll Width(mm)
Feeding Size(mm)
Capacity(t/h)
Power(kw)
2PGY750X500
φ750
500
≤40
20-30
2×(22-30)
2PGY800X600
φ800
600
≤40
30-40
2×(30-37)
2PGY800X800
φ800
800
≤40
40-50
2×(37-45)
2PGY1000x800
φ1000
800
≤40
50-80
2×(45-55)
2PGY1000x1000
φ1000
1000
≤40
80-100
2×(55-90)
2PGY1200x1000
φ1200
1000
≤60
100-120
2×(75-132)
2PGY1200x1200
φ1200
1200
≤60
120-150
2×(90-132)
2PGY1500x1000
φ1500
1000
≤80
150-200
2×(132-160)
2PGY1800x1000
φ1800
1000
≤100
250-300
2×(250-315)
2PGY2000x1200
φ2000
1200
≤120
300-400
2×(315-355)




















Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will supply installation and training service on-line or on-site.

Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price.

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us , leave your whatsapp and email , our sales manager will contact you within 1 hours.
