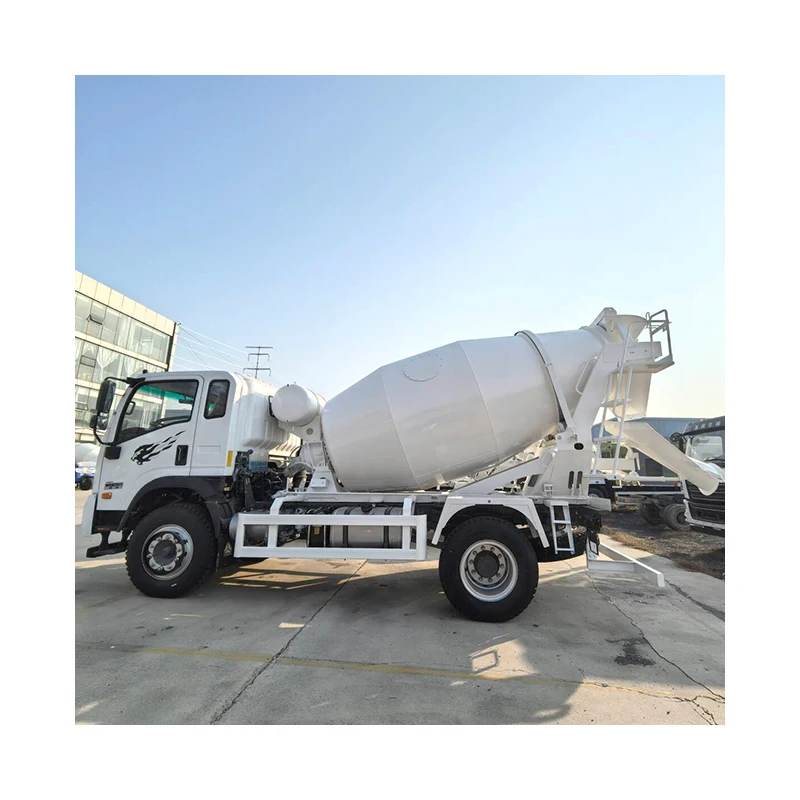

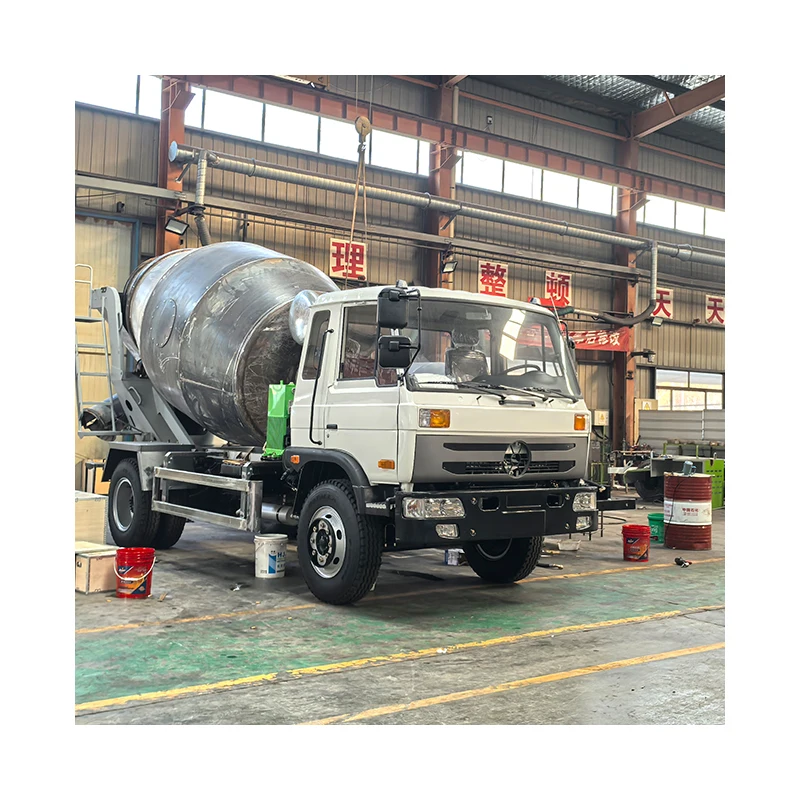

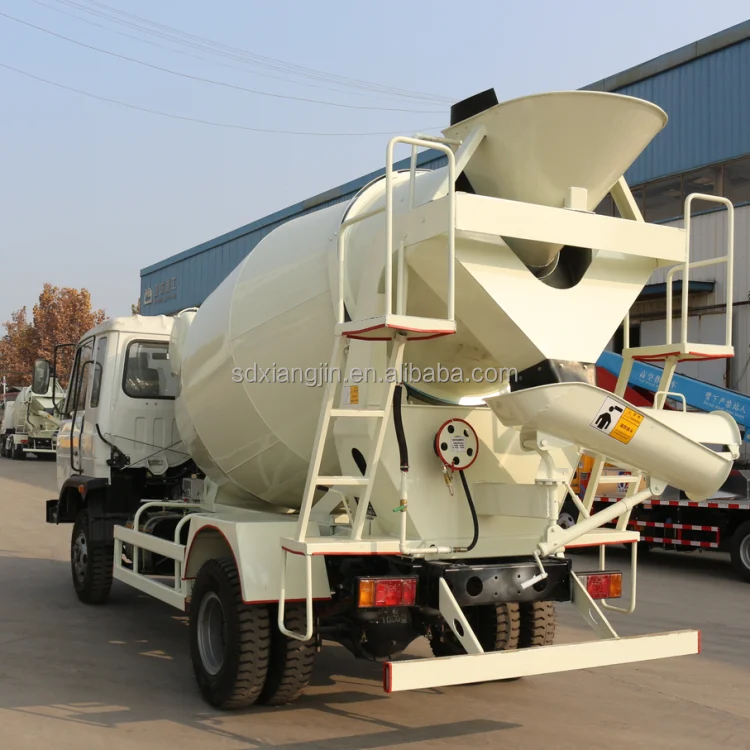

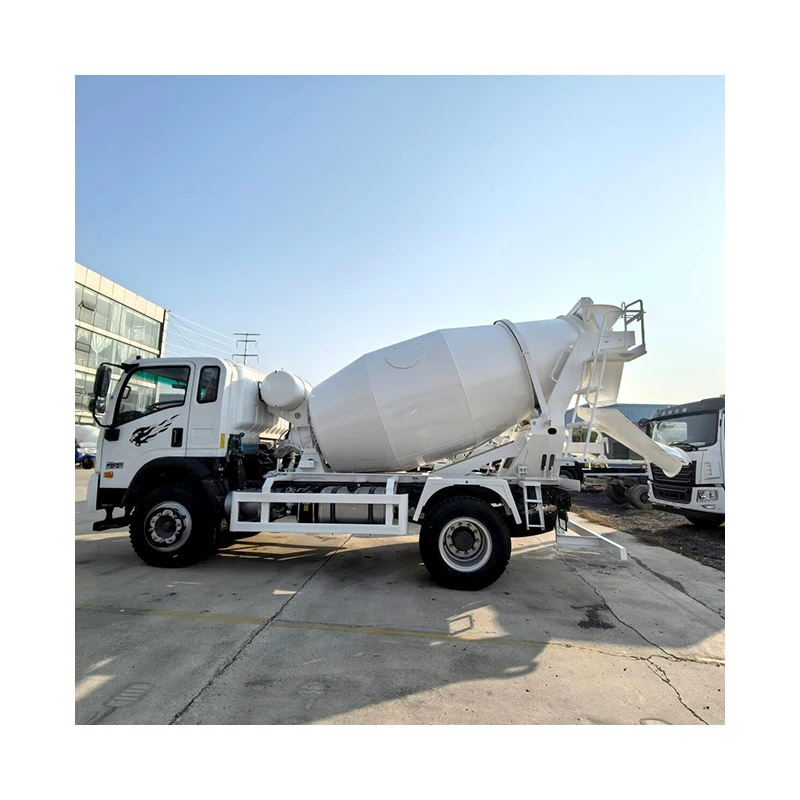

Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum
Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum
Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum
Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum
Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum
Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum
Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum

Cement Mixing Tank Truck Diesel Concrete Mixer Truck With Drum

Share on (1601305026546):


Price:$15,999.00-17,999.00

Quantity:


Product Overview

Description





Product Details


CONCRETE MIXER TRUCK Strength manufacturers commodity price for reference prices can be discounted factory direct sales small profits high sales manufacturers supply support customized








If you are interested in this product, please contact us and we will give you the best deals and gifts!
☞Click me to get in touch！


PRODUCT SPECIFICATIONS


It is a concrete mixing truck （Concrete mixer trucks）independently developed by our company. Tricycle concrete mixer adopts the latest advanced hydraulic technology and is mainly used in road construction, rural construction, construction and other projects. The car is a combination of concrete mixer and concrete transporter function as one of the equipment, integrating concrete mixing, transportation and discharging, can realize the loader or conveyor belt material, mixing dry, concrete transportation and on-site concrete construction of concrete mixer truck, save work time, more efficient, lower cost.


name
Small Dongfeng Huichai concrete mixer truck
model
XR5000
brand
Dongfeng
Square volume
5m³
engine model
4105 Supercharging
Oil type
diesel fuel
engine power
108hp
cab
Half row
drive form
4X2
Steering Type
steering wheel
Number of axes
2
direction assistance
hydraulic power
wheelbase
3600
clutch assist
air assist
service brake
air brake
Number of leaf springs
Front 9, back 11+6
Parking brake
Air break brake
fuel tank volume
65L
gearbox
145
storage battery
2-12V-105AH
Shift mode
manual
Tank and blade material
Q345B-4mm
gear
5-forward, 1-reverse, high and low speed
Vessel head
Q345B-6mm
top speed
60km/h
Hydraulic system
open hydraulic system
Rear axle specification
1088
reducer
KeYi etc.
Tire specifications
8.25-R16
hydraulic valve
20 single copy
number of tires
6
Feed rate
≥3m³/min
Gradeability
25°
Output speed
≥1m³/min
Discharge height
1600mm
Discharge residual rate
≤0.5%
Tank geometric volume
8.1m³
Unloading range
180° rotating discharge
Rated stirring volume
5m³
In and out operation
post operation
Emission Standards
National III
Tank rotation speed
12rpm
curb weight
5200kg
water tank volume
180L
total mass
17200kg
hydraulic radiator
18L temperature-controlled automatic control aluminum exchanger
vehicle size
6700*2200*3200（mm）
Rated hydraulic pressure
20MPa
Optional
Air conditioning, enlarged feeding hopper, support for mixing dry materials, additional leak-proof hoppers, internal operation of feeding and discharging materials, four-wheel drive, closed hydraulic system, construction machinery license plate and insurance,etc.


If you are interested in this product, please contact us and we will give you the best deals and gifts!
☞Click me to get in touch！




The concrete mixer truck is suitable for mixing machinery for construction enterprises such as highway, bridge, power station dam construction, building buildings, large and medium-sized prefabrication plants, etc.

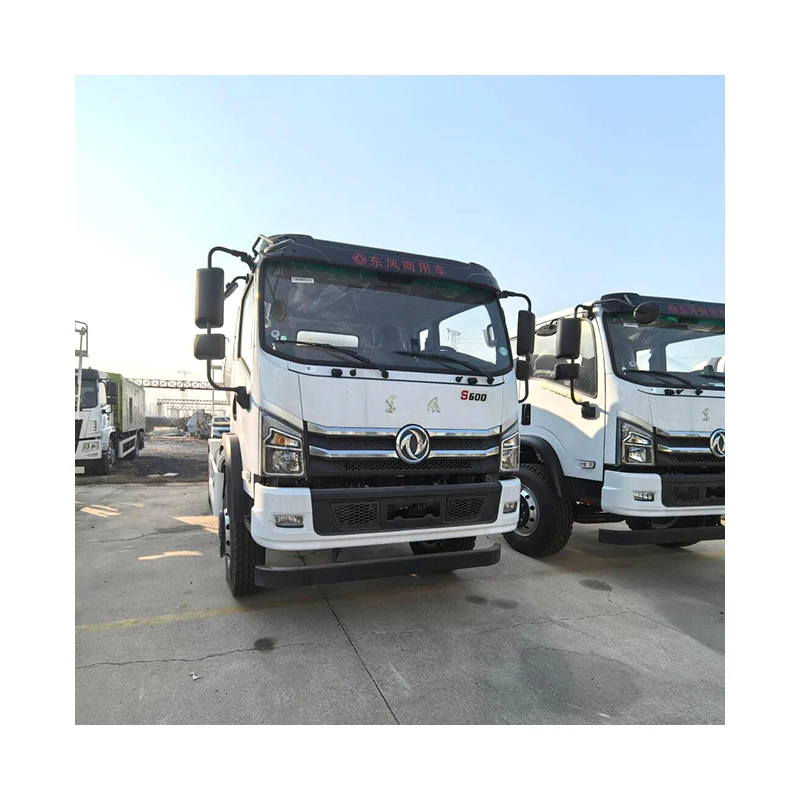

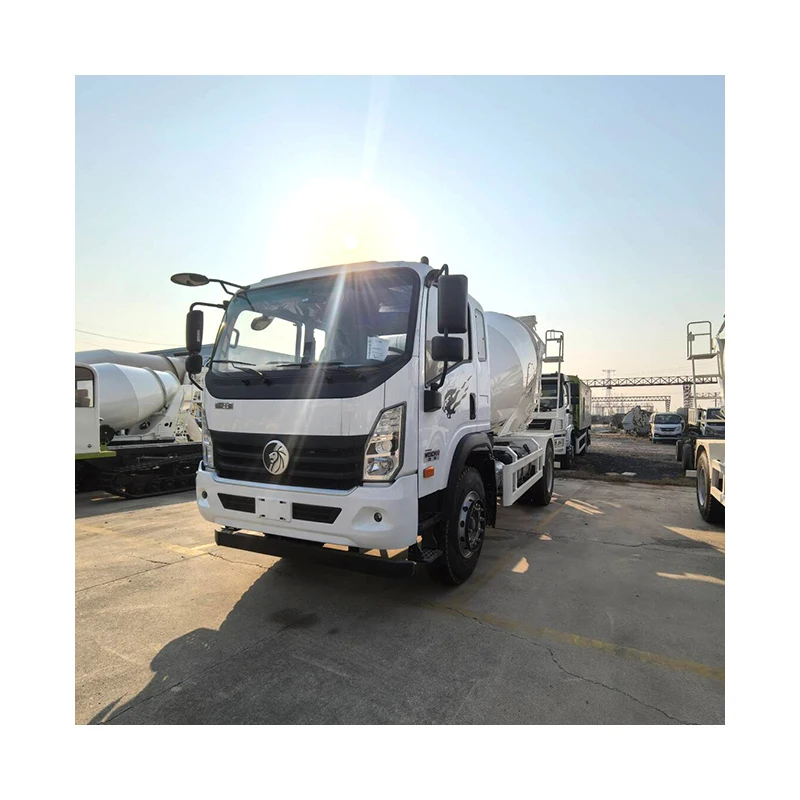

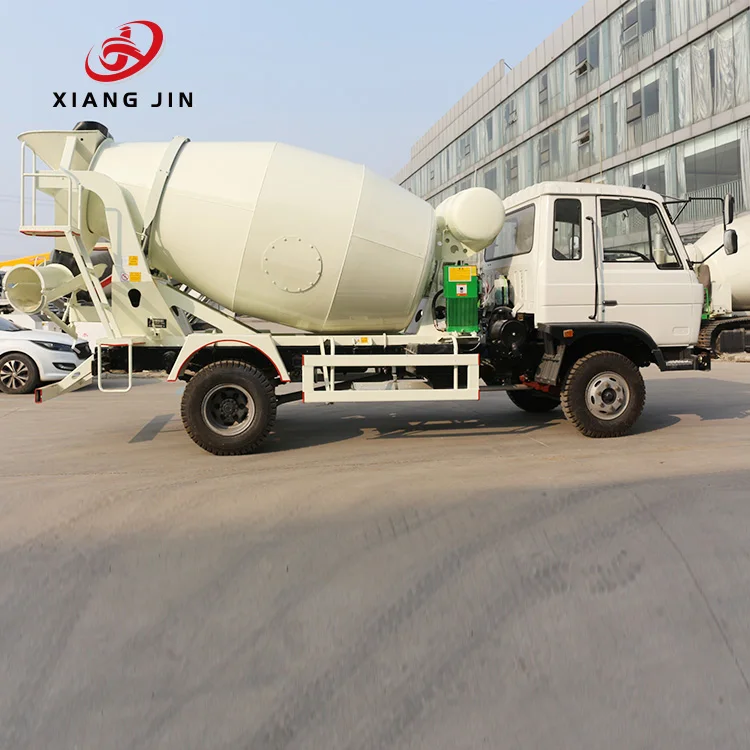

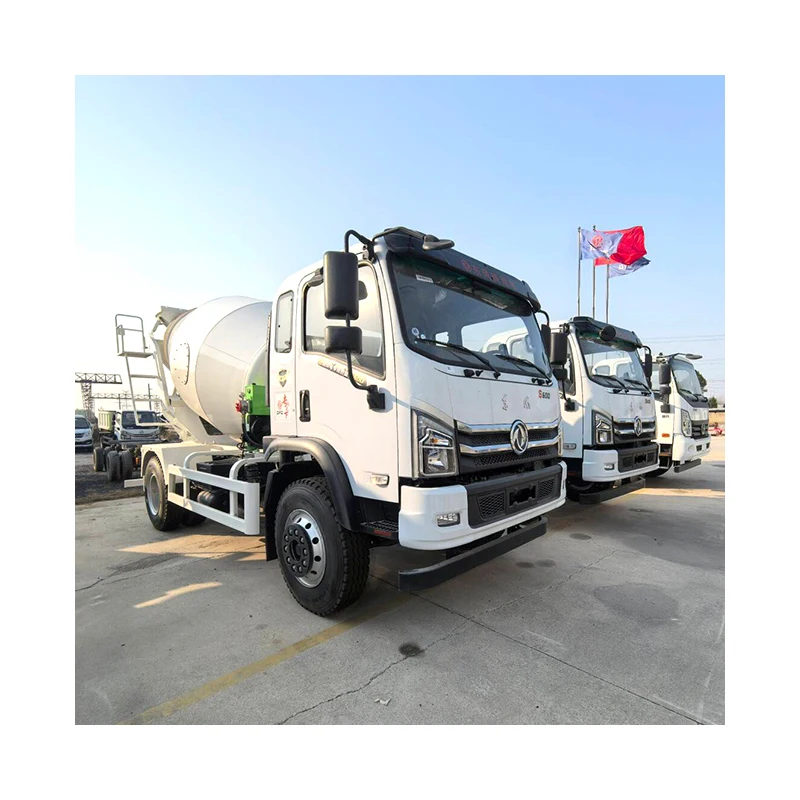

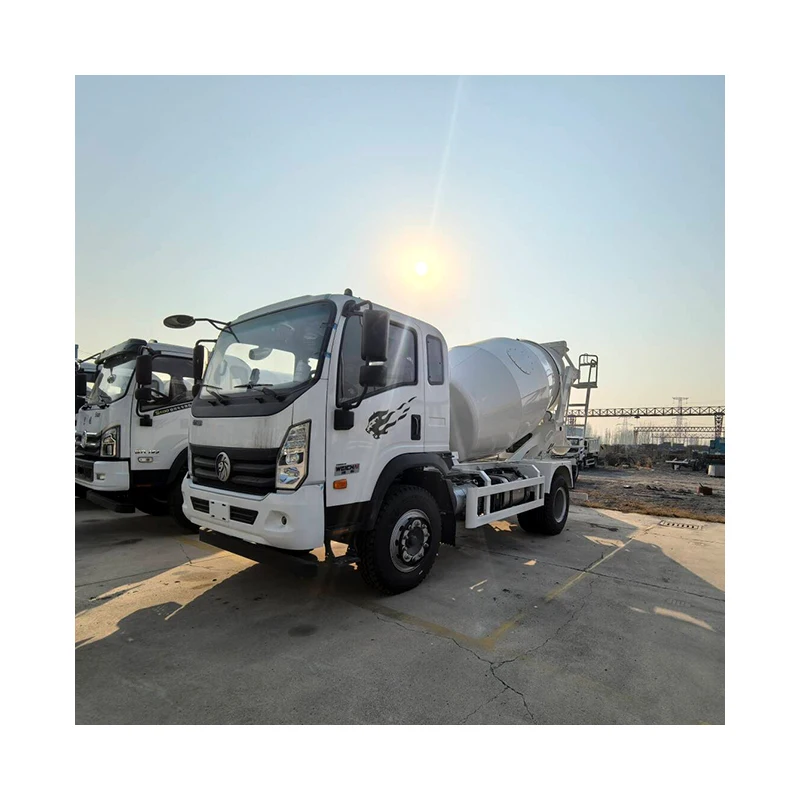

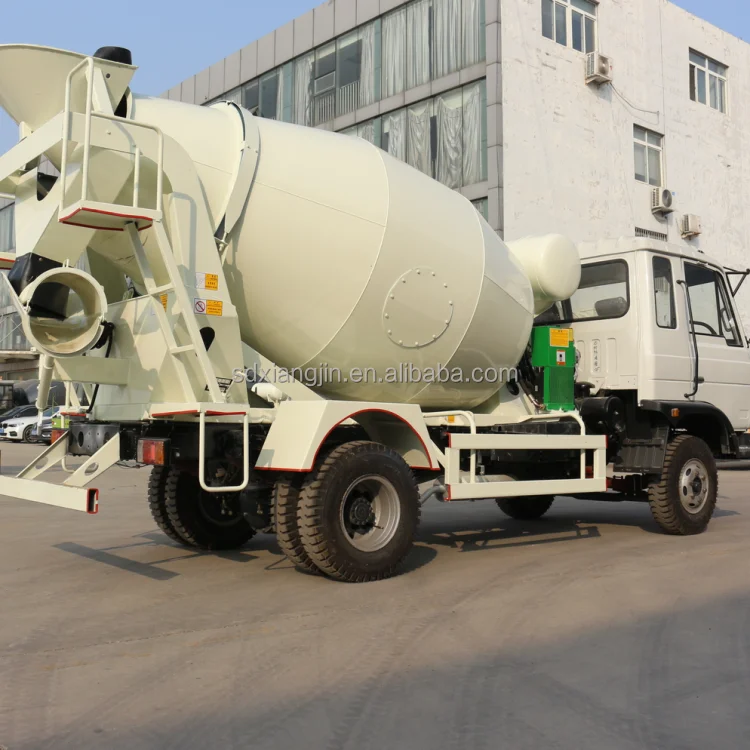

Product Display




If you are interested in this product, please contact us and we will give you the best deals and gifts!
☞Click me to get in touch！


Packaging and transportation


Transport
1)We have the experienced worker can loaded the concrete mixer truck into container very well and case to save space and let you cost fewer.
2) specially made according to the container inner size




Company Profile




Our Advantages


Quality Control
1. 100% Raw materials incoming test;
2. Semi-finished product test ;
3. Finished product test
4. Battery charge aging test.
High Efficiency
Our monthly output is 500pcs. Sample available in 1-7 days, and normal order delivery time is only 7-15 days.
After-Sales Service
1.Quick response to service demands.
2.Providing quality guarantee and corresponding maintenance service.


FAQ


1. who are we?
We are based in Shandong, China, start from 2018,sell to Africa(30.00%),Southeast Asia(30.00%),South Asia(20.00%), North America(10.00%),Southern Europe(10.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Concrete Mixer Truck, Vacuum Sweeper; Suction Type Sewer Scavenger

4. why should you buy from us not from other suppliers?
Technology research and development, production and sales integration

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
