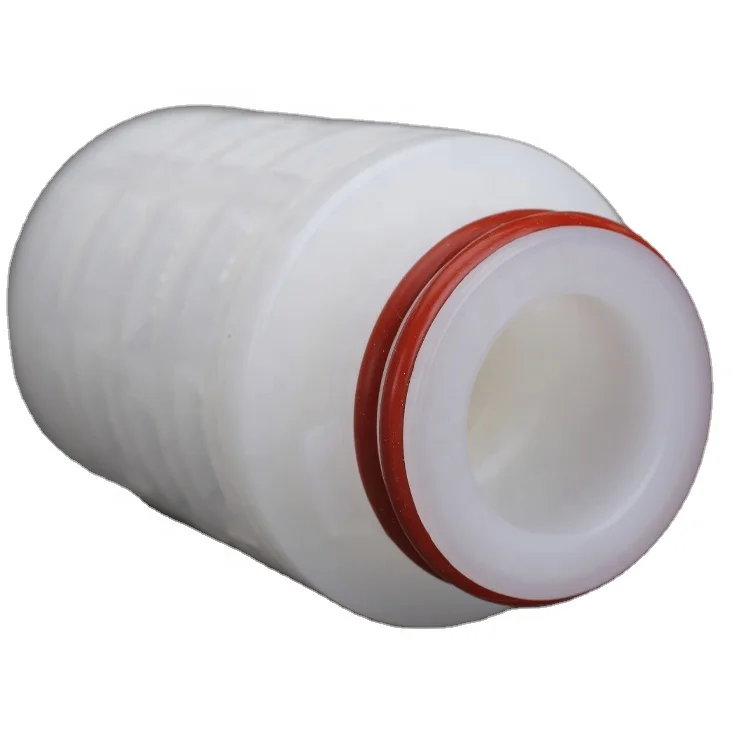

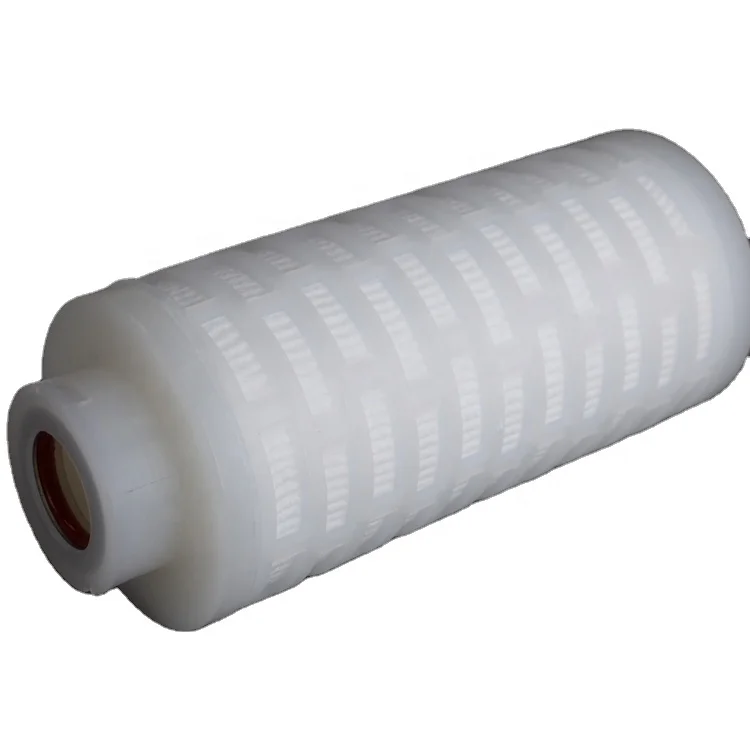

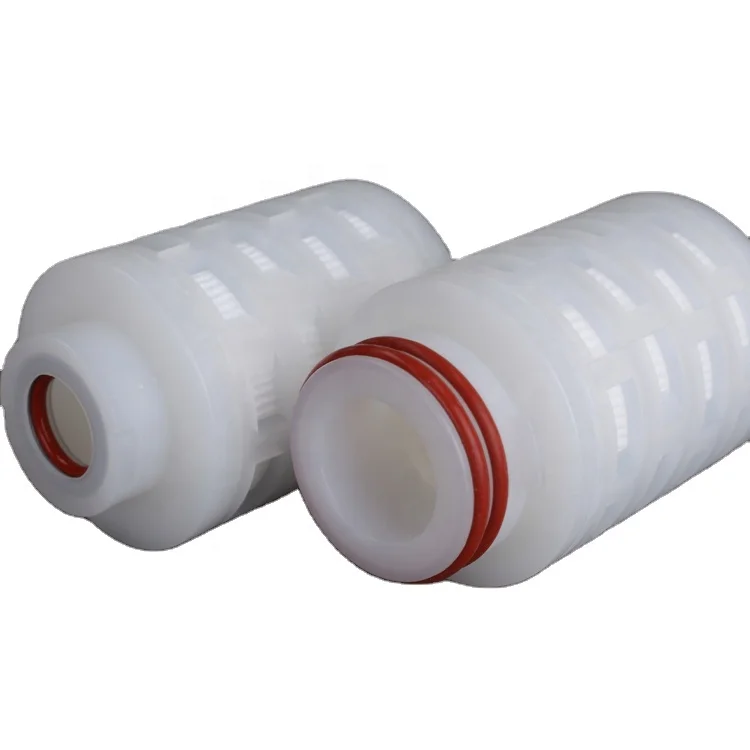

junior 5/2.5 inch mini filter cartridge with 0.1 micron PES membrane for small scale sterile process gases and sterile vents
- Category: >>>
- Supplier: Hangzhou Kosma Membrane Technology Co. Ltd.Hangzhou Ltd.
Share on (1601305280592):
Product Overview
Description
Products Description
PARAMETER INFORMATION
Materials Of Construction | Filter Media | PES/PP/PTFE/NYLON66/PVDF | ||||||||||
Support Layers | Polypropylene | |||||||||||
Inner Core | Polypropylene/SUS | |||||||||||
Outer Cage, End Cap | Polypropylene | |||||||||||
Seal Method | Thermal Bonded, No Adhesives | |||||||||||
O-Rings/Gaskets: | Silicone, Nitrile, EPDM, Viton | |||||||||||
Cartridge Dimensions | Outer Diameter | 56mm | ||||||||||
Length | 70mm (except end cap) 125mm(except end cap) | |||||||||||
Filtration Area(m2) | 0.12 m2(70mm length) 0.23 m2(125mm length) | |||||||||||
Operating Conditions | Normal Operating Temperature | Up to 60℃ (140 ℉ ) | ||||||||||
Max.operating Temperature. | 80℃ (176 ℉ ) at △ P≤1.0 bar (14.5psi) | |||||||||||
Normal Flow Direction | 4.2 bar (60.9 psi) at 25℃ (77 ℉ ) | |||||||||||
Reverse Flow direction | 2.1 bar (30.5psi) at 25℃ (77 ℉ ) | |||||||||||
Sterilization | Steam Sterilization for 30 minutes at 135℃ (275 ℉ ) | |||||||||||
Cartridge Safety | Endotoxin | ＜ 0.25 EU/m | ||||||||||
Extractables | 0.015g / 10" | |||||||||||
