Product Overview
Description
Product Description

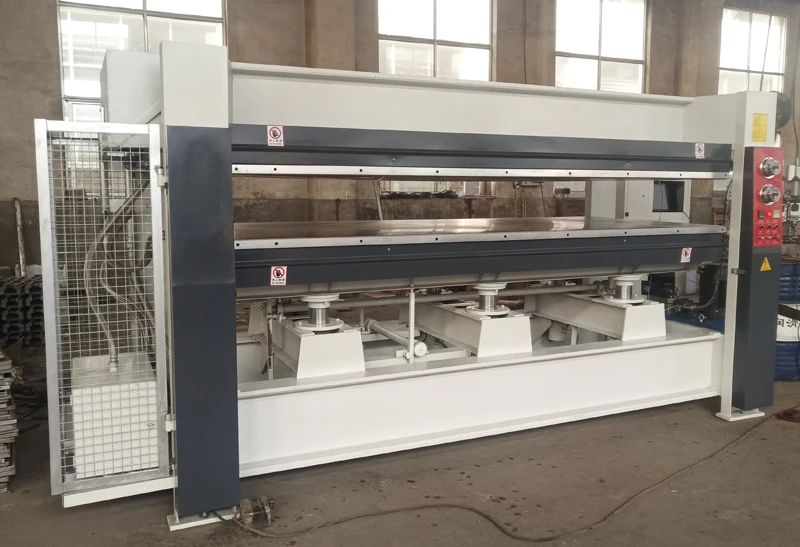

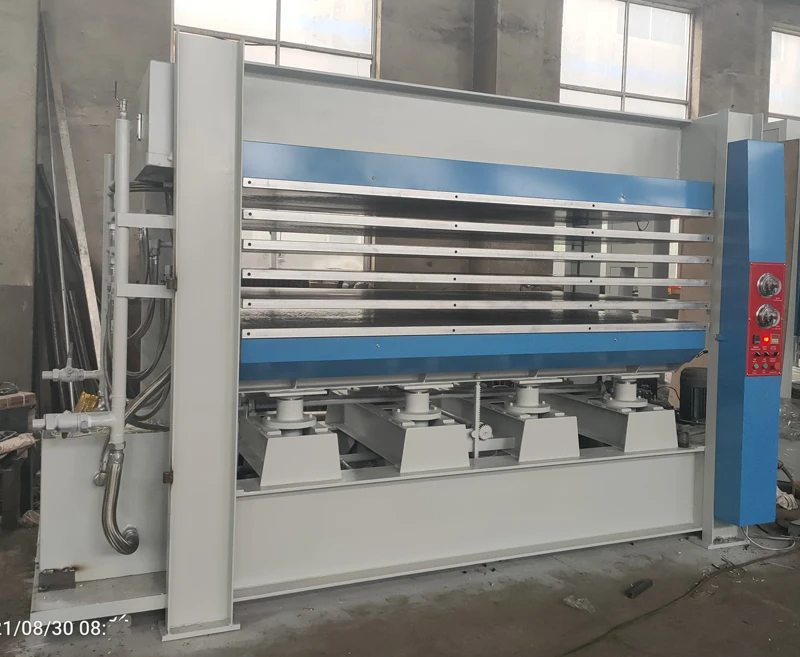

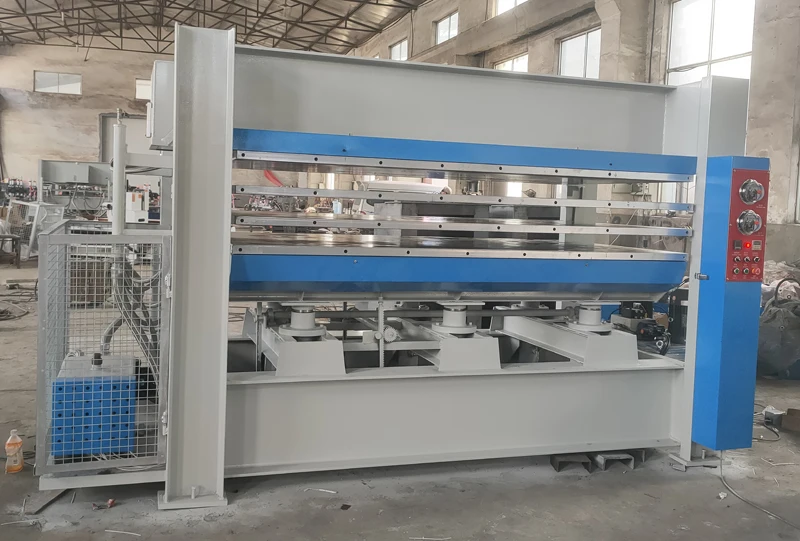

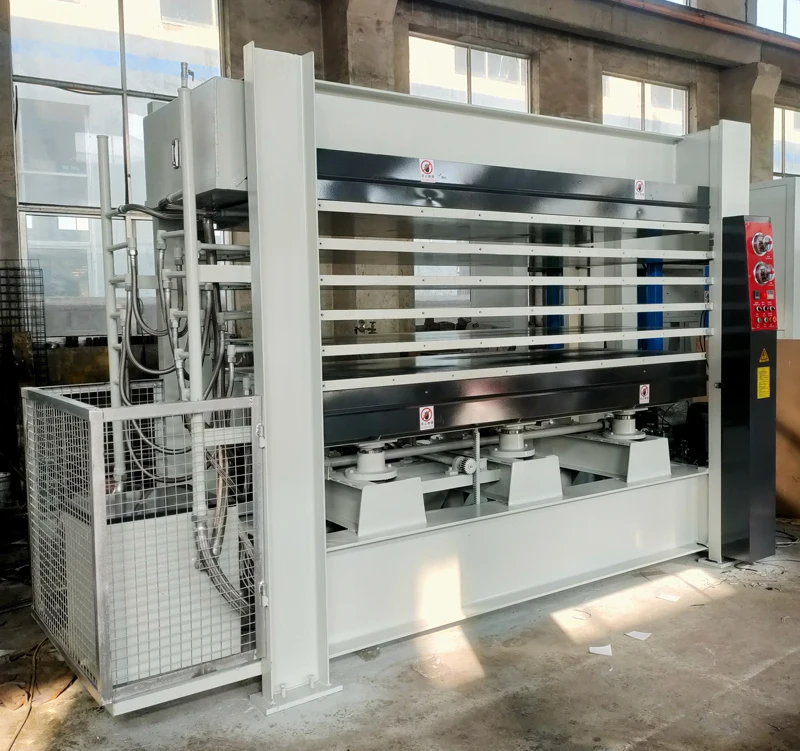

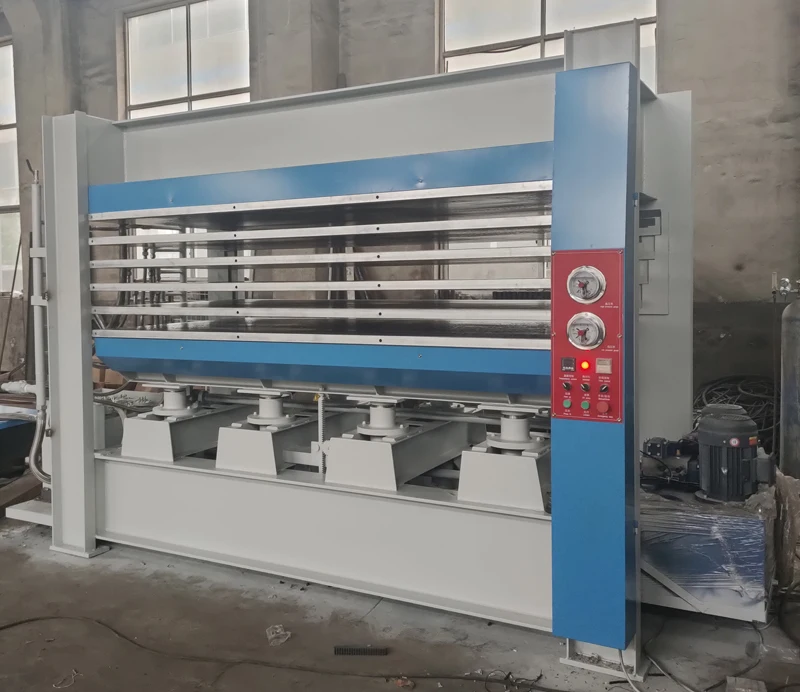

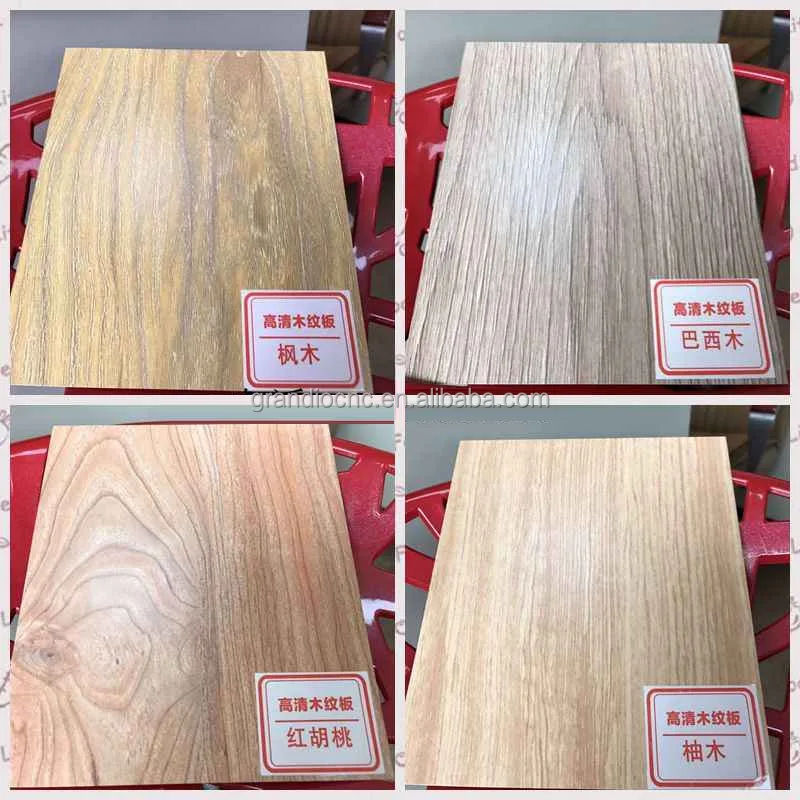

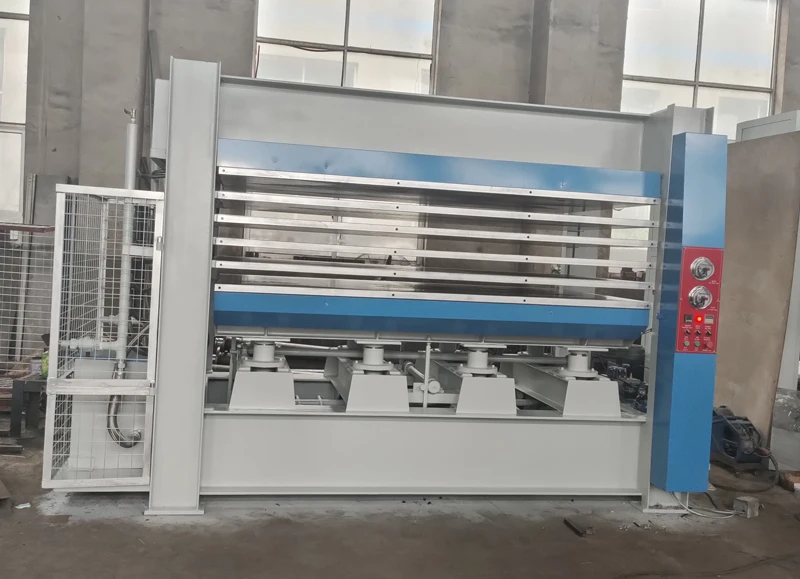

Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
1. It can be used to make the structure of door steady, and also remove the excess moisture of glue.
2. The hydraulic system and electrical system have been equipped with.

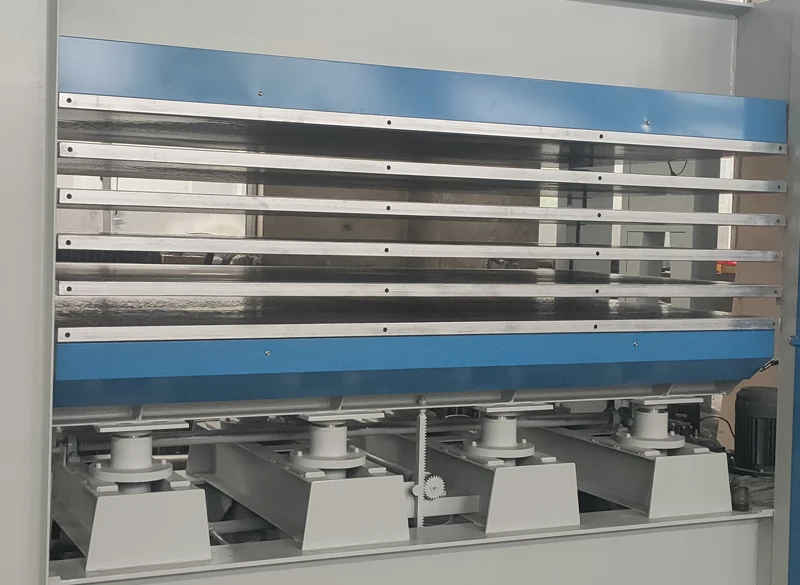

3. All the platens have been treated specially, so the surface is smooth and can ensure the smooth degree of final plywood.
4. The user can choose the heating system as heat steam or thermal oil, but the hot press machine we offered does not include boiler.
5. The cylinders have been treated in high accuracy, so it can avoid oil leaking.
6. The user can choose the platen thickness, daylight number and daylight distance.
7. The machine pressure can be as your request.120ton with 3/4/6 layers for Furniture wood door hot press machine plywood hydraulic electric heating type hot pressing machine
Specification
Model: | GD1325-5L |
Total pressure: | 80T |
Working layer: | 5 |
Platen No.& Size: | 2-2500x1300x42mm(Covered with mylar) |
Max platen opening: | 100mm |
Cylinder No.& Dia: | 4-φ100mm |
Max temperature: | 120℃ |
Heating way: | Electric heating with thermic oil |
Heating medium: | Thermic oil |
Hydraulic pump power | 5.5kw |
Loading way: | Length side,Manually |
Voltage: | As per your request |
Packing: | Bare but properly secured |
Gross Weight: | About 9000.00 kg |
Overall dimension: | 3500x1300x2060mm |
Container need: | 1X20'GP |
Support OEM/ODM Production with agent logo,other model avalible in Grandio CNC
Model | GD1325-1L | GD1325-2L | GD1325-3L | GD1325-4L | GD1325-5L |
Dimension of plate | 1300*2500 | 1300*2500 | 1300*2500 | 1300*2500 | 1300*2500 |
Nominal pressure(MN) | 1.2 | 1.2 | 1.6 | 1.6 | 1.6 |
Stroke | 80 | 80-120 | 80-120 | 80-120 | 80-120 |
Number of level | 1 | 2 | 3 | 4 | 5 |
Features:
1.Heavy,solid and reliable complete structure, which is 3-10 tons heavier than others.2.Platens has double enters and double exits, which ensure a high efficient, and small temperature difference.
3.Each platen has his own control valve.This ensure a easy maintenance in future.
4.Input and output tubes of steam and heat conduction oil are alternative.

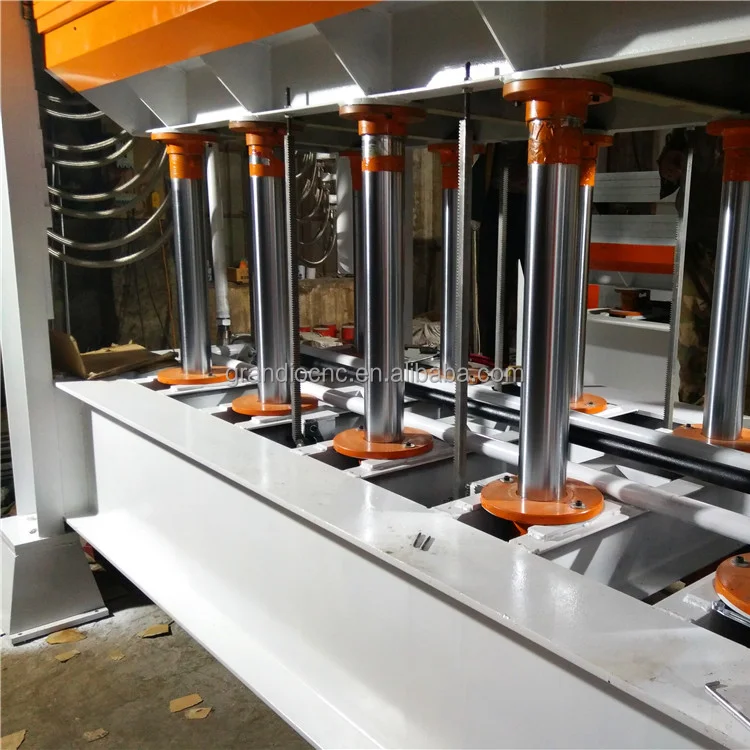

5.Oil cylinder with bigger diameter, heavy duty.And inside pillar is solid while others may be hallow.
6.Closing time is 12-15 seconds which others may more than 20 seconds.
7.electronic element: Schneider . and Most import hydraulic pressure station is made in TAIWAN

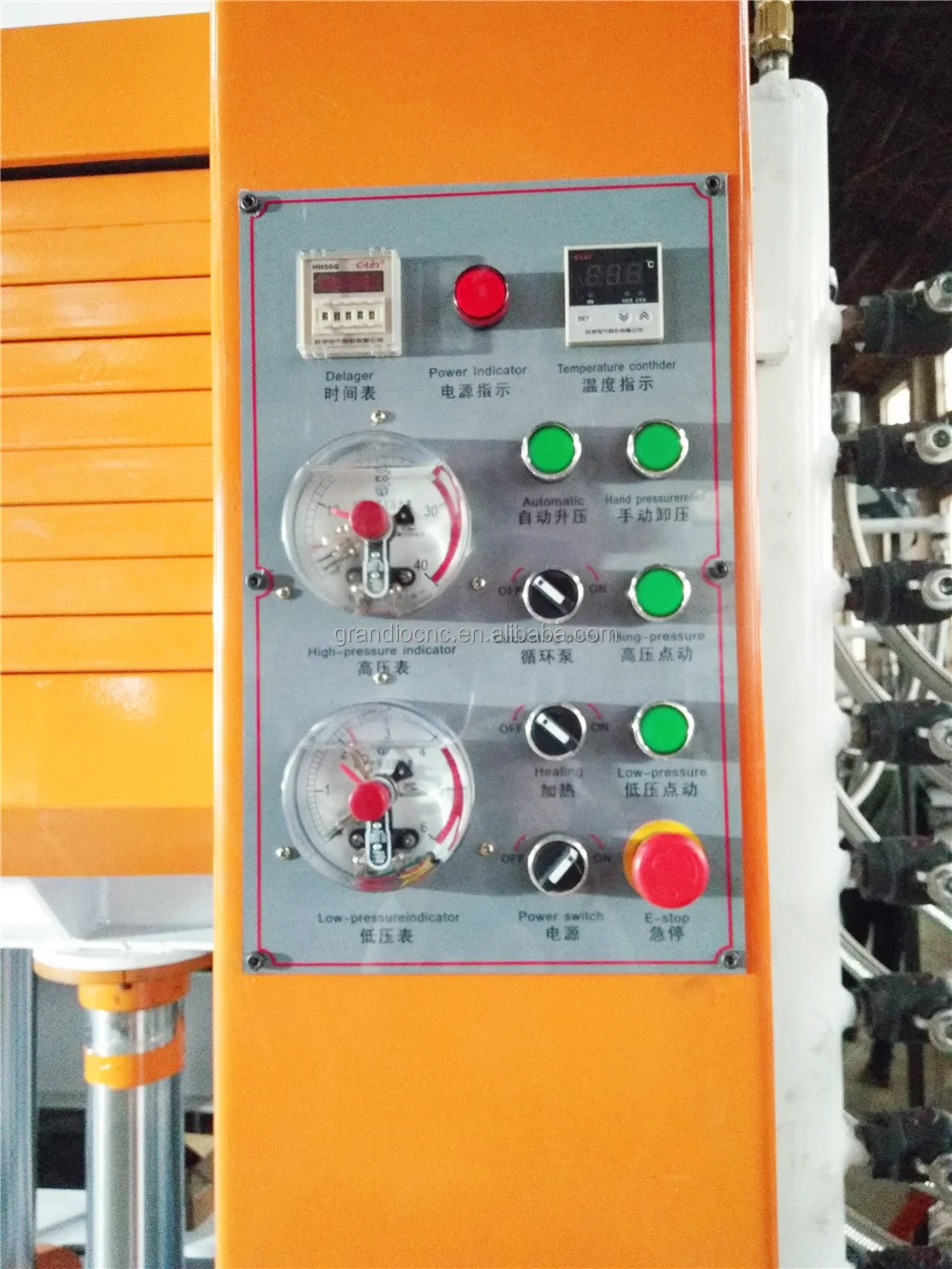

8.Omron PLC control with touch screen and a separately floor-standing cabinet make a easy operation.
9.Electrical brand: Omron and ABB

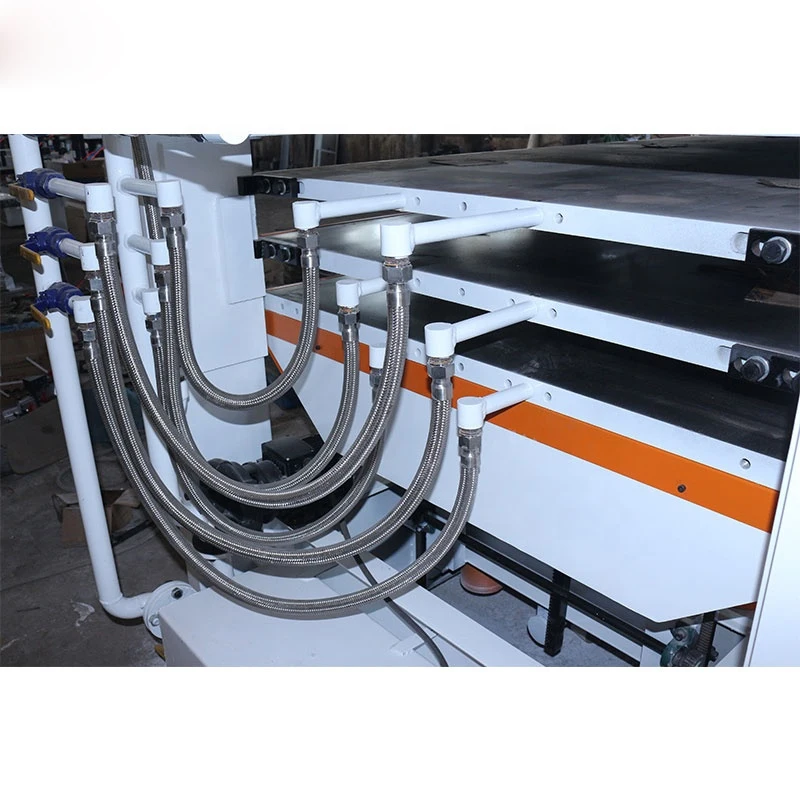

10.The infeed&out pipe is made of PTFE, but others may use PVC. Ours is more durable.
11.Plunger made by 15mm condensing cast iron and chromium plating process

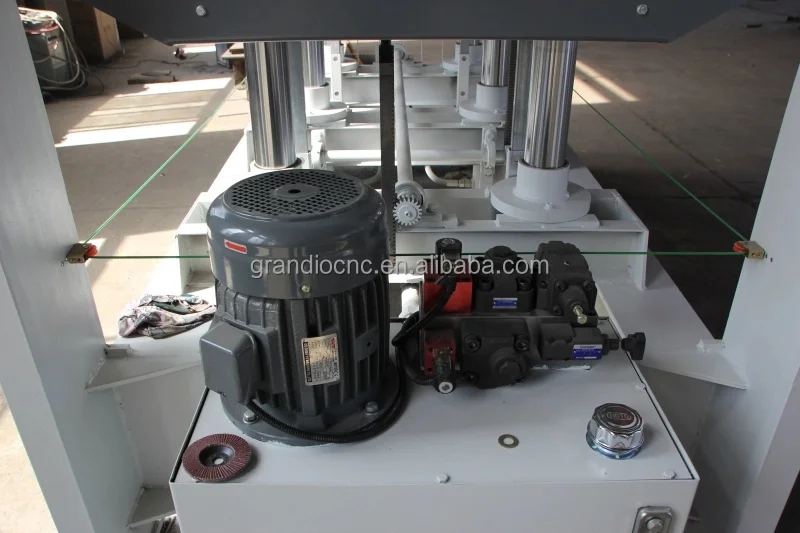

120ton with 3/4/6 layers for Furniture wood door hot press machine plywood hydraulic electric heating type hot pressing machine Hydraulic station,includes motor,oil pump and valve block etc.High quality from famous brands. The whole machine body is heavy,solid and reliable complete structure, which is 3-4 tons heavier than others.Long life span.
Packaging and Shipping
The wooden box is sealed and packaged for safe transportation and effectively prevent bumps.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service.

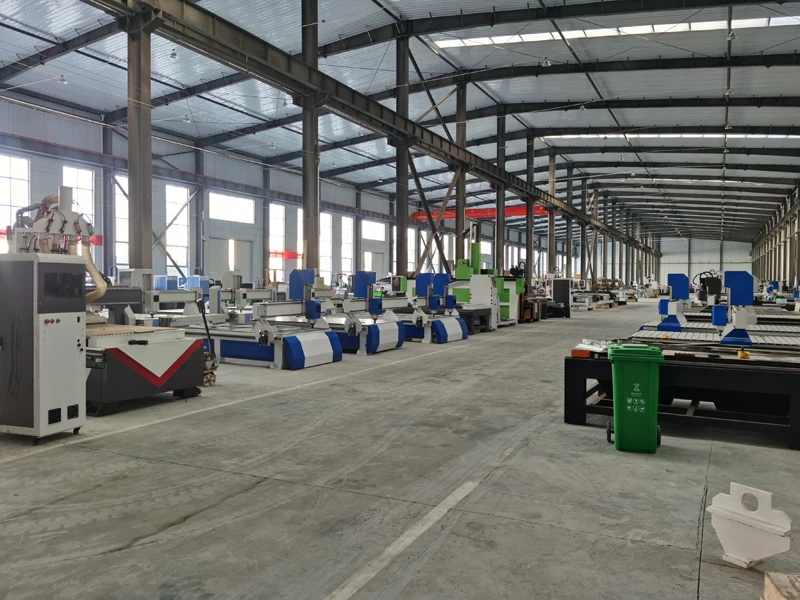

Company Profile

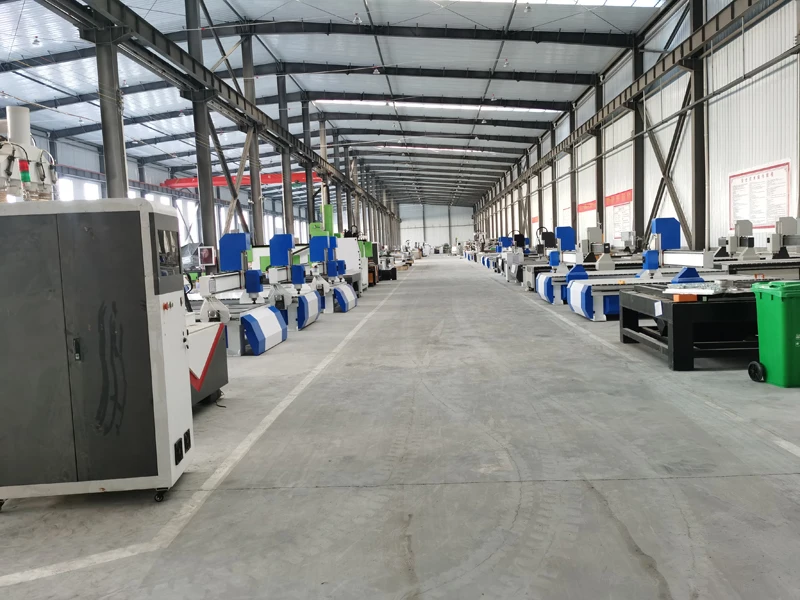

Jinan Grandio CNC has 16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally.
Even can help customers who with zero import experience to provide customs clearance to door service.Accept customized and OEM production, with 4 main production workshops, cnc router engraving machines, fiber laser cutting machines, other woodworking machinery, like sanding machine and pvc banding machine...Our new workshop is for 3d scanners,like laser scanner,3d Shining scanner, we provide the highest quality products, low prices and the best service, one-stop shopping, for all customers Free agent purchasing servicealways looking for powerful agent, work together, win-win.
The company's main products include Panel board furniture production line and cabinet door production line:Standard CNC router(For wood,stone,metal..3axis,4axis and 5axis.support customized,OEM...)
ATC CNC Nesting router,Multi-spindle cnc router machine ,3D scanner,Vacuum membrane press machine,
Wood sanding machine ,Automatic edge banding machine,CNC side hole drilling machine ,Wood CNC lathe ,Fiber laser cutting machine,etc.
Even can help customers who with zero import experience to provide customs clearance to door service.Accept customized and OEM production, with 4 main production workshops, cnc router engraving machines, fiber laser cutting machines, other woodworking machinery, like sanding machine and pvc banding machine...Our new workshop is for 3d scanners,like laser scanner,3d Shining scanner, we provide the highest quality products, low prices and the best service, one-stop shopping, for all customers Free agent purchasing servicealways looking for powerful agent, work together, win-win.
The company's main products include Panel board furniture production line and cabinet door production line:Standard CNC router(For wood,stone,metal..3axis,4axis and 5axis.support customized,OEM...)
ATC CNC Nesting router,Multi-spindle cnc router machine ,3D scanner,Vacuum membrane press machine,
Wood sanding machine ,Automatic edge banding machine,CNC side hole drilling machine ,Wood CNC lathe ,Fiber laser cutting machine,etc.
