Modern Medical Equipments Automatic With Operating Control Medical Equipment For Disabled Automatic Movable Reclining Wheelchair
- Category: >>>
- Supplier: Chengdu Ocean Huitong Technology Co. Ltd.Chengdu Ltd.
Share on (1601305340021):
Product Overview
Description
Product Description
103 functions and specifications

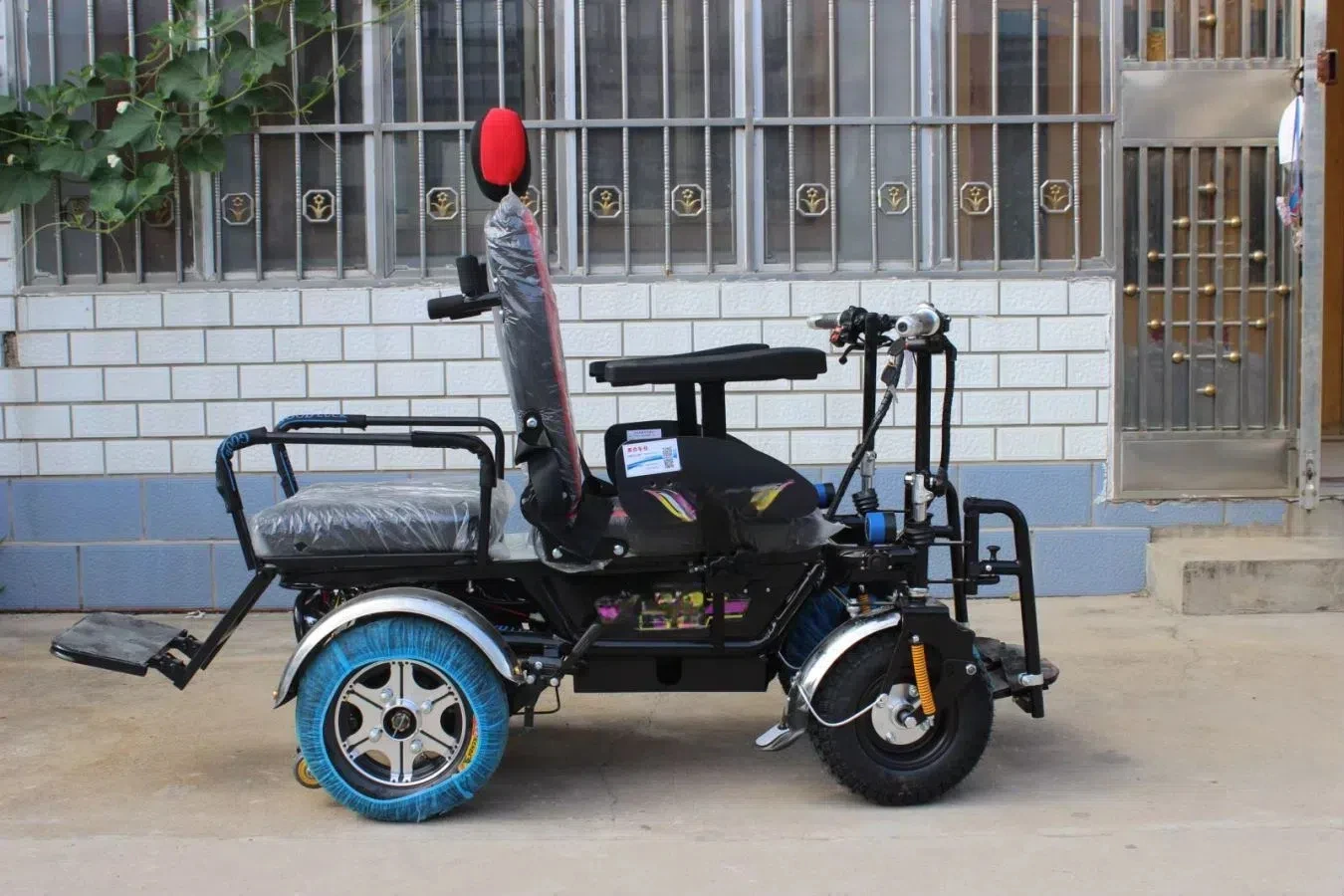

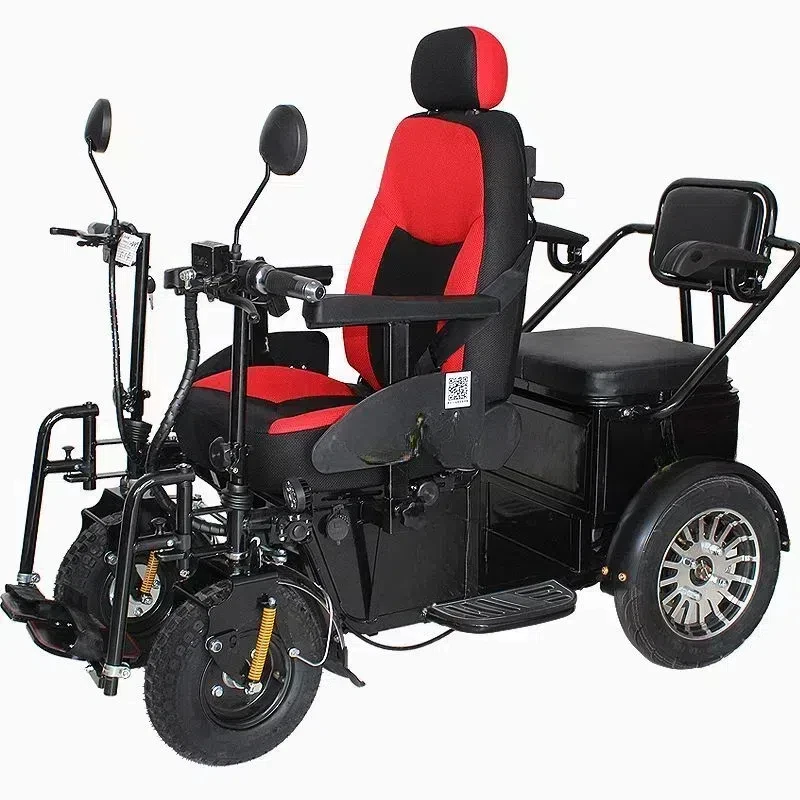

103 is a classic double handle off-road wheelchair. It uses a high-power differential motor, a 13-inch oversized front wheel, and an integrated thick steel frame at the front and rear. It has a top speed of 20-25kg/h and a maximum cruising range of 100 kilometers. The armrests on both sides can be quickly detached, the pedals can be quickly detached, the double handles are foldable, the backrest can be reclined and the leg rests can be replaced. It is suitable for users with healthy hands and normal grasping ability who can carry out long-distance and large-scale outdoor activities.
Product size (length*width*height): 125*65*125cm
Packing size (length*width*height): 115*65*64cm (125*70*68 with rear seat)
Weight: [48v20A 100kg|48v32A 125kg]
Motor specifications: 48V 600W mid-mounted differential motor (can be replaced with a maximum of 60V 1000W)
Control method: handle steering, two-hand operation
Braking method: dual rear wheel mechanical drum brakes, optional electromagnetic brakes and oil disc brakes.
Speed: 0-20km/h
Range: 35-100km
Tire specifications:
Front: 13-inch inner tube pneumatic wheel (350-6) tire width 9.5cm
Rear: 14 inches (300-8) tire width 8cm
Other size parameters (unit cm):
Seat Cushion [Width: 45|Depth: 45|Ground Height: 53]
Seat back [width: 45 | height: 57]
Seat headrest [width: 22|height: 15]
Seat armrest [inner width: 47 | outer width: 58]
Packing size (length*width*height): 115*65*64cm (125*70*68 with rear seat)
Weight: [48v20A 100kg|48v32A 125kg]
Motor specifications: 48V 600W mid-mounted differential motor (can be replaced with a maximum of 60V 1000W)
Control method: handle steering, two-hand operation
Braking method: dual rear wheel mechanical drum brakes, optional electromagnetic brakes and oil disc brakes.
Speed: 0-20km/h
Range: 35-100km
Tire specifications:
Front: 13-inch inner tube pneumatic wheel (350-6) tire width 9.5cm
Rear: 14 inches (300-8) tire width 8cm
Other size parameters (unit cm):
Seat Cushion [Width: 45|Depth: 45|Ground Height: 53]
Seat back [width: 45 | height: 57]
Seat headrest [width: 22|height: 15]
Seat armrest [inner width: 47 | outer width: 58]
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | YYHT |
Model Number | 103 |
Type | Wheelchair |
Instrument classification | Class II |
Warranty | 1 Year |
After-sale Service | Online technical support |
Product name | Double handle steering off-road wheelchair automatic |
Weight | 48v20A 100kg/48v32A 125kg |
Size | 125*65*125cm |
Package Size(W*D*H) | 115*65*64cm/with backseat 125*70*68cm |
Quick detachable components | armrests on both sides, pedals |
Max. Speed | 20-25km/h |
Cruising range | 35-100km |
Sample | Acceptable |
Customization | Acceptable |
Packing & Delivery
carton, wooden box
1 PC/box
Size: 125*70*68cm
Gross/volumetric weight: 100/119KG, or gross weight 125KG
1 PC/box
Size: 125*70*68cm
Gross/volumetric weight: 100/119KG, or gross weight 125KG
Company Profile
Chengdu Ocean Huitong Technology Co., Ltd. is a foreign trade company focusing on providing one-stop services to customers in the medical industry. We cooperate with more than 300 factories in China and have price advantages. Our home medical products have high price advantages, quality and warranty and after-sales service advantages. At the same time, we have also developed a full high-definition and ultra-high-definition integrated image processing system. This product is different from the split machine, more lightweight, and is suitable for foreign trade transportation. We also have surgical consumables, operating room equipment, etc. Welcome to contact us.
Contact Us
FAQ
1. What is your MOQ?
Normally our MOQ is 10 pieces. However, we do accept trial orders for lower quantities.
2. Can I get samples?
Of course you can, when the order reaches a certain quantity, the sample fee will be refunded in the next order.
3. What is the lead time for samples?
Existing samples take 1-3 days. If you want your own design, it will take 3-7 days depending on your design, if you need new printing, etc.
4. How long is the production lead time?
Products that do not require customization are usually in stock and can be shipped at any time for less than 100 pieces. For customized products, it takes 10-15 working days according to the quantity ordered.
5. How much is the shipping cost?
In order to save your cost and let you receive the goods earlier, we suggest to use express shipping for small quantity products and ocean shipping for large quantity products.
6. If I want to design by myself, what format do I need?
You can provide files in JPG, AI, CDR or PDF format. We will draw the mold or print the screen artwork for you.
Normally our MOQ is 10 pieces. However, we do accept trial orders for lower quantities.
2. Can I get samples?
Of course you can, when the order reaches a certain quantity, the sample fee will be refunded in the next order.
3. What is the lead time for samples?
Existing samples take 1-3 days. If you want your own design, it will take 3-7 days depending on your design, if you need new printing, etc.
4. How long is the production lead time?
Products that do not require customization are usually in stock and can be shipped at any time for less than 100 pieces. For customized products, it takes 10-15 working days according to the quantity ordered.
5. How much is the shipping cost?
In order to save your cost and let you receive the goods earlier, we suggest to use express shipping for small quantity products and ocean shipping for large quantity products.
6. If I want to design by myself, what format do I need?
You can provide files in JPG, AI, CDR or PDF format. We will draw the mold or print the screen artwork for you.
