Product Overview

Description



Product Description






Specification


product name

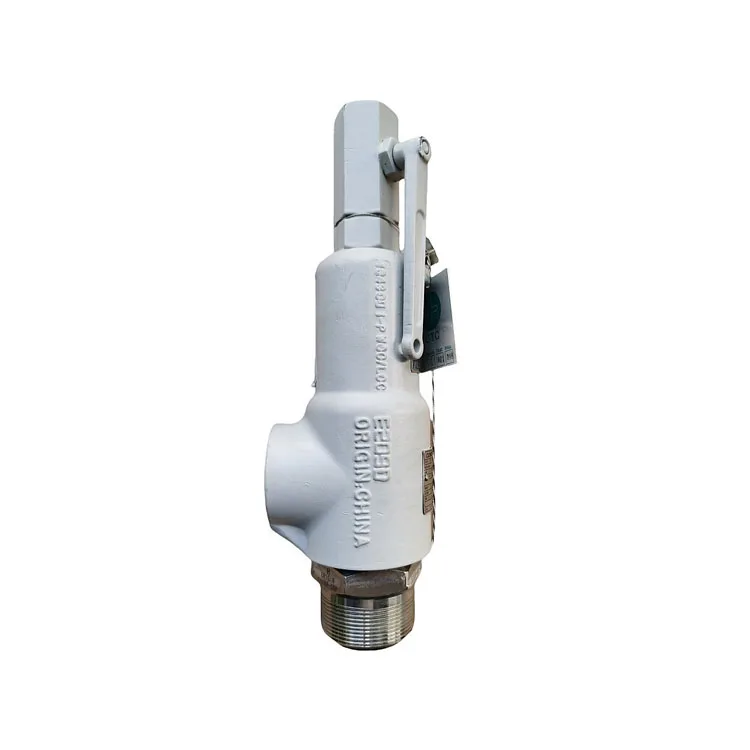

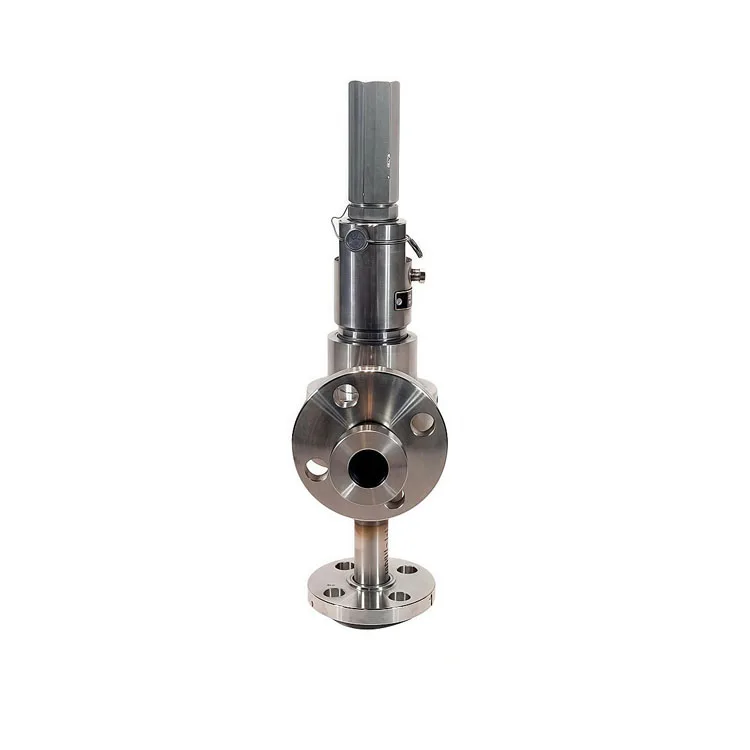

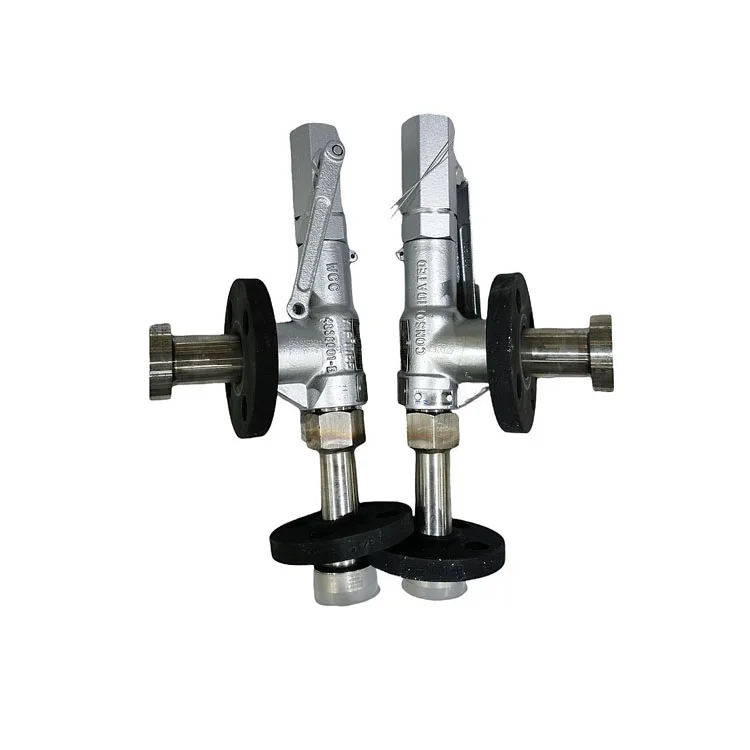

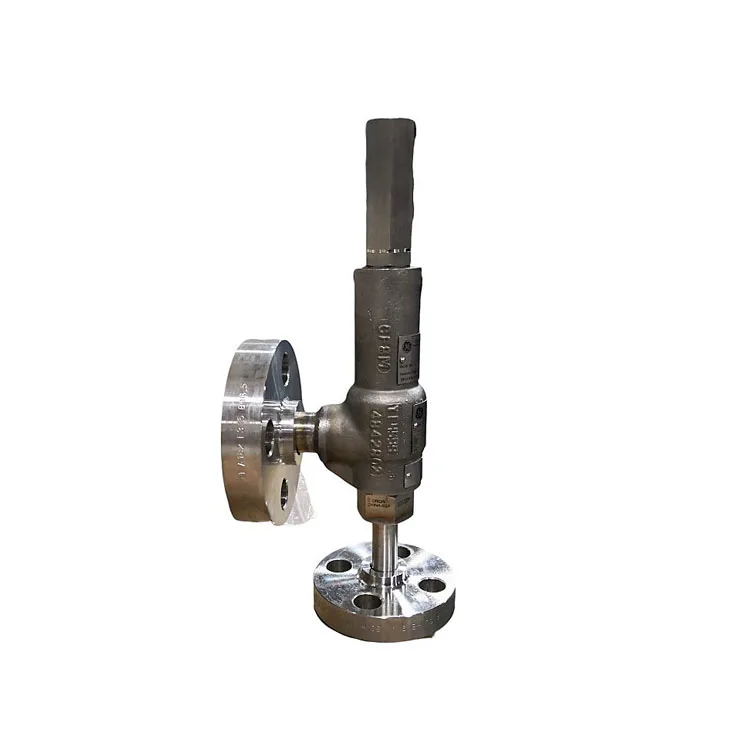

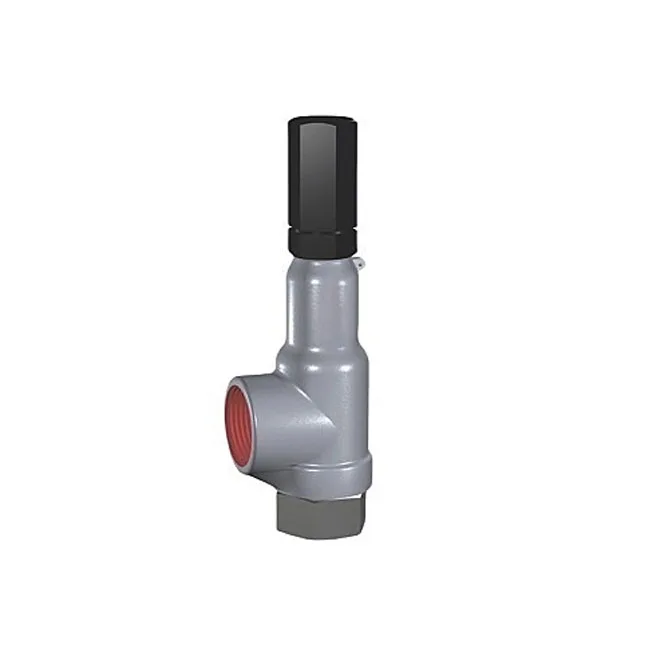

Spring full lift safety valve, Safety Relief Valve, Pressure Relief Valve
Model Number
0.5-19096L
Inlet Sizes
0.5 inch through 2 inch (13 mm through 51 mm)
Inlet Ratings
ANSI Class 150 through API 10000
Outlet Sizes
1 inch through 2.5 inch (25mm through 64mm)
Outlet Ratings
Threaded and ASME Class 150 to 300, Or Customize

Orifice Sizes (6 sizes)
0.096 in2(61.9 mm2) ,0.110 in2 (70.9 mm2) , 0.126 in2 (81.3 mm2) , 0.226 in2(185.8 mm2) ,0.357 in2 (230.3 mm2) , 0.567 in2 (365.8
mm2)

Temperature Range
-450°F to 1100°F (-267.8°C to 593.3°C),High Temperature, Low Temperature, Medium Temperature, Normal Temperature；Threaded and ASME Class 150 to 300

Connection End
Socket Weld Connections (SW), Threaded Connections (MNPT,FNPT), Flanged Connections (RF,FF,RTJ), Optional Connection End available, Connection End list
Set Pressure
>1.0315 psig (1.03 barg), Set Pressures below 15 psig (1.03 barg) are outside the scope of API 527；5 psig to 8000 psig
Back Pressure
Total backpressure for liquid or gas shall not exceed 400 psig (27.58 barg)
Brand Name
Dresser Machinery, Consolidated
Media
Gas, Liquid, and Steam Service
Selling Units
Single item
Single package size
30X30X36 cm
Single gross weight
10.000 kg
MOQ
1
Warranty
1 year
Customized support
OEM, ODM, OBM
Place of Origin
Suzhou, China


Material


316 stainless steel trim (standard), Optional materials available
CC
Standard Material
C1
Ambient Temp. to -50°F (-45.6°C) [LCC Construction]
L1
Low Temperature Service [-21 to -100°F (-29 to -73°C)]
L3
Low Temperature Service [-101 to -450°F (-74 to -268°C)]
S2
Stainless Steel [Internals, Except Spring Assy.]
S3
Stainless Steel [All Except Spring Assy.]
S4
Stainless Steel [Complete Valve]
M1
Monel [Base & Disc]
MB
Monel [M1+Disc Holder]
M2
Monel [Internals, Except Spring Assy.]
M3
Monel [All Except Spring Assy.]
M4
Monel [Complete Valve]
H1
Hastelloy [Base & Disc]
H2
Hastelloy [Internals, Except Spring Assy.]
H3
Hastelloy [All Except Spring Assy.]
H4
Hastelloy [Complete Valve]
N1
Sour Gas
N2
Sour Gas (Stainless Steel)
A1
Alloy 20 [Base & Disc]
A2
Alloy 20 [Internals, Except Spring Assy.]
A3
Alloy 20 [All Except Spring Assy.]
A4
Alloy 20 [Complete Valve]
D1
Duplex [Base & Disc]
D2
Duplex [Internals, Except Spring Assy.]
D3
Duplex [All Except Spring Assy.]
D4
Duplex [Complete Valve]


Standards and Regulation Compliance


Standard/Regulation
Authority
Applicability
ISO 9001
International Organization for Standardization (ISO)
Standard
ISO 14001
International Organization for Standardization (ISO)
Standard
ASME B & PVC, Section XIII (UV) (Gas, Liquid, and Steam Service)
American Society of Mechanical Engineers
Standard
ASME B16.34
American Society of Mechanical Engineers
Standard
ASME B16.5
American Society of Mechanical Engineers
Standard
API 520, 521, 527
American Petroleum Institute
Standard
ASME B & PVC, Section III, Class 1, 2 & 3 (gas, vapor and liquid service)
American Society of Mechanical Engineers
As Required
CRN
Canada
As Required
NACE MR0175
Nace International Institute
As Required
NACE MR0103
Nace International Institute
As Required
PED 2014/68/EU
European Union
As Required
ISO 4126-1
International Organization for Standardization (ISO)
As Required
Indian Boiler Regulations (IBR)
India Boiler Act - Section 28 & 29
As Required
Customs Union Technical Regulation (CU TR)
Customs Union
As Required
AQSIQ - China Manufacturing License
Peoples Republic of China
As Required
Australian Standards
Council of Standards Australia
As Required
NORSOK
Norwegian Petroleum Industry
As Required
ATEX 2014/34/EU Zone 2,Group 2 Category 3
European Union
As Required
49 CFR 192.199
U.S. Department of Transportation (D.O.T.)
Standard
Korean High Pressure Gas Safety Control Act
Korea
Standard


Company Profile






Certifications




Exhibition




Product packaging






1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Mid East(20.00%),Western Europe(20.00%),Eastern Asia(20.00%),North America(20.00%),South Asia(5.00%),Central America(5.00%),Africa(5.00%),South America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Valves,Instruments,Control valve,Safety valve,Pumps

4. why should you buy from us not from other suppliers?
Have long maintained good academic communication with well-known company, universities, professional associations and design engineering institutes in the industry, have rich theoretical knowledge and reliable experience in solving practical problems

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
