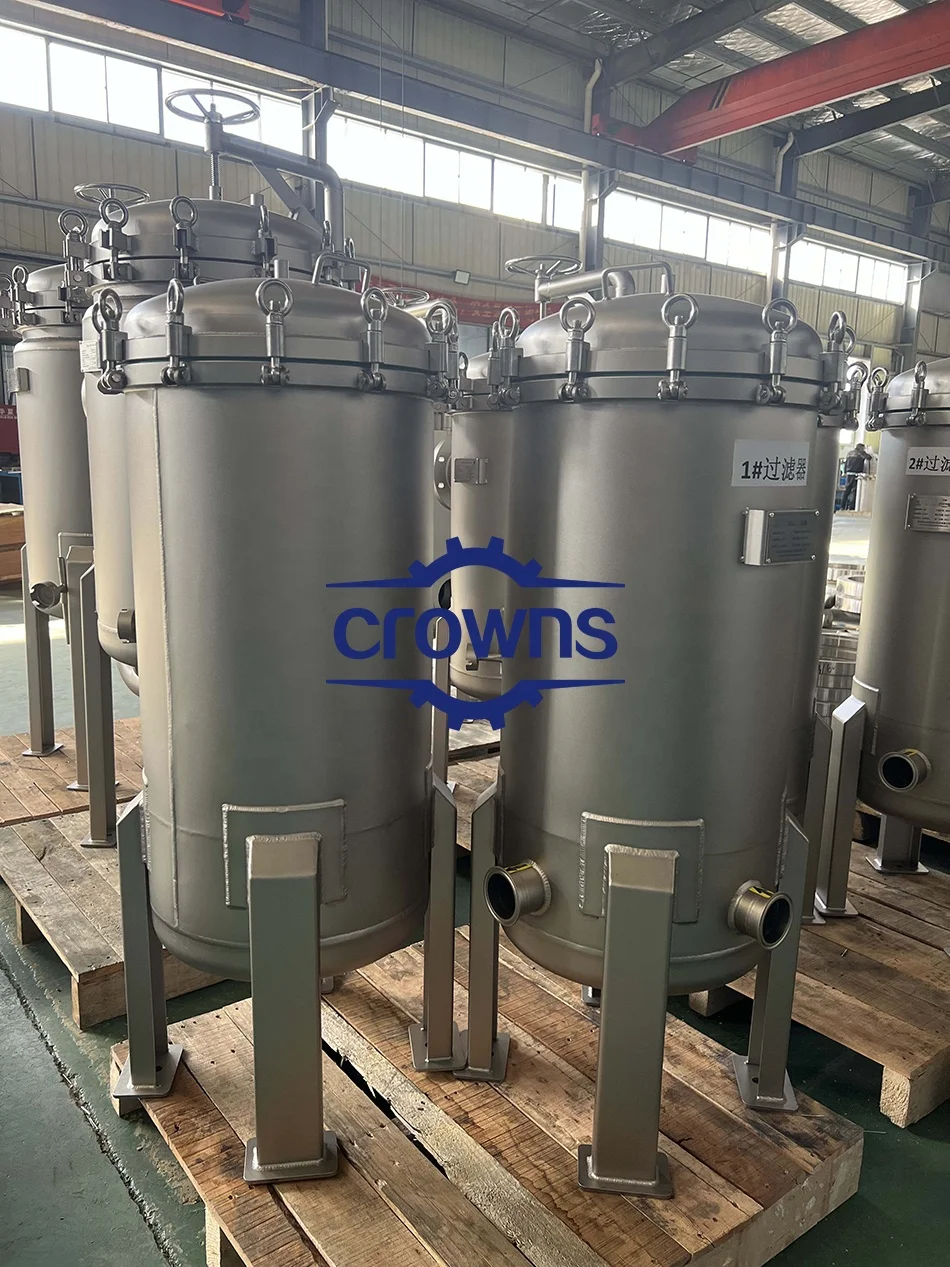

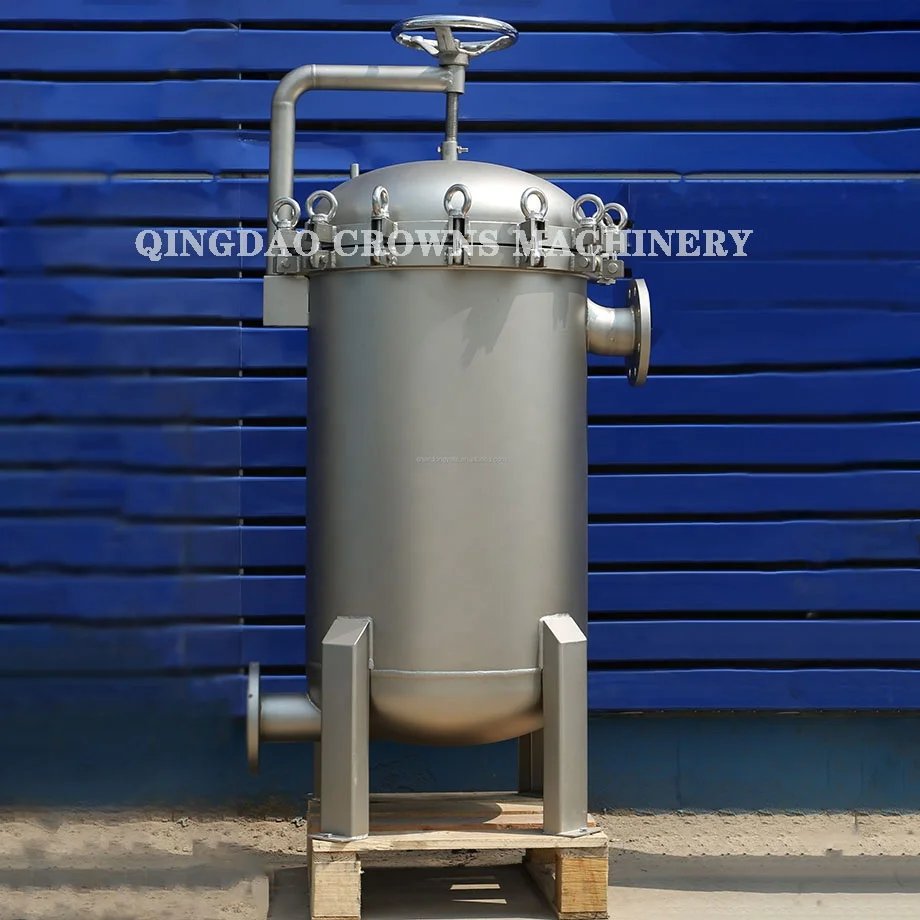

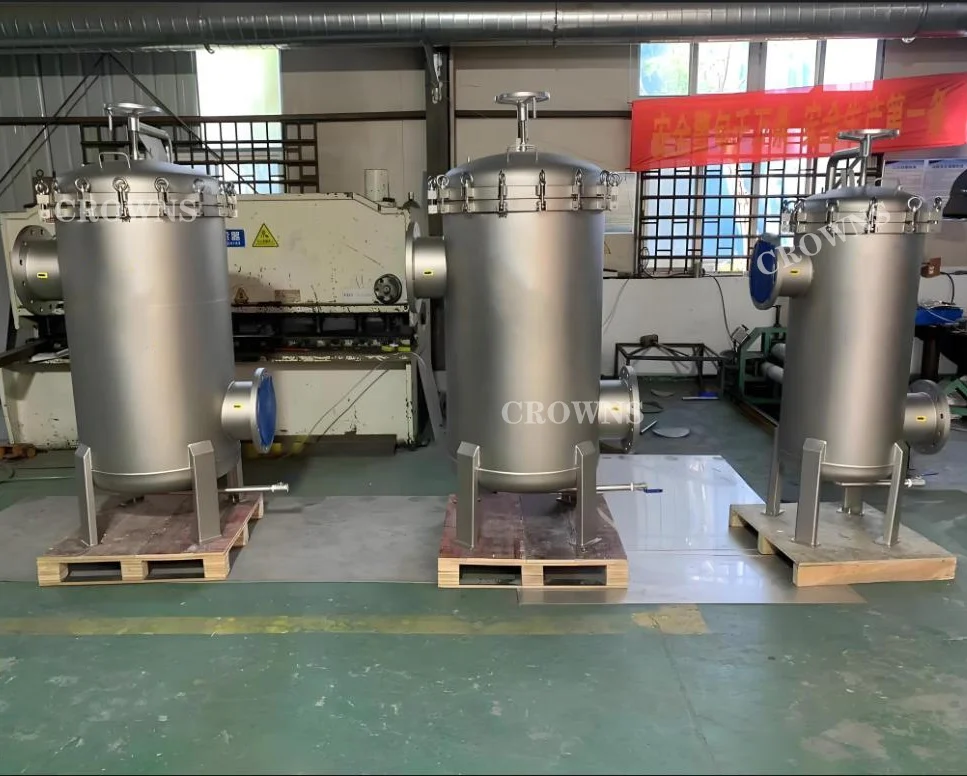

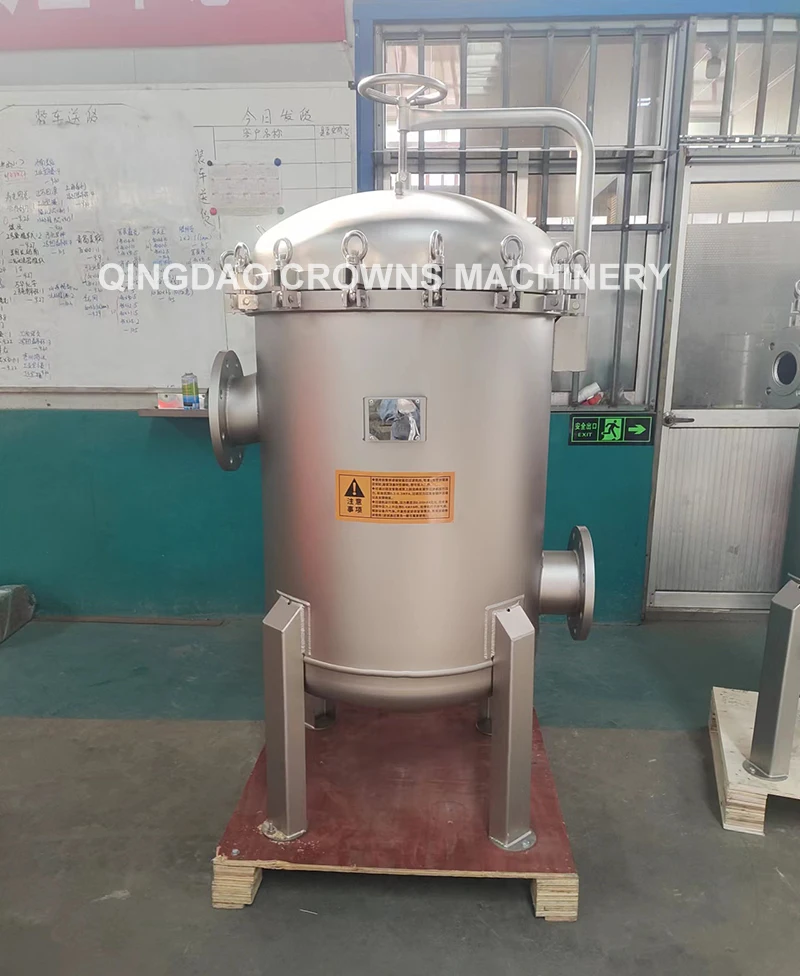

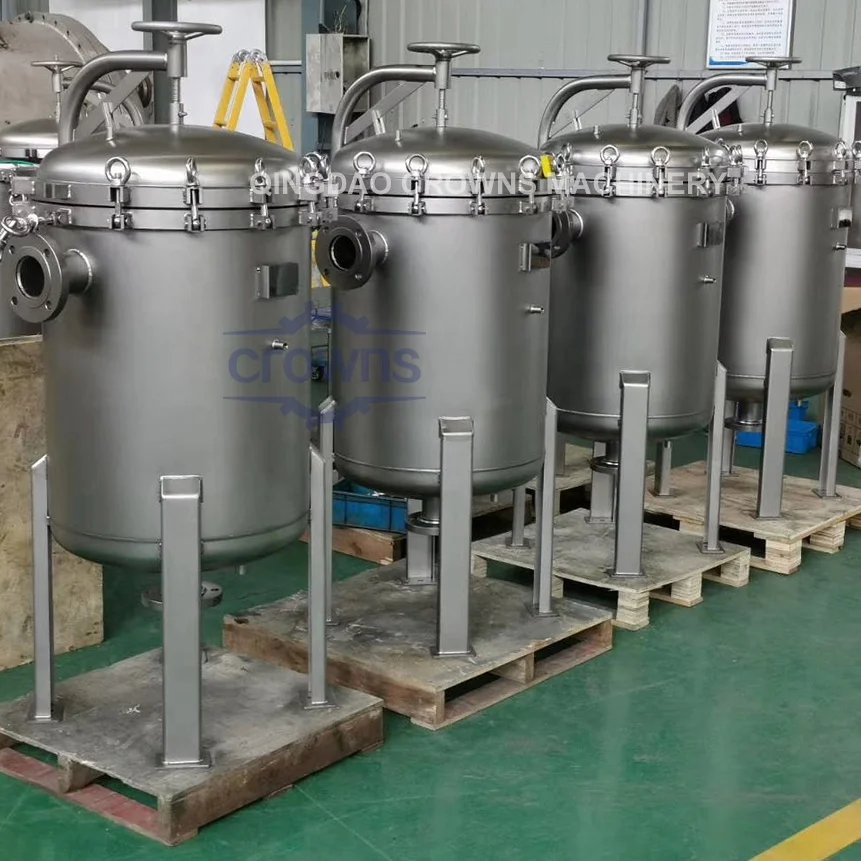

Economical Stainless Steel Bag Filter Unit Multi-Bag Filter Housing Industrial Water Filtration Equipment
--Introduction--
Multi-bag filter is designed for high capacity pollution or large flow filtration requirements, provide 2-24 bags of design customization, import and export of a variety of sizes optional , convenient direct connection, ensure sufficient equipment strength and pipeline load bearing capacity, quick open design, unscrew the nut to remove the cover, convenient maintenance, Made of high-quality stainless steel 304, 316L and other materials.Multi bag filter has the characteristics of large capacity,large amount of contamination,obvious filtration effect,simple poeration,low cost operation.

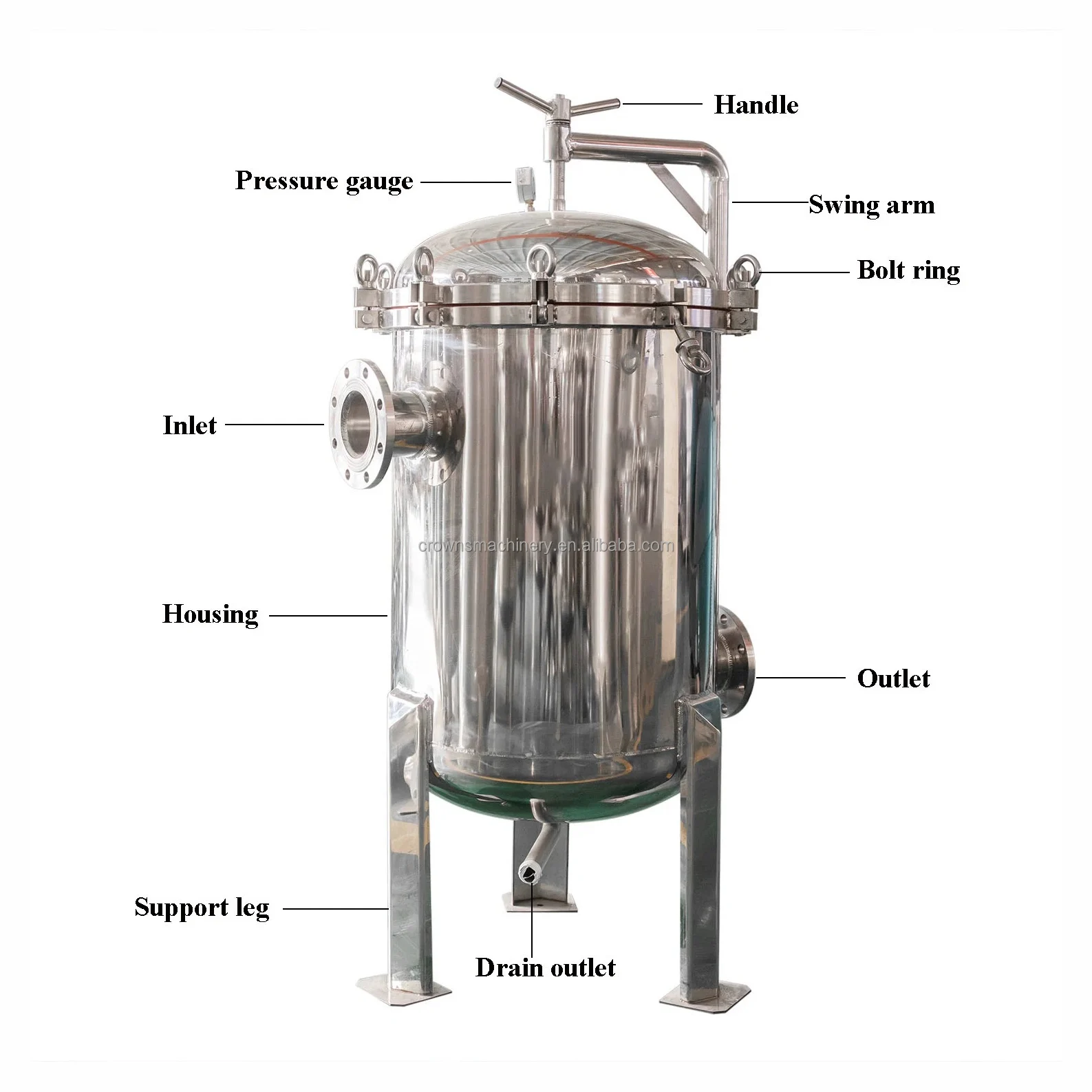

--Structure--

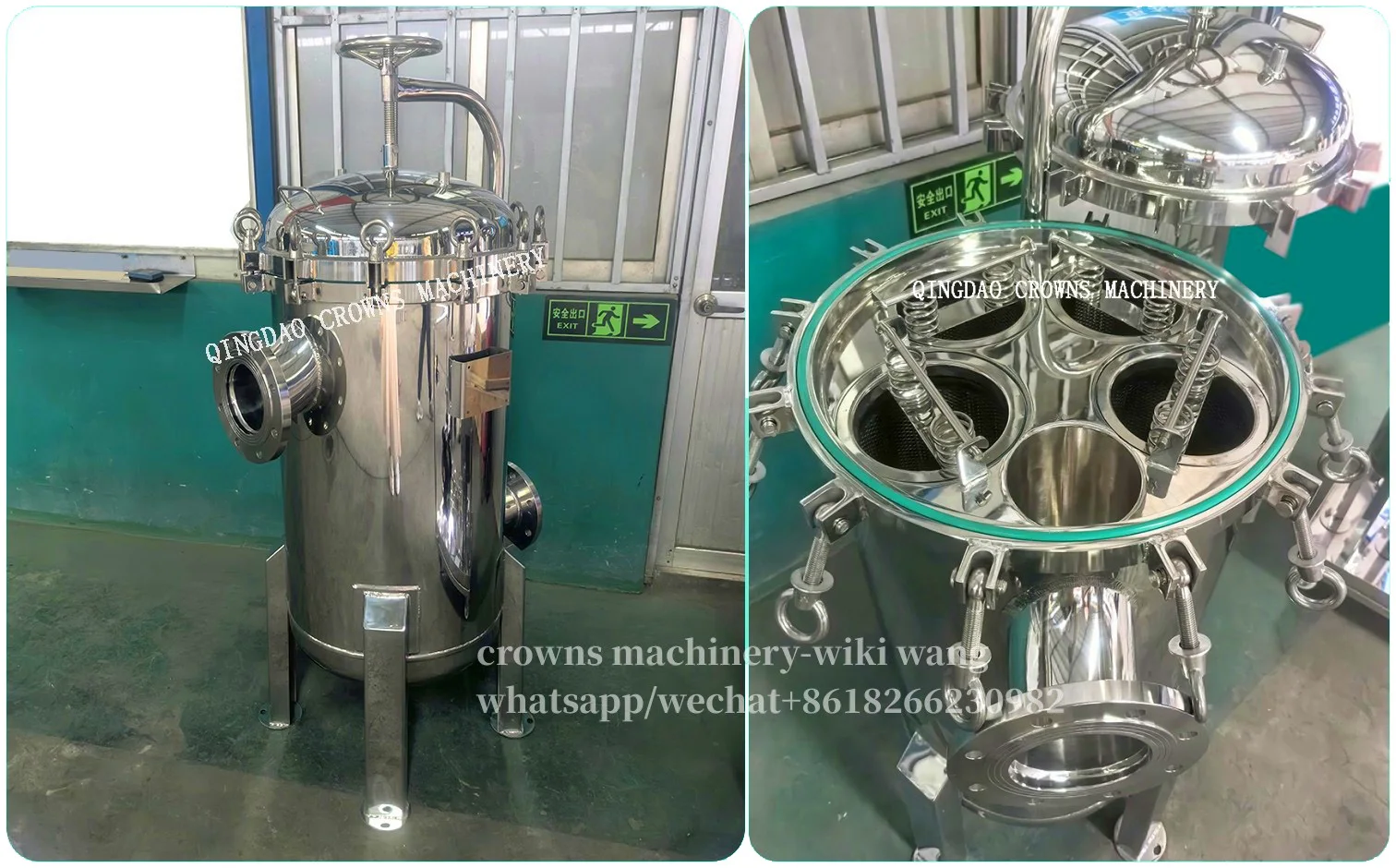

Filter body is mainly composed of three parts:the filter container,supporting basket and the filter bag,filter process.Replace or clean the filter bag,just loosen the ring bolt,rotating the hand-wheel lifting cover,can be removed.--Details Showing--

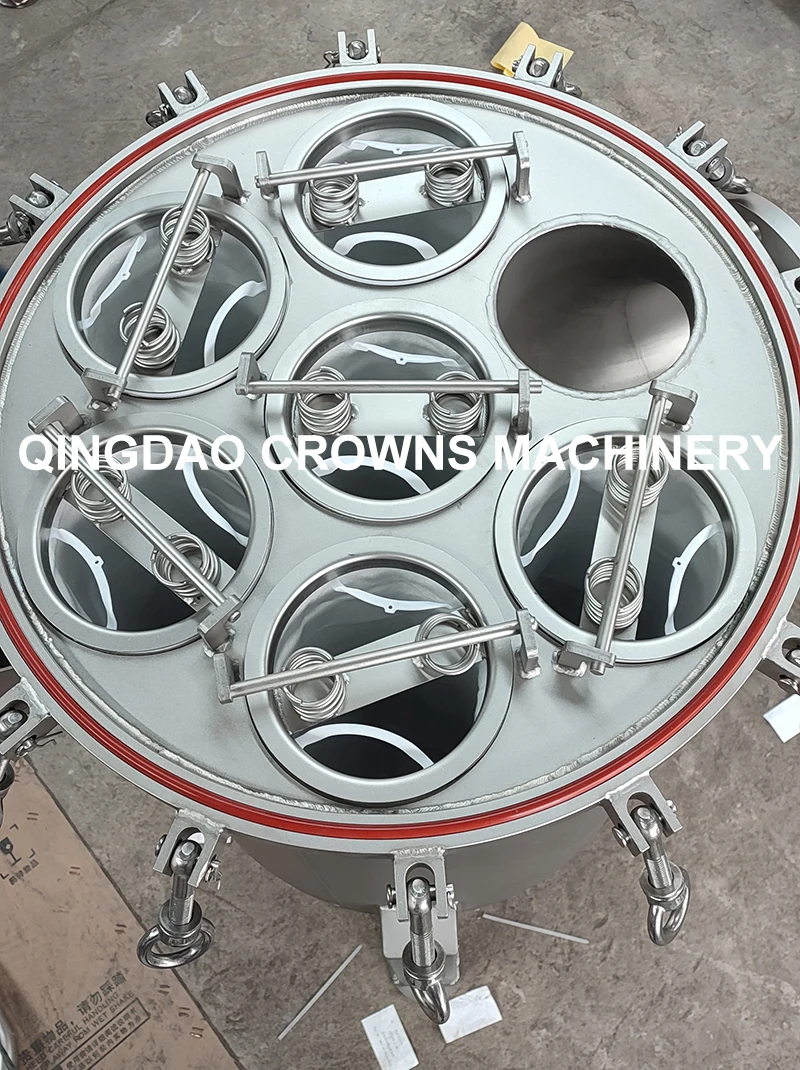

Spring Pressure Parts
easy to operate, better sealing; more even pressure and force than other methods
Screw bolt
Stainless Steel Strengthen Bolt

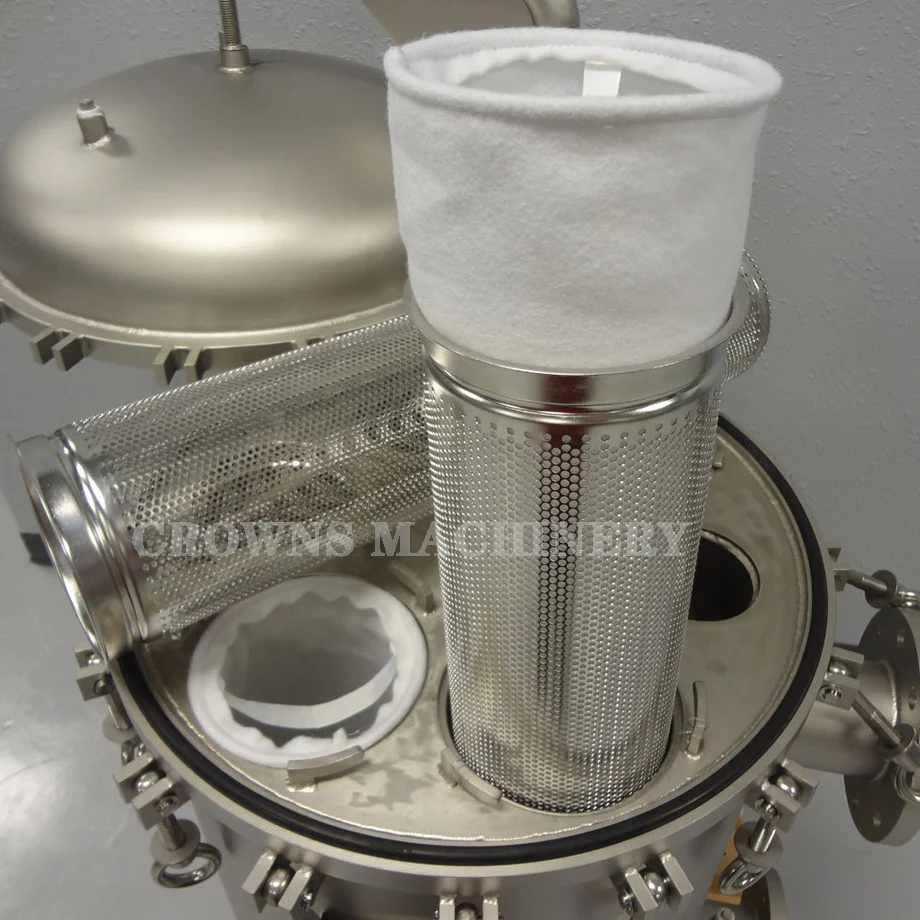

Stainless Steel Filter Basket
Excellent pressure-bearing performance, prevents damage to the filter bag, reduce operating costs

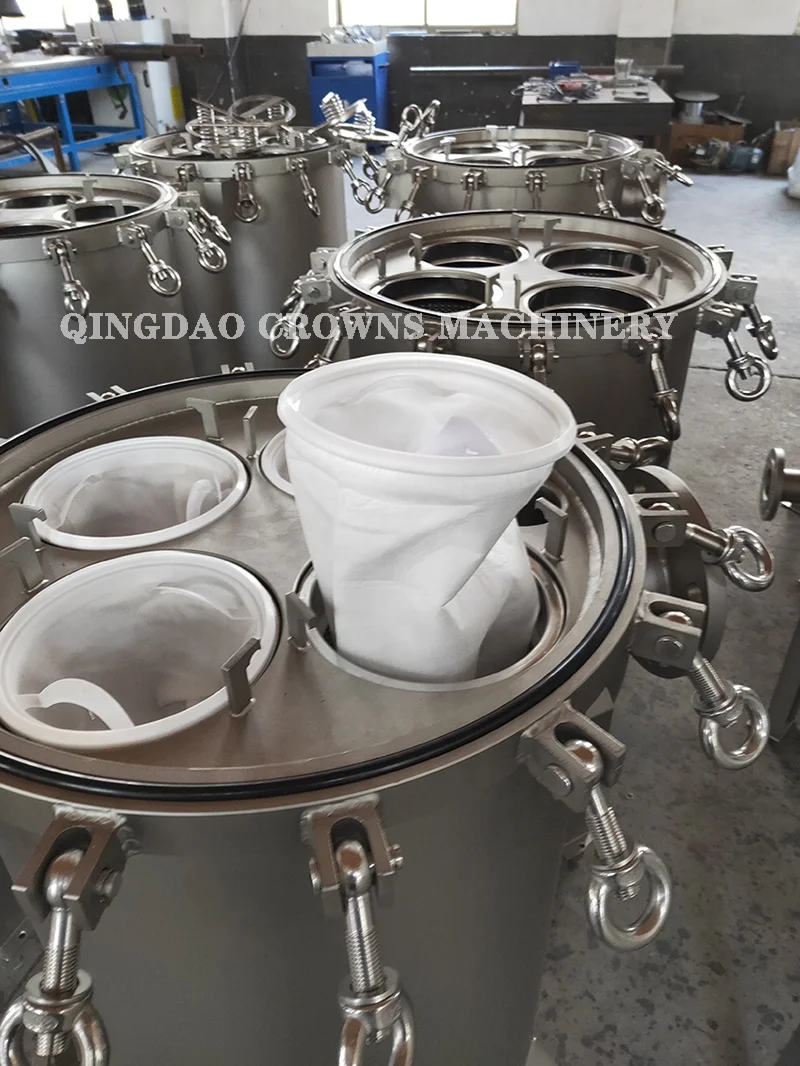

Filter Bag
Filter-Bag size: 1#(180mmD*410mmL), 2#(180mmD*810mmL), 3#(102mmD*210mmL), 4#(102mmD*380mmL)
Models | No. of filter bags | Flow rate | I/O Connections | Max pressure | Housing Diameter | Housing Height | ||||||
(m鲁/h) | (Mpa) | (mm) | (mm) | |||||||||
DL-2P2S | 2 | 70 | DN50 | 0.1-1.2 | 456 | 1144 | ||||||
DL-3P2S | 3 | 105 | DN80 | 508 | 1190 | |||||||
DL-4P2S | 4 | 140 | DN100 | 558 | 1244 | |||||||
DL-5P2S | 5 | 175 | DN150 | 608 | 1254 | |||||||
DL-6P2S | 6 | 210 | DN150 | 658 | 1300 | |||||||
DL-7P2S | 7 | 215 | DN150 | 710 | 1340 | |||||||
DL-8P2S | 8 | 280 | DN150 | 760 | 1404 | |||||||
DL-10P2S | 10 | 350 | DN200 | 910 | 1430 | |||||||
DL-12P2S | 12 | 420 | DN200 | 962 | 1460 | |||||||
DL-14P2S | 14 | 490 | DN200 | 1012 | 1490 | |||||||
DL-16P2S | 16 | 560 | DN250 | 1112 | 1512 | |||||||
DL-18P2S | 18 | 630 | DN250 | 1162 | 1595 | |||||||
DL-20P2S | 20 | 700 | DN250 | 1212 | 1640 | |||||||
DL-22P2S | 22 | 770 | DN250 | 1366 | 1694 | |||||||
DL-24P2S | 24 | 840 | DN300 | 1416 | 1748 | |||||||
Customized | ||||||||||||

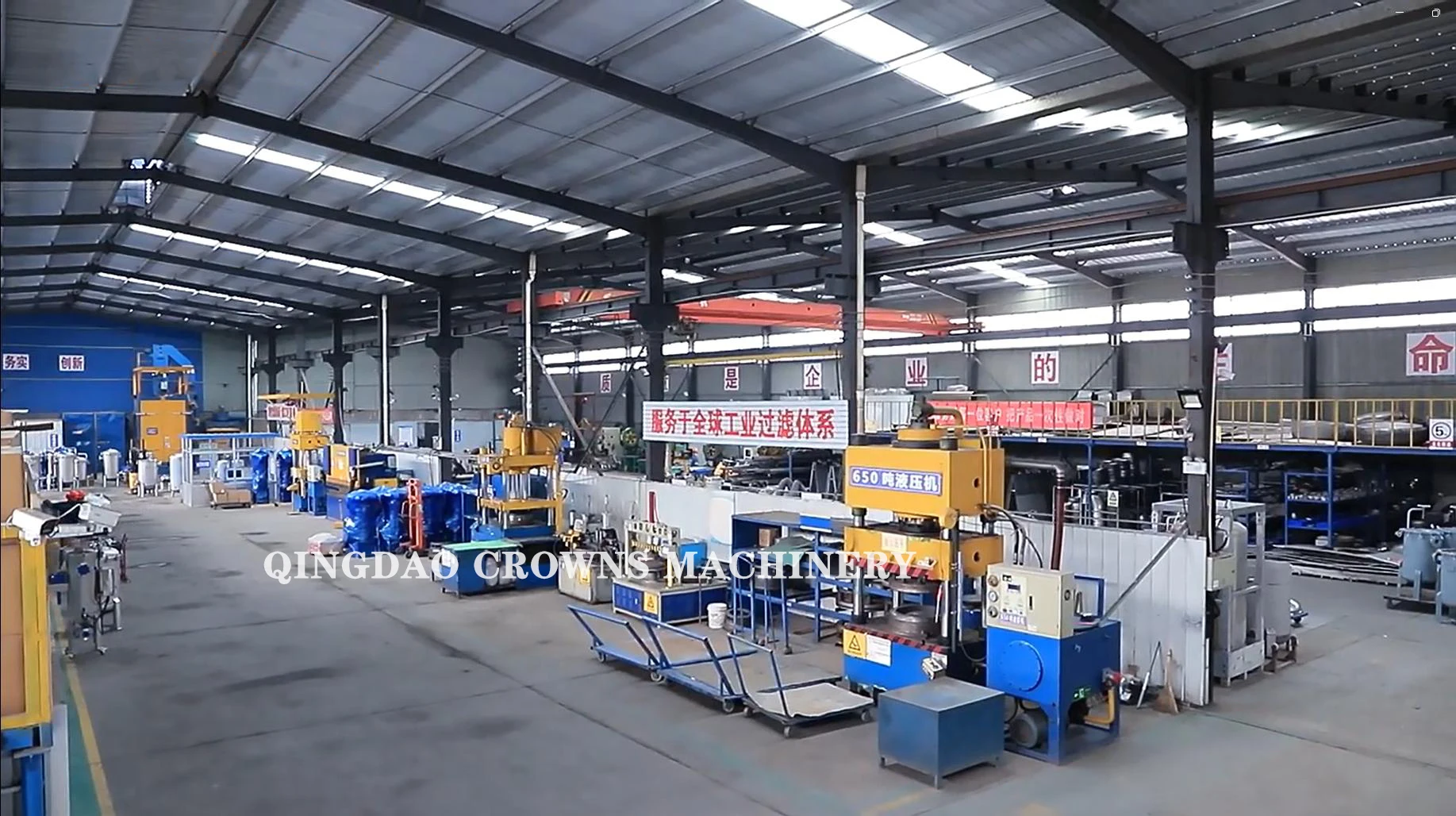

CROWNS MACHINERY
