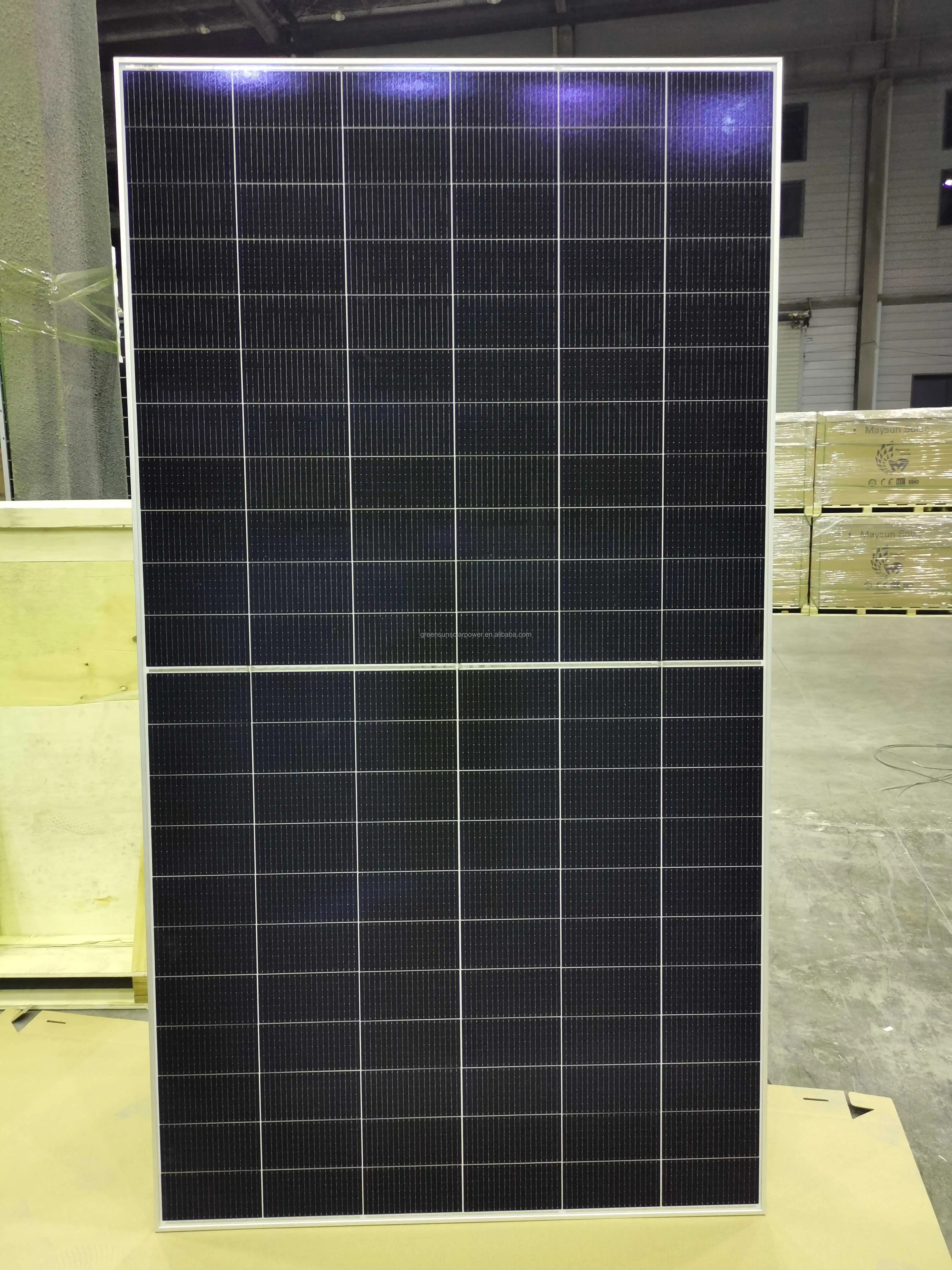

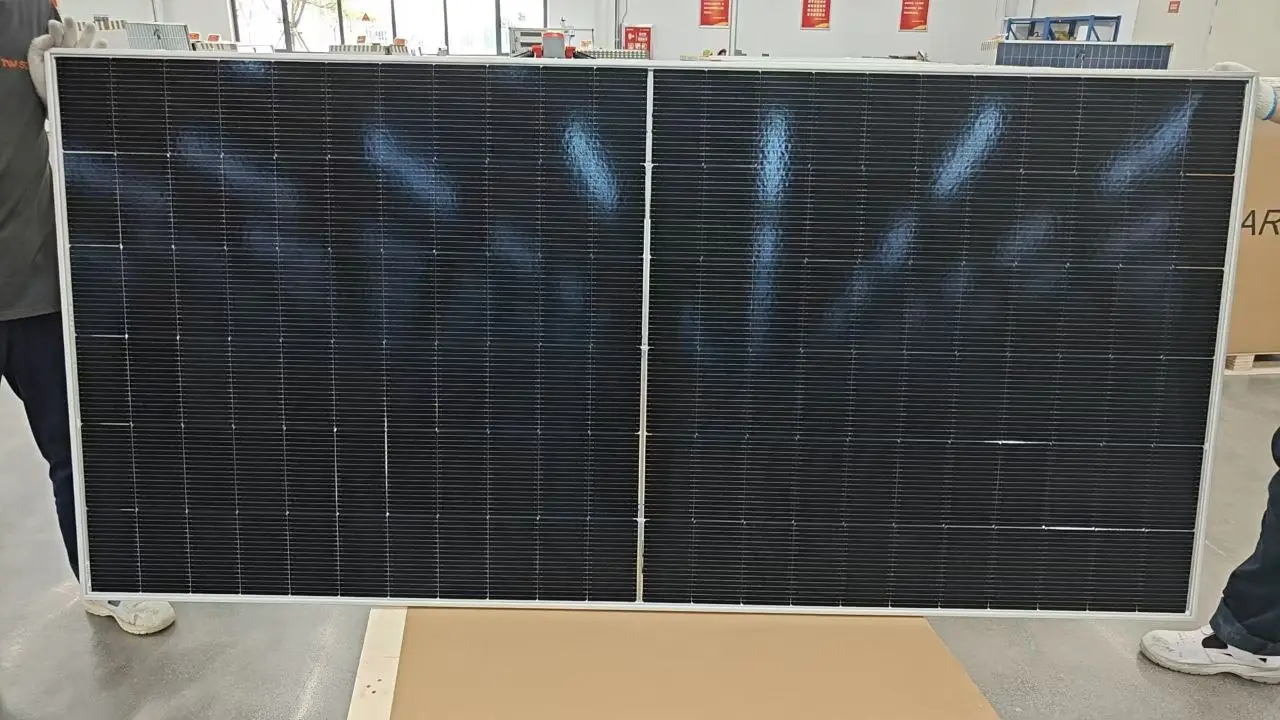

Risen solar panel A Grade Topcon N Type solar panel cleaning 700W~730W guaranteed 108cells panel solar efficiency quality
- Category: >>>
- Supplier: Greensun Solar PowerGreensun Power
Share on (1601307603512):
Product Overview
Description
Product Description
Specification

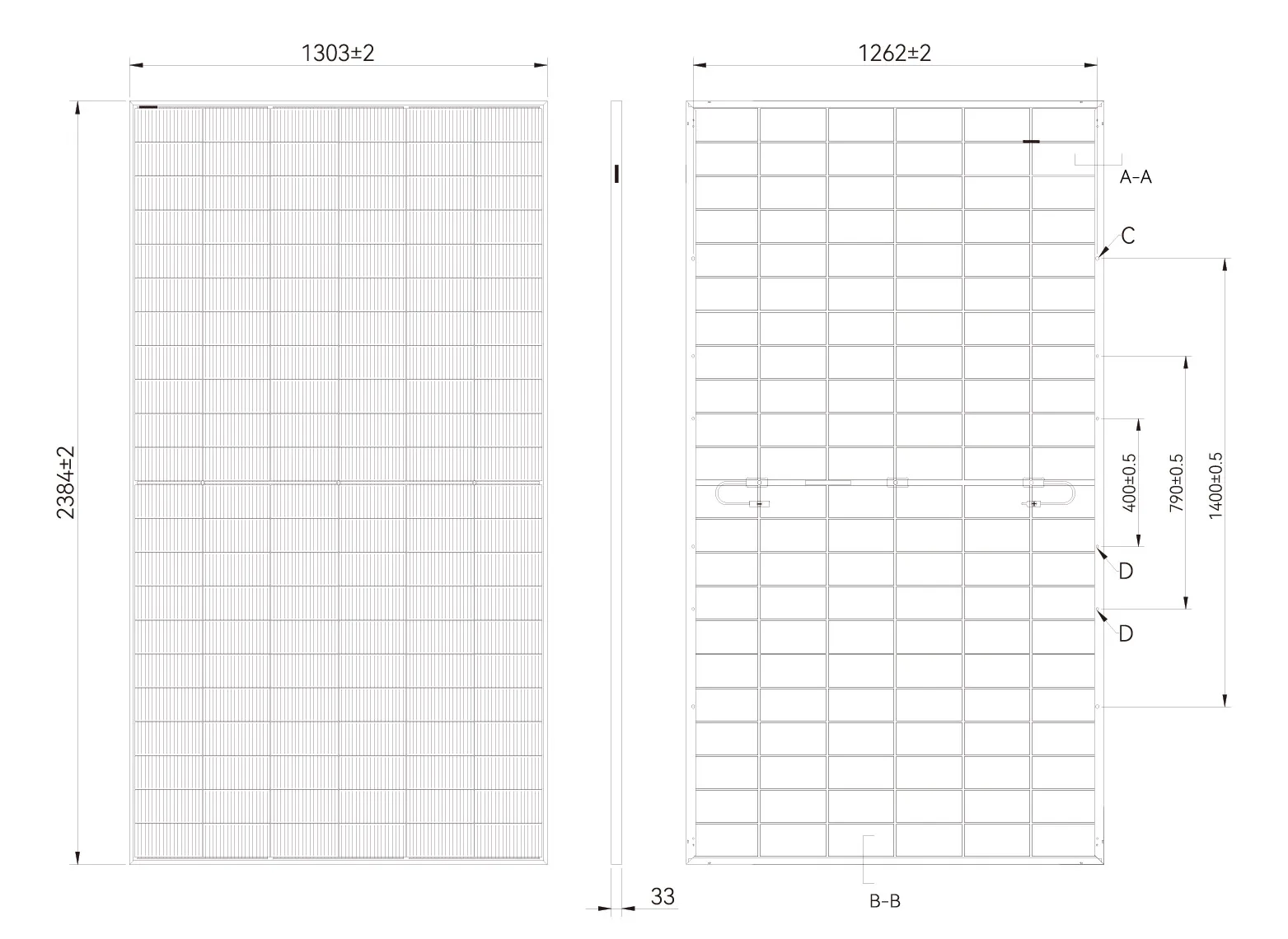

GSM-MH12/132HBD 700-730W | ||||||||||||||
Maximum Power Pmax(W) | 700 | 705 | 710 | 715 | 720 | 725 | 730 | |||||||
Maximum Power Voltage Vmp(V) | 40.50 | 40.70 | 40.90 | 41.10 | 41.30 | 41.50 | 41.70 | |||||||
Maximum Power Current Imp(A) | 17.29 | 17.33 | 17.36 | 17.40 | 17.44 | 17.48 | 17.52 | |||||||
Open Circuit Voltage Voc(V) | 48.60 | 48.80 | 49.00 | 49.20 | 49.40 | 49.60 | 49.80 | |||||||
Short Circuit Current Isc(A) | 18.32 | 18.36 | 18.40 | 18.44 | 18.49 | 18.53 | 18.57 | |||||||
Module Efficiency (%) | 22.50 | 22.70 | 22.90 | 23.00 | 23.20 | 23.30 | 23.50 | |||||||
Power Output Tolerance (W) | 0~+5 | |||||||||||||
Nominal Operating Cell Temperature (NOCT) | 44±2°C | |||||||||||||
Temperature Coefficient of lsc | +0.040%/℃ | |||||||||||||
Temperature Coefficient of Voc | -0.240%/℃ | |||||||||||||
Temperature Coefficient of Pmax | -0.300%/℃ | |||||||||||||
Operational Temperature | -40~+85°C | |||||||||||||
Maximum System Voltage | 1500V DC | |||||||||||||
Max Series Fuse Rating | 30A | |||||||||||||
STC: Irradiance 1000W/m2, Module Temperature 25°C Air Mass 1.5 | ||||||||||||||
Packing & Delivery

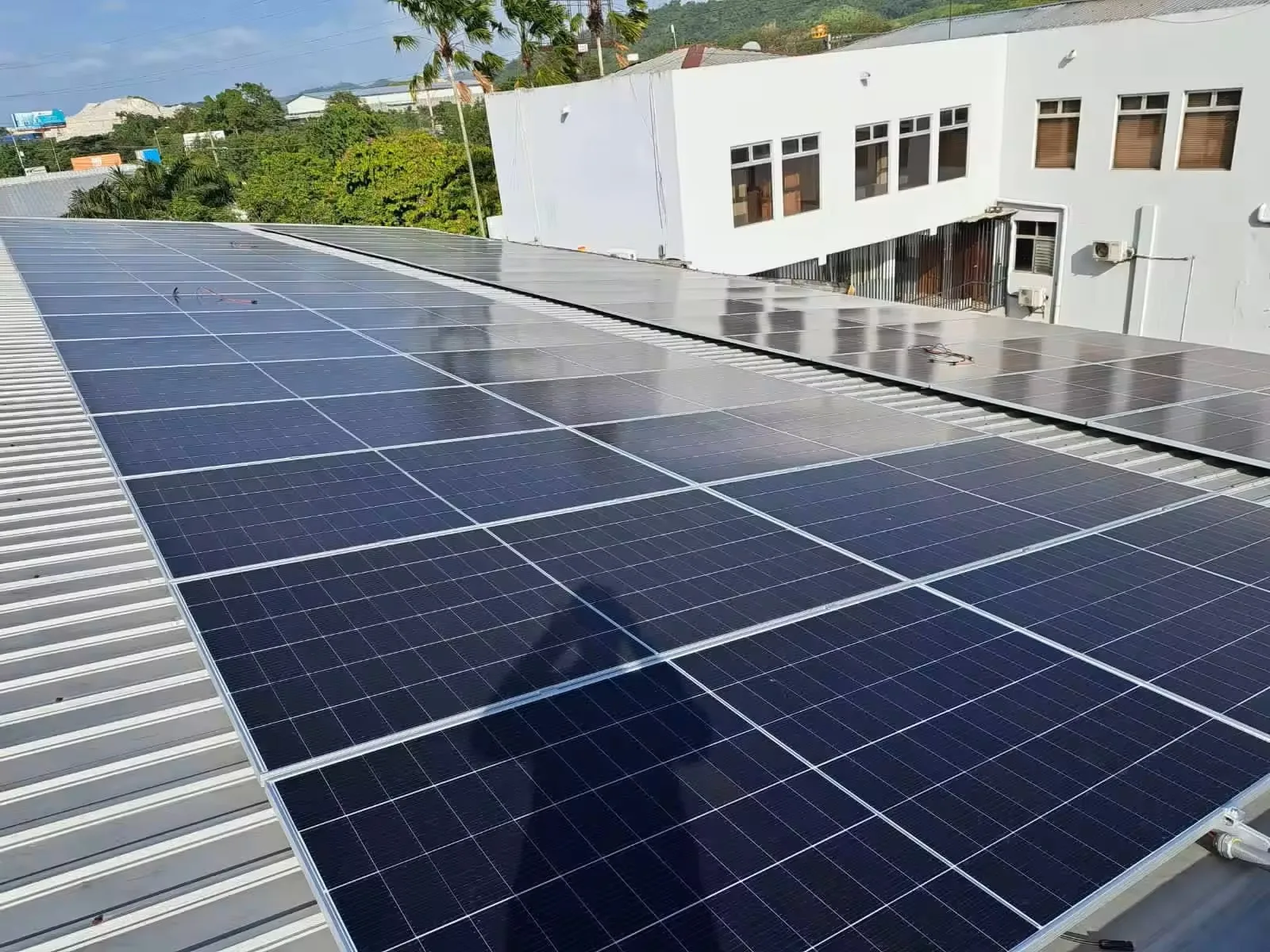

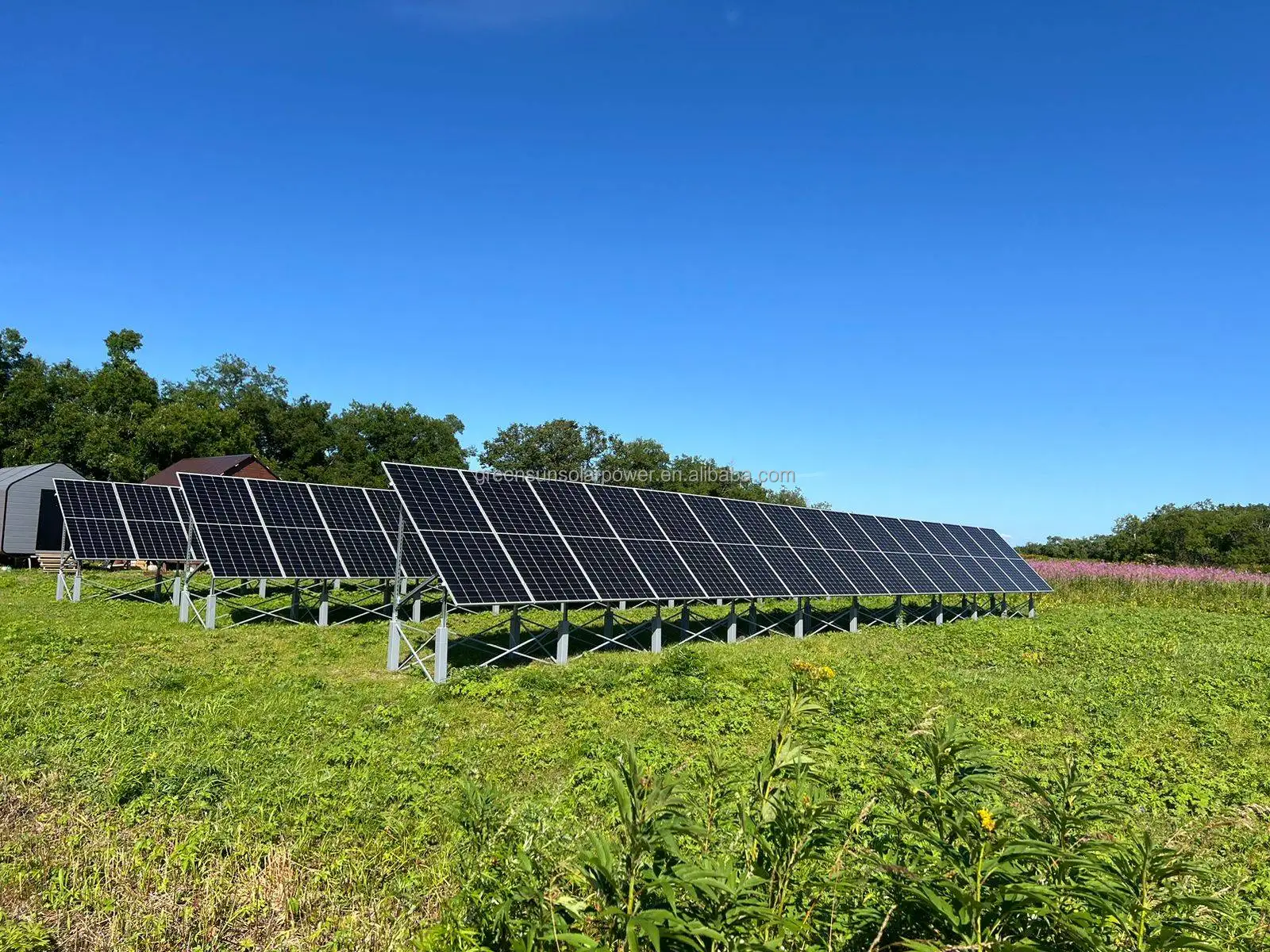

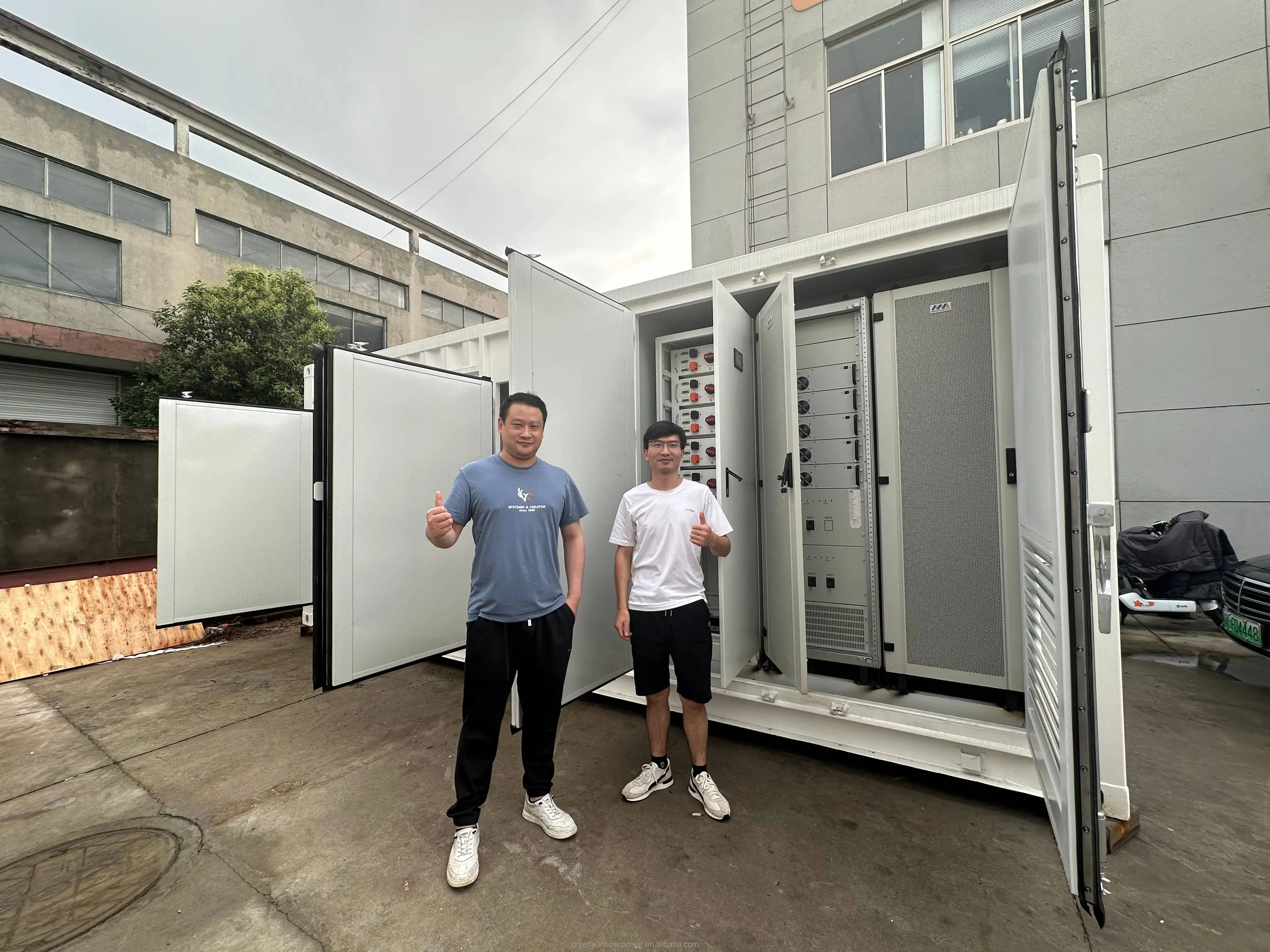

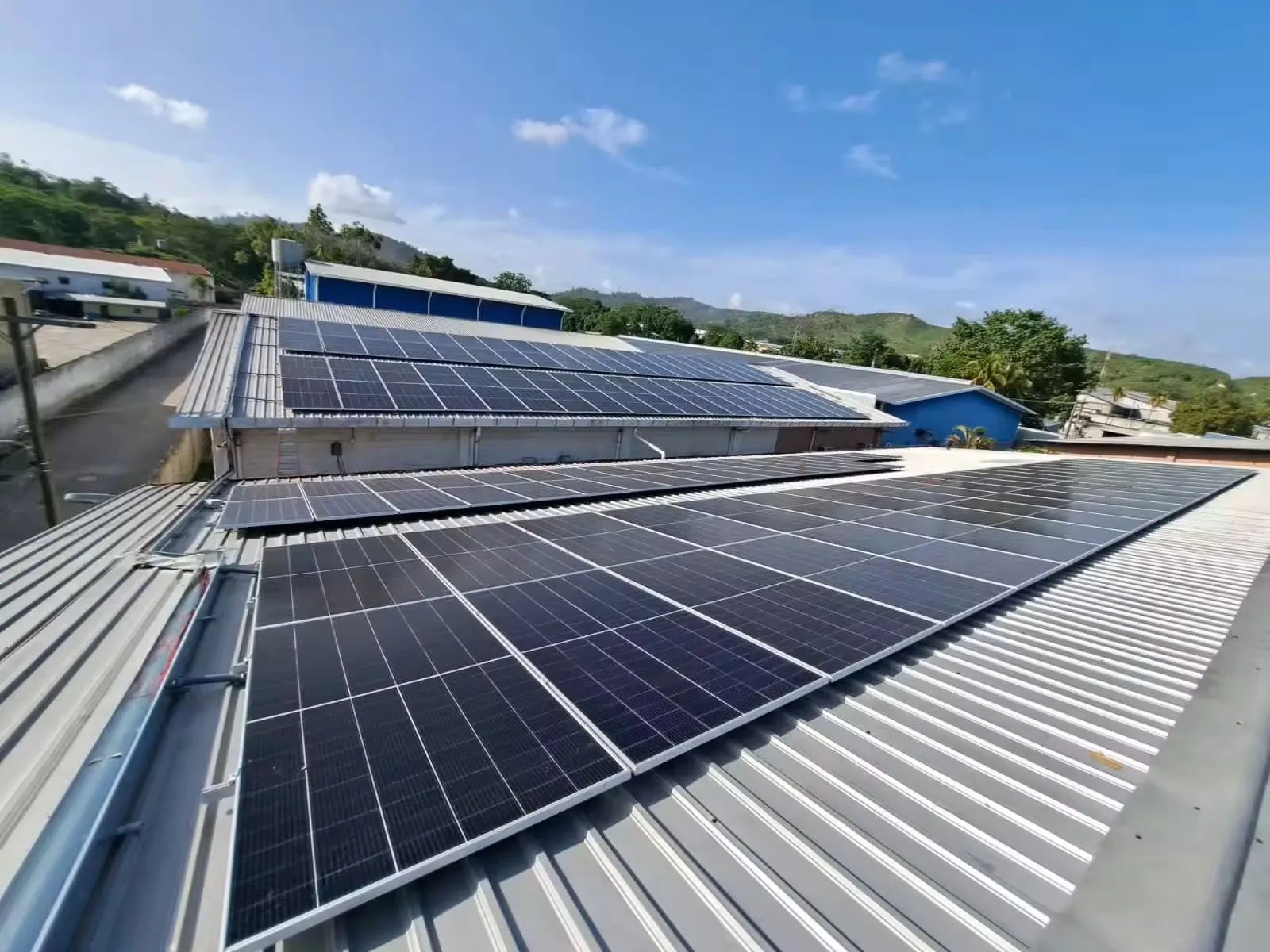

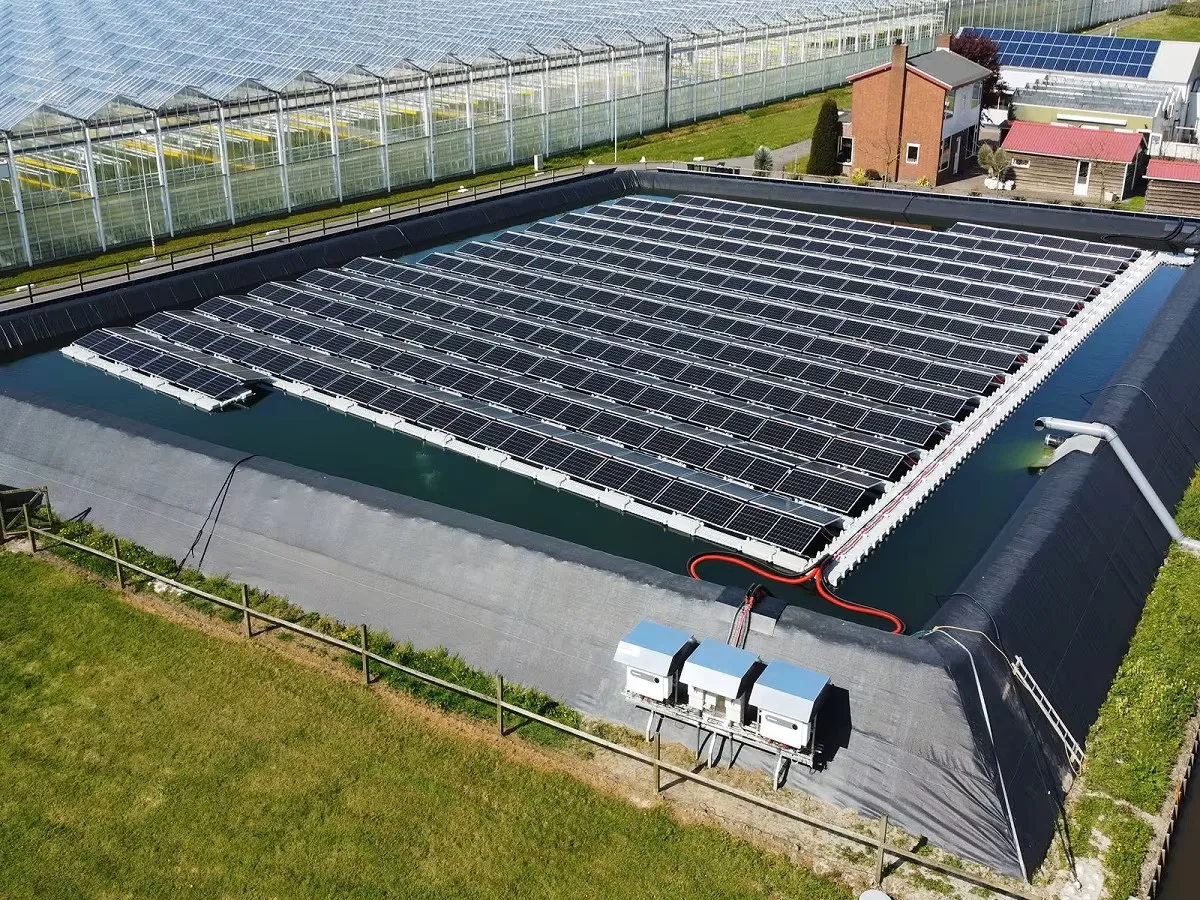

Projects

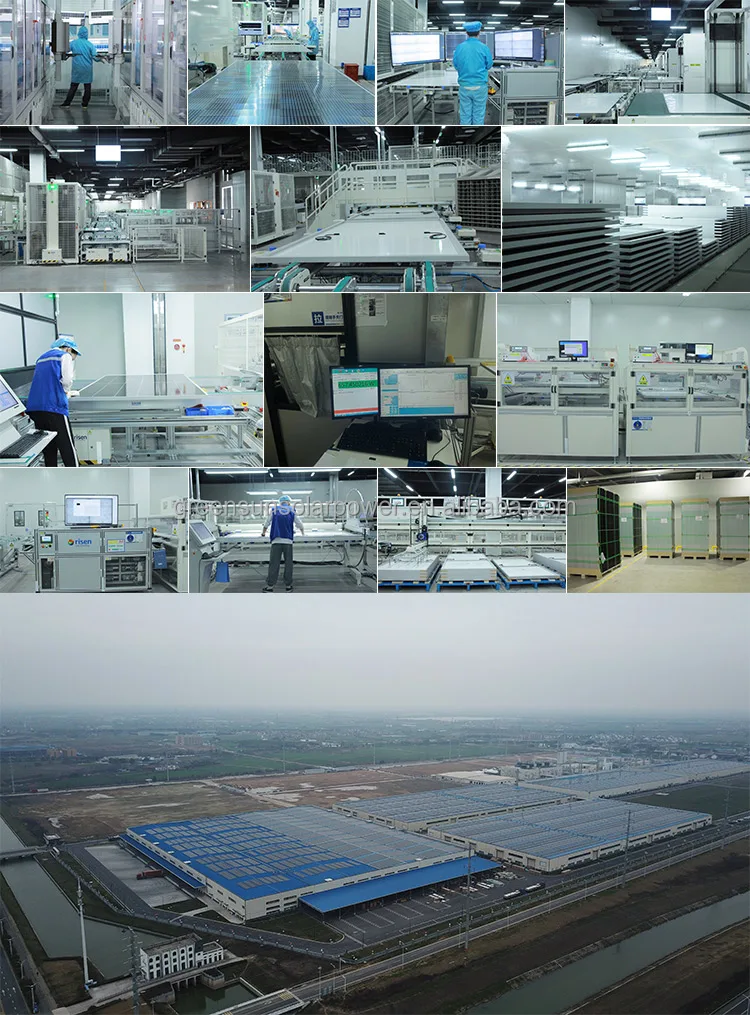

Company Profile
Exhibition
Product Description

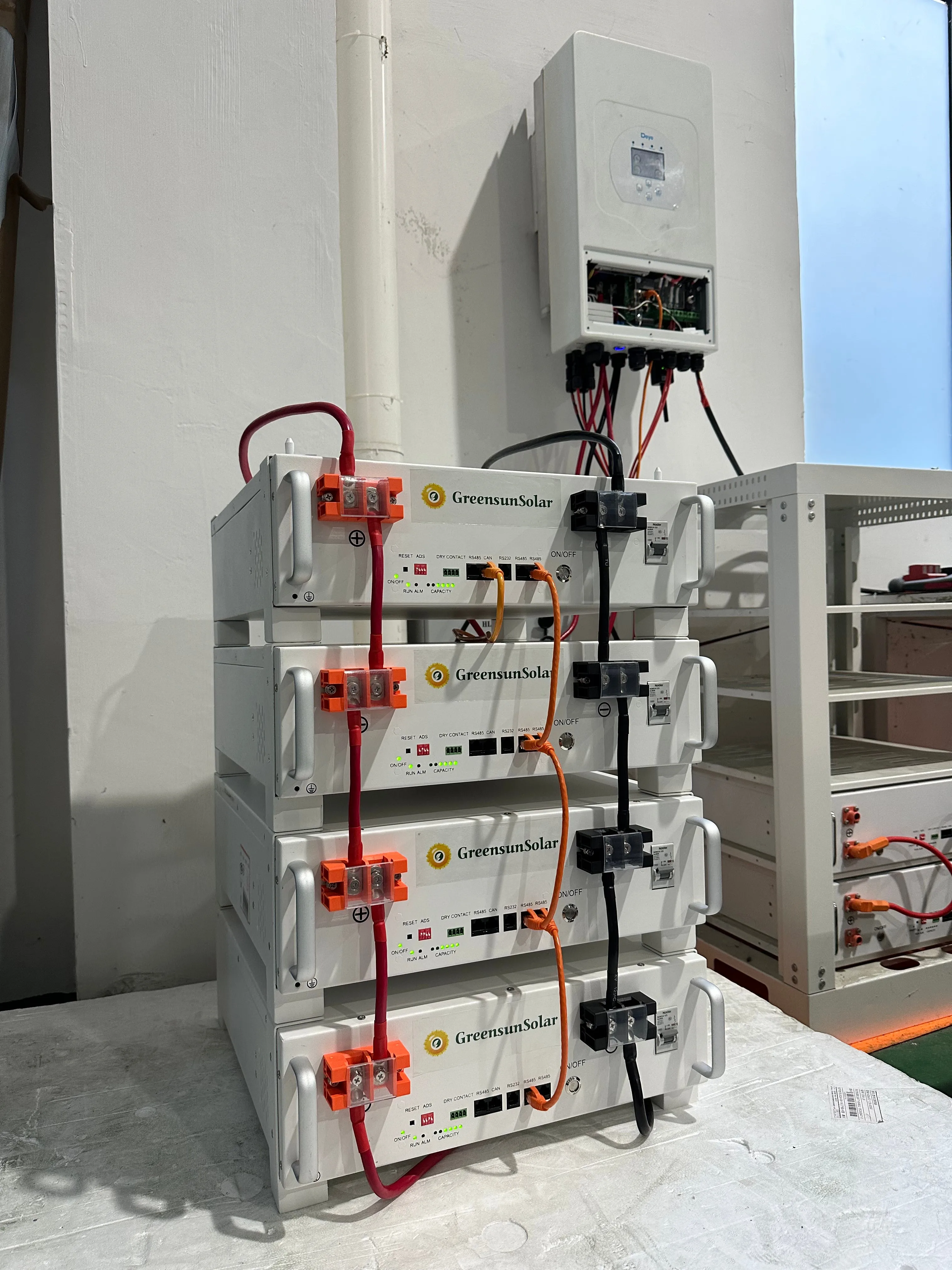

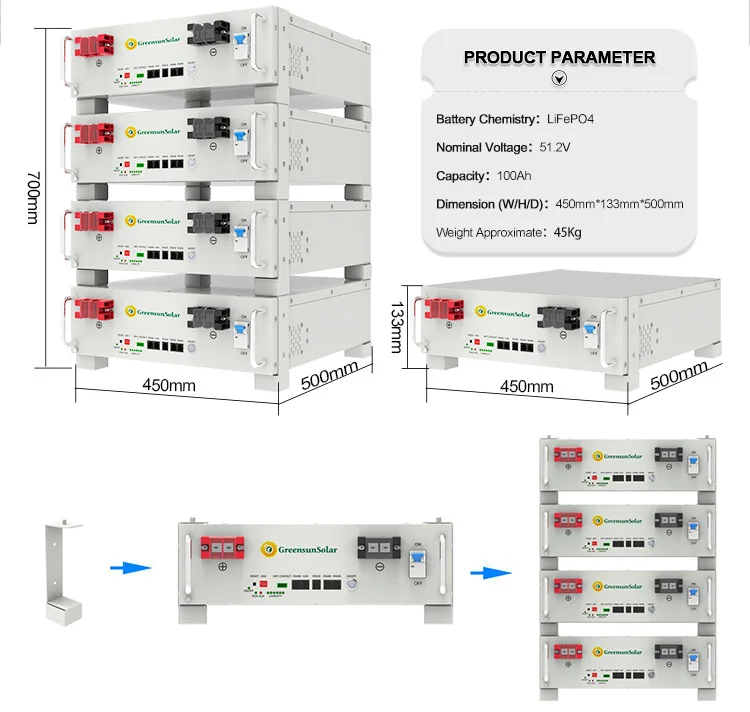

Installation Instructions
Specification

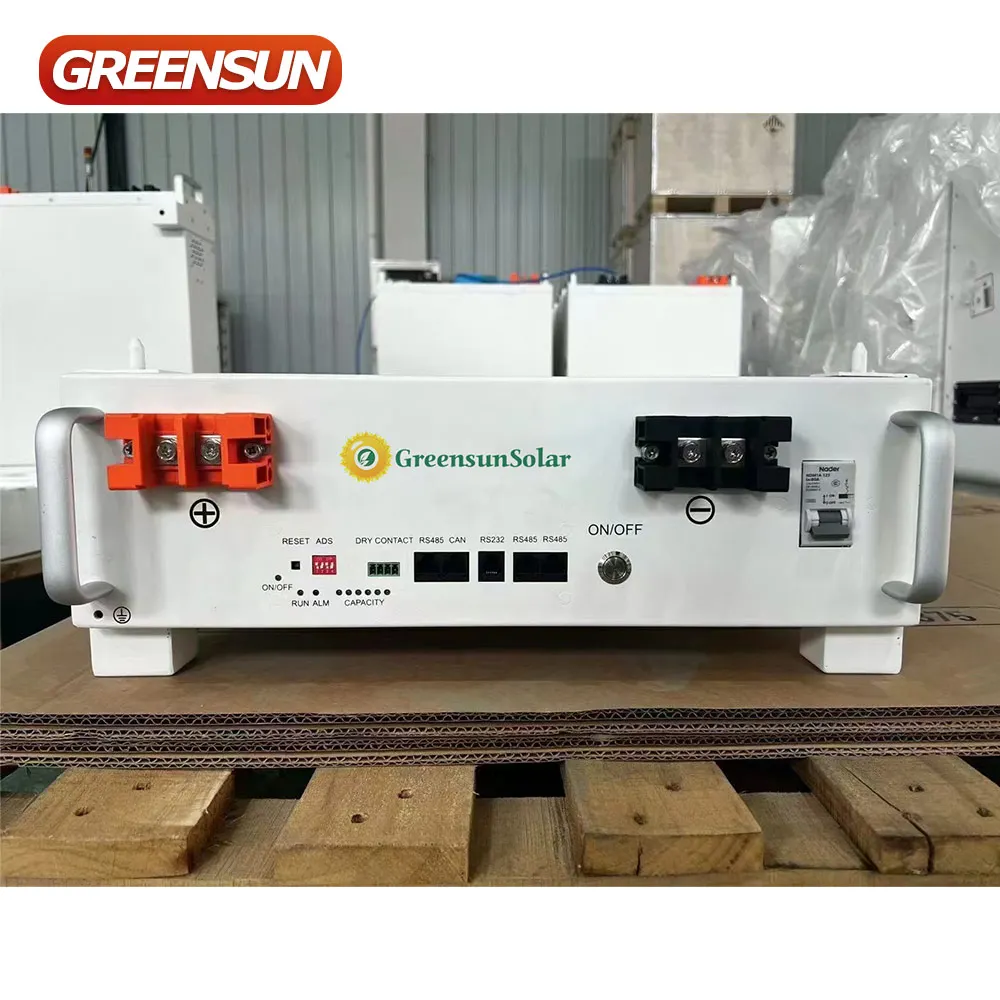

Model | GRB51.2-100Ah |
Battery Chemistry | LiFePO4 |
Capacity (Ah) | 100 |
Scalability | Max. 64 pcs pack (327kWh) in parallel |
Nominal Voltage (V) | 51.2 |
Operating Voltage(V) | 43.2~57.6 |
Energy (kWh) | 5.12 |
Charge/Discharge Current (A) | 50 Recommend/ 100 Max |
Dimension (W/H/D, mm) | 450*133*500 |
Weight Approximate(kg) | 45 |
IP Rating of enclosure | 20 |
Working Temperature | Charge:0℃~55℃ Discharge:-20℃~55℃ |
Cycle Life | ≥6000(25°C±2°C,0.5C/0.5C,90%DOD,70%EOL) |
Communication Port | CAN2.0, RS485 |

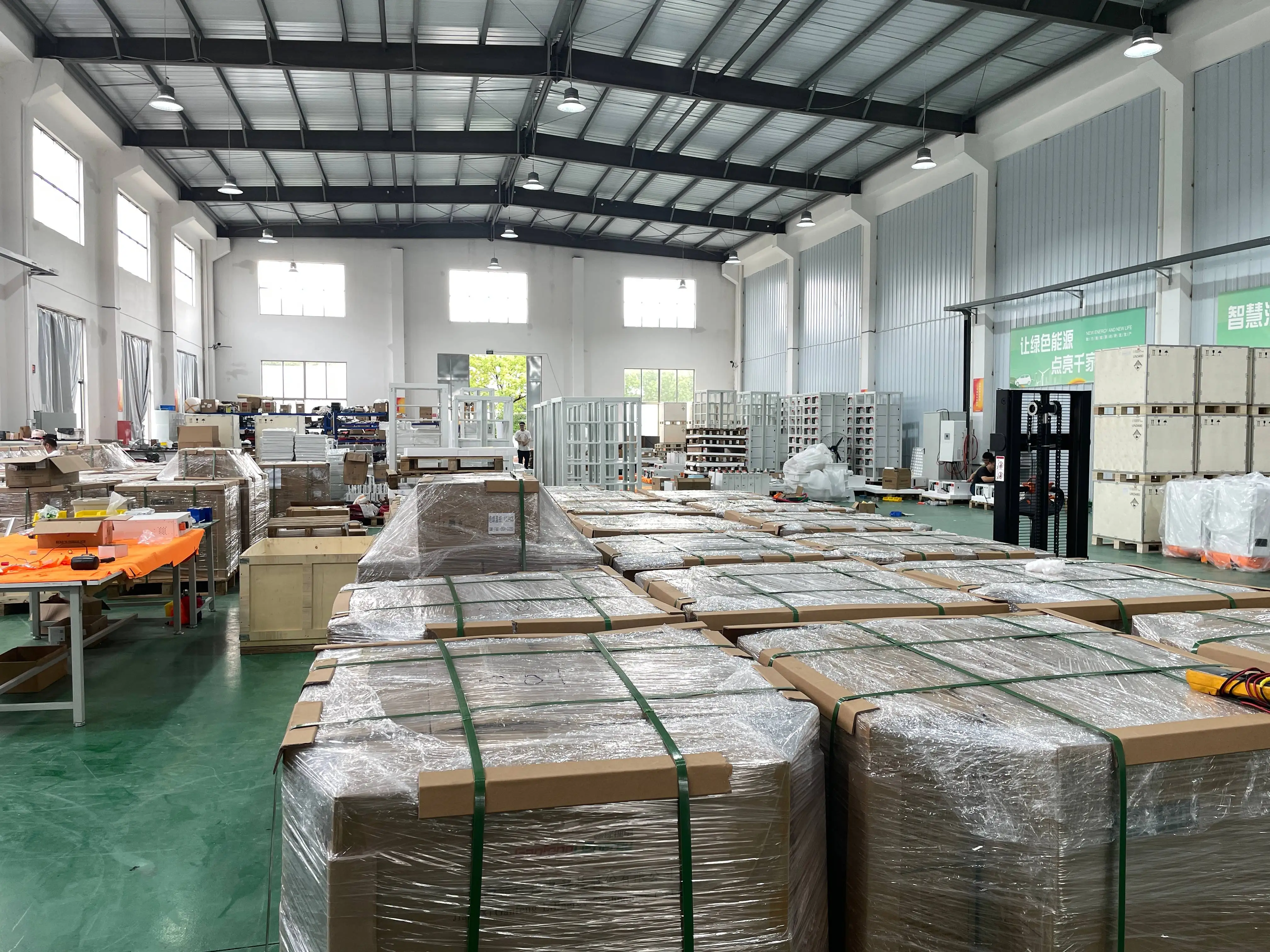

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

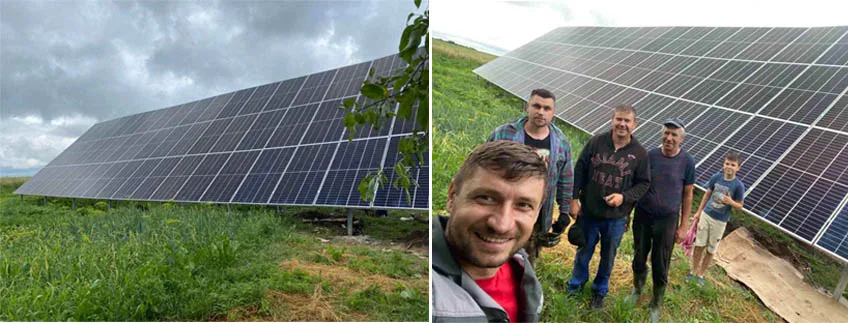

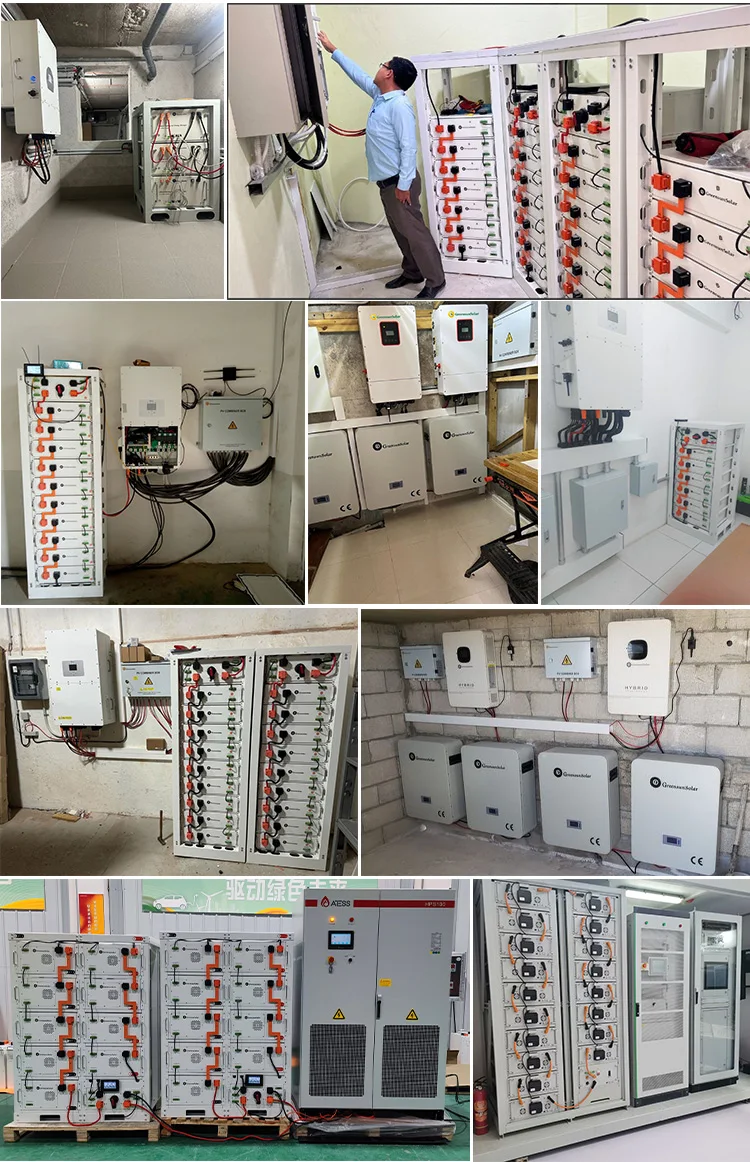

Projects
