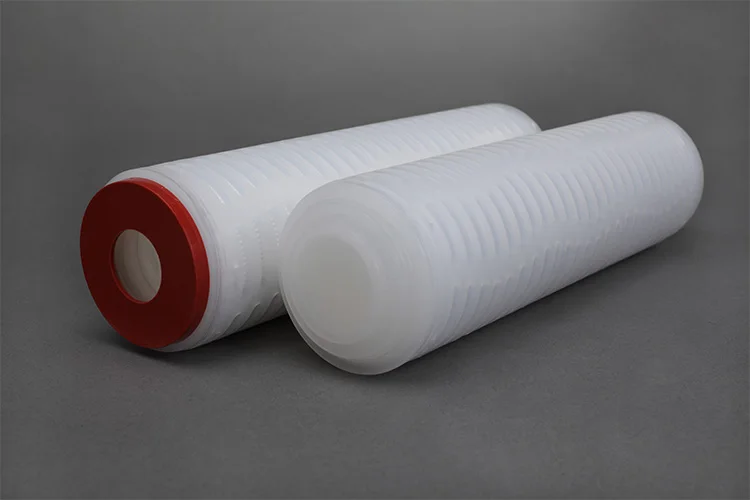

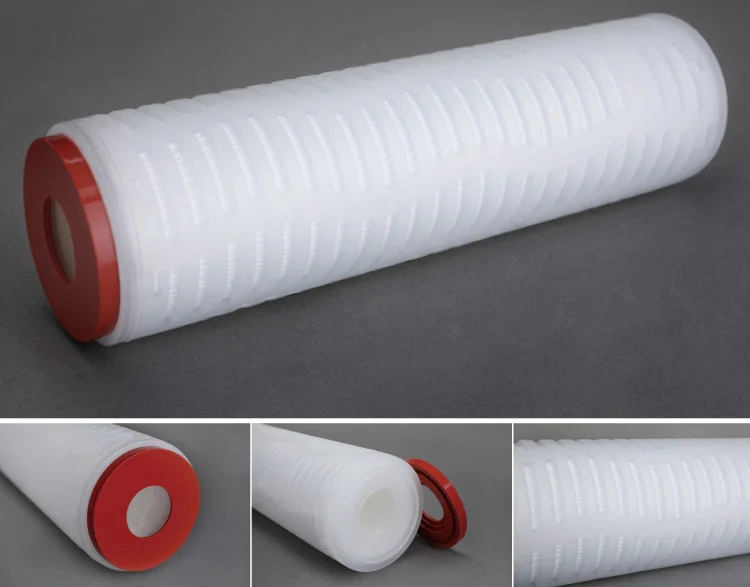

Abslute rate hydrophilic PES membrane 0.04 micron 10/20 /30 inch pleated filter cartridge for sterile filtration

Product Overview

Description

Food grade PES membrane filter cartridge for wine

Sterilization and filtration

Specification

Materials Of        Construction		Filter Media:		PES Membrane
		Support Layers:		Polypropylene
		Micron Rating:		0.04, 0.1, 0.2, 0.45, 0.65, 0.85, 1.2um
		Inner core:		Reinforced Polypropylene
		Outer Cage, End caps:		Reinforced Polypropylene
		Seal Method:		Thermal Bonded, No Adhesives
		O-rings/gaskets:		Silicone, Nitrile, EPDM, Viton,Teflon
Cartridge           Dimensions		Outer Diameter		69mm(2.75'')
		Inner Diameter		33mm(1.30'')
		Length(based on DOE end caps)		10", 20", 30", 40"
		Filtration Area(m2)		0.65 m2 per 10''
Operating           conditions		Normal Operating Temperature:		Up to 60℃ (140℉)
		Max.Operating Temperature:		85℃ (185℉) at P≤1.0 bar (14.5psi)
		Normal Flow direction:		4.2 bar (60 psi) at 25℃ (77℉)
		Reverse flow direction:		2.1 bar (30psi) at  25℃ (77℉).
		PH Value compatibility:		2 to 13
		Sterilization		Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:8hours;
Cartridge               Safety		Endotoxin:		<0.25 EU/ml
		Extractables:		0.03g / 10"

Features and Benefits

• Absolute rate inherently hydrophilic PES membrane filter for sterilizing grade filtration;


• Highly asymmetric PES membrane provides high dirt holding capacity and long service life;


• Higher throghput and flow-rate than any other sterilizing grade filter cartridge;


• Low protein binding, suit for a broad range of chemicals products;


• Excellent resistance to hydrolysis allows use in Ultra Pure Water(UPW) system.

Applications

• Sterile filtration for water, mineral water, wine, beer, and other beverages;


• Bacterial removal of API, LPV, blood serum, biologics, buffers, culture media ;


• Ultrapure water and disk, display, multi silicon process water in electronics;


• Fine chemicals, water process.
